Safety features of your vehicle
14
3

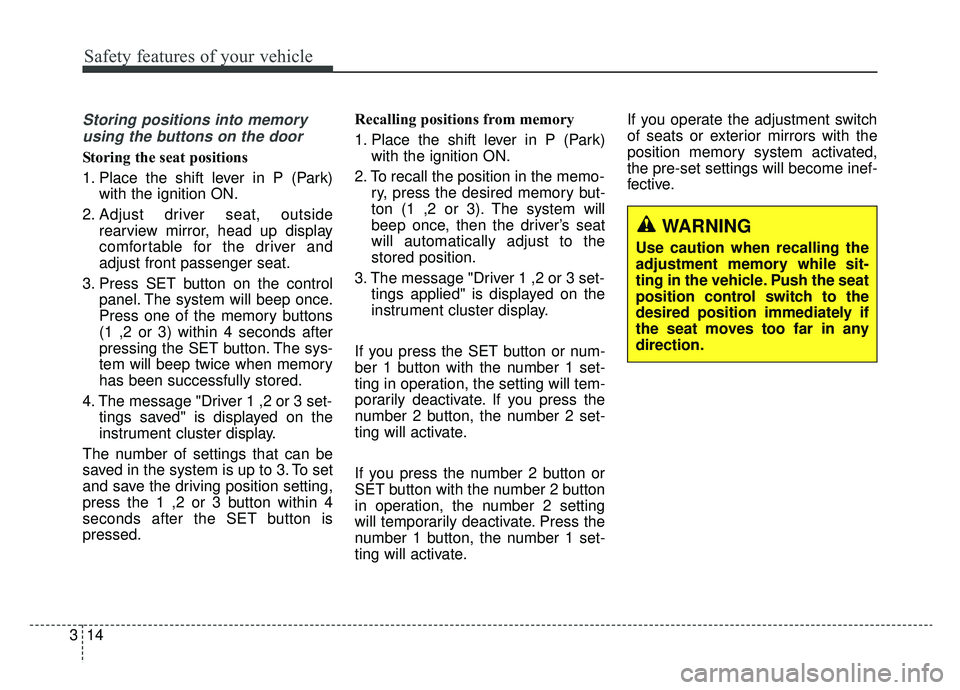

Storing positions into memory
using the buttons on the door
Storing the seat positions
1. Place the shift lever in P (Park) with the ignition ON.
2. Adjust driver seat, outside rearview mirror, head up display
comfortable for the driver and
adjust front passenger seat.
3. Press SET button on the control panel. The system will beep once.
Press one of the memory buttons
(1 ,2 or 3) within 4 seconds after
pressing the SET button. The sys-
tem will beep twice when memory
has been successfully stored.
4. The message "Driver 1 ,2 or 3 set- tings saved" is displayed on the
instrument cluster display.
The number of settings that can be
saved in the system is up to 3. To set
and save the driving position setting,
press the 1 ,2 or 3 button within 4
seconds after the SET button is
pressed. Recalling positions from memory
1. Place the shift lever in P (Park)
with the ignition ON.
2. To recall the position in the memo- ry, press the desired memory but-
ton (1 ,2 or 3). The system will
beep once, then the driver’s seat
will automatically adjust to the
stored position.
3. The message "Driver 1 ,2 or 3 set- tings applied" is displayed on the
instrument cluster display.
If you press the SET button or num-
ber 1 button with the number 1 set-
ting in operation, the setting will tem-
porarily deactivate. If you press the
number 2 button, the number 2 set-
ting will activate.
If you press the number 2 button or
SET button with the number 2 button
in operation, the number 2 setting
will temporarily deactivate. Press the
number 1 button, the number 1 set-
ting will activate. If you operate the adjustment switch
of seats or exterior mirrors with the
position memory system activated,
the pre-set settings will become inef-
fective.
WARNING
Use caution when recalling the
adjustment memory while sit-
ting in the vehicle. Push the seat
position control switch to the
desired position immediately if
the seat moves too far in any
direction.
Page 32 of 580
315
Safety features of your vehicle
Easy access function (if equipped)
To provide easier entry to or exit from
the vehicle for a driver, the driver’s
seat will be adjusted backwards as
far as the distance set by Vehicle set-
ting on the Navigation touch screen
in instrument panel. This occurs
when the Engine start/stop button is
off with the shift lever in the P posi-
tion. If, however, the distance
between the front seat and back
seats are too close, the driver’s seat
could fail to adjust itself backwards.
The steering wheel regularly checks
and fine-tunes itself to find the right
location (the original location) by
going up as high as possible and
moving as close as possible to a
driver.The driver’s seat and steering wheel
will move back to its original position
when a driver closes a driver’s door
with a smart key in his pocket and
the engine start/stop button is in ON
or in ACC.
You can activate or deactivate this
feature. Refer to "Set Up" in
Navigation touch screen in instru-
ment panel.
Front seat position memory sys-
tem initialization
If the function does not operate nor-
mally, initialize as follows.
Initialization method
1. When the vehicle is stopped and
the engine start/stop button is ON,
place the automatic transmission
lever to P and then open the driver's
door.
2. Pull the seat forward as far as pos-
sible using the position and angle
adjustment driver`s switch.
3. Press the SET button and the dri-
ver's seat forward movement switch
simultaneously for about 2 seconds.
Initialization process
1.The alarm sounds and the initial-
ization process starts.
2.The seat and backrest automati-
cally move backwards. With the seat
and backrest moving, the alarm con-
tinues to sound.
3.The seat and backrest will move to
the center again and the alarm
sounds. This signals the initialization
is completed.
Page 33 of 580
Safety features of your vehicle
16
3

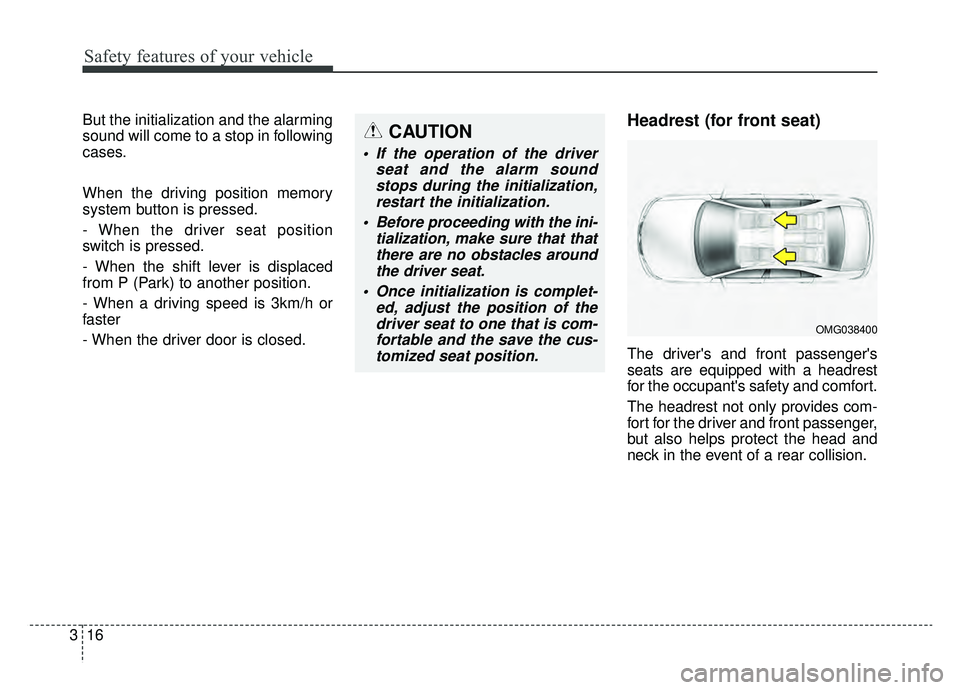

But the initialization and the alarming
sound will come to a stop in following
cases.
When the driving position memory
system button is pressed.
- When the driver seat position
switch is pressed.
- When the shift lever is displaced
from P (Park) to another position.
- When a driving speed is 3km/h or
faster
- When the driver door is closed.Headrest (for front seat)
The driver's and front passenger's
seats are equipped with a headrest
for the occupant's safety and comfort.
The headrest not only provides com-
fort for the driver and front passenger,
but also helps protect the head and
neck in the event of a rear collision.
OMG038400
CAUTION
If the operation of the driver
seat and the alarm soundstops during the initialization,restart the initialization.
Before proceeding with the ini- tialization, make sure that thatthere are no obstacles aroundthe driver seat.
Once initialization is complet- ed, adjust the position of thedriver seat to one that is com-fortable and the save the cus-tomized seat position.
Page 34 of 580
317
Safety features of your vehicle

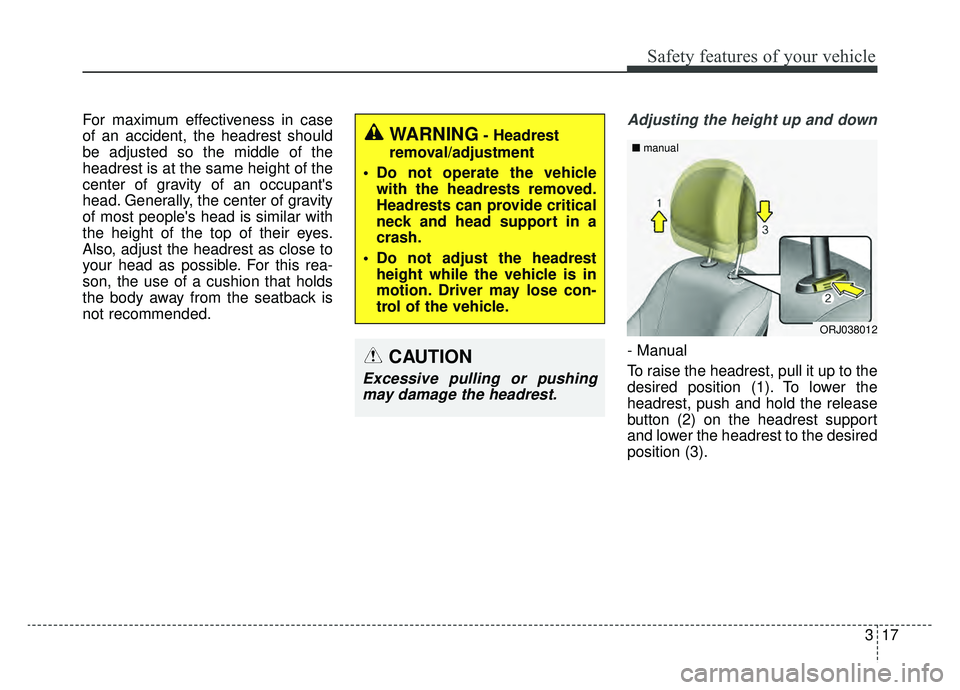

For maximum effectiveness in case
of an accident, the headrest should
be adjusted so the middle of the
headrest is at the same height of the
center of gravity of an occupant's
head. Generally, the center of gravity
of most people's head is similar with
the height of the top of their eyes.
Also, adjust the headrest as close to
your head as possible. For this rea-
son, the use of a cushion that holds
the body away from the seatback is
not recommended.Adjusting the height up and down
- Manual
To raise the headrest, pull it up to the
desired position (1). To lower the
headrest, push and hold the release
button (2) on the headrest support
and lower the headrest to the desired
position (3).
WARNING- Headrest
removal/adjustment
Do not operate the vehicle with the headrests removed.
Headrests can provide critical
neck and head support in a
crash.
Do not adjust the headrest height while the vehicle is in
motion. Driver may lose con-
trol of the vehicle.
CAUTION
Excessive pulling or pushingmay damage the headrest.
ORJ038012
■
manual
Page 35 of 580
Safety features of your vehicle
18
3
- Power (if equipped)
To raise the headrest, move the
switch up to raise it and down to
lower it.
Forward and backward adjustment
- Manual
The headrest may be adjusted for-
ward to 4 different positions by
pulling the headrest forward to the
desired detent.
To adjust the headrest to it’s furthest
backwards position, pull the headrest
fully forward to the farthest position
and release it. Adjust the headrest so
that it properly supports the head
and neck. - Power (if equipped)
Use the switch to adjust the front and
rear position of the headrest. When
the switch is pulled forward, the
headrest moves in the front direction.
When it is pulled back, it moves in
the backward direction.
ORJ038014
■
power
ORJ038011
■manual
ORJ038013
■power
Page 36 of 580
319
Safety features of your vehicle
✽ ✽

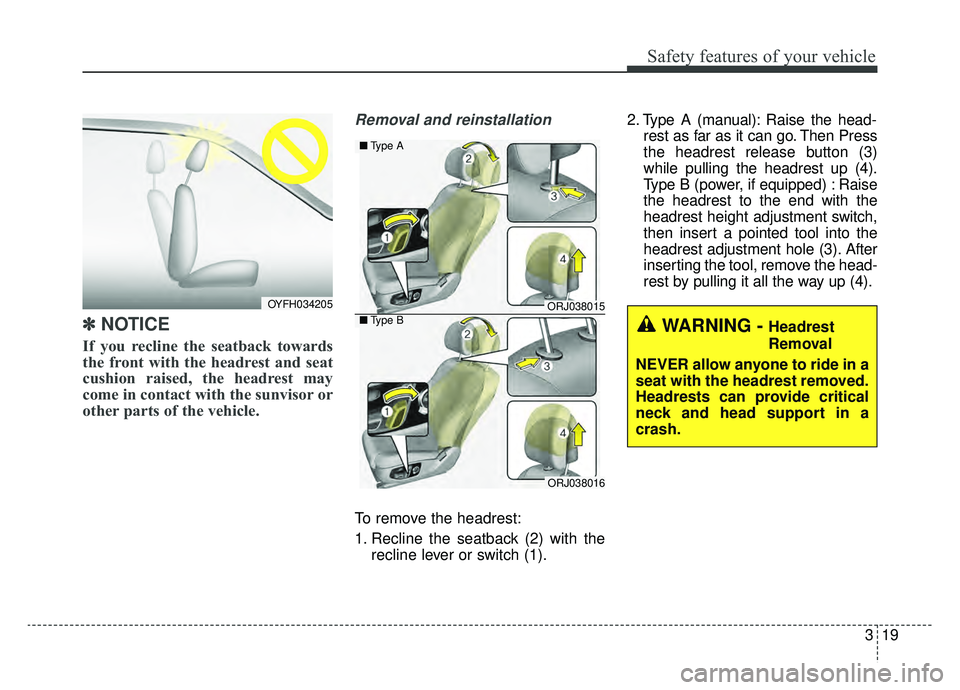

NOTICE
If you recline the seatback towards
the front with the headrest and seat
cushion raised, the headrest may
come in contact with the sunvisor or
other parts of the vehicle.
Removal and reinstallation
To remove the headrest:
1. Recline the seatback (2) with the
recline lever or switch (1). 2. Type A (manual): Raise the head-
rest as far as it can go. Then Press
the headrest release button (3)
while pulling the headrest up (4).
Type B (power, if equipped) : Raise
the headrest to the end with the
headrest height adjustment switch,
then insert a pointed tool into the
headrest adjustment hole (3). After
inserting the tool, remove the head-
rest by pulling it all the way up (4).
WARNING - Headrest
Removal
NEVER allow anyone to ride in a
seat with the headrest removed.
Headrests can provide critical
neck and head support in a
crash.
OYFH034205ORJ038015
ORJ038016
■ Type B
■Type A
Page 37 of 580
Safety features of your vehicle
20
3

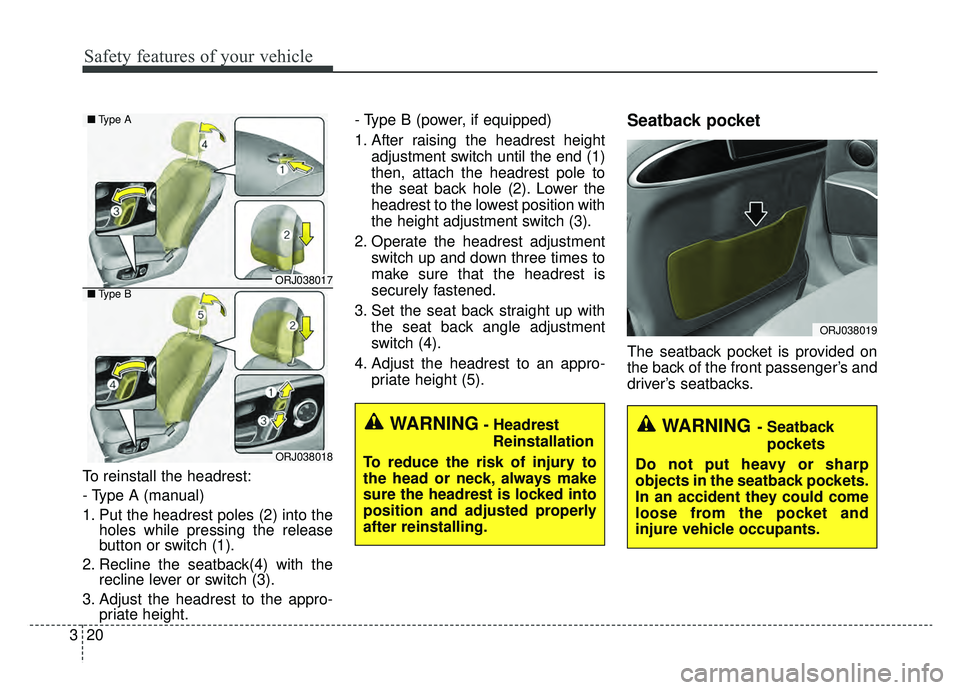

To reinstall the headrest:
- Type A (manual)
1. Put the headrest poles (2) into the
holes while pressing the release
button or switch (1).
2. Recline the seatback(4) with the recline lever or switch (3).
3. Adjust the headrest to the appro- priate height. - Type B (power, if equipped)
1. After raising the headrest height
adjustment switch until the end (1)
then, attach the headrest pole to
the seat back hole (2). Lower the
headrest to the lowest position with
the height adjustment switch (3).
2. Operate the headrest adjustment switch up and down three times to
make sure that the headrest is
securely fastened.
3. Set the seat back straight up with the seat back angle adjustment
switch (4).
4. Adjust the headrest to an appro- priate height (5).
Seatback pocket
The seatback pocket is provided on
the back of the front passenger’s and
driver’s seatbacks.
ORJ038019
WARNING- Seatback
pockets
Do not put heavy or sharp
objects in the seatback pockets.
In an accident they could come
loose from the pocket and
injure vehicle occupants.WARNING- Headrest Reinstallation
To reduce the risk of injury to
the head or neck, always make
sure the headrest is locked into
position and adjusted properly
after reinstalling.
ORJ038017
ORJ038018
■ Type B
■Type A
Page 38 of 580
321
Safety features of your vehicle

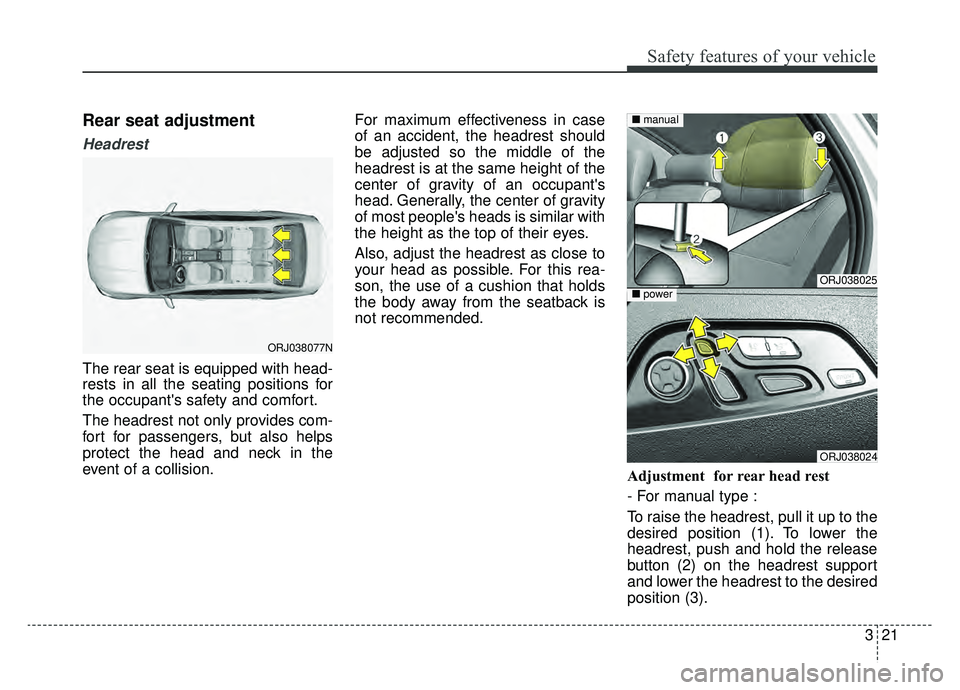

Rear seat adjustment
Headrest
The rear seat is equipped with head-
rests in all the seating positions for
the occupant's safety and comfort.
The headrest not only provides com-
fort for passengers, but also helps
protect the head and neck in the
event of a collision.For maximum effectiveness in case
of an accident, the headrest should
be adjusted so the middle of the
headrest is at the same height of the
center of gravity of an occupant's
head. Generally, the center of gravity
of most people's heads is similar with
the height as the top of their eyes.
Also, adjust the headrest as close to
your head as possible. For this rea-
son, the use of a cushion that holds
the body away from the seatback is
not recommended.
Adjustment for rear head rest
- For manual type :
To raise the headrest, pull it up to the
desired position (1). To lower the
headrest, push and hold the release
button (2) on the headrest support
and lower the headrest to the desired
position (3).
ORJ038077N
ORJ038025
ORJ038024
■power
■manual
Page 39 of 580
Safety features of your vehicle
22
3

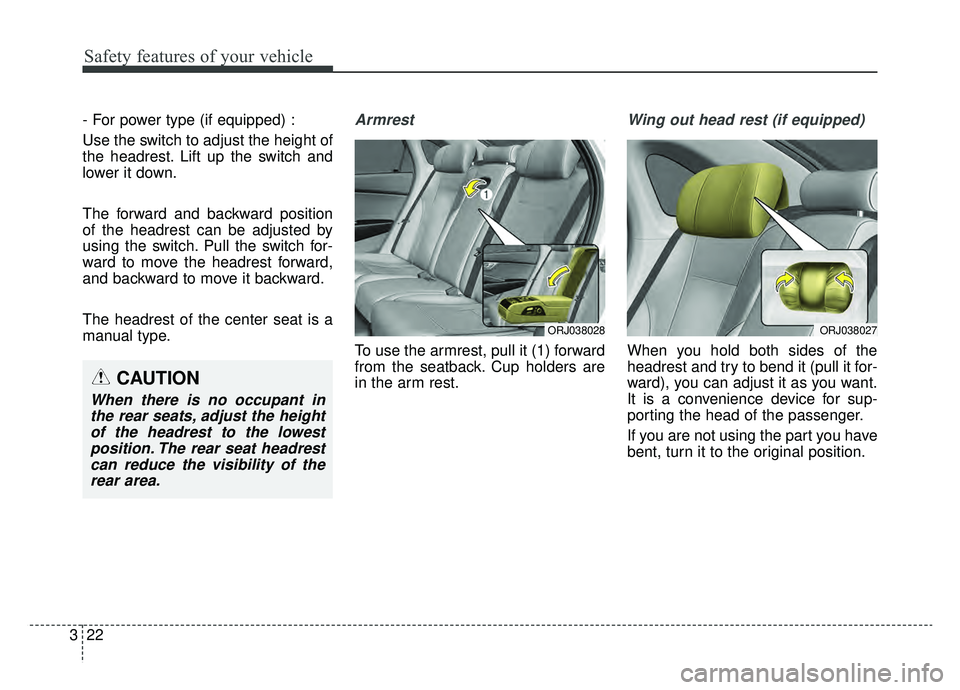

- For power type (if equipped) :
Use the switch to adjust the height of
the headrest. Lift up the switch and
lower it down.
The forward and backward position
of the headrest can be adjusted by
using the switch. Pull the switch for-
ward to move the headrest forward,
and backward to move it backward.
The headrest of the center seat is a
manual type.Armrest
To use the armrest, pull it (1) forward
from the seatback. Cup holders are
in the arm rest.
Wing out head rest (if equipped)
When you hold both sides of the
headrest and try to bend it (pull it for-
ward), you can adjust it as you want.
It is a convenience device for sup-
porting the head of the passenger.
If you are not using the part you have
bent, turn it to the original position.
ORJ038028
CAUTION
When there is no occupant in
the rear seats, adjust the heightof the headrest to the lowestposition. The rear seat headrestcan reduce the visibility of therear area.
ORJ038027
Page 40 of 580
323
Safety features of your vehicle

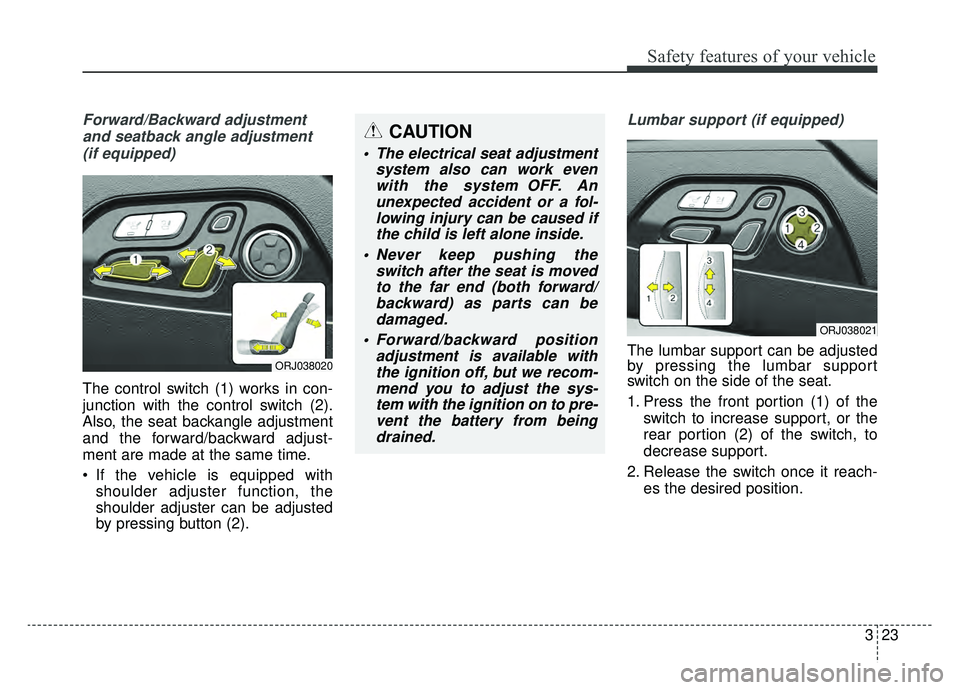

Forward/Backward adjustmentand seatback angle adjustment (if equipped)
The control switch (1) works in con-
junction with the control switch (2).
Also, the seat backangle adjustment
and the forward/backward adjust-
ment are made at the same time.
If the vehicle is equipped with shoulder adjuster function, the
shoulder adjuster can be adjusted
by pressing button (2).
Lumbar support (if equipped)
The lumbar support can be adjusted
by pressing the lumbar support
switch on the side of the seat.
1. Press the front portion (1) of the
switch to increase support, or the
rear portion (2) of the switch, to
decrease support.
2. Release the switch once it reach- es the desired position.ORJ038020
CAUTION
The electrical seat adjustmentsystem also can work evenwith the system OFF. Anunexpected accident or a fol-lowing injury can be caused ifthe child is left alone inside.
Never keep pushing the switch after the seat is movedto the far end (both forward/backward) as parts can bedamaged.
Forward/backward position adjustment is available withthe ignition off, but we recom-mend you to adjust the sys-tem with the ignition on to pre-vent the battery from beingdrained.
ORJ038021
