Safety features of your vehicle
24
3
3. Press the upper portion (3) of the
switch to move the support posi-
tion up, or press the lower portion
(4) of the switch, to move the sup-
port position down.
4. Release the switch once it reach- es the desired position.Rear Relaxation Seat system(for
rear right passenger’s seat)
Press Front button (Switch ON) to adjust the seat position. You can
adjust the forward/backward move-
ment (1) of the front passenger
seat, its angle (2), and the height of
the headrest (3). If you press the
button again to switch off, you can
adjust the rear right passenger
seat. For the convenience of the pas-
senger sitting in the rear right pas-
senger`s seat, the seat allows a
person to adjust both the rear right
passenger`s seat and the front
passenger seat by operating the
rear right passenger`s seat switch-
es. But the rear relaxation seat sys-
tem doesn’t work if a person is sit-
ting in the front passenger seat or
the door of front passenger seat is
opened.
ORJ038022
ORJ038023
Page 42 of 580
325
Safety features of your vehicle

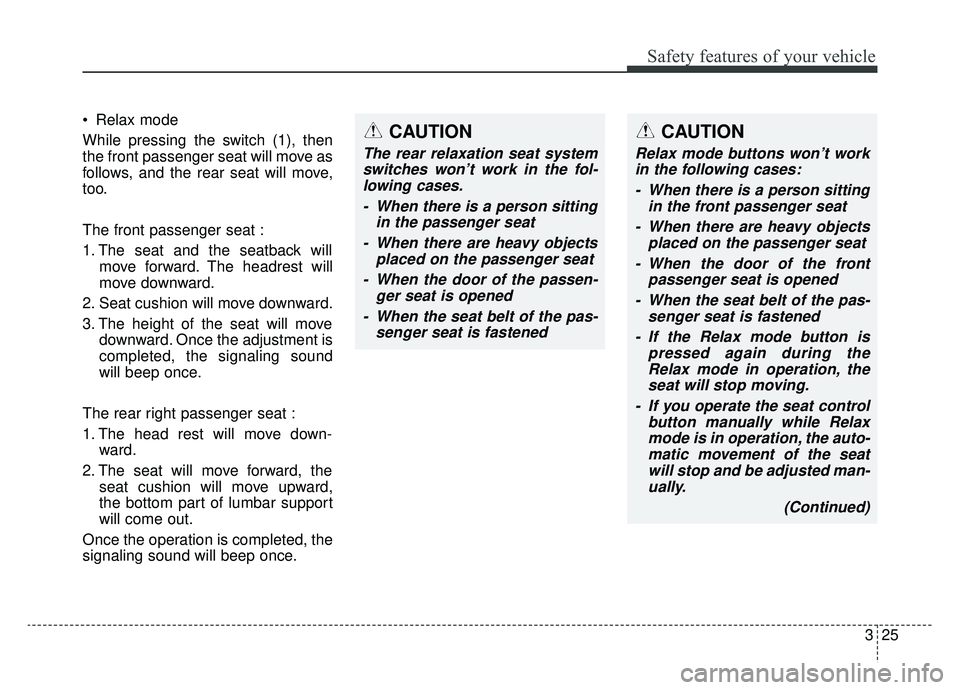

Relax mode
While pressing the switch (1), then
the front passenger seat will move as
follows, and the rear seat will move,
too.
The front passenger seat :
1. The seat and the seatback willmove forward. The headrest will
move downward.
2. Seat cushion will move downward.
3. The height of the seat will move downward. Once the adjustment is
completed, the signaling sound
will beep once.
The rear right passenger seat :
1. The head rest will move down- ward.
2. The seat will move forward, the seat cushion will move upward,
the bottom part of lumbar support
will come out.
Once the operation is completed, the
signaling sound will beep once.CAUTION
The rear relaxation seat system switches won’t work in the fol-lowing cases.
- When there is a person sitting in the passenger seat
- When there are heavy objects placed on the passenger seat
- When the door of the passen- ger seat is opened
- When the seat belt of the pas- senger seat is fastened
CAUTION
Relax mode buttons won’t workin the following cases:
- When there is a person sitting in the front passenger seat
- When there are heavy objects placed on the passenger seat
- When the door of the front passenger seat is opened
- When the seat belt of the pas- senger seat is fastened
- If the Relax mode button is pressed again during theRelax mode in operation, theseat will stop moving.
- If you operate the seat control button manually while Relaxmode is in operation, the auto-matic movement of the seatwill stop and be adjusted man-ually.
(Continued)
Page 43 of 580
Safety features of your vehicle
26
3
Relax mode return
Press switch (2), then the rear seats
will move as follows and the passen-
ger seat will move.
Rear right passenger seat :
1. The seat will move back to the far
end.
2. The seat cushion will move down to the far end, and the lumbar sup-
port will move backward.
3. The headrest will move downward.
The front passenger seat :
1. The seat will move backward, and the seat back will move backward,
and the seat cushion will move
downward.
2. The headrest will move down to the far end, and the seat height
will move upward.(Continued)
- When using the relax mode, do not place any object on thefront passenger's seat cush-ion, as the seat seat back willbe folded and objects placedon the front passenger seatmay be damaged.CAUTION
Return Mode Button will notwork in the following cases.
- When there is a person sitting in the passenger seat
- When there are heavy objects placed on the passenger seat
- When the door of the passen- ger seat is opened
- When the seat belt of the pas- senger seat is fastened
CAUTION
If you press the return modebutton again while the returnmode is in process, the seatmovement will stop.
If you manually operate the seat adjustment button whilethe return mode is in process,the automatic seat move willstop and be adjusted manually.
Page 44 of 580
327
Safety features of your vehicle

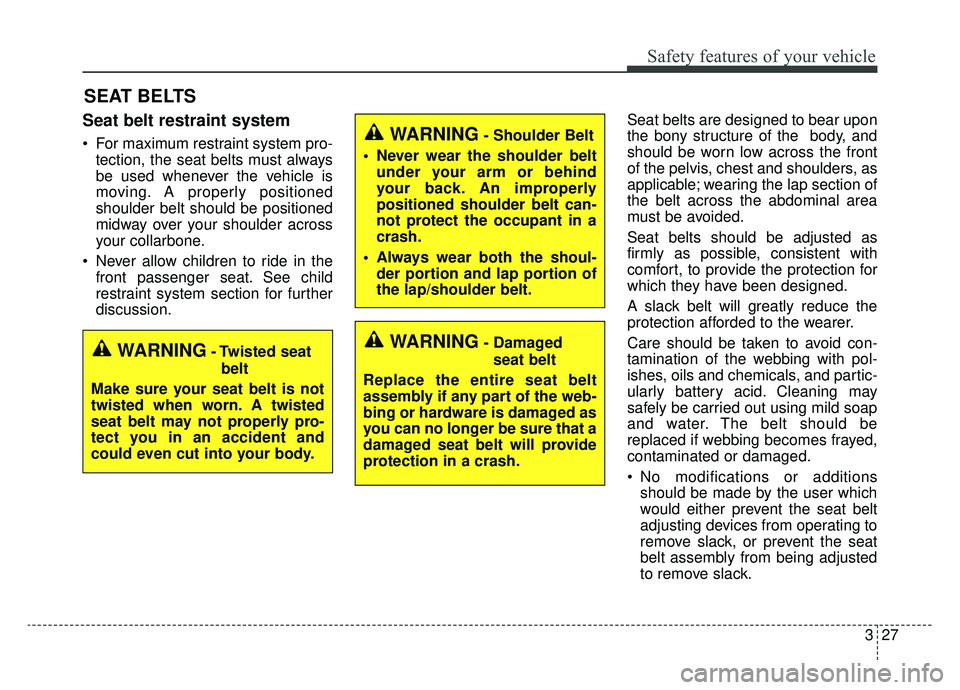

SEAT BELTS
Seat belt restraint system
For maximum restraint system pro-tection, the seat belts must always
be used whenever the vehicle is
moving. A properly positioned
shoulder belt should be positioned
midway over your shoulder across
your collarbone.
Never allow children to ride in the front passenger seat. See child
restraint system section for further
discussion. Seat belts are designed to bear upon
the bony structure of the body, and
should be worn low across the front
of the pelvis, chest and shoulders, as
applicable; wearing the lap section of
the belt across the abdominal area
must be avoided.
Seat belts should be adjusted as
firmly as possible, consistent with
comfort, to provide the protection for
which they have been designed.
A slack belt will greatly reduce the
protection afforded to the wearer.
Care should be taken to avoid con-
tamination of the webbing with pol-
ishes, oils and chemicals, and partic-
ularly battery acid. Cleaning may
safely be carried out using mild soap
and water. The belt should be
replaced if webbing becomes frayed,
contaminated or damaged.
No modifications or additions
should be made by the user which
would either prevent the seat belt
adjusting devices from operating to
remove slack, or prevent the seat
belt assembly from being adjusted
to remove slack.
WARNING- Damaged
seat belt
Replace the entire seat belt
assembly if any part of the web-
bing or hardware is damaged as
you can no longer be sure that a
damaged seat belt will provide
protection in a crash.WARNING- Twisted seat belt
Make sure your seat belt is not
twisted when worn. A twisted
seat belt may not properly pro-
tect you in an accident and
could even cut into your body.
WARNING- Shoulder Belt
Never wear the shoulder belt under your arm or behind
your back. An improperly
positioned shoulder belt can-
not protect the occupant in a
crash.
Always wear both the shoul- der portion and lap portion of
the lap/shoulder belt.
Page 45 of 580
Safety features of your vehicle
28
3

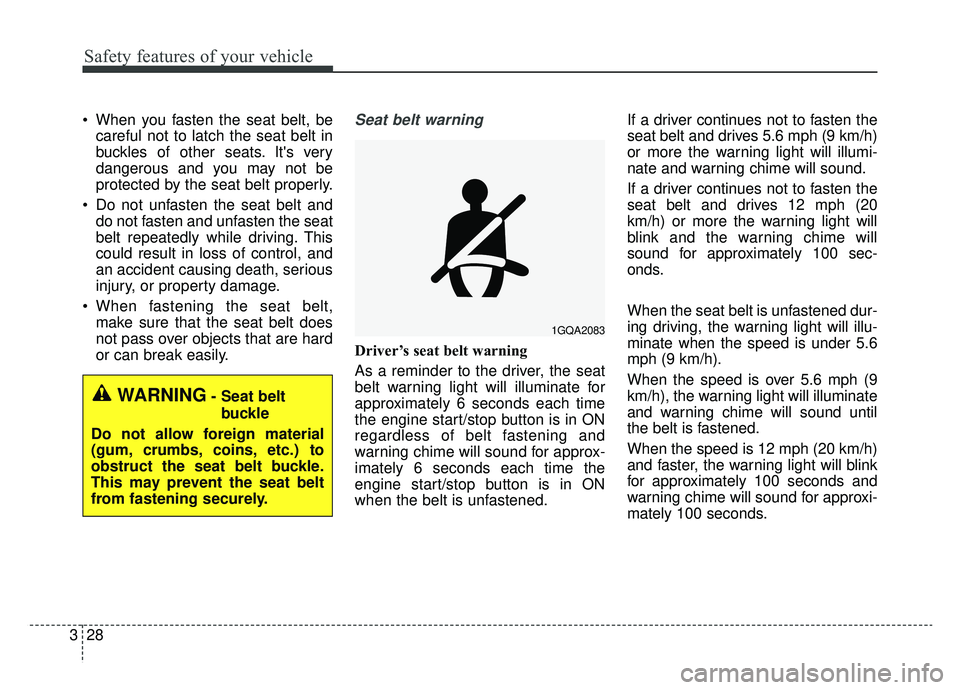

When you fasten the seat belt, be
careful not to latch the seat belt in
buckles of other seats. It's very
dangerous and you may not be
protected by the seat belt properly.
Do not unfasten the seat belt and do not fasten and unfasten the seat
belt repeatedly while driving. This
could result in loss of control, and
an accident causing death, serious
injury, or property damage.
When fastening the seat belt, make sure that the seat belt does
not pass over objects that are hard
or can break easily.Seat belt warning
Driver’s seat belt warning
As a reminder to the driver, the seat
belt warning light will illuminate for
approximately 6 seconds each time
the engine start/stop button is in ON
regardless of belt fastening and
warning chime will sound for approx-
imately 6 seconds each time the
engine start/stop button is in ON
when the belt is unfastened. If a driver continues not to fasten the
seat belt and drives 5.6 mph (9 km/h)
or more the warning light will illumi-
nate and warning chime will sound.
If a driver continues not to fasten the
seat belt and drives 12 mph (20
km/h) or more the warning light will
blink and the warning chime will
sound for approximately 100 sec-
onds.
When the seat belt is unfastened dur-
ing driving, the warning light will illu-
minate when the speed is under 5.6
mph (9 km/h).
When the speed is over 5.6 mph (9
km/h), the warning light will illuminate
and warning chime will sound until
the belt is fastened.
When the speed is 12 mph (20 km/h)
and faster, the warning light will blink
for approximately 100 seconds and
warning chime will sound for approxi-
mately 100 seconds.
WARNING- Seat belt
buckle
Do not allow foreign material
(gum, crumbs, coins, etc.) to
obstruct the seat belt buckle.
This may prevent the seat belt
from fastening securely.
1GQA2083
Page 46 of 580
329
Safety features of your vehicle

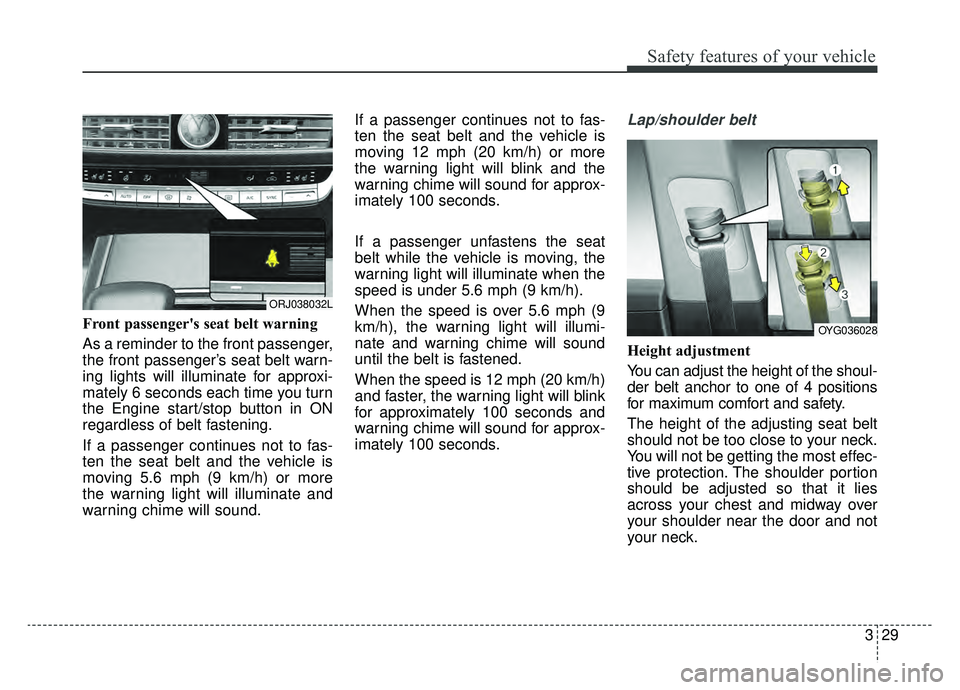

Front passenger's seat belt warning
As a reminder to the front passenger,
the front passenger’s seat belt warn-
ing lights will illuminate for approxi-
mately 6 seconds each time you turn
the Engine start/stop button in ON
regardless of belt fastening.
If a passenger continues not to fas-
ten the seat belt and the vehicle is
moving 5.6 mph (9 km/h) or more
the warning light will illuminate and
warning chime will sound.If a passenger continues not to fas-
ten the seat belt and the vehicle is
moving 12 mph (20 km/h) or more
the warning light will blink and the
warning chime will sound for approx-
imately 100 seconds.
If a passenger unfastens the seat
belt while the vehicle is moving, the
warning light will illuminate when the
speed is under 5.6 mph (9 km/h).
When the speed is over 5.6 mph (9
km/h), the warning light will illumi-
nate and warning chime will sound
until the belt is fastened.
When the speed is 12 mph (20 km/h)
and faster, the warning light will blink
for approximately 100 seconds and
warning chime will sound for approx-
imately 100 seconds.
Lap/shoulder belt
Height adjustment
You can adjust the height of the shoul-
der belt anchor to one of 4 positions
for maximum comfort and safety.
The height of the adjusting seat belt
should not be too close to your neck.
You will not be getting the most effec-
tive protection. The shoulder portion
should be adjusted so that it lies
across your chest and midway over
your shoulder near the door and not
your neck.
OYG036028
ORJ038032L
Page 47 of 580
Safety features of your vehicle
30
3

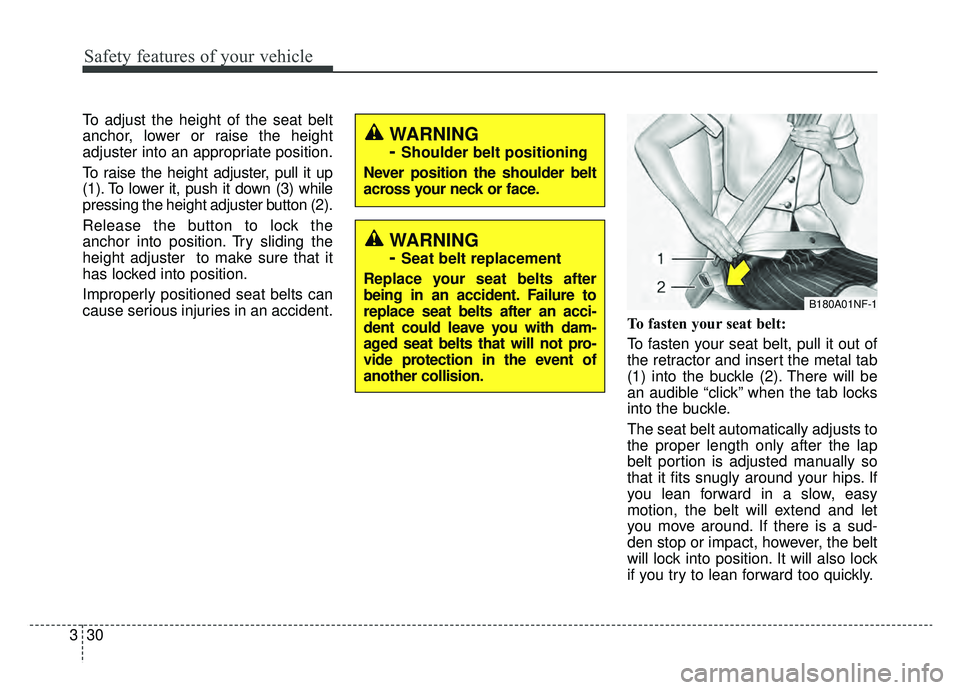

To adjust the height of the seat belt
anchor, lower or raise the height
adjuster into an appropriate position.
To raise the height adjuster, pull it up
(1). To lower it, push it down (3) while
pressing the height adjuster button (2).
Release the button to lock the
anchor into position. Try sliding the
height adjuster to make sure that it
has locked into position.
Improperly positioned seat belts can
cause serious injuries in an accident.
To fasten your seat belt:
To fasten your seat belt, pull it out of
the retractor and insert the metal tab
(1) into the buckle (2). There will be
an audible “click” when the tab locks
into the buckle.
The seat belt automatically adjusts to
the proper length only after the lap
belt portion is adjusted manually so
that it fits snugly around your hips. If
you lean forward in a slow, easy
motion, the belt will extend and let
you move around. If there is a sud-
den stop or impact, however, the belt
will lock into position. It will also lock
if you try to lean forward too quickly.
B180A01NF-1
WARNING
-
Shoulder belt positioning
Never position the shoulder belt
across your neck or face.
WARNING
-
Seat belt replacement
Replace your seat belts after
being in an accident. Failure to
replace seat belts after an acci-
dent could leave you with dam-
aged seat belts that will not pro-
vide protection in the event of
another collision.
Page 48 of 580
331
Safety features of your vehicle

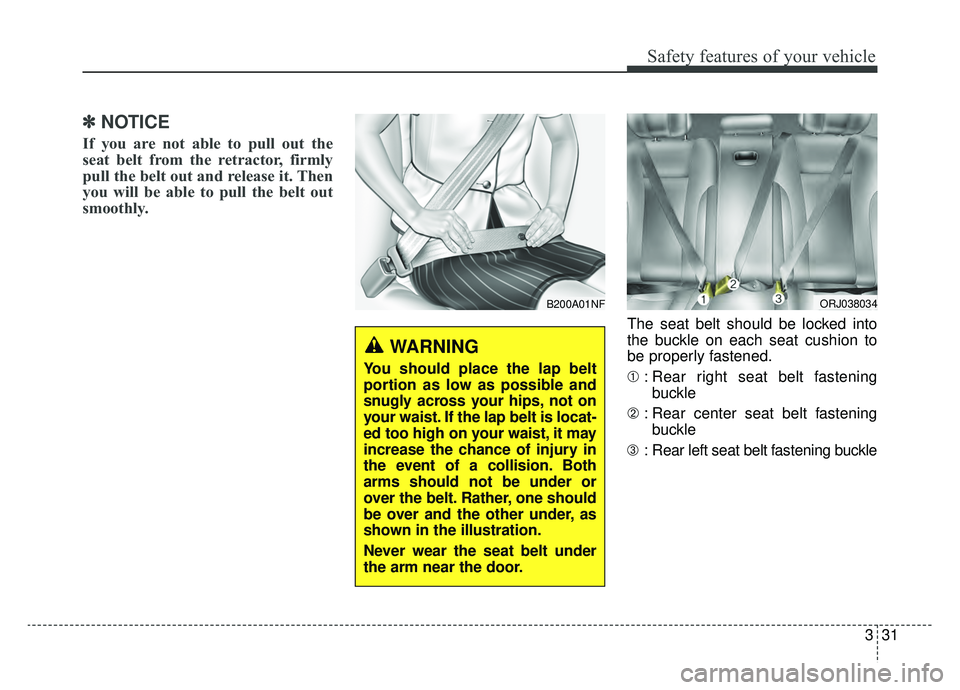

✽ ✽NOTICE
If you are not able to pull out the
seat belt from the retractor, firmly
pull the belt out and release it. Then
you will be able to pull the belt out
smoothly.
The seat belt should be locked into
the buckle on each seat cushion to
be properly fastened.
➀ : Rear right seat belt fastening
buckle
➁ : Rear center seat belt fastening
buckle
➂ : Rear left seat belt fastening buckle
B200A01NF
WARNING
You should place the lap belt
portion as low as possible and
snugly across your hips, not on
your waist. If the lap belt is locat-
ed too high on your waist, it may
increase the chance of injury in
the event of a collision. Both
arms should not be under or
over the belt. Rather, one should
be over and the other under, as
shown in the illustration.
Never wear the seat belt under
the arm near the door.
ORJ038034
Page 49 of 580
Safety features of your vehicle
32
3
WARNING
Prior to fastening the rear seat
belts, ensure the latch matches
the seat belt buckle. Forcefully
fastening the left or right seat
belt to the center buckle can
result in an improper fastening
scenario that will not protect
you in an accident.
When using the rear center seat belt,
the buckle with the “CENTER” mark
must be used. To release the seat belt:
The seat belt is released by pressing
the release button (A) in the locking
buckle. When it is released, the belt
should automatically draw back into
the retractor.
If this does not happen, check the
belt to be sure it is not twisted, then
try again.

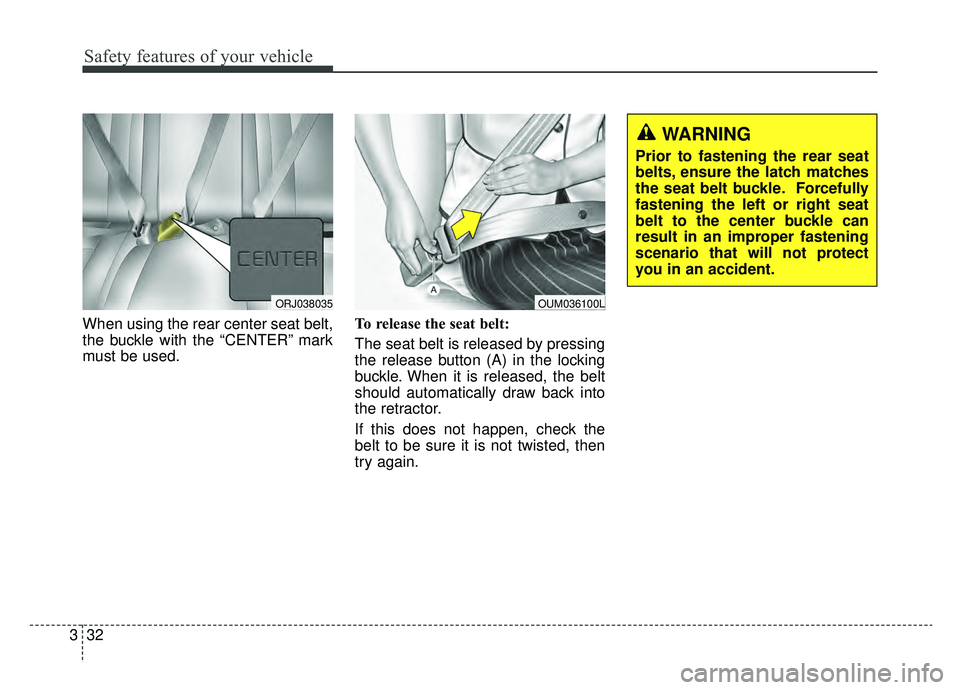

OUM036100LORJ038035
Page 50 of 580
333
Safety features of your vehicle

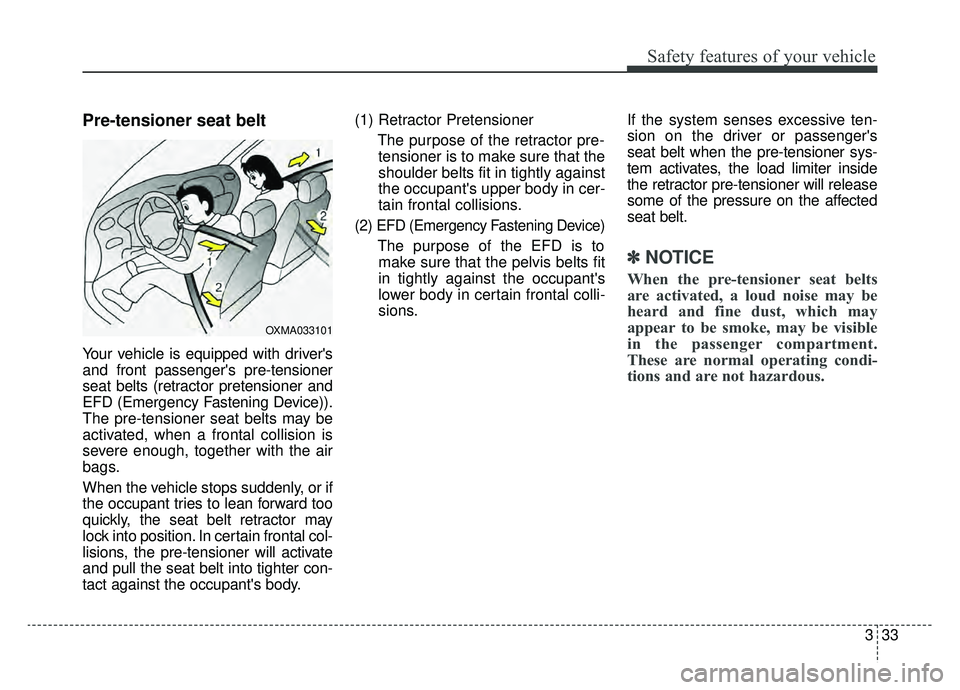

Pre-tensioner seat belt
Your vehicle is equipped with driver's
and front passenger's pre-tensioner
seat belts (retractor pretensioner and
EFD (Emergency Fastening Device)).
The pre-tensioner seat belts may be
activated, when a frontal collision is
severe enough, together with the air
bags.
When the vehicle stops suddenly, or if
the occupant tries to lean forward too
quickly, the seat belt retractor may
lock into position. In certain frontal col-
lisions, the pre-tensioner will activate
and pull the seat belt into tighter con-
tact against the occupant's body.(1) Retractor Pretensioner
The purpose of the retractor pre-tensioner is to make sure that the
shoulder belts fit in tightly against
the occupant's upper body in cer-
tain frontal collisions.
(2) EFD (Emergency Fastening Device)
The purpose of the EFD is tomake sure that the pelvis belts fit
in tightly against the occupant's
lower body in certain frontal colli-
sions. If the system senses excessive ten-
sion on the driver or passenger's
seat belt when the pre-tensioner sys-
tem activates, the load limiter inside
the retractor pre-tensioner will release
some of the pressure on the affected
seat belt.✽ ✽
NOTICE
When the pre-tensioner seat belts
are activated, a loud noise may be
heard and fine dust, which may
appear to be smoke, may be visible
in the passenger compartment.
These are normal operating condi-
tions and are not hazardous.
OXMA033101
