KIA NIRO 2017 Owners Manual

Maintenance
68
8

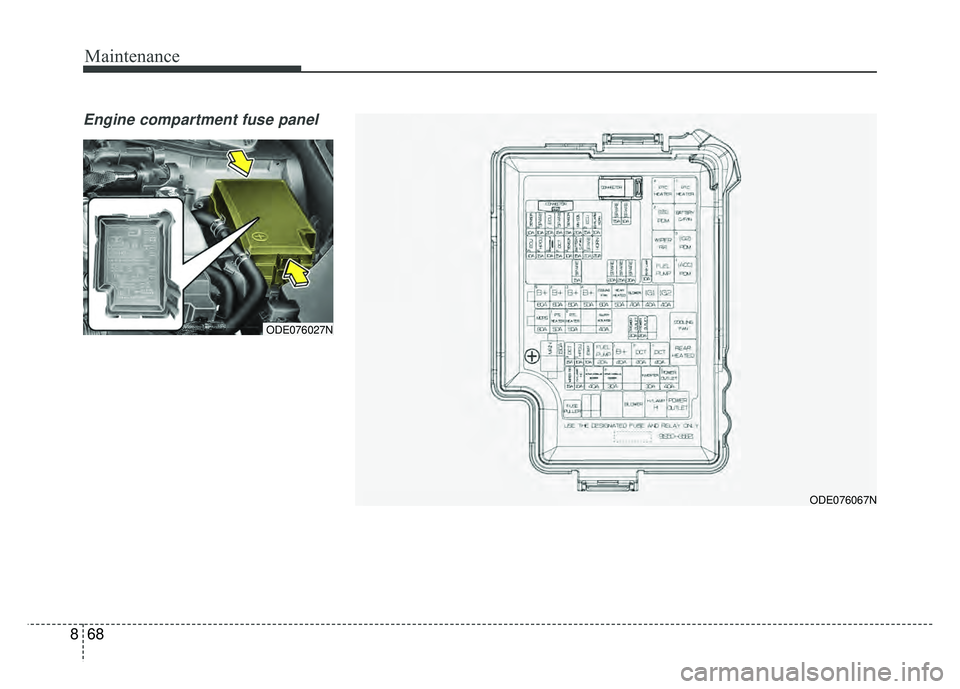

Engine compartment fuse panel
ODE076067N
ODE076027N

869
Maintenance

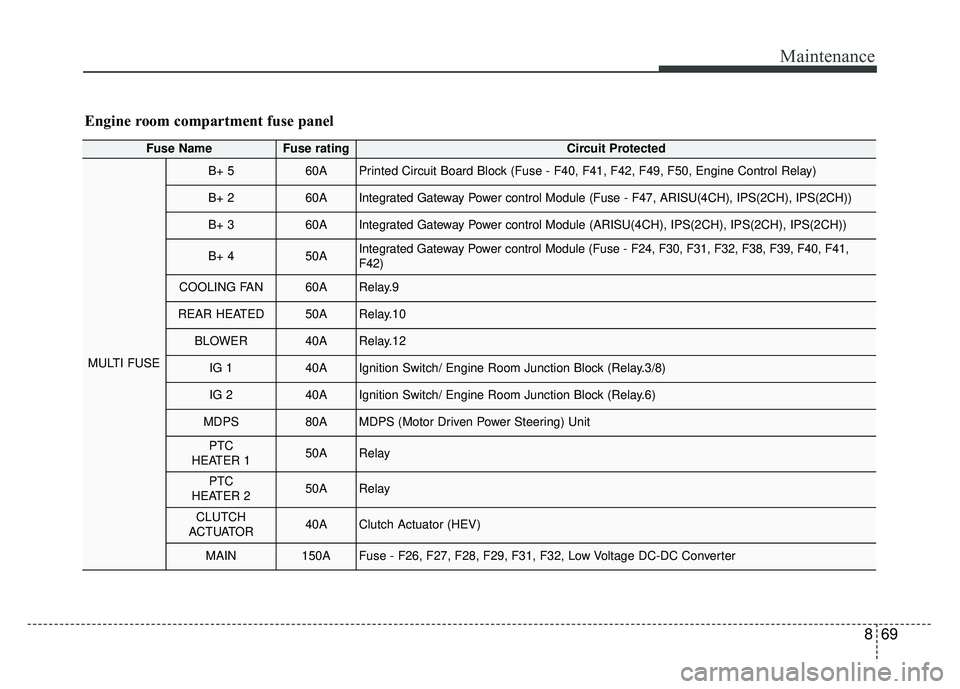

Engine room compartment fuse panel
Fuse NameFuse ratingCircuit Protected
MULTI FUSE
B+ 560APrinted Circuit Board Block (Fuse - F40, F41, F42, F49, F50, Engine Control Relay)
B+ 260AIntegrated Gateway Power control Module (Fuse - F47, ARISU(4CH), IPS(2CH), IPS(2CH))
B+ 360AIntegrated Gateway Power control Module(ARISU(4CH), IPS(2CH), IPS(2CH), IPS(2CH))
B+ 450AIntegrated Gateway Power control Module (Fuse - F24, F30, F31, F32, F38, F39, F40, F41,
F42)
COOLING FAN60ARelay.9
REAR HEATED50ARelay.10
BLOWER40ARelay.12
IG 140AIgnition Switch/ Engine Room Junction Block (Relay.3/8)
IG 240AIgnition Switch/ Engine Room Junction Block (Relay.6)
MDPS80AMDPS (Motor Driven Power Steering) Unit
PTC
HEATER 150ARelay
PTC
HEATER 250ARelay
CLUTCH
ACTUATOR40AClutch Actuator (HEV)
MAIN150AFuse - F26, F27, F28, F29, F31, F32, Low Voltage DC-DC Converter

Maintenance
70
8

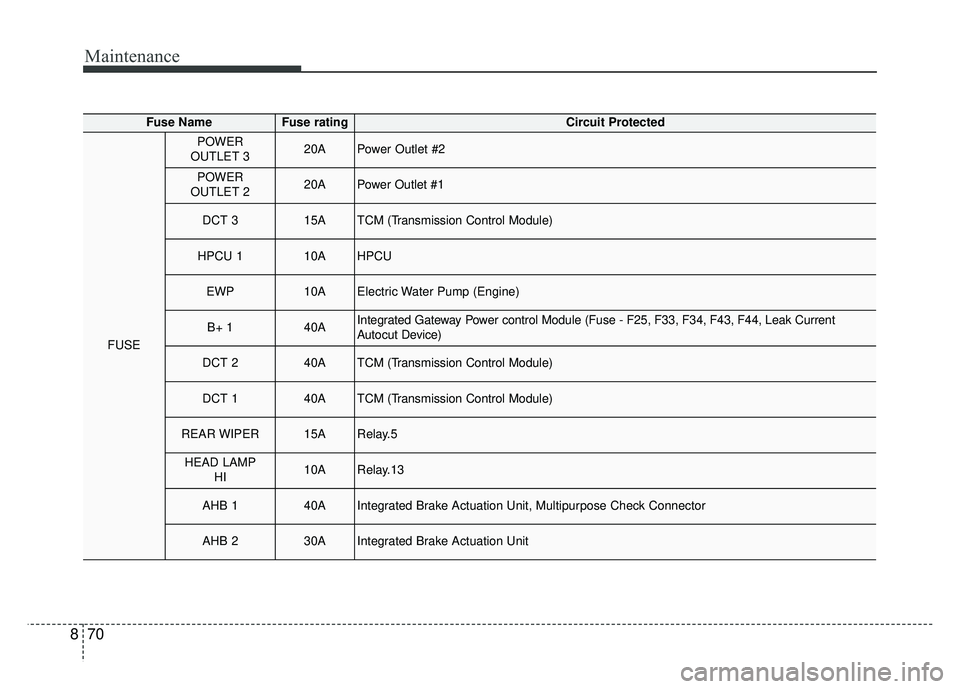

Fuse NameFuse ratingCircuit Protected
FUSE
POWER
OUTLET 320APower Outlet #2
POWER
OUTLET 220APower Outlet #1
DCT 315ATCM (Transmission Control Module)
HPCU 110AHPCU
EWP10AElectric Water Pump (Engine)
B+ 140AIntegrated Gateway Power control Module (Fuse - F25, F33, F34, F43, F44, Leak Current
Autocut Device)
DCT 240ATCM (Transmission Control Module)
DCT 140ATCM (Transmission Control Module)
REAR WIPER15ARelay.5
HEAD LAMP HI10ARelay.13
AHB 140AIntegrated Brake Actuation Unit, Multipurpose Check Connector
AHB 230AIntegrated Brake Actuation Unit

871
Maintenance

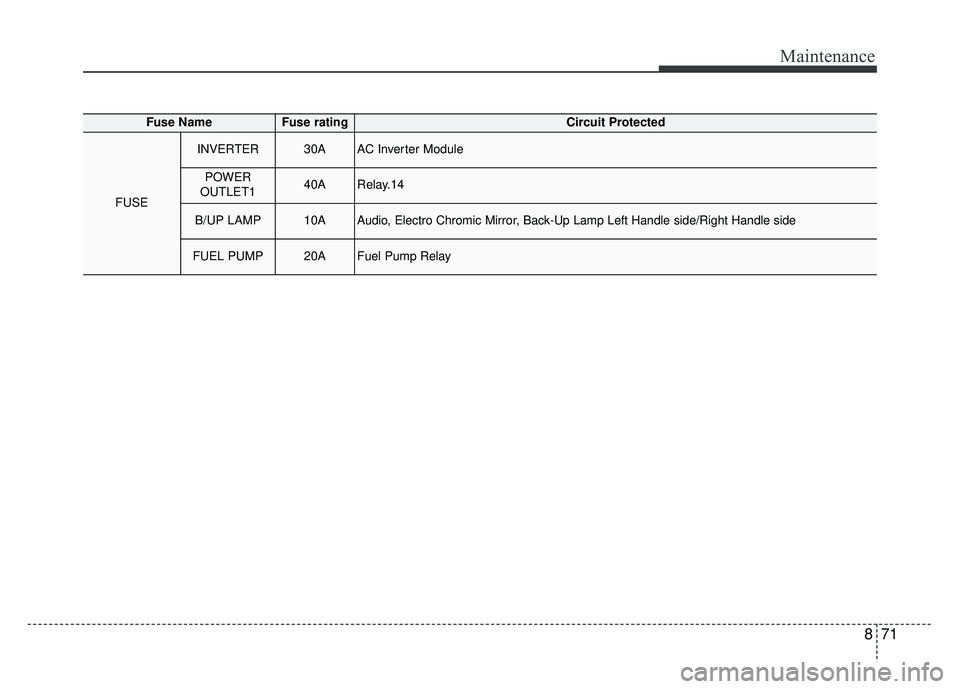

Fuse NameFuse ratingCircuit Protected
FUSE
INVERTER30AAC Inverter Module
POWER
OUTLET140ARelay.14
B/UP LAMP10AAudio, Electro Chromic Mirror, Back-Up Lamp Left Handle side/Right Handle side
FUEL PUMP20AFuel Pump Relay

Maintenance
72
8
Fuse ratingFuse NameCircuit Protected
10AECU 3ECU
15AHPCU 2HPCU, Clutch Actuator (HEV)
10AACTIVE
HYDRAULIC BOOTER 3Integrated Brake Actuation Unit, Multipurpose Check Connector
15ADCT 4Dual clutch transmission Shift Lever, TCM (Transmission Control Module), Inhibitor Switch
10ASENSOR 3Fuel Pump Relay, Oil Control Valve #1/#2 (Intake/Exhaust), Camshaft Position Sensor #1/#2
(Intake/Exhaust)
15ABATTERY C/FANEngine Room Junction Block (Relay.4)
20AHORNHorn Relay
10ASENSOR 2Purge Control Solenoid Valve, Engine Room Junction Block (RLY.9), Mass Air Flow Sensor
20AECU 1ECU
Circuit (PCB Block)

873
Maintenance

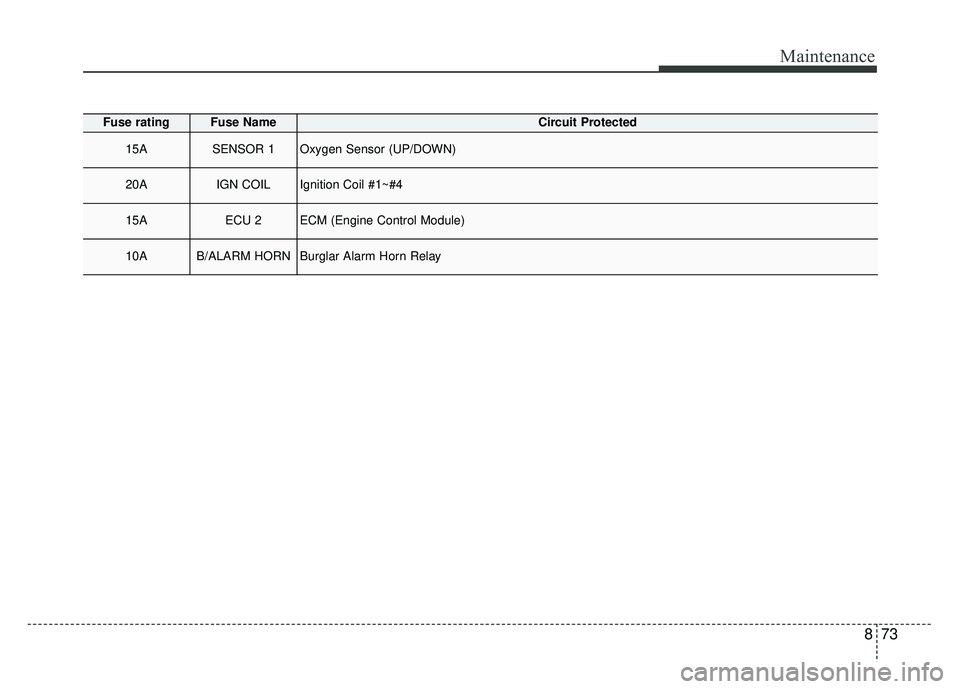

Fuse ratingFuse NameCircuit Protected
15ASENSOR 1Oxygen Sensor (UP/DOWN)
20AIGN COILIgnition Coil #1~#4
15AECU 2ECM (Engine Control Module)
10AB/ALARM HORNBurglar Alarm Horn Relay

Maintenance
74
8

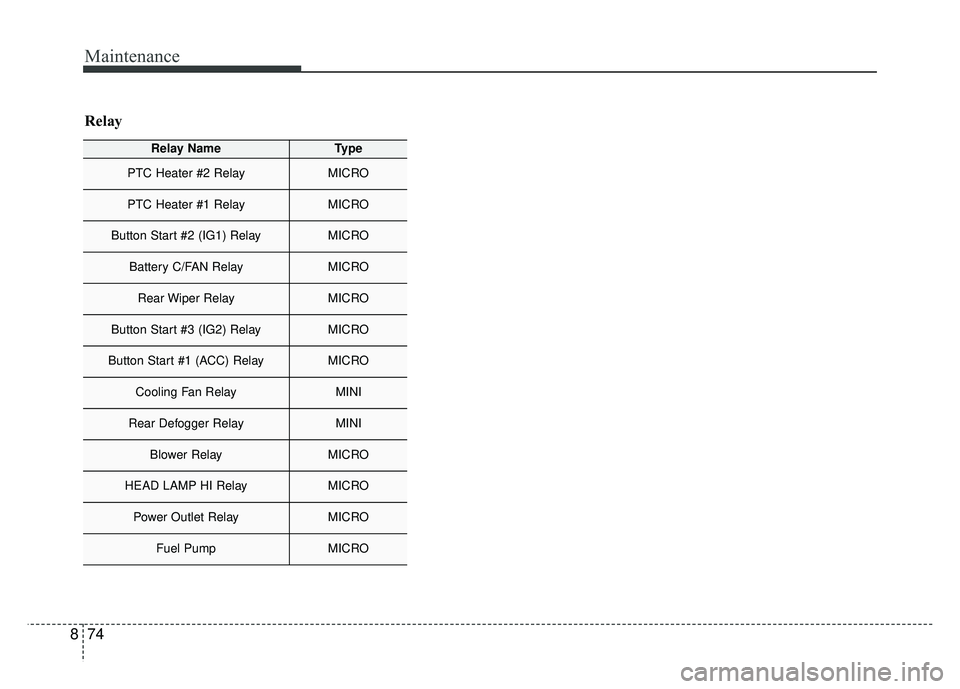

Relay
Relay NameType
PTC Heater #2 RelayMICRO
PTC Heater #1 RelayMICRO
Button Start #2 (IG1) RelayMICRO
Battery C/FAN RelayMICRO
Rear Wiper RelayMICRO
Button Start #3 (IG2) RelayMICRO
Button Start #1 (ACC) RelayMICRO
Cooling Fan RelayMINI
Rear Defogger RelayMINI
Blower RelayMICRO
HEAD LAMP HI RelayMICRO
Power Outlet RelayMICRO
Fuel PumpMICRO

875
Maintenance
LIGHT BULBS
Bulb replacement precaution
Please keep extra bulbs on hand
with appropriate wattage ratings in
case of emergencies.
Refer to “Bulb Wattage” in chapter 9.
When changing lamps, first turn off
the engine at a safe place, firmly
apply the parking brake and detach
the battery’s negative (-) terminal.
Use only bulbs of the specifiedwattage.✽ ✽ NOTICE
• If the light bulb or lamp connector
is removed while the lamp is still
on, the fuse box's electronic sys-
tem may log it as a malfunction.
Therefore, a lamp malfunction
incident may be recorded as a
Diagnostic Trouble Code (DTC) in
the fuse box.
• It is normal for an operating lamp to flicker momentarily. This is due
to a stabilization function of the
vehicle’s electronic control device.
If the lamp lights up normally
after momentarily blinking, then
it is functioning as normal.
However, if the lamp continues to
flicker several times or turns off
completely, there may be an error
in the vehicle’s electronic control
device. Please have the vehicle
checked by an authorized Kia
dealer immediately.
WARNING- Working on
the lights
Prior to working on the light,
firmly apply the parking brake,
ensure that the engine
start/stop button is in OFF posi-
tion and turn off the lights to
avoid sudden movement of the
vehicle and burning your fingers
or receiving an electric shock.
CAUTION -Light replace-
ment
Be sure to replace the burned- out bulb with one of the samewattage rating. Otherwise, itmay cause damage to the fuseor electric wiring system.
CAUTION -Headlamp
Lens
To prevent damage, do notclean the headlamp lens withchemical solvents or strongdetergents.

Maintenance
76
8
If you don’t have the necessary tools,
the correct bulbs and the expertise,
consult an authorized Kia dealer. In
many cases, it is difficult to replace
vehicle light bulbs because other
parts of the vehicle must be removed
before you can get to the bulb. This is
especially true if you have to remove
the headlamp assembly to get to the
bulb(s).
Removing/installing the headlamp
assembly can result in damage to
the vehicle.
If non-genuine parts or substandard
bulbs are used, it may lead to blow-
ing a fuse or other wiring damages.
Do not install extra lamps or LEDs to
the vehicle. If additional lights are
installed, it may lead to lamp mal-
functions and flickering. Additionally,
the fuse box and other writing may
be damaged.Light bulb position (Front)
(1) Headlamp (Low/High)
(2) Front turn signal lamp
(3) Position lamp
(4) Side marker
(5) Day time running lamp
(6) Front fog lamp
Light bulb position (Rear)
ODE076029N
ODE076030N
■ Head lamp
■Fog lamp
■Rear combination lamp
- Type B
■Rear combination lamp
- Type A
ODE076032N■Back up lamp
ODE076031N
ODE076033L

877
Maintenance
(1) Stop/tail lamp(Bulb type)
(2) Tail lamp(Bulb type)
(3) Rear turn signal lamp
(4) Side marker
(5) Stop/tail lamp(LED type)
(6) Back up lamp
(7) High mounted stop lamp
(8) License plate lamp
Light bulb position (Side)
(1) Side repeater lamp (LED type)
Headlamp (HID type) bulb
replacement
If the light bulb does not operate,
have the vehicle checked by an
authorized Kia dealer.
■High mounted stop lamp
■License plate lamp
ODE076056L
ODE076055L
ODE076034
WARNING- HID
Headlamp (if equipped)
Do not attempt to replace or
inspect the HID headlamp
(XENON bulb) due to electric
shock danger. If the light bulb
does not operate, have your
vehicle checked by an author-
ized Kia dealer.
