Driving your vehicle
144
5

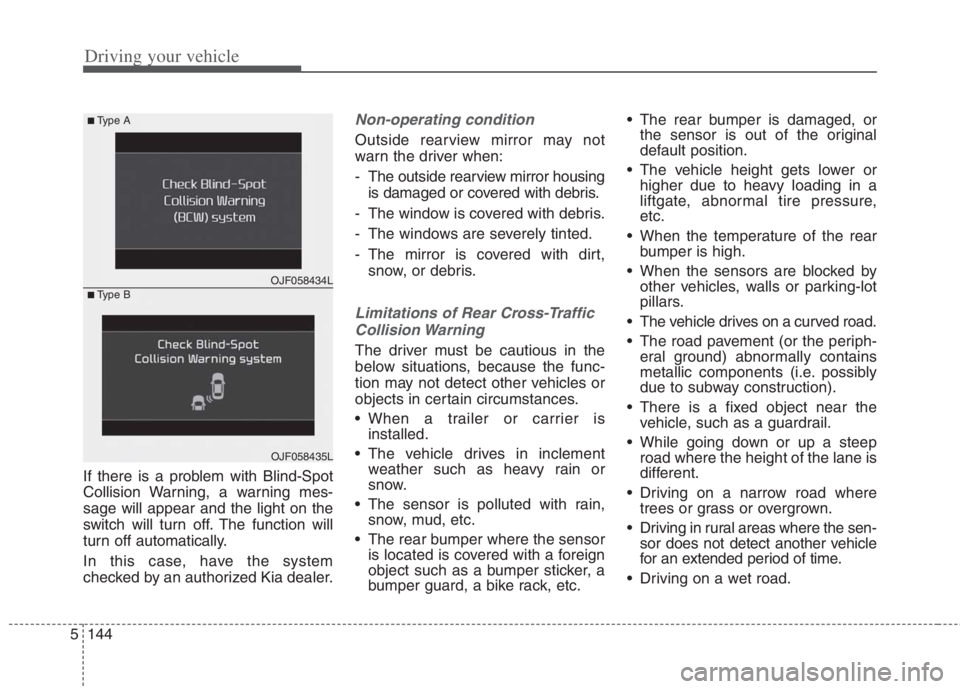

If there is a problem with Blind-Spot
Collision Warning, a warning mes-
sage will appear and the light on the
switch will turn off. The function will
turn off automatically.
In this case, have the system
checked by an authorized Kia dealer.
Non-operating condition
Outside rearview mirror may not
warn the driver when:
- The outside rearview mirror housing
is damaged or covered with debris.
- The window is covered with debris.
- The windows are severely tinted.
- The mirror is covered with dirt, snow, or debris.
Limitations of Rear Cross-Traffic
Collision Warning
The driver must be cautious in the
below situations, because the func-
tion may not detect other vehicles or
objects in certain circumstances.
When a trailer or carrier is installed.
The vehicle drives in inclement weather such as heavy rain or
snow.
The sensor is polluted with rain, snow, mud, etc.
The rear bumper where the sensor is located is covered with a foreign
object such as a bumper sticker, a
bumper guard, a bike rack, etc. The rear bumper is damaged, or
the sensor is out of the original
default position.
The vehicle height gets lower or higher due to heavy loading in a
liftgate, abnormal tire pressure,
etc.
When the temperature of the rear bumper is high.
When the sensors are blocked by other vehicles, walls or parking-lot
pillars.
The vehicle drives on a curved road.
The road pavement (or the periph- eral ground) abnormally contains
metallic components (i.e. possibly
due to subway construction).
There is a fixed object near the vehicle, such as a guardrail.
While going down or up a steep road where the height of the lane is
different.
Driving on a narrow road where trees or grass or overgrown.
Driving in rural areas where the sen- sor does not detect another vehicle
for an extended period of time.
Driving on a wet road.
OJF058434L
■Type A
■Type B
OJF058435L

5145
Driving your vehicle

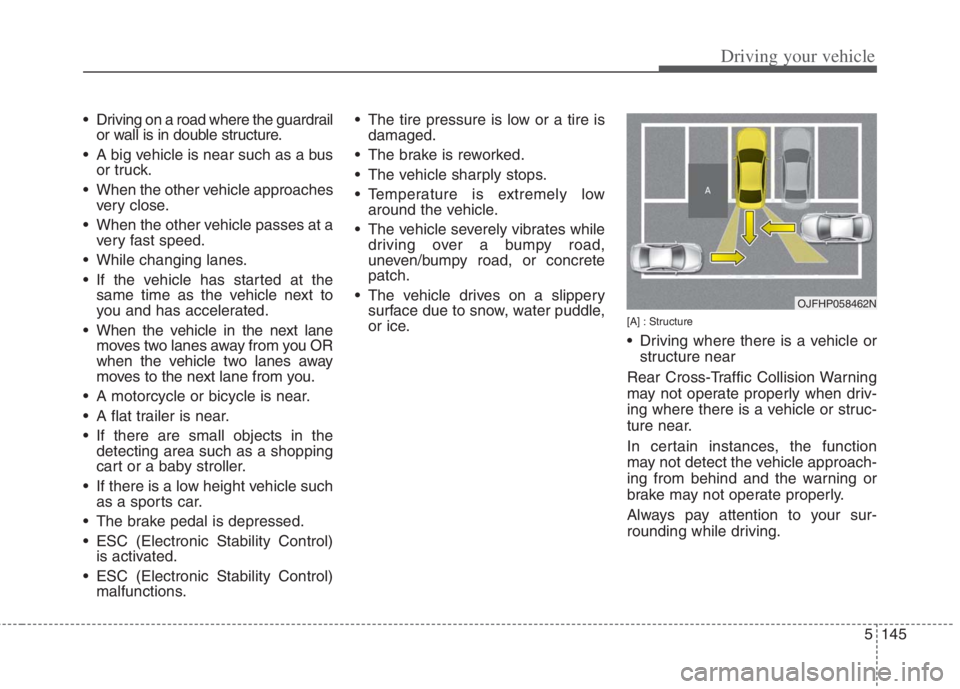

Driving on a road where the guardrailor wall is in double structure.
A big vehicle is near such as a bus or truck.
When the other vehicle approaches very close.
When the other vehicle passes at a very fast speed.
While changing lanes.
If the vehicle has started at the same time as the vehicle next to
you and has accelerated.
When the vehicle in the next lane moves two lanes away from you OR
when the vehicle two lanes away
moves to the next lane from you.
A motorcycle or bicycle is near.
A flat trailer is near.
If there are small objects in the detecting area such as a shopping
cart or a baby stroller.
If there is a low height vehicle such as a sports car.
The brake pedal is depressed.
ESC (Electronic Stability Control) is activated.
ESC (Electronic Stability Control) malfunctions. The tire pressure is low or a tire is
damaged.
The brake is reworked.
The vehicle sharply stops.
Temperature is extremely low around the vehicle.
The vehicle severely vibrates while driving over a bumpy road,
uneven/bumpy road, or concrete
patch.
The vehicle drives on a slippery surface due to snow, water puddle,
or ice.
[A] : Structure
Driving where there is a vehicle or
structure near
Rear Cross-Traffic Collision Warning
may not operate properly when driv-
ing where there is a vehicle or struc-
ture near.
In certain instances, the function
may not detect the vehicle approach-
ing from behind and the warning or
brake may not operate properly.
Always pay attention to your sur-
rounding while driving.
OJFHP058462N

Driving your vehicle
146
5

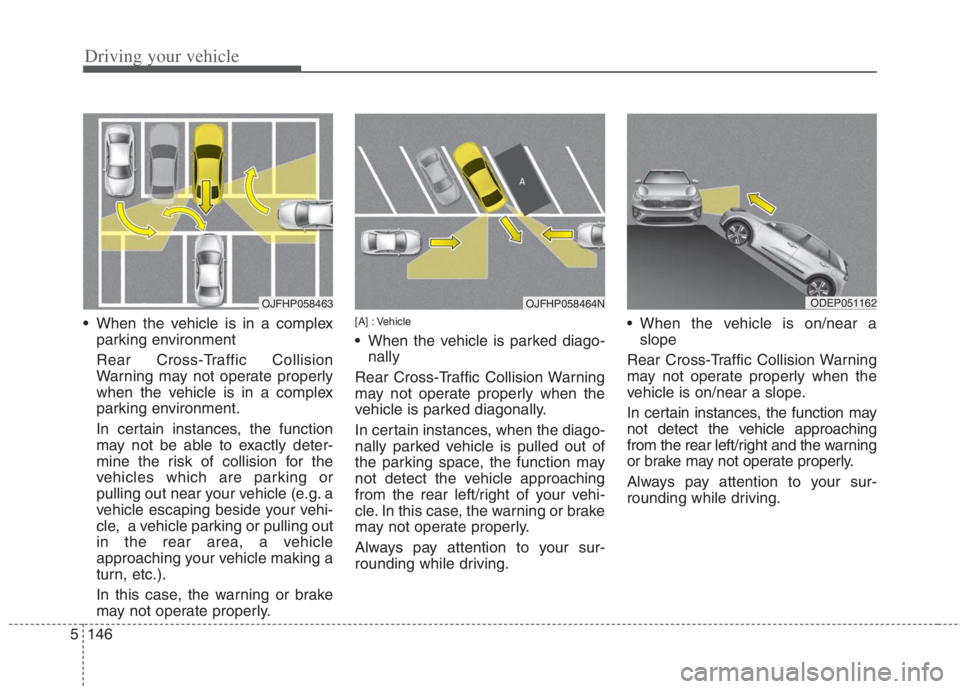

When the vehicle is in a complex
parking environment
Rear Cross-Traffic Collision
Warning may not operate properly
when the vehicle is in a complex
parking environment.
In certain instances, the function
may not be able to exactly deter-
mine the risk of collision for the
vehicles which are parking or
pulling out near your vehicle (e.g. a
vehicle escaping beside your vehi-
cle, a vehicle parking or pulling out
in the rear area, a vehicle
approaching your vehicle making a
turn, etc.).
In this case, the warning or brake
may not operate properly.[A] : Vehicle
When the vehicle is parked diago-nally
Rear Cross-Traffic Collision Warning
may not operate properly when the
vehicle is parked diagonally.
In certain instances, when the diago-
nally parked vehicle is pulled out of
the parking space, the function may
not detect the vehicle approaching
from the rear left/right of your vehi-
cle. In this case, the warning or brake
may not operate properly.
Always pay attention to your sur-
rounding while driving. When the vehicle is on/near a
slope
Rear Cross-Traffic Collision Warning
may not operate properly when the
vehicle is on/near a slope.
In certain instances, the function may
not detect the vehicle approaching
from the rear left/right and the warning
or brake may not operate properly.
Always pay attention to your sur-
rounding while driving.
OJFHP058463OJFHP058464NODEP051162

5147
Driving your vehicle

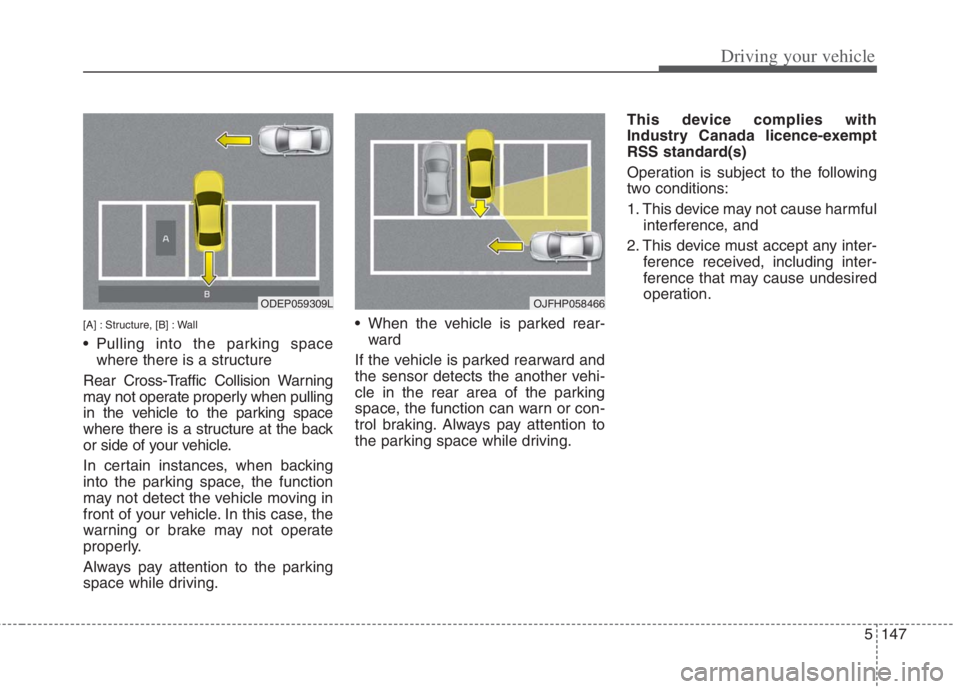

[A] : Structure, [B] : Wall
Pulling into the parking spacewhere there is a structure
Rear Cross-Traffic Collision Warning
may not operate properly when pulling
in the vehicle to the parking space
where there is a structure at the back
or side of your vehicle.
In certain instances, when backing
into the parking space, the function
may not detect the vehicle moving in
front of your vehicle. In this case, the
warning or brake may not operate
properly.
Always pay attention to the parking
space while driving. When the vehicle is parked rear-
ward
If the vehicle is parked rearward and
the sensor detects the another vehi-
cle in the rear area of the parking
space, the function can warn or con-
trol braking. Always pay attention to
the parking space while driving. This device complies with
Industry Canada licence-exempt
RSS standard(s)
Operation is subject to the following
two conditions:
1. This device may not cause harmful
interference, and
2. This device must accept any inter- ference received, including inter-
ference that may cause undesired
operation.
ODEP059309LOJFHP058466

Driving your vehicle
148 5

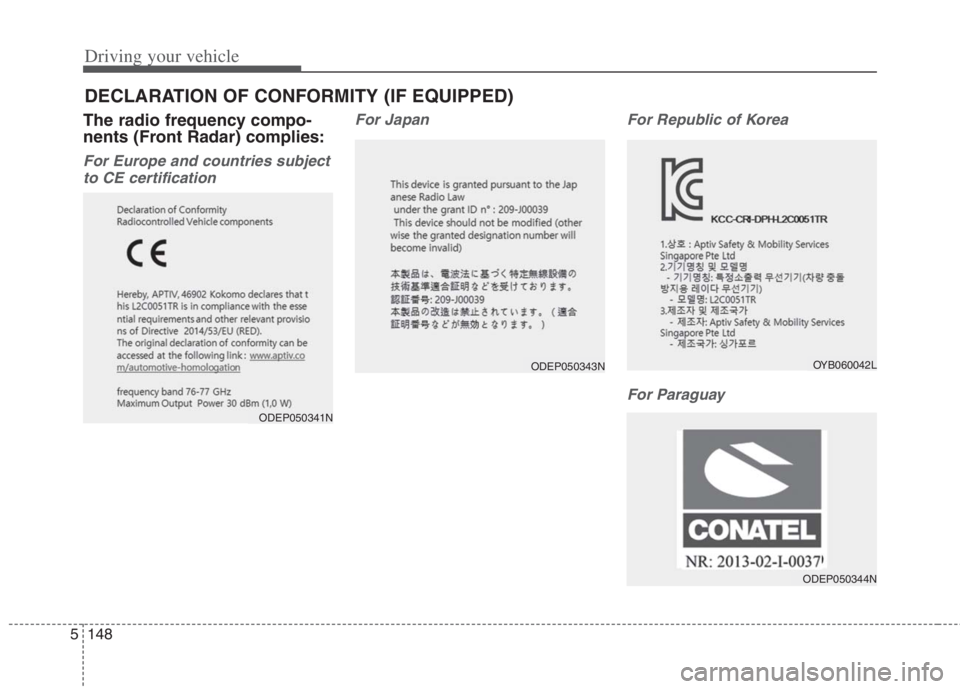

The radio frequency compo-
nents (Front Radar) complies:
For Europe and countries subject
to CE certification For Japan For Republic of Korea
For Paraguay
DECLARATION OF CONFORMITY (IF EQUIPPED)
ODEP050341N
ODEP050343NOYB060042L
ODEP050344N

5149
Driving your vehicle

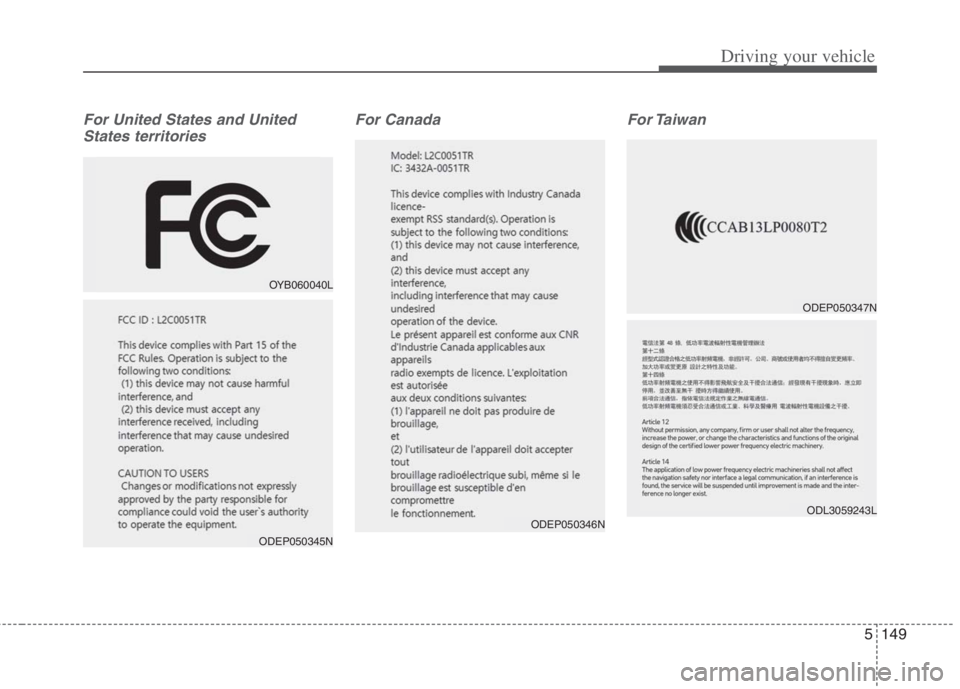

For United States and UnitedStates territories For Canada For Taiwan
ODEP050346N
ODEP050345N
ODEP050347N
ODL3059243L
OYB060040L

Driving your vehicle
150 5

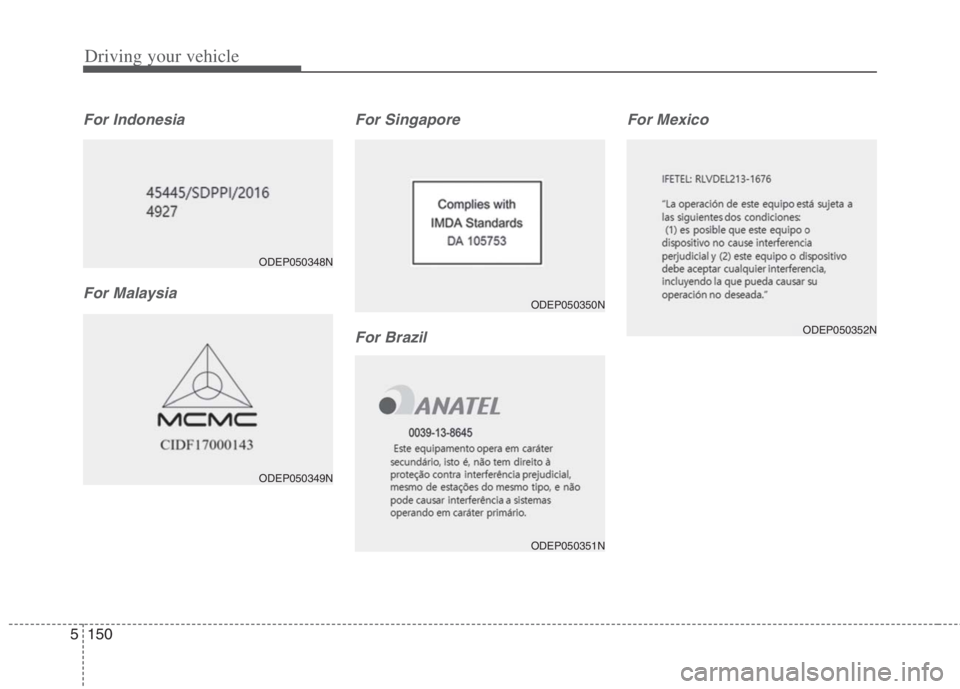

For Indonesia
For Malaysia For Singapore
For BrazilFor Mexico
ODEP050348N
ODEP050349N
ODEP050350N
ODEP050351N
ODEP050352N

5151
Driving your vehicle

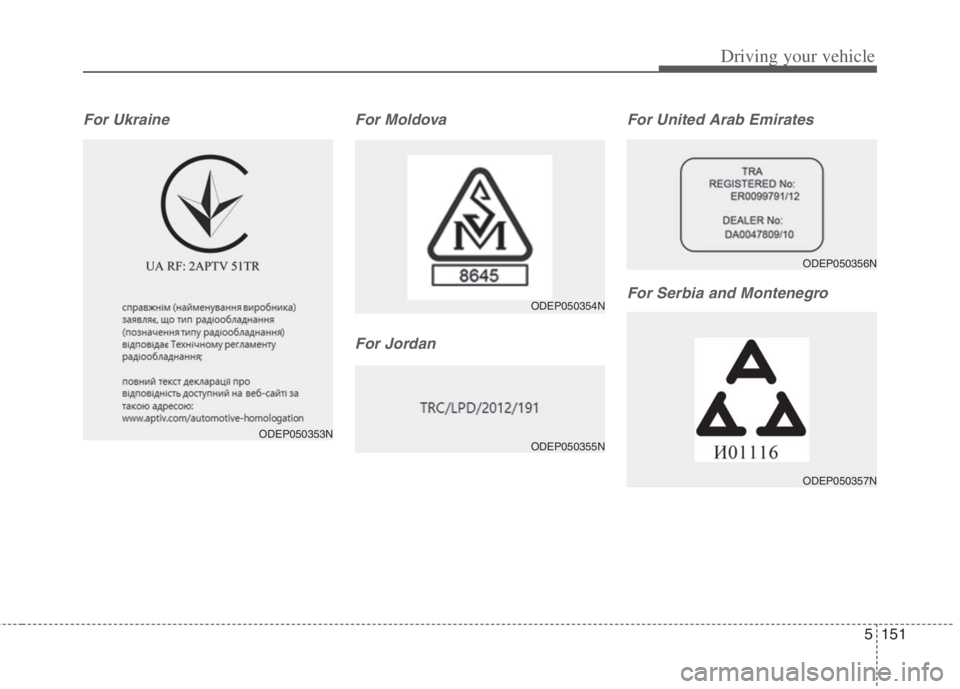

For Ukraine For Moldova
For JordanFor United Arab Emirates
For Serbia and Montenegro
ODEP050354N
ODEP050355N
ODEP050356N
ODEP050357N
ODEP050353N

Driving your vehicle
152 5

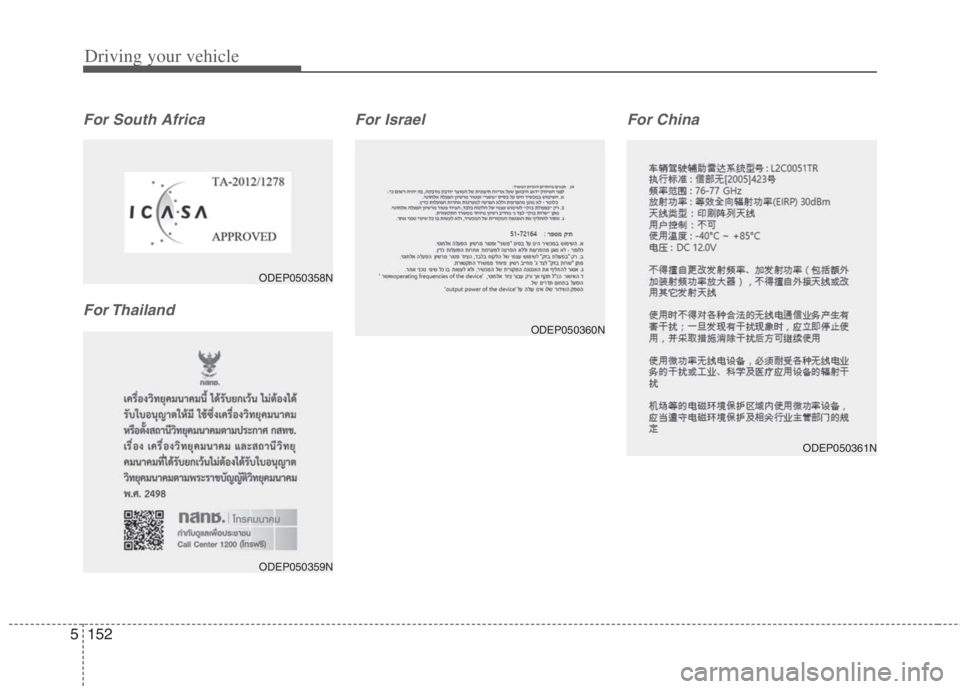

For South Africa
For ThailandFor Israel For China
ODEP050358N
ODEP050359N
ODEP050360N
ODEP050361N

5153
Driving your vehicle

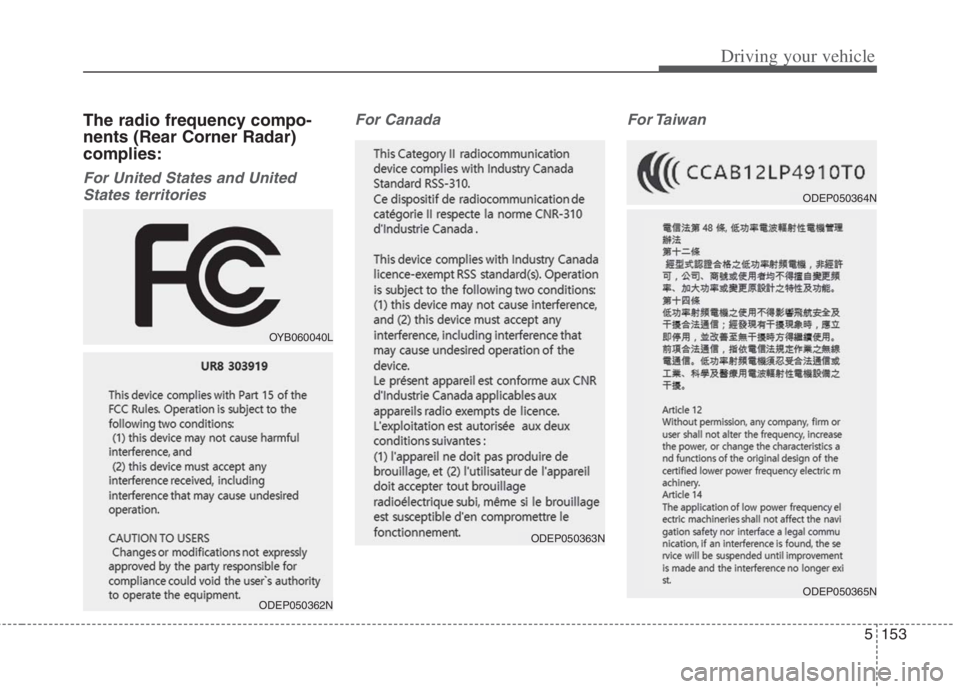

The radio frequency compo-
nents (Rear Corner Radar)
complies:
For United States and United
States territories For Canada For Taiwan
OYB060040L
ODEP050362N
ODEP050363N
ODEP050364N
ODEP050365N
