KIA NIRO PHEV 2022 Navigation System Quick Reference Guide

9
07 Voice functions
Voice recognition 7-2
Using the Siri Eyes Free 7-21
Voice Memo 7-22
08 UVO
UVO service 8-2
Running the UVO menu 8-4
Route guidance service 8-12
09 Settings
Configuring system settings 9-2
Configuring the vehicle settings (Type1) 9-3
Configuring the vehicle settings (Type2) 9-15
Configuring the device connections settings (Type1) 9-33
Configuring the device connections settings (Type2) 9-35
Configuring the advanced system settings (Type1) 9-40
Configuring the button settings (Type1) 9-44
Configuring the button settings (Type2) 9-46
Configuring the sound settings (Type1) 9-48
Configuring the sound settings (Type2) 9-52
Configuring the voice recognition settings (Type1) 9-57
Configuring the voice recognition settings (Type2) 9-58
Configuring the navigation settings (Type1) 9-59
Configuring the navigation settings (Type2) 9-64

10

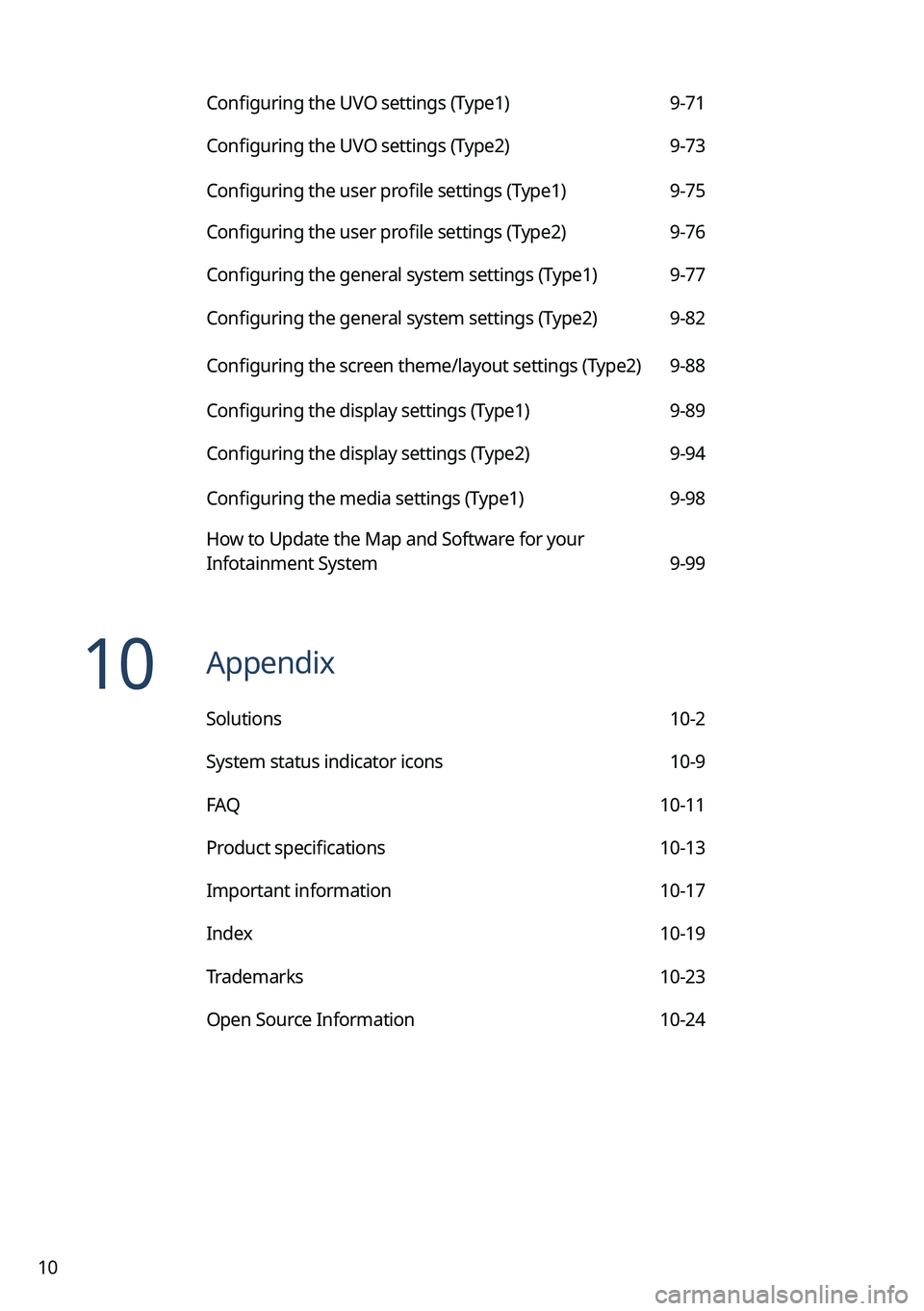

Configuring the UVO settings (Type1) 9-71
Configuring the UVO settings (Type2) 9-73
Configuring the user profile settings (Type1) 9-75
Configuring the user profile settings (Type2) 9-76
Configuring the general system settings (Type1) 9-77
Configuring the general system settings (Type2) 9-82
Configuring the screen theme/layout settings (Type2) 9-88
Configuring the display settings (Type1) 9-89
Configuring the display settings (Type2) 9-94
Configuring the media settings (Type1) 9-98
How to Update the Map and Software for your
Infotainment System 9-99
10 Appendix
Solutions 10-2
System status indicator icons 10-9
FAQ 10-11
Product specifications 10-13
Important information 10-17
Index 10-19
Trademarks 10-23
Open Source Information 10-24

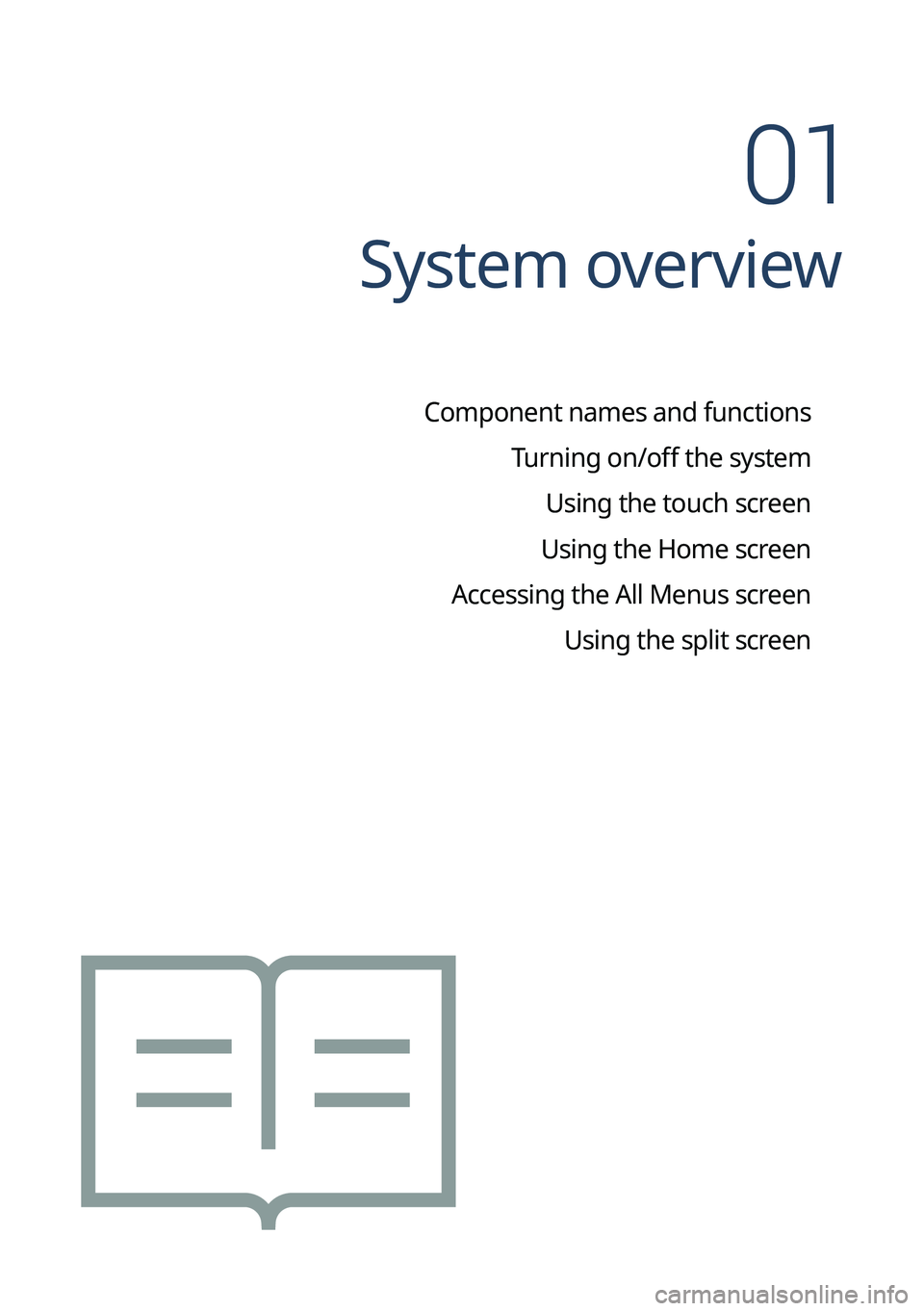

System overview
Component names and functionsTurning on/off the systemUsing the touch screen
Using the Home screen
Accessing the All Menus screen Using the split screen
01

1-2
Component names and functions
The following describes the part names and controls on the control panel and steering wheel.
Control panel

A
The shape may differ depending on the vehicle model and specifications. For more
information, see "Quick Reference Guide" that is separately provided.
POWER button
(POWER/PWR)/
VOLUME knob
(VOLUME/VOL) • Turn on or off the Radio/Media.
•Press and hold the button to turn off the screen and
sound.
•Turn the knob to adjust the system volume (except for
navigation sound).
MAP button
• Returns to the current location on the map.
•While in guidance on the navigation screen, press to
repeat the voice guidance.
NAV button
• Displays the Navigation Menu screen.
•Press and hold the button to display the Places screen.
> See "
Searching by keyword."
RADIO button • Turns on the radio.
•When the radio is on, press the button repeatedly to
toggle between FM, AM and SiriusXM modes.
•Press and hold the button to display the Radio/Media
selection window (if equipped).
MEDIA button
• Runs the connected media.
•Press and hold the button to display the Radio/Media
selection window.

1-3
SEEK/
TRACK button
(if equipped)
•While listening to the radio, change the station.
•While playing media, change the track/file. Press and hold
to rewind or fast forward (except for the Bluetooth audio
mode).
Custom button
(
)
• Runs the user-defined function.
•Press and hold the button to display the function settings
screen.
SETUP button
• Displays the Settings screen.
•Press and hold the button to display the version
information screen.
Search knob
(TUNE/FILE)
(if equipped)
• While listening to the radio, adjust the frequency or
change the broadcasting channel.
•While playing media, scan music or files.
•During scanning, select the current channel, music or file.
•On the map screen, zoom in or out on the map (if
activated).
System Reset button
• Restarts the system.

1-4
Steering wheel remote control

A
The shape may differ depending on the vehicle model and specifications. For more
information, see "Quick Reference Guide" that is separately provided.
Voice Recognition
button
(
)
• Press to start voice recognition.
•Press and hold to start voice recognition of a connected
smartphone via phone projection. (The button's operation
may vary depending on smartphone specifications.)
MODE button
• Press the button repeatedly to change the system mode
(radio, media, etc.).
•Press and hold the button to display the function settings
screen.
Volume lever/
button
(+/-)
• Adjust the volume.
Mute button
(
)
• Press the button to mute or unmute the volume (except
for navigation sound).
•Press the button to pause or resume playback.
Move lever/
button
(
/)
• While listening to the radio, switch between the stations
on the preset list. Press and hold to search for a station.
•While playing media, change the track/file. Press and hold
to rewind or fast forward (except for the Bluetooth audio
mode).
Option A
Call button
(
)
• Before connection of Bluetooth: Press to display the
Bluetooth connection window.
•After connection of Bluetooth: Press to display the
recent calls list. To redial the last call number, press and
hold the button. When a call comes in, press to answer
the call.
•During a Bluetooth call: Press to switch to Call Waiting.
Press and hold to switch between the system and
mobile phone.
End Call button
(
)
(if equipped)
• After connection of Bluetooth: When a call comes in,
press to reject the call.
•During a Bluetooth call: Press to end a call.

1-5
Option B
Call button
(
)
•Before connection of Bluetooth: Press to display the
Bluetooth connection window.
•After connection of Bluetooth: Press to display the
recent calls list. To redial the last call number, press and
hold the button.
•When a call comes in: Press to answer a call.
End Call button
(
)
(if equipped)
• During a Bluetooth call: Press to end a call.
•When a call comes in: Press and hold to reject a call.
Custom button
(
)
(if equipped)
• Runs the user-defined function.
•Press and hold the button to display the function
settings screen.

1-6
Turning on/off the system
The following explains how to turn on or off the system. Before using the system, be sure to
read the user's manual for safe and convenient manipulation.
Turning on the system
1 Turn on the vehicle.
2 When a safety warning message appears, read it and press Confirm.

A
To change the display language, press Language.
AThe screen may differ depending on the vehicle model and specifications.

A
To set the user profile, note the following.
> See "Using the First Run Setup."
Turning off the system
To turn off the system while driving, press and hold the Power button on
the panel.
The screen and sound will be turned off.

A
To use the system again, press the Power button.

A
When a specified period of time elapses after turning off the vehicle, the system
automatically shuts down. When you open the driver's door, the system immediately
shuts down.

1-7

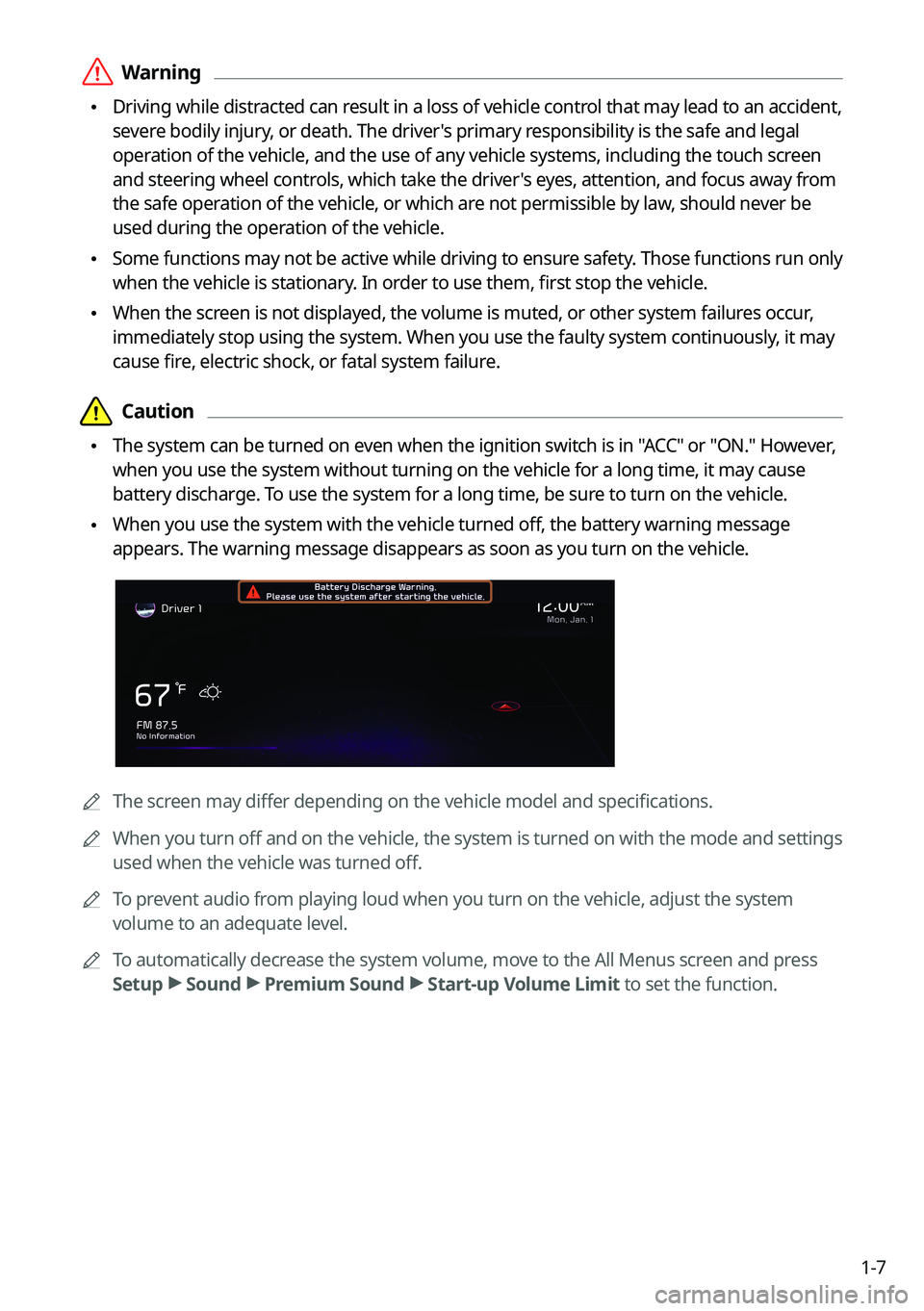

ÝWarning
•Driving while distracted can result in a loss of vehicle control that may lead to an accident,
severe bodily injury, or death. The driver's primary responsibility is the safe and legal
operation of the vehicle, and the use of any vehicle systems, including the touch screen
and steering wheel controls, which take the driver's eyes, attention, and focus away from
the safe operation of the vehicle, or which are not permissible by law, should never be
used during the operation of the vehicle.
•Some functions may not be active while driving to ensure safety. Those functions run only
when the vehicle is stationary. In order to use them, first stop the vehicle.
•When the screen is not displayed, the volume is muted, or other system failures occur,
immediately stop using the system. When you use the faulty system continuously, it may
cause fire, electric shock, or fatal system failure.

1-8

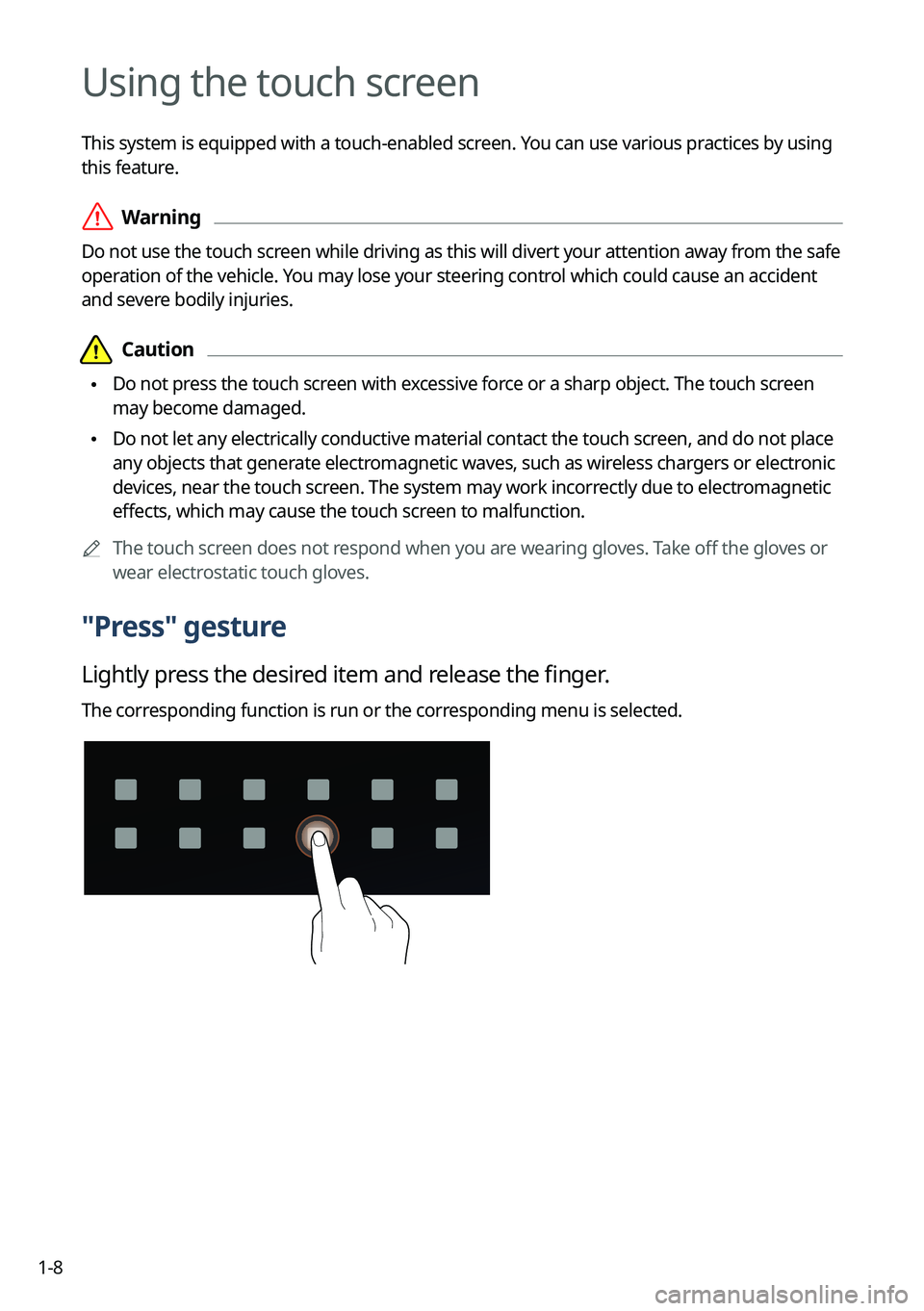

Using the touch screen
This system is equipped with a touch-enabled screen. You can use various practices by using
this feature.
ÝWarning
Do not use the touch screen while driving as this will divert your attention away from the safe
operation of the vehicle. You may lose your steering control which could cause an accident
and severe bodily injuries.
