KIA NIRO PHEV 2022 Navigation System Quick Reference Guide

1-9

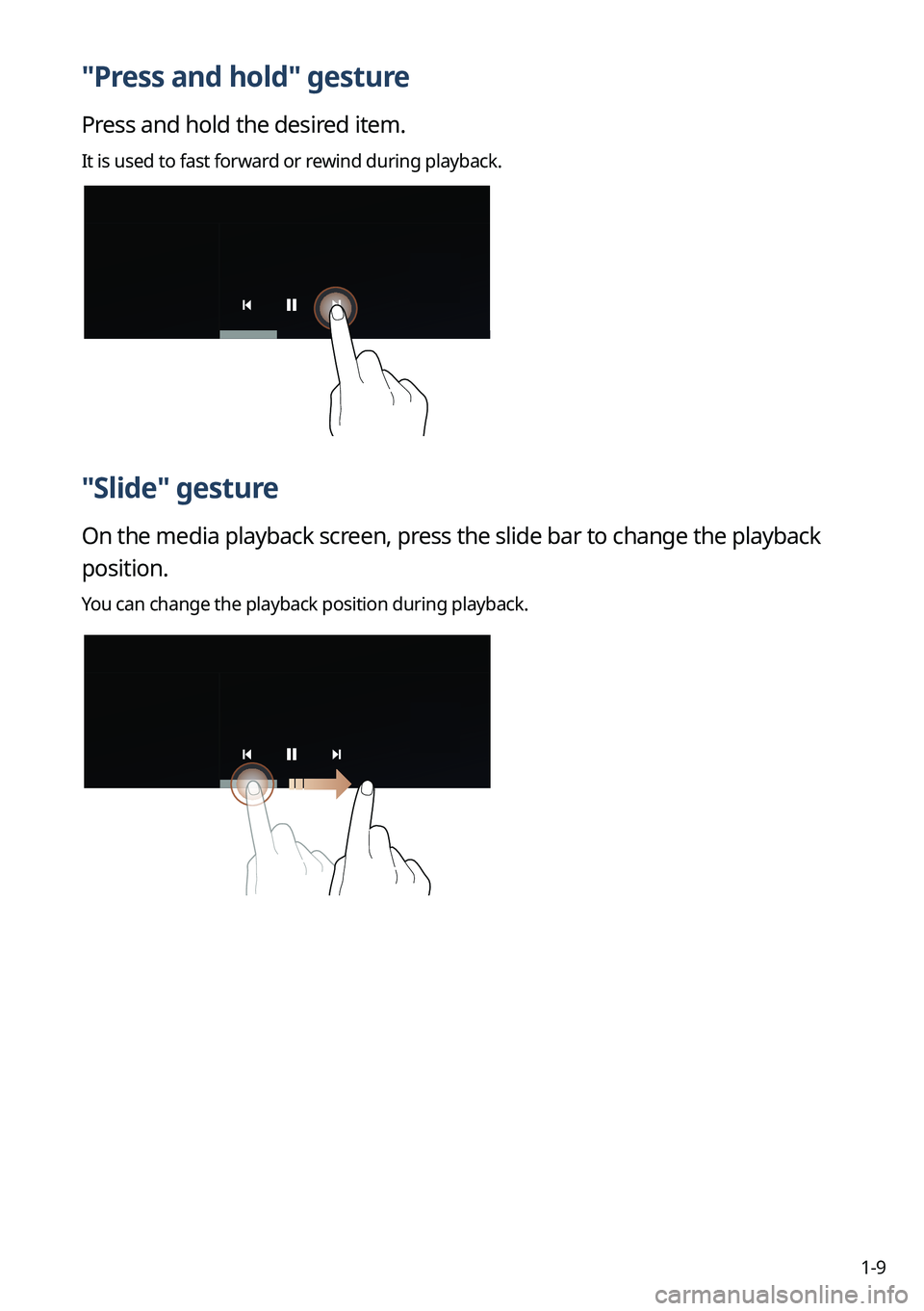

"Press and hold" gesture
Press and hold the desired item.
It is used to fast forward or rewind during playback.
"Slide" gesture
On the media playback screen, press the slide bar to change the playback
position.
You can change the playback position during playback.

1-10
"Drag" gesture
Press and hold the desired item and drag it to another position.
The selected item moves to the new position.
"Swipe" gesture
Lightly swipe the screen in the desired direction.
It is used to move fast vertically or horizontally across the menu screen or options list.
"Spread/pinch" gesture
On the map screen, press and hold the screen with two fingers and spread
or pinch the fingers.
It is used to zoom in or out the map.

1-11

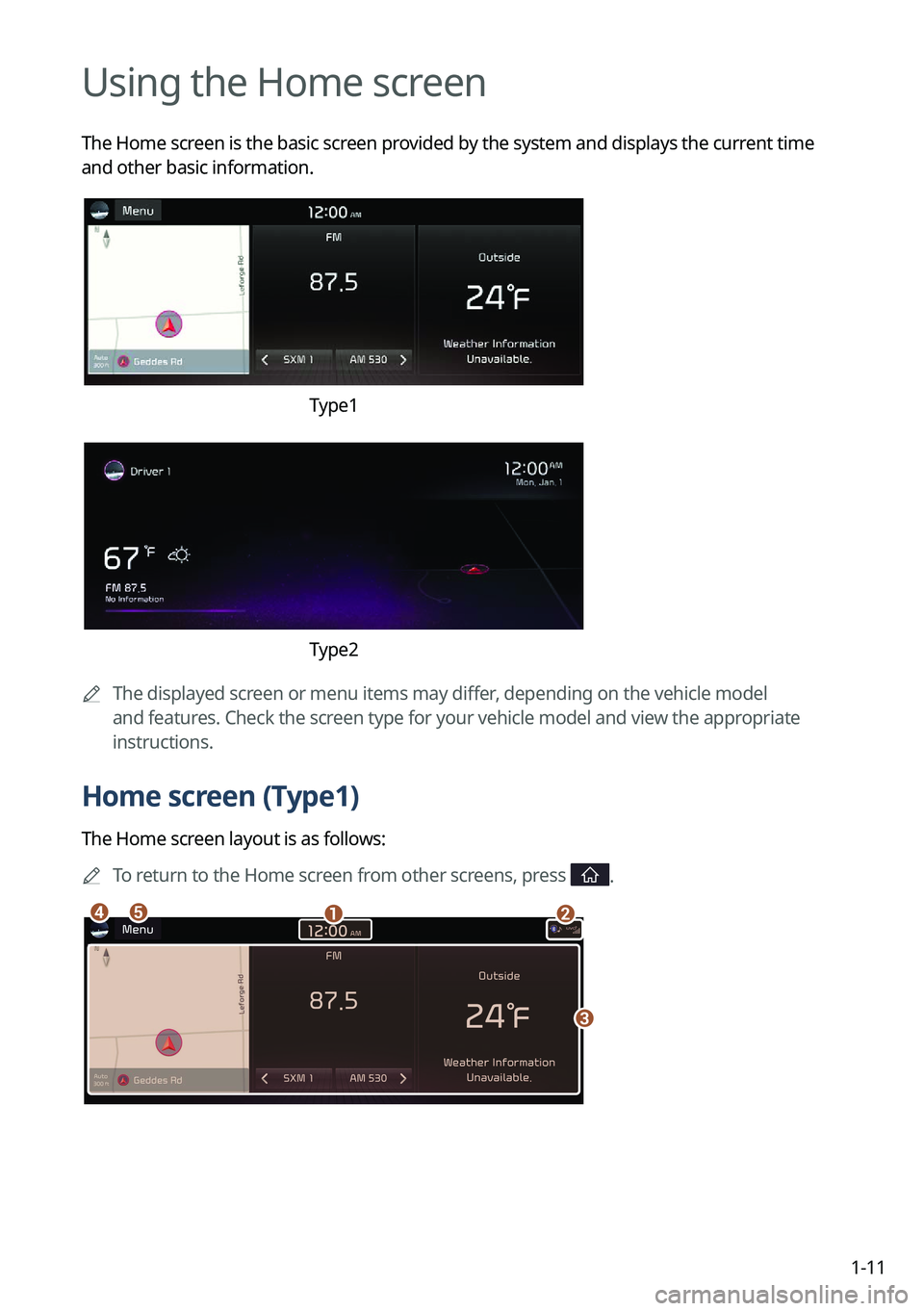

Using the Home screen
The Home screen is the basic screen provided by the system and displays the current time
and other basic information.
Type1
Type2

A
The displayed screen or menu items may differ, depending on the vehicle model
and features. Check the screen type for your vehicle model and view the appropriate
instructions.
Home screen (Type1)
The Home screen layout is as follows:

A
To return to the Home screen from other screens, press
.
ab
c
de

1-12
a a Current time. Depending on the vehicle model or specifications, time and date display
may vary. Press to access the time and date settings screen.
> See "Date/Time."
b b System status icons. Status icons are not included in the screenshots in this guide,
because their appearance may differ depending on the system status or mode.
> See "System status indicator icons."
c c Displays active widgets. When a widget is pressed, the corresponding function runs in full
screen.
> See "Editing the widgets on the Home screen (Type1)."
d d Displays the specified user profile image. When the image is pressed, the user profile
setting screen appears (if equipped).
> See "Configuring the user profile settings (Type1) (if
equipped)."
e e The list of menu items appears.
• Edit Home Widgets: Used to edit the types and positions of widgets on the Home
screen.
•Edit Home Icons: Used to edit the types of icons on the Home screen.
•User's Manual on Web (QR Code): Displays the QR code that provides access to the
online user manual for the system.

A
The screen may differ depending on the vehicle model and specifications.
Home screen (Type2)
The Home screen layout is as follows:

A
To return to the Home screen from other screens, press
.
a
c
d
b
a a Displays the specified user profile image. To display the user profile settings screen, press
the user image or name.
b b Displays the date and time.
c c Displays weather, and other information.
d d Displays Radio/Media information.

A
The screen may differ depending on the vehicle model and specifications.

A
To display the map screen, press the map area.

1-13

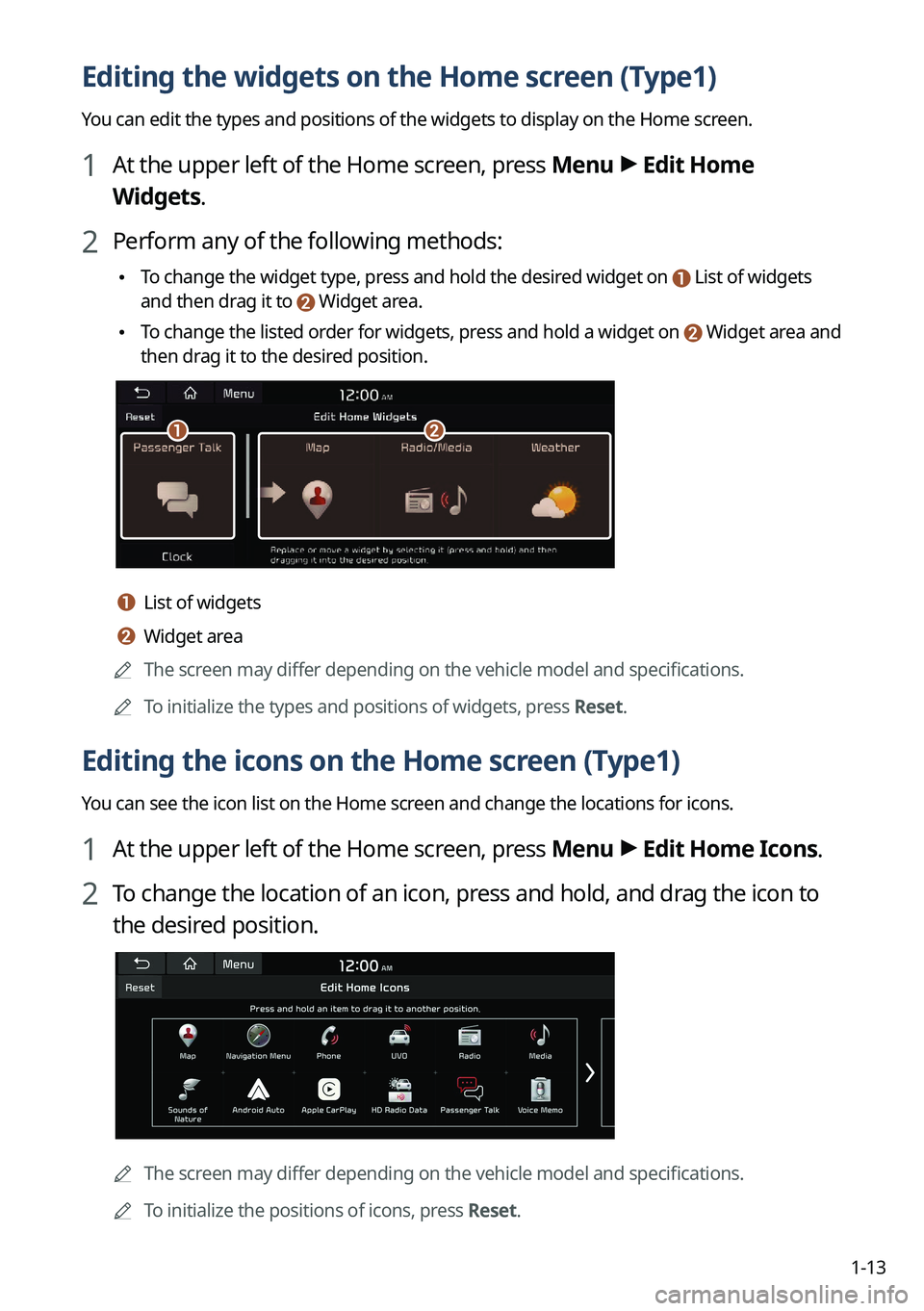

Editing the widgets on the Home screen (Type1)
You can edit the types and positions of the widgets to display on the Home screen.
1 At the upper left of the Home screen, press Menu >
Edit Home
Widgets.
2 Perform any of the following methods:
• To change the widget type, press and hold the desired widget on List of widgets
and then drag it to Widget area.
•To change the listed order for widgets, press and hold a widget on Widget area and
then drag it to the desired position.
ab
a a List of widgets
b b Widget area

A
The screen may differ depending on the vehicle model and specifications.

A
To initialize the types and positions of widgets, press Reset.
Editing the icons on the Home screen (Type1)
You can see the icon list on the Home screen and change the locations for icons.
1 At the upper left of the Home screen, press Menu >
Edit Home Icons.
2 To change the location of an icon, press and hold, and drag the icon to
the desired position.

A
The screen may differ depending on the vehicle model and specifications.

A
To initialize the positions of icons, press Reset.

1-14

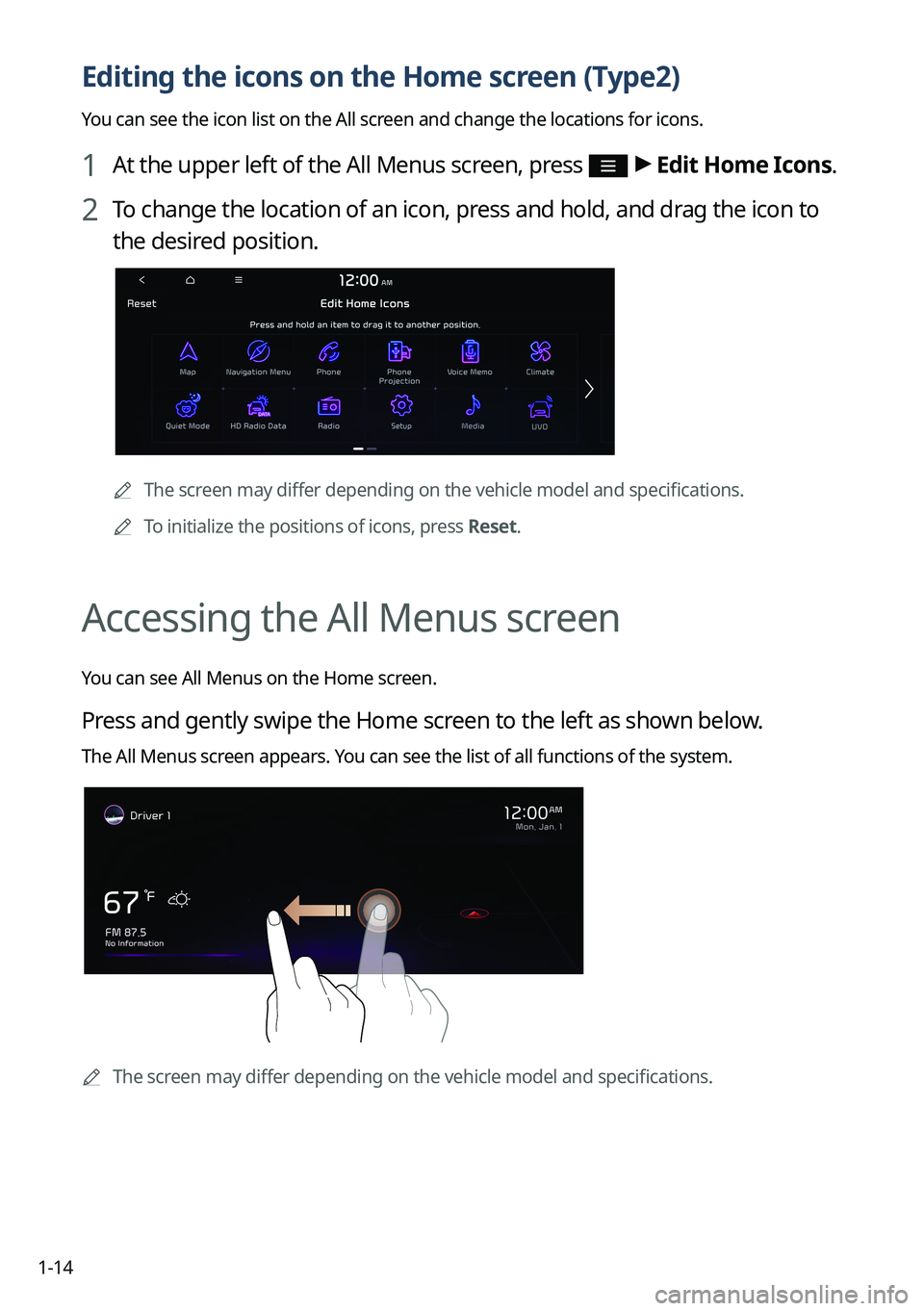

Editing the icons on the Home screen (Type2)
You can see the icon list on the All screen and change the locations for icons.
1 At the upper left of the All Menus screen, press >
Edit Home Icons.
2 To change the location of an icon, press and hold, and drag the icon to
the desired position.
A
The screen may differ depending on the vehicle model and specifications.

A
To initialize the positions of icons, press Reset.
Accessing the All Menus screen
You can see All Menus on the Home screen.
Press and gently swipe the Home screen to the left as shown below.
The All Menus screen appears. You can see the list of all functions of the system.
AThe screen may differ depending on the vehicle model and specifications.

1-15
Using the split screen (if equipped)
You can set to display various information such as map, Radio/Media info, driving info, and
clock on the split system screen.
Opening the split screen
Press the split screen button.
The split screen appears on the right.

A
To open split screens, press Split Screen on the menu at the top of the screen.

1-16

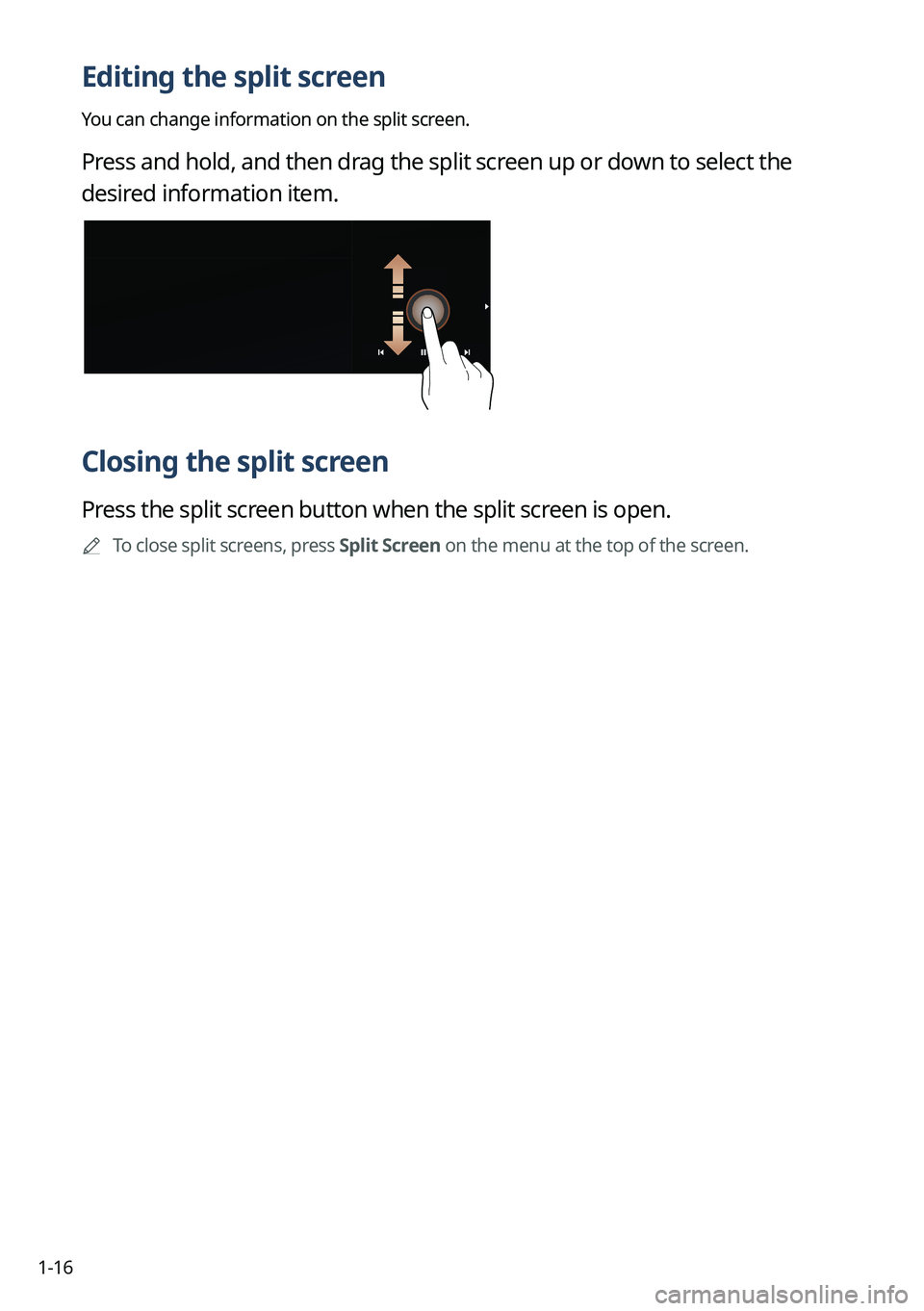

Editing the split screen
You can change information on the split screen.
Press and hold, and then drag the split screen up or down to select the
desired information item.
Closing the split screen
Press the split screen button when the split screen is open.

A
To close split screens, press Split Screen on the menu at the top of the screen.

Using the First Run Setup
Using the phone projection function
Viewing the driving assistance screen Using the climate control function
Using the rear-seat climate control function Using the rear-seat conversation mode Using the rear-seat view
Using the rear-seat quiet mode Using the sound mood lamp Playing Sounds of NatureUsing the HD Radio Data
Viewing the driving information Viewing notifications
Using the Valet mode
Using the Plug-in Hybrid menu
Useful functions
02

2-2

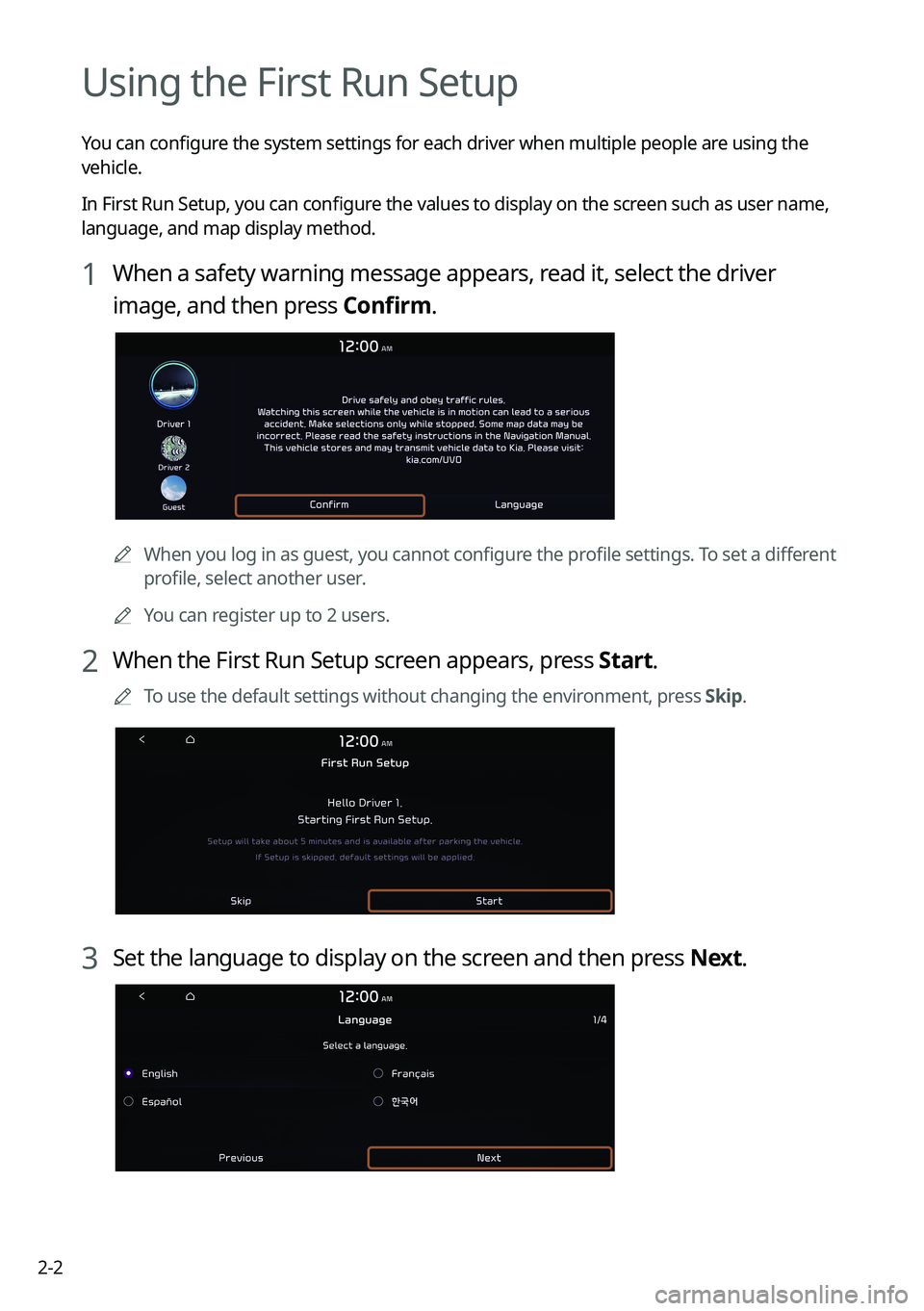

Using the First Run Setup
You can configure the system settings for each driver when multiple people are using the
vehicle.
In First Run Setup, you can configure the values to display on the screen such as user name,
language, and map display method.
1 When a safety warning message appears, read it, select the driver
image, and then press Confirm.
AWhen you log in as guest, you cannot configure the profile settings. To set a different
profile, select another user.

A
You can register up to 2 users.
2 When the First Run Setup screen appears, press Start.

A
To use the default settings without changing the environment, press Skip.
3 Set the language to display on the screen and then press Next.
