Maintenance
88
7
✽ ✽
NOTICE
You can find moisture inside the lens
of lamps after a car wash or driving
in the rain. It is a natural event
caused by the temperature differ-
ence between the inside and the out-
side of the lamp and does not mean a
problem with its functions. The
moisture inside the lamp would dis-
appear if you drive the vehicle with
the headlamp turned on, however,
the level at which the moisture is
removed may differ depending on
the size/location/condition of the
lamp. If the moisture continues to
stay inside the lamp, we recommend
that you have the vehicle checked by
an authorized Kia dealer.
If you don’t have the necessary tools,
the correct bulbs and the expertise,
consult an authorized Kia dealer. In
many cases, it is difficult to replace
vehicle light bulbs because other
parts of the vehicle must be removed
before you can get to the bulb. This is
especially true if you have to remove
the headlamp assembly to get to the
bulb(s).
Removing/installing the headlamp
assembly can result in damage to
the vehicle.
If non-genuine parts or substandard
bulbs are used, it may lead to blow-
ing a fuse or other wiring damages.
Do not install extra lamps or LEDs to
the vehicle. If additional lights are
installed, it may lead to lamp mal-
functions and flickering. Additionally,
the fuse box and other writing may
be damaged.Light bulb position (Front)
(1) Headlamp (Low/High) (Bulb type)
(2) Front turn signal lamp (Bulb type)
(3) Front side marker (Bulb type)
(4) Headlamp (Low/High) (LED type)
ODEP079029N
ODEP079099N
■Head lamp - Type A
■Head lamp - Type B

789
Maintenance
(5) Headlamp (Low) (LED type)
(6) Front turn signal lamp (LED type)
(7) Front side marker (LED type)(8) Daytime running lamp/Position
lamp (LED type)
(9) Front fog lamp (Bulb/LED type)Light bulb position (Rear)
ODEP079100N
ODEP071107N
■Daytime running lamp & Position lamp
■Fog lamp
ODEP079102N
ODE076031N
ODEP079104N
■Rear combination lamp - Type A
■Rear combination lamp - Type B
■Back-up lamp

Maintenance
90
7
(1) Stop/tail lamp (Bulb type)
(2) Tail lamp (Bulb type)
(3) Rear turn signal lamp (Bulb type)
(4) Rear side marker (Bulb type)
(5) Stop lamp (LED type) (6) Stop/tail lamp (LED type)
(7) Rear turn signal lamp (Bulb type)
(8) Rear side marker (LED type)
(9) Back-up lamp (Bulb type)
(10) License plate lamp (Bulb type)
(11) High mounted stop lamp (LED
type)
Light bulb position (Side)
(1) Side repeater lamp (LED type)
ODEP079055N
ODEP079056N
■License plate lamp
■High mounted stop lamp
ODE076034

791
Maintenance
Headlamp (High/Low beam)
(Bulb type) bulb replacement
(Headlamp type A)
1. Open the hood.
2. Remove the headlamp bulb coverby turning it counterclockwise.
3. Disconnect the headlamp bulb socket-connector.
4. Remove the bulb-socket from the headlamp assembly by turning the
bulb-socket counterclockwise until
the tabs on the bulb-socket align
with the slots on the headlamp
assembly. 5. Install a new bulb-socket assem-
bly in the headlamp assembly by
aligning the tabs on the bulb-sock-
et with the slots in the headlamp
assembly. Push the bulb-socket
into the headlamp assembly and
turn the bulb-socket clockwise.
6. Install the headlamp bulb cover by turning it clockwise.
Headlamp bulb
ODE076035
OQL075058
WARNING- Halogen
bulbs
Halogen bulbs contain pres- surized gas that will produce
flying pieces of glass if broken.
(Continued)

Maintenance
92
7
Front turn signal lamp (Bulb
type) bulb replacement
(Headlamp type A)
1. Open the hood.
2. Remove the dust cover (A) from
the headlamp assembly then bulb-
socket by turning the counter-
clockwise until the tabs on the
bulb-socket align with the slots on
the headlamp assembly.
3. Remove the bulb from the bulb- socket by pressing it in and rotat-
ing it counterclockwise until the
tabs on the bulb align with the
slots in the bulb-socket. Pull the
bulb out of the bulb-socket. 4. Insert a new bulb by inserting it
into the bulb-socket and rotating it
until it locks into place.
5. Install the socket in the headlamp assembly by aligning the tabs on
the bulb-socket with the slots in
the assembly. Push the bulb-sock-
et into the headlamp assembly
and turn the socket clockwise.
(Continued)
Always handle them carefully,and avoid scratches and abra-
sions. If the bulbs are lit, avoid
contact with liquids. Never
touch the glass with bare
hands. Residual oil may cause
the bulb to overheat and burst
when lit.
A bulb should be operated
only when installed in a head-
light.
If a bulb becomes damaged or cracked, replace it immediate-
ly and carefully dispose of it.
Wear eye protection when changing a bulb. Allow the bulb
to cool down before handling it.
ODE076058L

793
Maintenance

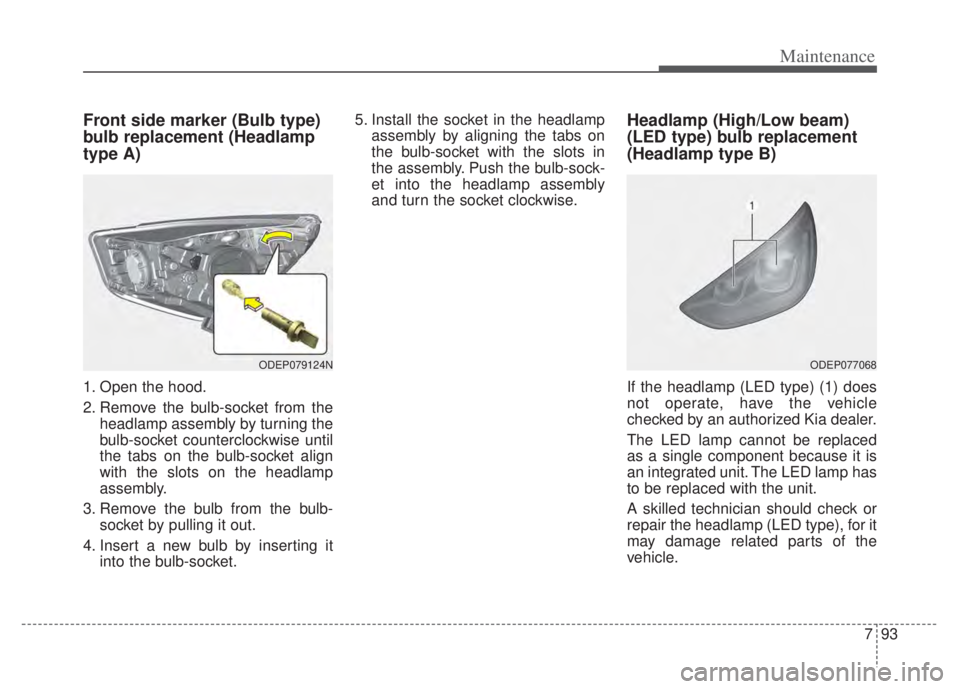

Front side marker (Bulb type)
bulb replacement (Headlamp
type A)
1. Open the hood.
2. Remove the bulb-socket from theheadlamp assembly by turning the
bulb-socket counterclockwise until
the tabs on the bulb-socket align
with the slots on the headlamp
assembly.
3. Remove the bulb from the bulb- socket by pulling it out.
4. Insert a new bulb by inserting it into the bulb-socket. 5. Install the socket in the headlamp
assembly by aligning the tabs on
the bulb-socket with the slots in
the assembly. Push the bulb-sock-
et into the headlamp assembly
and turn the socket clockwise.
Headlamp (High/Low beam)
(LED type) bulb replacement
(Headlamp type B)
If the headlamp (LED type) (1) does
not operate, have the vehicle
checked by an authorized Kia dealer.
The LED lamp cannot be replaced
as a single component because it is
an integrated unit. The LED lamp has
to be replaced with the unit.
A skilled technician should check or
repair the headlamp (LED type), for it
may damage related parts of the
vehicle.
ODEP079124NODEP077068

Maintenance
94
7
Front turn signal (LED type)
bulb replacement (Headlamp
type B)
If the front turn signal lamp (LED type)
(1) does not operate, have the vehicle
checked by an authorized Kia dealer.
The LED lamp cannot be replaced
as a single component because it is
an integrated unit. The LED lamp has
to be replaced with the unit.
A skilled technician should check or
repair the front turn signal lamp (LED
type), for it may damage related
parts of the vehicle.
Front side marker (LED type)
bulb replacement (Headlamp
type B)
If the front side marker (LED type)
(1) does not operate, have the vehi-
cle checked by an authorized Kia
dealer.
The LED lamp cannot be replaced
as a single component because it is
an integrated unit. The LED lamp has
to be replaced with the unit.
A skilled technician should check or
repair the front side marker (LED
type), for it may damage related
parts of the vehicle.
Daytime running lamp/Position
lamp (LED type) bulb replace-
ment
If the daytime running lamp/position
lamp (LED type) (1) does not oper-
ate, have the vehicle checked by an
authorized Kia dealer.
The LED lamp cannot be replaced
as a single component because it is
an integrated unit. The LED lamp has
to be replaced with the unit.
A skilled technician should check or
repair the daytime running
lamp/position lamp (LED type), for it
may damage related parts of the
vehicle.
ODEP077069ODEP079121NODEP071108N

795
Maintenance
Front fog lamp (Bulb/LED
type) bulb replacement
If the front fog lamp (Bulb/LED type)
(1) does not operate, have the vehicle
checked by an authorized Kia dealer.
Stop and tail lamp, Rear turn
signal lamp (Bulb type) bulb
replacement
1. Open the liftgate.
2. Open the service cover.
3. Loosen the light assembly retain-ing screws with a cross-tip screw-
driver. 4. Remove the rear combination
lamp assembly from the body of
the vehicle.
5. Disconnect the rear combination lamp connector.
ODE076037
ODE076038
ODEP079101

Maintenance
96
7
6. Remove the socket from the
assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on
the assembly.
7. Remove the bulb from the socket by pressing it in and rotating it counter-
clockwise until the tabs on the bulb
align with the slots in the socket.
Pull the bulb out of the socket.
8. Insert a new bulb by inserting it into the socket and rotating it until
it locks into place. 9. Install the socket in the assembly
by aligning the tabs on the socket
with the slots in the assembly.
Push the socket into the assembly
and turn the socket clockwise.
10. Install the rear combination lamp assembly to the body of the vehi-
cle.
11. Install the service cover.
Tail lamp (inside) (Bulb type)
bulb replacement
1. Open the liftgate.
2. Remove the service cover.
ODE076039
ODE076040

797
Maintenance
3. Remove the socket from theassembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on
the assembly.
4. Remove the bulb from the socket by pressing it in and rotating it
counter-clockwise until the tabs on
the bulb align with the slots in the
socket. Pull the bulb out of the
socket.
5. Insert a new bulb by inserting it into the socket and rotating it until
it locks into place. 6. Install the socket in the assembly
by aligning the tabs on the socket
with the slots in the assembly.
Push the socket into the assembly
and turn the socket clockwise.
7. Install the service cover by putting it into the service hole.
Rear side marker (Bulb type)
bulb replacement
1. Open the liftgate.
2. Remove the service cover.
3. Loosen the light assembly retain-ing screws with a cross-tip screw-
driver.
ODE076041
ODE076037
ODE076038
