Knowing your vehicle10
3
1
2
3
4
5
6
7
8
9
✽ ✽
NOTICEIf the door is locked/unlocked multi-
ple times in rapid succession with
either the vehicle key or door lock
switch, the system may stop operat-
ing temporarily in order to protect
the circuit and prevent damage to
system components.
Operating door locks from
inside the vehicleWith the door lock button To unlock a door, pull the door lock
button out to the “UNLOCK” posi-
tion (the red part (
➁) of the button
becomes visible).
 To lock a door, push the door lock button (
➀) to the “LOCK” position
(red part (➁) of the knob becomes
invisible).
 To open a door, pull the door han- dle (
➂) outward.  If the inner door handle of driver’s
side door is pulled when the door
lock button is in lock position, the
button is unlocked and door opens
(if equipped).
 Front doors cannot be locked if the ignition key is in the ignition switch
and door is open.
1GHA2013
Unlock
Lock
Opirus-ENG (CAN) 3.qxd 7/8/03 1:56 PM Page 10

311
1
2
3
4
5
6
7
8
9
Knowing your vehicle
With central door lock switchThe central door locking switch is
located on the driver’s arm rest. It is
operated by depressing the door lock
switch. If any door is open when the
switch is depressed, the door will
remain locked when closed. When pushing down on the front
portion (
➀) of the driver’s door
lock switch, all vehicle doors will
lock.
 When pushing down on the rear portion (
➁) of the switch, all vehicle
doors will unlock.
 However, if the key is in the ignition switch and any front door is open,
the doors will not lock when the
front portion of central door lock
switch is pressed.
CAUTION
 The doors should always be fully closed and locked whilethe vehicle is in motion to pre-vent accidental opening of thedoor. Locked doors will alsodiscourage potential intruderswhen the vehicle stops orslows.
 Be careful when opening doors and watch for vehicles,motorcycles, bicycles orpedestrians approaching thevehicle in the path of the door.Opening a door when some-thing is approaching cancause damage or injury.
2GHA2014
Opirus-ENG (CAN) 3.qxd 7/8/03 1:56 PM Page 11

Knowing your vehicle12
3
1
2
3
4
5
6
7
8
9
Rear door child safety lockThe child safety lock is provided to
help prevent children from acciden-
tally opening the rear doors from
inside the vehicle. The rear door
safety locks should be used whenev-
er children are in the vehicle.
1GHA2015
WARNING
Leaving your vehicle unlocked
can invite theft or possible harm
to you or others from someone
hiding in your vehicle while you
are gone. Always remove the
ignition key, engage the parking
brake, close all windows and
lock all doors when leaving your
vehicle unattended.
WARNING
- Unattended
children
An enclosed vehicle can
become extremely hot, causing
death or severe injury to unat-
tended children or animals who
cannot escape the vehicle.
Furthermore, children might
operate features of the vehicle
that could injure them, or they
could encounter other harm,
possibly from someone gaining
entry to the vehicle. Never leave
children or animals unattended
in your vehicle.
Opirus-ENG (CAN) 3.qxd 7/8/03 1:56 PM Page 12

Knowing your vehicle16
3
1
2
3
4
5
6
7
8
9
Window opening and closingThe driver’s door has a master power
window switch that controls all the
windows in the vehicle. To open or
close a window, press down or pull
up the front portion of the correspon-
ding switch.
Automatic power windowDepressing or pulling up the power
window switch momentarily to the
second detent position (
\b) com-
pletely lowers or lifts the window
even when the switch is released. To
stop the window at the desired posi-
tion while the window is in operation,
pull up or depress the switch
momentarily to the opposite direction
of the window movement.
If the battery has been discharged
or disconnected, the automatic
power window system must be reset
as follows:
1. Turn the ignition key to ON posi- tion.
2. Close each window and continue pulling up on each power window
switch for at least 0.5 second after
the window is completely closed. Automatic window reversal (When
window is closed by the automatic
power window)
If the upward movement of the win-
dow is blocked by an object or part of
the body, the window will detect the
resistance and will stop upward
movement. The window will then
lower approximately 15cm to allow
the object to be cleared.
1GHA2301
1GHA2300B1GHA2300A
Opirus-ENG (CAN) 3.qxd 7/8/03 1:56 PM Page 16

317
1
2
3
4
5
6
7
8
9
Knowing your vehicle
Power window lock switch The driver can disable the powerwindow switches on a passenger
door by depressing the power win-
dow lock switch located on the dri-
ver’s door to LOCK (pressed).
 When the power window lock switch is ON, the driver’s master
control cannot operate the passen-
ger door power windows either.
Power window timer
(if equipped)The power windows can be operated
for approximately 30 seconds after
the ignition key is removed or turn to
the ACC or LOCK position. However,
if the front doors are opened, the
power windows cannot be operated
even within the 30 seconds after the
ignition key removal.
WARNING
 The automatic window rever- sal feature (window lowers
150 mm when resistance is
detected) will only operate
when the automatic power
window up operation feature
is used. Automatic window
reverseal will not operate if
the window is raised using the
first detent position (
➄) on the
power window switch. Always
double check to make sure all
faces, arms, hands and other
obstructions are safely out of
the way of before operating
the power window.
 If an object less than 4 mm in diameter is caught between
the window glass and the
upper window channel, the
automatic reversal may not
detect the resistance and will
not operate. Therefore, always
check for any obstructions
before raising any window.
Opirus-ENG (CAN) 3.qxd 7/8/03 1:56 PM Page 17

Knowing your vehicle38
3
1
2
3
4
5
6
7
8
9
WARNING
 Do not strike the pre-tensioner
seat belt assemblies.
 Do not attempt to service or
repair the pre-tensioner seat
belt system in any manner.
 Improper handling of the pre-
tensioner seat belt assem-
blies, and failure to heed the
warnings not to strike, modify,
inspect, place, service or
repair the pre-tensioner seat
belt assemblies may lead to
improper operation or inad-
vertent activation causing
serious injury.
Always wear the seat belts
when driving or riding in a
motor vehicle.
CAUTION
Because the sensor that acti-
vates the SRS airbag is con-nected with pre-tensioner seatbelt, the SRS airbag warninglight on the instrument panelwill blink or illuminate forapproximately 6 seconds afterthe ignition key has beenturned to the “ON”position,
then the light should go off.
 If the pre-tensioner seat belt is
not working properly, thiswarning light will illuminateeven if there is no malfunctionof SRS airbag system. If theSRS airbag warning light doesnot illuminate when the igni-tion key is turned to “ON”,or
if it remains illuminated after blinking or illuminating forapproximately 6 seconds, or ifit illuminates while the vehicleis being driven, please havean authorized Kia dealerinspect the pre-tensioner seatbelt or SRS airbag system assoon as possible.
WARNING
 Pre-tensioners are designed
to operate once. After activa-
tion, pre-tensioner seat belts
must be replaced. All seat
belts, of any type, should
always be replaced after they
have been worn during a colli-
sion.
 Do not attempt to inspect or
replace the pre-tensioner seat
belts yourself. This must be
done by an authorized Kia
dealer.
CAUTION
The pre-tensioner seat belt
assembly mechanisms becomehot during activation. Do nottouch the pre-tensioner seatbelt assembly for several min-utes after they have been acti-vated.
Opirus-ENG (CAN) 3.qxd 7/8/03 1:56 PM Page 38

Knowing your vehicle42
3
1
2
3
4
5
6
7
8
9

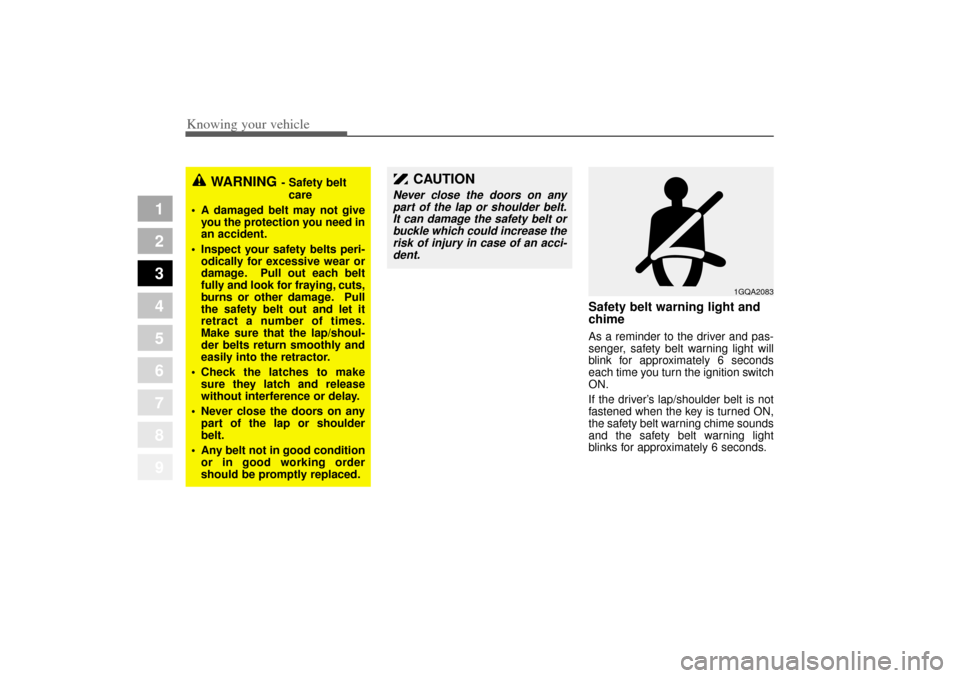

WARNING
- Safety belt
care
 A damaged belt may not give
you the protection you need in
an accident.
 Inspect your safety belts peri-
odically for excessive wear or
damage. Pull out each belt
fully and look for fraying, cuts,
burns or other damage. Pull
the safety belt out and let it
retract a number of times.
Make sure that the lap/shoul-
der belts return smoothly and
easily into the retractor.
 Check the latches to make
sure they latch and release
without interference or delay.
 Never close the doors on any
part of the lap or shoulder
belt.
 Any belt not in good condition
or in good working order
should be promptly replaced.
CAUTION
Never close the doors on any
part of the lap or shoulder belt.It can damage the safety belt orbuckle which could increase therisk of injury in case of an acci-dent.
Safety belt warning light and
chimeAs a reminder to the driver and pas-
senger, safety belt warning light will
blink for approximately 6 seconds
each time you turn the ignition switch
ON.
If the driver’s lap/shoulder belt is not
fastened when the key is turned ON,
the safety belt warning chime sounds
and the safety belt warning light
blinks for approximately 6 seconds.
1GQA2083
Opirus-ENG (CAN) 3.qxd 7/8/03 1:56 PM Page 42

363
1
2
3
4
5
6
7
8
9
Knowing your vehicle

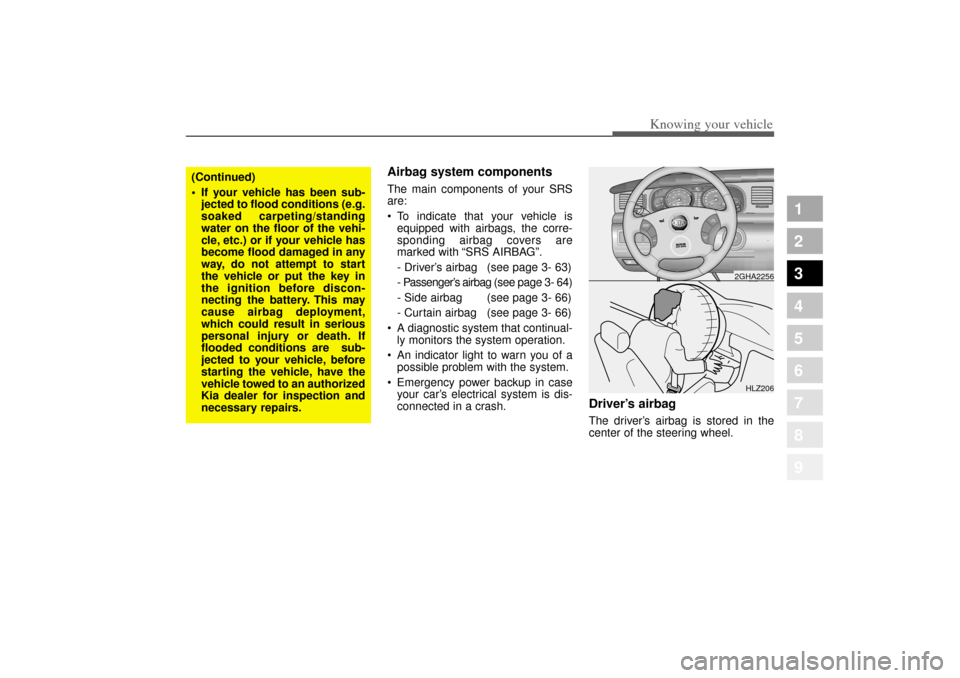

Airbag system components The main components of your SRS
are:
To indicate that your vehicle is
equipped with airbags, the corre-
sponding airbag covers are
marked with “SRS AIRBAG”.
- Driver’ s airbag (see page 3- 63)
- Passenger’ s airbag(see page 3- 64)
- Side airbag (see page 3- 66)
- Curtain airbag (see page 3- 66)
 A diagnostic system that continual-
ly monitors the system operation.
 An indicator light to warn you of a
possible problem with the system.
 Emergency power backup in case
your car’ s electrical system is dis-
connected in a crash.
Driver’ s airbagThe driver’ s airbag is stored in the
center of the steering wheel.
CRUISE
ON/OFFCAN CE
L
COAST
SETRES
ACCEL
HLZ206
(Continued)
 If your vehicle has been sub-
jected to flood conditions (e.g.
soaked carpeting/standing
water on the floor of the vehi-
cle, etc.) or if your vehicle has
become flood damaged in any
way, do not attempt to start
the vehicle or put the key in
the ignition before discon-
necting the battery. This may
cause airbag deployment,
which could result in serious
personal injury or death. If
flooded conditions are sub-
jected to your vehicle, before
starting the vehicle, have the
vehicle towed to an authorized
Kia dealer for inspection and
necessary repairs.
2GHA2256
Opirus-ENG (CAN) 3.qxd 7/8/03 1:56 PM Page 63

379
1
2
3
4
5
6
7
8
9
Knowing your vehicle

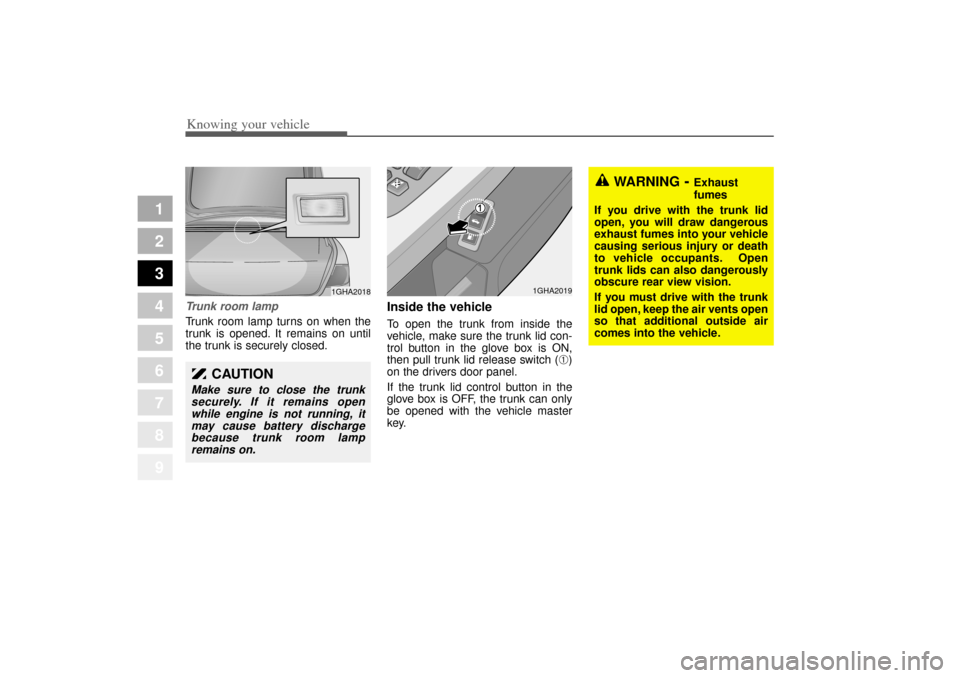

Outside the vehicleTo open the trunk, insert the key
into the lock (
➀) and turn it clock-
wise (
➁). If the trunk is opened
with the key while all the doors are
locked, trunk will be locked if
closed.
 To open the trunk, pull up (
➃) the
trunk lid by pressing the button (➂)
of the trunk handle when the trunk
is unlocked. Trunk can be opened
by pressing the button (
➂) of the
handle and pulling up the lid while
any door is unlocked.
To close the trunk, use both hands
to push the trunk lid down. Check
to see if the trunk is completely
shut. If all the doors are locked
then trunk will be locked too.
 If the trunk lid control button in the
glove box is in the ON position
(depressed), trunk can be opened
with transmitter.
 If the trunk is opened with the
transmitter while all the doors are
locked, trunk will be locked when
closed.
 Trunk can not be opened with the
sub key.
✽ ✽
NOTICEDo not try to open trunk with the
sub key. It may damage the key set.
TRUNK
1GHA2017
PROPOSITION 65
WARNING
Engine exhaust and a wide vari-
ety of automobile components
and parts, including compo-
nents found in the interior fur-
nishings in a vehicle, contain or
emit chemicals known to the
State of California to cause can-
cer and birth defects and repro-
ductive harm. In addition, cer-
tain fluids contained in vehicles
and certain products of compo-
nent wear contain or emit chem-
icals known to the State of
California to cause cancer and
birth defects or other reproduc-
tive harm.
Opirus-ENG (CAN) 3.qxd 7/8/03 1:56 PM Page 79

Knowing your vehicle80
3
1
2
3
4
5
6
7
8
9
Trunk room lampTrunk room lamp turns on when the
trunk is opened. It remains on until
the trunk is securely closed.
Inside the vehicleTo open the trunk from inside the
vehicle, make sure the trunk lid con-
trol button in the glove box is ON,
then pull trunk lid release switch (
➀)
on the drivers door panel.
If the trunk lid control button in the
glove box is OFF, the trunk can only
be opened with the vehicle master
key.
WARNING
- Exhaust
fumes
If you drive with the trunk lid
open, you will draw dangerous
exhaust fumes into your vehicle
causing serious injury or death
to vehicle occupants. Open
trunk lids can also dangerously
obscure rear view vision.
If you must drive with the trunk
lid open, keep the air vents open
so that additional outside air
comes into the vehicle.
1GHA2018
CAUTION
Make sure to close the trunk securely. If it remains openwhile engine is not running, itmay cause battery dischargebecause trunk room lampremains on.
1GHA2019
Opirus-ENG (CAN) 3.qxd 7/8/03 1:56 PM Page 80
