KIA Optima 2016 4.G Owner's Manual

Audio system
539

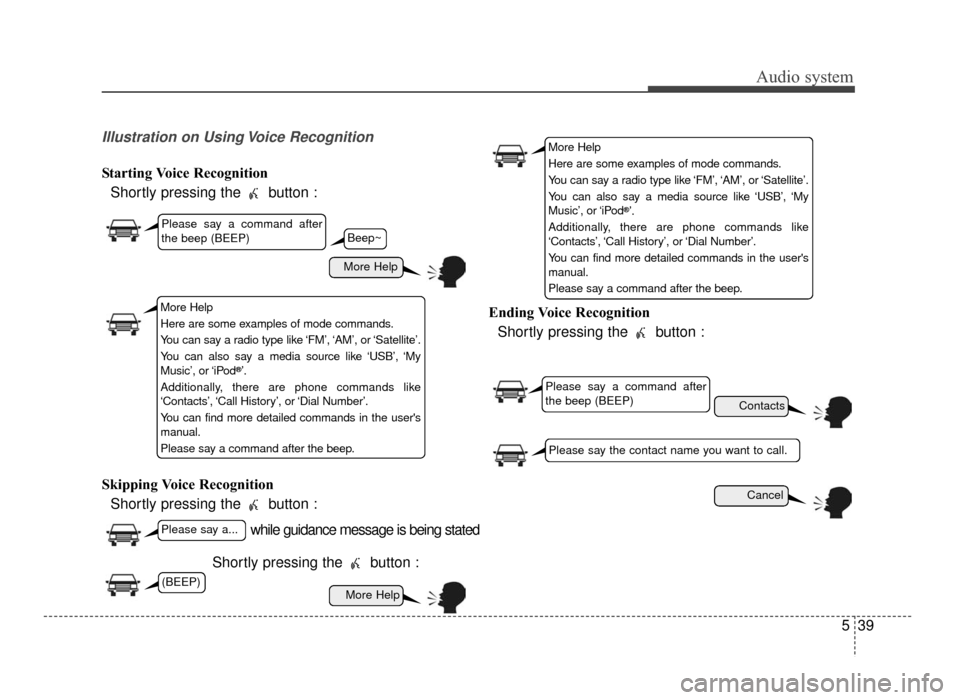

Illustration on Using Voice Recognition
Starting Voice RecognitionShortly pressing the button :
Skipping Voice Recognition Shortly pressing the button :
Shortly pressing the button : Ending Voice Recognition
Shortly pressing the button :
while guidance message is being stated
More Help
Contacts
Cancel
More Help
Please say a command after
the beep (BEEP)
Please say a...
Please say the contact name you want to call.
Beep~
More Help
Here are some examples of mode commands.
You can say a radio type like ‘FM’, ‘AM’, or ‘Satellite’.
You can also say a media source like ‘USB’, ‘My
Music’, or ‘iPod
®’.
Additionally, there are phone commands like
‘Contacts’, ‘Call History’, or ‘Dial Number’.
You can find more detailed commands in the user's
manual.
Please say a command after the beep.
More Help
Here are some examples of mode commands.
You can say a radio type like ‘FM’, ‘AM’, or ‘Satellite’.
You can also say a media source like ‘USB’, ‘My
Music’, or ‘iPod
®’.
Additionally, there are phone commands like
‘Contacts’, ‘Call History’, or ‘Dial Number’.
You can find more detailed commands in the user's
manual.
Please say a command after the beep.
Please say a command after
the beep (BEEP)
(BEEP)
JF CAN (ENG) 5 (Audio).qxp 9/23/2015 7:24 PM Page 39

Audio system
40
5

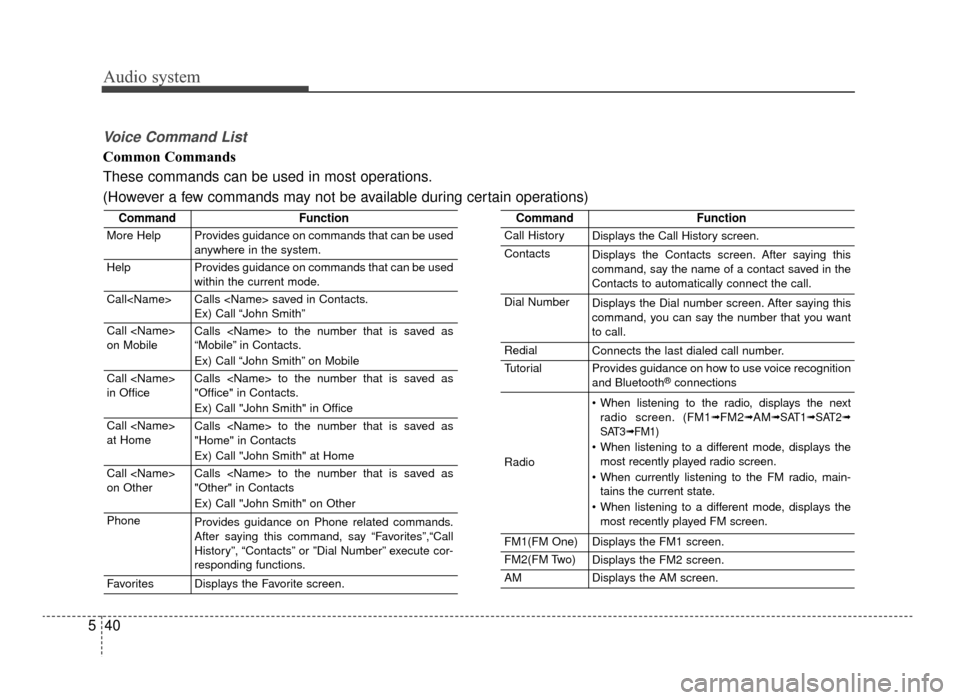

Voice Command List
Common Commands
These commands can be used in most operations.
(However a few commands may not be available during certain operations)
CommandFunction
More HelpProvides guidance on commands that can be used
anywhere in the system.
HelpProvides guidance on commands that can be used
within the current mode.
CallCalls saved in Contacts.
Ex) Call “John Smith”
Call
on MobileCalls to the number that is saved as
“Mobile” in Contacts.
Ex) Call “John Smith” on Mobile
Call
in OfficeCalls to the number that is saved as
"Office" in Contacts.
Ex) Call "John Smith" in Office
Call
at HomeCalls to the number that is saved as
"Home" in Contacts
Ex) Call "John Smith" at Home
Call
on OtherCalls to the number that is saved as
"Other" in Contacts
Ex) Call "John Smith" on Other
PhoneProvides guidance on Phone related commands.
After saying this command, say “Favorites”,“Call
History”, “Contacts” or ”Dial Number” execute cor-
responding functions.
FavoritesDisplays the Favorite screen.
CommandFunction
Call HistoryDisplays the Call History screen.
ContactsDisplays the Contacts screen. After saying this
command, say the name of a contact saved in the
Contacts to automatically connect the call.
Dial NumberDisplays the Dial number screen. After saying this
command, you can say the number that you want
to call.
RedialConnects the last dialed call number.
TutorialProvides guidance on how to use voice recognition
and Bluetooth®connections
Radio
When listening to the radio, displays the next
radio screen. (FM1➟FM2➟AM➟ SAT1➟ SAT2➟
SAT3➟ FM1)
When listening to a different mode, displays the most recently played radio screen.
When currently listening to the FM radio, main- tains the current state.
When listening to a different mode, displays the most recently played FM screen.
FM1(FM One)Displays the FM1 screen.
FM2(FM Two)Displays the FM2 screen.
AMDisplays the AM screen.
JF CAN (ENG) 5 (Audio).qxp 9/23/2015 7:24 PM Page 40

Audio system
541
CommandFunction
FM Preset 1~6Plays the most recently played broadcast saved in
FM Preset 1~6.
AM Preset 1~6Plays the broadcast saved in AM Preset 1~6.
FM 87.5~107.9Plays the FM broadcast of the corresponding fre-
quency.
AM 530~1710Plays the AM broadcast of the corresponding fre-
quency.
SIRIUS (Satellite) When listening to the SiriusXM®, maintains the
current state.
When listening to a different mode, displays the most recently played SiriusXM
®screen.
SIRIUS (Satellite)
1~3Displays the selected SiriusXM®screen.
SIRIUS Channel
0~223Plays the selected SiriusXM®channel.
MediaMoves to the most recently played media screen.
CDPlays the music on the CD.
USBPlays music on the USB device.
iPod®Plays music on the iPod®.
My MusicPlays music saved in My Music.
CommandFunction
AUX (Auxiliary)Plays the connected external device.
Bluetooth®AudioPlays the music saved in connected Bluetooth®
device.
MuteMutes the sound.
Cancel (Exit)Ends voice command.
JF CAN (ENG) 5 (Audio).qxp 9/23/2015 7:24 PM Page 41

Audio system
42

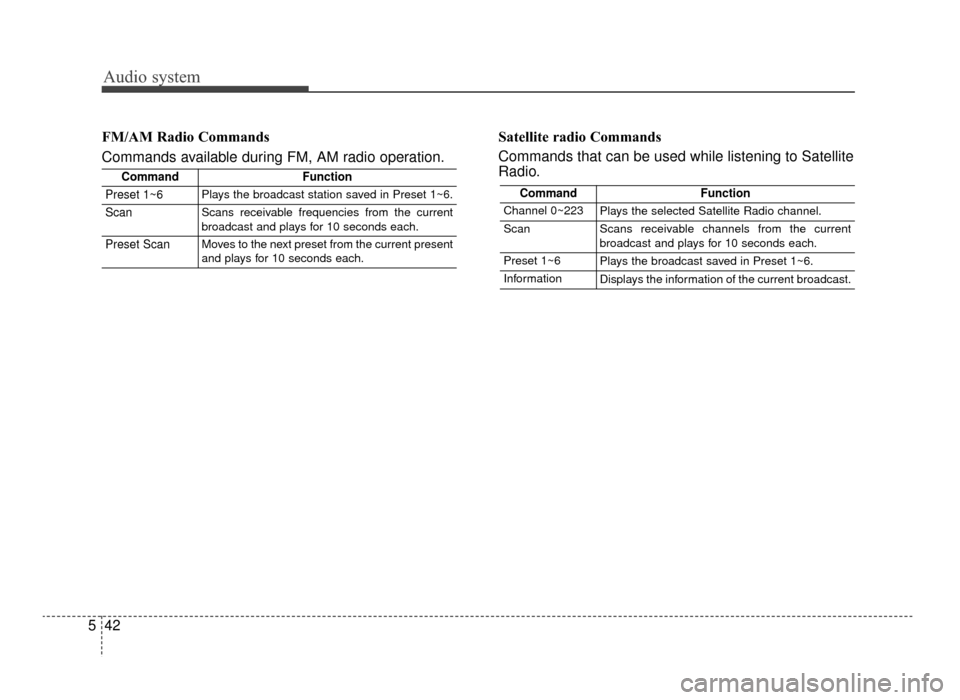

5 FM/AM Radio Commands
Commands available during FM, AM radio operation.
Satellite radio Commands
Commands that can be used while listening to Satellite
Radio.
CommandFunction
Preset 1~6Plays the broadcast station saved in Preset 1~6.
ScanScans receivable frequencies from the current
broadcast and plays for 10 seconds each.
Preset ScanMoves to the next preset from the current present
and plays for 10 seconds each.
CommandFunction
Channel 0~223Plays the selected Satellite Radio channel.
ScanScans receivable channels from the current
broadcast and plays for 10 seconds each.
Preset 1~6Plays the broadcast saved in Preset 1~6.
InformationDisplays the information of the current broadcast.
JF CAN (ENG) 5 (Audio).qxp 9/23/2015 7:24 PM Page 42

Audio system
543

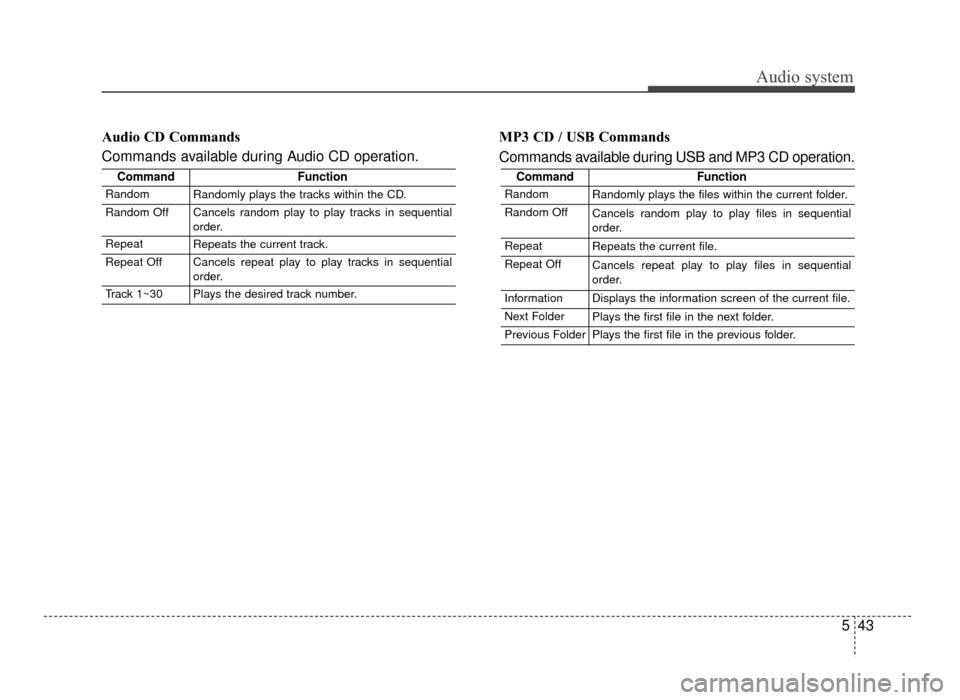

Audio CD Commands
Commands available during Audio CD operation.
MP3 CD / USB Commands
Commands available during USB and MP3 CD operation.
CommandFunction
RandomRandomly plays the files within the current folder.
Random OffCancels random play to play files in sequential
order.
RepeatRepeats the current file.
Repeat OffCancels repeat play to play files in sequential
order.
InformationDisplays the information screen of the current file.
Next FolderPlays the first file in the next folder.
Previous FolderPlays the first file in the previous folder.
CommandFunction
RandomRandomly plays the tracks within the CD.
Random OffCancels random play to play tracks in sequential
order.
RepeatRepeats the current track.
Repeat OffCancels repeat play to play tracks in sequential
order.
Track 1~30Plays the desired track number.
JF CAN (ENG) 5 (Audio).qxp 9/23/2015 7:24 PM Page 43

Audio system
44

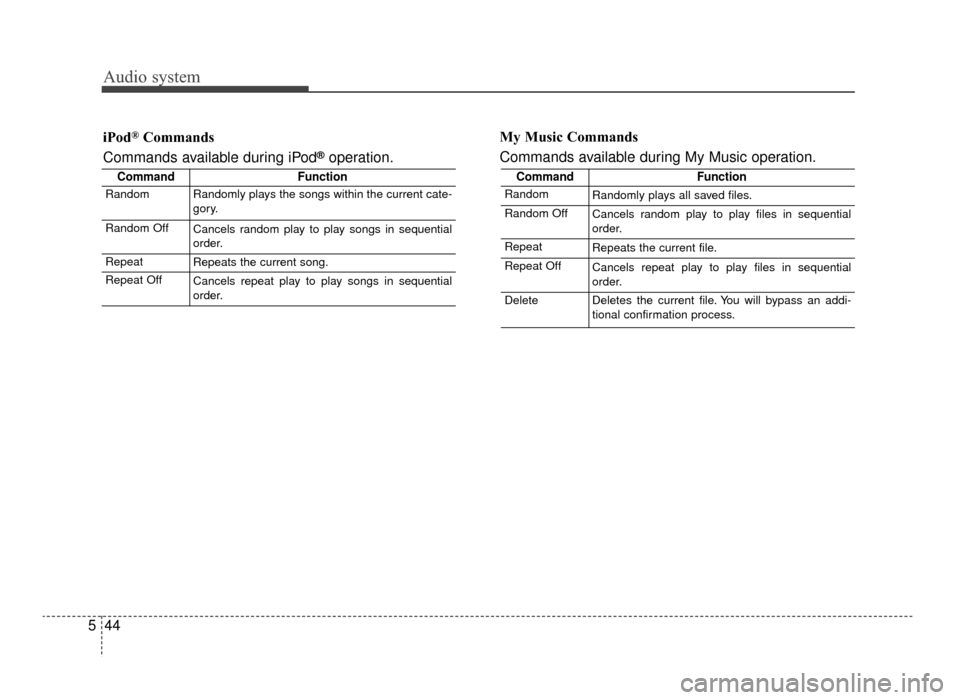

5 iPod
®Commands
Commands available during iPod
®operation. My Music Commands
Commands available during My Music operation.
CommandFunction
RandomRandomly plays all saved files.
Random OffCancels random play to play files in sequential
order.
RepeatRepeats the current file.
Repeat OffCancels repeat play to play files in sequential
order.
DeleteDeletes the current file. You will bypass an addi-
tional confirmation process.
CommandFunction
RandomRandomly plays the songs within the current cate-
gory.
Random OffCancels random play to play songs in sequential
order.
RepeatRepeats the current song.
Repeat OffCancels repeat play to play songs in sequential
order.
JF CAN (ENG) 5 (Audio).qxp 9/23/2015 7:24 PM Page 44

Audio system
545

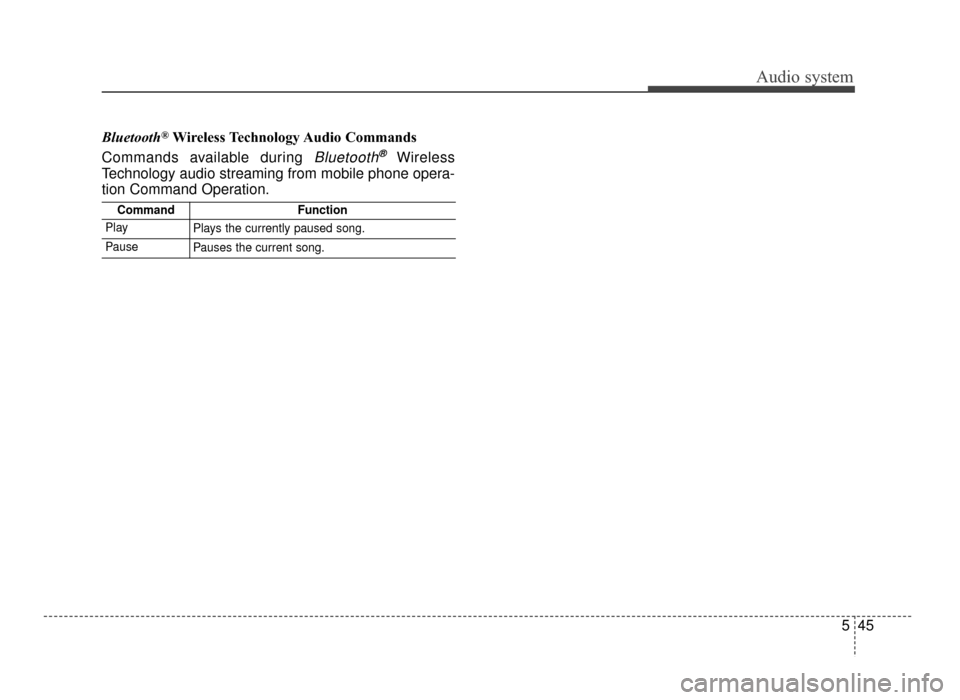

Bluetooth
®Wireless Technology Audio Commands
Commands available during
Bluetooth®Wireless
Technology audio streaming from mobile phone opera-
tion Command Operation.
CommandFunction
PlayPlays the currently paused song.
PausePauses the current song.
JF CAN (ENG) 5 (Audio).qxp 9/23/2015 7:24 PM Page 45

Audio system
46
5
Setup Mode
With the Display Button
Press the [SETUP/CLOCK] button

Select [Display]
Mode Pop up
[Mode Pop up] Changes [On]
selection mode
During On state, press the [RADIO] or [MENU] button to display the
mode change pop up screen. Media Display
When playing an MP3 file, select the
desired display info from ‘Folder/File’
or ‘Album/Artist/Song’.
With the Sound Button
Press the [SETUP/CLOCK]
button

Select [Sound]
JF CAN (ENG) 5 (Audio).qxp 9/23/2015 7:24 PM Page 46

Audio system
547

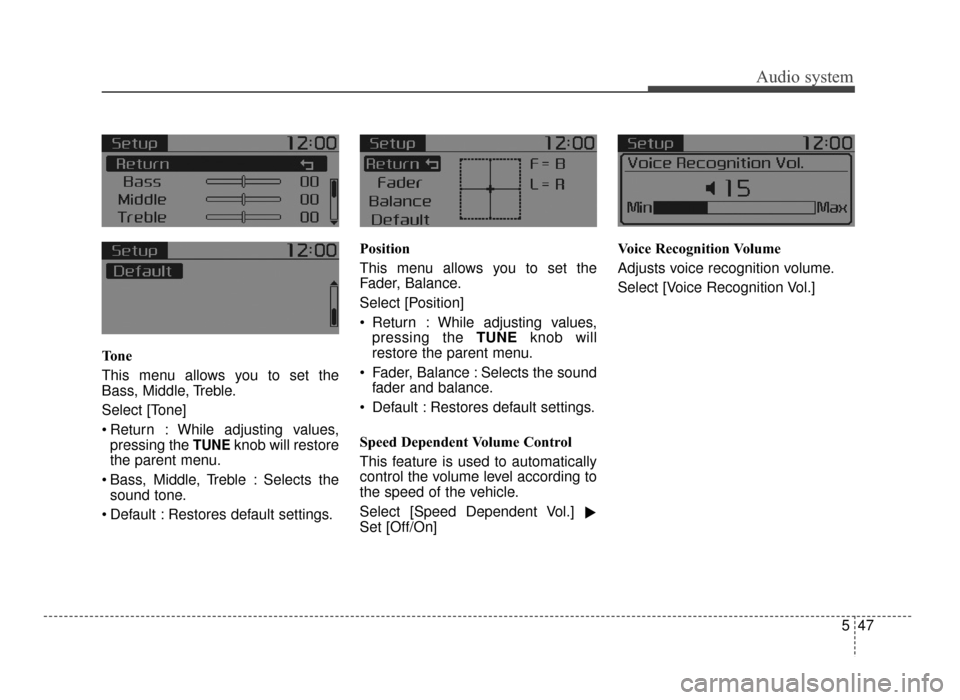

Tone
This menu allows you to set the
Bass, Middle, Treble.
Select [Tone]
Return : While adjusting values,
pressing the
TUNEknob will restore
the parent menu.
Bass, Middle, Treble : Selects the sound tone.
Default : Restores default settings. Position
This menu allows you to set the
Fader, Balance.
Select [Position]
Return : While adjusting values,
pressing the TUNE knob will
restore the parent menu.
Fader, Balance : Selects the sound fader and balance.
Default : Restores default settings.
Speed Dependent Volume Control
This feature is used to automatically
control the volume level according to
the speed of the vehicle.
Select [Speed Dependent Vol.]
Set [Off/On] Voice Recognition Volume
Adjusts voice recognition volume.
Select [Voice Recognition Vol.]
JF CAN (ENG) 5 (Audio).qxp 9/23/2015 7:24 PM Page 47

Audio system
48
5
With the Clock Button
Press the [SETUP/CLOCK] button
 Select [Clock] Clock Settings
This menu is used to set the time.
Select [Clock Settings]
Adjust the number currently in focus
to set the [hour] and press the TUNE
knob to set the [minute] and
[AM/PM].
Calendar Settings
This menu is used to set the date.
Select [Calendar Settings]
Adjust the number currently in focus
to make the settings and press the
TUNE
knob to move to the next set-
ting. Time Format
This function is used to set the 12/24
hour time format of the audio system.
Select [Time Format]
Set 12hr /
24hr.
Clock Display when Power is OFF
Select [Clock Disp.(Pwr Off)] Set
[On/Off]
[On] :
Displays time/date on screen
[Off] : Turn off.
WARNING - Clock Setting
Distraction
Adjusting the clock setting
while driving can result in a loss
of vehicle control that may lead
to an accident, severe personal
injury, and death.
JF CAN (ENG) 5 (Audio).qxp 9/23/2015 7:24 PM Page 48
