KIA Optima 2016 4.G Owner's Manual

Audio system
549
With the Phone Button
Press the [SETUP/CLOCK] button
 Select [Phone]
Pair Phone
The following steps are the same as
those described in the section
“Pairing on the Steering wheel con-
trols” on the previous page.
Bluetooth®Wireless Technology
features supported within the vehi-
cle are as follows. Some features
may not be supported depending
on your
Bluetooth®Wireless
Technology device.
- Outgoing/Incoming Handsfree calls
- Operations during a call (Switch to Private, Switch to call waiting,
MIC on/off)
- Downloading Call History
- Downloading Mobile Contacts
-
Bluetooth®Wireless Technology
device auto connection
- Bluetooth
®Audio Streaming
Up to five
Bluetooth®Wireless
Technology devices can be paired
to the Car Handsfree system.
Only one
Bluetooth®Wireless
Technology device can be con-
nected at a time. Other devices cannot be paired
while a
Bluetooth®Wireless
Technology device is connected.
Only
Bluetooth®Wireless
Technology Handsfree and
Bluetooth
®audio related features
are supported.
Bluetooth
®related operations are
possible only within devices that
support Handsfree or audio fea-
tures, such as a
Bluetooth®
Wireless Technology mobile phone
or a Bluetooth®audio device.
If a connected
Bluetooth®Wireless
Technology device becomes dis-
connected due to being out of
communication range, turning the
device OFF, or a
Bluetooth®
Wireless Technology communica-
tion error, corresponding
Bluetooth®Wireless Technology
devices are automatically
searched and reconnected.
JF CAN (ENG) 5 (Audio).qxp 9/23/2015 7:24 PM Page 49

Audio system
50
5 If the system becomes unstable
due to communication errors
between the car Handsfree and the
Bluetooth®Wireless Technology
device, reset the device by turning
off and back on again. Upon reset-
ting
Bluetooth®Wireless
Technology device, the system will
be restored.
After pairing is complete, a con- tacts download request is sent
once to the mobile phone. Some
mobile phones may require confir-
mation upon receiving a download
request, ensure your mobile phone
accepts the connection. Refer to
your phones user’s manual for
additional information regarding
phone pairing and connections. Phone List
Press the [SETUP/CLOCK]
button
 Select [Phone]
Select [Phone
List]
1) Connected Phone : Device that is currently connected
2) Paired Phone : Device that is paired but not connected Connecting a Device
From the paired phone list, select the
device you want to connect and
select [Connect].
JF CAN (ENG) 5 (Audio).qxp 9/23/2015 7:24 PM Page 50

Audio system
551

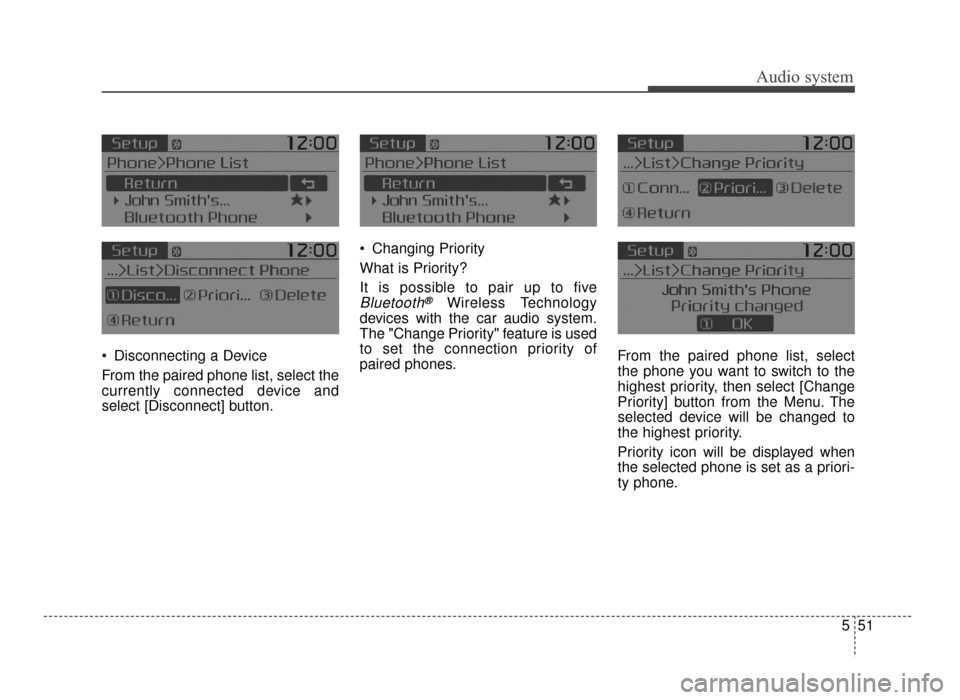

Disconnecting a Device
From the paired phone list, select the
currently connected device and
select [Disconnect] button.
Changing Priority
What is Priority?
It is possible to pair up to five
Bluetooth®Wireless Technology
devices with the car audio system.
The "Change Priority" feature is used
to set the connection priority of
paired phones. From the paired phone list, select
the phone you want to switch to the
highest priority
, then select [Change
Priority] button from the Menu. The
selected device will be changed to
the highest priority.
Priority icon will be displayed when
the selected phone is set as a priori-
ty phone.
JF CAN (ENG) 5 (Audio).qxp 9/23/2015 7:24 PM Page 51

Audio system
52
5 Deleting a Device
From the paired phone list, select the
device you want to delete and select
[Delete] button.
- When deleting the currently con-
nected device, the device will auto-
matically be disconnected to pro-
ceed with the deleting process.
- If a paired
Bluetooth®Wireless
Technology device is deleted, the
device’s call history and contacts
data will also be deleted.
- To re-use a deleted device, you must pair the device again. Pairing a New Device
Press the [SETUP/CLOCK]
button
 Select [Phone]
Select [Pair
Phone]
Bluetooth®Wireless Technology
devices can be paired with the audio
system.
For more information, refer to the
“Pairing through Phone Setup” sec-
tion within
Bluetooth®Wireless
Technology. Viewing Paired Phone List
Press the [SETUP/CLOCK]
button
 Select [Phone]
Select [Phone
List]
This feature is used to view mobile
phones that have been paired with
the audio system. Upon selecting a
paired phone, the setup menu is dis-
played.
For more information, refer to the
“Setting
Bluetooth®Wireless Technology
Connection” section within
Bluetooth®
Wireless Technology.
JF CAN (ENG) 5 (Audio).qxp 9/23/2015 7:24 PM Page 52

Audio system
553

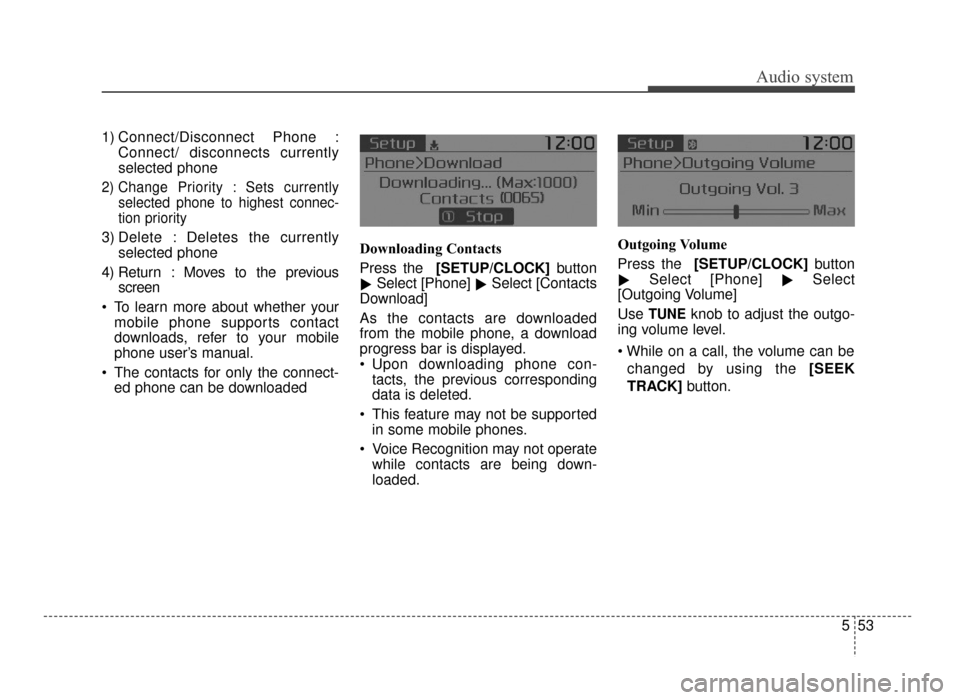

1) Connect/Disconnect Phone :
Connect/ disconnects currently
selected phone
2) Change Priority : Sets currently selected phone to highest connec-
tion priority
3) Delete : Deletes the currentlyselected phone
4) Return : Moves to the previous screen
To learn more about whether your mobile phone supports contact
downloads, refer to your mobile
phone user’s manual.
The contacts for only the connect- ed phone can be downloaded Downloading Contacts
Press the
[SETUP/CLOCK] button
 Select [Phone]
Select [Contacts
Download]
As the contacts are downloaded
from the mobile phone, a download
progress bar is displayed.
Upon downloading phone con- tacts, the previous corresponding
data is deleted.
This feature may not be supported in some mobile phones.
Voice Recognition may not operate while contacts are being down-
loaded. Outgoing Volume
Press the
[SETUP/CLOCK] button
 Select [Phone]
Select
[Outgoing Volume]
Use
TUNEknob to adjust the outgo-
ing volume level.

changed by using the [SEEK
TRACK] button.
JF CAN (ENG) 5 (Audio).qxp 9/23/2015 7:24 PM Page 53

Audio system
54

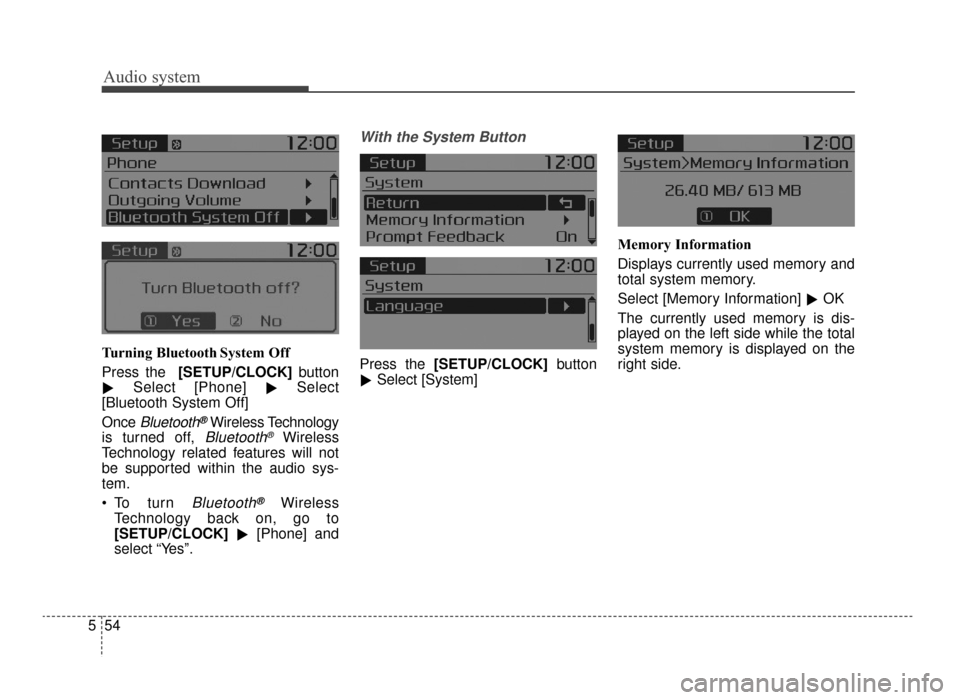

5 Turning Bluetooth System Off
Press the
[SETUP/CLOCK] button
 Select [Phone]
Select
[Bluetooth System Off]
Once
Bluetooth®Wireless Technology
is turned off,
Bluetooth®Wireless
Technology related features will not
be supported within the audio sys-
tem.
To turn
Bluetooth®Wireless
Technology back on, go to
[SETUP/CLOCK] [Phone] and
select “Yes”.
With the System Button
Press the [SETUP/CLOCK] button
 Select [System] Memory Information
Displays currently used memory and
total system memory.
Select [Memory Information]
OK
The currently used memory is dis-
played on the left side while the total
system memory is displayed on the
right side.
JF CAN (ENG) 5 (Audio).qxp 9/23/2015 7:24 PM Page 54

Audio system
555

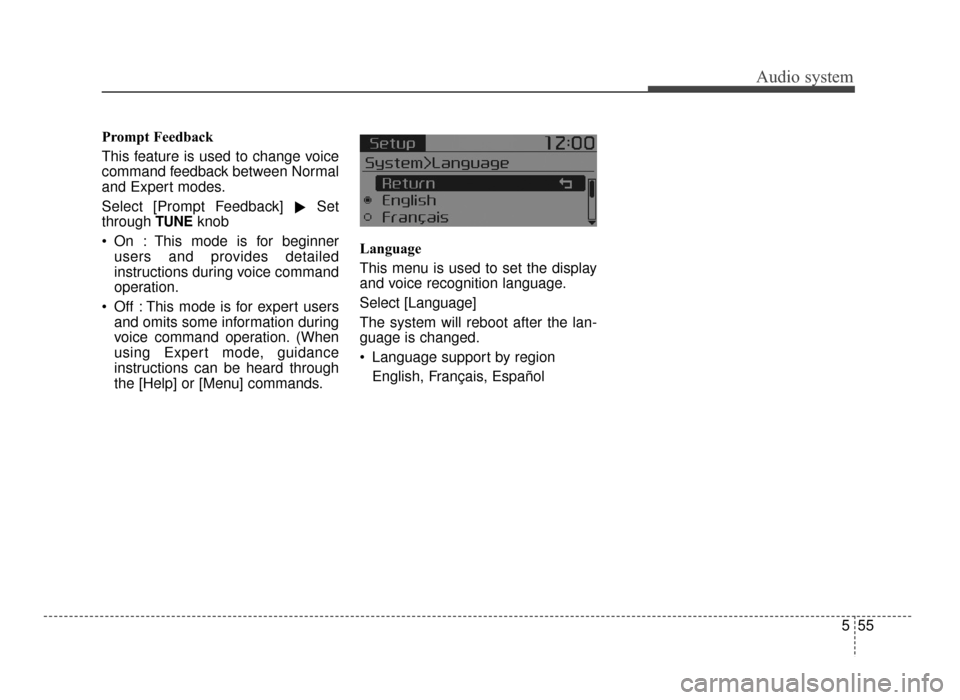

Prompt Feedback
This feature is used to change voice
command feedback between Normal
and Expert modes.
Select [Prompt Feedback]
Set
through
TUNEknob
On : This mode is for beginner users and provides detailed
instructions during voice command
operation.
Off : This mode is for expert users and omits some information during
voice command operation. (When
using Expert mode, guidance
instructions can be heard through
the [Help] or [Menu] commands. Language
This menu is used to set the display
and voice recognition language.
Select [Language]
The system will reboot after the lan-
guage is changed.
Language support by region
English, Français, Español
JF CAN (ENG) 5 (Audio).qxp 9/23/2015 7:24 PM Page 55

Audio system
56
5 iPod
®is a registered trademark of
Apple Inc. iPod®mobile digital
device sold separately. The
Bluetooth
®word mark and logos
are registered trademarks owned
by Bluetooth
®SIG, Inc. and any
use of such marks by Kia is under
license. SiriusXM services require
a subscription sold separately, or
as a package, by Sirius XM Radio
Inc. If you decide to continue serv-
ice after your trial, the subscrip-
tion plan you choose will automat-
ically renew thereafter and you
will be charged according to your
chosen payment method at then-
current rates. Fees and taxes
apply. To cancel you must call
SiriusXM at 1-866-635-2349. See
SiriusXM Customer Agreement for
complete terms at www.sir-
iusxm.com. SiriusXM U.S. satellite
and data services are available
only in the 48 contiguous states,
DC and Puerto Rico (with cover-
age limitations). SiriusXM satellite
service is also available in
Canada; see www.siriusxm.ca. All
fees and programming subject to
change. Sirius, XM and all related marks
and logos are trademarks of Sirius
XM Radio Inc. Android™ is a
trademark of Google, Inc.
BlackBerry is a registered trade-
mark of Research In Motion
Limited (RIM). All other marks,
channel names and logos are the
property of their respective own-
ers. All rights reserved.
JF CAN (ENG) 5 (Audio).qxp 9/23/2015 7:24 PM Page 56

Audio system
557
JFaB50000C

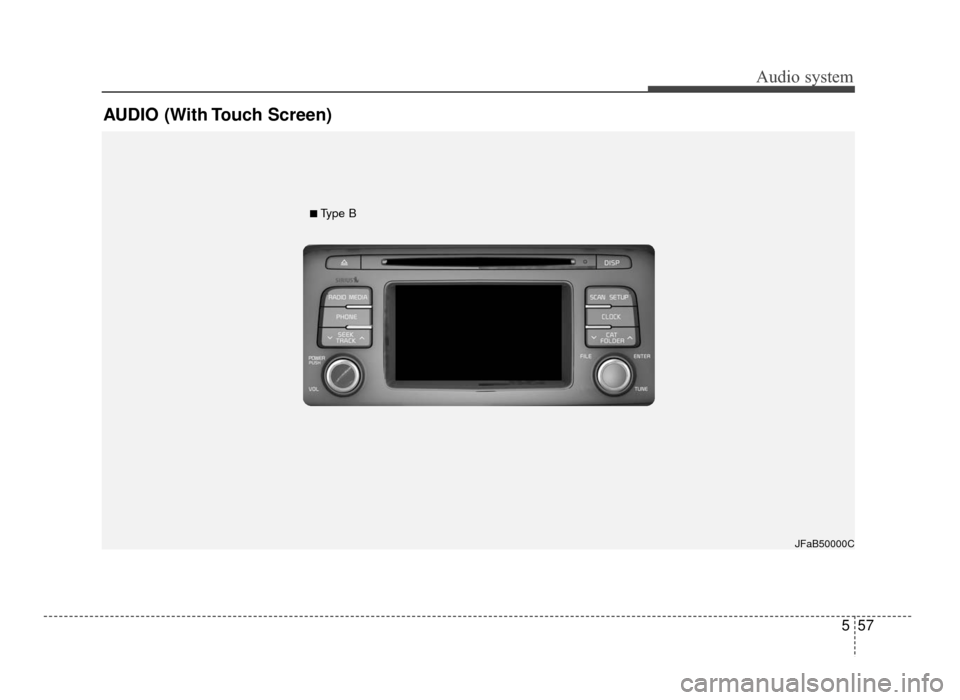

AUDIO (With Touch Screen)
■Type B
JF CAN (ENG) 5 (Audio).qxp 9/23/2015 7:24 PM Page 57

Audio system
58
5
Features of Your Audio
(1) EJECT
Ejects the disc.
(2) RADIO
Changes to FM/AM/SiriusXM mode.
Each time the button is pressed, the mode is changed in the order
of FM1
➟FM2 ➟AM ➟SAT1 ➟
SAT2 ➟SAT3. (3)
MEDIA
Changes to CD/USB(iPod
®)/AUX/
My Music/Bluetooth®Audio mode.
Each time the button is pressed, the mode is changed in the order
of CD, USB(iPod
®), AUX, My
Music, BT(Bluetooth®) Audio.
(4) PHONE
Changes to Phone mode.
When a phone is not connected, the connection screen is displayed. (5)
SEEK TRACK
When pressed briefly - Radio mode : plays previous/nextfrequency.
- Media (CD/USB/iPod
®/My Music)
modes : changes the track,
Song(file)
When pressed and held - Radio mode : continuouslychanges the frequency. Upon
release, plays the current fre-
quency.
- Media(CD/USB/iPod
®/My Music)
modes : rewinds or fast forwards
the track or file
- During a Handsfree call, controls the call volume.
(6) POWER/VOL knob
Power knob : Press to turn power on/off.
Volume knob : Turn left/right to con- trol volume.
JF CAN (ENG) 5 (Audio).qxp 9/23/2015 7:24 PM Page 58
