Features of your vehicle

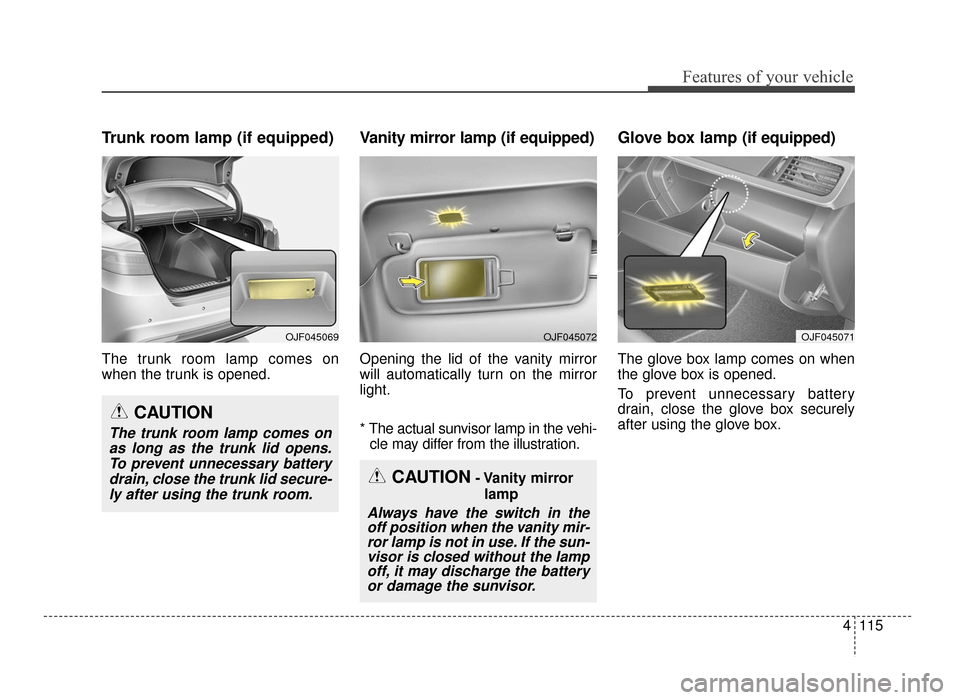

Trunk room lamp (if equipped)
The trunk room lamp comes on
when the trunk is opened.
Vanity mirror lamp (if equipped)
Opening the lid of the vanity mirror
will automatically turn on the mirror
light.
* The actual sunvisor lamp in the vehi-cle may differ from the illustration.
Glove box lamp (if equipped)
The glove box lamp comes on when
the glove box is opened.
To prevent unnecessary battery
drain, close the glove box securely
after using the glove box.
CAUTION- Vanity mirror
lamp
Always have the switch in theoff position when the vanity mir-ror lamp is not in use. If the sun-visor is closed without the lampoff, it may discharge the batteryor damage the sunvisor.
OJF045069
CAUTION
The trunk room lamp comes on
as long as the trunk lid opens.To prevent unnecessary batterydrain, close the trunk lid secure-ly after using the trunk room.
OJF045072OJF045071
JF CAN (ENG) 4.qxp 11/5/2015 3:51 PM Page 115
