Your vehicle at a glance
62
ENGINE COMPARTMENT
OJFA075001/OJF075001L
■
■THETA 2.4L - GDI
❈ The actual engine compartment in the vehicle may differ from the illustration.
■
■THETA 2.0L T-GDI 1. Engine coolant reservoir ...................8-30
2. Engine oil filler cap ...........................8-28
3. Brake/clutch fluid reservoir
(if equipped) ......................................8-32
4. Air cleaner.........................................8-35
5. Fuse box ...........................................8-61
6. Negative battery terminal..................8-43
7. Positive battery terminal ...................8-43
8. Engine oil dipstick .............................8-27
9. Radiator cap .....................................8-31
10.Windshield washer fluid reservoir ....8-33
JF CAN (ENG) 2.qxp 9/22/2015 6:51 PM Page 6
Page 16 of 623
27
Your vehicle at a glance
OJFA075002
■
■GAMMA 1.6L T-GDI❈ The actual engine compartment in the vehicle may differ from the illustration. 1. Engine coolant reservoir ...................8-30
2. Engine oil filler cap ...........................8-28
3. Brake/clutch fluid reservoir
(if equipped) ......................................8-32
4. Air cleaner.........................................8-35
5. Fuse box ...........................................8-61
6. Negative battery terminal..................8-43
7. Positive battery terminal ...................8-43
8. Engine oil dipstick .............................8-27
9. Radiator cap .....................................8-31
10.Windshield washer fluid reservoir ....8-33
JF CAN (ENG) 2.qxp 9/22/2015 6:51 PM Page 7
Page 169 of 623
483

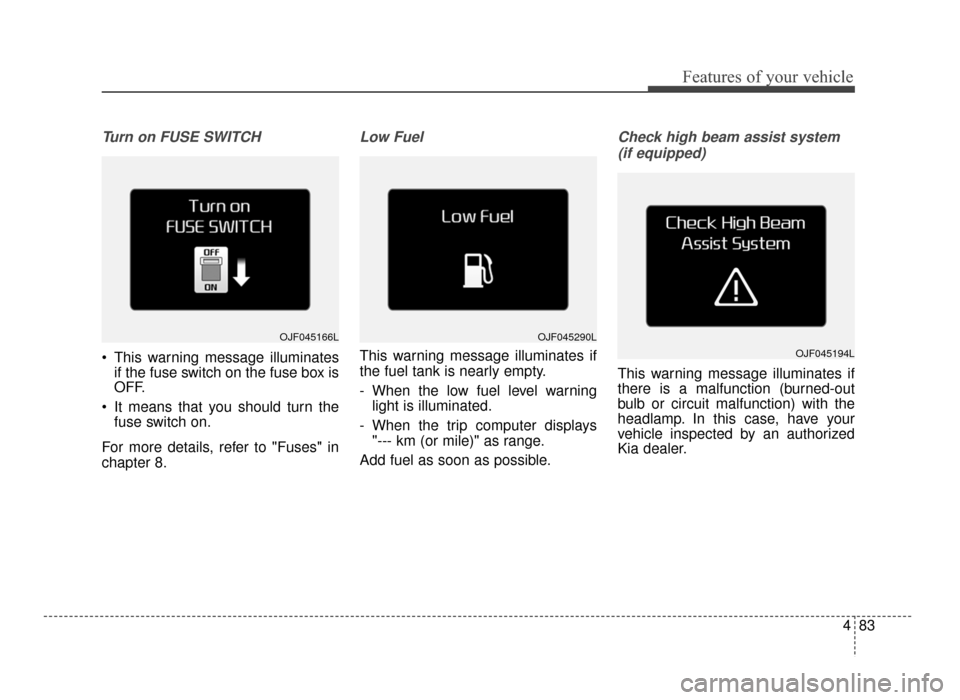

Features of your vehicle
Turn on FUSE SWITCH
This warning message illuminatesif the fuse switch on the fuse box is
OFF.
It means that you should turn the fuse switch on.
For more details, refer to "Fuses" in
chapter 8.
Low Fuel
This warning message illuminates if
the fuel tank is nearly empty.
- When the low fuel level warning light is illuminated.
- When the trip computer displays "--- km (or mile)" as range.
Add fuel as soon as possible.
Check high beam assist system (if equipped)
This warning message illuminates if
there is a malfunction (burned-out
bulb or circuit malfunction) with the
headlamp. In this case, have your
vehicle inspected by an authorized
Kia dealer.
OJF045166LOJF045290L
OJF045194L
JF CAN (ENG) 4.qxp 11/5/2015 3:51 PM Page 83
Page 501 of 623
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
8-61
• Inner panel fuse replacement . . . . . . . . . . . . . . . . . . . 8-62
• Engine compartment fuse replacement. . . . . . . . . . . 8-64
• Fuse/relay panel description. . . . . . . . . . . . . . . . . . . . 8-66
Light bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-76
• Bulb replacement precaution . . . . . . . . . . . . . . . . . . . 8-76
• Light bulb position (Front). . . . . . . . . . . . . . . . . . . . . 8-77
• Light bulb position (Rear) . . . . . . . . . . . . . . . . . . . . . 8-78
• Light bulb position (Side) . . . . . . . . . . . . . . . . . . . . . . 8-79
• Headlamp (HID type) bulb replacement . . . . . . . . . 8-79
• Headlamp (Low beam) bulb replacement . . . . . . . . 8-80
• Headlamp (High beam) bulb replacement . . . . . . . . 8-81
• Front turn signal lamp bulb replacement. . . . . . . . . 8-82
• Position lamp + DRL (LED type) bulb replacement . . 8-82
• Side repeater lamp bulb replacement . . . . . . . . . . . . 8-83
• Rear turn signal lamp bulb replacement . . . . . . . . . 8-83
• Stop and tail lamp bulb replacement . . . . . . . . . . . . 8-84
• Stop and tail lamp (LED type) bulb replacement . . 8-86
• Back-up lamp bulb replacement . . . . . . . . . . . . . . . . 8-86
• Tail lamp bulb replacement . . . . . . . . . . . . . . . . . . . . 8-87
• License plate lamp bulb replacement . . . . . . . . . . . . 8-88
• High mounted stop lamp bulb replacement . . . . . . . 8-89
• Map lamp bulb replacement . . . . . . . . . . . . . . . . . . . 8-89
• Vanity mirror lamp bulb replacement . . . . . . . . . . . 8-89
• Room lamp bulb replacement . . . . . . . . . . . . . . . . . . 8-90 • Personal lamp bulb replacement . . . . . . . . . . . . . . . . 8-91
• Glove box lamp bulb replacement . . . . . . . . . . . . . . . 8-91
• Trunk lamp bulb replacement . . . . . . . . . . . . . . . . . . 8-92
Appearance care . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-93
• Exterior care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-93
• Interior care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-98
Emission control system . . . . . . . . . . . . . . . . . . . 8-100
• Crankcase emission control system . . . . . . . . . . . . . 8-100
• Evaporative emission control (including ORVR:
Onboard Refueling Vapor Recovery) system . . . . 8-100
• Exhaust emission control system . . . . . . . . . . . . . . . 8-101
8
JF CAN (ENG) 8.qxp 11/5/2015 6:40 PM Page 2
Page 502 of 623
83
Maintenance
ENGINE COMPARTMENT
OJFA075001/OJF075001L
■
■THETA 2.4L - GDI
❈ The actual engine compartment in the vehicle may differ from the illustration.
■
■THETA 2.0L T-GDI 1. Engine coolant reservoir
2. Engine oil filler cap
3. Brake/clutch fluid reservoir (if equipped)
4. Air cleaner
5. Fuse box
6. Negative battery terminal
7. Positive battery terminal
8. Engine oil dipstick
9. Radiator cap
10.Windshield washer fluid reservoir
JF CAN (ENG) 8.qxp 11/5/2015 6:40 PM Page 3
Page 503 of 623
Maintenance
48
OJFA075002
■
■GAMMA 1.6L T-GDI❈ The actual engine compartment in the vehicle may differ from the illustration. 1. Engine coolant reservoir
2. Engine oil filler cap
3. Brake/clutch fluid reservoir (if equipped)
4. Air cleaner
5. Fuse box
6. Negative battery terminal
7. Positive battery terminal
8. Engine oil dipstick
9. Radiator cap
10.Windshield washer fluid reservoir
JF CAN (ENG) 8.qxp 11/5/2015 6:40 PM Page 4
Page 563 of 623
Maintenance
64
8
Fuse switch
Always set the fuse switch to the ON
position before using the vehicle.
If you move the switch to the OFF
position, some items such as audio
and digital clock must be reset and
transmitter (or smart key) may not
work properly. When the switch is
Off, the caution indicator will be dis-
played on the instrument cluster.
Always place the fuse switch in the
ON position while driving the vehicle.
If the switch is located in the “OFF”
position, a caution indicator will be
displayed in the cluster.
Engine compartment fuse
replacement
1. Turn the ignition switch and all
other switches off.
2. Remove the fuse panel cover by pressing the tab and pulling the
cover up. When the blade type
fuse is disconnected, remove it by
using the clip designed for chang-
ing fuses located in the engine
compartment fuse box. Upon
removal, securely insert reserve
fuse of the same rating. 3. Check the removed fuse; replace it
if it is blown. To remove or insert
the fuse, use the fuse puller in the
engine compartment fuse panel.
4. Push in a new fuse of the same rating, and make sure it fits tightly
in the clips. If it fits loosely, consult
an authorized Kia dealer.
OJF075024
CAUTION
After checking the fuse panel inthe engine compartment,securely install the fuse panelcover through the audible click-ing sound.
If not, electrical failures mayoccur from water contact.
OJF075025
JF CAN (ENG) 8.qxp 11/5/2015 6:40 PM Page 64
Page 565 of 623
Maintenance
66
8
✽
✽
NOTICE
The electronic system may not func-
tion correctly even when the engine
compartment and internal fuse
box’s individual fuses are not dis-
connected. In such case the cause of
the problem may be disconnection
of the main fuse (BFT type), which is
located inside the positive battery
terminal (+) cap.
Since the main fuse is designed more
intricately than other parts, have the
vehicle checked by an authorized
Kia dealer.CAUTION
Visually inspect the battery cap
to ensure it is securely closed.If the battery cap is not securelyclosed, moisture may enter thesystem and damage the electri-cal components.
JF CAN (ENG) 8.qxp 11/5/2015 6:40 PM Page 66
Page 567 of 623
Maintenance
68
8
Fuse NameFuse ratingCircuit Protected
MODULE 710AAround View Unit, Front Air Ventilation Seat Control Module, Front Seat Warmer Control Module, Rear Seat
Warmer Control Module
MODULE 510A
A/C Control Module, Electro Chromic Mirror, Crash Pad Switch, Head Lamp LH/RH, Auto Head Lamp
Leveling Device Module, A/V & Navigation Head Unit, Fuel Lid & Trunk Open Switch, Shift Lever Indicator,
Driver IMS Module, Driver IMS Module, Front Air Ventilation Seat Control Module, Front Seat Warmer
Control Module, Rear Seat Warmer Control Module
MODULE 610ABCM, Smart Key Control Module
A/CON10AA/C Control Module, E/R Junction Block (Blower Relay)
START10A[W/O Smart Key & IMMO.] ICM Relay Box (Burglar Alarm Relay)
[With Smart Key / IMMO.] Transaxle Range Switch, PCM (G4KH/G4KJ)
A/BAG15ASRS Control Module, Passenger Occupant Detection
MODULE 310ABCM, ATM Shift Lever, Stop Lamp Switch, DBL Unit, Keyboard, A/C Control Module
MODULE 410AConsole Switch, Blind Spot Detection Radar LH/RH, Smart Cruise Control Unit, AEB Module, Lane Keeping
Assist Module
INTERIOR LAMP10ATrunk Room Lamp, Ignition Key Ill. & Door Warning Switch, Glove Box Lamp, Driver/Passenger Smart Key
Outside Handle, Front Vanity Lamp Switch LH/RH, Overhead Console Lamp, Center Room Lamp, Center
Personal Lamp, Rear Personal Lamp LH/RH, Driver/Passenger Scuff Lamp
MDPS10AMDPS Unit (Column/Rack), Steering Angle Sensor
IG125APCB Block (Fuse - TCU 2, ABS 3, ECU 3, VACUUM PUMP 2)
MODULE 910AImmobilizer Module, Smart Key Control Module
Instrument panel (Driver’s side fuse panel)
JF CAN (ENG) 8.qxp 11/5/2015 6:40 PM Page 68
Page 568 of 623
869
Maintenance
Fuse NameFuse ratingCircuit Protected
WASHER15AMultifunction Switch (Wiper Low & Washer Switch)
MODULE 810AA/C Control Module, Driver/Passenger Door Module
CLUSTER10AInstrument Cluster (IG1)
MULTI MEDIA15AAudio, A/V & Navigation Head Unit, Keyboard
HEATED
STEERING15ABCM (Steering Wheel Heated)
MODULE 110AConsole Switch, Key Solenoid, Driver/Passenger Door Module
DR LOCK20ADoor Lock Relay, Door Unlock Relay
SMART KEY15ASmart Key Control Module
A/BAG IND10AInstrument Cluster (Air Bag IND. Power)
TRUNK10ATrunk Lid Relay, Fuel Filler & Trunk Open Switch, Trunk Lid Motor, ICM Relay Box (Fuel Filler Open Relay)
SUNROOF 220ASunroof Control Unit (Roller)
MEMORY 110AInstrument Cluster, A/C Control Module, Data Link Connector, BCM, Wireless Charger, Driver IMS Module,
Rain Sensor, ICM Relay Box (Outside Mirror Folding/Unfolding Mirror Relay), Security Indicator, Auto Light
& Photo Sensor, Driver/Passenger Door Module, Electro Chromic Mirror
S/HEATER RR25ARear Seat Warmer Control Module
SUNROOF 120ASunroof Control Unit (Glass)
JF CAN (ENG) 8.qxp 11/5/2015 6:40 PM Page 69
