Page 14 of 623
![KIA Optima 2016 4.G Owners Manual INSTRUMENT PANEL OVERVIEW
25
Your vehicle at a glance
1. Steering wheel audio controls ...............5-3
2, Driver`s front air bag ...........................3-59
3. Horn............................. KIA Optima 2016 4.G Owners Manual INSTRUMENT PANEL OVERVIEW
25
Your vehicle at a glance
1. Steering wheel audio controls ...............5-3
2, Driver`s front air bag ...........................3-59
3. Horn.............................](/img/2/2973/w960_2973-13.png)
INSTRUMENT PANEL OVERVIEW
25
Your vehicle at a glance
1. Steering wheel audio controls ...............5-3
2, Driver`s front air bag ...........................3-59
3. Horn.....................................................4-50
4. Instrument cluster ................................4-56
5. Wiper and washer control lever .........4-110
6. Ignition switch ........................................6-6Engine start/stop button ........................6-9
7. Cruise control ......................................6-62 Advanced smart cruise control ............6-66
8. Audio .....................................................5-8
9. Hazard warning flasher .........................7-2
10. Manual climate control system ........4-118 Automatic climate control system ....4-128
11. Shift lever A/T ....................................6-13 Shift lever DCT ..................................6-20
12. Heated steering wheel button ...........4-49
13. Drive mode button .............................6-82
14. Seat warmer ....................................4-148 Air ventilation seat ...........................4-149
15. Around view monitoring system On/Off button ...................................4-102
16. Electronic parking brake (EPB) switch. 6-31
17. Auto Hold On/Off button ....................6-38
18. Center console storage box ............4-145
19. Power outlet.....................................4-150
20. USB charger ....................................4-151
21. Smart phone wireless charger ........4-152
22. Glove box ........................................4-145
23. Passenger’s front air bag ..................3-59
OJFA015004❈ The actual shape may differ from the illustration.
JF CAN (ENG) 2.qxp 9/22/2015 6:51 PM Page 5
Page 64 of 623
![KIA Optima 2016 4.G Owners Manual Safety features of your vehicle
48
3
If any of the following conditions
occur, this indicates a malfunction in
the air bag system. Have an author-
ized Kia dealer inspect the air bag
system as soon as KIA Optima 2016 4.G Owners Manual Safety features of your vehicle
48
3
If any of the following conditions
occur, this indicates a malfunction in
the air bag system. Have an author-
ized Kia dealer inspect the air bag
system as soon as](/img/2/2973/w960_2973-63.png)
Safety features of your vehicle
48
3
If any of the following conditions
occur, this indicates a malfunction in
the air bag system. Have an author-
ized Kia dealer inspect the air bag
system as soon as possible.
The light does not turn on briefly
when you turn the ignition ON.
The light stays on after illuminating for approximately 6 seconds.
The light comes on while the vehi- cle is in motion.
The light blinks when the ignition switch is in ON position. The front air bag modules are locat-
ed both in the center of the steering
wheel and in the front passenger's
panel above the glove box. When the
SRSCM detects a sufficiently severe
impact to the front of the vehicle, it
will automatically deploy the front air
bags. Upon deployment, tear seams mold-
ed directly into the pad covers will
separate under pressure from the
expansion of the air bags. Further
opening of the covers then allows full
inflation of the air bags.
B240B01L
Driver’s front air bag (1)
B240B02L
Driver’s front air bag (2)
JF CAN (ENG) 3.qxp 9/22/2015 7:05 PM Page 48
Page 65 of 623
![KIA Optima 2016 4.G Owners Manual 349
Safety features of your vehicle
A fully inflated air bag, in combina-
tion with a properly worn seat belt,
slows the drivers or the passengers
forward motion, reducing the risk of
head and chest KIA Optima 2016 4.G Owners Manual 349
Safety features of your vehicle
A fully inflated air bag, in combina-
tion with a properly worn seat belt,
slows the drivers or the passengers
forward motion, reducing the risk of
head and chest](/img/2/2973/w960_2973-64.png)
349
Safety features of your vehicle
A fully inflated air bag, in combina-
tion with a properly worn seat belt,
slows the driver's or the passenger's
forward motion, reducing the risk of
head and chest injury.
After complete inflation, the air bag
immediately starts deflating, enabling
the driver to maintain forward visibility
and the ability to steer or operate
other controls. If an air bag deploys, there may be
a loud noise followed by a fine dust
released in the vehicle. These con-
ditions are normal and are not haz-
ardous - the air bags are packed in
this fine powder. The dust generat-
ed during air bag deployment may
cause skin or eye irritation as well
as aggravate asthma for some per-
sons. Always wash all exposed
skin areas thoroughly with luke-
warm water and a mild soap after
an accident in which the air bags
were deployed.
B240B03L
Driver’s front air bag (3)
B240B05L
Passenger’s front air bag
WARNING- Air bag
obstructions
Do not install or place any
accessories on the steering
wheel, instrument panel, or on
the front passenger's panel
above the glove box in a vehi-
cle. Such objects may become
dangerous projectiles if the air
bag deploys.
WARNING- Flying objects
Do not place any objects (an
umbrella, bag, etc.) between the
front door and the front seat.
Such objects may become dan-
gerous projectiles if the side
airbag inflates.
JF CAN (ENG) 3.qxp 9/22/2015 7:05 PM Page 49
Page 75 of 623
![KIA Optima 2016 4.G Owners Manual 359
Safety features of your vehicle
Drivers and passengers front
air bag
Your vehicle is equipped with an
Advanced Supplemental Restraint
(Air Bag) System and lap/shoulder
belts at both the driver a KIA Optima 2016 4.G Owners Manual 359
Safety features of your vehicle
Drivers and passengers front
air bag
Your vehicle is equipped with an
Advanced Supplemental Restraint
(Air Bag) System and lap/shoulder
belts at both the driver a](/img/2/2973/w960_2973-74.png)
359
Safety features of your vehicle
Driver's and passenger's front
air bag
Your vehicle is equipped with an
Advanced Supplemental Restraint
(Air Bag) System and lap/shoulder
belts at both the driver and passen-
ger seating position.
The indication of the system's pres-
ence are the letters "AIR BAG" locat-
ed on the air bag pad cover on the
steering wheel and the passenger's
side front panel pad above the glove
box.The SRS consists of air bags
installed under the pad covers in the
center of the steering wheel and the
passenger's side front panel above
the glove box.
The purpose of the SRS is to provide
the vehicle's driver and/or the front
passenger with additional protection
than that offered by the seat belt sys-
tem alone in case of a frontal impact
of sufficient severity. The SRS uses
sensors to gather information about
the driver's and front passenger's
seat belt usage and impact severity.
The seat belt buckle sensors deter-
mine if the driver and front passen-
ger's seat belts are fastened.
OJF035038
■
Driver’s front air bag
■Driver’s knee air bagOJF035037
OJF035039
■Passenger’s front air bag
JF CAN (ENG) 3.qxp 9/22/2015 7:05 PM Page 59
Page 89 of 623
![KIA Optima 2016 4.G Owners Manual Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-103
• Battery saver function. . . . . . . . . . . . . . . . . . . . . . . . 4-103
• Daytime running light . . . . . . . KIA Optima 2016 4.G Owners Manual Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-103
• Battery saver function. . . . . . . . . . . . . . . . . . . . . . . . 4-103
• Daytime running light . . . . . . .](/img/2/2973/w960_2973-88.png)
Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-103
• Battery saver function. . . . . . . . . . . . . . . . . . . . . . . . 4-103
• Daytime running light . . . . . . . . . . . . . . . . . . . . . . . . 4-103
• Lighting control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-103
• High beam operation. . . . . . . . . . . . . . . . . . . . . . . . . 4-105
• High Beam Assist . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-106
• Turn signals and lane change signals . . . . . . . . . . . 4-108
• Check headlight . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-108
• Headlight leveling device . . . . . . . . . . . . . . . . . . . . . 4-109
• AFLS (Adaptive Front Lighting System) . . . . . . . . 4-109
Wipers and washers . . . . . . . . . . . . . . . . . . . . . . . 4-110
• Windshield wipers . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-110
• Front windshield washers . . . . . . . . . . . . . . . . . . . . . 4-112
Interior lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-113
• Automatic turn off function . . . . . . . . . . . . . . . . . . . 4-113
• Room lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-113
• Map lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-114
• Trunk room lamp. . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-115
• Vanity mirror lamp . . . . . . . . . . . . . . . . . . . . . . . . . . 4-115
• Glove box lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-115
Welcome system . . . . . . . . . . . . . . . . . . . . . . . . . . 4-116
• Headlight (Headlamp) escort function . . . . . . . . . . 4-116
• Interior light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-116
• Pocket lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-116
Defroster . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-117
• Rear window defroster . . . . . . . . . . . . . . . . . . . . . . . 4-117
Manual climate control system . . . . . . . . . . . . . . 4-118
• Heating and air conditioning . . . . . . . . . . . . . . . . . . 4-119
• System operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-124
• Climate control air filter . . . . . . . . . . . . . . . . . . . . . . 4-126
• Checking the amount of air conditionerrefrigerant and compressor lubricant . . . . . . . . . . 4-126
Automatic climate control system . . . . . . . . . . . 4-128
• Automatic heating and air conditioning . . . . . . . . . 4-129
• Manual heating and air conditioning . . . . . . . . . . . 4-130
• System operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-136
• Climate control air filter . . . . . . . . . . . . . . . . . . . . . . 4-138
• Checking the amount of air conditionerrefrigerant and compressor lubricant . . . . . . . . . . 4-138
Windshield defrosting and defogging . . . . . . . . . 4-140
• Manual climate control system . . . . . . . . . . . . . . . . 4-140
• Automatic climate control system . . . . . . . . . . . . . . 4-141
• Defogging logic. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-142
Storage compartments . . . . . . . . . . . . . . . . . . . . . 4-145
• Center console storage . . . . . . . . . . . . . . . . . . . . . . . 4-145
• Glove box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-14\
5

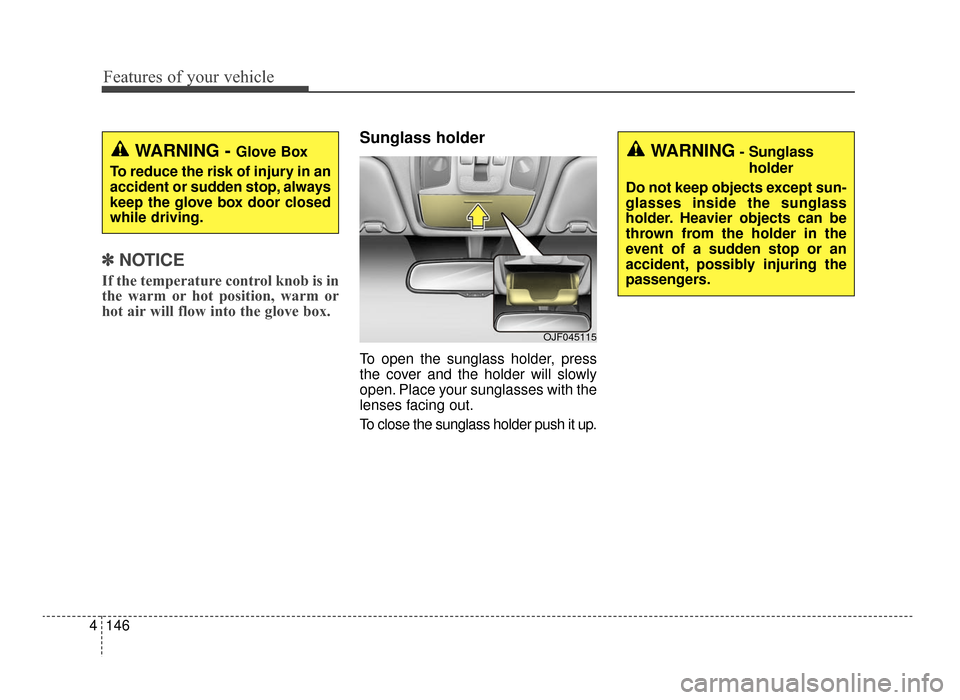

• Sunglass holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-146
4
JF CAN (ENG) 4.qxp 11/5/2015 3:50 PM Page 3
Page 201 of 623
![KIA Optima 2016 4.G Owners Manual 4115
Features of your vehicle
Trunk room lamp (if equipped)
The trunk room lamp comes on
when the trunk is opened.
Vanity mirror lamp (if equipped)
Opening the lid of the vanity mirror
will automatica KIA Optima 2016 4.G Owners Manual 4115
Features of your vehicle
Trunk room lamp (if equipped)
The trunk room lamp comes on
when the trunk is opened.
Vanity mirror lamp (if equipped)
Opening the lid of the vanity mirror
will automatica](/img/2/2973/w960_2973-200.png)
4115
Features of your vehicle
Trunk room lamp (if equipped)
The trunk room lamp comes on
when the trunk is opened.
Vanity mirror lamp (if equipped)
Opening the lid of the vanity mirror
will automatically turn on the mirror
light.
* The actual sunvisor lamp in the vehi-cle may differ from the illustration.
Glove box lamp (if equipped)
The glove box lamp comes on when
the glove box is opened.
To prevent unnecessary battery
drain, close the glove box securely
after using the glove box.
CAUTION- Vanity mirror
lamp
Always have the switch in theoff position when the vanity mir-ror lamp is not in use. If the sun-visor is closed without the lampoff, it may discharge the batteryor damage the sunvisor.
OJF045069
CAUTION
The trunk room lamp comes on
as long as the trunk lid opens.To prevent unnecessary batterydrain, close the trunk lid secure-ly after using the trunk room.
OJF045072OJF045071
JF CAN (ENG) 4.qxp 11/5/2015 3:51 PM Page 115
Page 212 of 623
![KIA Optima 2016 4.G Owners Manual Features of your vehicle
126
4
Climate control air filter
(if equipped)
The climate control air filter installed
behind the glove box filters the dust
or other pollutants that come into the
vehicle f KIA Optima 2016 4.G Owners Manual Features of your vehicle
126
4
Climate control air filter
(if equipped)
The climate control air filter installed
behind the glove box filters the dust
or other pollutants that come into the
vehicle f](/img/2/2973/w960_2973-211.png)
Features of your vehicle
126
4
Climate control air filter
(if equipped)
The climate control air filter installed
behind the glove box filters the dust
or other pollutants that come into the
vehicle from the outside through the
heating and air conditioning system.
If dust or other pollutants accumulate
in the filter over a period of time, the
air flow from the air vents may
decrease, resulting in moisture accu-
mulation on the inside of the wind-
shield even when the outside (fresh)
air position is selected. If this hap-
pens, we recommend that the cli-
mate control air filter be replaced by
an authorized Kia dealer.
✽ ✽
NOTICE
• Replace the filter according to the
Maintenance Schedule.
If the vehicle is being driven in
severe conditions such as dusty or
rough roads, more frequent cli-
mate control air filter inspections
and changes are required.
• When the air flow rate suddenly decreases, we recommend that the
system should be inspected by an
authorized Kia dealer.
Checking the amount of air
conditioner refrigerant and
compressor lubricant
When the amount of refrigerant is
low, the performance of the air condi-
tioning is reduced. Overfilling also
has a negative influence on the air
conditioning system.
Therefore, if abnormal operation is
found, have the system inspected by
an authorized Kia dealer.
1LDA5047
Outside air
Recirculatedair
Climate control air filter Blower
Evaporatorcore Heater core
JF CAN (ENG) 4.qxp 11/5/2015 3:51 PM Page 126
Page 224 of 623
![KIA Optima 2016 4.G Owners Manual Features of your vehicle
138
4
Climate control air filter
(if equipped)
The climate control air filter installed
behind the glove box filters the dust or
other pollutants that come into the
vehicle f KIA Optima 2016 4.G Owners Manual Features of your vehicle
138
4
Climate control air filter
(if equipped)
The climate control air filter installed
behind the glove box filters the dust or
other pollutants that come into the
vehicle f](/img/2/2973/w960_2973-223.png)
Features of your vehicle
138
4
Climate control air filter
(if equipped)
The climate control air filter installed
behind the glove box filters the dust or
other pollutants that come into the
vehicle from the outside through the
heating and air conditioning system. If
dust or other pollutants accumulate in
the filter over a period of time, the air
flow from the air vents may decrease,
resulting in moisture accumulation on
the inside of the windshield even
when the outside (fresh) air position is
selected. If this happens, have the cli-
mate control air filter replaced by an
authorized Kia dealer.
✽ ✽
NOTICE
• Replace the filter every 24,000 km
(15,000 miles) or once a year.
If the vehicle is being driven in
severe conditions such as dusty or
rough roads, more frequent air
conditioner filter inspections and
changes are required.
• When the air flow rate suddenly decreases, the system should be
checked at an authorized Kia
dealer.
Checking the amount of air
conditioner refrigerant and
compressor lubricant
When the amount of refrigerant is
low, the performance of the air condi-
tioning is reduced. Overfilling also
has a negative impact on the air con-
ditioning system.
Therefore, if abnormal operation is
found, have the system inspected by
an authorized Kia dealer.
1LDA5047
Outside air
Recirculatedair
Climate control
air filter Blower
Evaporator
coreHeater core
JF CAN (ENG) 4.qxp 11/5/2015 3:51 PM Page 138
Page 231 of 623
![KIA Optima 2016 4.G Owners Manual 4145
Features of your vehicle
STORAGE COMPARTMENTS
These compartments can be used to
store small items required by the
driver or passengers.
To avoid possible theft, do notleave valuables in the sto KIA Optima 2016 4.G Owners Manual 4145
Features of your vehicle
STORAGE COMPARTMENTS
These compartments can be used to
store small items required by the
driver or passengers.
To avoid possible theft, do notleave valuables in the sto](/img/2/2973/w960_2973-230.png)
4145
Features of your vehicle
STORAGE COMPARTMENTS
These compartments can be used to
store small items required by the
driver or passengers.
To avoid possible theft, do notleave valuables in the storage
compartment.
Always keep the storage compart- ment covers closed while driving.
Do not attempt to place so many
items in the storage compartment
that the storage compartment
cover can not close securely.Center console storage
To open the center console storage,
pull up the lever.
Glove box
The glove box can be locked and
unlocked with a master key. (if
equipped)
To open the glove box, pull the lever
(1) and the glove box will automati-
cally open. Close the glove box after
use.WARNING - Flammable
materials
Do not store, propane cylinders
or other flammable/explosive
materials in the vehicle. These
items may catch fire and/or
explode if the vehicle is
exposed to hot temperatures for
extended periods.
OJFA045114OJF045113
JF CAN (ENG) 4.qxp 11/5/2015 3:51 PM Page 145
Page 232 of 623
![KIA Optima 2016 4.G Owners Manual Features of your vehicle
146
4
✽
✽
NOTICE
If the temperature control knob is in
the warm or hot position, warm or
hot air will flow into the glove box.
Sunglass holder
To open the sunglass hol KIA Optima 2016 4.G Owners Manual Features of your vehicle
146
4
✽
✽
NOTICE
If the temperature control knob is in
the warm or hot position, warm or
hot air will flow into the glove box.
Sunglass holder
To open the sunglass hol](/img/2/2973/w960_2973-231.png)
Features of your vehicle
146
4
✽
✽
NOTICE
If the temperature control knob is in
the warm or hot position, warm or
hot air will flow into the glove box.
Sunglass holder
To open the sunglass holder, press
the cover and the holder will slowly
open. Place your sunglasses with the
lenses facing out.
To close the sunglass holder push it up.
WARNING - Glove Box
To reduce the risk of injury in an
accident or sudden stop, always
keep the glove box door closed
while driving.WARNING- Sunglass holder
Do not keep objects except sun-
glasses inside the sunglass
holder. Heavier objects can be
thrown from the holder in the
event of a sudden stop or an
accident, possibly injuring the
passengers.
OJF045115
JF CAN (ENG) 4.qxp 11/5/2015 3:51 PM Page 146
