8
Setup
Setup is the screen to control system
settings of the Multimedia System.
To enter the screen, select the
SETUP key of the device or the
Setup button in All menus.
Features Description
NavigationProvides Normal/
Screen/Guidance/
Route/Safety Setting.
SoundProvides the sound
control options for
Position, Bass, Mid,
Treble, Volume and
Advanced settings.
Display
Provides the Mode/
Brightness/
Adjust settings.
BluetoothProvides the Bluetooth
Connection/Auto
Connection Priority/
Ringtone/Bluetooth
System Information
settings.
UVO
eServices Provides the 911
Connect/ Parking
Minder/My Car Zone/
Scheduled Diagnostics/
Trip Info Sync Reminder
Settings.
Features Description
Voice
Recognition Provides the
Guidance and Priority
settings.
Clock
Provides the time and
date settings.
Wi-FiProvides the Wi-Fi
On and Network
Connection settings.
Language
Provides the Change
Language settings.
KeyboardProvides settings to
switch keyboard lay-
outs.
Downloaded
Apps Provides the removal
settings for down-
loaded and installed
apps.
Screen Saver
Provides the Clock/
None settings.
ConnectivityFor more details,
refer to Connectivity
guide.
System InfoProvides software
and storage space
information.
Display OffProvides the Display
Off (touch activation)
function.
, @ + ' B @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E
@ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 12 of 84
9
Home Screen
Controls Menu Confi guration for the Home Screen
Information Display on the Status Bar
Displays the date and time, along with the system status shown by the various
icons to the right of the clock.
The icons in the following table indicate the various types of system status
details and events.
FeaturesDescription
Navigation
Widget
• Provides a brief view of the navigation map and the route screen.
• Touch any area on the screen to move to the navigation screen.
AV Widget
• Shows brief information on the radio media currently playing.
• Touch the area to move to the mode for what you are listening to.
All Menus
Shows all of the items in the system menu.
PlacesDirectly moves to the screen where you can search for your destination.
My Menu
• You can add and save up to eight menu items.
• Add your favorite menu items to have quick and easy access to them.
AV-Mute Navigation-
Mute Making a call and Bluetooth connection Wi-Fi
ICON
Description Mute AV
sound Mute
Navigation sound Bluetooth
phone
remaining battery Handsfree
connection Making a
call using
BT phone Bluetooth phone
reception
sensitivity Wi-Fi is connected
ICON
Description Connecting to
music stream Connecting to Wi-Fi
ICON
Description Handsfree+
streaming
connection Mute
Bluetooth phone
microphone
ICON
Description Downloading
contacts/
recent calls
, @ + ' B @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 13 of 84
10

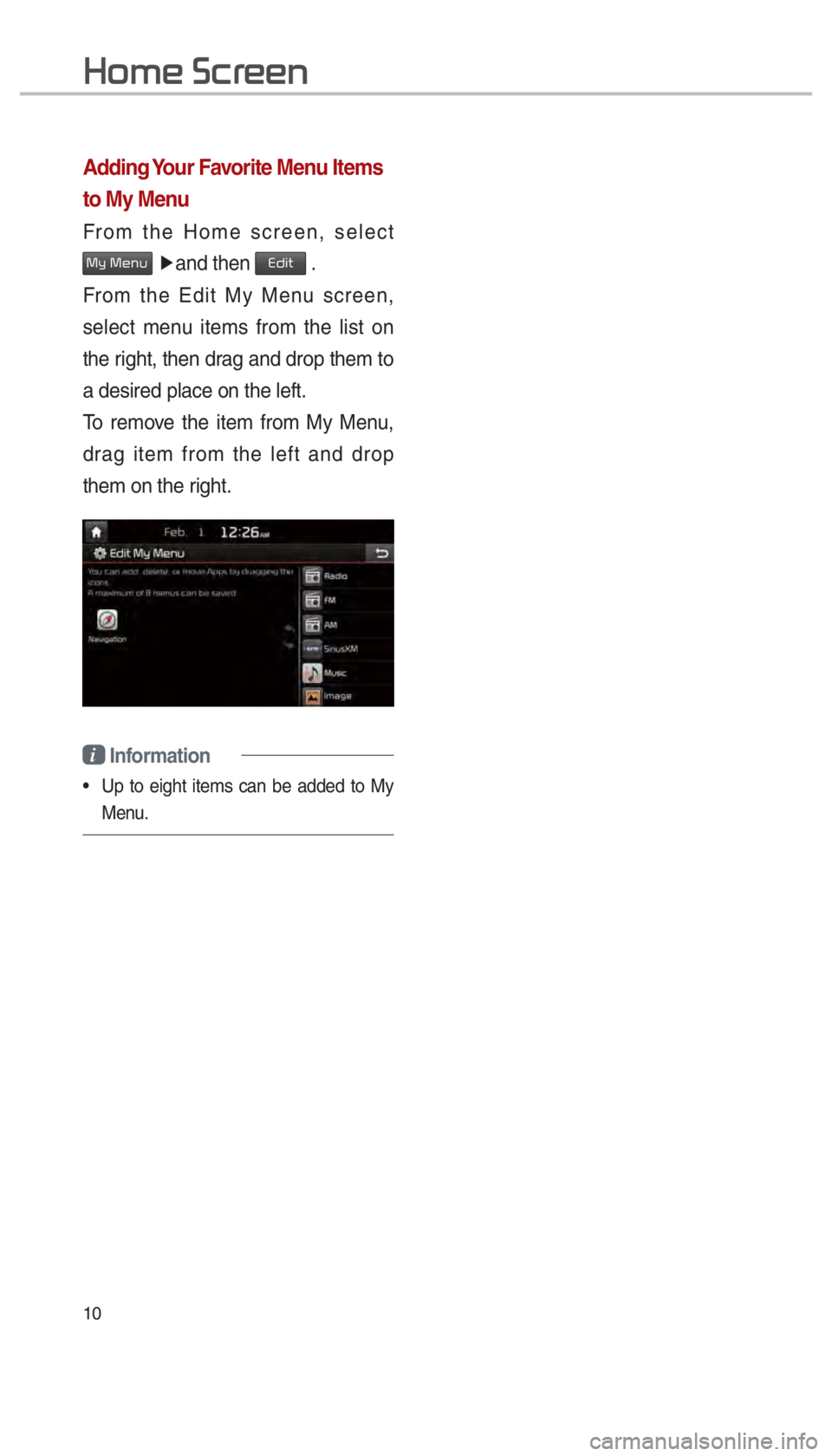

Adding Your Favorite Menu Items
to My Menu
From the Home screen, select
My Menu Ü
and then Edit .
From the Edit My Menu screen,
select menu items from the list on
the right, then drag and drop them to
a desired place on the left.
To remove the item from My Menu,
drag item from the left and drop
them on the right.
i Information
• Up to eight items can be added to My
Menu.
Home Screen
, @ + ' B @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 14 of 84
11
FM/AM
Accessing FM/AM Mode
You can access the radio player either by pressing the RADIO hard key or by
selecting the Radio menu option from All Menus on the Home screen.
i Information
• If you press the RADIO hard key when the power is off, then the power will turn on
and a radio broadcast will be tuned up.
• If you are in the FM/AM mode, select the FM/AM radio widget from the Home screen to access the radio player.
Features Description
Mode Display
• Displays currently operating mode
• If select wanted mode tap, it will change to selected mode in
Radio.
Preset
• Shows saved presets for user selection
• After selecting frequency →
press and hold (over 0.8 sec-
onds) the preset button. A 'beep' will sound and the fre-
quency is saved to the selected preset button.
A total of 24 frequencies with 12 preset frequencies each
for FM/AM modes can be saved.
Frequency Bar
• Flick the frequency bar left/right to search for available radio
channels to the left or right of the current channel.
• Dragging: Drag the frequency bar to the left/right to find the
radio channel that you want.
Frequency Displays the current frequency
Broadcast
station Displays the current broadcast station name.
Scan
Plays frequencies with superior reception for 5 seconds each
HD RadioWhen the HD Radio soft button is ON (the red indicator on
the HD Radio button is illuminated), HD Radio signals will be
received.
, @ + ' B @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E
@ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 15 of 84
12
FeaturesDescription
InfoTurns the Radio Text information on and off
• If the ON Text On button is displayed (Text off state), infor-
mation will not be displayed even if there is information being
transmitted from the broadcast station.
• If the Off Text Off button is displayed (Text on state), then
broadcast information will be displayed. Information may not
be displayed if there is no information being transmitted from
the broadcast station.
Menu
• Autostore
Saves frequencies with superior reception to Preset buttons
While Auto Store is operating, pressing the Auto Store button
again will cancel the function and play the previous
frequency.
• Preset Scan
Plays preset frequencies for 5 or 10 secodes each
• HD on : 10 seconds
• HD off : 5 seconds
Scan/
Auto Scan/
Preset Scan Displays an activated mode from the Scan/Auto Scan/Preset
Scan modes.
SoundHound
Runs the SoundHound feature.
For more detailed feature, please refer to SoundHound section
in Info part.
FM/AM
, @ + ' B @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E
@ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 16 of 84
13
FeaturesDescription
SEEK/TRACK
• Pressing this button briefly (less than 0.8 seconds) : Seeks
the previous/next frequency.
• Pressing and holding this button (longer than 0.8 seconds)
: Moves quickly through all of the frequencies. From the
moment that you release the button, the system will seek the
next available frequency.

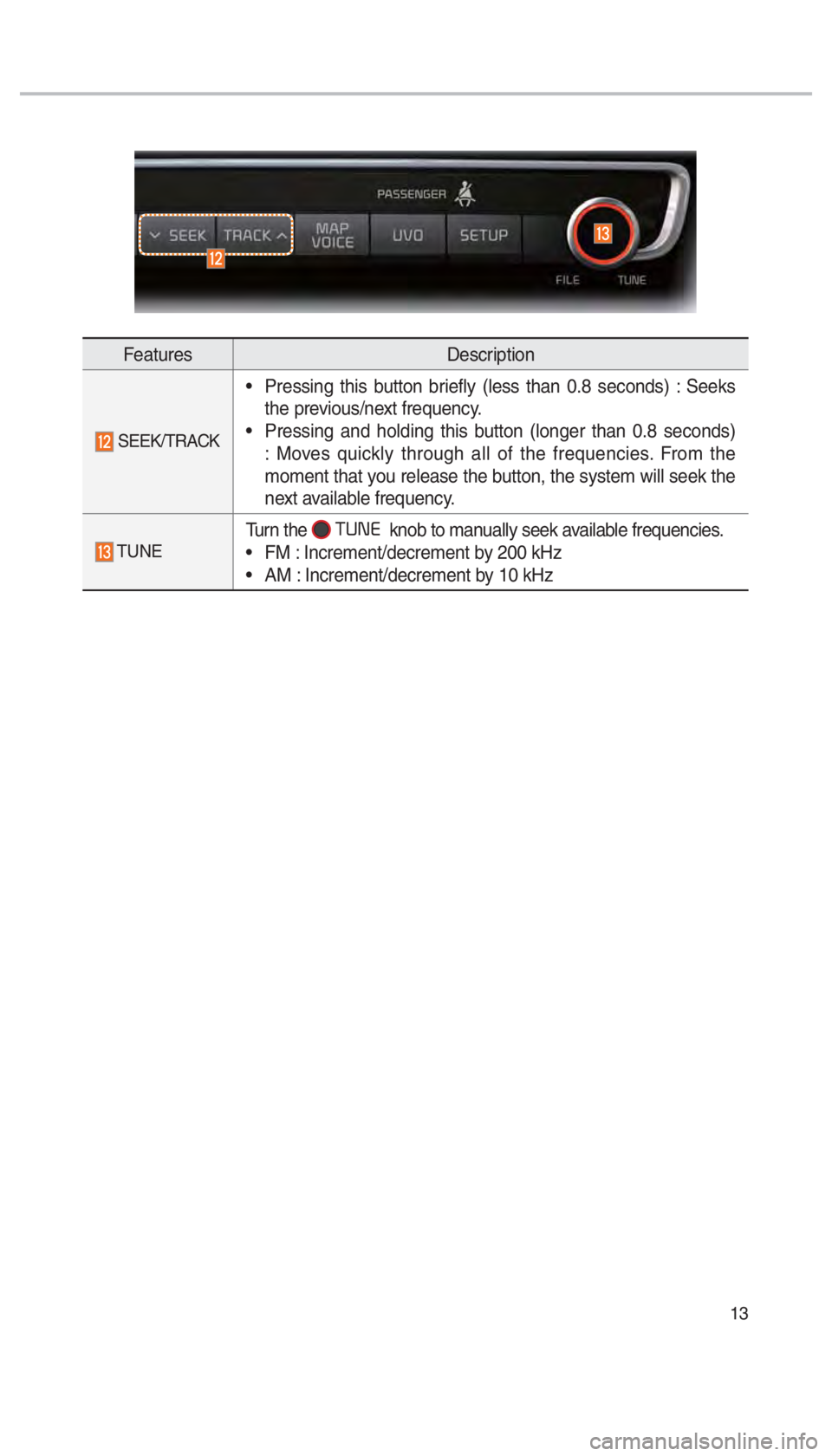

TUNETurn the 0003000300370038003100280003
knob to manually seek available frequencies.
• FM : Increment/decrement by 200 kHz
• AM : Increment/decrement by 10 kHz
, @ + ' B @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 17 of 84
14
Basic Mode Screen (HD Radio™ reception ON)
NameDescription
HD
Channel
Number Analog station and corresponding HD Radio channel number
saved in the preset list.
Broadcast
Info Displays detailed information about the current broadcast (the
details of the information shown are different depending on
whether the Info button is selected)
HD Radio
When the HD Radio soft button is ON (the red indicator on
the HD Radio button is illuminated), HD Radio signals will be
received.
HD Radio™
Reception
&Channel
buttons Displays main HD Radio™ channels and used to directly select
the currently available channels
HD Radio technology allows AM and FM radio stations to
transmit audio and data using a digital signal. The HD Radio
format allows stations to simultaneously broadcast one or
more different programs in addition to the program being
transmitted on the station’s analog channel. When the HD
Radio soft button on the screen is ON (red indicator on the
HD Radio button is illuminated), HD Radio reception will
become active whenever a broadcast channel sends an
HD Radio signal and when the vehicle is in areas where the
signal reception is strong. If multiple HD Radio programs are
available, a soft button for each channel will appear on the
screen allowing you to select from HD1, HD2, etc.
About HD Radio™ Technology
, @ + ' B @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 18 of 84
15
SiriusXM™ Mode Hard Key Controls

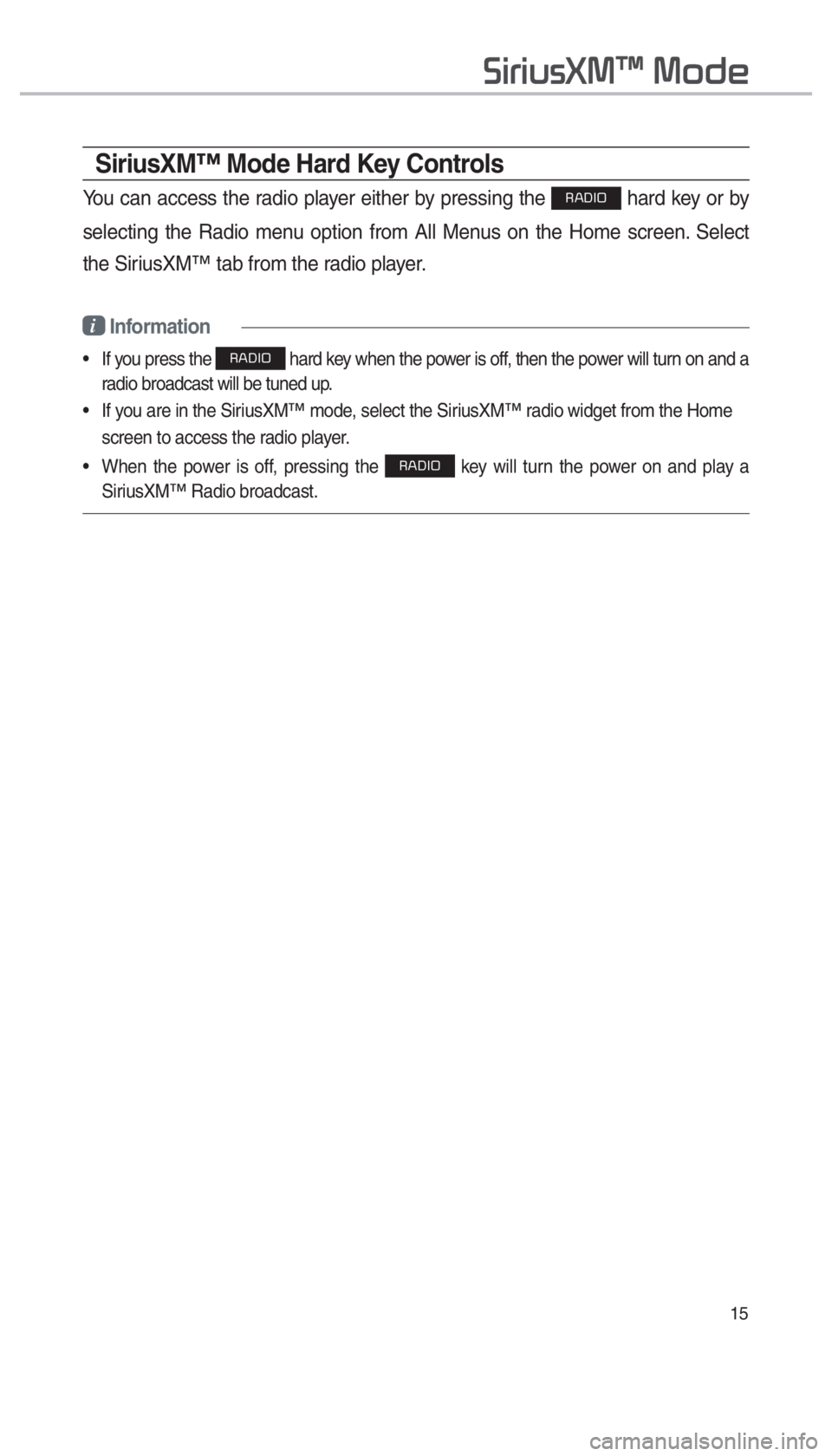

You can access the radio player either by pressing the RADIO hard key or by
selecting the Radio menu option from All Menus on the Home screen. Select
the SiriusXM™ tab from the radio player.
i Information
• If you press the RADIO hard key when the power is off, then the power will turn on and a
radio broadcast will be tuned up.
• If you are in the SiriusXM™ mode, select the SiriusXM™ radio widget from the Home screen to access the radio player.
• When the power is off, pressing the
RADIO key will turn the power on and play a
SiriusXM™ Radio broadcast.
SiriusXM™ Mode
, @ + ' B @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 19 of 84
16
SiriusXM™ Mode Display Controls
FeaturesDescription
Mode DisplayDisplays currently operating mode.
Tap to select desired mode, it will change to selected mode in
Radio.
PresetShows saved presets for user selection After selecting fre-
quency press and hold (over 0.8 seconds) the preset button.
A ‘beep’ will sound and the frequency is saved to the selected
preset button.
A total of 18 frequencies for SiriusXM™ modes can be saved.
Channel Logo
Displays the current channel logo.
Channel Info Displays the current channel number and name.
Contents InfoDisplays the artist, title and other information about the current
playing song.
Category Info
Displays the current playing category.
ScanPlays all receivable channels for 10 seconds each.
Direct TuneUsed to search for channels by entering channel numbers.
CategoryIf you press Category, when search channels through SEEK,
Tune and Scan, search it in the current category.
Category
Selection
Buttons
Used to select the previous/next category.
Play Live It will change to listening live broadcast mode.
Skip
Backward Repeats the previously broadcasted program.
• Holding for less than 0.8 seconds : Moves to the previous
segment
• Holding for longer than 0.8 seconds: Moves to the previous
5 seconds
SiriusXM™ Mode
, @ + ' B @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 20 of 84
17
FeaturesDescription
Play Pause
Pauses/plays the currently broadcasting program.
Skip ForwardMoves to the next segment.
ListDisplays SiriusXM™ Radio Categories/Channel Lists
MenuWhat’s on My Preset?
The program schedule saved in my preset. (For more details,
see Section 2.5. Viewing Menu.)
• Featured Favorite
Theme channels recommended by SiriusXM™. (For more
details, see Section 2.5. Viewing Menu.)
• Preset Scan
Plays preset frequencies for 5 seconds each.
SoundHound Runs the SoundHound feature.
For more detailed feature, please refer to SoundHound section
in Info part.
SEEK/TRACK When key is pressed shortly.(under 0.8 seconds) Plays
the previ-
ous/next channelWhen key is pressed and held.(over 0.8 seconds) Continuously changes
the channel until the key is released and plays the current channel
TUNE Changes the channel
, @ + ' B @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
