KIA OPTIMA 2017 Navigation System Quick Reference Guide
Manufacturer: KIA, Model Year: 2017, Model line: OPTIMA, Model: KIA OPTIMA 2017Pages: 84, PDF Size: 2.55 MB
Page 21 of 84
18
USB Music
USB Music
FeaturesDescription
Mode
Displays currently operating mode
File IndexShows the current file/total files within the USB
Repeat/
Shuffle/Scan From Repeat/Shuffle/Scan, displays the currently operating function
Play Time
Displays the current play time/total play time
Song InfoDisplays the information of the current track
• When a track in the file tab on the list screen is selected : Displays
folder, file, title, artist, album info
• When a track in the other tabs on the list screen is selected :
Displays artist, title, album info
List Moves to the list screen
Previous
File
If press button short (less than 0.8 seconds) : Moves to the previous file
or play the current file from the beginning (Depends on the play time)
• If play time is less than 3 seconds, moves to previous file
• If play time is over than 3 seconds, plays the current file from the
beginning
If button pressed longer (over than 0.8 seconds) : It rewinds the track
Play/Pause Plays/pauses the current file
Next File
• If button pressed for less than 0.8 seconds : Moves to the next file
• If button pressed for greater than 0.8 seconds: It fast-forwards the track
Repeat
Repeats the current file
• Select the song in the file tab on the list screen : Press the Repeat but-
ton to switch between repeating one song , repeat- i n g
folder , and turning repeat off
• Select the song in the other tabs (Playlist, Artist, Song, Album, Genre)
on the list screen : Press the
Repeat button to switch between repeat-
ing one song and turn- ing repeat off
Back Button Converts to basic mode screen
Menu
• Add to Playlist : Add the current track to the Playlist Playlist is placed
on the left tab in the list
• Save to My Music: You can save the current track to My Music. You
can play saved track from My Music without USB. Access to My
Music in the Media mode.
, @ + ' B @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1

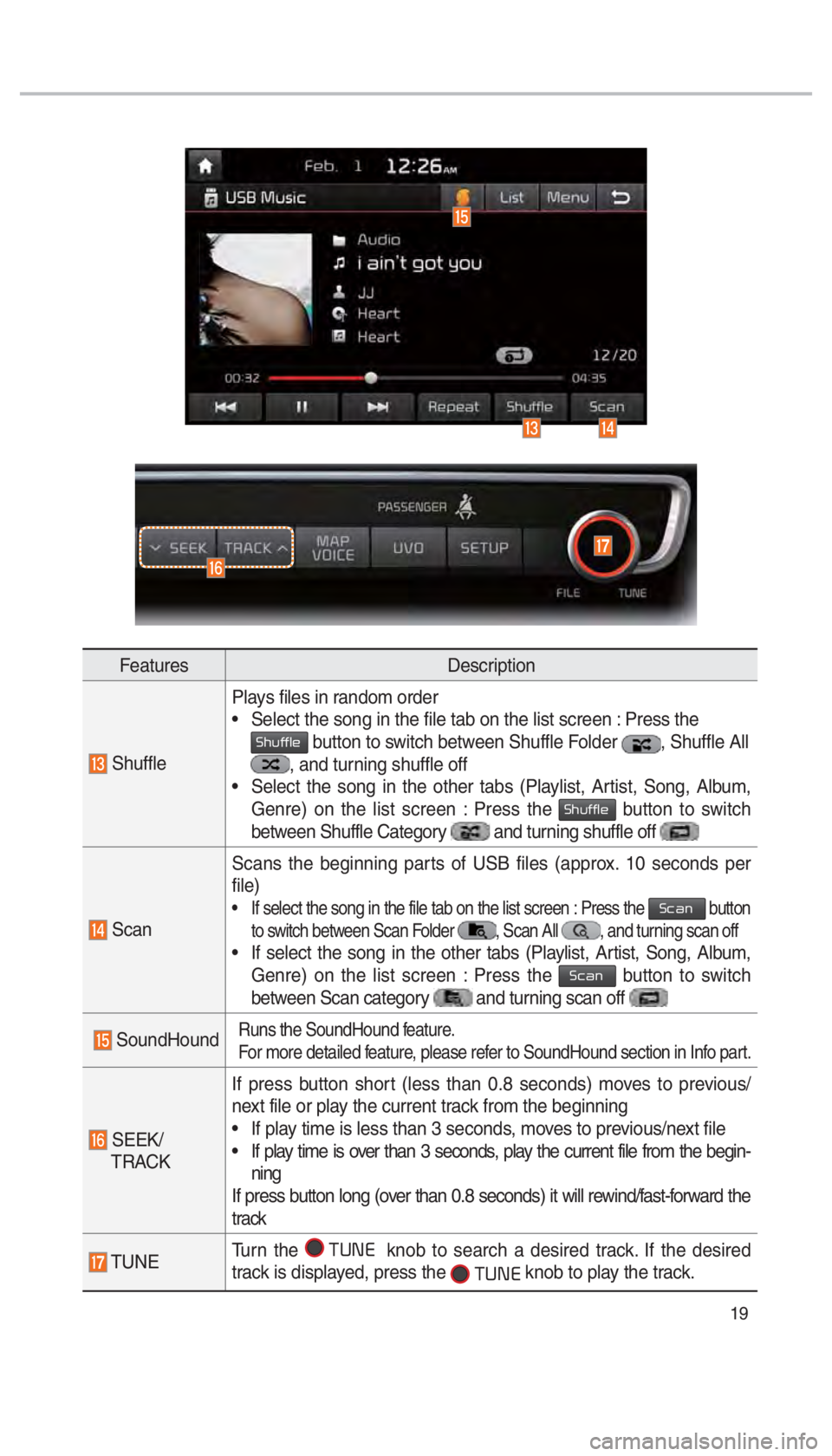

Page 22 of 84
19
FeaturesDescription
ShufflePlays files in random order
• Select the song in the file tab on the list screen : Press the
Shuffle button to switch between Shuffle Folder , Shuffle All , and turning shuffle off
• Select the song in the other tabs (Playlist, Artist, Song, Album,
Genre) on the list screen : Press the
Shuffle button to switch
between Shuffle Category and turning shuffle off
Scan Scans the beginning parts of USB files (approx. 10 seconds per
file)
• If select the song in the file tab on the list screen : Press the Scan button
to switch between Scan Folder
, Scan All , and turning scan off
• If select the song in the other tabs (Playlist, Artist, Song, Album,
Genre) on the list screen : Press the Scan button to switch
between Scan category
and turning scan off
SoundHoundRuns the SoundHound feature.
For more detailed feature, please refer to SoundHound section in Info part.
SEEK/ TRACK If press button short (less than 0.8 seconds) moves to previous/
next file or play the current track from the beginning
• If play time is less than 3 seconds, moves to previous/next file
• If play time is over than 3 seconds, play the current file from the begin-
ning
If press button long (over than 0.8 seconds) it will rewind/fast-forward the
track
TUNE Turn the 000300370038003100280003
knob to search a desired track. If the desired
track is displayed, press the
000300370038003100280003 knob to play the track.
, @ + ' B @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E
@ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 23 of 84
20
USB Image
USB Image
FeaturesDescription
Mode
Displays currently operating mode
Folder/File
Name Displays folder name where image is located
File Index
Shows the current file/total files within the USB
Slideshow Images as slideshow in 5, 10, 20, 30 second intervals
Rotate Rotate image in clockwise direction
InfoShows the file name, resolution and file type of current image
Adjust Image
Size Enlarge/reduce (zoom-in/zoom-out) image size
List
Moves to the list screen
Previous/
Next Image Swipe image left or right to see previous/next image
, @ + ' B @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E
@ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 24 of 84
21
iPod®
FeaturesDescription
Mode
Displays currently operating mode
Song IndexShows the current song/total songs
Repeat/ShuffleFrom Repeat/Shuffle, displays the currently operating function
Play Time Displays the current play time/total play time
Song InfoDisplays the artist/song title/album info
ListMoves to the list screen
Previous FileIf button pressed for less than 0.8 seconds: Moves to the previ-
ous file or play the current file from the beginning (Depends on
the play time)
• If play time is less than 3 seconds, moves to previous file
• If play time is over than 3 seconds, play the current file from the
beginning
If button pressed for greater than 0.8 seconds: It rewinds the
track.
Play/Pause Plays/pauses the current file
Next File
• If button pressed for less than 0.8 seconds: Moves to the next file
• If button pressed for greater than 0.8 seconds: It does fast-for-
ward the track.
Repeat Repeats the current file
Press the Repeat button to switch between repeating 1 track ,
and turning repeat off
Shuffle Plays files in random order
When pressing Shuffle button, it changes to shuffle category
→
deactivate Shuffle then repeat
• Shuffle Category : Shuffle song in the current category
Back Button
Move to home/previous mode screen
iPod®
, @ + ' B @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1

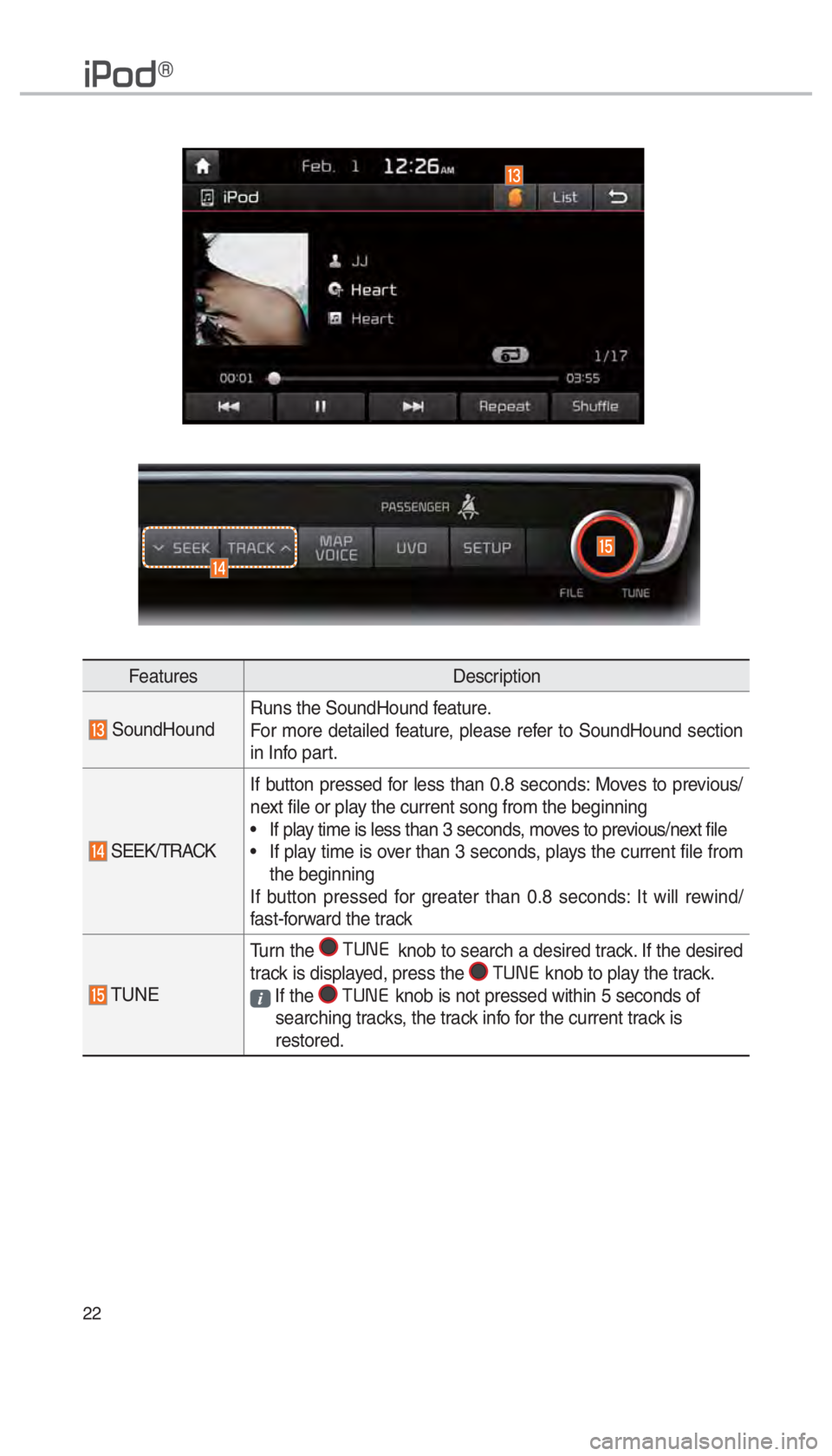

Page 25 of 84
22
FeaturesDescription
SoundHoundRuns the SoundHound feature.
For more detailed feature, please refer to SoundHound section
in Info part.
SEEK/TRACKIf button pressed for less than 0.8 seconds: Moves to previous/
next file or play the current song from the beginning
• If play time is less than 3 seconds, moves to previous/next file
• If play time is over than 3 seconds, plays the current file from
the beginning
If button pressed for greater than 0.8 seconds: It will rewind/
fast-forward the track
TUNE Turn the
00030037003800310028
knob to search a desired track. If the desired
track is displayed, press the
00030037003800310028
knob to play the track.
If the 000300370038003100280003 knob is not pressed within 5 seconds of
searching tracks, the track info for the current track is
restored.
iPod®
, @ + ' B @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 26 of 84
23
NOTICE
• If only cable connected to the AUX
without an exter
nal device, the mode
changed to AUX, but noise may occur.
When an external device is not being
used, remove the connector jack.
• When the external device power is
connected to the po w
er jack, playing
the external device may output noise.
In such cases, disconnect the power
connection before use.
AUX
Connecting an External Device
If an external device connector is
connected with the AUX terminal,
then AUX mode will automatically
operate. Once the connector is dis-
connected, the previous mode will
be restored.
• AUX mode can be used only when
an external audio player (camcorder,
car VCR, etc.) has been connected.
• The AUX volume can also be
controlled separately through the
connected device.
Features Description
Sound
Hound
Runs the SoundHound
feature.
For more detailed fea-
ture, please refer to
SoundHound section in
Info part.
Back
Button Move to home/previous
mode screen
i Information
!Ÿ
key, 00030037003800310028 is not
supported.
, @ + ' B @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 27 of 84
24
Bluetooth® Audio
i Information
• Artist info and Title may not be supported by mobile phone.
Bluetooth® Audio Mode
FeaturesDescription
Mode
Displays currently operating mode
Phone Name Displays name of connected phone
Artist InfoName of current artist
TitleName of current song
Previous File
• If play time is less than 3 seconds, moves to the previous file
• If play time is over than 3 seconds, plays the current file from
the beginning
This function may differ depending on the model of mobile
phone.
Play/Pause Plays/Pauses Bluetooth Audio
Next FileMoves to the next file
RepeatRepeats the current file This function may differ depending on the model of mobile
phone.
Shuffle Plays files in random order This function may differ depending on the model of mobile
phone.
SoundHound Runs the SoundHound feature.
For more detailed feature, please refer to SoundHound section
in Info part.
Connections
Moves to the Bluetooth Settings screen. You can pair a new
device or change/delete paired device(s)
SEEK/TRACK Plays the previous/next file
TUNE
0037003800310028 is not supported.
, @ + ' B @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E
@ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 28 of 84
25
My Music
FeaturesDescription
Mode
Displays currently operating mode
File IndexShows the current file/total files
Repeat/Shuffle/
ScanFrom Repeat/Shuffle/Scan, displays the currently operating function
Play Time Displays the current play time/total play time
Song InfoDisplays track/artist/title/album info
• If select the song in the file tab on the list screen : Displays
File, artist, title, album info
• If select the song in the other tabs on the list screen : Displays
artist, title, album info
List Moves to the list screen
Previous FileIf button pressed for less than 0.8 seconds: Moves to the previ-
ous file or play the current file from the beginning (Depends on
the play time)
• If play time is less than 3 seconds, moves to previous file
• If play time is over than 3 seconds, play the current file from
the beginning
If button pressed for greater than 0.8 seconds: It rewinds the track
Play/Pause Plays/pauses the current file
Next File
• If button pressed for less than 0.8 seconds: Moves to the next file
• If button pressed for greater than 0.8 seconds: It will fast-forward the file
Repeat Repeats the current file
• If select the song in the file tab on the list screen : Press the
Repeat button to switch between repeating one song
and turning repeat off .
• If select the song in the other tabs (Playlist, Artist, Song,
Album, Genre) on the list screen : Press the
Repeat button to
switch between repeating one song and turning repeat
off
SoundHound Runs the SoundHound feature.
For more detailed feature, please refer to SoundHound section
in Info part.
, @ + ' B @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E
@ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1

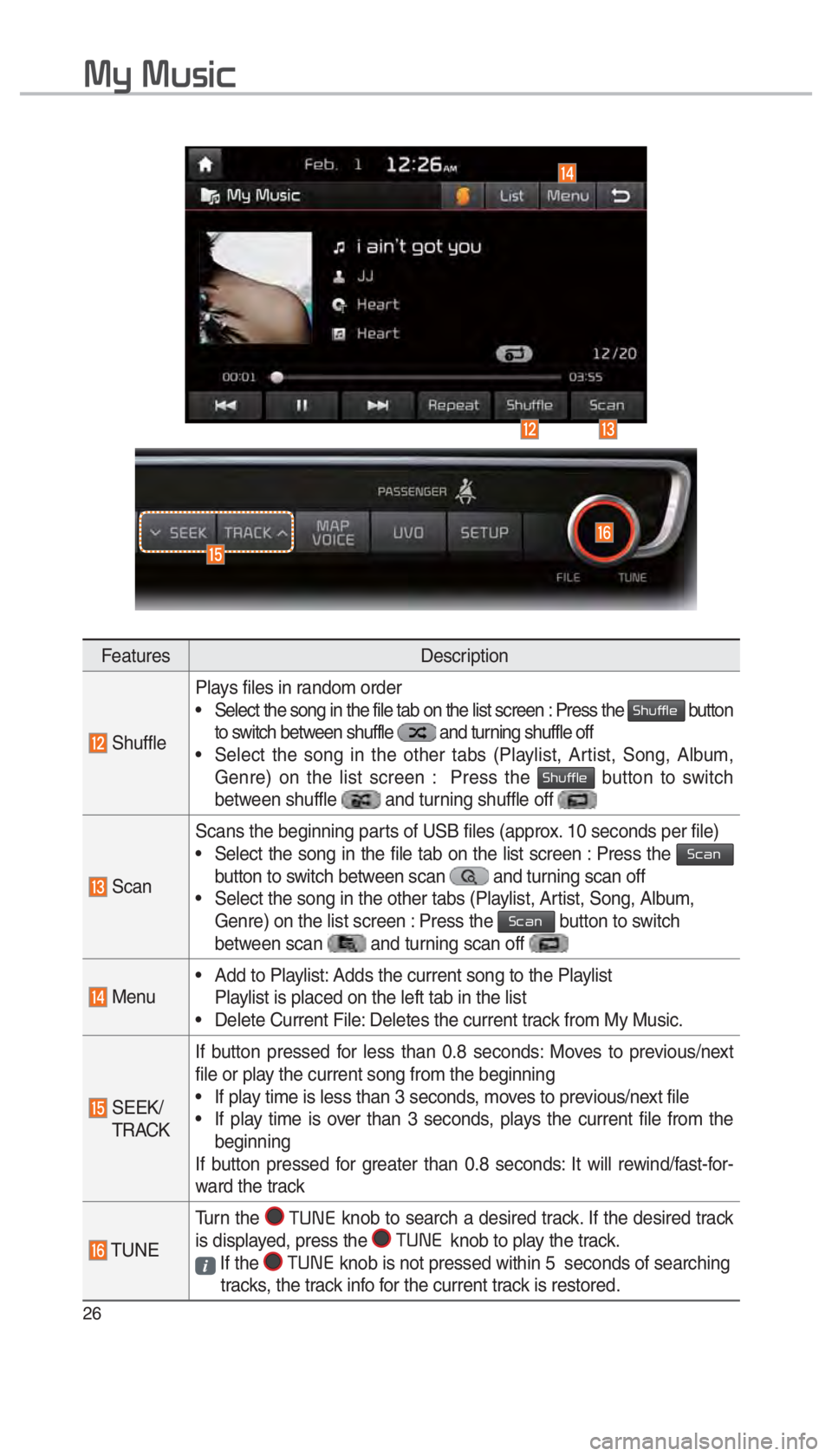

Page 29 of 84
26
FeaturesDescription
ShufflePlays files in random order
• Select the song in the file tab on the list screen : Press the
Shuffle button
to switch between shuffle and turning shuffle off
• Select the song in the other tabs (Playlist, Artist, Song, Album,
Genre) on the list screen : Press the
Shuffle button to switch
between shuffle and turning shuffle off
Scan Scans the beginning parts of USB files (approx. 10 seconds per file)
• Select the song in the file tab on the list screen : Press the
Scan
button to switch between scan and turning scan off
• Select the song in the other tabs (Playlist, Artist, Song, Album,
Genre) on the list screen : Press the
Scan button to switch
between scan and turning scan off
Menu
• Add to Playlist: Adds the current song to the Playlist
Playlist is placed on the left tab in the list
• Delete Current File: Deletes the current track from My Music.
SEEK/
TRACK If button pressed for less than 0.8 seconds: Moves to previous/next
file or play the current song from the beginning
• If play time is less than 3 seconds, moves to previous/next file
• If play time is over than 3 seconds, plays the current file from the
beginning
If button pressed for greater than 0.8 seconds: It will rewind/fast-for-
ward the track
TUNE Turn the
000300370038003100280003
knob to search a desired track. If the desired track
is displayed, press the 00030037003800310028
knob to play the track.
If the 00030037003800310028
knob is not pressed within 5 seconds of searching
tracks, the track info for the current track is restored.
My Music
, @ + ' B @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 30 of 84
27
Bluetooth®
Bluetooth®
Connection
Pairing a New Device
Before you can use the Bluetooth
feature, you must first pair/connect
your mobile phone to your car.
Up to 5 Bluetooth devices can be
paired.
Only one Bluetooth device can be
connected at a time.
Pairing a New Device by Selecting
Phone/Call
Select PHONE key in the head unit
or
key in the steering wheel
control. 05210003
Pair your car after your
mobile phone detects the Bluetooth
device. 05210003
Enter the passkey or
accept the authorization popup. 0521
Connect Bluetooth.
Pairing a New Device Through the
Phone Settings
Select SETUP key in the head unit. 0521
Select
Bluetooth. 0521
Select
Bluetooth Connection. 0521
Select Add New.
0521 Pair your car after your mobile
phone detects the Bluetooth device.
0521 Enter the passkey or accept the
authorization popup. 0521
Connect
Bluetooth.
The default passkey is 0000.
The Vehicle Name above is an
example. Check the actual informa-
tion on the product.
Connecting
Bluetooth
® Devices
Connects the Bluetooth devices that
you add.
Connecting Devices by Selecting
Phone/Call
Select PHONE key in the head unit
or
key in the steering wheel
control. 0521
Select the name of the
device to connect. 0521
Connect
Bluetooth.
, @ + ' B @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
