KIA OPTIMA 2017 Navigation System Quick Reference Guide
Manufacturer: KIA, Model Year: 2017, Model line: OPTIMA, Model: KIA OPTIMA 2017Pages: 84, PDF Size: 2.55 MB
Page 41 of 84
38
Voice Recognition
Navigation Commands
* Check the following before you use navigation commands:
1. Search for and find addresses located in the state or province your car is currently in.
If you want to search in another state, say the name of state/province and then look it up.
Find Address is classified by states/provinces to provide you with faster service.
2. Some commands such as “Cancel Route” are available only when the des- tination is fixed.
Command Operation
052CFind Address
in
• Finds the address in
tion.
e.g.) Find Address in California
• To find an address, you should say “House Number 044F
Street 044F
City”.
e.g.) 300 (Three Zero Zero) Main Street, Almond
052CFind Address Finds the address and sets it as the destination.
052CFind POI Find the points of interest. After this command, you can
find the name of a location step-by-step.
052CFind
see “Find
e.g.) Find “Banks”
052CMap
Moves to the current position on the navigation map
052CPrevious
PointsDisplays a list combining Previous Destinations, Previous
Searches, and Previous Starting Points all together.
You can then set a destination by saying the list number.
052CPrevious
Destinations
Displays a list of recent destinations that you can return to
by saying the number in the list.
052CPrevious
SearchesDisplays a list of recent searches, where you can set a
destination by saying the number in the list.
052CPrevious
Starting PointsDisplays a list of recent starting points that you can return
to by saying the number in the list.
052CTraffic
Information
Moves to the Traffic Information menu screen.
052CGo HomeSet the destination to your home.
Your home must first be set in the Navigation system.
052CGo to OfficeSet the destination to your office/work.
Your office/work must first be set in the navigation system.
, @ + ' B @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E
@ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 42 of 84
39
CommandOperation
052CTurn Guidance On Turns on the voice guidance system.
052CTurn Guidance Off Turns off the voice guidance system.
052CZoom All the Way
OutZooms out from the navigation map to the fullest.
052CZoom All the Way In Zooms in on the navigation map to the fullest.
052CCancel RouteCancels the route to the fixed destination and exits
guidance.
052CDestination
InformationTells you the remaining distance and time to your
destination.
052CRoute Options
Restarts the route to your destination.You can then
select either “Faster Time” or “Shorter Distance”.
052CFind Faster Time
RouteStarts a new route to your destination that will take
the least amount of time.
052CFind Shorter
Distance RouteStarts a new route to your destination that will use the
shortest distance.
052CEmergency
ServicesDisplays a list of nearest Police Station, Hospital,
Dealership, or Road Assistance.
You can then set a destination by saying the list number.
052CPolice Station
Displays a list of the nearest police stations.
You can then set a destination by saying the list number.
052CHospitalDisplays a list of the nearest hospitals.
You can then set a destination by saying the list number.
052CDealershipDisplays a list of the nearest car dealerships.
You can then set a destination by saying the list number.
052CRoad AssistanceDisplays a list of the nearest road assistance locations.
You can then set a destination by saying the list number.
052CShow RouteDisplays a map overview of the entire route to your
destination.
, @ + ' B @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E
@ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 43 of 84
40
Voice Recognition
Radio Commands
CommandOperation
052CRadioPlays the most recent radio channels from FM, AM, and
SiriusXM™.
052CFM
Plays FM radio.
052CFM
<87.5~107.9>Tunes to FM
e.g.) FM 87.5: FM eighty seven point five
052CSiriusXM Plays SiriusXM™ radio.
052CSiriusXM
Channel
<0~999>Tunes to SiriusXM™ Channel
ing to what you say.
e.g.) SiriusXM Channel 23: SiriusXM Channel twenty three
052CAM
Plays AM radio.
052CAM <530~1710>Tunes to AM
e.g.) AM 530: AM five thirty
052APreset <1~18> Tunes to your preset stations (1 to 18).
052AChannel
<0~999>In SiriusXM™ Radio mode, turns on the
that you say.
Media Commands
* Check the followings before you use media commands.
1. If no media is connected or if no playable files exist at the time when you use these
commands, a voice message will tell you that this is not available at present.
2. If you say the name of the media that is currently playing again, then that media will continue playing. e.g.) Saying “USB” while USB content is playing.
Command Operation
052CMusic Continues the last media you played.
052CiPodPlays the iPod currently connected. This will work the same when
an iPhone is connected. If a USB is connected, then it will be
played instead of the iPod.
052CUSB
Plays the music on the USB currently connected.
If an iPod is connected, then the iPod will be played instead of the USB.
052CBluetooth
AudioPlays the music on the Bluetooth phone currently connected.This may not be supported depending on the Bluetooth connection status.
052CAUX Plays external devices that are currently connected.
052CMy Music Plays My Music files stored in the system.
052CPandora
RadioPlays Pandora Radio that is currently connected. Pandora Radio
operates according to the iPod® that is currently connected.
, @ + ' B @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E
@ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 44 of 84
41
1. USB Music/iPod/My Music Command
CommandOperation
052APlayPlays a selected file.
Maintains the current settings during playback.
052APausePauses a file that is playing.
Maintains current settings while paused during playback.
052AShufflePlays files randomly.
Maintains current settings during shuffled playback.
052AShuffle OffCancels Shuffle and plays files sequentially.
Maintains current settings during sequential playback.
052ARepeatPlays the current file repeatedly.
Maintains the current settings during repeat playback.
052ARepeat OffCancels Repeat and plays multiple files.
Maintains current settings during multiple files playback.
2. Pandora Radio Command
Command
Operation
052ASkipMoves to the next track.
052AThumbs upIf you like the genre of the music currently playing, say
“Thumbs up” so that more similar music will play.
052AThumbs downIf you don’t like the music currently playing, say “Thumbs
down” to minimize the number of playbacks of similar
genre music.
3. Bluetooth Audio/AUX Command
• Bluetooth Audio supports different functions according to connected devices,
therefore some commands are unavailable, including Play, Stop, Previous
Song, and Next Song.
• For external devices (AUX) and some commands are unavailable, including
Play, Stop, Previous, and Next.
, @ + ' B @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 45 of 84
42
Voice Recognition
UVO eServices Commands List
CommandOperation
052CRoadside Assist Connect with a Roadside Assist agent.
052CVehicle
DiagnosticsInforms you if diagnostic issues are found in your vehicle
052CMy POIsDisplays Points of Interest list which were downloaded
from Google Maps and MyUVO
052CeService Guide Provides guidance on how to use UVO eServices
Other Commands List (Commands used in List/Help)
Command
Operation
052CHelpMoves to the voice recognition help screen.
All available commands can then be identified and used.
052ALine 1~5
(One~Five)When you cannot select a certain name, such as in Call
History, you can select it using numbers.
Simple numbers can be recognized, such as “One” or
“Two”.
052AYes/No
When voice recognition is activated, this command is
used when an answer is requested for a confirmation
question.
052APrevious Page/
Next PageWhen five or more searched items are listed, you can
move to the previous or next page using a voice com-
mand.
052AManual InputWhen Dial or POI Name search results are displayed,
this command is used to search manually, rather than to
search with a voice command.
Voice recognition stops after this command is used.
052AGo Back
Moves to the previous screen.
052CExitEnds the voice recognition.
, @ + ' B @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 46 of 84
43
Siri Eyes Free
How to start Siri
If you want to use Siri, you have to
connect your iOS device to multime-
dia system through Bluetooth.
(Please check whether your iOS
device supports Siri and turning Siri
On)
Then you can use Siri while pressing
and holding
key on the
steering wheel.
How to use Siri
When you access the Siri screen
while pressing and holding
key on the steering wheel, you can
press
Speak button and then you
can speak what you want. Note that
the Multimedia system only supports
“Phone” related functions. Other
functions will be performed in your
iOS device. If you press voice key
quickly, Siri would re-start. If you hold
down voice key, Siri would be termi-
nated and the screen would go back
to the previous screen. Eyes-Free
mode would be activated automati-
cally while you are driving. When
shifting gears into P or putting the
Parking brake on, Eyes-Free mode
would be deactivated automatically.
i Information
• Functions and feedbacks from voice
commands via Siri are executed in
the iOS device. If the iOS version is
changed, the functions and response
may be different according to the iOS
device and the latest version.
, @ + ' B @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 47 of 84
44
About Pairing Mobile Phones
QI cannot pair my mobile phone, what is the cause?
A
Check to see that the mobile phone supports Bluetooth® function. Verify
if Bluetooth on the cell phone is set to OFF. If so, set it to ON. If the cell
phone still can’t be registered, try again after turning Bluetooth off and on,
or delete the device registration on the AVN and cell phone and then regis-
ter the cell phone again.
Q
What is the difference between pairing a mobile phone and connecting a mobile phone?
A
Pairing occurs through authenticating the head unit and mobile phone. Mobile phones paired to the head unit can be connected and disconnected \
until the paired mobile phone is deleted from the system. Bluetooth
®
Handsfree features, such as making/answering calls or managing contacts,
are supported only in mobile phones connected with the head unit.
Q
What is a Passkey?
A
A passkey is the password used to authenticate the connection between the head unit and mobile phone. The passkey only needs to be entered
once when pairing the mobile phone for the first time.
The initial passkey is 0000. You can change it with
SETUP Ü
Bluetooth Ü
Bluetooth System Info Ü
Passkey menu options.
FA Q
, @ + ' B @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 48 of 84

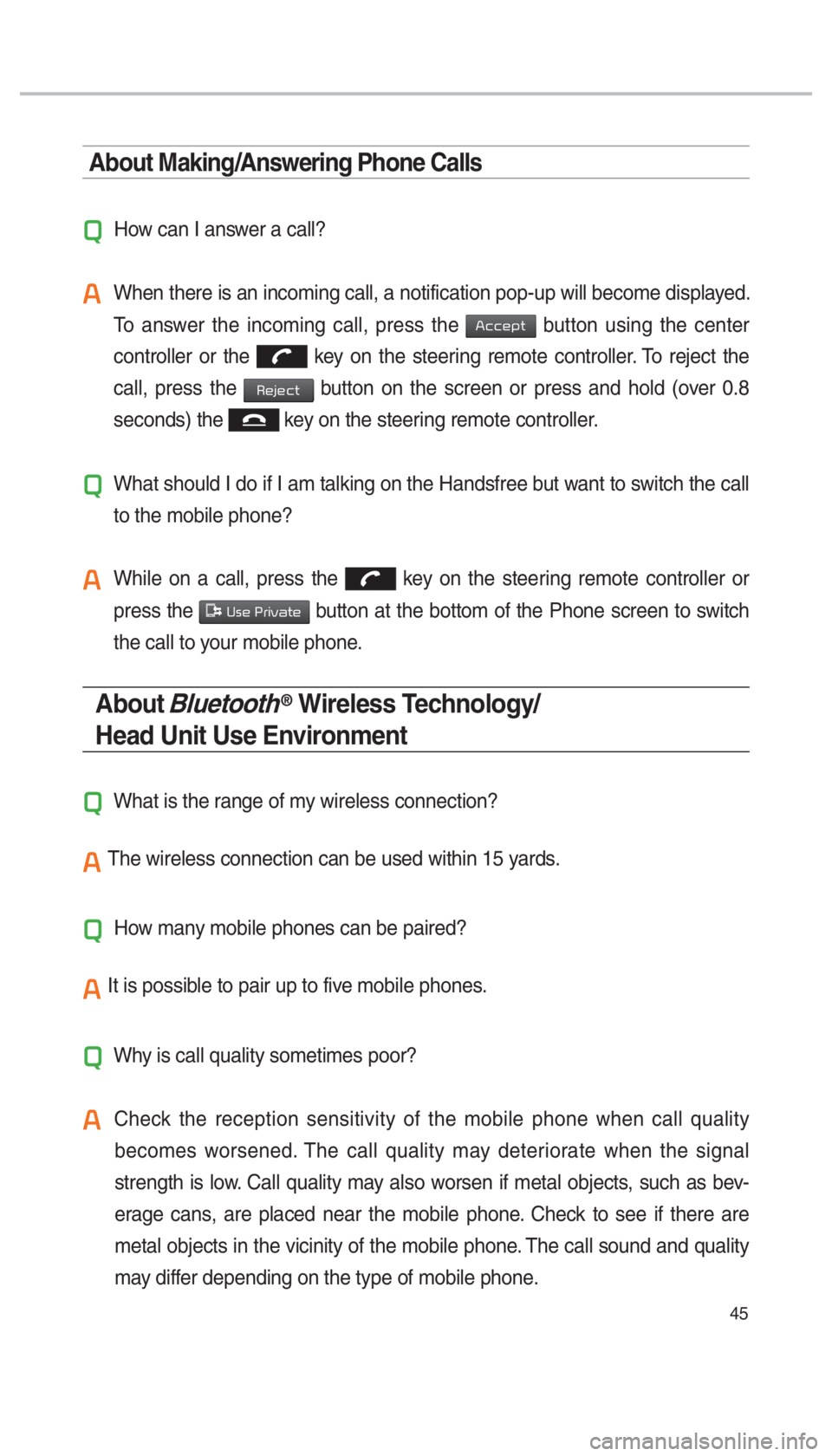

![KIA OPTIMA 2017 Navigation System Quick Reference Guide 45
About Making/Answering Phone Calls
Q How can I answer a call?
A When there is an incoming call, a notification pop-up will become displa\
yed. To answer the incoming call, press the
Accept butto](/img/2/55035/w960_55035-47.png "KIA OPTIMA 2017 Navigation System Quick Reference Guide 45
About Making/Answering Phone Calls
Q How can I answer a call?
A When there is an incoming call, a notification pop-up will become displa\
yed. To answer the incoming call, press the
Accept butto")
45
About Making/Answering Phone Calls
Q How can I answer a call?
A When there is an incoming call, a notification pop-up will become displa\
yed. To answer the incoming call, press the
Accept button using the center
controller or the
key on the steering remote controller. To reject the
call, press the
Reject button on the screen or press and hold (over 0.8
seconds) the
key on the steering remote controller.
Q What should I do if I am talking on the Handsfree but want to switch the call
to the mobile phone?
A While on a call, press the key on the steering remote controller or
press the
Use Private button at the bottom of the Phone screen to switch
the call to your mobile phone.
About Bluetooth® Wireless Technology/
Head Unit Use Environment
Q What is the range of my wireless connection?
A The wireless connection can be used within 15 yards.
Q How many mobile phones can be paired?
A It is possible to pair up to five mobile phones.
Q Why is call quality sometimes poor?
A Check the reception sensitivity of the mobile phone when call quality
becomes worsened. The call quality may deteriorate when the signal
strength is low. Call quality may also worsen if metal objects, such as bev-
erage cans, are placed near the mobile phone. Check to see if there are
metal objects in the vicinity of the mobile phone. The call sound and quality
may differ depending on the type of mobile phone.
, @ + ' B @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 49 of 84
46

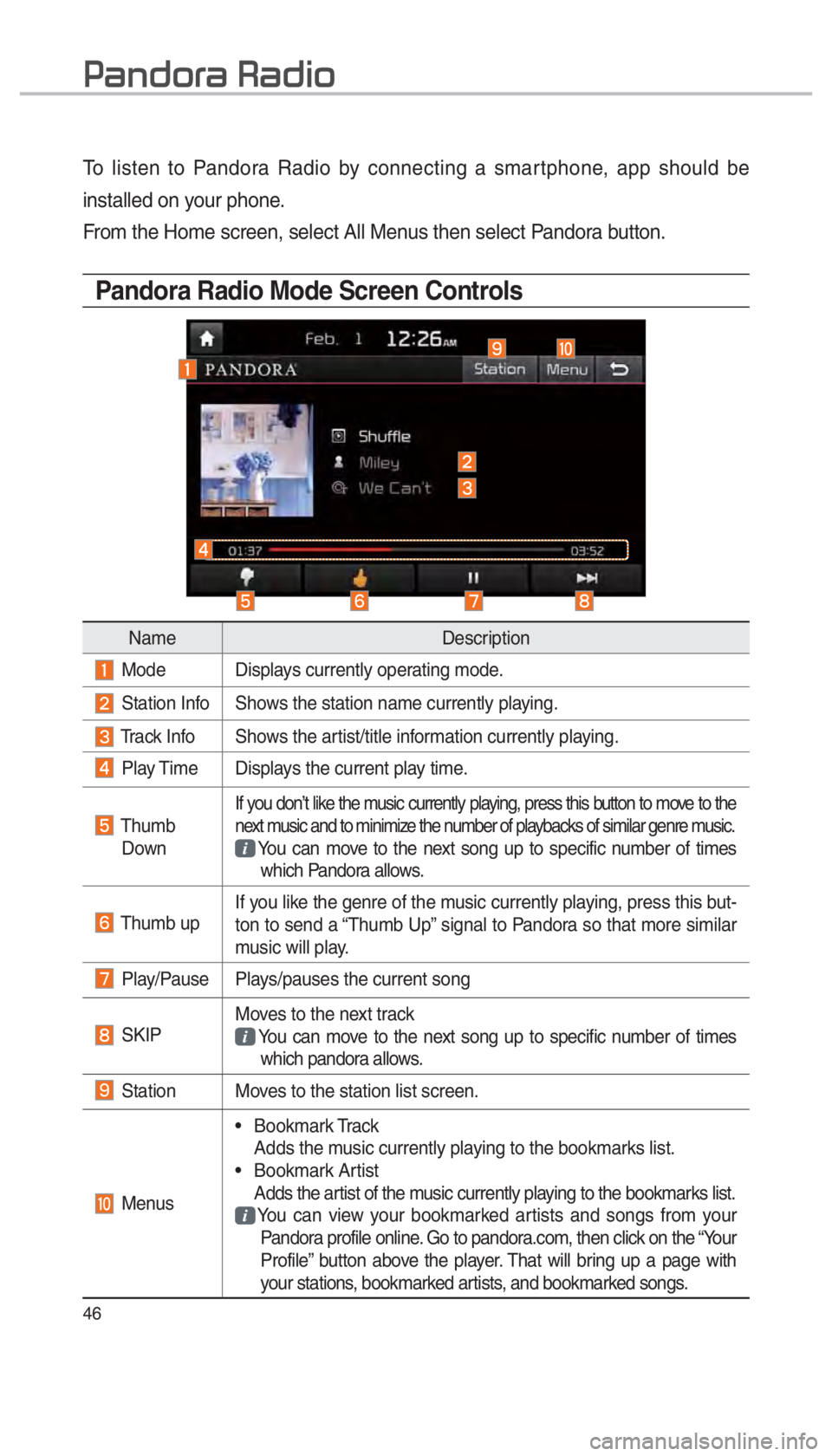

To listen to Pandora Radio by connecting a smartphone, app should be
installed on your phone.
From the Home screen, select All Menus then select Pandora button.
Pandora Radio Mode Screen Controls
Pandora Radio
NameDescription
Mode Displays currently operating mode.
Station Info Shows the station name currently playing.
Track Info Shows the artist/title information currently playing.
Play Time Displays the current play time.
Thumb
DownIf you don’t like the music currently playing, press this button to move to the
next music and to minimize the number of playbacks of similar genre music.
You can move to the next song up to specific number of times
which Pandora allows.
Thumb up If you like the genre of the music currently playing, press this but-
ton to send a “Thumb Up” signal to Pandora so that more similar
music will play.
Play/Pause Plays/pauses the current song
SKIP Moves to the next track
You can move to the next song up to specific number of times
which pandora allows.
Station Moves to the station list screen.
Menus
• Bookmark Track
Adds the music currently playing to the bookmarks list.
• Bookmark Artist
Adds the artist of the music currently playing to the bookmarks list. You can view your bookmarked artists and songs from your
Pandora profile online. Go to pandora.com, then click on the “Your
Profile” button above the player. That will bring up a page with
your stations, bookmarked artists, and bookmarked songs.
, @ + ' B @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
Page 50 of 84
47
With Download Center, you can
install paid/free applications or check
for related information. Only UVO
center verified applications can be
installed.
You can use Download Center after
agreeing to the User Agreement and
Privacy Policy. (Only 1 time for initial
launch)
Apps List
Select Home-screen ▶
All Menus or
My Menu ▶
Apps ▶
and then select
Download Center
Download Center
Name Description
Application
Download
and Run
buttons Button state changes
according to the appli-
cation state.
DownloadDownloads free appli-
cations.
PurchaseDownloads paid appli-
cations.
Re-downloadDownloads deleted
applications after pre-
viously installing them.
Retry
Downloads the appli-
cations that failed to
download due to net-
work or system errors.
RunRuns installed applica-
tions.
CancelCancels any down-
loads and updates.
Menu
Updates and refreshes
the menu.
Update
After installation, it
shows applications
requiring updates.
The update screen
shows the
Update All
button to update all
applications that need
updates.
RefreshRefreshes the app list
status.
Detailed
Information When the application
list area is pressed, it
moves to the Detailed
Information screen.
Preview
Displays application
images.
InformationDisplays application
information.
, @ + ' B @ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E
@ ( < 6 4 " @ & 6 > " 7 / @ 2 3 ( J O E E ß
1
