KIA OPTIMA 2018 Features and Functions Guide

OPTIMA FEATURES & FUNCTIONS GUIDE38*IF EQUIPPED
1 . Pull the Hood Release Lever A to unlatch the Hood
2 . In the front of the vehicle, lift the Hood slightly, pull the secondary
Latch B inside of the Hood’s center and lift the Hood
Hood Release Lever and Latch
Opening the Hood:
Closing the Hood:
Lower the Hood about halfway and then press down to securely
lock in place .
(Located on Driver side kick panel)(Located inside of Hood's center) (Images shown are for illustration purposes only . Actual operation may vary)
A
B
Child-Protector Rear Door Lock
Locate these locks on the rear edge of the rear passenger doors . Turn the
safety lock to the LOCK position to disable the inner door handles from
opening the rear doors .
REMINDER: Child-Protector Rear Door Lock is located on rear passenger’s door jamb .
Rear Parking Assist System
The Rear Parking Assist System is not a safety device . The Rear Parking
Assist System is a supplemental system that assists the driver by
chiming if any object is detected within the sensing area to the rear
and side of the vehicle when backing up . When the ignition is ON, the
system is activated .
REMINDERS:
•
If the vehicle is moving at speeds over 3 mph, the system may not activate correctly
•
When more than two objects are sensed at the same time, the closest one will be recognized first

The Rear Parking Assist System is not a substitute for proper and safe backing-up procedures. Always drive safely and use caution when backing up. The Rear Parking Assist System may not detect every object behind the vehicle.
OTHER KEY FEATURES

39ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS . *IF EQUIPPED
A
B
(Navigation screen display shown)

•The Tire Mobility Kit is a temporary fix and is to be used for one tire only; the tire should be inspected as soon as possible •The kit should only be used for sealing/inflating passenger car tires; do not use for inflating any other type of tires •Some damaged tires cannot be sealed completely; do not use the kit if it appears a tire is damaged beyond repair
The Rear-Camera Display is not a substitute for proper and safe backing-up procedures. The Rear-Camera Display may not display every object behind the vehicle. Always drive safely and use caution when backing up.
Tire Mobility Kit*
The Tire Mobility Kit may temporarily seal
certain types of tire damage .
For operational information, please refer
to the Owner’s Manual .
A Sealant Bottle
B Compressor
REMINDER: After tire is properly sealed, drive cautiously at a maximum speed of 50 mph for a maximum distance of up to 120 miles .
Rear-Camera Display*
The Rear-Camera Display system is not a safety device . It is a
supplemental system that displays the view behind the vehicle through
the UVO eServices System* or the UVO eServices with Premium
Navigation system* screen while the vehicle is in Reverse .
The Rear-Camera Display activates when the:
•Engine Start /Stop button* is in the ON position (green light)
•Gear Shift Lever is in the R (Reverse) position
REMINDER: While camera is active, only the volume controls on the audio system can be operated
Tire Mobility Kit Video To view a video on your mobile device, snap this QR Code or visit the listed website .
Refer to page 2 for more information .
QR CODE
QUICK TIPS
www.youtube.com/KiaFeatureVideos
P
R
N
DSHIFTLOCK
RELEASE
OTHER KEY FEATURES

OPTIMA FEATURES & FUNCTIONS GUIDE40*IF EQUIPPED
The Seat Belt warning chime operates for driver’s seat only .
ODS detects the presence and position of the front passenger and adjusts
or turns off airbag deployment accordingly .
Depending on the situation and type of
accident, the system may:
•Deploy airbag (Adult)
•Not deploy the airbag (Unoccupied)
If the system determines that the airbag should not be deployed, the
“PASSENGER AIR BAG OFF” light will illuminate .
Occupant Detection System (ODS) /
Passenger Air Bag Off Indicator
Seat Belts
To properly fasten your safety belts:
1 .
Insert the belt tongue plate A into the buckle B until it clicks
2 .
Position the lap portion of the belt across your lap as LOW ON THE HIPS as
possible C . Adjust the belt to a SNUG FIT by pulling up on the shoulder portion D
PRESS
A
B
D
C
QUICK TIP
Seat Belt Retractor Locks
REMINDER: For maximum protection, always wear your Seat Belt .
Retractor locks allow lap/shoulder safety belts to remain unlocked
during normal vehicle operation for freedom of movement and
increased comfort .
During a STRONG STOP, SUDDEN TURN OR CERTAIN COLLISIONS,
seat belt retractors will automatically lock the belts to help reduce
the risk of injury .
SAFETY FEATURES

41ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS . *IF EQUIPPED
Check your Maintenance Schedule or schedule an appointment with a dealer using your UVO eServices account by logging into your UVO App or your account on MyUVO . com ( Vehicles equipped with UVO eServices only - See page 22 for setup information)
Normal Maintenance Schedule
When your vehicle requires service, remember that your dealer knows your vehicle best . Your dealer has factory-trained technicians, recommended special tools,
genuine Kia replacement parts and is dedicated to your complete satisfaction . For expert advice and quality service, see your authorized Kia dealer .
7,500 miles
PERFORM
•Add fuel additive1
•Rotate tires - including tire pressure and tread wear
REPLACE
•Engine oil and filter (2 .4 GDI - every 7,500 miles;
1 .6 Turbo GDI / 2 .0 Turbo GDI - every 6,500 miles)
INSPECT*
•Air cleaner filter
•Vacuum hose
•Intercooler, in/out hose, air intake hose ( Turbo GDI)
*Inspect and, if necessary, adjust, correct, clean, or replace . 1 If TOP TIER Detergent Gasoline is not available, one bottle of additive is recommended . Additives are available from your authorized Kia dealer along with information on how to use them . Do not mix other additives .
15,000 miles
PERFORM
•Add fuel additive1
•Rotate tires - including tire pressure and tread wear
REPLACE
•Climate control air filter (For evaporator and blower unit)
•Engine oil and filter: (2 .4 GDI - every 7,500 miles;
1 .6 Turbo GDI / 2 .0 Turbo GDI - every 6,500 miles)
INSPECT*
•Air cleaner filter
•Vacuum hose
•Air conditioning refrigerant
•Brake hoses and lines
•Drive shafts and boots
•Exhaust pipe and muffler
•Front brake disc/pads, calipers
•Rear brake disc/pads
•Steering gear box, linkage &
boots/lower arm ball joint, upper
arm ball joint
•Suspension mounting bolts
•Intercooler, in/out hose, air intake
hose ( Turbo GDI)
*Inspect and, if necessary, adjust, correct, clean, or replace . 1 If TOP TIER Detergent Gasoline is not available, one bottle of additive is recommended . Additives are available from your authorized Kia dealer along with information on how to use them . Do not mix other additives .
QUICK TIP
MAINTENANCE

OPTIMA FEATURES & FUNCTIONS GUIDE42*IF EQUIPPED
22,500 miles
PERFORM
•Add fuel additive1
• Rotate tires - including tire pressure and tread wear
REPLACE
•Engine oil and filter (2 .4 GDI - every 7,500 miles;
1 .6 Turbo GDI / 2 .0 Turbo GDI - every 6,500 miles)
INSPECT*
•Air cleaner filter
•Vacuum hose
•Intercooler, in/out hose, air intake hose ( Turbo GDI)
*Inspect and, if necessary, adjust, correct, clean, or replace . 1 If TOP TIER Detergent Gasoline is not available, one bottle of additive is recommended . Additives are available from your authorized Kia dealer along with information on how to use them . Do not mix other additives .
30,000 miles
PERFORM
•Add fuel additive1
•Rotate tires - including tire pressure and tread wear
REPLACE
•Engine oil and filter (2 .4 GDI - every 7,500 miles;
1 .6 Turbo GDI / 2 .0 Turbo GDI - every 6,500 miles)
•Air cleaner filter
•Climate control air filter (For evaporator and blower unit)
INSPECT*
•Vacuum hose
•Air conditioning refrigerant
•Brake hoses and lines
•Drive shafts and boots
•Exhaust pipe and muffler
•Front brake disc/pads, calipers
•Rear brake disc/pads
•Steering gear box, linkage &
boots/lower arm ball joint, upper
arm ball joint
•Suspension mounting bolts
•Brake fluid
•Fuel filter2
•Fuel cap, fuel lines, fuel hoses
and connections
•Fuel tank air filter2 (if equipped)
•Parking brake
•Vapor hose and fuel filler cap
•Intercooler, in/out hose, air
intake hose ( Turbo GDI)
*Inspect and, if necessary, adjust, correct, clean, or replace .1 If TOP TIER Detergent Gasoline is not available, one bottle of additive is recommended . Additives are available from your authorized Kia dealer along with information on how to use them . Do not mix other additives . 2 Fuel filter & Fuel tank filter are considered to be maintenance free but periodic inspection is recommended for this maintenance schedule depends on fuel quality . If there are some important safety matters like fuel flow restriction, surging, loss of power, hard starting problem etc, replace fuel filter immediately regardless of maintenance schedule and consult an authorized Kia dealer for details .
MAINTENANCE

43ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS . *IF EQUIPPED
37,500 miles
PERFORM
•Add fuel additive1
•Rotate tires - including tire pressure and tread wear
REPLACE
•Engine oil and filter (2 .4 GDI - every 7,500 miles;
1 .6 Turbo GDI / 2 .0 Turbo GDI - every 6,500 miles)
INSPECT*
•Air cleaner filter
•Vacuum hose
•Intercooler, in/out hose, air intake hose ( Turbo GDI)
*Inspect and, if necessary, adjust, correct, clean, or replace .1 If TOP TIER Detergent Gasoline is not available, one bottle of additive is recommended . Additives are available from your authorized Kia dealer along with information on how to use them . Do not mix other additives .
45,000 miles
PERFORM
•Add fuel additive1
•Rotate tires - including tire pressure and tread wear
REPLACE
•Engine oil and filter (2 .4 GDI - every 7,500 miles;
1 .6 Turbo GDI / 2 .0 Turbo GDI - every 6,500 miles)
•Spark plugs (Iridium coated; 1 .6 Turbo GDI / 2 .0 Turbo GDI)
•Climate control air filter (For evaporator and blower unit)
INSPECT*
•Air cleaner filter
•Vacuum hose
•Air conditioning refrigerant
•Brake hoses and lines
•Drive shafts and boots
•Exhaust pipe and muffler
•Front brake disc/pads, calipers
•Rear brake disc/pads
•Steering gear box, linkage &
boots/lower arm ball joint, upper
arm ball joint
•Suspension mounting bolts
•Intercooler, in/out hose, air intake
hose ( Turbo GDI)
*Inspect and, if necessary, adjust, correct, clean, or replace1 If TOP TIER Detergent Gasoline is not available, one bottle of additive is recommended . Additives are available from your authorized Kia dealer along with information on how to use them . Do not mix other additives
MAINTENANCE

OPTIMA FEATURES & FUNCTIONS GUIDE44
52,500 miles
PERFORM
•Add fuel additive1
•Rotate tires - including tire pressure and tread wear
REPLACE
•Engine oil and filter (2 .4 GDI - every 7,500 miles;
1 .6 Turbo GDI / 2 .0 Turbo GDI - every 6,500 miles)
INSPECT*
•Air cleaner filter
•Vacuum hose
•Intercooler, in/out hose, air intake hose ( Turbo GDI)
60,000 miles
PERFORM
•Add fuel additive1
•Rotate tires - including tire pressure and tread wear
REPLACE
•Climate control air filter (for evaporator and blower unit
•Engine oil and filter (2 .4 GDI - every 7,500 miles;
1 .6 Turbo GDI / 2 .0 Turbo GDI - every 6,500 miles)
•Coolant (First at 60,000 miles, then every 30,000 miles)
INSPECT*
•Vacuum hose
•Air conditioning refrigerant
•Brake hoses and lines
•Drive shafts and boots
•Exhaust pipe and muffler
•Front brake disc/pads, calipers
•Rear brake disc/pads
•Steering gear box, linkage &
boots/lower arm ball joint, upper
arm ball joint
•Suspension mounting bolts
•Brake fluid
•Fuel filter2
•Fuel cap, fuel lines, fuel hoses
and connections
•Fuel tank air filter (if equipped)2
•Parking brake
•Vapor hose and fuel filler cap,
fuel tank
•Valve clearance (if equipped)3
•Drive belts (First at 60,000
miles, then every 15,000 miles)
•Intercooler, in/out hose, air intake
hose ( Turbo GDI)
*Inspect and, if necessary, adjust, correct, clean, or replace .1 If TOP TIER Detergent Gasoline is not available, one bottle of additive is recommended . Additives are available from your authorized Kia dealer along with information on how to use them . Do not mix other additives
*Inspect and, if necessary, adjust, correct, clean, or replace . 1 If TOP TIER Detergent Gasoline is not available, one bottle of additive is recommended . Additives are available from your authorized Kia dealer along with information on how to use them . Do not mix other additives . 2 Fuel filter & Fuel tank filter are considered to be maintenance free but periodic inspection is recommended for this maintenance schedule depends on fuel quality . If there are some important safety matters like fuel flow restriction, surging, loss of power, hard starting problem etc, replace fuel filter immediately regardless of maintenance schedule and consult an authorized Kia dealer for details . 3 Inspect for excessive tappet noise and/or engine vibration and adjust if necessary .
MAINTENANCE

*IF EQUIPPED
© 2017 Kia Motors America, Inc. All rights reserved.
Part Number: UT180-PS-004
Consumer - Roadside Assistance: 1-800-333-4KIA (4542)
18MY Optima FFG Cover.indd 25/3/17 01:03

*IF EQUIPPED

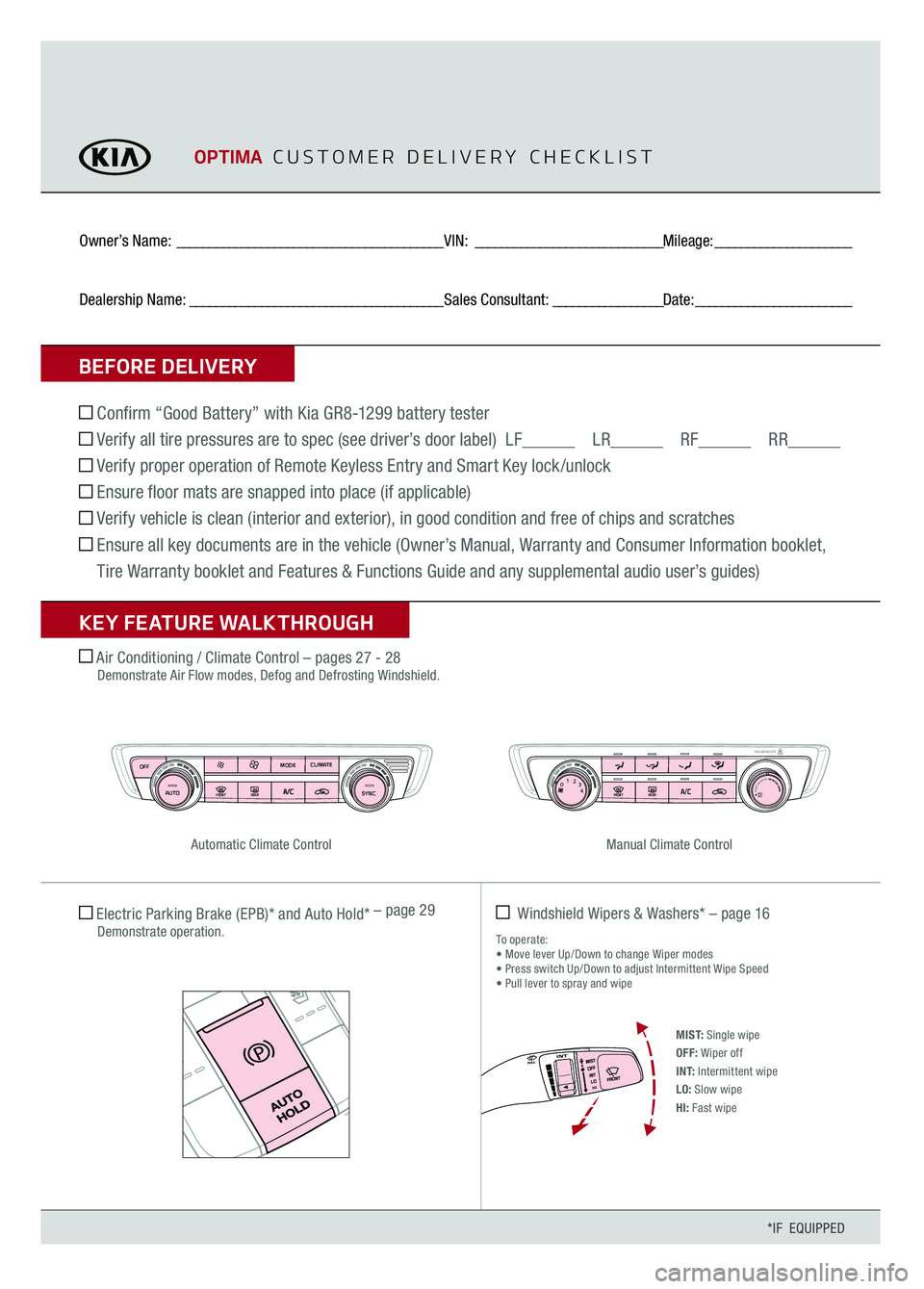

BEFORE DELIVERYOwner

Sale s Consu lt a n t: ___ ______ ______________________ _____ ___ __ __ __ ___ ________ ___ __ _ Dat e: ___ _____ _______ _____
S ale s M an ag er: ___ ______ ______________________ _____ ___ __ __ __ ___ ________ ___ __ ___ Dat e: ___ ____ ________ _____
C usto m er: ___ _____ _______ ________________________ __ __ __ ___ ________ ___ __ ___ _____ Dat e: ___ ____ ________ _____ E C O Mod e (A ctiv e EC O )* – p ag e 9 T ir e Pre ssu re M on it o rin g Sys te m (T PMS ) – p ag e 5 E ngin e Sta rt/St op B utto n * – p ag e 13 A ux/U SB /iP od
® P ort – p ag e 26
D ig it a l C lo ck – p ag e 26 S ea t W arm ers /V enti la ted S ea ts * – p ag e 33 S unvis o r – p ag e 35
P an ora m ic S unroo f O pera tio n * – p ag e 36 R ea r Park in g A ssis t S ys te m * – p ag e 39 S m art Key* – p ag e 34 R ea r- C am era Dis p la y* – p ag e 38 P assenger Air b ag O ff In dic ato r – p ag e 40 T ir e M ob ili ty Kit * – p ag e 39 *
IF E QUIPPE D
E xp la in rs t se rv ic e pro ce ss a n d sc h ed ule rs t se rv ic e ap p oin tm en t T o u r Parts & S erv ic e dep artm en ts , in tro du ce sta ff & e xp la in va lu e of K ia Parts an d S erv ic e R evie w r e co m m en ded m ain tena nce sc h ed ule an d m ain tena nce re q uir em en ts t o v a li d ate warr a n ty R evie w b u sin ess hou rs & C usto m er 36 0° Care R evie w t h e Kia 10 -y e a r/ 1 0 0,000 -m il e warr a n ty pro g ra m E nsu re 10 0% sa tis fa ctio n wit h s a le s a n d d eli v e ry pro ce ss a n d no pro b le m s w it h t h e ve h icle C on rm tim e an d b est co n ta ct num ber fo r initi al d eale r fo ll o w -u p U VO e Serv ic e s S ys te m * – p ag e 2 3 For more in for matio n, re fer to the
O w ner ’s M an u al. Cru is e C on tr o l* – p ag e 2 1 Dem on str a te o pera tio n .
W ir ele ss S martp h on e C harg in g
S ys te m * – p ag e 2 6 UVO e Serv ic e s / A ndro id A uto
™ /
A pple C arP lay
® S etu p* – p ag e 2 2
B lu eto oth
® W ir ele ss Te chnol og y*– p ag e 1 8
D em on str a te o pera tio n .
U VO e Serv ic e s w it h P re mium
N av ig atio n* – p ag e 2 4 For m ore i nfo rm atio n , r efe r t o t he C ar
M ulti m ed ia S ys te m U se r’s M an u al.
D em on str a te t he f ollo w in g w it h t he c usto m er

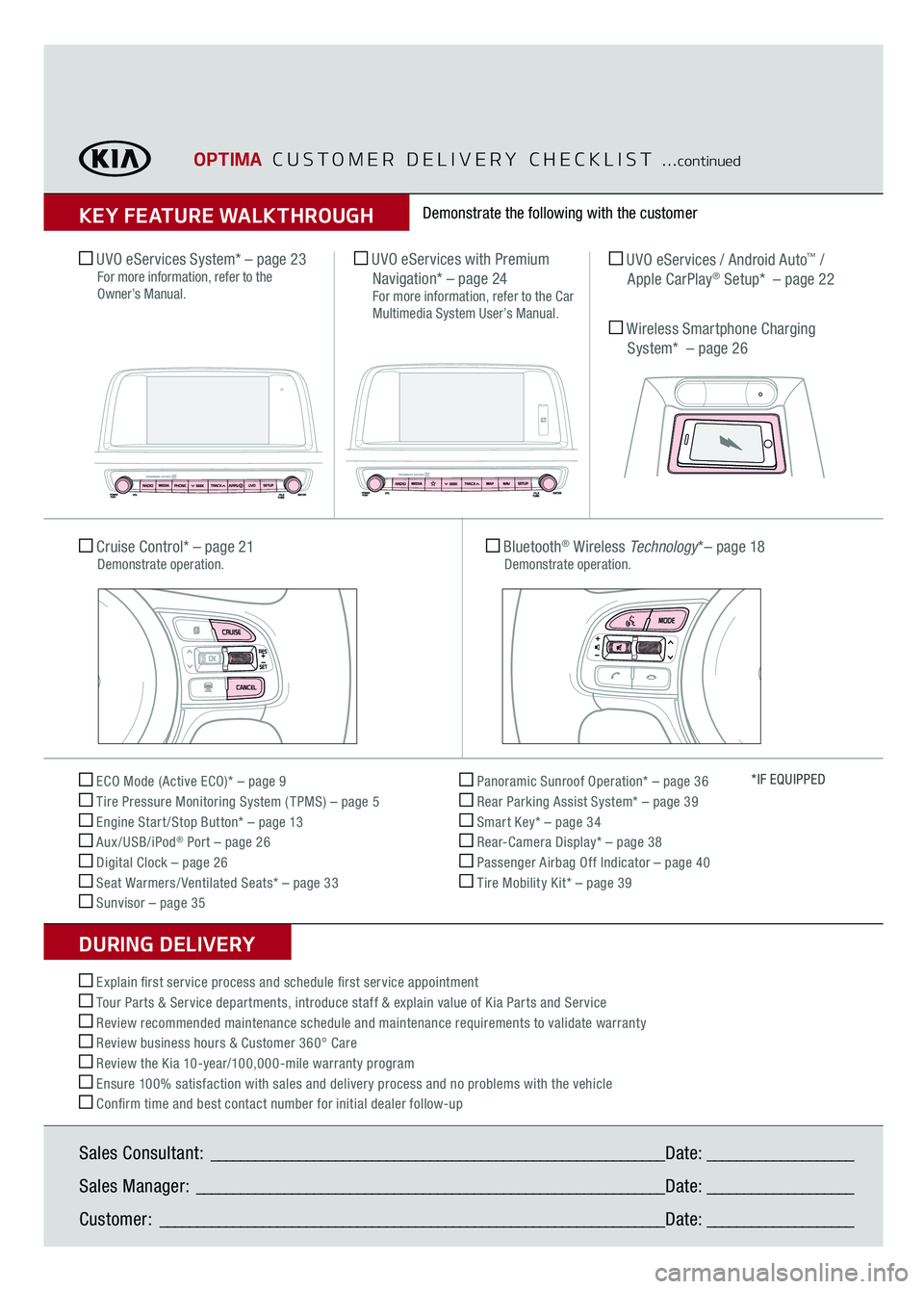

OPTIMA CUST OME R D ELIVE RY CHE CKLIST
...
continued
K EY F EAT URE W ALK TH RO UG HDU RIN G D ELIV ER Y
