cruise control KIA OPTIMA 2020 Features and Functions Guide

Driving your vehicle
122
5
Various driving situations, which you
may encounter in SMART mode
The driving mode automatically
changes to ECO mode after a cer-
tain period of time, when you gen-
tly depress the accelerator pedal
(Your driving is categorized to be
mild.).
The driving mode automatically changes from SMART ECO mode
to SMART COMFORT mode after
a certain period of time, when you
sharply or repetitively depress the
accelerator pedal.
The driving mode automatically changes to SMART COMFORT
mode with the same driving pat-
terns, when the vehicle starts to
drive on an upward slope of a cer-
tain angle. The driving mode auto-
matically returns to SMART ECO
mode, when the vehicle enters a
leveled road. The driving mode automatically
changes to SMART SPORT, when
you abruptly accelerate the vehicle
or repetitively operate the steering
wheel (Your driving is categorized
to be sporty.). In this mode, your
vehicle drives in a lower gear for
abrupt accelerating/decelerating
and increases the engine brake
performance.
You may still sense the engine brake performance, even when you
release the accelerator pedal in
SMART SPORT mode. It is
because your vehicle remains to
be in a lower gear over a certain
period of time for next acceleration.
Thus, it is a normal driving situa-
tion, not indicating any malfunc-
tion.
The driving mode automatically changes to SMART SPORT mode
only in harsh driving situations. In
most of the normal driving situa-
tions, the driving mode sets to be
either in SMART ECO mode or in
SMART COMFORT mode. Limitation of SMART mode
The SMART mode may be limited in
following situations. (The OFF indica-
tor illuminates in those situations.)
The driver manually moves the
shift lever : It deactivates SMART
mode. The vehicle drives, as the
driver manually moves the shift
lever.
The cruise control is activated : The cruise system may deactivate
the SMART mode. When a higher
system is set by the cruise system,
it starts to control vehicle speed
and deactivates SMART mode.
(SMART mode is not deactivated
just by activing the cruise system.)
The transmission oil temperature is either extremely low or extremely
high : The SMART mode can be
active in most of the normal driving
situations. However, an extremely
high/ low transmission oil tempera-
ture may temporarily deactivate the
SMART mode, because the trans-
mission condition is out of normal
operation condition.
JFa PE USA 5.QXP 5/15/2019 3:27 PM Page 122

5147
Driving your vehicle
✽ ✽NOTICE
The Driver Attention Warning sys-
tem utilizes the camera sensor on the
front windshield for its operation.
To keep the camera sensor in the
best condition, you should observe
the followings:
- Do not disassemble camera tem-
porarily for tinted window or
attaching any types of coatings and
accessories. If you disassemble a
camera and assemble it again, take
your vehicle to an authorized Kia
dealer and have the system checked.
- Do not locate any reflective objects (i.e. white paper, mirror)
over the dashboard. Any light
reflection may cause a mal-func-
tion of the Driver Attention
Warning (DAW) system.
- Pay extreme caution to keep the camera sensor out of water.
- Do not arbitrarily disassemble the camera assembly, nor apply any
impact on the camera assembly. • Playing the vehicle audio system
at high volume may offset the
Driver Attention Warning system
warning sounds.
✽ ✽ NOTICE
The Driver Attention Warning sys-
tem does not detect actual driver
fatigue or drowsiness. The system
monitors driving and provides a
warning if it detects inattentive driv-
ing practices.
CAUTION
The Driver Attention Warning
system may not properly oper-ate with limited alerting in thefollowing situations:
The lane detection perform- ance is limited. (For moreinformation, refer to “LaneKeeping Assist (LKA) system”in this chapter.)
The vehicle is violently driven or is abruptly turned for obsta-cle avoidance (e.g. construc-tion area, other vehicles, fallenobjects, bumpy road).
Forward drivability of the vehi- cle is severely undermined(possibly due to wide varia-tion in tire pressures, uneventire wear-out, toe-in/toe-outalignment).
(Continued)
(Continued) The vehicle drives on a curvy road.
The vehicle drives on a bumpy road.
The vehicle drives through a windy area.
The vehicle is controlled by the following driver assistancesystems:
- Lane Keeping Assist (LKA) system
- forward collision-avoidance assist (FCA) System.
- Smart Cruise Control (SCC) System
JFa PE USA 5.QXP 5/15/2019 3:28 PM Page 147

767
Maintenance
Fuse NameFuse ratingCircuit Protected
MODULE 710AAround View Unit, Front Air Ventilation Seat Control Module, Front Seat Warmer Control Module, Rear Seat
Warmer Control Module
MODULE 510A
A/C Control Module, Electro Chromic Mirror, Crash Pad Switch, Head Lamp LH/RH, Auto Head Lamp
Leveling Device Module, A/V & Navigation Head Unit, Fuel Lid & Trunk Open Switch, Shift Lever Indicator,
Driver IMS Module, Driver IMS Module, Front Air Ventilation Seat Control Module, Front Seat Warmer
Control Module, Rear Seat Warmer Control Module
MODULE 610ABCM, Smart Key Control Module
A/CON10AA/C Control Module, E/R Junction Block (Blower Relay)
START10A[W/O Smart Key & IMMO.] ICM Relay Box (Burglar Alarm Relay)
[With Smart Key / IMMO.] Transmission Range Switch, PCM (G4KH/G4KJ)
A/BAG15ASRS Control Module, Passenger Occupant Detection
MODULE 310ABCM, ATM Shift Lever, Stop Lamp Switch, DBL Unit, Keyboard, A/C Control Module
MODULE 410AConsole Switch, Blind Spot Detection Radar LH/RH, Smart Cruise Control Unit, AEB Module, Lane Keeping
Assist Module
INTERIOR LAMP10ATrunk Room Lamp, Ignition Key Ill. & Door Warning Switch, Glove Box Lamp, Driver/Passenger Smart Key
Outside Handle, Front Vanity Lamp Switch LH/RH, Overhead Console Lamp, Center Room Lamp, Center
Personal Lamp, Rear Personal Lamp LH/RH, Driver/Passenger Scuff Lamp
MDPS10AMDPS Unit (Column/Rack), Steering Angle Sensor
IG125APCB Block (Fuse - TCU 2, ABS 3, ECU 3, VACUUM PUMP 2)
MODULE 910AImmobilizer Module, Smart Key Control Module
Instrument panel (Driver’s side fuse panel)
JFa PE USA 7.qxp 5/15/2019 3:14 PM Page 67

Index
4I
Closing the sunroof. . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-47
Coat hook . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-15\
8
Combined instrument, see instrument cluster . . . . . . . 4-59
Consumer assistance (U.S. ONLY) . . . . . . . . . . . . . . . 8-13
Coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. 7-28
Cooling fluid, see engine coolant . . . . . . . . . . . . . . . . . 7-28
Crankcase emission control system . . . . . . . . . . . . . . 7-102
Cruise control system . . . . . . . . . . . . . . . . . . . . . . . . . . 5-91To set cruise control speed . . . . . . . . . . . . . . . . . . . . 5-92
To increase cruise control set speed. . . . . . . . . . . . . 5-92
To decrease the cruising speed. . . . . . . . . . . . . . . . . 5-93
To temporarily accelerate with the cruise control on . 5-93
To cancel cruise control . . . . . . . . . . . . . . . . . . . . . . 5-93
To resume cruising speed at more than approximately 20mph (30 km/h) . . . . . . . . . . . . . . . . . . . . . . . . . . 5-94
To turn cruise control off . . . . . . . . . . . . . . . . . . . . . 5-94
Cup holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-150
Curtain air bag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-65
Dashboard illumination, see instrument panel illumination . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-60
Dashboard, see instrument cluster . . . . . . . . . . . . . . . . 4-59
Day/Night rearview mirror . . . . . . . . . . . . . . . . . . . . . . 4-53
Daytime running light. . . . . . . . . . . . . . . . . . . . . . . . . 4-103
Defogging (Windshield) . . . . . . . . . . . . . . . . . . . . . . . 4-143
Defroster (Rear window) . . . . . . . . . . . . . . . . . . . . . . 4-120 Defrosting (Windshield) . . . . . . . . . . . . . . . . . . . . . . . 4-143
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-\
2
Display illumination, see instrument panel illumination .
4-60
Displays, see instrument cluster . . . . . . . . . . . . . . . . . . 4-59
Do not use methanol . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4
Door lock button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-21
Door locks. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-\
20 From outside the vehicle . . . . . . . . . . . . . . . . . . . . . 4-20
From inside the vehicle . . . . . . . . . . . . . . . . . . . . . . 4-21
Door lock button . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-21
Central door lock switch . . . . . . . . . . . . . . . . . . . . . 4-22
Child-protector rear door lock . . . . . . . . . . . . . . . . . 4-24
Drinks holders, see cup holders . . . . . . . . . . . . . . . . . 4-150
Drive mode integrated system . . . . . . . . . . . . . . . . . . 5-116
Driver Attention Warning (DAW) system . . . . . . . . . 5-143 System setting and activation. . . . . . . . . . . . . . . . . 5-143
Resetting the system. . . . . . . . . . . . . . . . . . . . . . . . 5-145
System disabled . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-146
System malfunction . . . . . . . . . . . . . . . . . . . . . . . . 5-146
Driver position memory system . . . . . . . . . . . . . . . . . . 3-11
Driver's and passenger's front air bag. . . . . . . . . . . . . . 3-60
Driver's seat belt warning . . . . . . . . . . . . . . . . . . . . . . . 3-23
Driving at night. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-151
Driving in flooded areas . . . . . . . . . . . . . . . . . . . . . . . 5-153
Driving in the rain . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-152
Driving off-road . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-153
D
JFa PE USA Index.qxp 5/15/2019 3:10 PM Page 4

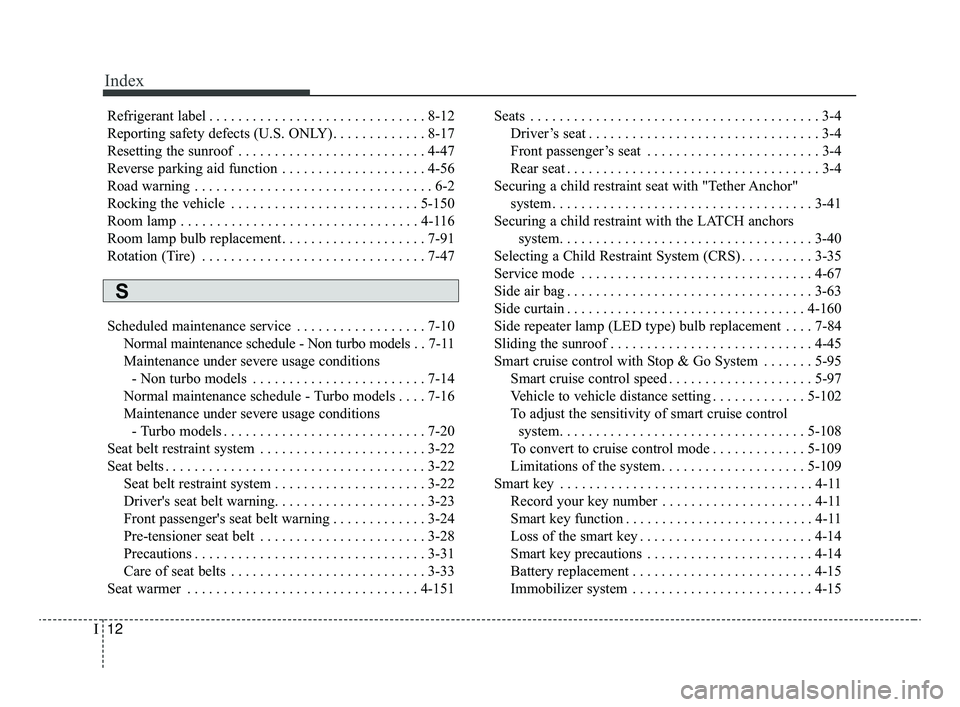

Index
12I
Refrigerant label . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-12
Reporting safety defects (U.S. ONLY). . . . . . . . . . . . . 8-17
Resetting the sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . 4-47
Reverse parking aid function . . . . . . . . . . . . . . . . . . . . 4-56
Road warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-2
Rocking the vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . 5-150
Room lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-116
Room lamp bulb replacement. . . . . . . . . . . . . . . . . . . . 7-91
Rotation (Tire) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-47
Scheduled maintenance service . . . . . . . . . . . . . . . . . . 7-10Normal maintenance schedule - Non turbo models . . 7-11
Maintenance under severe usage conditions - Non turbo models . . . . . . . . . . . . . . . . . . . . . . . . 7-14
Normal maintenance schedule - Turbo models . . . . 7-16
Maintenance under severe usage conditions - Turbo models . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-20
Seat belt restraint system . . . . . . . . . . . . . . . . . . . . . . . 3-22
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
3-22 Seat belt restraint system . . . . . . . . . . . . . . . . . . . . . 3-22
Driver's seat belt warning. . . . . . . . . . . . . . . . . . . . . 3-23
Front passenger's seat belt warning . . . . . . . . . . . . . 3-24
Pre-tensioner seat belt . . . . . . . . . . . . . . . . . . . . . . . 3-28
Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-31
Care of seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-33
Seat warmer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-151 Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . 3-4
Driver’s seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4
Front passenger’s seat . . . . . . . . . . . . . . . . . . . . . . . . 3-4
Rear seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-\
4
Securing a child restraint seat with "Tether Anchor" system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
3-41
Securing a child restraint with the LATCH anchors system. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-\
40
Selecting a Child Restraint System (CRS) . . . . . . . . . . 3-35
Service mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-67
Side air bag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-63\
Side curtain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-160
Side repeater lamp (LED type) bulb replacement . . . . 7-84
Sliding the sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-45
Smart cruise control with Stop & Go System . . . . . . . 5-95 Smart cruise control speed . . . . . . . . . . . . . . . . . . . . 5-97
Vehicle to vehicle distance setting . . . . . . . . . . . . . 5-102
To adjust the sensitivity of smart cruise control system. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-10\
8
To convert to cruise control mode . . . . . . . . . . . . . 5-109
Limitations of the system . . . . . . . . . . . . . . . . . . . . 5-109
Smart key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-\
11 Record your key number . . . . . . . . . . . . . . . . . . . . . 4-11
Smart key function . . . . . . . . . . . . . . . . . . . . . . . . . . 4-11
Loss of the smart key . . . . . . . . . . . . . . . . . . . . . . . . 4-14
Smart key precautions . . . . . . . . . . . . . . . . . . . . . . . 4-14
Battery replacement . . . . . . . . . . . . . . . . . . . . . . . . . 4-15
Immobilizer system . . . . . . . . . . . . . . . . . . . . . . . . . 4-15
S
JFa PE USA Index.qxp 5/15/2019 3:10 PM Page 12
