headlamp KIA OPTIMA 2020 Owner's Manual

Maintenance
78
7
Never touch the glass with bare
hands. Residual oil may cause the
bulb to overheat and burst when lit.
A bulb should be operated only
when installed in a headlamp.
If a bulb becomes damaged or cracked, replace it immediately
and carefully dispose of it.
Wear eye protection when chang- ing a bulb. Allow the bulb to cool

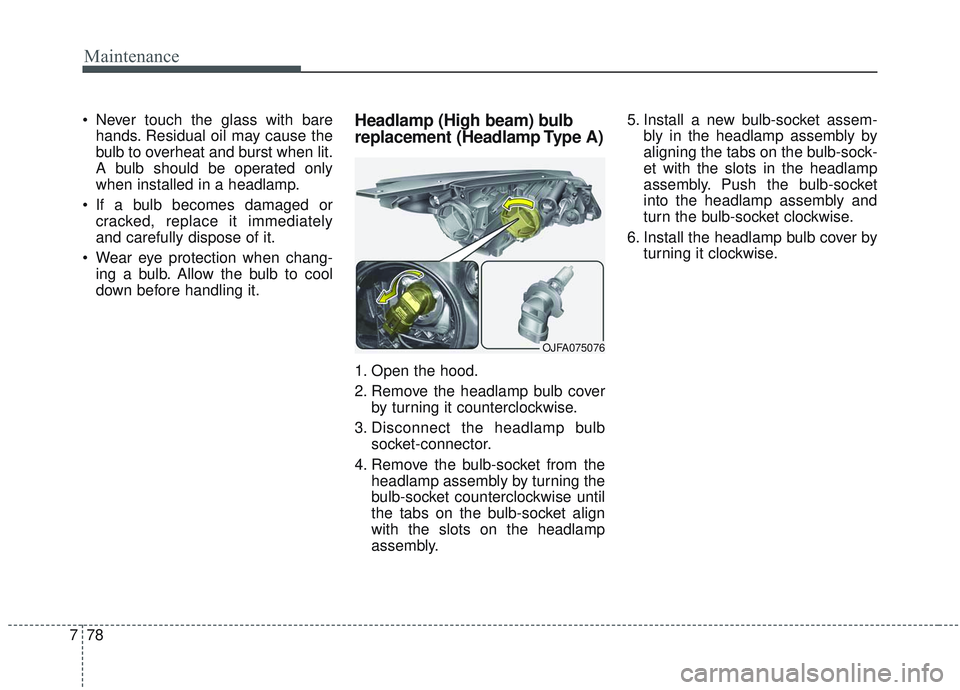

down before handling it.Headlamp (High beam) bulb
replacement (Headlamp Type A)
1. Open the hood.
2. Remove the headlamp bulb cover by turning it counterclockwise.
3. Disconnect the headlamp bulb socket-connector.
4. Remove the bulb-socket from the headlamp assembly by turning the
bulb-socket counterclockwise until
the tabs on the bulb-socket align
with the slots on the headlamp
assembly. 5. Install a new bulb-socket assem-
bly in the headlamp assembly by
aligning the tabs on the bulb-sock-
et with the slots in the headlamp
assembly. Push the bulb-socket
into the headlamp assembly and
turn the bulb-socket clockwise.
6. Install the headlamp bulb cover by turning it clockwise.
OJFA075076

779
Maintenance

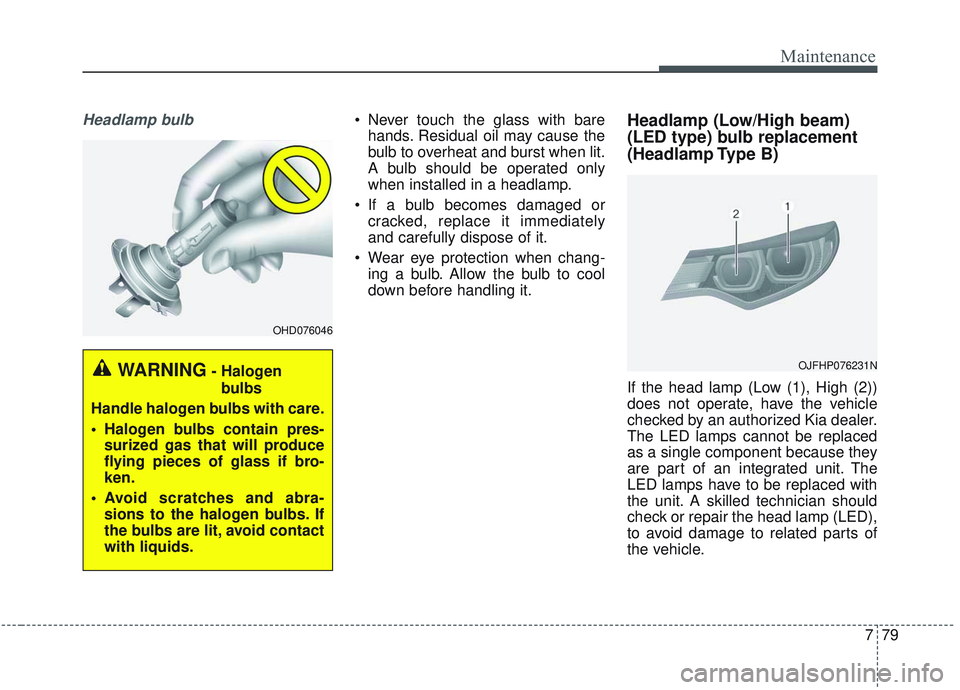

Headlamp bulb Never touch the glass with barehands. Residual oil may cause the
bulb to overheat and burst when lit.
A bulb should be operated only
when installed in a headlamp.
If a bulb becomes damaged or cracked, replace it immediately
and carefully dispose of it.
Wear eye protection when chang- ing a bulb. Allow the bulb to cool
down before handling it.Headlamp (Low/High beam)
(LED type) bulb replacement
(Headlamp Type B)
If the head lamp (Low (1), High (2))
does not operate, have the vehicle
checked by an authorized Kia dealer.
The LED lamps cannot be replaced
as a single component because they
are part of an integrated unit. The
LED lamps have to be replaced with
the unit. A skilled technician should
check or repair the head lamp (LED),
to avoid damage to related parts of
the vehicle.
WARNING- Halogen
bulbs
Handle halogen bulbs with care.
Halogen bulbs contain pres- surized gas that will produce
flying pieces of glass if bro-
ken.
Avoid scratches and abra- sions to the halogen bulbs. If
the bulbs are lit, avoid contact
with liquids.
OHD076046
OJFHP076231N

Maintenance
80
7

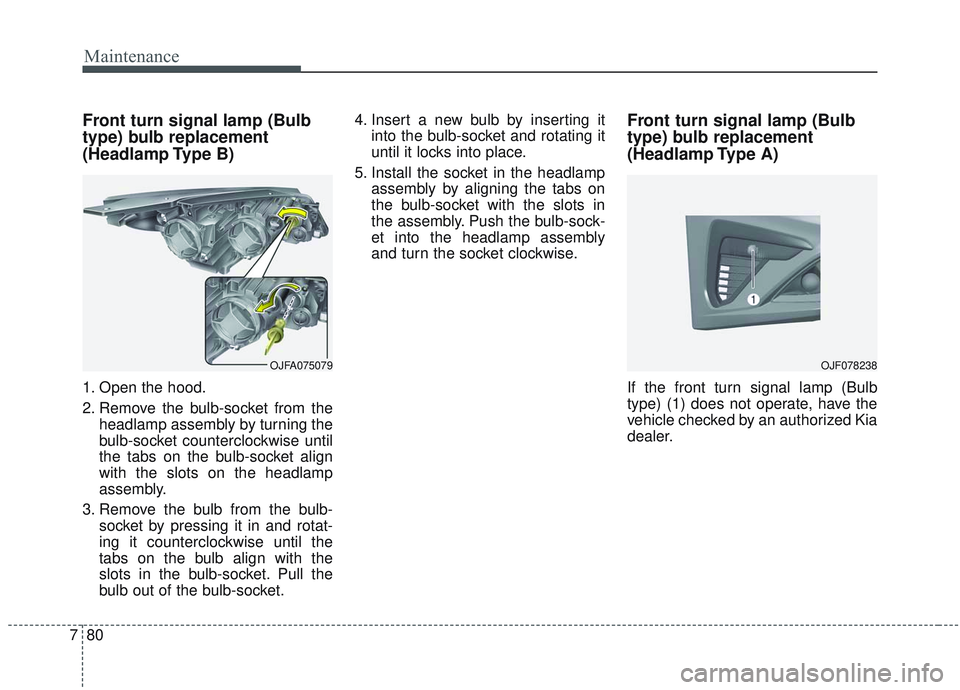

Front turn signal lamp (Bulb
type) bulb replacement
(Headlamp Type B)
1. Open the hood.
2. Remove the bulb-socket from the
headlamp assembly by turning the
bulb-socket counterclockwise until
the tabs on the bulb-socket align
with the slots on the headlamp
assembly.
3. Remove the bulb from the bulb- socket by pressing it in and rotat-
ing it counterclockwise until the
tabs on the bulb align with the
slots in the bulb-socket. Pull the
bulb out of the bulb-socket. 4. Insert a new bulb by inserting it
into the bulb-socket and rotating it
until it locks into place.
5. Install the socket in the headlamp assembly by aligning the tabs on
the bulb-socket with the slots in
the assembly. Push the bulb-sock-
et into the headlamp assembly
and turn the socket clockwise.
Front turn signal lamp (Bulb
type) bulb replacement
(Headlamp Type A)
If the front turn signal lamp (Bulb
type) (1) does not operate, have the
vehicle checked by an authorized Kia
dealer.
OJFA075079OJF078238

83

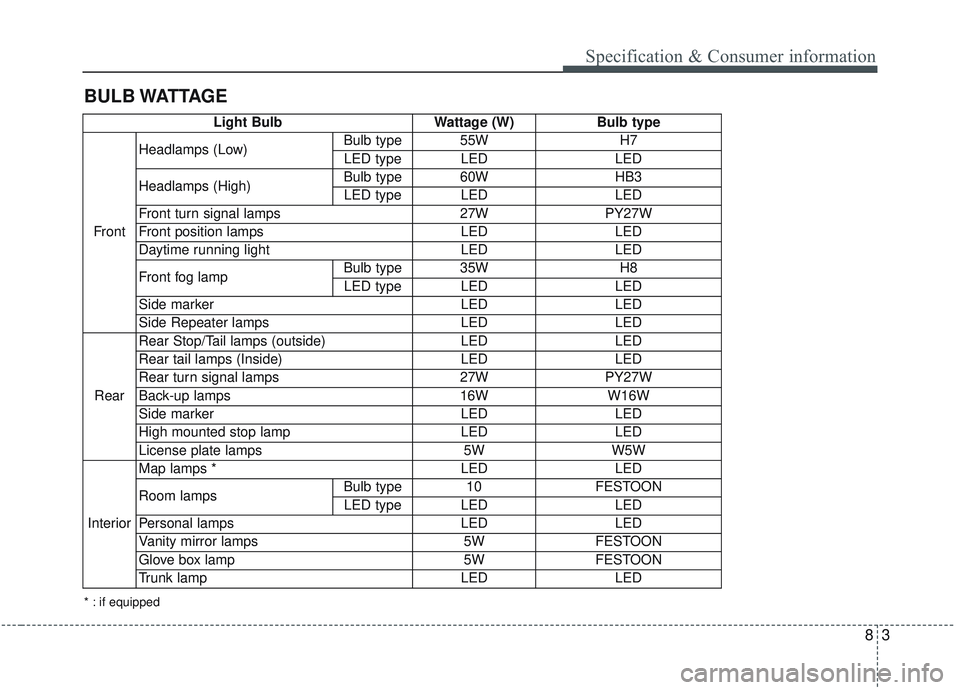

BULB WATTAGESpecification & Consumer information
Light Bulb
Wattage (W)Bulb type
Front Headlamps (Low)
Bulb type 55W
H7
LED type LED LED
Headlamps (High) Bulb type 60W
HB3
LED type LED LED
Front turn signal lamps 27WPY27W
Front position lamps LEDLED
Daytime running light LEDLED
Front fog lamp Bulb type 35W
H8
LED type LED LED
Side marker LEDLED
Side Repeater lamps LEDLED
Rear Rear Stop/Tail lamps (outside)
LEDLED
Rear tail lamps (Inside) LEDLED
Rear turn signal lamps 27WPY27W
Back-up lamps 16WW16W
Side marker LEDLED
High mounted stop lamp LEDLED
License plate lamps 5WW5W
Interior Map lamps *
LEDLED
Room lamps Bulb type 10
FESTOON
LED type LED LED
Personal lamps LEDLED
Vanity mirror lamps 5WFESTOON
Glove box lamp 5WFESTOON
Trunk lamp LEDLED
* : if equipped

I7

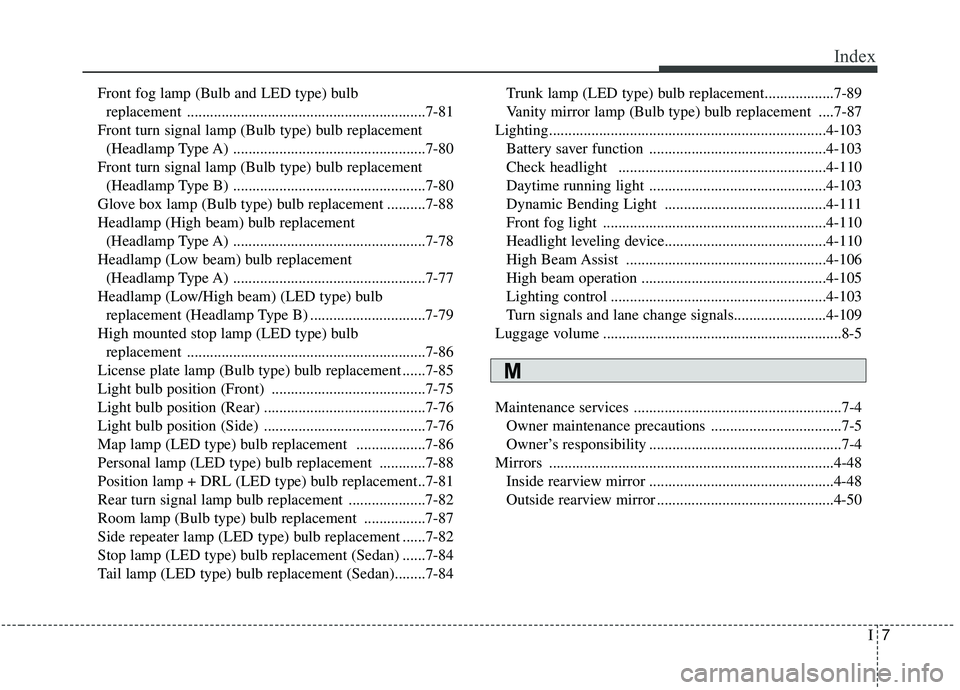

Index
