INTERIOR OVERVIEW
1. Driver position memory system ........4-35
2. Door lock/unlock button ....................4-14
3. Outside rearview mirror control switch ................................................4-48
4. Power window lock button ................4-24
5. Power window switches ....................4-21
6. Central door lock switch....................4-15
7. Instrument panel illumination control knob ......................................4-52
8. ESC OFF button ...............................5-23
9. Steering wheel heater On/Off button .. 4-39
10. BSD On/Off button ..........................5-36
11. Steering wheel tilt lever...................4-38
12. Fuse box .........................................7-57
13. Hood release lever ..........................4-26
14. Parking brake pedal ........................5-19
15. Brake pedal .....................................5-17
16. Accelerator pedal ..............................5-9
17. Fuel filler lid release lever ...............4-28
18. Trunk lid release lever .....................4-18
OTFH014001N❈ The actual shape may differ from the illustration.

25
Your vehicle at a glance
INSTRUMENT PANEL OVERVIEW
1. Instrument cluster .............................4-51
2. Light control / Turn signals.......4-93, 4-97
3. Wiper/Washer ...................................4-99
4. Horn ..................................................4-38
5. Steering wheel audio control ..........4-131
6. Auto cruise control ............................5-31
7. Driver’s air bag ..................................3-45
8. Steering wheel ..................................4-37
9. ENGINE START/STOP button ............5-6
10. Hazard ..............................................6-2
11. Audio .............................................4-130
12. Climate control system .................4-107
13. Shift lever ........................................5-12
14. Aux, USB and iPod
®port ..............4-132
15. Power outlet ..................................4-127
16. Seat warmer ...................................3-10
17. Passenger’s air bag ........................3-45
18. Glove box ......................................4-123
OTFH014002C
❈ The actual shape may differ from the illustration.

Your vehicle at a glance
62
ENGINE COMPARTMENT
1. Sub relay box ....................................7-70
2. Engine coolant reservoir ...................7-27
3. Windshield washer fluid reservoir .....7-32
4. Radiator cap .....................................7-30
5. Engine oil dipstick .............................7-25
6. Engine oil filler cap ...........................7-25
7. Brake fluid reservoir ..........................7-31
8. Air cleaner.........................................7-34
9. Fuse box ...........................................7-57
10. Inverter coolant reservoir ................7-27
* The actual engine room in the vehicle may differ from the illustration.
OYFH071001
■
■ 2.4L Engine

27
Your vehicle at a glance

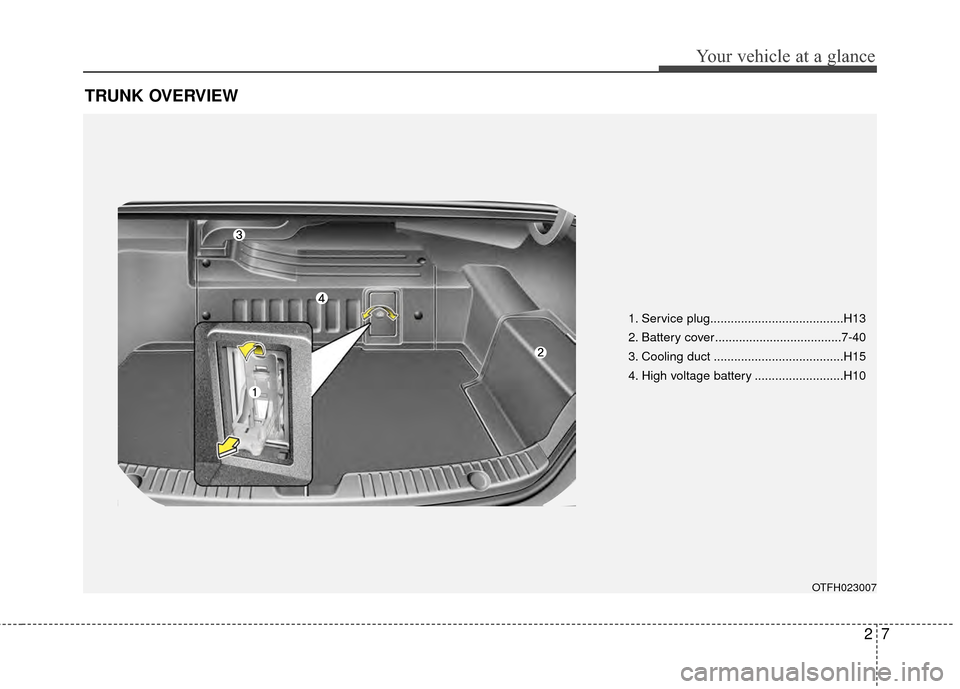

TRUNK OVERVIEW
OTFH023007
1. Service plug.......................................H13
2. Battery cover.....................................7-40
3. Cooling duct ......................................H15
4. High voltage battery ..........................H10

Safety features of your vehicle
