NORMAL MAINTENANCE SCHEDULE (CONT.)
60,000 km or 30 months
❑Rotate tire
❑Inspect air cleaner filter
❑Inspect HSG belt (60,000 km or 60 months)
❑Inspect vacuum hose
❑Replace engine oil and filter (60,000 km or 60 months)
❑Add fuel additive *1(Every 12,000 km or 12 months)
48,000 km or 24 months
❑ Rotate tire
❑Inspect air conditioning refrigerant
❑Inspect brake fluid
❑ Inspect brake hoses and lines
❑Inspect drive shafts and boots
❑Inspect exhaust pipe and muffler
❑Inspect front brake disc/pads, calipers and rotors
❑Inspect fuel filter *1
❑Inspect fuel lines, fuel hoses and connections
❑Inspect fuel tank air filter (if equipped) *2
❑Inspect HSG belt (48,000 km or 48 months)
❑ Inspect rear brake disc/pads
❑Inspect parking brake
❑Inspect steering gear box, linkage & boots/lower arm ball
joint, upper arm ball joint
❑Inspect suspension mounting bolts
❑ Inspect vacuum hose
❑Inspect vapor hose and fuel filler cap, fuel tank
❑Replace air cleaner filter
❑Replace climate control air filter
(for evaporator and blower unit)
❑Replace engine oil and filter (48,000 km or 48 months)
❑Add fuel additive *1 (Every 12,000 km or 12 months)
❈ Inspect : Inspect and if necessary, adjust, correct, clean or replace. ❈
Inspect : Inspect and if necessary, adjust, correct, clean or replace.

Maintenance
12
7

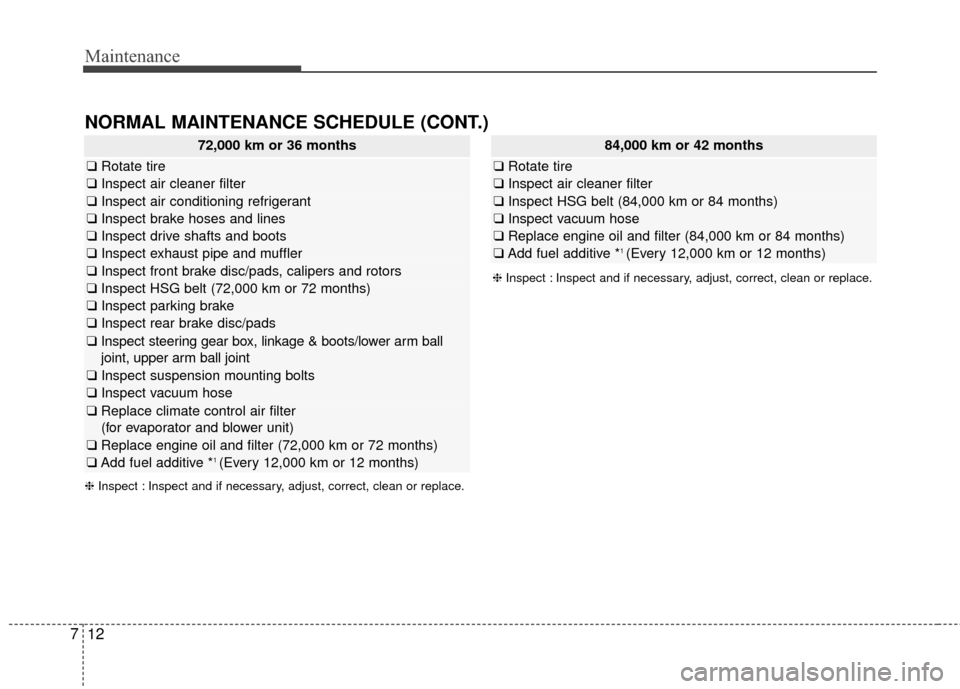

72,000 km or 36 months
❑ Rotate tire
❑Inspect air cleaner filter
❑Inspect air conditioning refrigerant
❑Inspect brake hoses and lines
❑Inspect drive shafts and boots
❑Inspect exhaust pipe and muffler
❑Inspect front brake disc/pads, calipers and rotors
❑Inspect HSG belt (72,000 km or 72 months)
❑ Inspect parking brake
❑Inspect rear brake disc/pads
❑Inspect steering gear box, linkage & boots/lower arm ball
joint, upper arm ball joint
❑ Inspect suspension mounting bolts
❑Inspect vacuum hose
❑Replace climate control air filter
(for evaporator and blower unit)
❑Replace engine oil and filter (72,000 km or 72 months)
❑Add fuel additive *1 (Every 12,000 km or 12 months)
NORMAL MAINTENANCE SCHEDULE (CONT.)
84,000 km or 42 months
❑ Rotate tire
❑Inspect air cleaner filter
❑Inspect HSG belt (84,000 km or 84 months)
❑ Inspect vacuum hose
❑Replace engine oil and filter (84,000 km or 84 months)
❑Add fuel additive *1 (Every 12,000 km or 12 months)
❈ Inspect : Inspect and if necessary, adjust, correct, clean or replace. ❈
Inspect : Inspect and if necessary, adjust, correct, clean or replace.

713
Maintenance

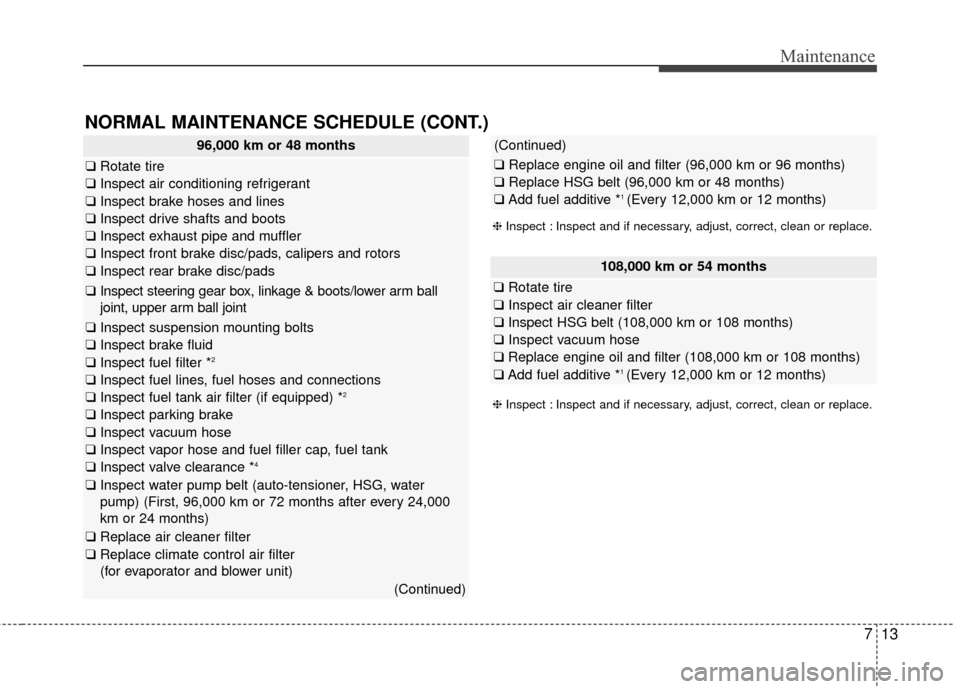

96,000 km or 48 months
❑Rotate tire
❑Inspect air conditioning refrigerant
❑Inspect brake hoses and lines
❑Inspect drive shafts and boots
❑Inspect exhaust pipe and muffler
❑Inspect front brake disc/pads, calipers and rotors
❑Inspect rear brake disc/pads
❑Inspect steering gear box, linkage & boots/lower arm ball
joint, upper arm ball joint
❑ Inspect suspension mounting bolts
❑Inspect brake fluid
❑Inspect fuel filter *2
❑Inspect fuel lines, fuel hoses and connections
❑Inspect fuel tank air filter (if equipped) *2
❑Inspect parking brake
❑Inspect vacuum hose
❑Inspect vapor hose and fuel filler cap, fuel tank
❑Inspect valve clearance *4
❑Inspect water pump belt (auto-tensioner, HSG, water
pump) (First, 96,000 km or 72 months after every 24,000
km or 24 months)
❑ Replace air cleaner filter
❑Replace climate control air filter
(for evaporator and blower unit)
(Continued)
(Continued)
❑Replace engine oil and filter (96,000 km or 96 months)
❑Replace HSG belt (96,000 km or 48 months)
❑Add fuel additive *1 (Every 12,000 km or 12 months)
108,000 km or 54 months
❑ Rotate tire
❑Inspect air cleaner filter
❑Inspect HSG belt (108,000 km or 108 months)
❑ Inspect vacuum hose
❑Replace engine oil and filter (108,000 km or 108 months)
❑Add fuel additive *1 (Every 12,000 km or 12 months)
NORMAL MAINTENANCE SCHEDULE (CONT.)
❈ Inspect : Inspect and if necessary, adjust, correct, clean or replace.
❈ Inspect : Inspect and if necessary, adjust, correct, clean or replace.

Maintenance
14
7

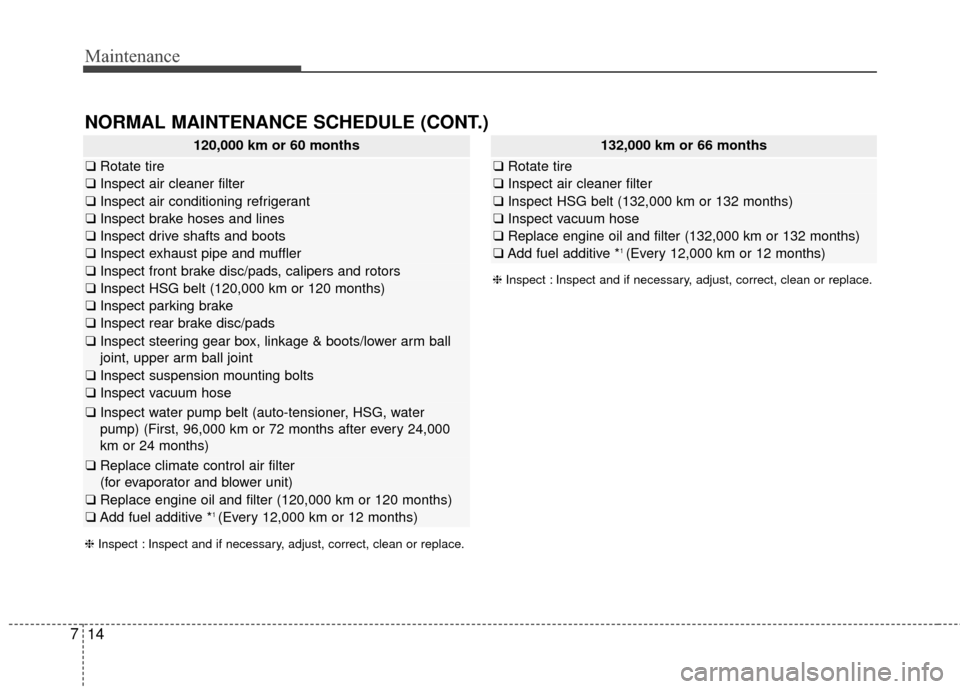

NORMAL MAINTENANCE SCHEDULE (CONT.)
120,000 km or 60 months
❑ Rotate tire
❑Inspect air cleaner filter
❑Inspect air conditioning refrigerant
❑Inspect brake hoses and lines
❑Inspect drive shafts and boots
❑Inspect exhaust pipe and muffler
❑Inspect front brake disc/pads, calipers and rotors
❑Inspect HSG belt (120,000 km or 120 months)
❑ Inspect parking brake
❑Inspect rear brake disc/pads
❑Inspect steering gear box, linkage & boots/lower arm ball
joint, upper arm ball joint
❑ Inspect suspension mounting bolts
❑Inspect vacuum hose
❑Inspect water pump belt (auto-tensioner, HSG, water
pump) (First, 96,000 km or 72 months after every 24,000
km or 24 months)
❑Replace climate control air filter
(for evaporator and blower unit)
❑Replace engine oil and filter (120,000 km or 120 months)
❑Add fuel additive *1 (Every 12,000 km or 12 months)
132,000 km or 66 months
❑ Rotate tire
❑Inspect air cleaner filter
❑Inspect HSG belt (132,000 km or 132 months)
❑ Inspect vacuum hose
❑Replace engine oil and filter (132,000 km or 132 months)
❑Add fuel additive *1 (Every 12,000 km or 12 months)
❈ Inspect : Inspect and if necessary, adjust, correct, clean or replace. ❈
Inspect : Inspect and if necessary, adjust, correct, clean or replace.

715
Maintenance

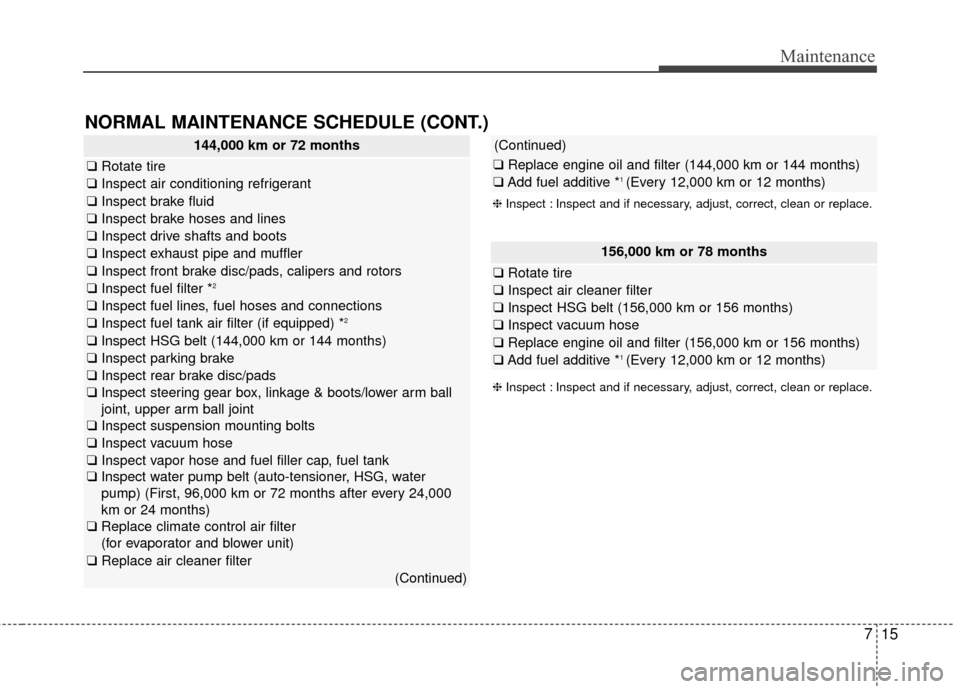

NORMAL MAINTENANCE SCHEDULE (CONT.)
156,000 km or 78 months
❑Rotate tire
❑Inspect air cleaner filter
❑Inspect HSG belt (156,000 km or 156 months)
❑ Inspect vacuum hose
❑Replace engine oil and filter (156,000 km or 156 months)
❑Add fuel additive *1 (Every 12,000 km or 12 months)
144,000 km or 72 months
❑ Rotate tire
❑Inspect air conditioning refrigerant
❑Inspect brake fluid
❑Inspect brake hoses and lines
❑Inspect drive shafts and boots
❑Inspect exhaust pipe and muffler
❑Inspect front brake disc/pads, calipers and rotors
❑Inspect fuel filter *2
❑Inspect fuel lines, fuel hoses and connections
❑Inspect fuel tank air filter (if equipped) *2
❑Inspect HSG belt (144,000 km or 144 months)
❑ Inspect parking brake
❑Inspect rear brake disc/pads
❑Inspect steering gear box, linkage & boots/lower arm ball
joint, upper arm ball joint
❑ Inspect suspension mounting bolts
❑Inspect vacuum hose
❑Inspect vapor hose and fuel filler cap, fuel tank
❑Inspect water pump belt (auto-tensioner, HSG, water
pump) (First, 96,000 km or 72 months after every 24,000
km or 24 months)
❑Replace climate control air filter
(for evaporator and blower unit)
❑ Replace air cleaner filter
(Continued)
(Continued)
❑Replace engine oil and filter (144,000 km or 144 months)
❑Add fuel additive *1 (Every 12,000 km or 12 months)
❈ Inspect : Inspect and if necessary, adjust, correct, clean or replace.
❈ Inspect : Inspect and if necessary, adjust, correct, clean or replace.

Maintenance
16
7
NORMAL MAINTENANCE SCHEDULE (CONT.)
168,000 km or 84 months
❑ Rotate tire
❑Inspect air cleaner filter
❑Inspect air conditioning refrigerant
❑Inspect brake hoses and lines
❑Inspect drive shafts and boots
❑Inspect exhaust pipe and muffler
❑Inspect front brake disc/pads, calipers and rotors
❑Inspect HSG belt (168,000 km or 168 months)
❑ Inspect parking brake
❑Inspect rear brake disc/pads
❑Inspect steering gear box, linkage & boots/lower arm ball
joint, upper arm ball joint
❑ Inspect suspension mounting bolts
❑Inspect vacuum hose
❑Inspect water pump belt (auto-tensioner, HSG, water
pump) (First, 96,000 km or 72 months after every 24,000
km or 24 months)
❑Replace climate control air filter
(for evaporator and blower unit)
❑Replace engine oil and filter (168,000 km or 168 months)
❑ Replace spark plugs (iridium coated)
❑Add fuel additive *1 (Every 12,000 km or 12 months)
180,000 km or 90 months
❑ Rotate tire
❑Inspect air cleaner filter
❑Inspect HSG belt (180,000 km or 180 months)
❑ Inspect vacuum hose
❑Replace engine oil and filter (180,000 km or 180 months)
❑Add fuel additive *1 (Every 12,000 km or 12 months)
❈ Inspect : Inspect and if necessary, adjust, correct, clean or replace. ❈
Inspect : Inspect and if necessary, adjust, correct, clean or replace.

717
Maintenance

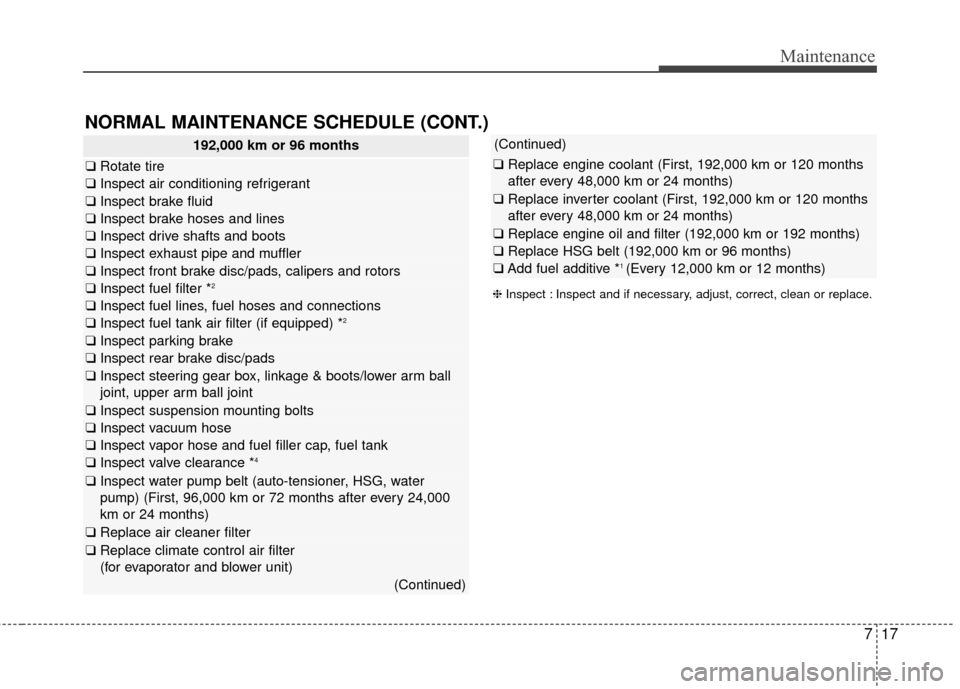

NORMAL MAINTENANCE SCHEDULE (CONT.)
192,000 km or 96 months
❑Rotate tire
❑Inspect air conditioning refrigerant
❑Inspect brake fluid
❑Inspect brake hoses and lines
❑Inspect drive shafts and boots
❑Inspect exhaust pipe and muffler
❑Inspect front brake disc/pads, calipers and rotors
❑Inspect fuel filter *2
❑Inspect fuel lines, fuel hoses and connections
❑Inspect fuel tank air filter (if equipped) *2
❑Inspect parking brake
❑Inspect rear brake disc/pads
❑Inspect steering gear box, linkage & boots/lower arm ball
joint, upper arm ball joint
❑ Inspect suspension mounting bolts
❑Inspect vacuum hose
❑Inspect vapor hose and fuel filler cap, fuel tank
❑Inspect valve clearance *4
❑Inspect water pump belt (auto-tensioner, HSG, water
pump) (First, 96,000 km or 72 months after every 24,000
km or 24 months)
❑ Replace air cleaner filter
❑Replace climate control air filter
(for evaporator and blower unit)
(Continued)
(Continued)
❑Replace engine coolant (First, 192,000 km or 120 months
after every 48,000 km or 24 months)
❑Replace inverter coolant (First, 192,000 km or 120 months
after every 48,000 km or 24 months)
❑Replace engine oil and filter (192,000 km or 192 months)
❑Replace HSG belt (192,000 km or 96 months)
❑Add fuel additive *1 (Every 12,000 km or 12 months)
❈ Inspect : Inspect and if necessary, adjust, correct, clean or replace.

Maintenance
18
7

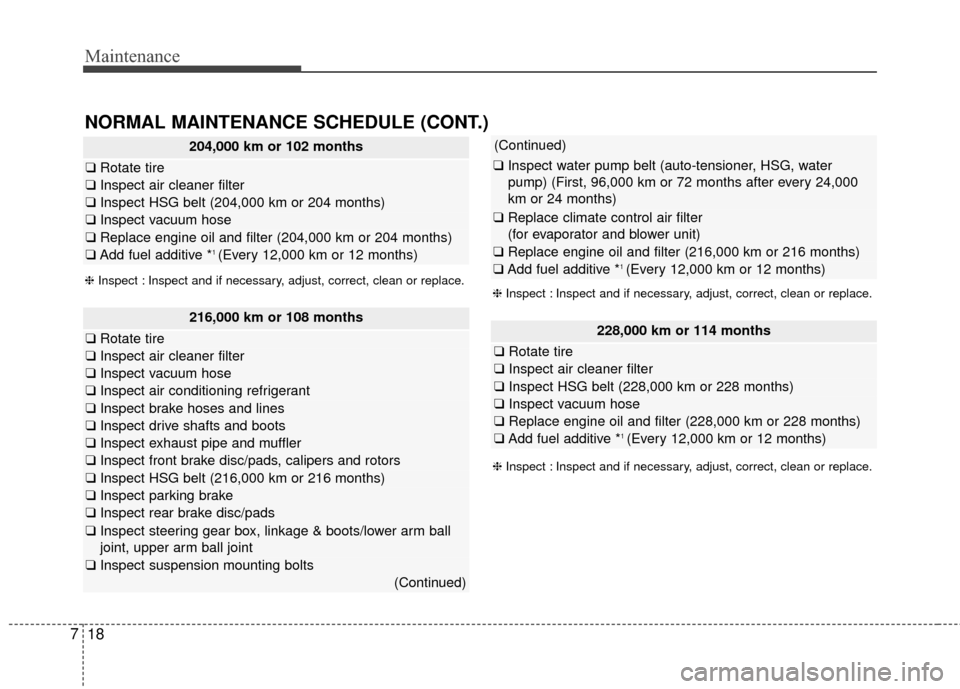

NORMAL MAINTENANCE SCHEDULE (CONT.)
216,000 km or 108 months
❑ Rotate tire
❑Inspect air cleaner filter
❑Inspect vacuum hose
❑Inspect air conditioning refrigerant
❑Inspect brake hoses and lines
❑Inspect drive shafts and boots
❑Inspect exhaust pipe and muffler
❑Inspect front brake disc/pads, calipers and rotors
❑Inspect HSG belt (216,000 km or 216 months)
❑ Inspect parking brake
❑Inspect rear brake disc/pads
❑Inspect steering gear box, linkage & boots/lower arm ball
joint, upper arm ball joint
❑ Inspect suspension mounting bolts
(Continued)
228,000 km or 114 months
❑Rotate tire
❑Inspect air cleaner filter
❑Inspect HSG belt (228,000 km or 228 months)
❑ Inspect vacuum hose
❑Replace engine oil and filter (228,000 km or 228 months)
❑Add fuel additive *1 (Every 12,000 km or 12 months)
204,000 km or 102 months
❑ Rotate tire
❑Inspect air cleaner filter
❑Inspect HSG belt (204,000 km or 204 months)
❑ Inspect vacuum hose
❑Replace engine oil and filter (204,000 km or 204 months)
❑Add fuel additive *1 (Every 12,000 km or 12 months)
(Continued)
❑ Inspect water pump belt (auto-tensioner, HSG, water
pump) (First, 96,000 km or 72 months after every 24,000
km or 24 months)
❑Replace climate control air filter
(for evaporator and blower unit)
❑Replace engine oil and filter (216,000 km or 216 months)
❑Add fuel additive *1 (Every 12,000 km or 12 months)❈ Inspect : Inspect and if necessary, adjust, correct, clean or replace.
❈Inspect : Inspect and if necessary, adjust, correct, clean or replace.
❈ Inspect : Inspect and if necessary, adjust, correct, clean or replace.

719
Maintenance
240,000 km or 120 months
❑Rotate tire
❑Inspect air conditioning refrigerant

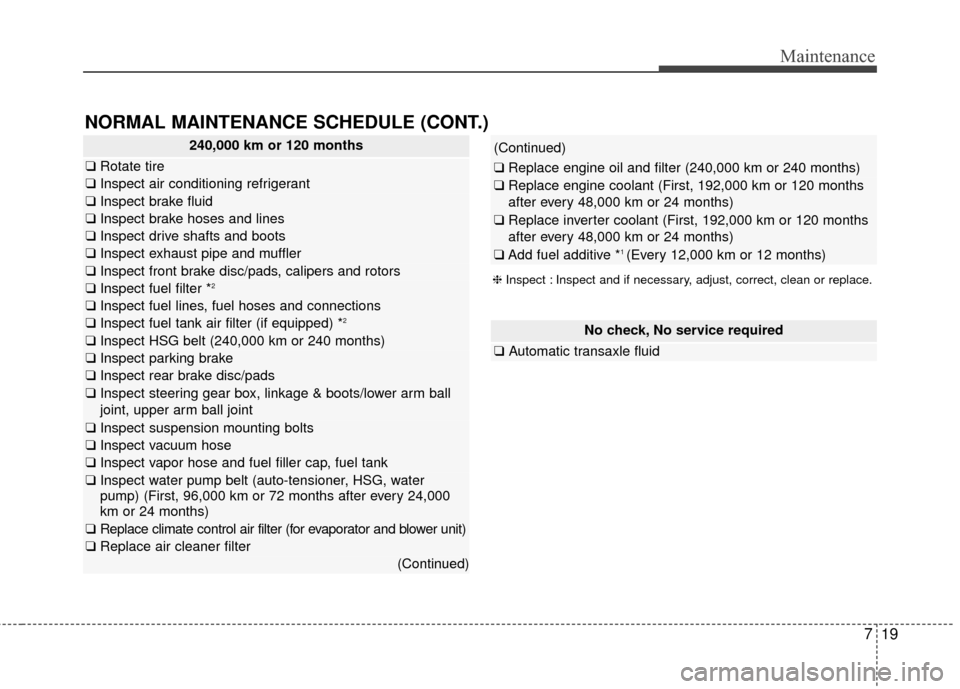

❑Inspect brake fluid
❑Inspect brake hoses and lines
❑Inspect drive shafts and boots
❑Inspect exhaust pipe and muffler
❑Inspect front brake disc/pads, calipers and rotors
❑Inspect fuel filter *2
❑Inspect fuel lines, fuel hoses and connections
❑Inspect fuel tank air filter (if equipped) *2
❑Inspect HSG belt (240,000 km or 240 months)
❑ Inspect parking brake
❑Inspect rear brake disc/pads
❑Inspect steering gear box, linkage & boots/lower arm ball
joint, upper arm ball joint
❑ Inspect suspension mounting bolts
❑Inspect vacuum hose
❑Inspect vapor hose and fuel filler cap, fuel tank
❑Inspect water pump belt (auto-tensioner, HSG, water
pump) (First, 96,000 km or 72 months after every 24,000
km or 24 months)
❑Replace climate control air filter (for evaporator and blower unit)
❑ Replace air cleaner filter
(Continued)
(Continued)
❑Replace engine oil and filter (240,000 km or 240 months)
❑Replace engine coolant (First, 192,000 km or 120 months
after every 48,000 km or 24 months)
❑Replace inverter coolant (First, 192,000 km or 120 months
after every 48,000 km or 24 months)
❑Add fuel additive *1 (Every 12,000 km or 12 months)
NORMAL MAINTENANCE SCHEDULE (CONT.)
No check, No service required
❑ Automatic transaxle fluid
❈ Inspect : Inspect and if necessary, adjust, correct, clean or replace.

Maintenance
20
7
MAINTENANCE UNDER SEVERE USAGE CONDITIONS
SEVERE DRIVING CONDITIONS
A - Repeatedly driving short distance of less than 8 km in normal tempera-
ture or less than 16 km in freezing temperature
B - Extensive engine idling or low speed driving for long distances
C - Driving on rough, dusty, muddy, unpaved, graveled or salt- spread roads
D - Driving in areas using salt or other corrosive materials or in very cold weather
E - Driving in sandy areas F - Driving in heavy traffic area over 32°C (90°F)
G - Driving on uphill, downhill, or mountain road
H - Towing a Trailer, or using a camper, or roof rack
I - Driving as a patrol car, taxi, other commercial use or vehicle towing
J - Driving over 170 km/h (106 mph)
K - Frequently driving in stop-and-go conditions
L - Frequently driving in rainy areas
The following items must be serviced more frequently on cars normally used under severe driving conditions. Refer
to the chart below for the appropriate maintenance intervals.
R : Replace I : Inspect and, after inspection, clean, adjust, repair or replace if neces\
sary
MAINTENANCE ITEMMAINTENANCE
OPERATIONMAINTENANCE INTERVALSDRIVING CONDITION
ENGINE OIL AND FILTERREVERY 6,000 KM OR 6 MONTHSA, B, C, D, E, F, G, H, I, J, K
AIR CLEANER FILTERRMORE FREQUENTLYC, E
SPARK PLUGSRMORE FREQUENTLYA, B, H, I, K
AUTOMATIC TRANSAXLE FLUIDREVERY 96,000 KMA, C, D, E, F, G, H, I, K
HSG BELTREVERY 48,000 KM or 24 MONTHS C, D, E, K, L
IEVERY 6,000 KM or 6 MONTHS C, D, E, K, L
FRONT BRAKE DISC/PADS, CALIPERSIMORE FREQUENTLYC, D, G, H
REAR BRAKE DISC/PADSIMORE FREQUENTLYC, D, G, F
PARKING BRAKEIMORE FREQUENTLYC, D, G, H
STEERING GEAR BOX, LINKAGE & BOOTS/
LOWER ARM BALL JOINT, UPPER ARM BALL
JOINTIEVERY 12,000 KM OR 6 MONTHSC, D, E, F, G, H, I
DRIVE SHAFTS AND BOOTSIMORE FREQUENTLYC, D, E, F, G, H, I, J
CLIMATE CONTROL AIR FILTER
(FOR EVAPORATOR AND BLOWER UNIT)RMORE FREQUENTLYC, E
