AFLS (Adaptive Front Lighting
System) (if equipped)
Adaptive front lighting system uses the
steering angle and vehicle speed, to keep your field of vision wide by swivel‐
ing and leveling the headlamp.
Change the switch to the AUTO position
when the engine is running. The adap‐ tive front lighting system will operate
when the headlamp is ON. To turn off
the AFLS, change the switch to other
positions. After turning the AFLS off,
headlamp swiveling no longer occurs,
but leveling operates continuously. If the AFLS malfunction indicator comes
on, the AFLS is not working properly.
Drive to the nearest safe location and
restart the engine. If the indicator con‐ tinuously remains on, we recommend
that the system be checked by an au‐
thorized Kia dealer.

5-121
5
Features of your vehicle

Windshield washers
5ZQF
"
0+'-
5ZQF
#
0+'-
In the OFF (O) position, pull the lever
gently toward you to spray washer flu‐ id on the windshield and to run the wip‐
ers 1-3 cycles.
Use this function when the windshield
is dirty.
The spray and wiper operation will con‐ tinue until you release the lever.
If the washer does not work, check the
washer fluid level. If the fluid level is
not sufficient, you will need to add ap‐
propriate non-abrasive windshield
washer fluid to the washer reservoir. The reservoir filler neck is located in
the front of the engine compartment on the passenger side.
CAUTION
To prevent possible damage to thewasher pump, do not operate thewasher when the fluid reservoir isempty.
WARNING
Do not use the washer in freezingtemperatures without first warmingthe windshield with the defrosters;the washer solution could freeze onthe windshield and obscure your vi‐sion.
CAUTION
•To prevent possible damage to thewipers or windshield, do not oper‐ate the wipers when the wind‐shield is dry.
(Continued)
(Continued)
•To prevent damage to the wiperblades, do not use gasoline, kero‐sene, paint thinner, or other sol‐vents on or near them.
•To prevent damage to the wiperarms and other components, donot attempt to move the wipersmanually.
•To prevent possible damage to thewipers and washer system, useanti-freezing washer fluids in thewinter season or cold weather.
Headlight washer (if equipped)
If your vehicle is equipped with the
headlight washer it will operate at the same time when you operate the wind‐
shield washer. However, if this function
is operated once, the headlight washer will not operate within 15 minutes. It
will operate when the headlight is ON
and the ignition switch or engine start/ stop button is in the ON position.
The washer fluid will be sprayed on to
the headlights.
Features of your vehicle
5-124

USB charger (if equipped)
0+'-
The USB charger is designed to re‐
charge batteries of small size electrical devices using a USB cable. The electrical
devices can be recharged when the En‐
gine Start/Stop button is in ACC/ON/ START position.
The battery charging state may be
monitored on the electrical device.
Disconnect the USB cable from the USB
port after use. • Some devices are not supported for
fast charging but will be charged withnormal speed.
• Use the USB charger when the engine is running to prevent battery dis‐
charge. • Only devices that fits the USB port
can be used.
• The USB charger can be used only for battery charging purposes.
• Battery chargers cannot be charged.
Wireless smart phone charging
system (if equipped)
A wireless smart phone charging sys‐
tem located in front of the center con‐ sole.
Firmly close all doors, and turn the igni‐
tion to ACC or IGN ON. To start wireless
charging, place the smart phone equip‐ ped with wireless charging function on
the wireless charging pad. For best wireless charging results, place
the smart phone on the center of the charging pad.
The wireless charging system is de‐
signed for one smart phone equipped
with QI per single usage only. Please re‐ fer to the smart phone accessory cover
or the smart phone manufacturer
homepage to check whether your smart phone supports QI function.
Wireless smart phone charging
1. Remove any object on the smart phone charging pad including the
smart key. If there is any foreign
object on the pad other than a
smart phone, the wireless charging
function may not operate properly.
2. Place the smart phone on the cen‐ ter of the wireless charging pad.
3. The indicator light will change to orange once the wireless chargingbegins. After the charging is com‐
plete, the orange light will change
to green.
4. You can choose to turn the wireless charging function to either ON or
OFF by selecting the USM on the in‐
strument cluster. (Please refer to
L

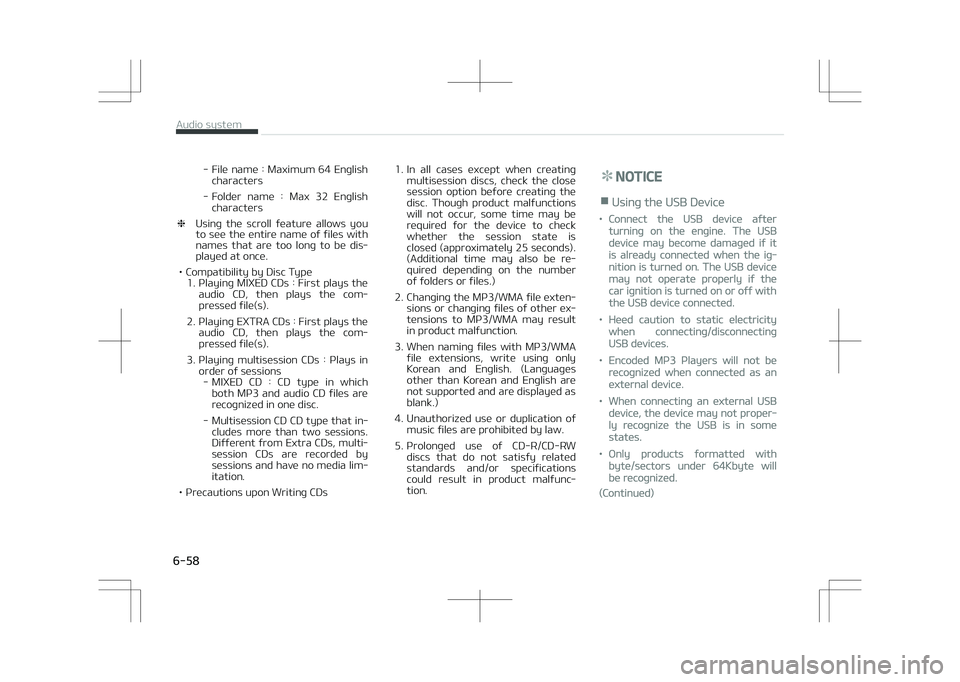

- File name : Maximum 64 Englishcharacters
- Folder name : Max 32 English characters
❈ Using the scroll feature allows you
to see the entire name of files with
names that are too long to be dis‐
played at once.
• Compatibility by Disc Type 1. çlaying MIXED CDs : First plays the audio CD, then plays the com‐
pressed file(s).
2. çlaying EXTéA CDs : First plays the audio CD, then plays the com‐
pressed file(s).
3. çlaying multisession CDs : çlays in order of sessions- MIXED CD : CD type in which both Mç3 and audio CD files arerecognized in one disc.
- Multisession CD CD type that in‐ cludes more than two sessions.
Different from Extra CDs, multi‐ session CDs are recorded bysessions and have no media lim‐
itation.
• çrecautions upon Writing CDs 1. In all cases except when creating
multisession discs, check the close
session option before creating the disc. Though product malfunctions
will not occur, some time may be
required for the device to check
whether the session state is
closed (approximately 25 seconds).
(Additional time may also be re‐
quired depending on the numberof folders or files.)
2. Changing the Mç3/WMA file exten‐ sions or changing files of other ex‐
tensions to Mç3/WMA may result
in product malfunction.
3. When naming files with Mç3/WMA file extensions, write using only
Korean and English. (Languages
other than Korean and English are
not supported and are displayed asblank.)
4. Unauthorized use or duplication of music files are prohibited by law.
5. çrolonged use of CD-é/CD-éW discs that do not satisfy relatedstandards and/or specifications
could result in product malfunc‐
tion.NOTICE
nUsing the UêB Device
•Connect the UêB device after
turning on the engine. The UêB
device may become damaged if it
is already connected when the ig‐
nition is turned on. The UêB device
may not operate properly if the
car ignition is turned on or off with
the UêB device connected.
•Heed caution to static electricity
when connecting/disconnecting
UêB devices.
•Encoded Mç3 çlayers will not be
recognized when connected as an
external device.
•When connecting an external UêB
device, the device may not proper‐
ly recognize the UêB is in some
states.
•Only products formatted with
byte/sectors under 64Kbyte will
be recognized.
(Continued)
Audio system
6-58

WARNING
nENGINE EXHAUST CAN BE DANGEROUS!
Engine exhaust fumes can be extremely dangerous. If, at any time, you smell exhaust fumes inside the vehicle, open thewindows immediately.•Do not inhale exhaust fumes.Exhaust fumes contain carbon monoxide, a colorless, odorless gas that can cause unconsciousness and death by asphyx‐iation.
•Be sure the exhaust system does not leak.The exhaust system should be checked whenever the vehicle is raised to change the oil or for any other purpose.If you hear a change in the sound of the exhaust or if you drive over something that strikes the underneath side of thevehicle, we recommend that the system be checked by an authorized Kia dealer.
•Do not run the engine in an enclosed area.Letting the engine idle in your garage, even with the garage door open, is a hazardous practice. Never run the engine inyour garage any longer than it takes to start the engine and back the vehicle out.
•Avoid idling the engine for prolonged periods with people inside the vehicle.If it is necessary to idle the engine for a prolonged period with people inside the vehicle, be sure to do so only in an openarea with the air intake set at "Fresh" and fan operating at one of the higher speeds so fresh air is drawn into the interi‐or.
If you must drive with the tailgate/trunk open because you are carrying objects that make this necessary:1.Close all windows.
2.Open side vents.
3.Set the air intake control at "Fresh", the air flow control at "Floor" or "Face" and the fan at one of the higher speeds.
To assure proper operation of the ventilation system, be sure the ventilation air intakes located just in front of the wind‐shield are kept clear of snow, ice, leaves or other obstructions.


7-03
7
Driving your vehicle

BEFORE DRIVING
Before entering vehicle
• Be sure that all windows, outsidemirror(s), and outside lights are clean.
• Check the condition of the tires.
• Check under the vehicle for any sign of leaks.
• Be sure there are no obstacles behind you if you intend to back up.
Necessary inspections
Fluid levels, such as engine oil, engine
coolant, brake fluid, and washer fluid should be checked on a regular basis,
with the exact interval depending on
the fluid. Further details are provided in Chapter 9, Maintenance.
WARNING
Driving while distracted can result ina loss of vehicle control, that maylead to an accident, severe personalinjury, and death. The driver’s pri‐mary responsibility is in the safe andlegal operation of a vehicle, and useof any handheld devices, otherequipment, or vehicle systems which
(Continued)
(Continued)
take the driver’s eyes, attention andfocus away from the safe operationof a vehicle or which are not permis‐sible by law should never be usedduring operation of the vehicle.
Before starting
• Close and lock all doors.
• Position the seat so that all controls
are easily reached.
• Adjust the inside and outside rear‐ view mirrors.
• Be sure that all lights work.
• Check all gauges.
• Check the operation of warning lights when the engine start/stop button
switch is turned to the ON position.
• Release the parking brake and make sure the brake warning light goes
out.
For safe operation, be sure you are fa‐ miliar with your vehicle and its equip‐
ment.
WARNING
All passengers must be properly bel‐ted whenever the vehicle is moving.Refer to L

ENGINE START/STOP BUTTON
Illuminated engine start/stop
button
Whenever the front door is opened, the
engine start/stop button will illuminate for your convenience. The light will go
off after about 30 seconds when the
door is closed. It will also go off imme‐ diately when the engine start/stop but‐
ton is ON position.
Engine start/stop button
position
OFF
To turn off the hybrid sys‐ tem (START/RUN position)
or vehicle power (ON posi‐ tion), press the engine start/stop button with the
shift lever in the P (Park) position. When you press the engine start/stop
button without the shift lever in the P
(Park) position, the engine start/stop button will not change to the OFF posi‐
tion but to the ACC position.
Vehicles equipped with anti-theftsteering column lock
The steering wheel locks when the en‐ gine start/stop button is in the OFF po‐
sition to protect you against theft. It locks when the door is opened.
If the steering wheel is not locked prop‐
erly when you open the driver's door, the warning chime will sound. Try lock‐
ing the steering wheel again. If the
problem is not solved, we recommend that the system be checked by an au‐
thorized Kia dealer.
/PU
JMMVNJOBUFE
In addition, if the engine start/stop but‐
ton is in the OFF position after the driv‐ er's door is opened, the steering wheel
will not lock and the warning chime will
sound. In such a situation, close the door. Then the steering wheel will lock
and the warning chime will stop.
NOTICE
If the steering wheel doesn't unlock
properly, the engine start/stop but‐
ton will not work. Press the engine
start/stop button while turning the
steering wheel right and left to re‐
lease the tension.
CAUTION
You are able to turn off the hybridsystem (START/RUN) or vehicle pow‐er (ON), only when the vehicle is notin motion. In an emergency situationwhile the vehicle is in motion, youare able to turn the hybrid systemoff and to the ACC position by press‐ing the engine start/stop button for
(Continued)
Driving your vehicle
7-06

(Continued)
more than 2 seconds or 3 times suc‐cessively within 3 seconds. If the ve‐hicle is still moving, you can restartthe hybrid system without depress‐ing the brake pedal by pressing theengine start/stop button with theshift lever in the N (Neutral) position.
ACC (Accessory)
Press the engine start/stopbutton while it is in the OFF
position without depressing the brake pedal.
The steering wheel unlocks (if equipped
with anti-theft steering column lock) and electrical accessories are opera‐
tional.
If the engine start/stop button is in the
ACC position for more than 1 hour, the button is turned off automatically to
prevent battery discharge.
"NCFS
ON
Press the engine start/stop
button while it is in the ACC position without depressingthe brake pedal.
3FEEJTI
PSBOHF
The warning lights can be checked be‐
fore the hybrid system is started. Do not leave the hybrid system start/stop
button in the ON position for a long
time. The battery may discharge, be‐ cause the engine is not running.
START/RUN
To start the hybrid system,depress the brake pedal and
press the engine start/stop button with the shift lever in the P (Park) or the N
(Neutral) position. For your safety, start the hybrid system with the shift
lever in the P (Park) position.
NOTICE
If you press the engine start/stop
button without depressing the brake
pedal for automatic transaxle vehi‐
cles, the hybrid system will not start
and the engine start/stop button
changes as follows:
OFF ACC ON OFF or ACC
/PU
JMMVNJOBUFE
NOTICE
If you leave the engine start/stop
button in the ACC or ON position for
a long time, the battery will dis‐
charge.
WARNING
•Never press the engine start/stopbutton while the vehicle is in mo‐tion. This would result in loss of di‐rectional control and braking func‐tion, which could cause an acci‐dent.
•The anti-theft steering columnlock (if equipped) is not a substi‐tute for the parking brake. Beforeleaving the driver's seat, alwaysmake sure the shift lever is engag‐ed in P (Park), set the parkingbrake fully and shut the engineoff. Unexpected and sudden vehi‐cle movement may occur if theseprecautions are not taken.
(Continued)

7-07
7
Driving your vehicle

(Continued)
•Never reach for the engine start/stop button or any other controlsthrough the steering wheel whilethe vehicle is in motion. The pres‐ence of your hand or arm in thearea could cause loss of vehiclecontrol, an accident and seriousbodily injury or death.
•Do not place any movable objectsaround the driver's seat as theymay move while driving, interferewith the driver and lead to an acci‐dent.
Starting the hybrid system
WARNING
•Always wear appropriate shoeswhen operating your vehicle. Un‐suitable shoes, such as high heels,ski boots, sandals, flip-flops, etc.,may interfere with your ability touse the brake and accelerator ped‐als.
(Continued)
(Continued)
•Do not start the vehicle with theaccelerator pedal depressed.The vehicle can move and lead toan accident.
NOTICE
•The hybrid system will start by
pressing the Engine Start/Stop
button, only when the smart key
is in the vehicle.
•Even when the smart key is in the
vehicle, and when it is far away
from the driver, the hybrid system
may not start.
(Continued)
(Continued)
•When the Engine Start/Stop but‐
ton is in the ACC or ON position,
any door is open, the system
checks for the smart key. When
the smart key is not in the vehicle,
the "" indicator will blink and
the warning "Key not in vehicle"
will come on. When all doors are
closed, the chime will also sound
for about 5 seconds. Keep the
smart key in the vehicle when in
the ACC position or if the hybrid
system is ON.
1. Always carry the smart key withyou.
2. Make sure the parking brake is ap‐ plied.
3. Make sure the shift lever is in P (Park).
4. Depress the brake pedal.
5. Press the Engine Start/Stop button. If the hybrid system starts, the
"
" indicator will come on.
Driving your vehicle
7-08

(Continued)
•Always check the surroundingareas near your vehicle for people,especially children, before shiftinga vehicle into D (Drive) or R (Re‐verse).
•Before leaving the driver’s seat, al‐ways make sure the shift lever isin the P (Park) position; then setthe parking brake fully and shutthe engine off. Unexpected andsudden vehicle movement can oc‐cur if these precautions are notfollowed in the order identified.
•Do not use the engine brake (shift‐ing from a high gear to lower gear)rapidly on slippery roads.The vehicle may slip causing an ac‐cident.
CAUTION
•To avoid damage to your trans‐axle, do not accelerate the enginein R (Reverse) or any forward gearposition with the brakes on.
(Continued)
(Continued)
•When stopped on an uphill grades,do not hold the vehicle stationarywith engine power. Use the brakepedal or the parking brake.
•Do not shift from N (Neutral) or P(Park) into D (Drive), or R (Reverse)when the engine is above idlespeed.
Transaxle ranges
The indicator lights in the instrument
cluster displays the shift lever position when the engine start/stop button
switch is in the ON position.
P (Park)
Always come to a complete stop before
shifting into P (Park). This position locks the transaxle and prevents the
front wheels from rotating.
To shift from P (Park), you must de‐
press firmly on the brake pedal and make sure your foot is off the acceler‐
ator pedal.
If you have done all of the above andstill cannot shift the lever out of P(Park), see L
