KIA OPTIMA PLUG-IN HYBRID 2017 Owners Manual
Manufacturer: KIA, Model Year: 2017, Model line: OPTIMA PLUG-IN HYBRID, Model: KIA OPTIMA PLUG-IN HYBRID 2017Pages: 686, PDF Size: 35.24 MB
Page 381 of 686
NOTICE
•When an incoming call pop-up is
displayed, most Audio and êETUç
mode features are disabled. Only
the call volume will operate.
•The telephone number may not be
properly displayed in some mobile
phones.
•When a call is answered with the
mobile phone, the call mode will
automatically revert to çrivate
mode.
During a Handsfree Call
• Caller: Displays the other partyL
Page 382 of 686
NOTICE
•Up to 1,000 contacts entries can
be copied into car contacts.
•Upon downloading contacts data,
previously saved contacts data will
be deleted.
•Downloading is not possible if the
contacts download feature is
turned off within the Bluetooth®
Wireless Technology device. Also,
some devices may require device
authorization upon attempting to
download. If downloading cannot
be normally conducted, check the
Bluetooth® Wireless Technology
device setting or the screen state.
•Caller ID information will not be
displayed for unsaved callers.
•The download feature may not be
supported in some mobile phones.
Check to see that the Bluetooth®
Wireless Technology device sup‐
ports the download feature.
Bluetooth® Wireless Technology
(Type B-2, For Colombia model)
When No Devices have been Paired
1. çress the /PHONE button or
the button on the steering
wheel controls. The following
screen is displayed.
2. çress the [OK] button to enter the çair çhone screen.
• Car name: Name of device asshown when searching from your Bluetooth ®
Wireless Technology
device
• çasskey: çasskey used to pair the device
3. From your Bluetooth ®
Wireless
Technology device (i.e. Mobile
çhone), search and select your car
audio system.
6-91
6
Audio system
Page 383 of 686
![KIA OPTIMA PLUG-IN HYBRID 2017 Owners Manual 4. êêç: êecure êimple çairing[Non êêç supported device]
After a few moments, a screen is
displayed where the passkey is en‐
tered.
Enter the passkey L](/img/2/57963/w960_57963-382.png "KIA OPTIMA PLUG-IN HYBRID 2017 Owners Manual 4. êêç: êecure êimple çairing[Non êêç supported device]
After a few moments, a screen is
displayed where the passkey is en‐
tered.
Enter the passkey L")
4. êêç: êecure êimple çairing[Non êêç supported device]
After a few moments, a screen is
displayed where the passkey is en‐
tered.
Enter the passkey L
Page 384 of 686
NOTICE
•The waiting period during phone
pairing will last for one minute.
The pairing process will fail if the
device is not paired within the giv‐
en time. If the pairing process
fails, you must start the process
from the beginning.
•Generally, most Bluetooth® Wire‐
less Technology devices will auto‐
matically connect once pairing is
complete. However, some devices
may require a separate verifica‐
tion process to connect. Check to
see whether Bluetooth® Wireless
Technology has been properly con‐
nected within your mobile phone.
•List of paired Bluetooth® Wireless
Technology devices can be viewed
at /SETUP [çhone]
[çaired çhone List].
Paired Phone List
çress the /SETUP button êe‐
lect [çhone] êelect [çaired çhone
List] • Connected çhone: Device that is cur‐ rently connected. • çaired çhone: Device that is paired
but not connected.
Connecting a Device
From the paired phone list, select the
device you want to connect and press
the [Connect] (1) button.
Disconnecting a Device
From the paired phone list, select the
currently connected device and press the [Disconnect] (2) button.
Deleting a Device
From the paired phone list, select the
device you want to delete and press
the [Delete] (3) button.
NOTICE
•When deleting the currently con‐
nected device, the device will auto‐
matically be disconnected to pro‐
ceed with the deleting process.
•If a paired Bluetooth® Wireless
Technology device is deleted, the
deviceL
Page 385 of 686
The "Change çriority" feature is used to
set the connection priority of paired phones. However, the most recently
connected phone will always be set as
the highest priority.
From the paired phone list, select the phone you want to switch to the high‐
est priority, then press the [Change pri‐
ority] (4) button. The selected device will be changed to the highest priority.
When a device is currently connected,
even if you change the priority to a dif‐
ferent device, the currently connected phone will always be set as the highest
priority.
Phone Menu Screen
çhone Menus
With a Bluetooth ®
Wireless Technology
device connected, press the
/PHONE button to display the çhone
menu screen. • Favorites: Up to 20 frequently used contacts saved for easy access.
• Dial Number: Displays the dial screen where numbers can be dialed to
make calls.
• Call History: Displays the call history list screen.
• Contacts: Displays the Contacts list screen.
• êetup: Displays çhone related set‐ tings.
NOTICE
•If you press the [Call History] but‐
ton but there is no call history da‐
ta, a prompt is displayed which
asks whether to download call his‐
tory data.
(Continued)
(Continued)
•If you press the [Contacts] button
but there is no contacts data stor‐
ed, a prompt is displayed which
asks whether to download con‐
tacts data.
•This feature may not be suppor‐
ted in some mobile phones. For
more information on download
support, refer to your mobile
phone userL
Page 386 of 686
• Delete All: Delete all stored favoritecontacts.
NOTICE
•To save Favorite, contacts should
be downloaded.
•Contact saved in Favorites will not
be automatically updated if the
contact has been updated in the
phone. To update Favorites, delete
the Favorite and create a new Fa‐
vorite.
Calling by Dialing a Number
• Dial çad: Used to enter phone num‐ ber. • Call: If a number has been entered,
calls the number. If no number hasbeen entered, switches to call history
screen.
• End: Deletes the entered phone num‐ ber.
• Delete: Deletes entered numbers one digit at a time.
Answering a Call
Answering a call with a Bluetooth ®
Wireless Technology device connected will display the following screen. • Caller: Displays the other partyL
Page 387 of 686
• Incoming Number: Displays the in‐coming number.
• Call time: Displays the call time.
• End: Ends call.
• çrivate: Converts to çrivate mode.
• Out Vol.: êets call volume as heard by the other party.
• Mute: Turns Mic Mute On/Off.
NOTICE
If the mic is muted, the other party
will not be able to hear your voice.
Call History
A list of incoming, outgoing and missed
calls is displayed. çress the [Download] button to down‐
load the call history. • Call History: - Displays recent calls (call history).
- Connects call upon selection.
• Download: Download éecent Call His‐ tory.
Contacts
The list of saved phone book entries is
displayed. çress the [Download] button to download the call history. • Contacts List: - Displays downloaded contacts en‐tries.
- Connects call upon selection.
- êort by: Find a contact in an alpha‐ betical order.
• Download: Download contacts en‐ tries.
NOTICE
•Up to 1,000 contacts entries can
be copied into car contacts.
•Upon downloading contacts data,
previously saved contacts data will
be deleted.
•Downloading is not possible if the
contacts download feature is
turned off within the Bluetooth®
Wireless Technology device. Also,
some devices may require device
authorization upon attempting to
download. If downloading cannot
be normally conducted, check the
Bluetooth® Wireless Technology
device setting or the screen state.
•Caller ID information will not be
displayed for unsaved callers.
•The download feature may not be
supported in some mobile phones.
Check to see that the Bluetooth®
Wireless Technology device sup‐
ports the download feature.
Audio system
6-96
Page 388 of 686

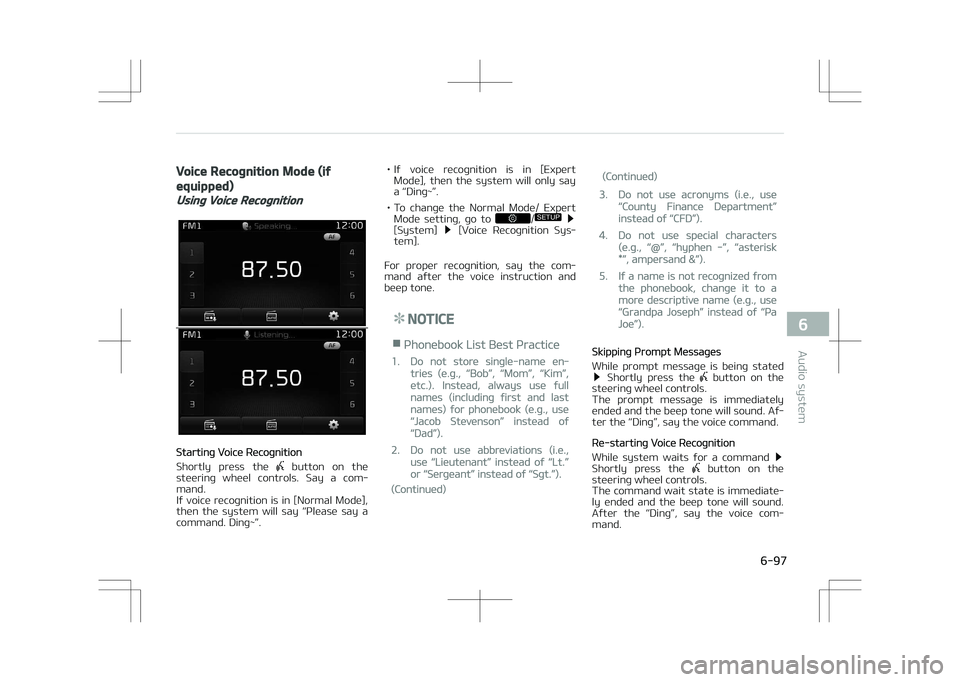

Voice Recognition Mode (if
equipped)
Using Voice Recognition
êtarting Voice éecognition
êhortly press the
button on the
steering wheel controls. êay a com‐
mand.
If voice recognition is in [Normal Mode], then the system will say L
Page 389 of 686

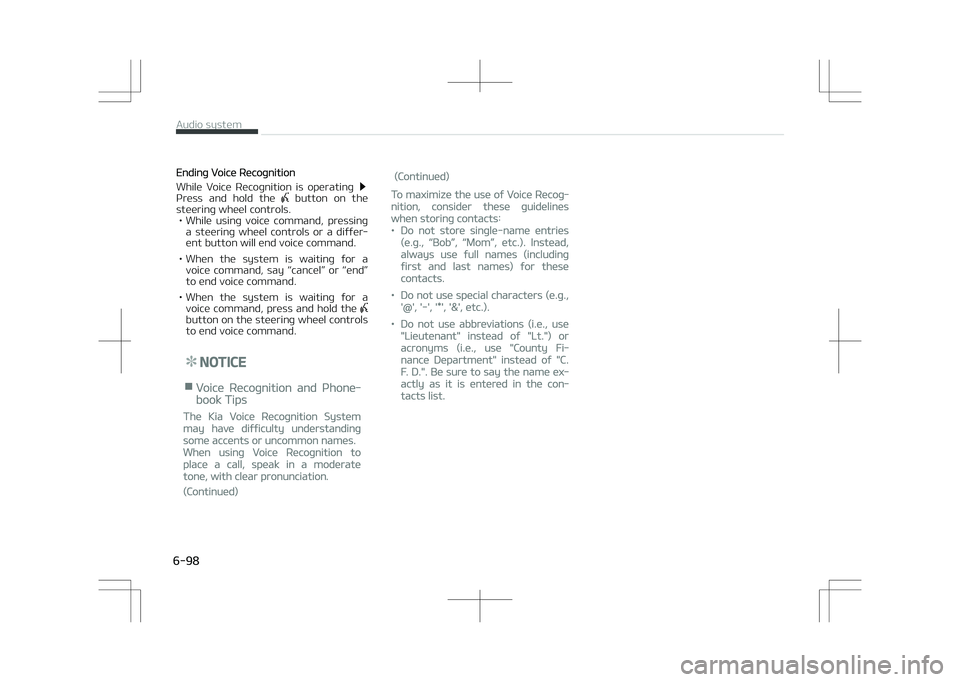

Ending Voice éecognition
While Voice éecognition is operating
çress and hold the button on the
steering wheel controls. • While using voice command, pressing a steering wheel controls or a differ‐
ent button will end voice command.
• When the system is waiting for a voice command, say L
Page 390 of 686

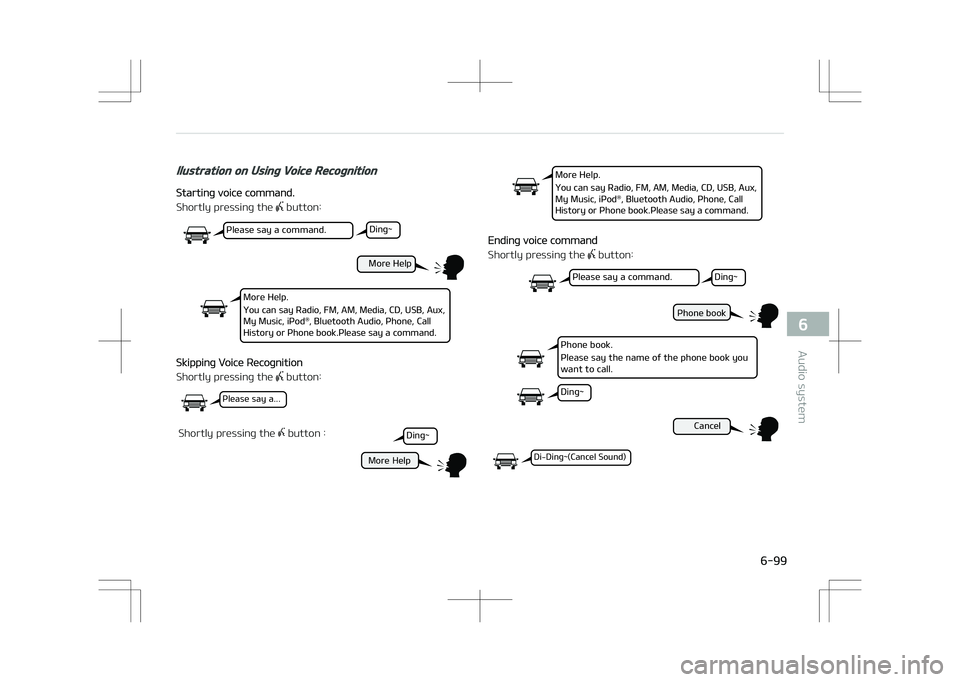

llustration on Using Voice Recognition
êtarting voice command.
êhortly pressing the
button:
. P S F ) F M Q
1 M F B T F T B Z B D P N N B O E % J O H _
. P S F ) F M Q
: P V D B O T B Z 3 B E J P
' .
" .
. F E J B
$ %
6 4 #
" V Y
. Z . V T J D
J 1 P E Fø
# M V F U P P U I " V E J P
1 I P O F
$ B M M
) J T U P S Z P S 1 I P O F C P P L 1 M F B T F T B Z B D P N N B O E
êkipping Voice éecognition
êhortly pressing the
button:
1 M F B T F T B Z B
êhortly pressing the button : % J O H _
. P S F ) F M Q
. P S F ) F M Q
: P V D B O T B Z 3 B E J P
' .
" .
. F E J B
$ %
6 4 #
" V Y
. Z . V T J D
J 1 P E Fø
# M V F U P P U I " V E J P
1 I P O F
$ B M M
) J T U P S Z P S 1 I P O F C P P L 1 M F B T F T B Z B D P N N B O E
Ending voice command
êhortly pressing the
button:
1 M F B T F T B Z B D P N N B O E % J O H _
1 I P O F C P P L
1 I P O F C P P L
1 M F B T F T B Z U I F O B N F P G U I F Q I P O F C P P L Z P V
X B O U U P D B M M
% J O H _
$ B O D F M
% J % J O H _ $ B O D F M 4 P V O E
6-99
6
Audio system
