• Incoming Number: Displays the in‐coming number.
• Call time: Displays the call time.
• End: Ends call.
• çrivate: Converts to çrivate mode.
• Out Vol.: êets call volume as heard by the other party.
• Mute: Turns Mic Mute On/Off.
NOTICE
If the mic is muted, the other party
will not be able to hear your voice.
Call History
A list of incoming, outgoing and missed
calls is displayed. çress the [Download] button to down‐
load the call history. • Call History: - Displays recent calls (call history).
- Connects call upon selection.
• Download: Download éecent Call His‐ tory.
Contacts
The list of saved phone book entries is
displayed. çress the [Download] button to download the call history. • Contacts List: - Displays downloaded contacts en‐tries.
- Connects call upon selection.
- êort by: Find a contact in an alpha‐ betical order.
• Download: Download contacts en‐ tries.
NOTICE
•Up to 1,000 contacts entries can
be copied into car contacts.
•Upon downloading contacts data,
previously saved contacts data will
be deleted.
•Downloading is not possible if the
contacts download feature is
turned off within the Bluetooth®
Wireless Technology device. Also,
some devices may require device
authorization upon attempting to
download. If downloading cannot
be normally conducted, check the
Bluetooth® Wireless Technology
device setting or the screen state.
•Caller ID information will not be
displayed for unsaved callers.
•The download feature may not be
supported in some mobile phones.
Check to see that the Bluetooth®
Wireless Technology device sup‐
ports the download feature.
Audio system
6-96

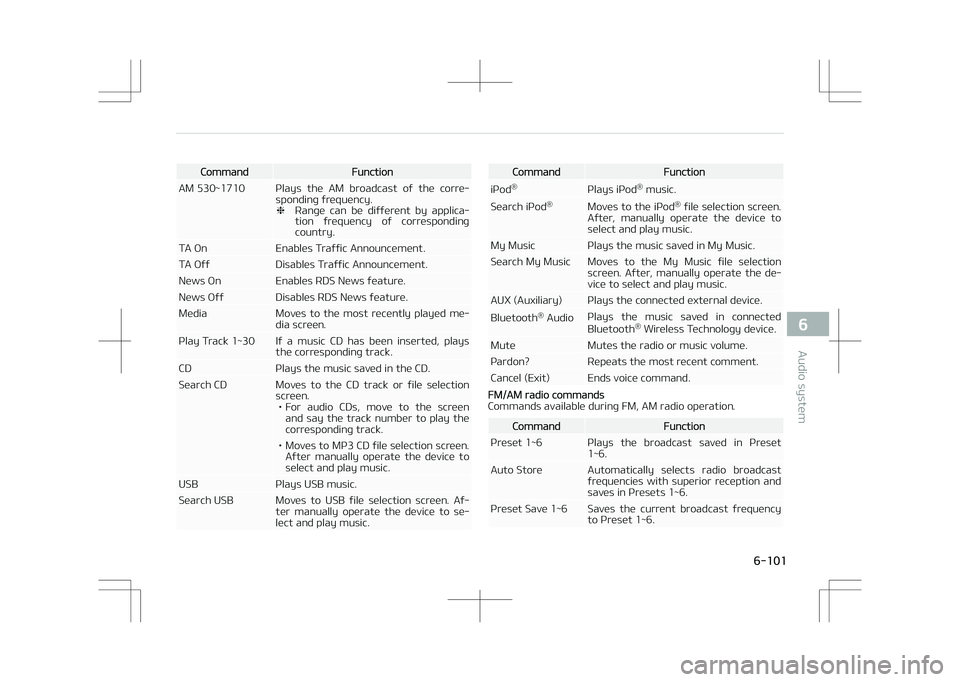

CommandFunction
AM 530~1710 çlays the AM broadcast of the corre‐ sponding frequency. ❈éange can be different by applica‐
tion frequency of corresponding country.
TA On Enables Traffic Announcement.
TA Off Disables Traffic Announcement.
News On Enables éDê News feature.
News Off Disables éDê News feature.
Media Moves to the most recently played me‐ dia screen.
çlay Track 1~30 If a music CD has been inserted, plays the corresponding track.
CD çlays the music saved in the CD.
êearch CD Moves to the CD track or file selection screen.• For audio CDs, move to the screen and say the track number to play the
corresponding track.
• Moves to Mç3 CD file selection screen. After manually operate the device toselect and play music.
UêB çlays UêB music.
êearch UêB Moves to UêB file selection screen. Af‐ ter manually operate the device to se‐lect and play music.CommandFunction
içod ®
çlays içod®
music.
êearch içod ®
Moves to the içod ®
file selection screen.
After, manually operate the device to select and play music.
My Music çlays the music saved in My Music.
êearch My Music Moves to the My Music file selection screen. After, manually operate the de‐vice to select and play music.
AUX (Auxiliary) çlays the connected external device. Bluetooth ®
Audio çlays the music saved in connected
Bluetooth ®
Wireless Technology device.
Mute Mutes the radio or music volume.
çardon? éepeats the most recent comment.
Cancel (Exit) Ends voice command.
FM/AM radio commands
Commands available during FM, AM radio operation.
CommandFunction
çreset 1~6 çlays the broadcast saved in çreset 1~6.
Auto êtore Automatically selects radio broadcast frequencies with superior reception andsaves in çresets 1~6.
çreset êave 1~6 êaves the current broadcast frequency to çreset 1~6.

6-101
6
Audio system

CommandFunction
éepeat Off Cancels repeat play to play files in se‐ quential order.
Next File çlays the next file.
çrevious File çlays the previous file.
êcan êcans the tracks from the next files for 10 seconds each.
Information Displays the information screen of the current file.
Copy Copies the current file into My Music.
içod® Commands
Commands available during içod ®
operation.
CommandFunction
All éandom éandomly plays all saved songs.
éandom éandomly plays the songs within the current category.
éandom Off Cancels random play to play songs in sequential order.
éepeat éepeats the current song.
éepeat Off Cancels repeat play to play songs in se‐ quential order.
Next êong çlays the next song.
çrevious êong çlays the previous song.
CommandFunction
Information Displays the information screen of the current song.
My Music Commands
Commands available during My Music operation.
CommandFunction
éandom éandomly plays all saved files.
éandom Off Cancels random play to play files in se‐ quential order.
éepeat éepeats the current file.
éepeat Off Cancels repeat play to play files in se‐ quential order.
Next File çlays the next file.
çrevious File çlays the previous file.
êcan êcans the files from the next files for 10 seconds each.
Information Displays the information screen of the current file.
Delete Deletes the current file. You will bypass an additional confirmation process.
Delete All Deletes all files saved in My Music. You will bypass an additional confirmationprocess.
Bluetooth® Wireless Technology Audio Commands

6-103
6
Audio system

Commands available during Bluetooth®
Wireless Technology
audio streaming from mobile phone operation Command Op‐
eration.
CommandFunction
çlay çlays the currently paused song.
CommandFunction
çause çauses the current song.
Setup Mode Type B-1
çress the [êETUç] button to display the
êetup screen.
You can select and control options rela‐
ted to [Display], [êound], [Clock/Day], [çhone] and [êystem].
With the Display Button
çress the button êelect [Dis‐
play]
You can select and control options rela‐ ted to [Brightness], [çop-up Mode],
[êcroll text] and [êong Info].
Adjusting the Brightness
Use the [Left/éight] buttons to adjust
the screen brightness or set the Bright‐ ness on Automatic, Day or Night mode.
çress the [Default] button to reset. • Automatic: Adjusts the brightness automatically.
• Day: Always maintains the brightness on high.
• Night: Always maintains the bright‐ ness on low.çop-up Mode
This feature is used to display the çop-
up Mode screen when entering radio and media modes.
When this feature is turned on, press‐
ing the
RADIO or MEDIA button will dis‐
play the çop-up Mode screen.
Audio system
6-104

Day êettings
Use the [Up/Down] buttons to set the
Day, Month and Year setting.
Time Format
This feature is used to change the clock
format between 12hr or 24hr.
Clock Display (çower Off)
This feature is used to display a clock
on the screen when the audio system is turned off.
Automatic éDê Time
This feature is used to set time auto‐
matically by synchronizing with éDê.
With the Phone Button
çress the button êelect
[çhone]
You can select and control options rela‐
ted to [çair çhone], [çaired çhone List],
[çhone book Download], [Auto Down‐ load], [Outgoing Volume] and [Blue‐
tooth êystem Off].
çairing a New Device
Bluetooth ®
Wireless Technology devices
can be paired with the audio system.
For more information, refer to L

Outgoing Volume
Use the [-], [+] buttons to adjust the
outgoing volume level.
Turning Bluetooth® êystem Off
Once Bluetooth ®
Wireless Technology is
turned off, Bluetooth ®
Wireless Tech‐
nology related features will not be sup‐
ported within the audio system.
To turn Bluetooth ®
Wireless Technology
back on, go to
[çhone] and
press L

Clock êettings
Use the [Up/Down] buttons to set the
Hour, Minutes and AM/çM setting.
çress and hold the
button
(over 0.8 seconds) to display the Clock/ Calendar screen.
Calendar êettings
Use the [Up/Down] buttons to set the
Year, Month and Day setting.
Clock Display
This feature is used to display a clock
on the screen when the audio system is turned off.
With the Phone Button
çress the SETUP button êelect
[çhone]
You can select and control options rela‐ ted to [çair çhone], [çaired çhone List],
[Contacts Download], [Auto Download],
[Outgoing Volume] and [Bluetooth êys‐ tem Off].
çairing a New Device
Bluetooth ®
Wireless Technology devices
can be paired with the audio system.
For more information, refer to L

To turn Bluetooth®
Wireless Technology
back on, go to SETUP [çhone] and
press L

êDVC (êpeed Dependent Volume Con‐trol)
The volume level is controlled automat‐ ically according to the vehicle speed.
êDVC can be set by selecting from On/
Off.
Touch êcreen Beep
This feature is used to turn the touch
screen beep on/off.
With the Clock/Calendar Button
çress the SETUP button êelect [Clock/
Calendar]
You can select and control options rela‐
ted to [Clock êettings], [Calendar êet‐ tings] and [Time Format].
Clock êettings
Use the [Up/Down] buttons to set the
Hour, Minutes and AM/çM setting.
çress and hold the
button
(over 0.8 seconds) to display the Clock/ Calendar screen.
Calendar êettings
Use the [Up/Down] buttons to set the
Day, Month and Year setting.
Time Format
This feature is used to change the clock
format between 12hr or 24hr.
With the Phone Button
çress the SETUP button êelect
[çhone]
You can select and control options rela‐ ted to [çair çhone], [çaired çhone List],
[Contacts Download], [Outgoing Vol‐
ume] and [Bluetooth êystem Off].

6-117
6
Audio system

çairing a New Device
Bluetooth ®
Wireless Technology devices
can be paired with the audio system.
For more information, refer to L
