KIA OPTIMA PLUG-IN HYBRID 2017 Owners Manual

(Continued)

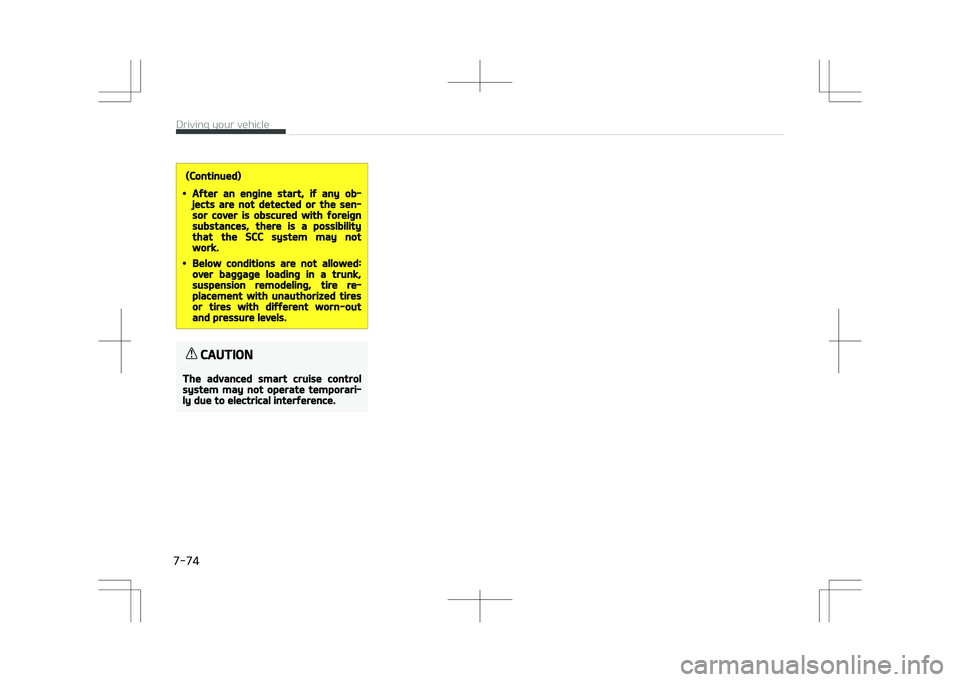

•After an engine start, if any ob‐jects are not detected or the sen‐sor cover is obscured with foreignsubstances, there is a possibilitythat the SCC system may notwork.
•Below conditions are not allowed:over baggage loading in a trunk,suspension remodeling, tire re‐placement with unauthorized tiresor tires with different worn-outand pressure levels.
CAUTION
The advanced smart cruise controlsystem may not operate temporari‐ly due to electrical interference.
Driving your vehicle
7-74

DRIVE MODE INTEGRATED CONTROL SYSTEM (IF EQUIPPED)
Hybrid vehicle
5ZQF
"
0+'
5ZQF
#
0+'
The drive mode may be selected ac‐
cording to the driver’s preference or road condition. The system resets to be in the ECO
mode, when the hybrid system is re‐
started.
If there is a problem with the instru‐ ment cluster, the drive mode will be in
ECO mode and may not change to NOR‐
MAL mode or SPORT mode.
The mode changes whenever the DRIVE MODE button is pressed.

/03."-
41035
















&$0
❈ When normal mode is selected, it is
not displayed on the cluster.
ECO mode (Active ECO)
ECO
Active ECO helps
improve fuel effi‐
ciency by control‐ling certain en‐gine and trans‐axle system op‐erating parame‐ters. Fuel effi‐ciency depends
on the driver'sdriving habit and
road condition. • When the DRIVE MODE button is
pressed and the ECO mode is selec‐
ted, the ECO indicator (green) will illu‐ minate to show that the Active ECO
is operating.
• When the Active ECO is activated, it does not turn off even though the
engine is restarted again. To turn off
the system, press the DRIVE MODE button again.
When Active ECO is activated:
• The acceleration may slightly be re‐ duced even though you depress the
accelerator fully.
• The air conditioner performance may be limited.
• The shift pattern of the automatic transaxle may change.
• The engine noise may get louder.
The above situations are normal condi‐
tions when the active eco system is ac‐
tivated to improve fuel efficiency.
Limitation of Active ECO operation:
If the following conditions occur while Active ECO is operating, the system op‐
eration is limited even though there is
no change in the ECO indicator.

7-75
7
Driving your vehicle

• When the coolant temperature is low:The system will be limited until en‐
gine performance becomes normal.
• When driving up a hill: The system will be limited to gain
power when driving uphill because the engine torque is restricted.
• When using manual mode: The system will be limited according
to the shift location.
• When the accelerator pedal is deeply depressed for a few seconds:
The system will be limited, judging
that the driver wants to speed up.
SPORT mode
SPORT
SPORT mode focu‐ ses on dynamic driv‐ing by automatically
controlling thesteering wheel, en‐gine and transaxlesystem.
• When the DRIVE MODE button is pressed and the SPORT mode is se‐
lected, the SPORT indicator (yellow) will illuminate. • Whenever the hybrid system is re‐
started, the Drive Mode will revert
back to ECO mode. If SPORT mode is
desired, re-select SPORT mode from
the DRIVE MODE button
• If the system is activated: - After speeding, it maintains the gear and RPM for some time even
though the accelerator pedal is not depressed.
- Up-shifting is delayed.
NOTICE
In Sport drive mode, the fuel effi‐
ciency may decrease.
Driving your vehicle
7-76

DRIVE MODE INTEGRATED CONTROL SYSTEM (IF EQUIPPED)
Plug-in hybrid vehicle
0+')1-
The drive mode may be selected ac‐
cording to the driver’s preference or road condition.
The system resets to be in the ECO
mode, when the hybrid system is re‐
started.
If there is a problem with the instru‐ ment cluster, the drive mode will be in
ECO mode and may not change to NOR‐
MAL mode.
The mode changes whenever the DRIVE MODE button is pressed.
/03."- &$0
❈ When normal mode is selected, it is
not displayed on the cluster.
ECO mode (Active ECO)
ECO
Active ECO helps
improve fuel effi‐
ciency by control‐ling certain en‐gine and trans‐axle system op‐erating parame‐ters. Fuel effi‐ciency depends
on the driver'sdriving habit and
road condition.
• When the DRIVE MODE button is pressed and the ECO mode is selec‐
ted, the ECO indicator (green) will illu‐ minate to show that the Active ECO
is operating.
• When the Active ECO is activated, it does not turn off even though the
engine is restarted again. To turn off
the system, press the DRIVE MODE button again.
When Active ECO is activated:
• The acceleration may slightly be re‐ duced eventhough you depress the
accelerator fully.
• The air conditioner performance may be limited
• The shift pattern of the automatic transaxle may change.
• The engine noise may get louder.
The above situations are normal condi‐
tions when the active eco system is ac‐
tivated to improve fuel efficiency.
Limitation of Active ECO operation:
If the following conditions occur while Active ECO is operating, the system op‐
eration is limited even though there is
no change in the ECO indicator. • When the coolant temperature is low: The system will be limited until en‐
gine performance becomes normal.
• When driving up a hill: The system will be limited to gainpower when driving uphill because
the engine torque is restricted.
• When using manual mode: The system will be limited according
to the shift location.

7-77
7
Driving your vehicle

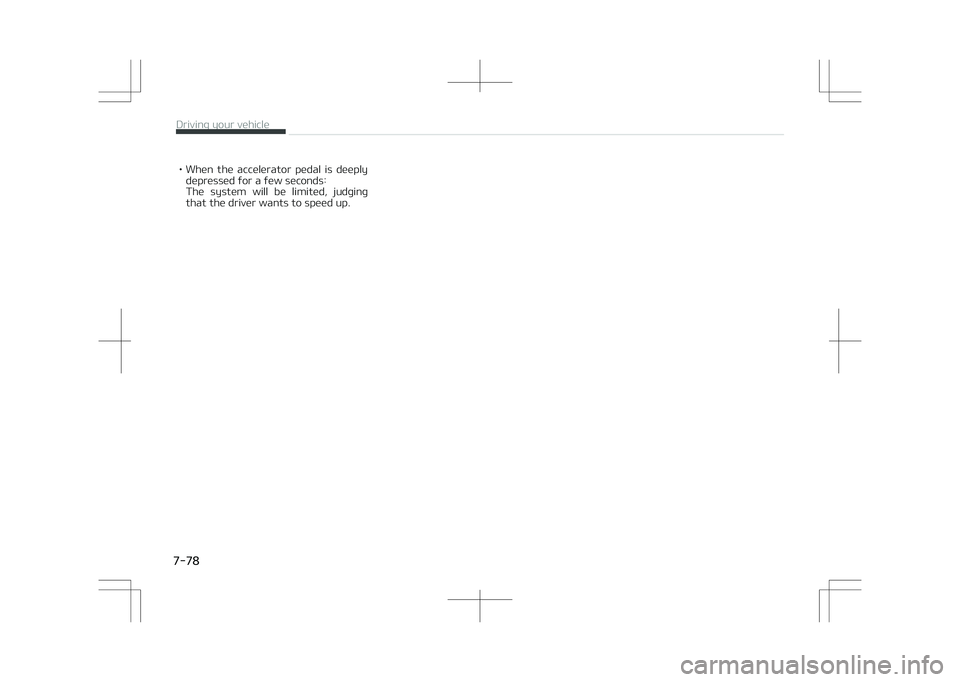

• When the accelerator pedal is deeplydepressed for a few seconds:
The system will be limited, judging
that the driver wants to speed up.
Driving your vehicle
7-78

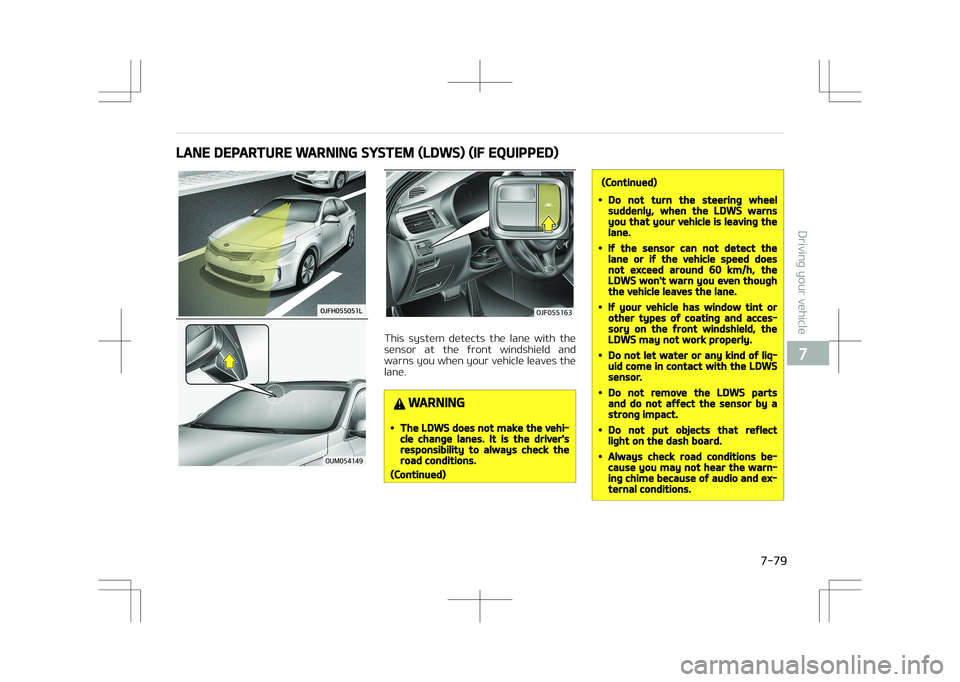

LANE DEPARTURE WARNING SYSTEM (LDWS) (IF EQUIPPED)
06.
0+'
This system detects the lane with the
sensor at the front windshield and warns you when your vehicle leaves the
lane.
WARNING
•The LDWS does not make the vehi‐cle change lanes. It is the driver'sresponsibility to always check theroad conditions.
(Continued)
(Continued)
•Do not turn the steering wheelsuddenly, when the LDWS warnsyou that your vehicle is leaving thelane.
•If the sensor can not detect thelane or if the vehicle speed doesnot exceed around 60 km/h, theLDWS won't warn you even thoughthe vehicle leaves the lane.
•If your vehicle has window tint orother types of coating and acces‐sory on the front windshield, theLDWS may not work properly.
•Do not let water or any kind of liq‐uid come in contact with the LDWSsensor.
•Do not remove the LDWS partsand do not affect the sensor by astrong impact.
•Do not put objects that reflectlight on the dash board.
•Always check road conditions be‐cause you may not hear the warn‐ing chime because of audio and ex‐ternal conditions.

7-79
7
Driving your vehicle

To operate the LDWS, press the switch
with the engine start/stop button in the ON position. The indicator illumi‐
nates white on the cluster.
To cancel the LDWS, press LDWS button
again. The indicator on the cluster will
go off.
0+'-
If you select this symbol, the LDWS
mode on the LCD display will appear.
If your vehicle leaves the lane when the LDWS is operating and vehicle speed
exceeds around 60 km/h, the warning
operates as follows:
0+'-
-FGU
MBOF
EFQBSUJOH
3JHIU
MBOF
EFQBSUJOH
0+'-
1. Visual warning If you leave a lane, the lane you
cross will blink (yellow) and LDWS
indicator will blink green on LCD
during max 3 seconds. 2. Auditory warning
If you leave the lane, the warning
sound operates for maximum 3
seconds.
The color of symbol will change de‐ pending on the condition of LDWS sys‐
tem.
• White color: When you activate
the lane departure warning system by
pressing the LDWS
button, system oper‐
ating conditions arenot satisfied or thesensor does not de‐tect the lane line.
• Green color: When you activate the lane departurewarning system by
pressing the LDWS
button, system oper‐
ating conditions aresatisfied and the sen‐sor detect the laneline.
• Yellow color: When there is a mal‐function with the lane
departure warningsystem.
Driving your vehicle

7-80

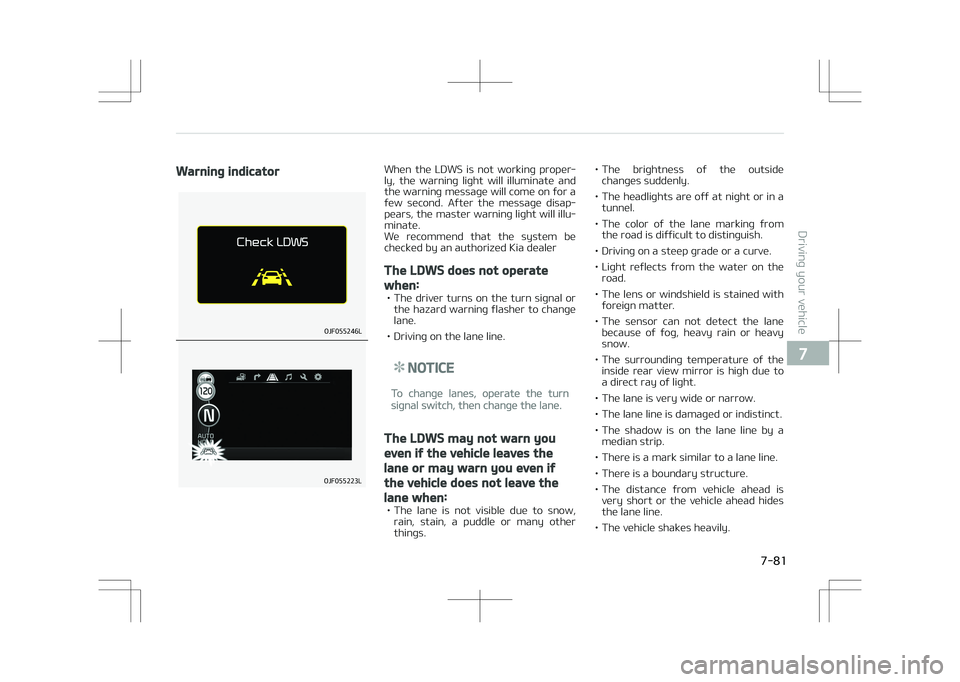

Warning indicator
0+'-
0+'-
When the LDWS is not working proper‐
ly, the warning light will illuminate and the warning message will come on for a
few second. After the message disap‐
pears, the master warning light will illu‐ minate.
We recommend that the system be
checked by an authorized Kia dealer
The LDWS does not operate
when:
• The driver turns on the turn signal or the hazard warning flasher to change
lane.
• Driving on the lane line.
NOTICE
To change lanes, operate the turn
signal switch, then change the lane.
The LDWS may not warn you
even if the vehicle leaves the
lane or may warn you even if
the vehicle does not leave the
lane when:
• The lane is not visible due to snow, rain, stain, a puddle or many other
things. • The brightness of the outside
changes suddenly.
• The headlights are off at night or in a tunnel.
• The color of the lane marking from the road is difficult to distinguish.
• Driving on a steep grade or a curve.
• Light reflects from the water on the road.
• The lens or windshield is stained with foreign matter.
• The sensor can not detect the lane because of fog, heavy rain or heavy
snow.
• The surrounding temperature of the inside rear view mirror is high due to
a direct ray of light.
• The lane is very wide or narrow.
• The lane line is damaged or indistinct.
• The shadow is on the lane line by a median strip.
• There is a mark similar to a lane line.
• There is a boundary structure.
• The distance from vehicle ahead is very short or the vehicle ahead hides
the lane line.
• The vehicle shakes heavily.

7-81
7
Driving your vehicle

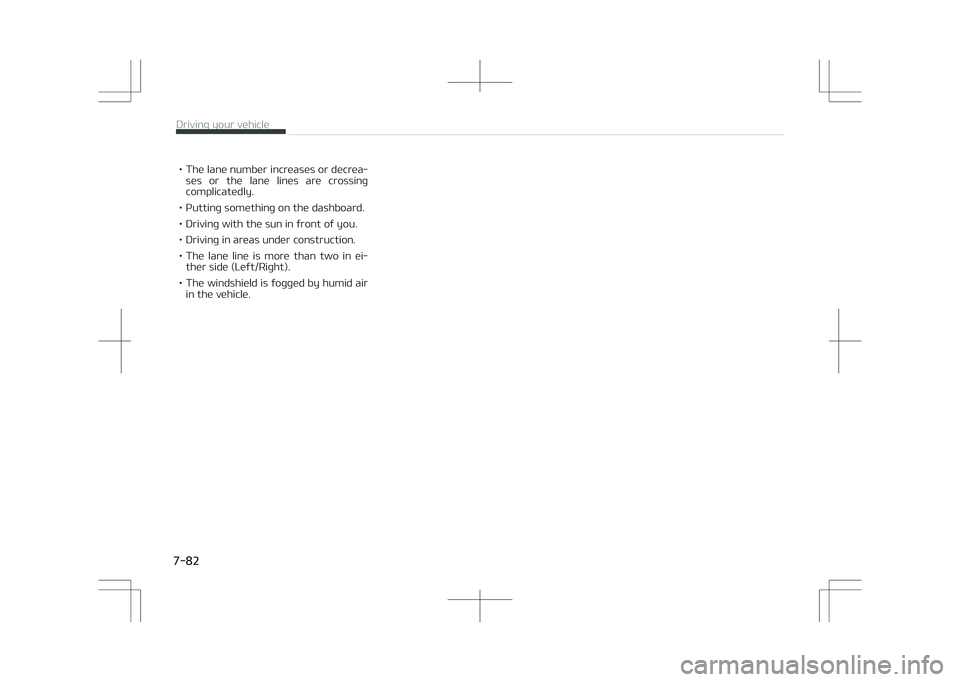

• The lane number increases or decrea‐ses or the lane lines are crossing
complicatedly.
• Putting something on the dashboard.
• Driving with the sun in front of you.
• Driving in areas under construction.
• The lane line is more than two in ei‐ ther side (Left/Right).
• The windshield is fogged by humid air in the vehicle.
Driving your vehicle
7-82

LANE KEEPING ASSIST SYSTEM (LKAS) (IF EQUIPPED)
05'4
The Lane Keeping Assist System de‐
tects lane markers on the road, and as‐ sists the driver’s steering to help keep
the vehicle between lanes. When the system detects the vehicle
straying from its lane, it alerts the driv‐
er with a visual and audible warning, while applying a slight counter steering
torque, trying to prevent the vehicle
from moving out of its lane.
WARNING
•The steering wheel is not continu‐ously controlled so if the vehiclespeed is very fast when leaving alane the vehicle may not be con‐trolled by the system.
•The operation of the LKAS can beaffected by several factors (in‐cluding environmental conditions).It is the responsibility of the driverto pay attention to the roadwayand to maintain the vehicle in itslane at all times.
•Do not steer the steering wheelsuddenly when the steering wheelis being assisted by the system.
(Continued)
(Continued)
•LKAS prevents the driver frommoving out of the lane uninten‐tionally by assisting the driver'ssteering. However, the drivershould not solely rely on the sys‐tem but always pay attention onthe steering wheel to stay in thelane.
•Always check the road conditionand surroundings and be cautiouswhen the system cancels, doesnot operate or malfunctions.
•Do not place any accessories,stickers or tint the windshield nearthe rearview mirror.
•The system detects lane markersand controls the steering wheel bya camera, therefore, if the lanemarkers are hard to detect, thesystem may not work properly.Please refer to L
