Tire chains
Since the sidewalls of radial tires are
thinner, they can be damaged by mounting some types of snow chains
on them. Therefore, the use of snow
tires is recommended instead of snow chains. Do not mount tire chains on ve‐
hicles equipped with aluminum wheels;
snow chains may cause damage to the wheels. If snow chains must be used,
use wire-type chains with a thickness
of less than 12 mm (0.47 in). Damage
to your vehicle caused by improper
snow chain use is not covered by your
vehicle manufacturers warranty.
Install tire chains only on the front tires.
CAUTION
•Make sure the snow chains are thecorrect size and type for yourtires. Incorrect snow chains cancause damage to the vehicle bodyand suspension and may not becovered by your vehicle manufac‐turer warranty. Also, the snowchain connecting hooks may bedamaged from contacting vehiclecomponents causing the snowchains to come loose from the tire.Make sure the snow chains areSAE class "S" certified.
•Always check chain installation forproper mounting after driving ap‐proximately 0.5 to 1 km (0.3 to 0.6miles) to ensure safe mounting.Retighten or remount the chains ifthey are loose.
Chain installation
When installing chains, follow the man‐
ufacturer's instructions and mount them as tightly as you can. Drive slowly
with chains installed. If you hear the
chains contacting the body or chassis, stop and tighten them. If they still
make contact, slow down until it stops.
Remove the chains as soon as you be‐ gin driving on cleared roads.
WARNING
nMounting chains
When mounting snow chains, parkthe vehicle on level ground awayfrom traffic. Turn on the vehicleHazard Warning flashers and place atriangular emergency warning devicebehind the vehicle if available. Al‐ways place the vehicle in P (Park),apply the parking brake and turn offthe engine before installing snowchains.
WARNING
nTire chains
•The use of chains may adverselyaffect vehicle handling.
•Do not exceed 30 km/h (20 mph)or the chain manufacturer’s rec‐ommended speed limit, whicheveris lower.
(Continued)
Driving your vehicle
7-104

(Continued)

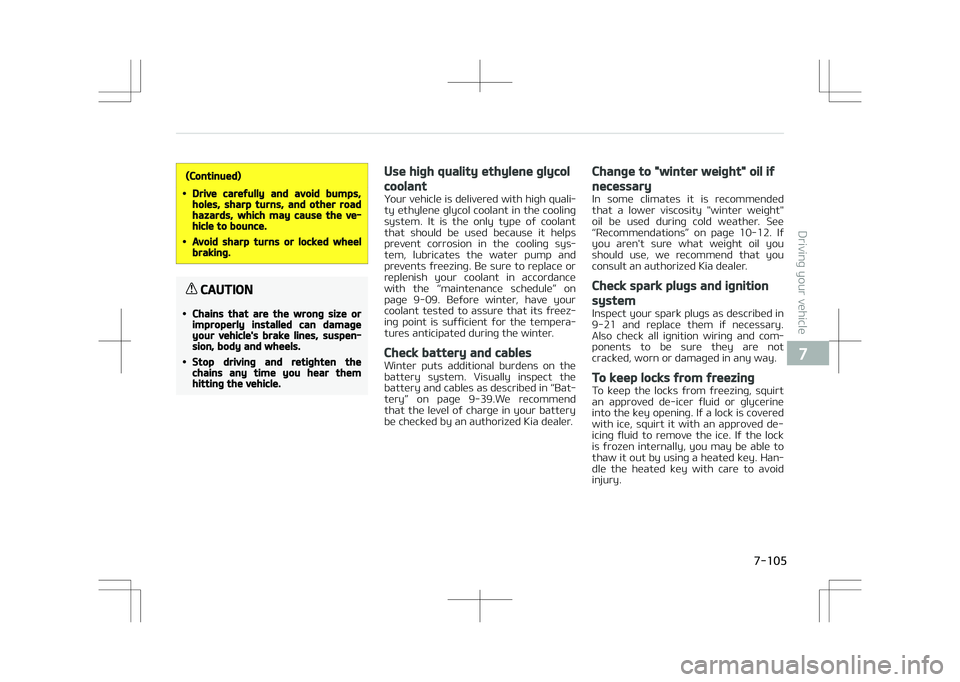

•Drive carefully and avoid bumps,holes, sharp turns, and other roadhazards, which may cause the ve‐hicle to bounce.
•Avoid sharp turns or locked wheelbraking.
CAUTION
•Chains that are the wrong size orimproperly installed can damageyour vehicle's brake lines, suspen‐sion, body and wheels.
•Stop driving and retighten thechains any time you hear themhitting the vehicle.
Use high quality ethylene glycol
coolant
Your vehicle is delivered with high quali‐ty ethylene glycol coolant in the cooling
system. It is the only type of coolant
that should be used because it helps prevent corrosion in the cooling sys‐
tem, lubricates the water pump and
prevents freezing. Be sure to replace or replenish your coolant in accordance
with the L

Use approved window washer
anti-freeze in system
To keep the water in the window wash‐er system from freezing, add an ap‐
proved window washer anti-freeze sol‐
ution in accordance with instructions on the container. Window washer anti-
freeze is available from an authorized
Kia dealer and most auto parts outlets. Do not use engine coolant or other
types of anti-freeze as these may
damage the paint finish.
Don't let your parking brake
freeze
Under some conditions your parking
brake can freeze in the engaged posi‐ tion. This is most likely to happen when
there is an accumulation of snow or ice
around or near the rear brakes or if the brakes are wet. If there is a risk the
parking brake may freeze, apply it only
temporarily while you put the shift lev‐ er in P (Automatic Transaxle / Dual
clutch transmission) or in first or re‐
verse gear (manual transaxle) and block
the rear wheels so the vehicle cannot roll. Then release the parking brake.
Don't let ice and snow
accumulate underneath
Under some conditions, snow and ice can build up under the fenders and in‐
terfere with the steering. When driving
in severe winter conditions where this may happen, you should periodically
check underneath the vehicle to be sure
the movement of the front wheels and the steering components is not ob‐
structed.
Carry emergency equipment
Depending on the severity of the
weather, you should carry appropriate emergency equipment. Some of the
items you may want to carry include
tire chains, tow straps or chains, flash‐ light, emergency flares, sand, shovel,
jumper cables, window scraper, gloves,
ground cloth, coveralls, blanket, etc.
Driving your vehicle
7-106

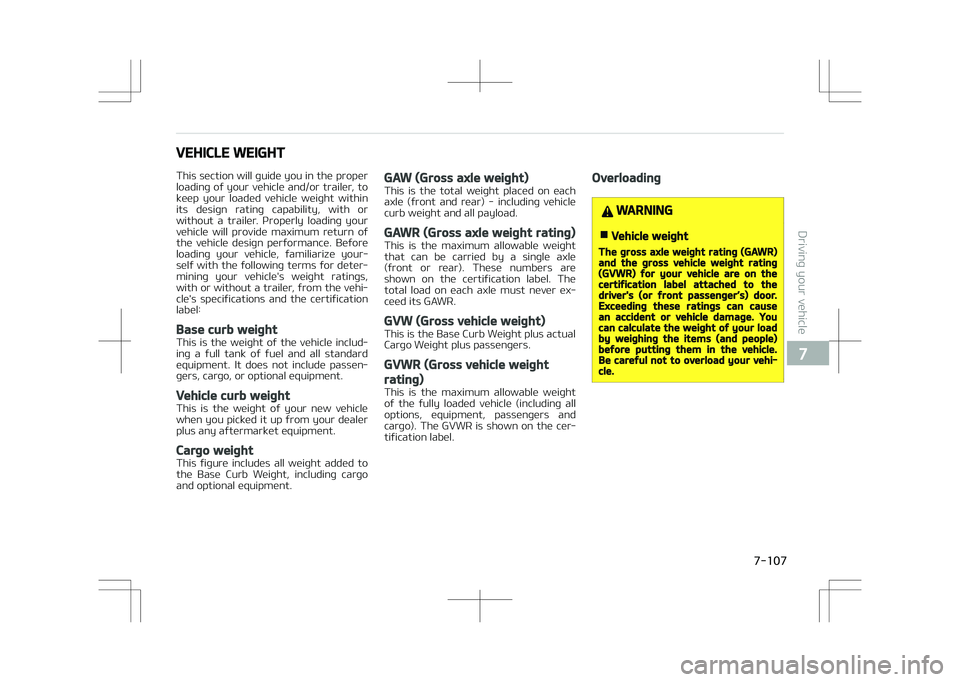

VEHICLE WEIGHT
This section will guide you in the proper
loading of your vehicle and/or trailer, to keep your loaded vehicle weight within
its design rating capability, with or
without a trailer. Properly loading your vehicle will provide maximum return of
the vehicle design performance. Before
loading your vehicle, familiarize your‐ self with the following terms for deter‐
mining your vehicle's weight ratings,
with or without a trailer, from the vehi‐ cle's specifications and the certification
label:
Base curb weight
This is the weight of the vehicle includ‐
ing a full tank of fuel and all standard equipment. It does not include passen‐
gers, cargo, or optional equipment.
Vehicle curb weight
This is the weight of your new vehicle
when you picked it up from your dealer plus any aftermarket equipment.
Cargo weight
This figure includes all weight added to
the Base Curb Weight, including cargo and optional equipment.
GAW (Gross axle weight)
This is the total weight placed on eachaxle (front and rear) - including vehicle
curb weight and all payload.
GAWR (Gross axle weight rating)
This is the maximum allowable weight
that can be carried by a single axle (front or rear). These numbers are
shown on the certification label. The
total load on each axle must never ex‐ ceed its GAWR.
GVW (Gross vehicle weight)
This is the Base Curb Weight plus actual
Cargo Weight plus passengers.
GVWR (Gross vehicle weight
rating)
This is the maximum allowable weight
of the fully loaded vehicle (including all options, equipment, passengers and
cargo). The GVWR is shown on the cer‐
tification label.
Overloading
WARNING
nVehicle weight
The gross axle weight rating (GAWR)and the gross vehicle weight rating(GVWR) for your vehicle are on thecertification label attached to thedriver's (or front passenger’s) door.Exceeding these ratings can causean accident or vehicle damage. Youcan calculate the weight of your loadby weighing the items (and people)before putting them in the vehicle.Be careful not to overload your vehi‐cle.

7-107
7
Driving your vehicle

Road warning............................................................................. 8-02Hazard warning flasher........................................................8-02
In case of an emergency while driving.................................. 8-03 If the engine stalls at a crossroad or crossing................. 8-03
If you have a flat tire while driving.................................... 8-03
If engine stalls while driving................................................ 8-03
If the engine will not start....................................................... 8-04 If engine doesn't turn over or turns over slowly............. 8-04
If engine turns over normally but does not start........... 8-04
Emergency starting.................................................................. 8-05 Jump starting.........................................................................8-05
Push-starting........................................................................ 8-06
If the engine overheats............................................................ 8-07
Tire Pressure Monitoring System (TPMS) ........................... 8-09 Check tire pressure............................................................... 8-09
Low tire pressure position telltale..................................... 8-10
TPMS (Tire Pressure Monitoring System) mal‐
function indicator.................................................................. 8-11
Changing a tire with TPMS.................................................. 8-12
If you have a flat tire (with Tire Mobility Kit).......................8-14 Introduction............................................................................8-14
Components of the Tire Mobility Kit (TMK)......................8-16
Using the TMK....................................................................... 8-17
Distributing the sealant....................................................... 8-19
Checking the tire inflation pressure...................................8-19
Notes on the safe use of the Tire Mobility Kit ............... 8-20
Technical data........................................................................ 8-20
Towing......................................................................................... 8-21 Towing service....................................................................... 8-21
Removable towing hook ..................................................... 8-22 Emergency towing................................................................ 8-22
If an accident occurs................................................................. 8-25
Emergency commodity ........................................................... 8-27 First aid kit............................................................................. 8-27
Triangle reflector.................................................................. 8-27
Tire pressure gauge .............................................................8-27
What to do in an emergency

8

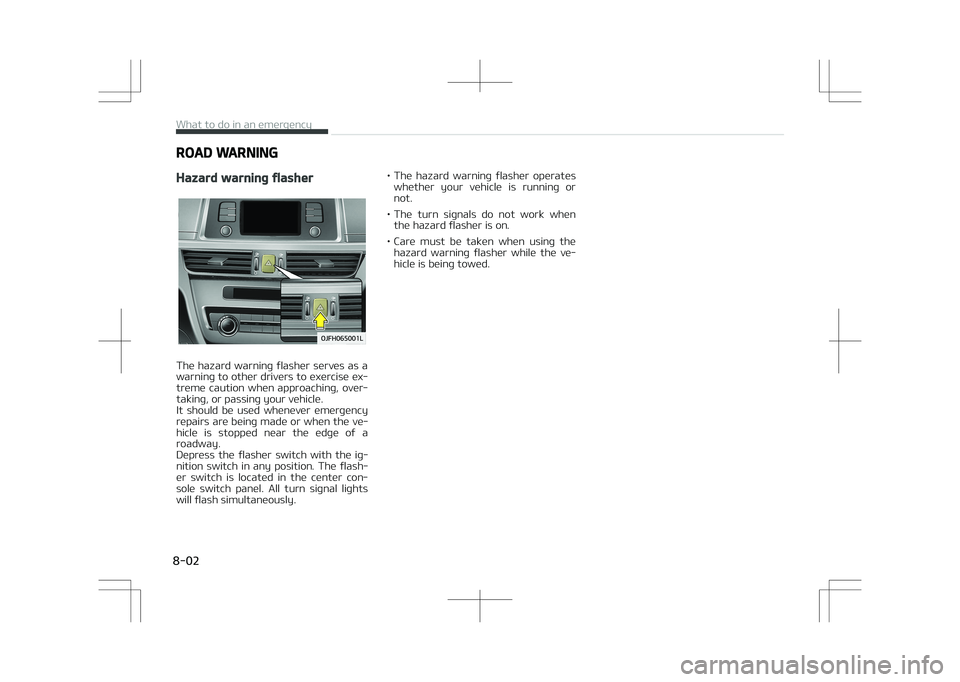

ROAD WARNING
Hazard warning flasher
The hazard warning flasher serves as a
warning to other drivers to exercise ex‐ treme caution when approaching, over‐
taking, or passing your vehicle.
It should be used whenever emergency
repairs are being made or when the ve‐ hicle is stopped near the edge of a
roadway.
Depress the flasher switch with the ig‐
nition switch in any position. The flash‐
er switch is located in the center con‐
sole switch panel. All turn signal lights
will flash simultaneously. • The hazard warning flasher operates
whether your vehicle is running ornot.
• The turn signals do not work when the hazard flasher is on.
• Care must be taken when using the hazard warning flasher while the ve‐
hicle is being towed.
What to do in an emergency
8-02

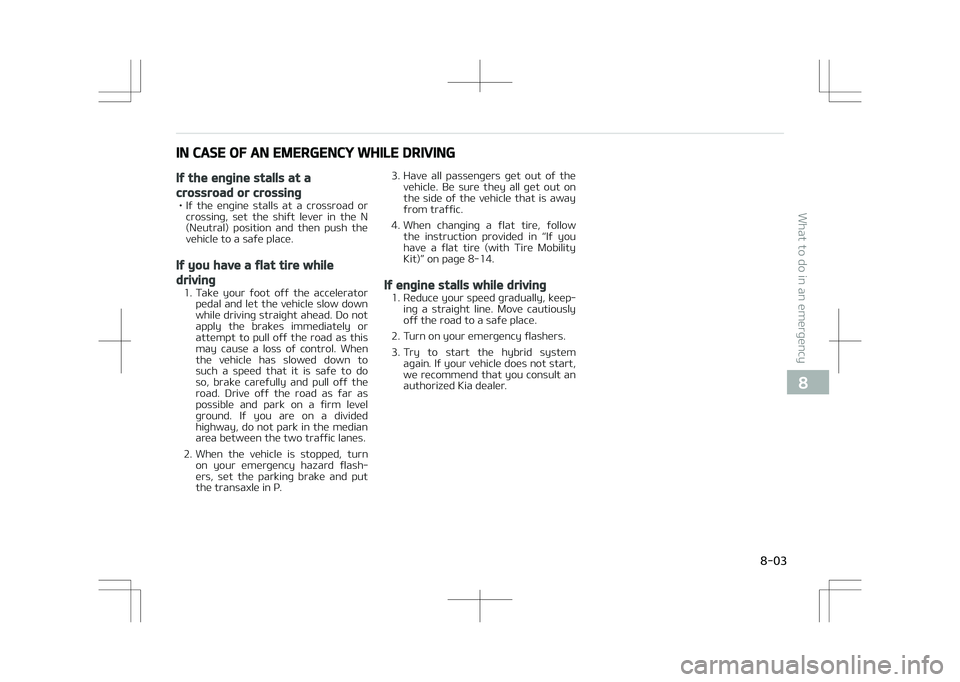

IN CASE OF AN EMERGENCY WHILE DRIVING
If the engine stalls at a
crossroad or crossing
• If the engine stalls at a crossroad orcrossing, set the shift lever in the N
(Neutral) position and then push the vehicle to a safe place.
If you have a flat tire while
driving
1. Take your foot off the accelerator pedal and let the vehicle slow down
while driving straight ahead. Do not
apply the brakes immediately or
attempt to pull off the road as this
may cause a loss of control. When
the vehicle has slowed down to
such a speed that it is safe to do so, brake carefully and pull off the
road. Drive off the road as far as
possible and park on a firm level
ground. If you are on a divided
highway, do not park in the median
area between the two traffic lanes.
2. When the vehicle is stopped, turn on your emergency hazard flash‐
ers, set the parking brake and put
the transaxle in P. 3. Have all passengers get out of the
vehicle. Be sure they all get out onthe side of the vehicle that is away
from traffic.
4. When changing a flat tire, follow the instruction provided in L

IF THE ENGINE WILL NOT START
If engine doesn't turn over or
turns over slowly
1. Be sure the shift lever is in N (Neu‐tral) or P (Park) and the emergency
brake is set.
2. Check the battery connections to be sure they are clean and tight.
3. Turn on the interior light. If the light dims or goes out when you
operate the starter, the battery is
discharged.
4. Check the starter connections to be sure they are securely tightened.
5. Do not push or pull the vehicle to start it. See instructions for L

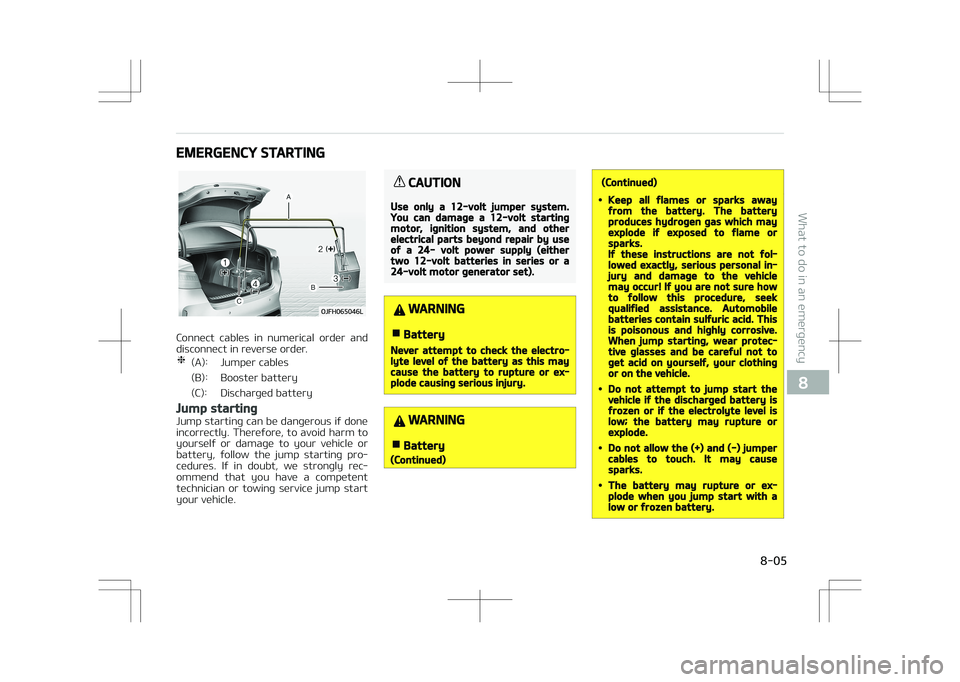

EMERGENCY STARTING
Connect cables in numerical order and
disconnect in reverse order. ❈ (A): Jumper cables
(B): Booster battery
(C): Discharged battery
Jump starting
Jump starting can be dangerous if done
incorrectly. Therefore, to avoid harm to yourself or damage to your vehicle or
battery, follow the jump starting pro‐
cedures. If in doubt, we strongly rec‐ ommend that you have a competent
technician or towing service jump start
your vehicle.
CAUTION
Use only a 12-volt jumper system.You can damage a 12-volt startingmotor, ignition system, and otherelectrical parts beyond repair by useof a 24- volt power supply (eithertwo 12-volt batteries in series or a24-volt motor generator set).
WARNING
nBattery
Never attempt to check the electro‐lyte level of the battery as this maycause the battery to rupture or ex‐plode causing serious injury.
WARNING
nBattery
(Continued)
(Continued)
•Keep all flames or sparks awayfrom the battery. The batteryproduces hydrogen gas which mayexplode if exposed to flame orsparks.If these instructions are not fol‐lowed exactly, serious personal in‐jury and damage to the vehiclemay occur! If you are not sure howto follow this procedure, seekqualified assistance. Automobilebatteries contain sulfuric acid. Thisis poisonous and highly corrosive.When jump starting, wear protec‐tive glasses and be careful not toget acid on yourself, your clothingor on the vehicle.
•Do not attempt to jump start thevehicle if the discharged battery isfrozen or if the electrolyte level islow; the battery may rupture orexplode.
•Do not allow the (+) and (-) jumpercables to touch. It may causesparks.
•The battery may rupture or ex‐plode when you jump start with alow or frozen battery.
