KIA QUORIS 2013 Owners Manual

87
Specifications & Consumer information
*1
: Refer to the recommended SAE viscosity numbers on the next page.
* 2
: Engine oils labeled Energy Conserving Oil are now available. Along with other additional benefits, they contribute to fuel econ -
omy by reducing the amount of fuel necessary to overcome engine friction. Often, these improvements are difficult to measure
in everyday driving, but in a year’s time, they can offer significant cost and energy savings.
* 3
: If the API service SM engine oil is not available in your country, you are able to use API service SL. Lubricant Volume Classification

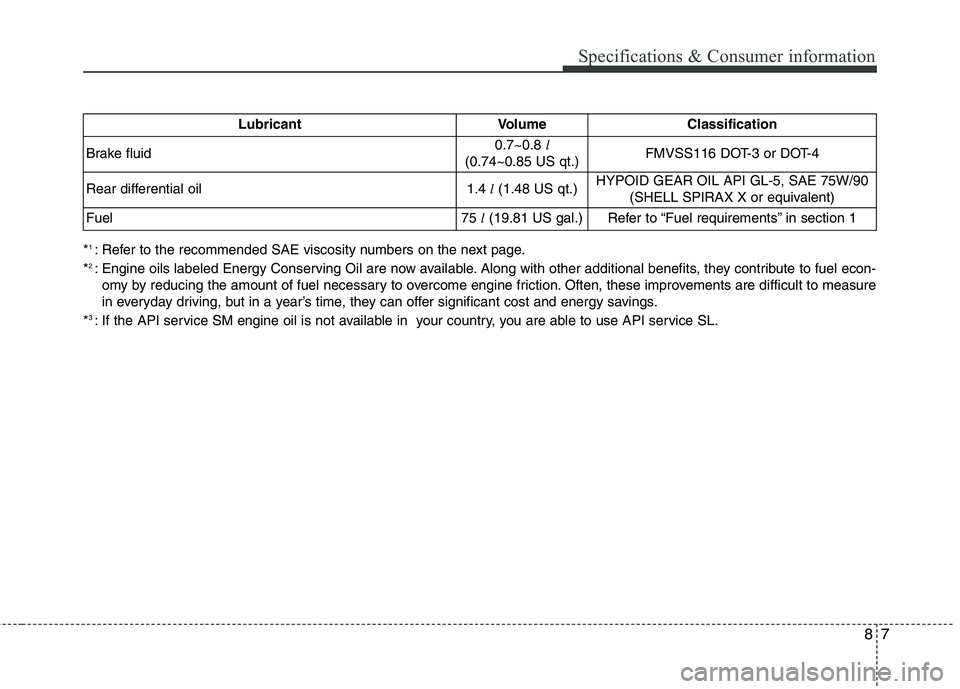

Brake fluid 0.7~0.8
l
(0.74~0.85 US qt.) FMVSS116 DOT-3 or DOT-4
Rear differential oil 1.4
l(1.48 US qt.) HYPOID GEAR OIL API GL-5, SAE 75W/90
(SHELL SPIRAX X or equivalent)
Fuel 75
l(19.81 US gal.)
Refer to “Fuel requirements” in section 1

Specifications & Consumer information
8
8

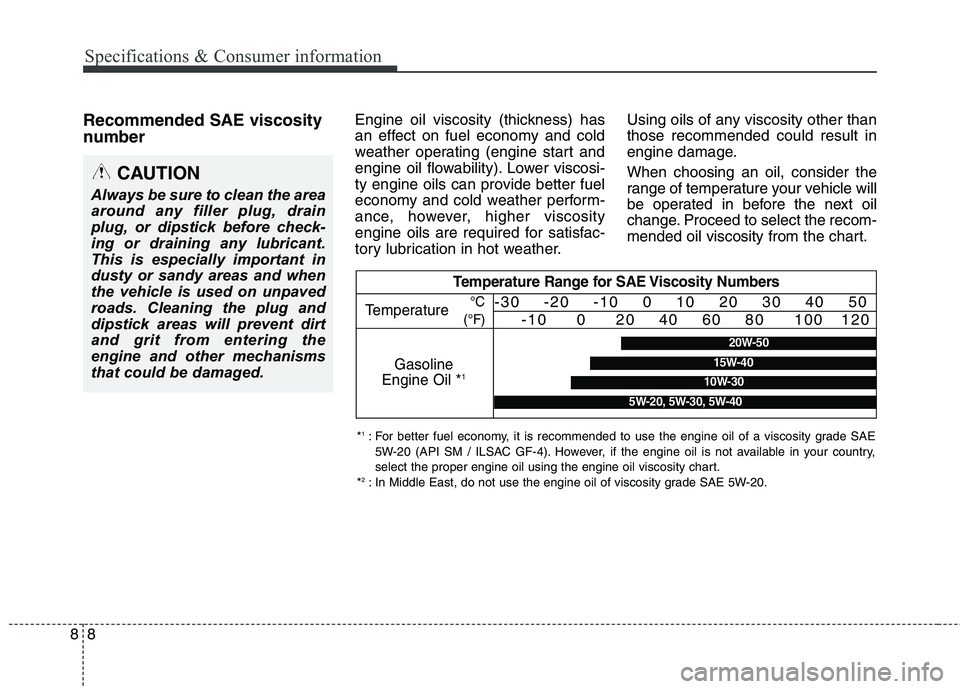

Recommended SAE viscosity
number Engine oil viscosity (thickness) has
an effect on fuel economy and cold
weather operating (engine start and
engine oil flowability). Lower viscosi-
ty engine oils can provide better fuel
economy and cold weather perform-
ance, however, higher viscosity
engine oils are required for satisfac-
tory lubrication in hot weather.Using oils of any viscosity other thanthose recommended could result in
engine damage. When choosing an oil, consider the
range of temperature your vehicle will
be operated in before the next oil
change. Proceed to select the recom-
mended oil viscosity from the chart.
CAUTION
Always be sure to clean the area
around any filler plug, drain
plug, or dipstick before check-
ing or draining any lubricant.
This is especially important in
dusty or sandy areas and when
the vehicle is used on unpaved
roads. Cleaning the plug and
dipstick areas will prevent dirt
and grit from entering the
engine and other mechanisms
that could be damaged.
Temperature Range for SAE Viscosity Numbers
Temperature
Gasoline
Engine Oil * 1°C
(°F)-30 -20 -10 0 10 20 30 40 50 -10 0 20 40 60 80 100 120
*1
: For better fuel economy, it is recommended to use the engine oil of a viscosity grade SAE
5W-20 (API SM / ILSAC GF-4). However, if the engine oil is not available in your country,
select the proper engine oil using the engine oil viscosity chart.
* 2
: In Middle East, do not use the engine oil of viscosity grade SAE 5W-20.
20W-50
10W-30
15W-40
5W-20, 5W-30, 5W-40

89
Specifications & Consumer information

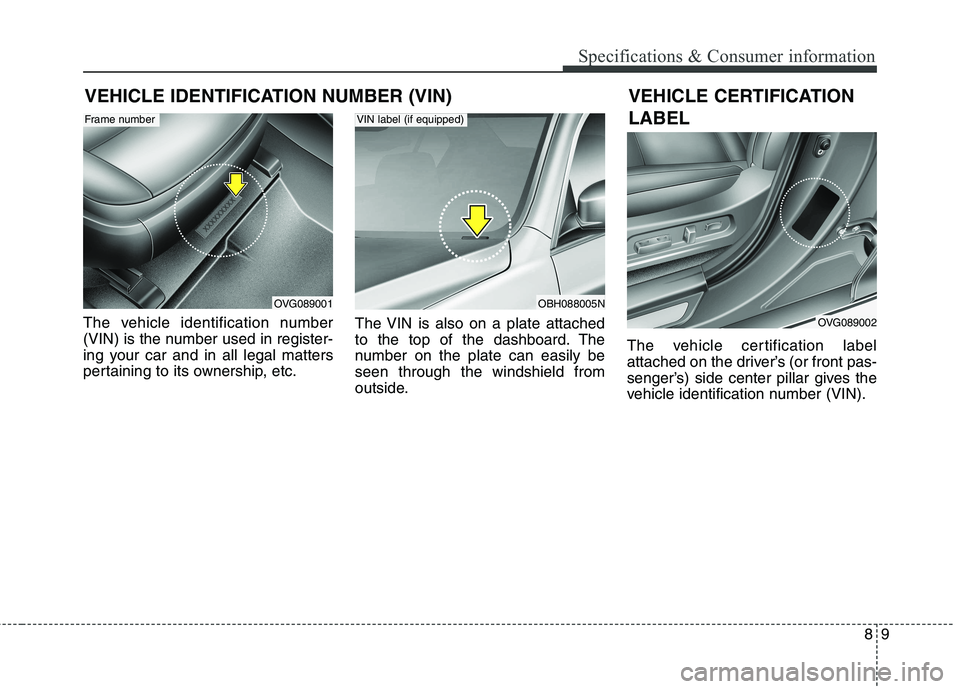

VEHICLE IDENTIFICATION NUMBER (VIN)
The vehicle identification number
(VIN) is the number used in register-
ing your car and in all legal matters
pertaining to its ownership, etc. The VIN is also on a plate attached
to the top of the dashboard. The
number on the plate can easily beseen through the windshield from
outside.
The vehicle certification label
attached on the driver’s (or front pas-
senger’s) side center pillar gives the
vehicle identification number (VIN).
OVG089001OBH088005N
VIN label (if equipped)Frame number
OVG089002
VEHICLE CERTIFICATION LABEL

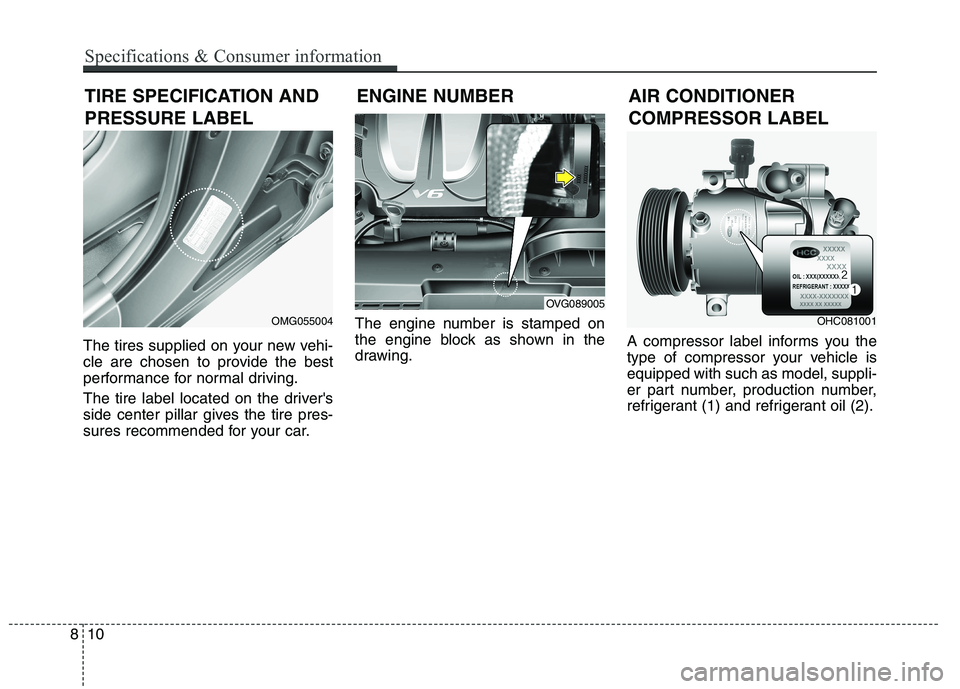

The tires supplied on your new vehi-
cle are chosen to provide the best
performance for normal driving.
The tire label located on the driver's
side center pillar gives the tire pres-
sures recommended for your car.The engine number is stamped on
the engine block as shown in the
drawing.
A compressor label informs you the
type of compressor your vehicle isequipped with such as model, suppli-
er part number, production number,
refrigerant (1) and refrigerant oil (2).
TIRE SPECIFICATION AND PRESSURE LABEL
OMG055004
ENGINE NUMBER
OVG089005
AIR CONDITIONER COMPRESSOR LABEL
OHC081001
810
Specifications & Consumer information

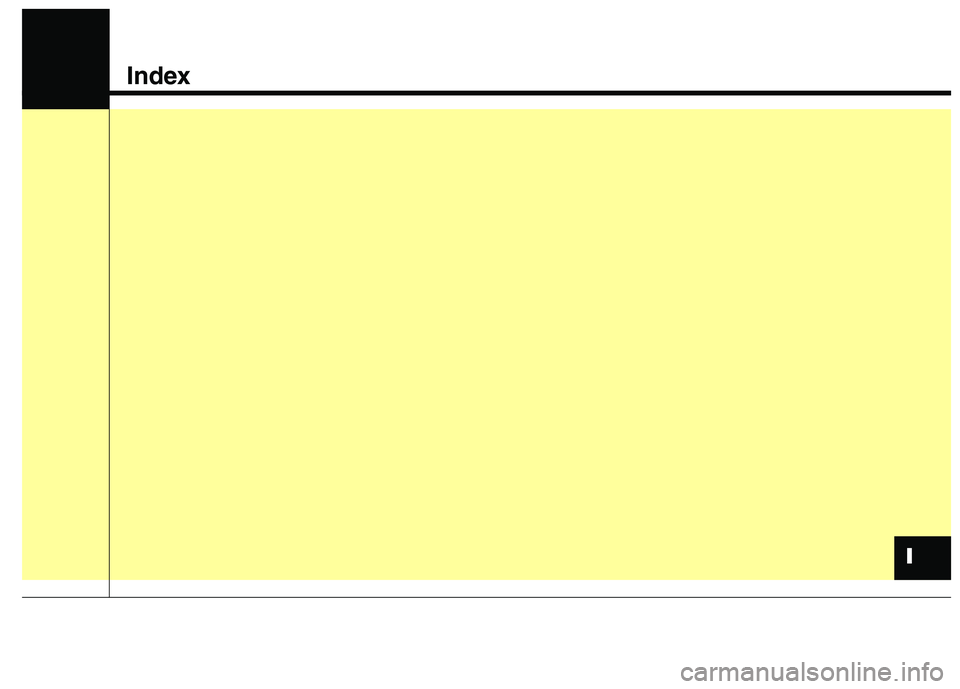

Index
II

Index
2
I

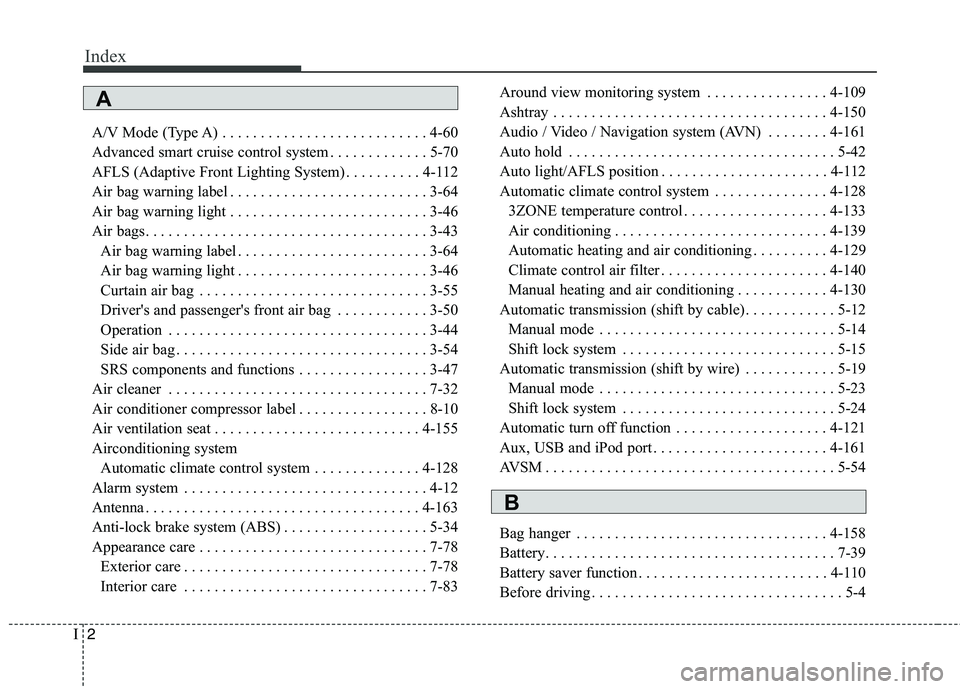

A/V Mode (Type A) . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-60
Advanced smart cruise control system . . . . . . . . . . . . . 5-70
AFLS (Adaptive Front Lighting System) . . . . . . . . . . 4-112
Air bag warning label . . . . . . . . . . . . . . . . . . . . . . . . . . 3-64
Air bag warning light . . . . . . . . . . . . . . . . . . . . . . . . . . 3-46
Air bags. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-43
Air bag warning label . . . . . . . . . . . . . . . . . . . . . . . . . 3-64
Air bag warning light . . . . . . . . . . . . . . . . . . . . . . . . . 3-46
Curtain air bag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-55
Driver's and passenger's front air bag . . . . . . . . . . . . 3-50
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-44
Side air bag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-54
SRS components and functions . . . . . . . . . . . . . . . . . 3-47
Air cleaner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-32
Air conditioner compressor label . . . . . . . . . . . . . . . . . 8-10
Air ventilation seat . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-155
Airconditioning system Automatic climate control system . . . . . . . . . . . . . . 4-128
Alarm system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-12
Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-163
Anti-lock brake system (ABS) . . . . . . . . . . . . . . . . . . . 5-34
Appearance care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-78 Exterior care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-78
Interior care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-83 Around view monitoring system . . . . . . . . . . . . . . . . 4-109
Ashtray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-150
Audio / Video / Navigation system (AVN) . . . . . . . . 4-161
Auto hold . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-42
Auto light/AFLS position . . . . . . . . . . . . . . . . . . . . . . 4-112
Automatic climate control system . . . . . . . . . . . . . . . 4-128
3ZONE temperature control . . . . . . . . . . . . . . . . . . . 4-133
Air conditioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-139
Automatic heating and air conditioning . . . . . . . . . . 4-129
Climate control air filter . . . . . . . . . . . . . . . . . . . . . . 4-140
Manual heating and air conditioning . . . . . . . . . . . . 4-130
Automatic transmission (shift by cable). . . . . . . . . . . . 5-12 Manual mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-14
Shift lock system . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-15
Automatic transmission (shift by wire) . . . . . . . . . . . . 5-19
Manual mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-23
Shift lock system . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-24
Automatic turn off function . . . . . . . . . . . . . . . . . . . . 4-121
Aux, USB and iPod port . . . . . . . . . . . . . . . . . . . . . . . 4-161
AVSM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-54
Bag hanger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-158
Battery. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-39
Battery saver function . . . . . . . . . . . . . . . . . . . . . . . . . 4-110
Before driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-4
A
B

I3
Index

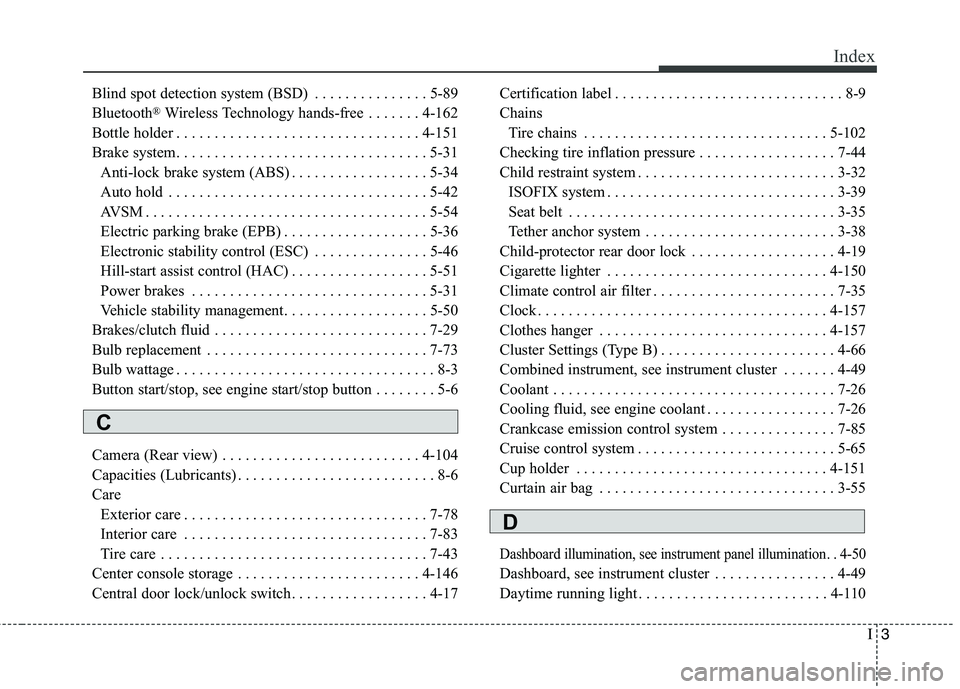

Blind spot detection system (BSD) . . . . . . . . . . . . . . . 5-89
Bluetooth ®
Wireless Technology hands-free . . . . . . . 4-162
Bottle holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-151
Brake system. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-31 Anti-lock brake system (ABS) . . . . . . . . . . . . . . . . . . 5-34
Auto hold . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-42
AVSM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-54
Electric parking brake (EPB) . . . . . . . . . . . . . . . . . . . 5-36
Electronic stability control (ESC) . . . . . . . . . . . . . . . 5-46
Hill-start assist control (HAC) . . . . . . . . . . . . . . . . . . 5-51
Power brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-31
Vehicle stability management. . . . . . . . . . . . . . . . . . . 5-50
Brakes/clutch fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-29
Bulb replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-73
Bulb wattage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-3
Button start/stop, see engine start/stop button . . . . . . . . 5-6
Camera (Rear view) . . . . . . . . . . . . . . . . . . . . . . . . . . 4-104
Capacities (Lubricants) . . . . . . . . . . . . . . . . . . . . . . . . . . 8-6
Care Exterior care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-78
Interior care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-83
Tire care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-43
Center console storage . . . . . . . . . . . . . . . . . . . . . . . . 4-146
Central door lock/unlock switch. . . . . . . . . . . . . . . . . . 4-17 Certification label . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-9
Chains
Tire chains . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-102
Checking tire inflation pressure . . . . . . . . . . . . . . . . . . 7-44
Child restraint system . . . . . . . . . . . . . . . . . . . . . . . . . . 3-32 ISOFIX system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-39
Seat belt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-35
Tether anchor system . . . . . . . . . . . . . . . . . . . . . . . . . 3-38
Child-protector rear door lock . . . . . . . . . . . . . . . . . . . 4-19
Cigarette lighter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-150
Climate control air filter . . . . . . . . . . . . . . . . . . . . . . . . 7-35
Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-157
Clothes hanger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-157
Cluster Settings (Type B) . . . . . . . . . . . . . . . . . . . . . . . 4-66
Combined instrument, see instrument cluster . . . . . . . 4-49
Coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-26
Cooling fluid, see engine coolant . . . . . . . . . . . . . . . . . 7-26
Crankcase emission control system . . . . . . . . . . . . . . . 7-85
Cruise control system . . . . . . . . . . . . . . . . . . . . . . . . . . 5-65
Cup holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-151
Curtain air bag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-55
Dashboard illumination, see instrument panel illumination . . 4-50
Dashboard, see instrument cluster . . . . . . . . . . . . . . . . 4-49
Daytime running light . . . . . . . . . . . . . . . . . . . . . . . . . 4-110
C
D

Index
4
I

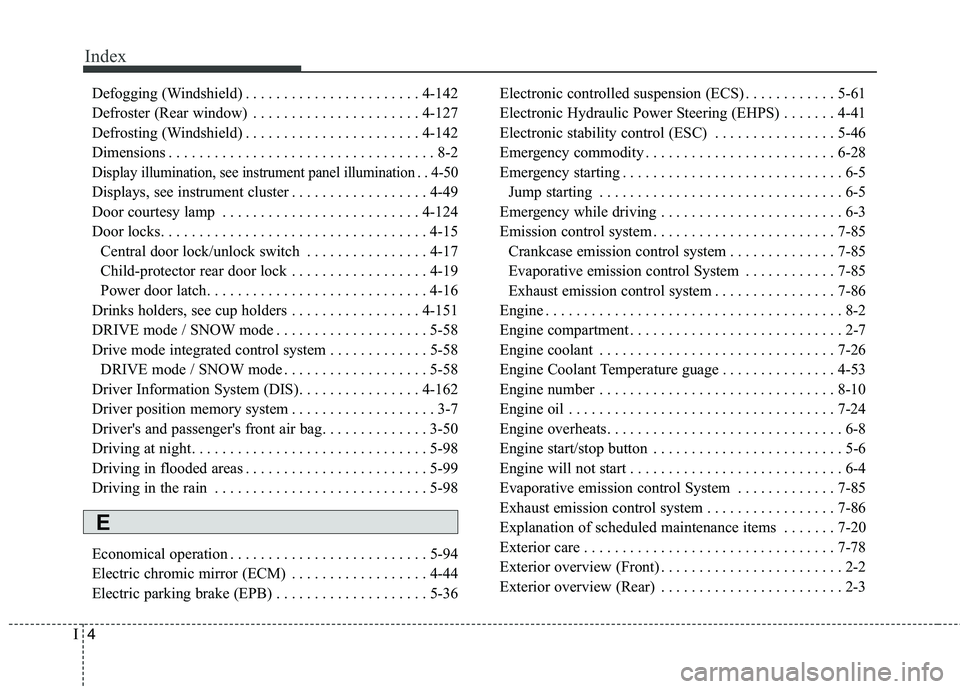

Defogging (Windshield) . . . . . . . . . . . . . . . . . . . . . . . 4-142
Defroster (Rear window) . . . . . . . . . . . . . . . . . . . . . . 4-127
Defrosting (Windshield) . . . . . . . . . . . . . . . . . . . . . . . 4-142
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-2
Display illumination, see instrument panel illumination . . 4-50
Displays, see instrument cluster . . . . . . . . . . . . . . . . . . 4-49
Door courtesy lamp . . . . . . . . . . . . . . . . . . . . . . . . . . 4-124
Door locks. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-15
Central door lock/unlock switch . . . . . . . . . . . . . . . . 4-17
Child-protector rear door lock . . . . . . . . . . . . . . . . . . 4-19
Power door latch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-16
Drinks holders, see cup holders . . . . . . . . . . . . . . . . . 4-151
DRIVE mode / SNOW mode . . . . . . . . . . . . . . . . . . . . 5-58
Drive mode integrated control system . . . . . . . . . . . . . 5-58 DRIVE mode / SNOW mode . . . . . . . . . . . . . . . . . . . 5-58
Driver Information System (DIS). . . . . . . . . . . . . . . . 4-162
Driver position memory system . . . . . . . . . . . . . . . . . . . 3-7
Driver's and passenger's front air bag. . . . . . . . . . . . . . 3-50
Driving at night. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-98
Driving in flooded areas . . . . . . . . . . . . . . . . . . . . . . . . 5-99
Driving in the rain . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-98
Economical operation . . . . . . . . . . . . . . . . . . . . . . . . . . 5-94
Electric chromic mirror (ECM) . . . . . . . . . . . . . . . . . . 4-44
Electric parking brake (EPB) . . . . . . . . . . . . . . . . . . . . 5-36 Electronic controlled suspension (ECS) . . . . . . . . . . . . 5-61
Electronic Hydraulic Power Steering (EHPS) . . . . . . . 4-41
Electronic stability control (ESC) . . . . . . . . . . . . . . . . 5-46
Emergency commodity . . . . . . . . . . . . . . . . . . . . . . . . . 6-28
Emergency starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-5
Jump starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-5
Emergency while driving . . . . . . . . . . . . . . . . . . . . . . . . 6-3
Emission control system . . . . . . . . . . . . . . . . . . . . . . . . 7-85 Crankcase emission control system . . . . . . . . . . . . . . 7-85
Evaporative emission control System . . . . . . . . . . . . 7-85
Exhaust emission control system . . . . . . . . . . . . . . . . 7-86
Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-2
Engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7
Engine coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-26
Engine Coolant Temperature guage . . . . . . . . . . . . . . . 4-53
Engine number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-10
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-24
Engine overheats. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-8
Engine start/stop button . . . . . . . . . . . . . . . . . . . . . . . . . 5-6
Engine will not start . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-4
Evaporative emission control System . . . . . . . . . . . . . 7-85
Exhaust emission control system . . . . . . . . . . . . . . . . . 7-86
Explanation of scheduled maintenance items . . . . . . . 7-20
Exterior care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-78
Exterior overview (Front) . . . . . . . . . . . . . . . . . . . . . . . . 2-2
Exterior overview (Rear) . . . . . . . . . . . . . . . . . . . . . . . . 2-3
E

I5
Index
Feeling (Haptic switch feeling) (Type B) . . . . . . . . . . . 4-67
Flat tire (with spare tire) . . . . . . . . . . . . . . . . . . . . . . . . 6-15
Changing tires. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-16
Jack and tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-15
Removing and storing the spare tire . . . . . . . . . . . . . 6-16
Floor mat anchor(s) . . . . . . . . . . . . . . . . . . . . . . . . . . 4-157
Fluid Brakes/clutch fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-29
Power steering fluid . . . . . . . . . . . . . . . . . . . . . . . . . . 7-30
Washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-31
Fog light (front) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-116
Fog light (rear) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-116
Front blind spot monitoring system . . . . . . . . . . . . . . 4-108
Front lamp switch (Type A) . . . . . . . . . . . . . . . . . . . . 4-121
Front lamp switch (Type B) . . . . . . . . . . . . . . . . . . . . 4-123
Front seat adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4
Fuel filler lid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-34
Fuel Gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-54
Fuel requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
Fuse switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-55
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-53
Fuse switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-55
Fuse/relay panel description . . . . . . . . . . . . . . . . . . . . 7-57
Instrument panel fuse . . . . . . . . . . . . . . . . . . . . . . . . . 7-54 Main fuse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-56
Multi fuse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-57
Gauges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-52
Glove box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-147
Glove box lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-125
Gross vehicle weight . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-5
Hazard warning flasher. . . . . . . . . . . . . . . . . . . . . . . . . . 6-2
Hazardous driving conditions . . . . . . . . . . . . . . . . . . . . 5-96
Head up display (HUD) . . . . . . . . . . . . . . . . . . . . . . . . 4-96
Headlight (Headlamp) escort function . . . . . . . . . . . . 4-110
Headlight bulb replacement . . . . . . . . . . . . . . . . . . . . . 7-74
Headlight leveling device . . . . . . . . . . . . . . . . . . . . . . 4-117
Headlight position . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-113
Headlight washer . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-117
Headlight(Headlamp) welcome . . . . . . . . . . . . . . . . . 4-126
Headrest(front) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-8
Headrest(rear) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-16
Heated steering wheel. . . . . . . . . . . . . . . . . . . . . . . . . . 4-42
Heater Automatic climate control system . . . . . . . . . . . . . . 4-128
Height adjustment(front seat) . . . . . . . . . . . . . . . . . . . . 3-22
F
G
H

Index
6
I
High - beam operation . . . . . . . . . . . . . . . . . . . . . . . . 4-114
Highway driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-99
Hill-start assist control (HAC) . . . . . . . . . . . . . . . . . . . 5-51
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-32
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-43
How to use this manual . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
HUD Settings (Type B) . . . . . . . . . . . . . . . . . . . . . . . . 4-65
Indicator light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-91
Inside rearview mirror . . . . . . . . . . . . . . . . . . . . . . . . . 4-44
Instrument cluster . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-49
Gauges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-52
Instrument panel illumination . . . . . . . . . . . . . . . . . . 4-50
LCD Display Control . . . . . . . . . . . . . . . . . . . . . . . . . 4-51
Transaxle Shift Indicator . . . . . . . . . . . . . . . . . . . . . . 4-55
Instrument panel fuse . . . . . . . . . . . . . . . . . . . . . . . . . . 7-54
Interior care. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-83
Interior features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-150 Air ventilation seat . . . . . . . . . . . . . . . . . . . . . . . . . . 4-155
Ashtray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-150
Bag hanger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-158
Bottle holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-151
Cigarette lighter . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-150
Clock. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-157
Clothes hanger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-157 Cup holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-151
Floor mat anchor(s) . . . . . . . . . . . . . . . . . . . . . . . . . 4-157
Luggage net (holder) . . . . . . . . . . . . . . . . . . . . . . . . 4-159
Power outlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-152
Rear curtain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-159
Rear mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-158
Seat warmer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-153
Side curtain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-160
Sunvisor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-151
Interior light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-121
Automatic turn off function . . . . . . . . . . . . . . . . . . . 4-121
Door courtesy lamp . . . . . . . . . . . . . . . . . . . . . . . . . 4-124
Front lamp switch (Type A) . . . . . . . . . . . . . . . . . . . 4-121
Front lamp switch (Type B) . . . . . . . . . . . . . . . . . . . 4-123
Glove box lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-125
Rear lamp switch (Type A) . . . . . . . . . . . . . . . . . . . 4-122
Rear lamp switch (Type B) . . . . . . . . . . . . . . . . . . . 4-124
Trunk room lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-124
Vanity mirror lamp . . . . . . . . . . . . . . . . . . . . . . . . . . 4-125
Interior light welcome . . . . . . . . . . . . . . . . . . . . . . . . 4-126
Interior overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4
ISOFIX system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-39
Jack and tools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-15
Jump starting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-5
J
I
