KIA QUORIS 2013  Owners Manual 755
Maintenance

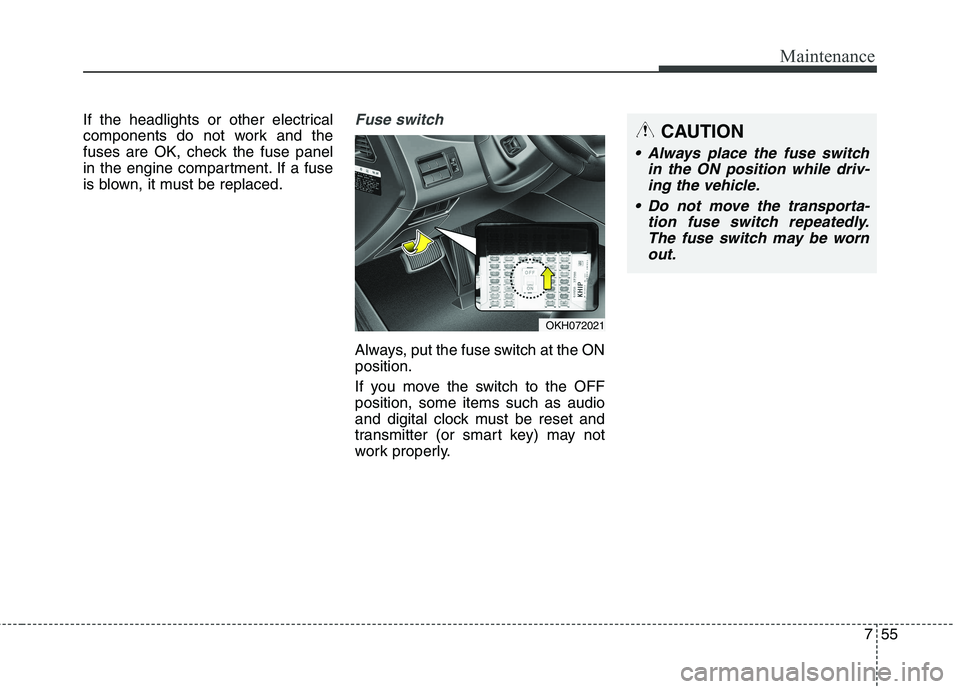

If the headlights or other electrical
components do not work and the
fuses are OK, check the fuse panel
in the engine compartment. If a fuse
is blown, it must be replaced.Fuse switch

Page 432 of 485

KIA QUORIS 2013  Owners Manual Maintenance
56
7

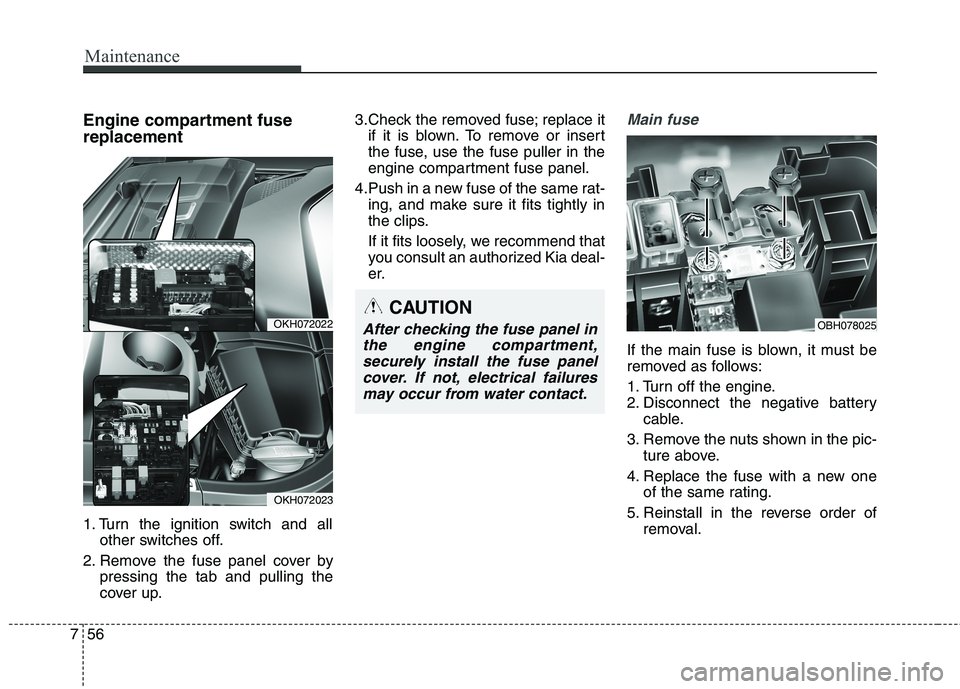

Engine compartment fuse replacement
1. Turn the ignition switch and all
other switches off.
2. Remove the fuse panel cover by pressing the tab and pulling the
cover up. 3.Check the

Page 433 of 485

KIA QUORIS 2013  Owners Manual 757
Maintenance

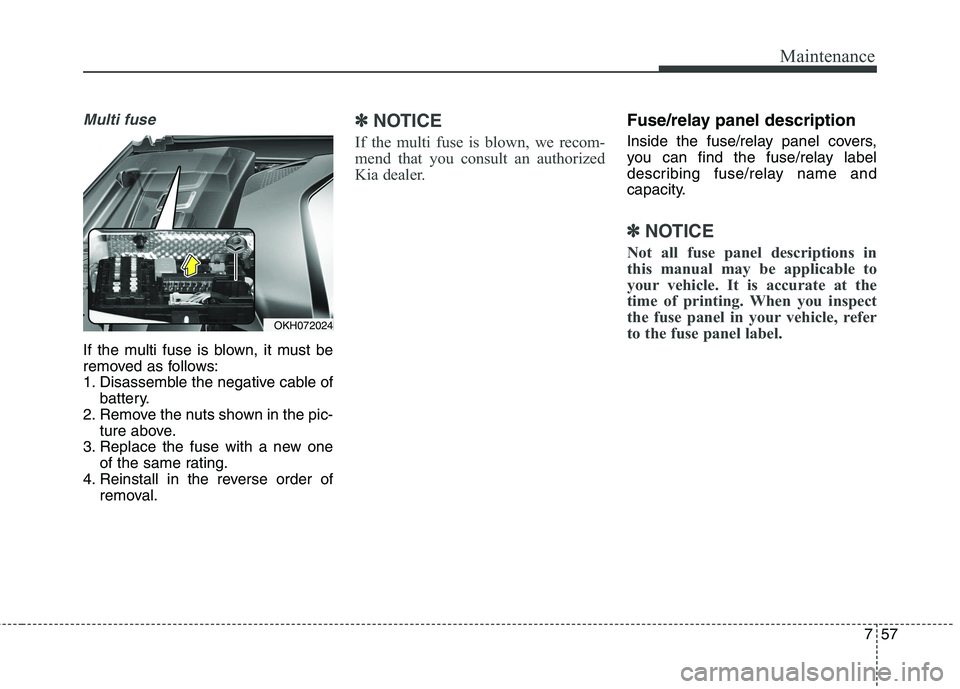

Multi fuse
If the multi fuse is blown, it must be
removed as follows:
1. Disassemble the negative cable ofbattery.
2. Remove the nuts shown in the pic- ture above.
3. Replace the fuse

Page 434 of 485

KIA QUORIS 2013  Owners Manual Maintenance
58
7

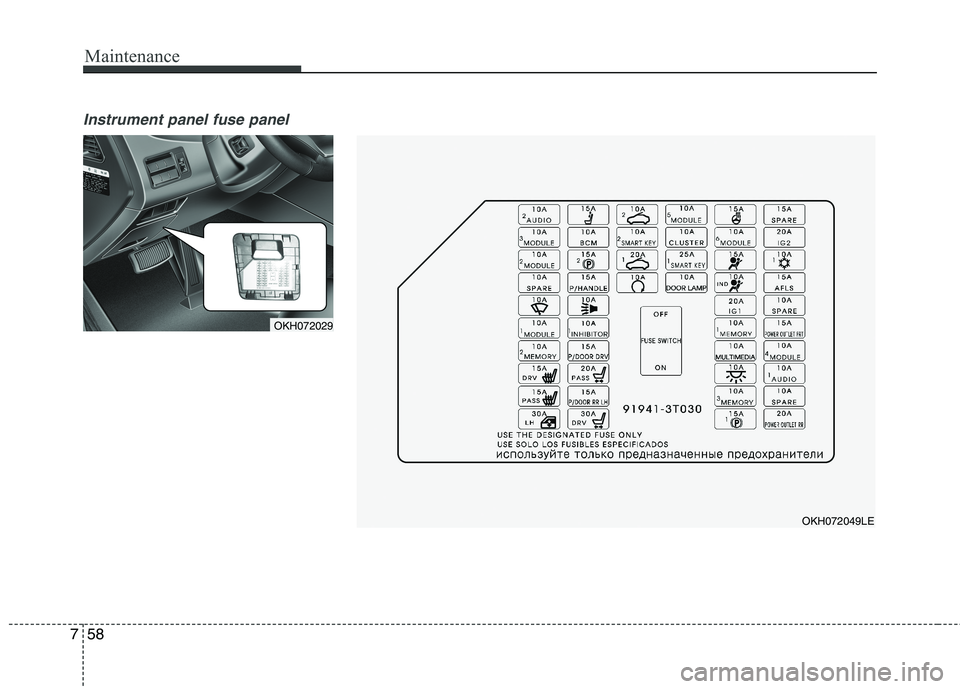

Instrument panel fuse panel
OKH072049LE
OKH072029

Page 435 of 485

KIA QUORIS 2013  Owners Manual 759
Maintenance
Fuse NameSymbolFuse rastingCircuit Protected
AUDIO 210AA/V & Navigation Head Unit
MODULE 310A
A/C Control Module, Electro Chromic Mirror, Rear Seat Console Switch, Driver Haptic Contro

Page 436 of 485

KIA QUORIS 2013  Owners Manual Maintenance
60
7
Fuse NameSymbolFuse rastingCircuit Protected
B/ALARM10ABCM
NHIBITOR10AW/O Electric ATM Shift Lever  : Sport Mode Switch
With Electric ATM Shift Lever  : Electric ATM Shift Lever
P/DR

Page 437 of 485

KIA QUORIS 2013  Owners Manual 761
Maintenance
Fuse NameSymbolFuse rastingCircuit Protected
MODULE 610ASmart Key Control Module, BCM
A/BAG15ADriver Seat Belt Pretensioner, Passenger Seat Belt Pretensioner, SRS Control Module
A/BAG

Page 438 of 485

KIA QUORIS 2013  Owners Manual Maintenance
62
7
Fuse NameSymbolFuse rastingCircuit Protected

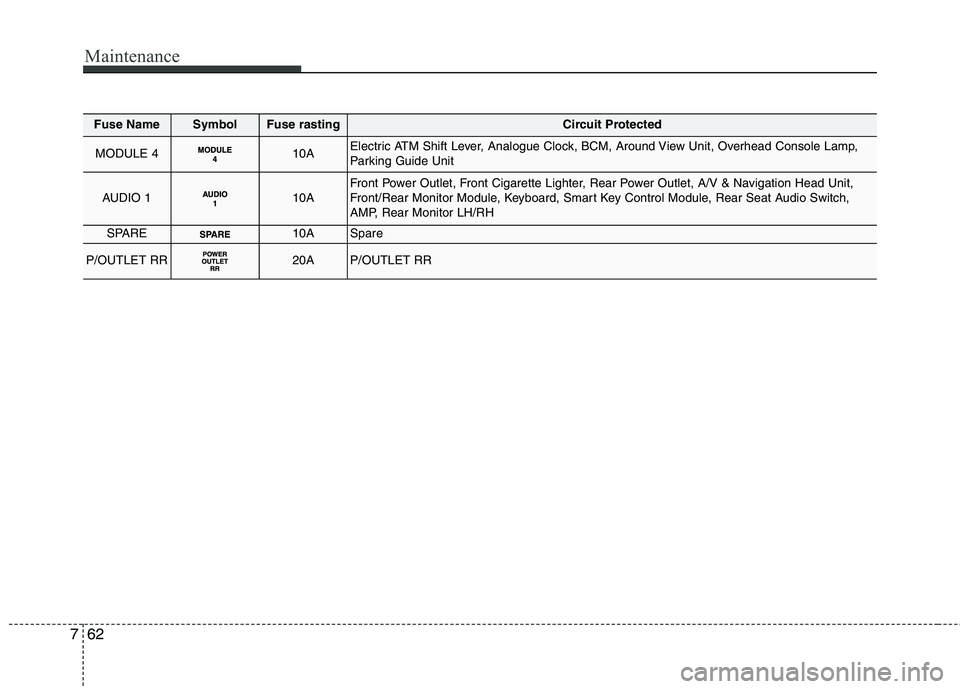

MODULE 410AElectric ATM Shift Lever, Analogue Clock, BCM, Around View Unit, Overhead Console Lamp,
Parking Guide Unit
AUDIO 110AFront Pow

Page 439 of 485

KIA QUORIS 2013  Owners Manual 763
Maintenance

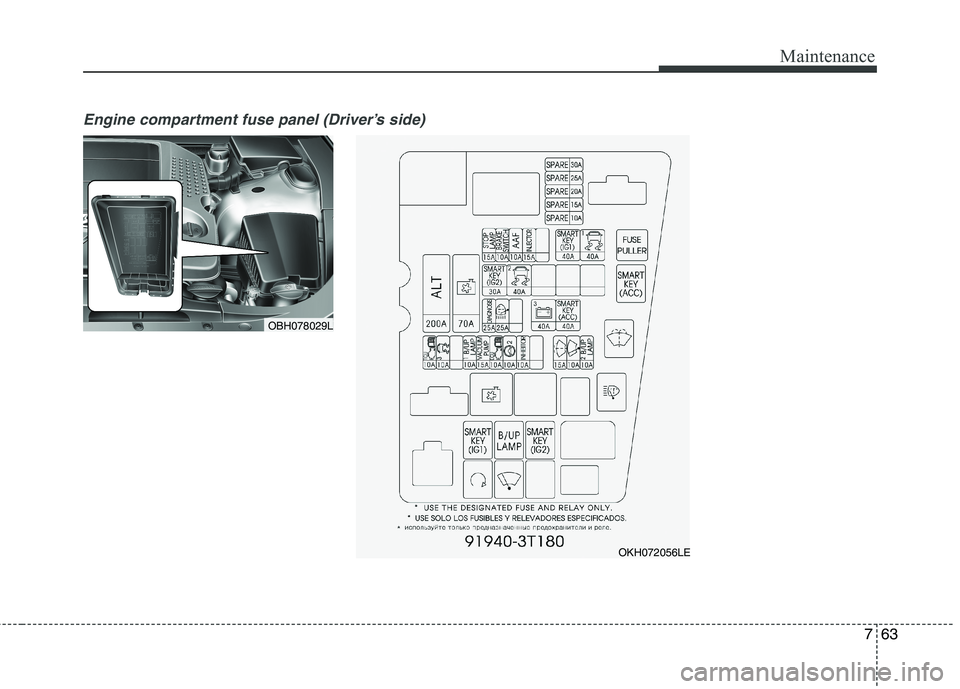

Engine compartment fuse panel (Driver’s side)
OBH078029L
OKH072056LE

Page 440 of 485

KIA QUORIS 2013  Owners Manual Maintenance
64
7
Fuse NameSymbolFuse rastingCircuit Protected
Stop Lamp15AStop Signal Electronic Module
Brake SW10AStop Lamp Switch, Smart Key Control Module
AAF10ANot Used
Injector15ANot Used
SMK (IG
