Page 461 of 485

KIA QUORIS 2013  Owners Manual 785
Maintenance

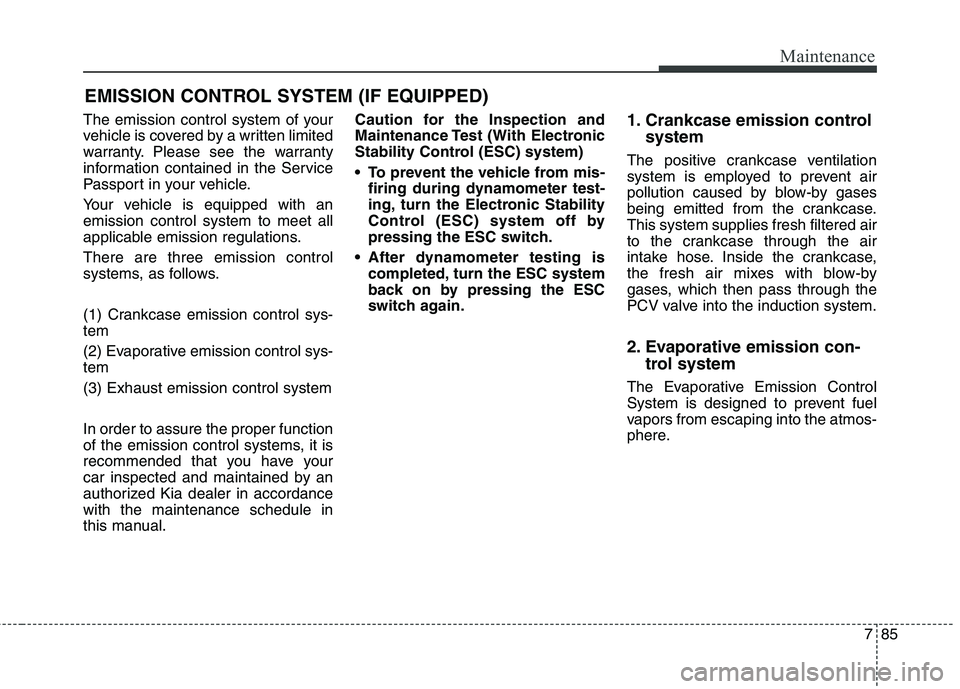

EMISSION CONTROL SYSTEM (IF EQUIPPED)
The emission control system of your
vehicle is covered by a written limited
warranty. Please see the warranty
information contained in the Servic

Page 462 of 485

KIA QUORIS 2013  Owners Manual Maintenance
86
7

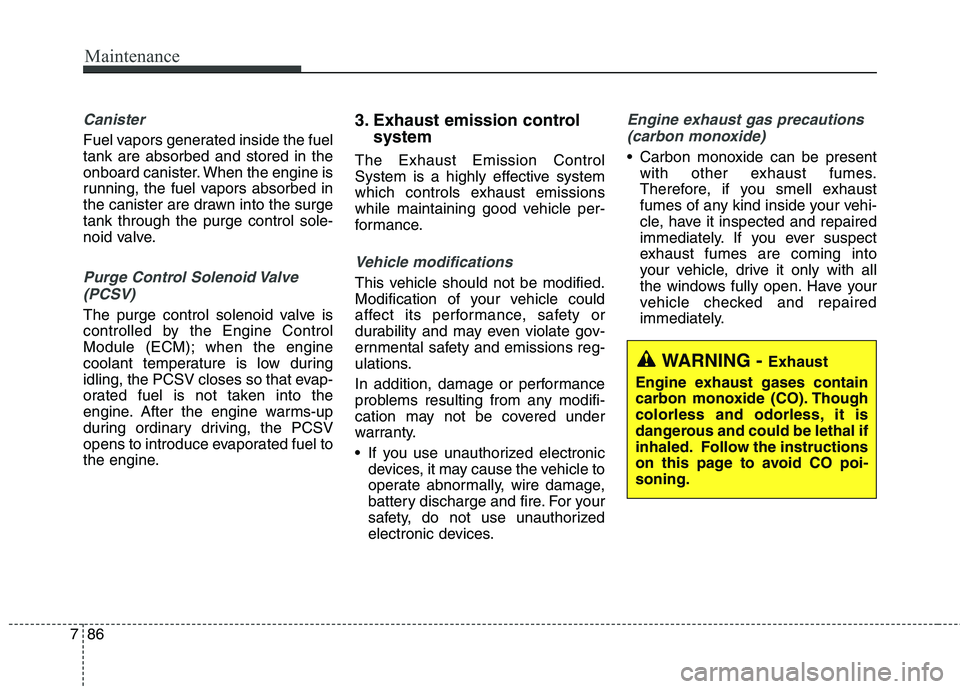

Canister
Fuel vapors generated inside the fuel tank are absorbed and stored in the
onboard canister. When the engine is
running, the fuel vapors absorbed in
the canister are drawn int

Page 463 of 485

KIA QUORIS 2013  Owners Manual 787
Maintenance

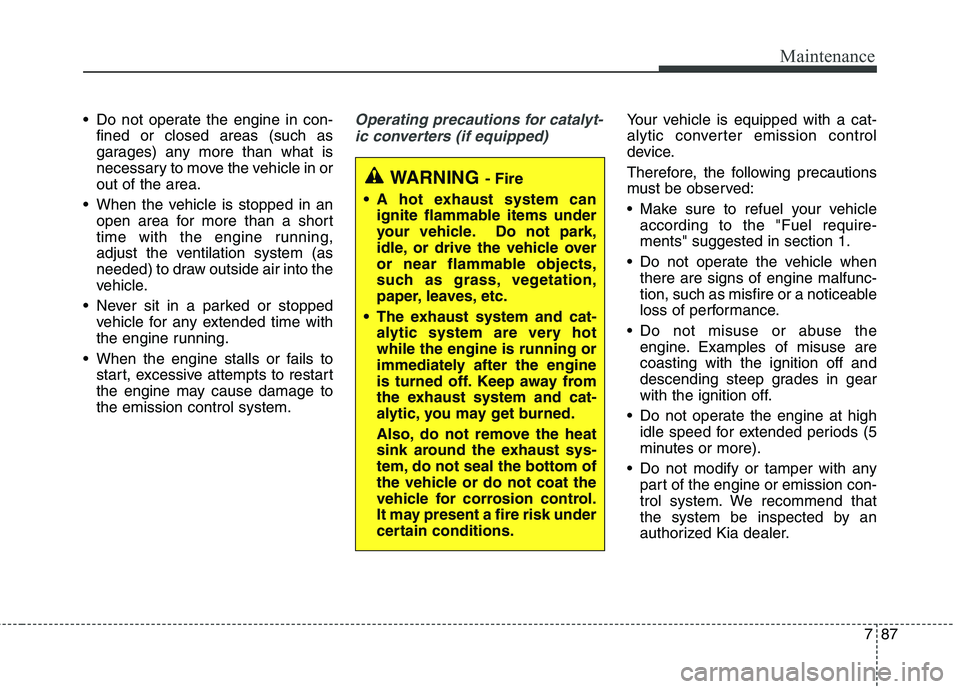

 Do not operate the engine in con-fined or closed areas (such as
garages) any more than what is
necessary to move the vehicle in orout of the area.
 When the vehicle is stopped in an

Page 464 of 485

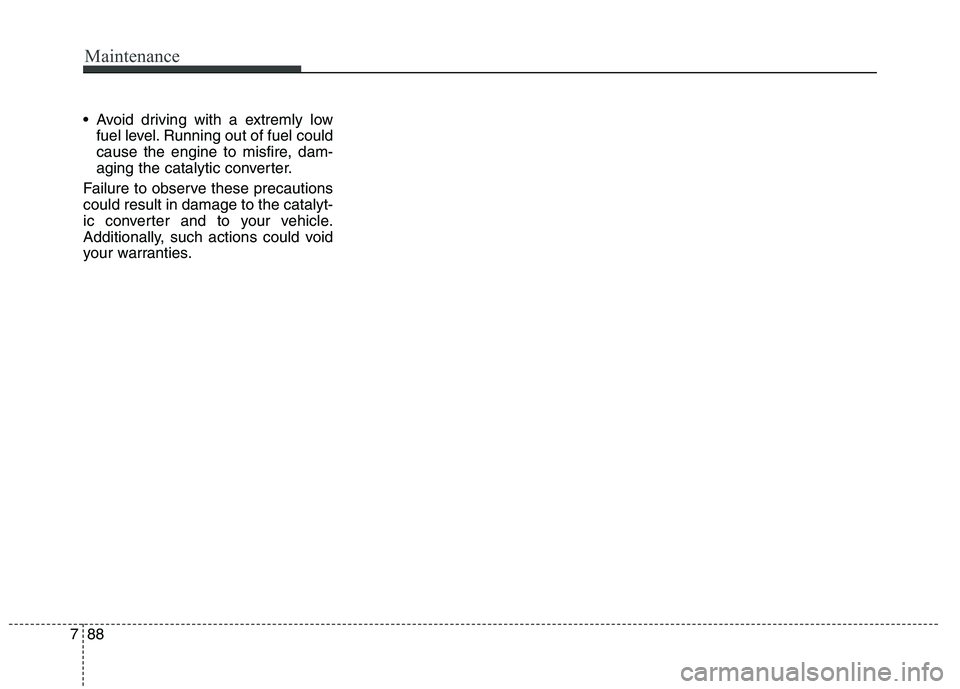

KIA QUORIS 2013  Owners Manual Maintenance
88
7
 Avoid driving with a extremly low
fuel level. Running out of fuel could
cause the engine to misfire, dam-
aging the catalytic converter.
Failure to observe these precautionscould re

Page 465 of 485

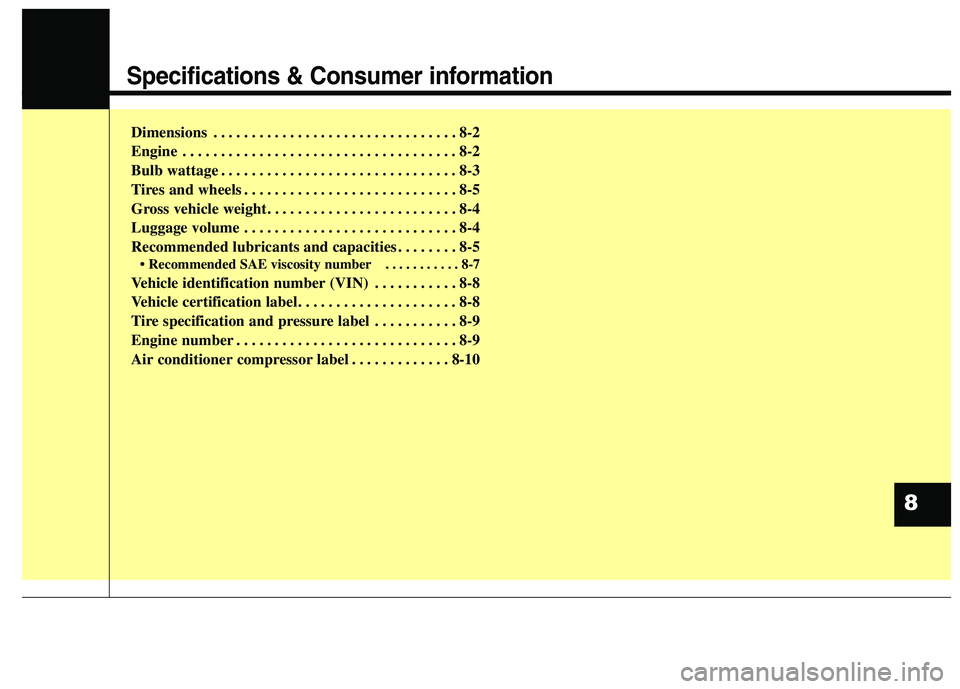

KIA QUORIS 2013  Owners Manual Specifications & Consumer information
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-2
Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-2

Page 466 of 485

KIA QUORIS 2013  Owners Manual Specifications & Consumer information
2
8

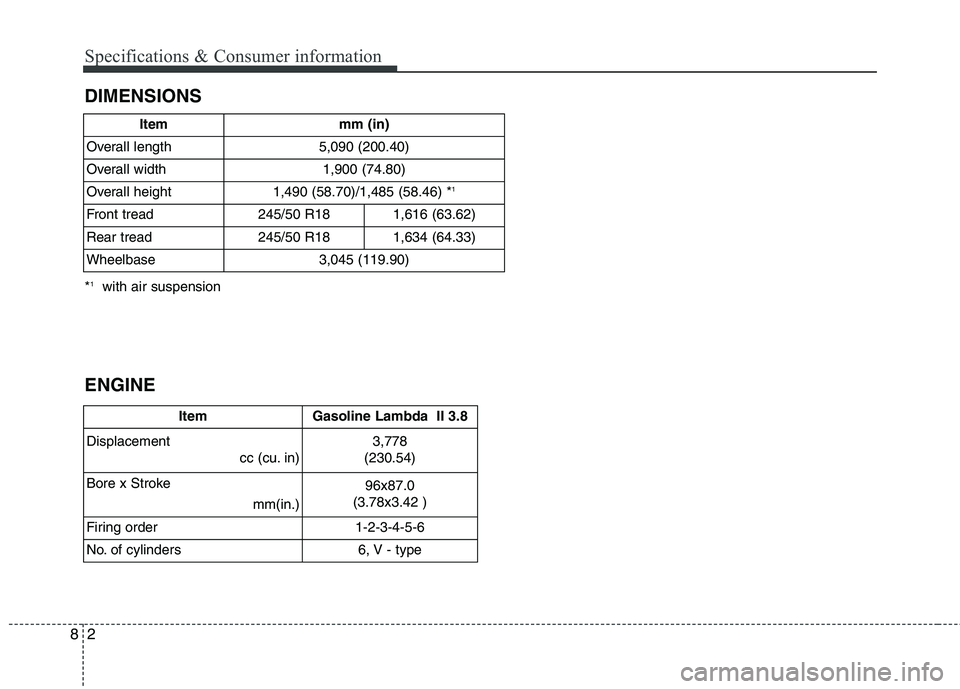

DIMENSIONS
Item mm (in)
Overall length 5,090 (200.40)
Overall width  1,900 (74.80)
Overall height 1,490 (58.70)/1,485 (58.46) * 1
Front tread  245/50 R18 1,6

Page 467 of 485

KIA QUORIS 2013  Owners Manual 83
Specifications & Consumer information
BULB WATTAGE
* : If equippedLight Bulb Wattage Bulb type
Front LED Type
Headlamps (Low) LED LED
Headlamps (High) LED LED
HID Type Headlamps (Low) 35 D3S
Headla

Page 468 of 485

KIA QUORIS 2013  Owners Manual Specifications & Consumer information
4
8

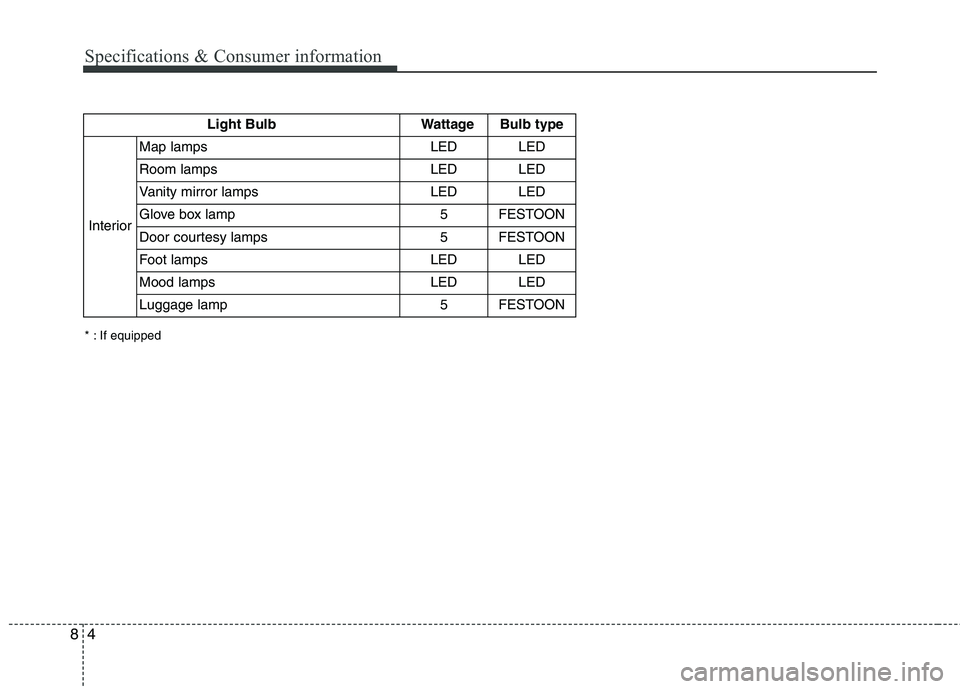

Light Bulb Wattage Bulb type
Interior Map lamps LED LED
Room lamps LED LED
Vanity mirror lamps  LED LED
Glove box lamp 5 FESTOON
Door courtesy lamps  5 FESTO

Page 469 of 485

KIA QUORIS 2013  Owners Manual 85
Specifications & Consumer information

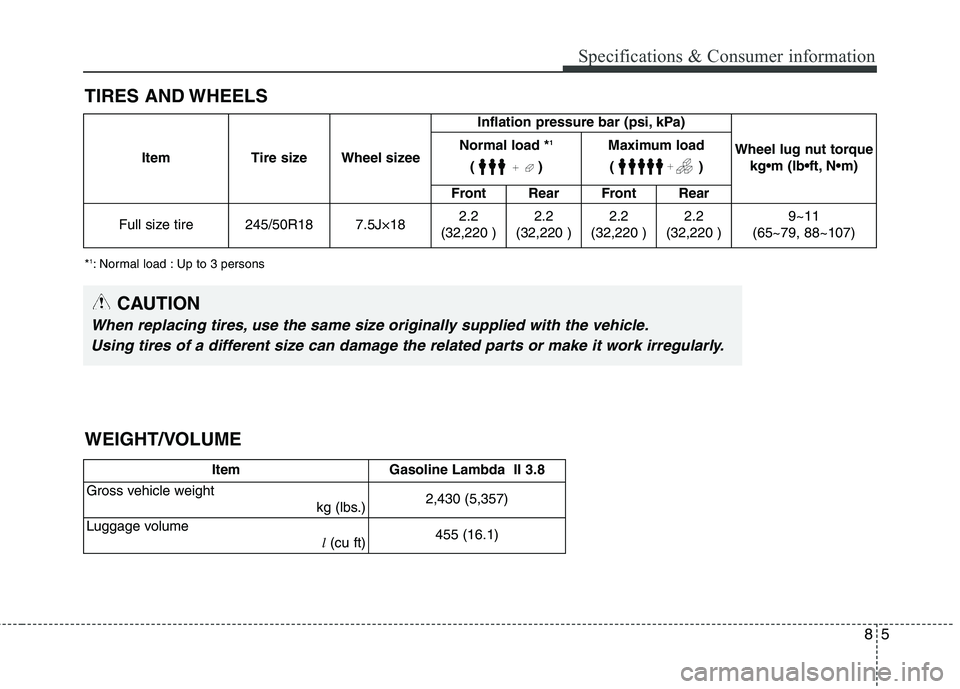

TIRES AND WHEELS *1
: Normal load : Up to 3 persons Item Tire size Wheel sizee
Inflation pressure bar (psi, kPa)
Wheel lug nut torque
Normal load *
1
()
Maxi

Page 470 of 485

KIA QUORIS 2013  Owners Manual Specifications & Consumer information
6
8

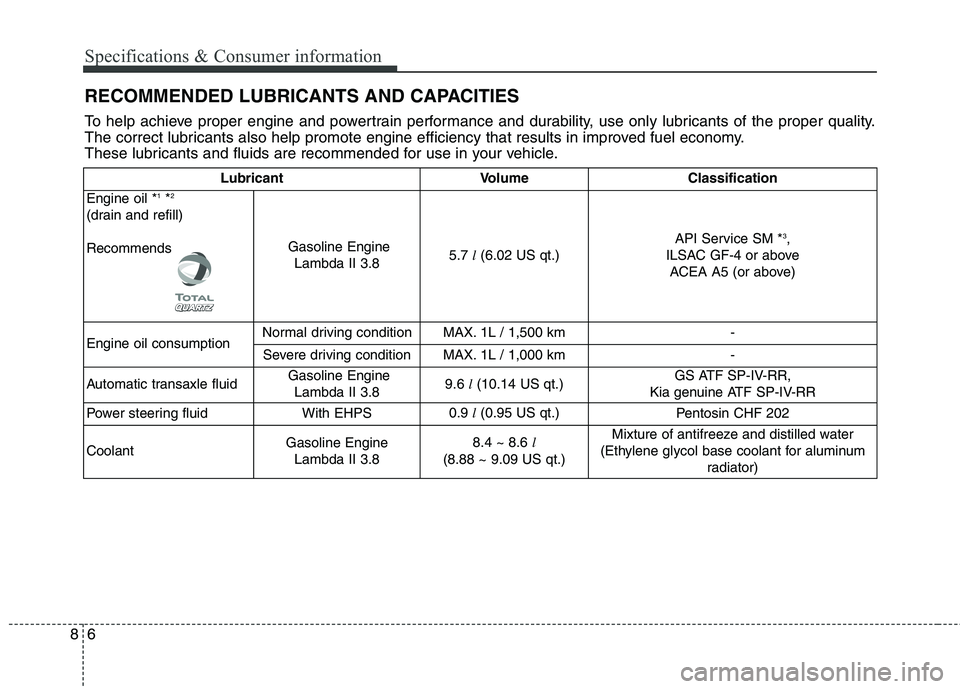

RECOMMENDED LUBRICANTS AND CAPACITIES
To help achieve proper engine and powertrain performance and durability, use only lubricants of the proper quality.
T
