KIA QUORIS 2014 Owners Manual

Features of your vehicle
22
4
WARNING
Never leave children or animals
unattended in your vehicle.Children or animals might oper-
ate the power trunk that could
result in injury to themselves or
others, or damage to the vehicle.
Power trunk (if equipped)
OKH042019/OKH042020
Power trunk main switch (Type A)
Power trunk main switch (Type B)
OKH042257/OKH042259/OKH042018
Power trunk handle switch
Power trunk lock button
Power trunk close button If you depress the power trunk main
switch, trunk handle switch, or close
button while operating the power
trunk, you could stop operating the
power trunk.
If that happens, to operate the power
trunk again, push any button or switch.
The power trunk can be opened and
closed automatically with the smart
key, the power trunk main switch,
the trunk handle switch, or the close
button on the trunk lid.
CAUTION
For your safety, do not leave the power trunk open for a longtime, it could also to preventunnecessary charging system drain.

423
Features of your vehicle
✽✽NOTICE
In cold and wet climates, the power
trunk may not work properly due to
freezing conditions.Opening the trunk
The power trunk will open automati-
cally by doing one of the following:
Press the trunk open button on the smart key more than 1 second. The
chime will sound twice.
Press the open button of the power trunk main switch (Type A). The
chime will sound twice.
Pull the power trunk main switch (Type B). The chime will sound twice.
Press the trunk handle switch car- rying the smart key with you. If all
doors have unlocked, you can
open the trunk by pressing the
trunk handle switch without the
smart key.
WARNING
Make sure there are no people
or objects around the trunk
before operating the power
trunk. Wait until the trunk is
open fully and stopped before
loading or unloading cargo or
passengers from the vehicle.
WARNING
Make sure the trunk is closed
firmly before driving. If the trunk
is open, you will draw danger-
ous exhaust fumes into your
vehicle which can cause seri-
ous injury or death to vehicleoccupants.
CAUTION
Do not close or open the power trunk manually. This may cause damage to the power trunk. If itis necessary to close or openthe power trunk manually when the battery is discharged or dis-connected, do not apply exces-sive force.

Features of your vehicle
24
4
Closing the trunk
To close the power trunk, do one of
the following:
Press the close button of the power
trunk main switch until the power
trunk is closed securely (Type A).
The chime will sound twice.
Press the power trunk main switch until the power trunk is closed
securely (Type B). The chime will
sound twice.
Press the power trunk close button.
Press the power trunk lock button when all doors and engine hood
are closed with the smart key in
your possession. After closing, all
doors and trunk lock automatically.
✽✽ NOTICE
The chime sound will operate if you
press the power trunk lock button
when:
- Any door is open.
- The engine start/stop button is not in the OFF position.
- The smart key is in the vehicle.
Power trunk non-opening condi-
tions
The power trunk will not open or
close automatically, when the vehicle
is moving more than 3 km/h (2 mph).
✽✽ NOTICE
If there are obstacles such as snow
on the power trunk, it may not open
automatically. After remove the
obstacle, try to open it again. ✽
✽
NOTICE
 The power trunk can be operated when the engine is not running.
However the power trunk opera-
tion consumes large amounts of
vehicle electric power. To prevent
the battery from being discharged,
do not operate it excessively e.g.:
more than approximately 10 times
repeatedly.
 To prevent the battery from being discharged, do not leave the power
trunk in the open position for a
long lime.
 Do not apply excessive force while operating the power trunk. This
could cause damage to the power
trunk.
 Do not modify or repair any part of the power trunk by yourself. We
recommend that the system be
serviced by an authorized Kia
dealer.
 When jacking up the vehicle to change a tire or repair the vehicle,
do not operate the power trunk.
This could cause the power trunk
to operate improperly.
CAUTION
The chime will sound 10 times if
you drive over 3km/h(2mph)with the trunk opened. Stop your vehicle immediately at asafe place and check if yourtrunk is opened.

425
Features of your vehicle
Automatic reversal
If, during power opening or closing, the
trunk is blocked by an object or part of
the body, the power trunk will detect
the resistance, and it will stop move-
ment or move to the full open position
to allow the object to be cleared.
However, if the resistance is weak such as from an object that is thin or
soft, or the trunk is near the latchedposition, the automatic stop and
reversal may not detect the resist-
ance and the closing operation will
continue. Also, if the power trunk is
forced by a strong impact, the auto-
matic stop and reversal may operate.If the automatic stop and reversal
feature operates continuously more
than twice during opening or closing
operation, the power trunk may stop
at that position. At this time, close the
trunk manually and operate the trunkautomatically again.
How to reset the power trunk
If the battery has been discharged or disconnected, or if the related fusehas been replaced or disconnected,
for the power trunk to operate nor-
mally, reset the power trunk as fol-
low:
1. Put the shift lever in P (Park).
2. Close the trunk manually.
If the power trunk doesn't work prop-
erly after above procedure, we rec-
ommend that the system be checked
by an authorized Kia dealer.
OKH042021
WARNING
Never intentionally place any object or part of your body in
the path of the power trunk tomake sure the automatic stopoperates.
Make sure all faces, arms, hands, body parts and any
other obstructions are safely
out of the way before operat-
ing the power trunk.
Never place any object or part of your body in the path of the
power trunk. This could result
in serious injury or cause
damage to the vehicle.
Make sure there are no people or objects around the trunk
before operating the powertrunk.

Features of your vehicle
26
4

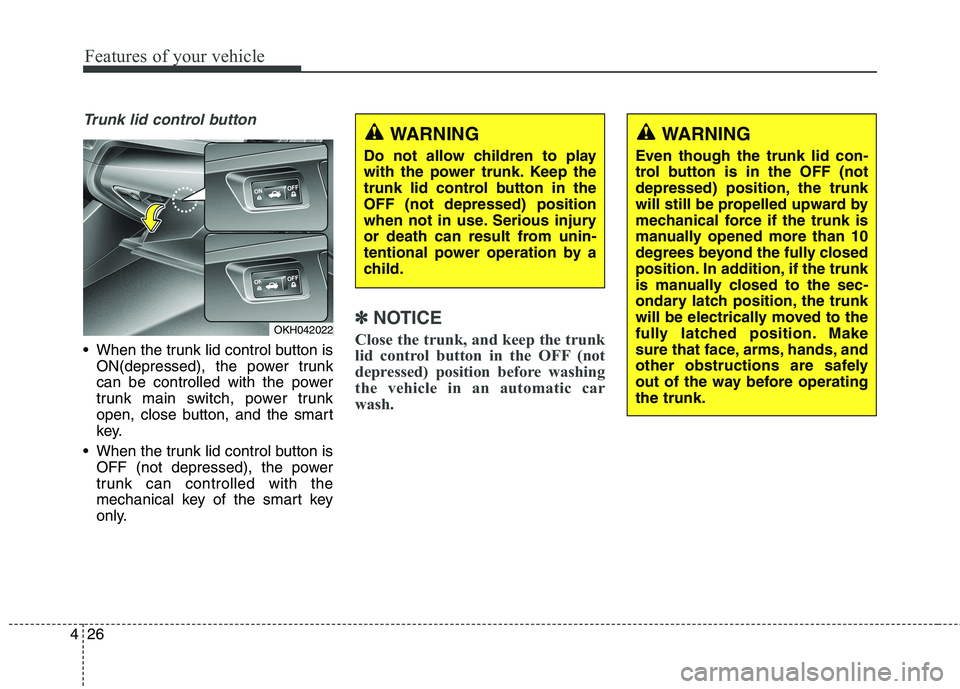

Trunk lid control button
When the trunk lid control button is
ON(depressed), the power trunk
can be controlled with the power
trunk main switch, power trunk
open, close button, and the smart
key.
When the trunk lid control button is OFF (not depressed), the power
trunk can controlled with the
mechanical key of the smart key
only.
✽✽ NOTICE
Close the trunk, and keep the trunk
lid control button in the OFF (not
depressed) position before washing
the vehicle in an automatic car
wash.OKH042022
WARNING
Do not allow children to play
with the power trunk. Keep the
trunk lid control button in theOFF (not depressed) position
when not in use. Serious injury
or death can result from unin-
tentional power operation by a
child.WARNING
Even though the trunk lid con-
trol button is in the OFF (not
depressed) position, the trunk
will still be propelled upward by
mechanical force if the trunk is
manually opened more than 10
degrees beyond the fully closed
position. In addition, if the trunk
is manually closed to the sec-
ondary latch position, the trunk
will be electrically moved to the
fully latched position. Make
sure that face, arms, hands, and
other obstructions are safely
out of the way before operatingthe trunk.

427
Features of your vehicle
Emergency trunk safety release
Your vehicle is equipped with an
emergency trunk safety release lever
located inside the trunk. When some-
one is inadvertently locked in the
trunk, the trunk can be opened by
moving the lever in the direction of
the arrow and pushing open the
trunk.
OKH042024
WARNING
For emergencies, be fully aware of the location of the
emergency trunk safety
release lever in this vehicle
and how to open the trunk if
you are accidentally locked inthe trunk.
No one should be allowed to occupy the trunk at any time.
The trunk is a very dangerous
location in the event of acrash.
Use the release lever for emergencies only. Use with
extreme caution, especially
while the vehicle is in motion.

Features of your vehicle
28
4
(1) Driver’s door power window
switch
(2) Front passenger’s door power window switch
(3) Rear door (left) power window switch
(4) Rear door (right) power window switch
(5) Window opening and closing
(6) Automatic power window up/down
(7) Power window lock switch
✽✽ NOTICE
In cold and wet climates, power win-
dows may not work properly due to
freezing conditions.
WINDOWS
OKH042025

429
Features of your vehicle
Power windows
The engine start/stop button must be
in the ON position for power windows
to operate.
Each door has a power window
switch that controls the door's win-
dow. The driver has a power window
lock switch which can block the oper-
ation of rear passenger windows.
The power windows can be operated
for approximately 30 seconds after
engine is turned off. However, if the
front doors open, the power windows
cannot be operated within the 30
second period.✽✽NOTICE
While driving with the rear windows
down or with the sunroof (if
equipped) in an open (or partially
open position), your vehicle may
demonstrate a wind buffeting or
pulsation noise. This noise is a nor-
mal occurrence and can be reduced
or eliminated by taking the follow-
ing actions. If the noise occurs with
one or both of the rear windows
down, partially lower both front
windows approximately one inch. If
you experience the noise with the
sunroof open, slightly reduce the
size of the sunroof opening.Window opening and closing
The driver’s door has a master power
window switch that controls all the
windows in the vehicle.
To open or close a window, press
down or pull up the front portion of
the corresponding switch to the firstdetent position (5).
OKH042026

Features of your vehicle
30
4
Pressing or pulling up the power win-
dow switch momentarily to the sec-ond detent position (6) completely
lowers or lifts the window even when
the switch is released. To stop the
window at the desired position while
the window is in operation, pull up or
press and release the switch to the
opposite direction of the movement.
If the power window is not operated
correctly, the automatic power win-
dow system must be reset as follows:
1. Turn the ignition switch to the ON
position.
2. Close the window and continue pulling up on the driver’s power
window switch for at least 1 second
after the window is completelyclosed. Automatic reversal
If the upward movement of the win-
dow is blocked by an object or part of
the body, the window will detect the
resistance and will stop upward
movement. The window will then
lower approximately 30 cm (11.8 in.)
to allow the object to be cleared.
If the window detects the resistance
while the power window switch is
pulled up continuously, the window
will stop upward movement then
lower approximately 2.5 cm (1 in.). And if the power window switch is
pulled up continuously again within 5
seconds after the window is lowered
by the automatic window reversal
feature, the automatic window rever-
sal will not operate.
✽✽
NOTICE
The automatic reverse feature is
only active when the “auto up” fea-
ture is used by fully pulling up the
switch. The automatic reverse fea-
ture will not operate if the window is
raised using the halfway position on
the power window switch.
WARNING
Always check for obstructions
before raising any window to
avoid injuries or vehicle damage.If an object less than 4 mm (0.16in.) in diameter is caught
between the window glass and
the upper window channel, the
automatic reverse window maynot detect the resistance and will
not stop and reverse direction.
OKH042277

431
Features of your vehicle
Power window lock button
The driver can disable the power
window switches on the rear passen-
gers’ doors by pressing the power
window lock switch. The indicator willbe illuminated.
When the power window lock switch indicator is illuminated :
The driver’s master control canoperate all the power windows.
The front passenger’s control can operate the front passenger’s
power window.
The rear passenger’s control can- not operate the rear passenger’s
power window.
OKH042027
CAUTION
To prevent possible damage
to the power window system,do not open or close two win-dows or more at the sametime. This will also ensure the longevity of the fuse.
Never try to operate the main switch on the driver's doorand the individual door win-dow switch in opposite direc- tions at the same time. If thisis done, the window will stopand cannot be opened orclosed.
WARNING - Windows
NEVER leave the keys in your vehicle with unsupervised
children, when the engine isrunning.
NEVER leave any child unat- tended in the vehicle. Even
very young children may inad-
vertently cause the vehicle to
move, entangle themselves in
the windows, or otherwise
injure themselves or others.
Always double check to make sure all arms, hands, head and
other obstructions are safely
out of the way before closing a
window.
Do not allow children to play with the power windows. Keep
the driver’s door power window
lock button in the LOCK posi-
tion (The indicator on the but-
ton illuminates). Serious injury
can result from unintentional
window operation by the child.
Do not extend a face or arms outside through the windowopening while driving.
