KIA QUORIS 2015 Owners Manual

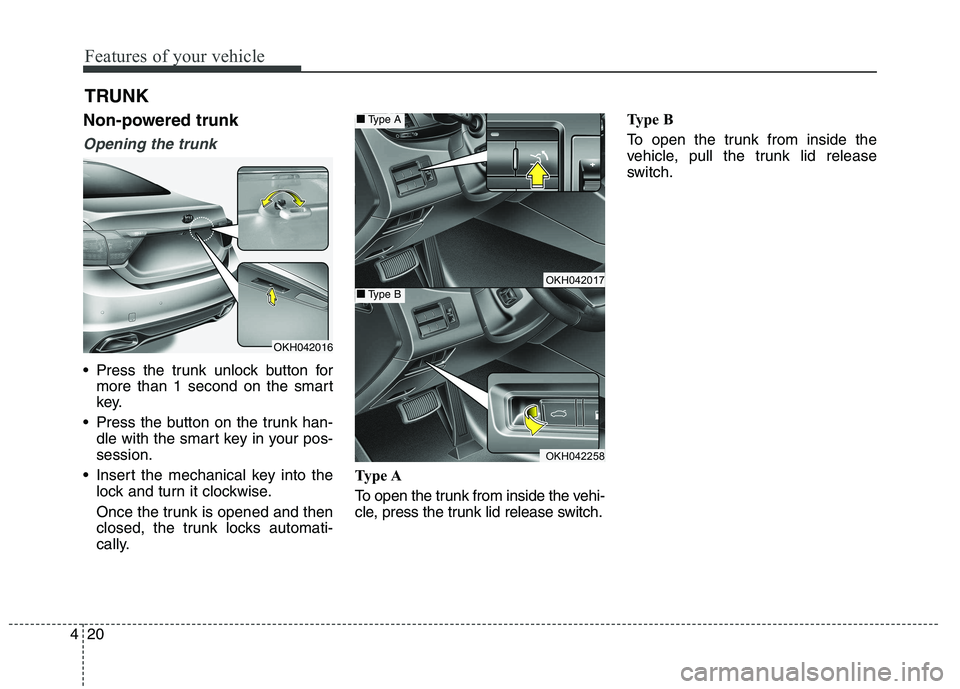

Features of your vehicle
20
4
TRUNK
Non-powered trunk
Opening the trunk
Press the trunk unlock button for more than 1 second on the smart
key.
Press the button on the trunk han- dle with the smart key in your pos- session.
Insert the mechanical key into the lock and turn it clockwise.
Once the trunk is opened and then
closed, the trunk locks automati-
cally. Type A
To open the trunk from inside the vehi-
cle, press the trunk lid release switch. Type B
To open the trunk from inside the
vehicle, pull the trunk lid release
switch.
OKH042016
OKH042017
OKH042258
■■
Type A
■■Type B

421

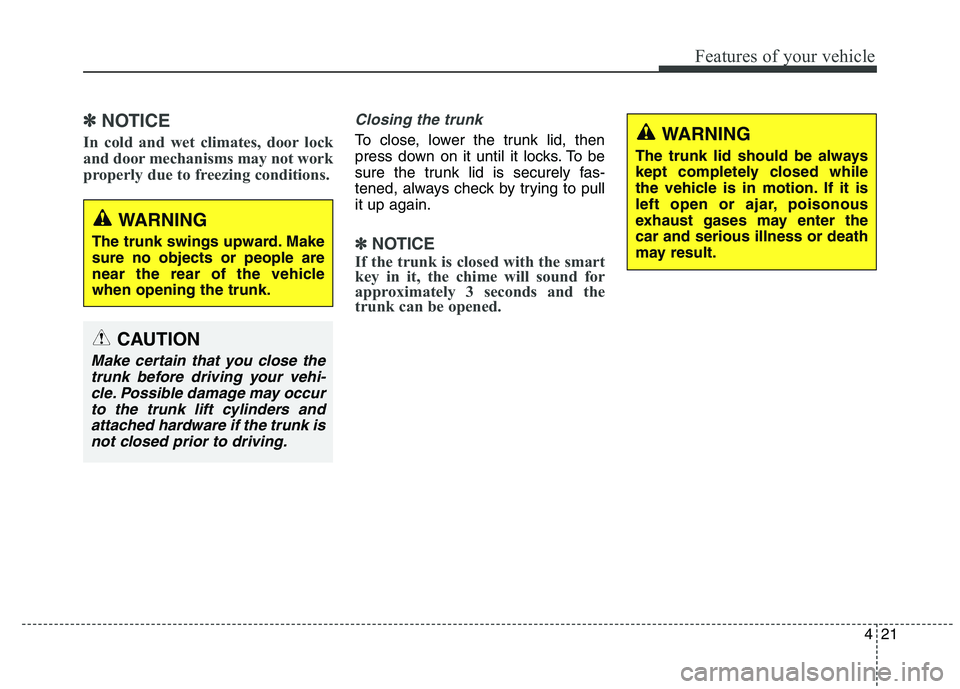

Features of your vehicle
✽✽NOTICE
In cold and wet climates, door lock
and door mechanisms may not work
properly due to freezing conditions.Closing the trunk
To close, lower the trunk lid, then
press down on it until it locks. To be
sure the trunk lid is securely fas-
tened, always check by trying to pullit up again.
✽✽ NOTICE
If the trunk is closed with the smart
key in it, the chime will sound for
approximately 3 seconds and the
trunk can be opened.
CAUTION
Make certain that you close the trunk before driving your vehi-cle. Possible damage may occur to the trunk lift cylinders andattached hardware if the trunk isnot closed prior to driving.
WARNING
The trunk swings upward. Make sure no objects or people are
near the rear of the vehiclewhen opening the trunk.
WARNING
The trunk lid should be always
kept completely closed while
the vehicle is in motion. If it is
left open or ajar, poisonous
exhaust gases may enter thecar and serious illness or death
may result.

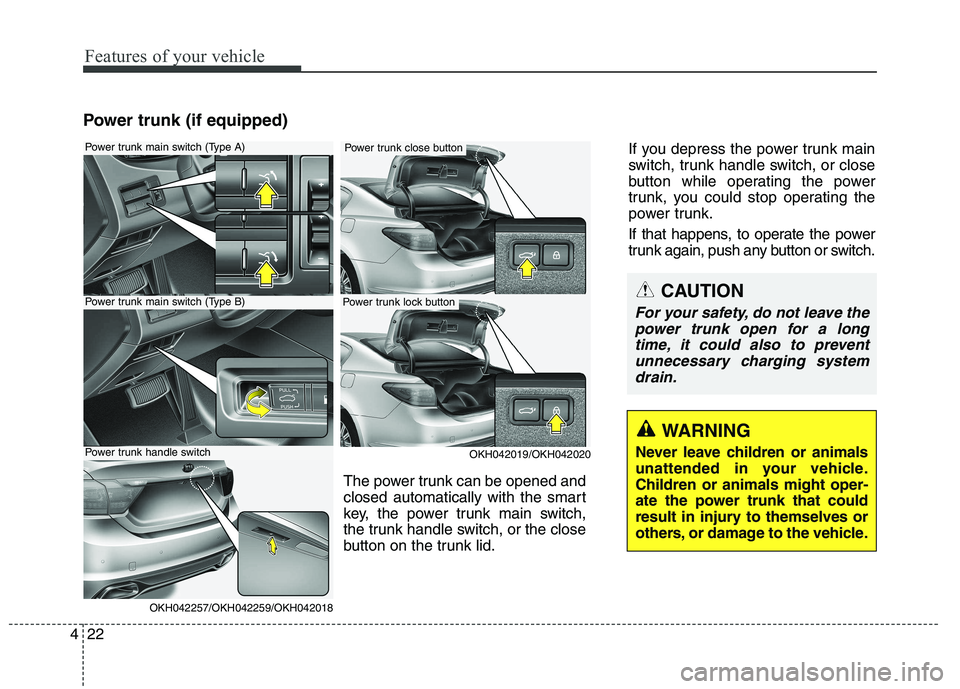

Features of your vehicle
22
4
WARNING
Never leave children or animals
unattended in your vehicle.Children or animals might oper-
ate the power trunk that could
result in injury to themselves or
others, or damage to the vehicle.
Power trunk (if equipped)
OKH042019/OKH042020
Power trunk main switch (Type A)
Power trunk main switch (Type B)
OKH042257/OKH042259/OKH042018
Power trunk handle switch
Power trunk lock button
Power trunk close button If you depress the power trunk main
switch, trunk handle switch, or close
button while operating the power
trunk, you could stop operating the
power trunk.
If that happens, to operate the power
trunk again, push any button or switch.
The power trunk can be opened and
closed automatically with the smart
key, the power trunk main switch,
the trunk handle switch, or the close
button on the trunk lid.
CAUTION
For your safety, do not leave the power trunk open for a longtime, it could also to preventunnecessary charging system drain.

423
Features of your vehicle

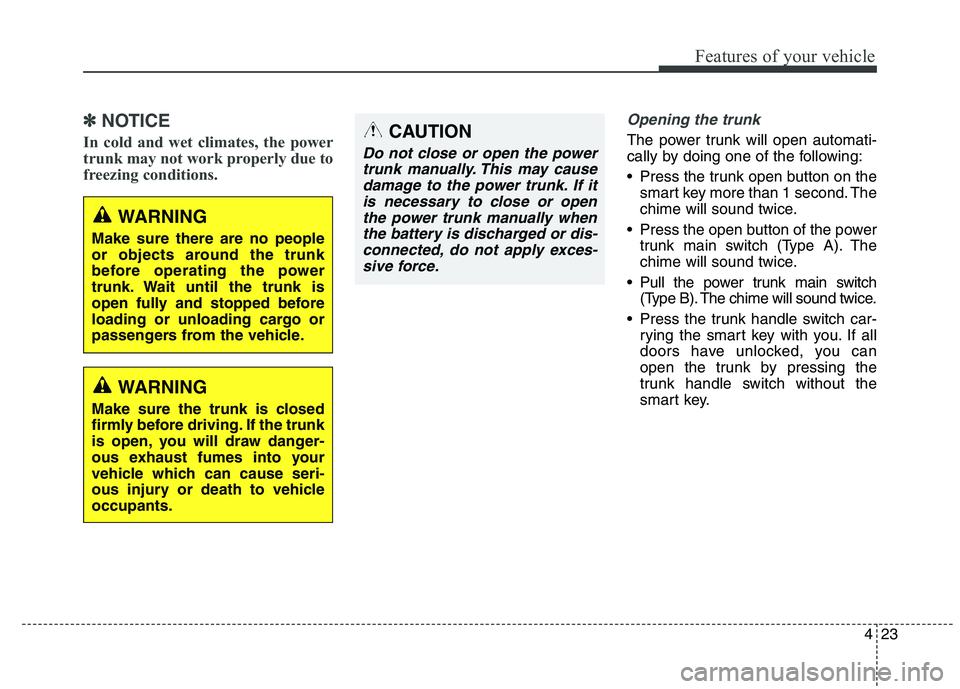

✽✽NOTICE
In cold and wet climates, the power
trunk may not work properly due to
freezing conditions.Opening the trunk
The power trunk will open automati-
cally by doing one of the following:
Press the trunk open button on the smart key more than 1 second. The
chime will sound twice.
Press the open button of the power trunk main switch (Type A). The
chime will sound twice.
Pull the power trunk main switch (Type B). The chime will sound twice.
Press the trunk handle switch car- rying the smart key with you. If all
doors have unlocked, you can
open the trunk by pressing the
trunk handle switch without the
smart key.
WARNING
Make sure there are no people
or objects around the trunk
before operating the power
trunk. Wait until the trunk is
open fully and stopped before
loading or unloading cargo or
passengers from the vehicle.
WARNING
Make sure the trunk is closed
firmly before driving. If the trunk
is open, you will draw danger-
ous exhaust fumes into your
vehicle which can cause seri-
ous injury or death to vehicleoccupants.
CAUTION
Do not close or open the power trunk manually. This may cause damage to the power trunk. If itis necessary to close or openthe power trunk manually when the battery is discharged or dis-connected, do not apply exces-sive force.

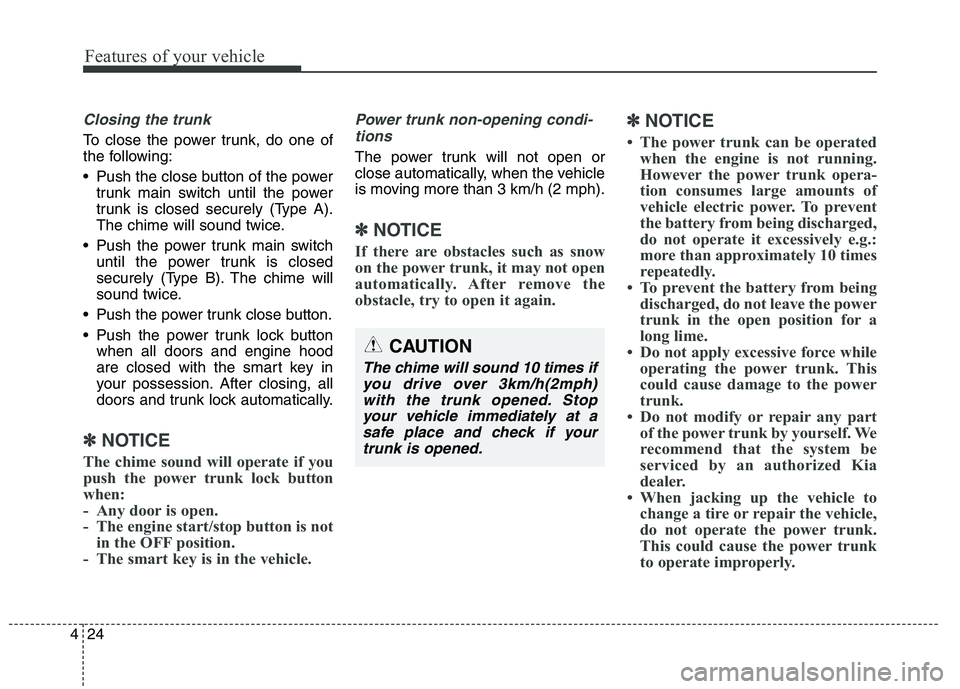

Features of your vehicle
24
4
Closing the trunk
To close the power trunk, do one of
the following:
Push the close button of the power
trunk main switch until the power
trunk is closed securely (Type A).
The chime will sound twice.
Push the power trunk main switch until the power trunk is closed
securely (Type B). The chime will
sound twice.
Push the power trunk close button.
Push the power trunk lock button when all doors and engine hood
are closed with the smart key in
your possession. After closing, all
doors and trunk lock automatically.
✽✽ NOTICE
The chime sound will operate if you
push the power trunk lock button
when:
- Any door is open.
- The engine start/stop button is not in the OFF position.
- The smart key is in the vehicle.
Power trunk non-opening condi-
tions
The power trunk will not open or
close automatically, when the vehicle
is moving more than 3 km/h (2 mph).
✽✽ NOTICE
If there are obstacles such as snow
on the power trunk, it may not open
automatically. After remove the
obstacle, try to open it again. ✽
✽
NOTICE
 The power trunk can be operated when the engine is not running.
However the power trunk opera-
tion consumes large amounts of
vehicle electric power. To prevent
the battery from being discharged,
do not operate it excessively e.g.:
more than approximately 10 times
repeatedly.
 To prevent the battery from being discharged, do not leave the power
trunk in the open position for a
long lime.
 Do not apply excessive force while operating the power trunk. This
could cause damage to the power
trunk.
 Do not modify or repair any part of the power trunk by yourself. We
recommend that the system be
serviced by an authorized Kia
dealer.
 When jacking up the vehicle to change a tire or repair the vehicle,
do not operate the power trunk.
This could cause the power trunk
to operate improperly.
CAUTION
The chime will sound 10 times if
you drive over 3km/h(2mph)with the trunk opened. Stop your vehicle immediately at asafe place and check if yourtrunk is opened.

425

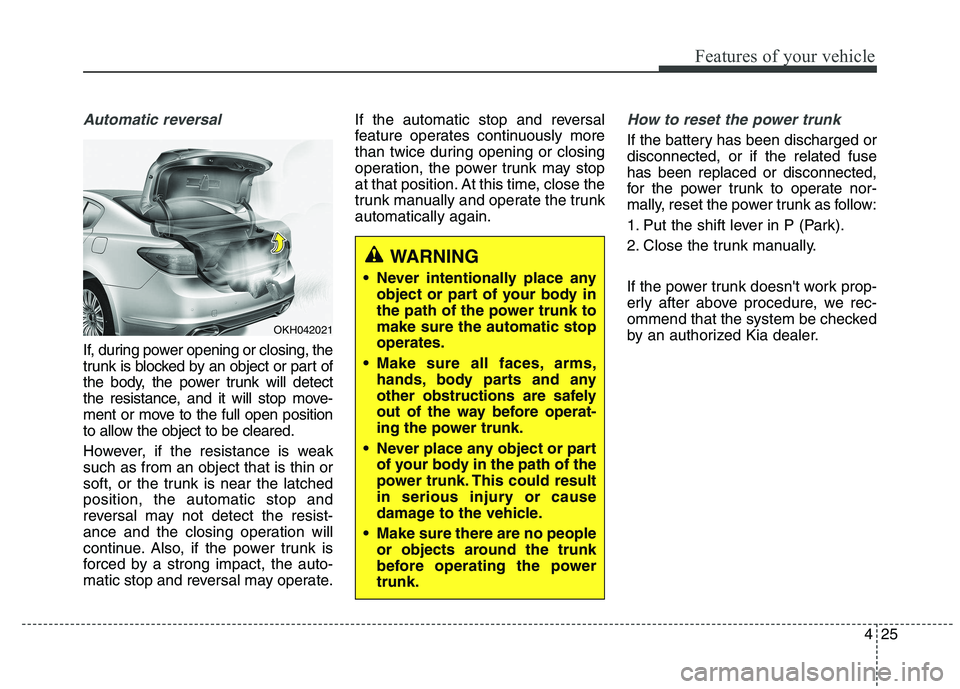

Features of your vehicle
Automatic reversal
If, during power opening or closing, the
trunk is blocked by an object or part of
the body, the power trunk will detect
the resistance, and it will stop move-
ment or move to the full open position
to allow the object to be cleared.
However, if the resistance is weak such as from an object that is thin or
soft, or the trunk is near the latchedposition, the automatic stop and
reversal may not detect the resist-
ance and the closing operation will
continue. Also, if the power trunk is
forced by a strong impact, the auto-
matic stop and reversal may operate.If the automatic stop and reversal
feature operates continuously more
than twice during opening or closing
operation, the power trunk may stop
at that position. At this time, close the
trunk manually and operate the trunkautomatically again.
How to reset the power trunk
If the battery has been discharged or disconnected, or if the related fusehas been replaced or disconnected,
for the power trunk to operate nor-
mally, reset the power trunk as follow:
1. Put the shift lever in P (Park).
2. Close the trunk manually.
If the power trunk doesn't work prop-
erly after above procedure, we rec-
ommend that the system be checked
by an authorized Kia dealer.
OKH042021
WARNING
Never intentionally place any object or part of your body in
the path of the power trunk tomake sure the automatic stopoperates.
Make sure all faces, arms, hands, body parts and any
other obstructions are safely
out of the way before operat-
ing the power trunk.
Never place any object or part of your body in the path of the
power trunk. This could result
in serious injury or cause
damage to the vehicle.
Make sure there are no people or objects around the trunk
before operating the powertrunk.

Features of your vehicle
26
4
Trunk lid control button
When the trunk lid control button is
ON(depressed), the power trunk
can be controlled with the power
trunk main switch, power trunk
open, close button, and the smart
key.
When the trunk lid control button is OFF (not depressed), the power
trunk can controlled with the
mechanical key of the smart key
only.
✽✽ NOTICE
Close the trunk, and keep the trunk
lid control button in the OFF (not
depressed) position before washing
the vehicle in an automatic car
wash.OKH042022
WARNING
Do not allow children to play
with the power trunk. Keep the
trunk lid control button in theOFF (not depressed) position
when not in use. Serious injury
or death can result from unin-
tentional power operation by a
child.WARNING
Even though the trunk lid con-
trol button is in the OFF (not
depressed) position, the trunk
will still be propelled upward by
mechanical force if the trunk is
manually opened more than 10
degrees beyond the fully closed
position. In addition, if the trunk
is manually closed to the sec-
ondary latch position, the trunk
will be electrically moved to the
fully latched position. Make
sure that face, arms, hands, and
other obstructions are safely
out of the way before operatingthe trunk.

427

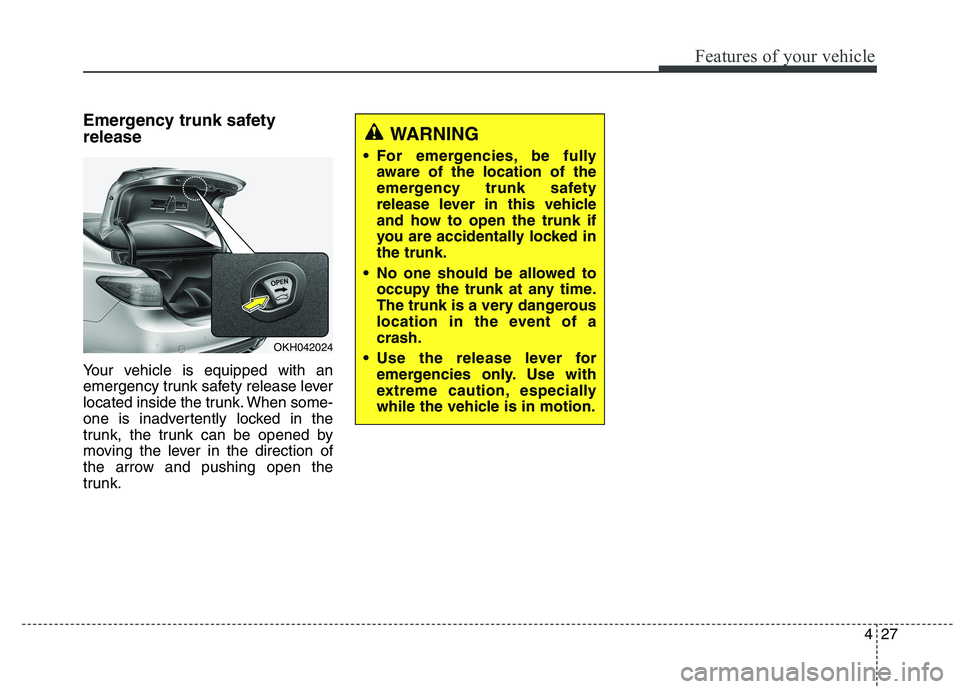

Features of your vehicle
Emergency trunk safety release
Your vehicle is equipped with an
emergency trunk safety release lever
located inside the trunk. When some-
one is inadvertently locked in the
trunk, the trunk can be opened by
moving the lever in the direction of
the arrow and pushing open the
trunk.
OKH042024
WARNING
For emergencies, be fully aware of the location of the
emergency trunk safety
release lever in this vehicle
and how to open the trunk if
you are accidentally locked inthe trunk.
No one should be allowed to occupy the trunk at any time.
The trunk is a very dangerous
location in the event of acrash.
Use the release lever for emergencies only. Use with
extreme caution, especially
while the vehicle is in motion.

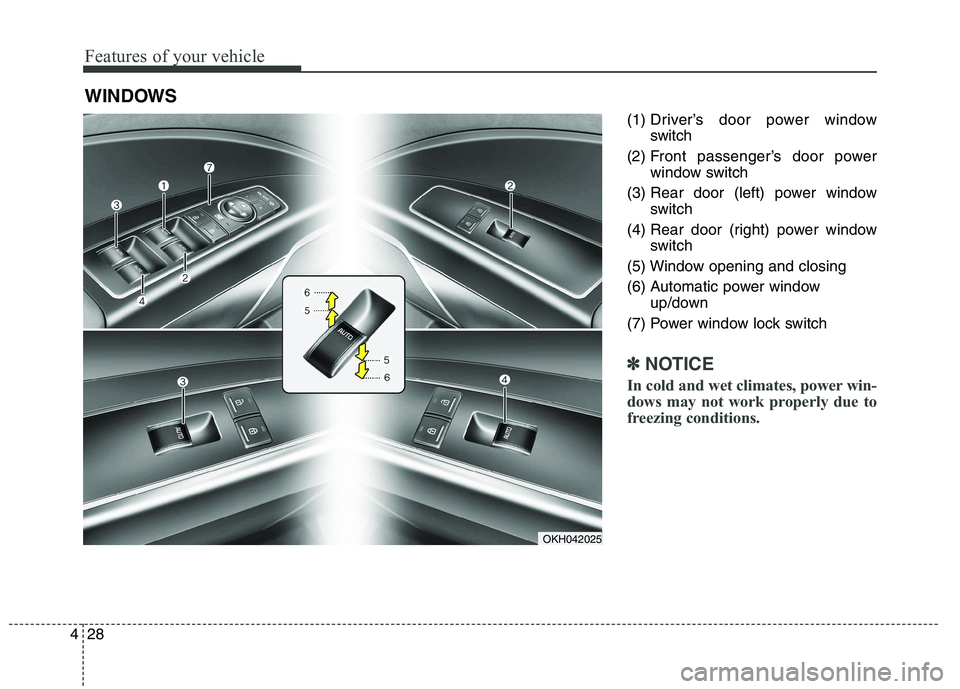

Features of your vehicle
28
4
(1) Driver’s door power window
switch
(2) Front passenger’s door power window switch
(3) Rear door (left) power window switch
(4) Rear door (right) power window switch
(5) Window opening and closing
(6) Automatic power window up/down
(7) Power window lock switch
✽✽ NOTICE
In cold and wet climates, power win-
dows may not work properly due to
freezing conditions.
WINDOWS
OKH042025

429

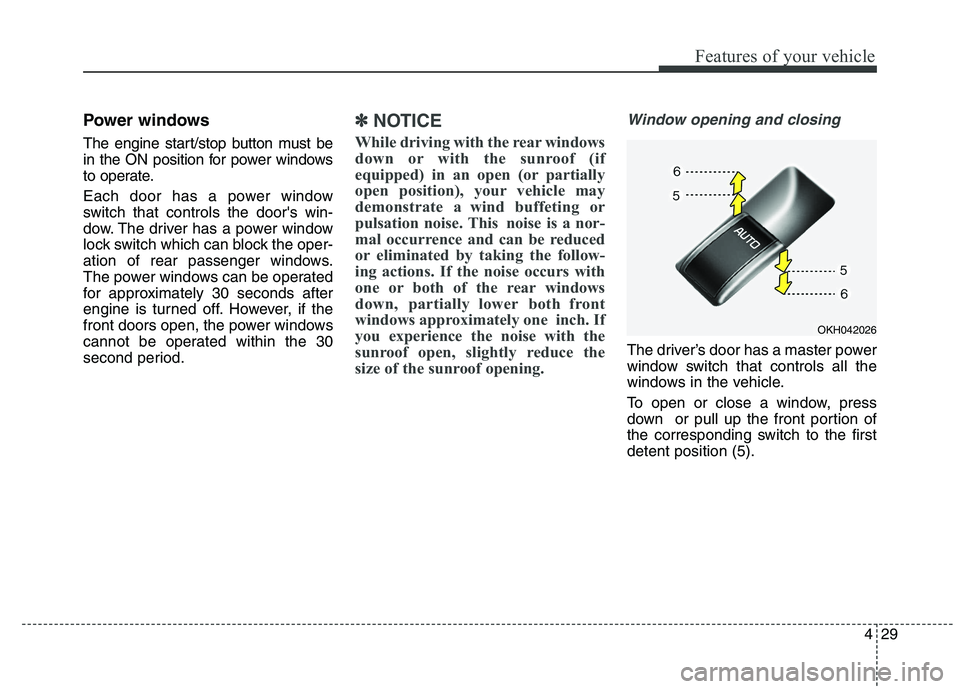

Features of your vehicle
Power windows
The engine start/stop button must be
in the ON position for power windows
to operate.
Each door has a power window
switch that controls the door's win-
dow. The driver has a power window
lock switch which can block the oper-
ation of rear passenger windows.
The power windows can be operated
for approximately 30 seconds after
engine is turned off. However, if the
front doors open, the power windows
cannot be operated within the 30
second period.✽✽NOTICE
While driving with the rear windows
down or with the sunroof (if
equipped) in an open (or partially
open position), your vehicle may
demonstrate a wind buffeting or
pulsation noise. This noise is a nor-
mal occurrence and can be reduced
or eliminated by taking the follow-
ing actions. If the noise occurs with
one or both of the rear windows
down, partially lower both front
windows approximately one inch. If
you experience the noise with the
sunroof open, slightly reduce the
size of the sunroof opening.Window opening and closing
The driver’s door has a master power
window switch that controls all the
windows in the vehicle.
To open or close a window, press
down or pull up the front portion of
the corresponding switch to the firstdetent position (5).
OKH042026
