Features of your vehicle
40
4

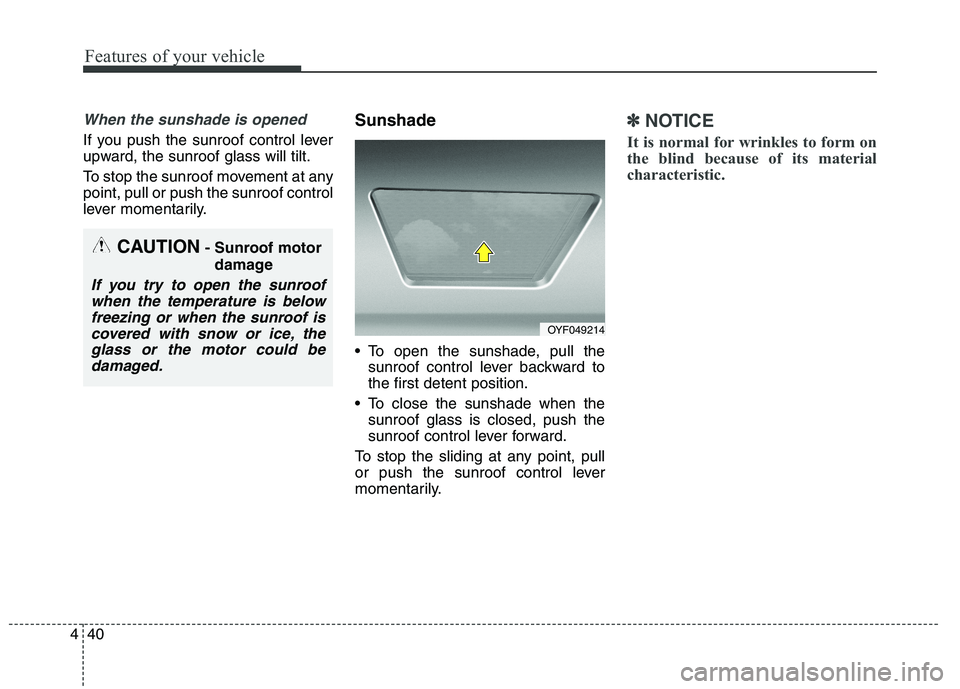

When the sunshade is opened
If you push the sunroof control lever
upward, the sunroof glass will tilt.
To stop the sunroof movement at any point, pull or push the sunroof control
lever momentarily. Sunshade
To open the sunshade, pull the
sunroof control lever backward to the first detent position.
To close the sunshade when the sunroof glass is closed, push the
sunroof control lever forward.
To stop the sliding at any point, pull
or push the sunroof control lever
momentarily.
✽✽ NOTICE
It is normal for wrinkles to form on
the blind because of its material
characteristic.
CAUTION - Sunroof motor
damage
If you try to open the sunroofwhen the temperature is belowfreezing or when the sunroof is covered with snow or ice, theglass or the motor could bedamaged.
OYF049214

441
Features of your vehicle

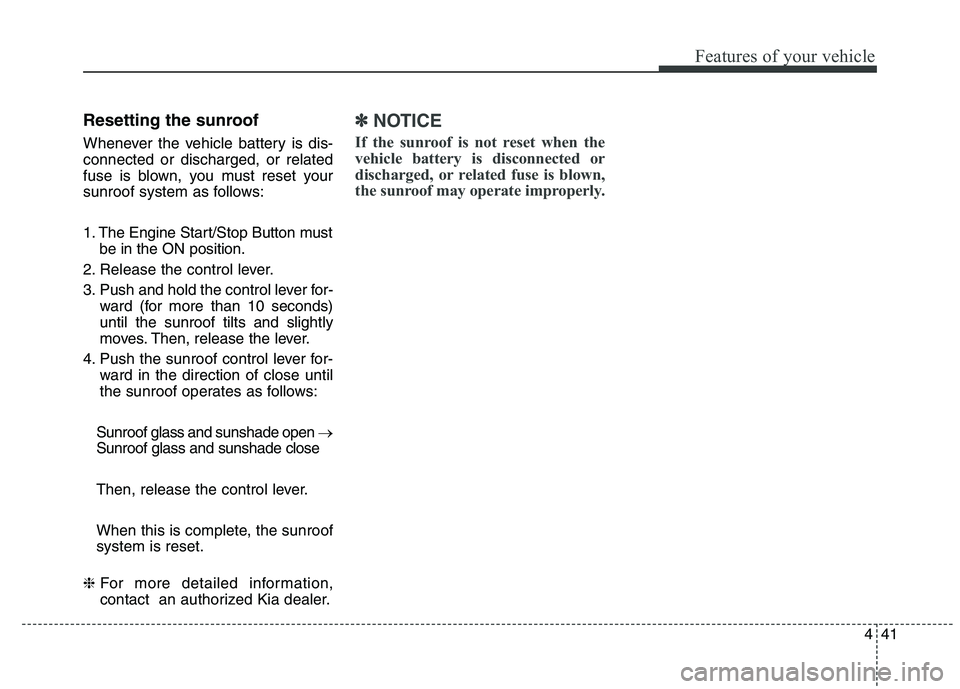

Resetting the sunroof
Whenever the vehicle battery is dis- connected or discharged, or related
fuse is blown, you must reset your
sunroof system as follows:
1. The Engine Start/Stop Button mustbe in the ON position.
2. Release the control lever.
3. Push and hold the control lever for- ward (for more than 10 seconds) until the sunroof tilts and slightly
moves. Then, release the lever.
4. Push the sunroof control lever for- ward in the direction of close until
the sunroof operates as follows:
Sunroof glass and sunshade open
Sunroof glass and sunshade close
Then, release the control lever.
When this is complete, the sunroof system is reset.
❈ For more detailed information,
contact an authorized Kia dealer.✽✽
NOTICE
If the sunroof is not reset when the
vehicle battery is disconnected or
discharged, or related fuse is blown,
the sunroof may operate improperly.

Features of your vehicle
42
4
Electronic Hydraulic Power Steering (EHPS) EHPS uses an electromotor to assist
you in steering the vehicle. It senses
the vehicle speed and road condition.
If the engine is off or if the power
steering system becomes inoperative,
the vehicle may still be steered, but it
will require increased steering effort.
Should you notice any change in the
effort required to steer during normal
vehicle operation, we recommend
that the system be checked by an
authorized Kia dealer.✽✽
NOTICE
If the power steering drive belt
breaks or if the power steering
pump malfunctions, the steering
effort will greatly increase.
✽
✽ NOTICE
If the vehicle is parked for extended
periods outside in cold weather
(below -10°C/14°F), the power steer-
ing may require increased effort
when the engine is first started. This
is caused by increased fluid viscosity
due to the cold weather and does not
indicate a malfunction.
When this happens, increase the
engine RPM by depressing accelera-
tor until the RPM reaches 1,500 rpm
then release or let the engine idle for
two or three minutes to warm up the
fluid.
Tilt steering
Tilt steering allows you to adjust the
steering wheel before you drive. You
can also raise it to give your legs
more room when you exit and enter
the vehicle.
The steering wheel should be posi-
tioned so that it is comfortable for
you to drive, while permitting you to
see the instrument panel warning
lights and gauges.
STEERING WHEEL
WARNING
Never adjust the angle of the steering wheel while driving.
You may lose steering control
and cause severe personal
injury, death or accidents.
After adjusting, push the steering wheel both up and
down to be certain it is lockedin position.
CAUTION
Never hold the steering wheel
against a stop (extreme right orleft turn) for more than 5 sec- onds with the engine running.Holding the steering wheel formore than 5 seconds in either position may cause damage tothe power steering pump.

443
Features of your vehicle
Manual type
To change the steering wheel angle,
pull down the lock release lever (1)
and adjust the steering wheel to thedesired angle (2), then pull up the
lock-release lever to lock the steering
wheel in place. Be sure to adjust the
steering wheel to the desired posi-
tion before driving.
Electric type
Adjust the steering wheel angle (2)
and position (3) with the switch (1).
Never adjust the position of the
steering wheel while driving.Heated steering wheel (if equipped)
With the engine start/stop button in the ON position, pressing the heated
steering wheel button warms the
steering wheel. The indicator on the
button will illuminate.
OKH042041OKH042042
OKH042043L

Features of your vehicle
44
4

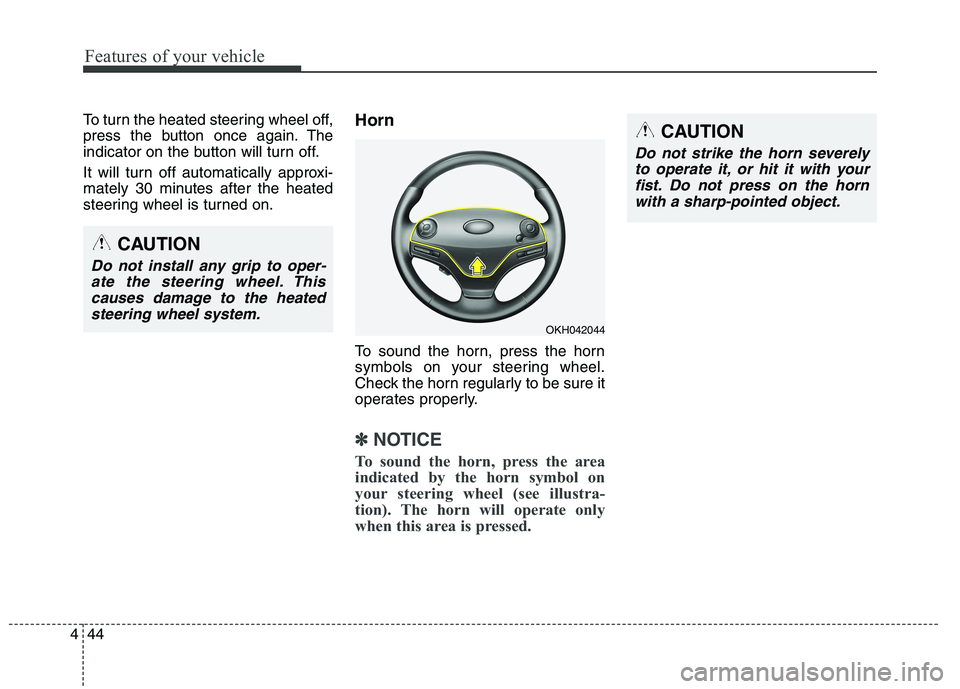

To turn the heated steering wheel off,
press the button once again. The
indicator on the button will turn off.
It will turn off automatically approxi-
mately 30 minutes after the heated
steering wheel is turned on. Horn
To sound the horn, press the horn
symbols on your steering wheel.
Check the horn regularly to be sure it
operates properly.
✽✽
NOTICE
To sound the horn, press the area
indicated by the horn symbol on
your steering wheel (see illustra-
tion). The horn will operate only
when this area is pressed.
OKH042044
CAUTION
Do not strike the horn severely to operate it, or hit it with yourfist. Do not press on the hornwith a sharp-pointed object.
CAUTION
Do not install any grip to oper-ate the steering wheel. Thiscauses damage to the heated steering wheel system.

445
Features of your vehicle

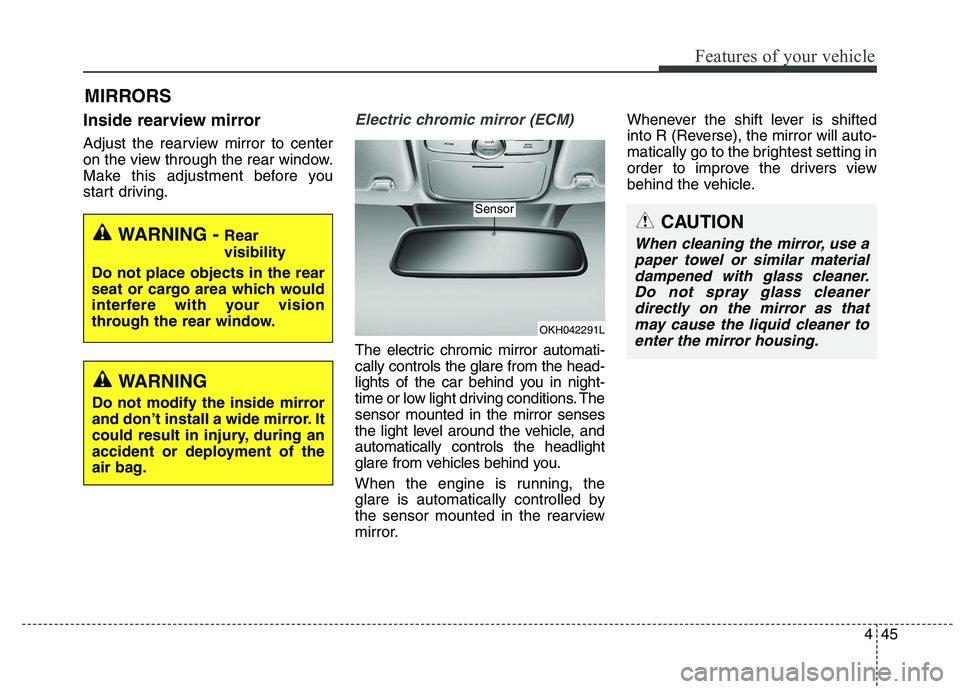

Inside rearview mirror
Adjust the rearview mirror to center
on the view through the rear window.
Make this adjustment before you
start driving.Electric chromic mirror (ECM)
The electric chromic mirror automati- cally controls the glare from the head-
lights of the car behind you in night-
time or low light driving conditions. Thesensor mounted in the mirror senses
the light level around the vehicle, andautomatically controls the headlight
glare from vehicles behind you.
When the engine is running, the
glare is automatically controlled by
the sensor mounted in the rearview
mirror.Whenever the shift lever is shifted
into R (Reverse), the mirror will auto-
matically go to the brightest setting in
order to improve the drivers view
behind the vehicle.
MIRRORS
CAUTION
When cleaning the mirror, use a
paper towel or similar materialdampened with glass cleaner. Do not spray glass cleanerdirectly on the mirror as thatmay cause the liquid cleaner toenter the mirror housing.WARNING - Rear visibility
Do not place objects in the rear
seat or cargo area which would
interfere with your vision
through the rear window.
WARNING
Do not modify the inside mirror
and don’t install a wide mirror. It
could result in injury, during an
accident or deployment of the
air bag.
OKH042291L
Sensor

Features of your vehicle
46
4

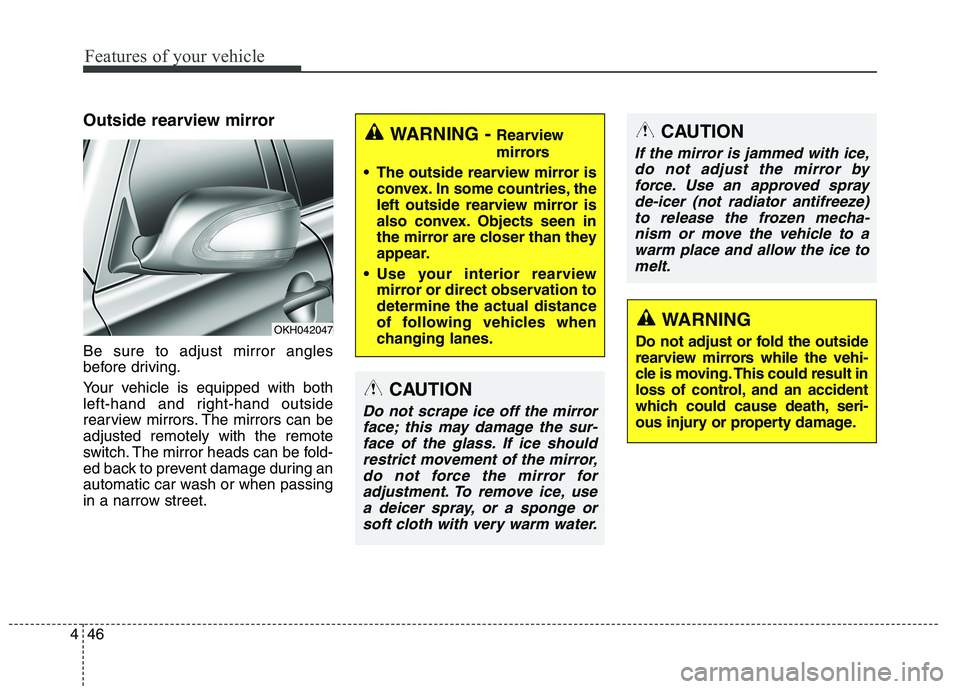

Outside rearview mirror Be sure to adjust mirror angles
before driving.
Your vehicle is equipped with both
left-hand and right-hand outside
rearview mirrors. The mirrors can beadjusted remotely with the remote
switch. The mirror heads can be fold-
ed back to prevent damage during an
automatic car wash or when passing
in a narrow street.
CAUTION
Do not scrape ice off the mirror
face; this may damage the sur-face of the glass. If ice should restrict movement of the mirror,do not force the mirror foradjustment. To remove ice, use a deicer spray, or a sponge orsoft cloth with very warm water.
CAUTION
If the mirror is jammed with ice,do not adjust the mirror byforce. Use an approved spray de-icer (not radiator antifreeze)to release the frozen mecha-nism or move the vehicle to awarm place and allow the ice to melt.
WARNING
Do not adjust or fold the outside
rearview mirrors while the vehi-
cle is moving. This could result in
loss of control, and an accident
which could cause death, seri-
ous injury or property damage.
WARNING - Rearview
mirrors
The outside rearview mirror is convex. In some countries, the
left outside rearview mirror is
also convex. Objects seen in
the mirror are closer than they
appear.
Use your interior rearview mirror or direct observation todetermine the actual distance
of following vehicles when
changing lanes.
OKH042047

447
Features of your vehicle

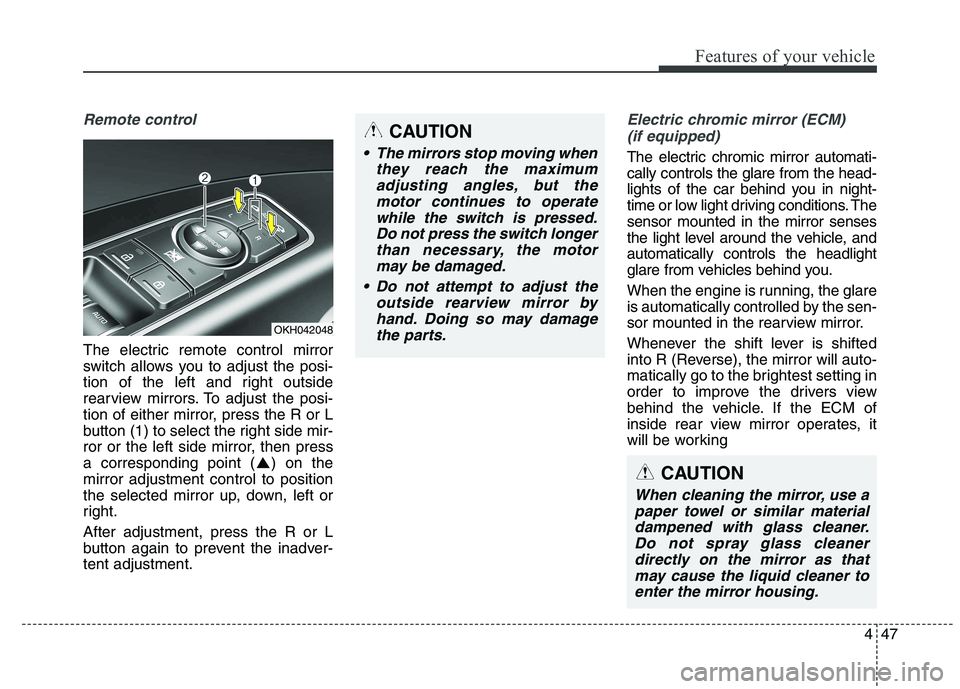

Remote control
The electric remote control mirror
switch allows you to adjust the posi-
tion of the left and right outside
rearview mirrors. To adjust the posi-
tion of either mirror, press the R or L
button (1) to select the right side mir-
ror or the left side mirror, then press
a corresponding point ( ) on themirror adjustment control to position
the selected mirror up, down, left or
right. After adjustment, press the R or L
button again to prevent the inadver-tent adjustment.
Electric chromic mirror (ECM) (if equipped)
The electric chromic mirror automati- cally controls the glare from the head-
lights of the car behind you in night-
time or low light driving conditions. Thesensor mounted in the mirror senses
the light level around the vehicle, andautomatically controls the headlight
glare from vehicles behind you.
When the engine is running, the glare
is automatically controlled by the sen-
sor mounted in the rearview mirror.
Whenever the shift lever is shifted
into R (Reverse), the mirror will auto-
matically go to the brightest setting in
order to improve the drivers view
behind the vehicle. If the ECM of
inside rear view mirror operates, it
will be working
OKH042048
CAUTION
The mirrors stop moving when they reach the maximumadjusting angles, but the motor continues to operatewhile the switch is pressed.Do not press the switch longer than necessary, the motormay be damaged.
Do not attempt to adjust the outside rearview mirror byhand. Doing so may damage the parts.
CAUTION
When cleaning the mirror, use apaper towel or similar materialdampened with glass cleaner. Do not spray glass cleanerdirectly on the mirror as thatmay cause the liquid cleaner toenter the mirror housing.

Features of your vehicle
48
4

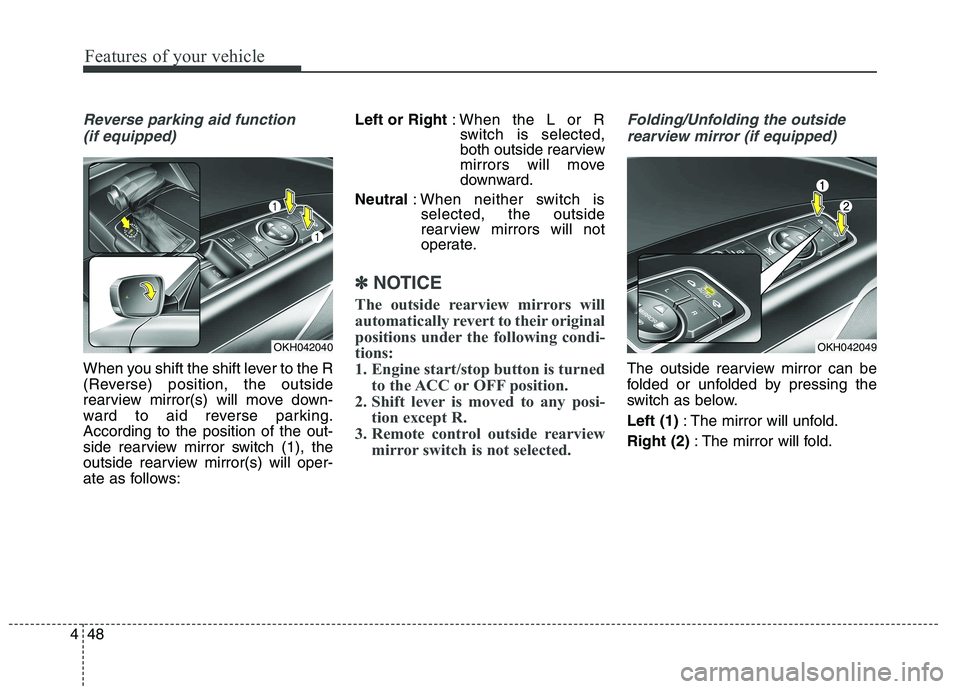

Reverse parking aid function
(if equipped)
When you shift the shift lever to the R
(Reverse) position, the outside
rearview mirror(s) will move down-
ward to aid reverse parking.According to the position of the out-
side rearview mirror switch (1), the
outside rearview mirror(s) will oper-
ate as follows: Left or Right
: When the L or R
switch is selected,
both outside rearview
mirrors will move
downward.
Neutral : When neither switch is
selected, the outside
rearview mirrors will not
operate.
✽✽ NOTICE
The outside rearview mirrors will
automatically revert to their original
positions under the following condi-
tions:
1. Engine start/stop button is turned to the ACC or OFF position.
2. Shift lever is moved to any posi- tion except R.
3. Remote control outside rearview mirror switch is not selected.
Folding/Unfolding the outside
rearview mirror (if equipped)
The outside rearview mirror can be
folded or unfolded by pressing the
switch as below. Left (1) : The mirror will unfold.
Right (2) : The mirror will fold.
OKH042040OKH042049

449
Features of your vehicle

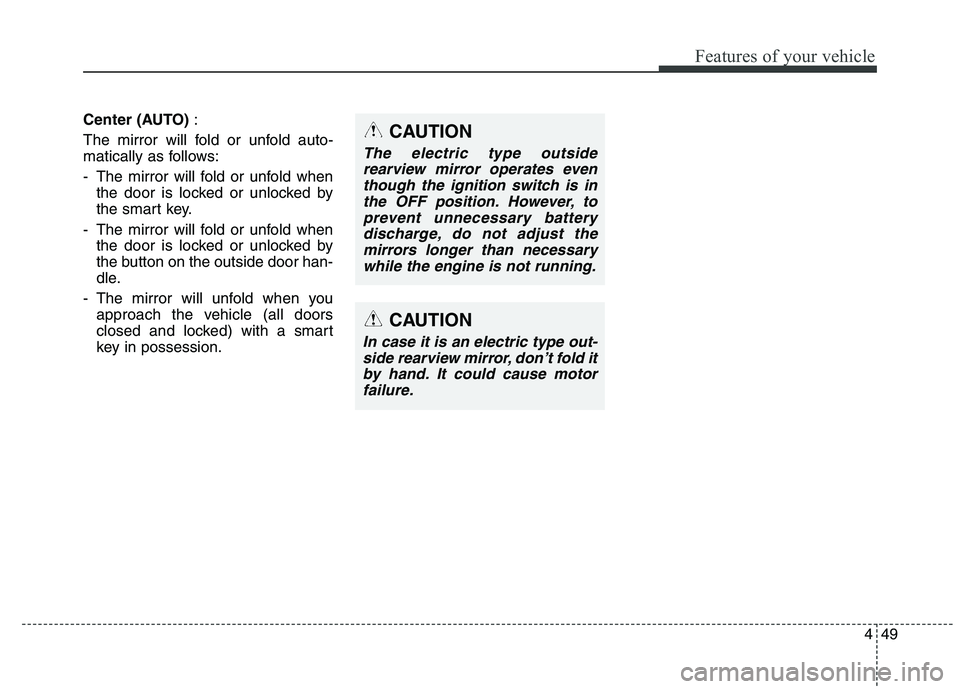

Center (AUTO):
The mirror will fold or unfold auto-
matically as follows:
- The mirror will fold or unfold when the door is locked or unlocked by
the smart key.
- The mirror will fold or unfold when the door is locked or unlocked by
the button on the outside door han-
dle.
- The mirror will unfold when you approach the vehicle (all doors
closed and locked) with a smart
key in possession.
CAUTION
In case it is an electric type out-
side rearview mirror, don’t fold itby hand. It could cause motor failure.
CAUTION
The electric type outsiderearview mirror operates eventhough the ignition switch is in the OFF position. However, toprevent unnecessary batterydischarge, do not adjust themirrors longer than necessary while the engine is not running.
