KIA QUORIS 2015 Owners Manual

Features of your vehicle
60
4

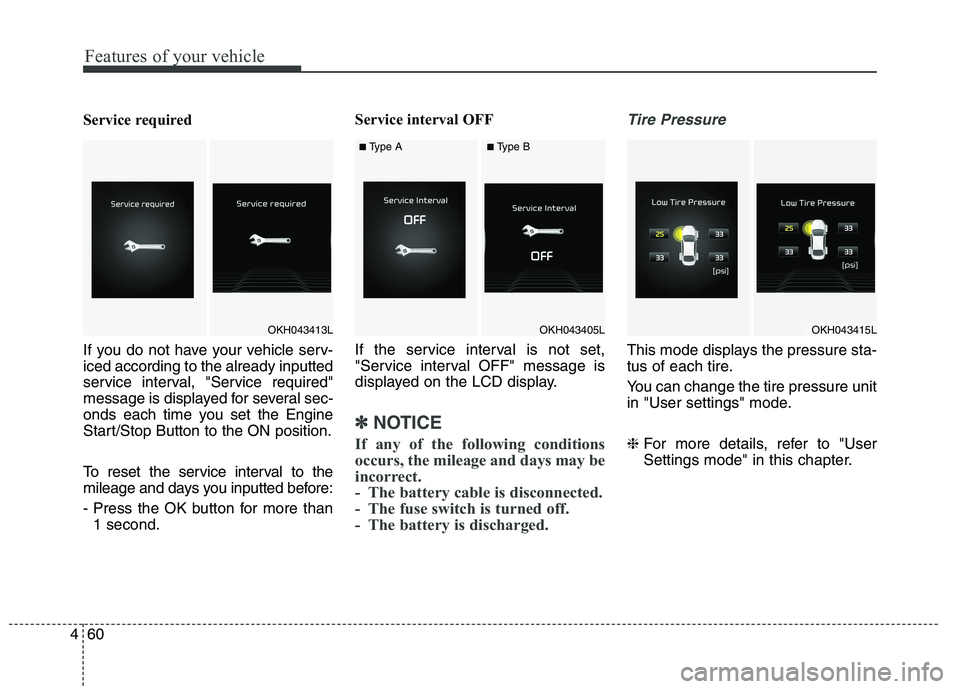

Service required
If you do not have your vehicle serv- iced according to the already inputted
service interval, "Service required"
message is displayed for several sec-
onds each time you set the Engine
Start/Stop Button to the ON position.
To reset the service interval to the
mileage and days you inputted before:
- Press the OK button for more than
1 second. Service interval OFF
If the service interval is not set,
"Service interval OFF" message is
displayed on the LCD display.
✽✽
NOTICE
If any of the following conditions
occurs, the mileage and days may be
incorrect.
- The battery cable is disconnected.
- The fuse switch is turned off.
- The battery is discharged.
Tire Pressure
This mode displays the pressure sta-
tus of each tire.
You can change the tire pressure unit
in "User settings" mode. ❈ For more details, refer to "User
Settings mode" in this chapter.
OKH043413LOKH043415LOKH043405L
■Type A■Type B

461
Features of your vehicle
User Settings Mode
On this mode, you can change set-
ting of the doors, lights, and so on.Head-Up Display (HUD)
ItemsExplanation
Display HeightAdjust the height of the HUD image on the windshield glass.
BrightnessAdjust the intensity of the HUD brightness
Contents
Selection
Activate or deactivate each contents of the HUD
(TBT*, ASCC*, LDWS*, BSD*). ❈ TBT : Turn By Turn
ASCC : (Advanced) Smart Cruise Control
LDWS : Lane Departure Warning System
BSD : Blind Spot Detection
* : if equipped
Speedometer SizeChoose the size of the HUD speedometer (Small, Medium, Large).
SpeedometerColorChoose the color of the HUD speedometer (White, Orange, Green).
✽✽NOTICE
If you select the Turn By Turn (TBT) navigation information as HUD con-
tents, the Turn By Turn (TBT) navigation information will not be displayed
on the LCD.
OKH043414L

Features of your vehicle
62
4

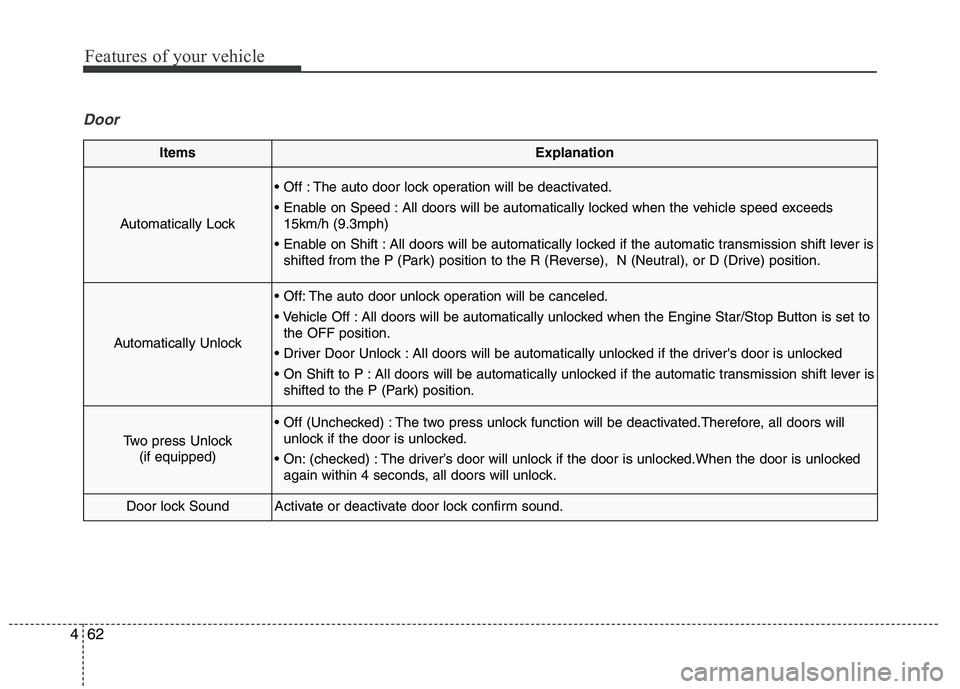

Door
ItemsExplanation
Automatically Lock
The auto door lock operation will be deactivated.
All doors will be automatically locked when the vehicle speed exceeds
15km/h (9.3mph)
All doors will be automatically locked if the automatic transmission shift lever is shifted from the P (Park) position to the R (Reverse), N (Neutral), or D (Drive) position.
Automatically Unlock
The auto door unlock operation will be canceled.
All doors will be automatically unlocked when the Engine Star/Stop Button is set tothe OFF position.
All doors will be automatically unlocked if the driver's door is unlocked
All doors will be automatically unlocked if the automatic transmission shift lever is shifted to the P (Park) position.
Two press Unlock (if equipped)
The two press unlock function will be deactivated.Therefore, all doors will
unlock if the door is unlocked.
(checked) : The driver’s door will unlock if the door is unlocked.When the door is unlocked again within 4 seconds, all doors will unlock.
Door lock SoundActivate or deactivate door lock confirm sound.

463
Features of your vehicle

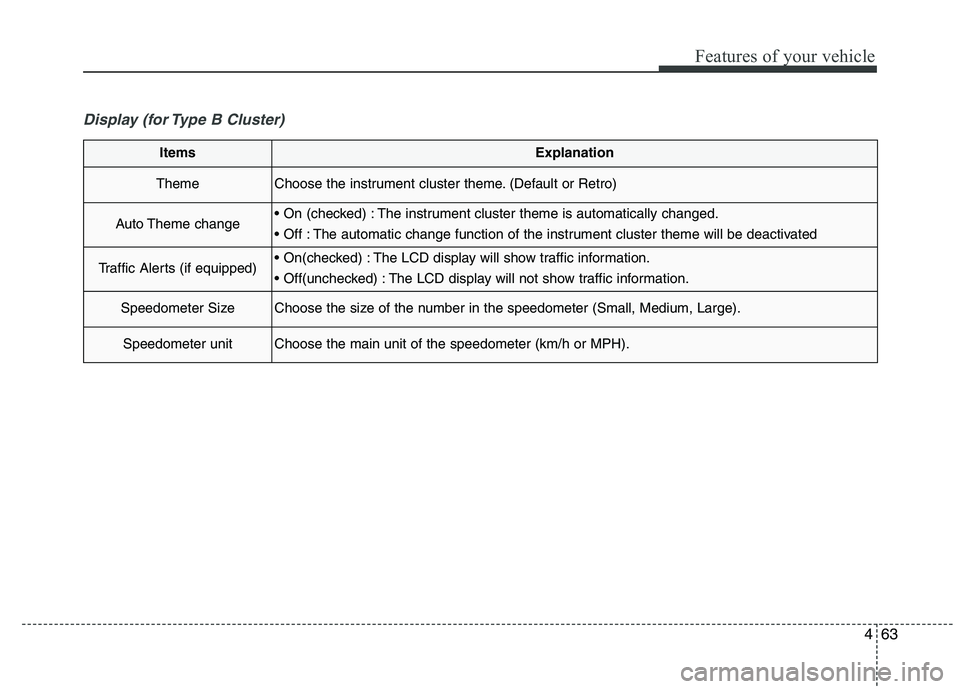

Display (for Type B Cluster)
ItemsExplanation
ThemeChoose the instrument cluster theme. (Default or Retro)
Auto Theme change The instrument cluster theme is automatically changed.
The automatic change function of the instrument cluster theme will be deactivated
Traffic Alerts (if equipped) The LCD display will show traffic information.
The LCD display will not show traffic information.
Speedometer SizeChoose the size of the number in the speedometer (Small, Medium, Large).
Speedometer unitChoose the main unit of the speedometer (km/h or MPH).

Features of your vehicle
64
4

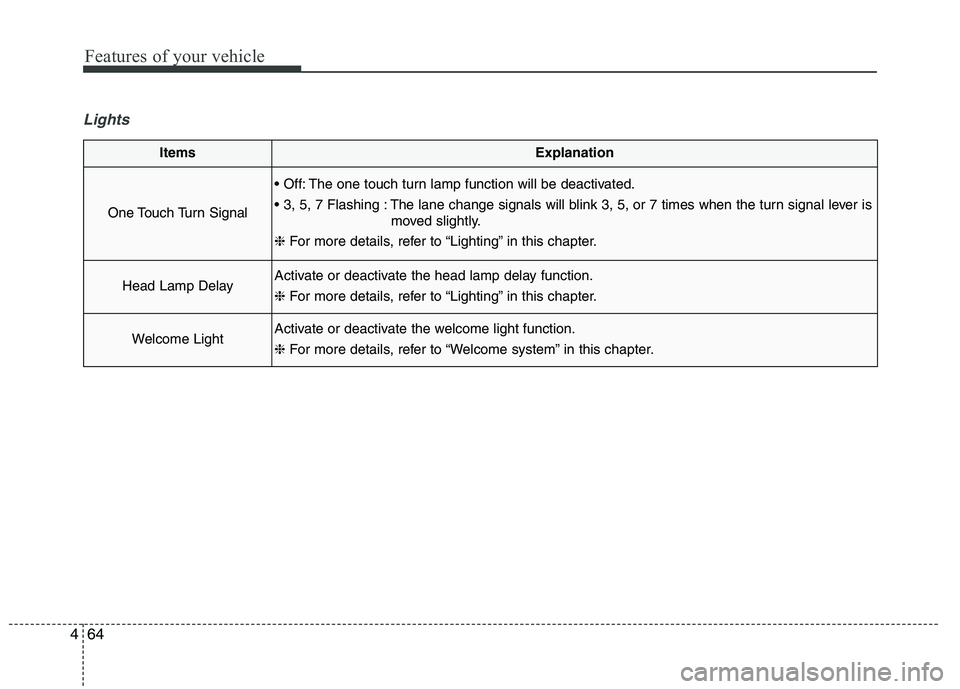

Lights
ItemsExplanation
One Touch Turn Signal
The one touch turn lamp function will be deactivated.
The lane change signals will blink 3, 5, or 7 times when the turn signal lever is
moved slightly.
❈ For more details, refer to “Lighting” in this chapter.
Head Lamp DelayActivate or deactivate the head lamp delay function. ❈ For more details, refer to “Lighting” in this chapter.
Welcome LightActivate or deactivate the welcome light function. ❈ For more details, refer to “Welcome system” in this chapter.

465
Features of your vehicle

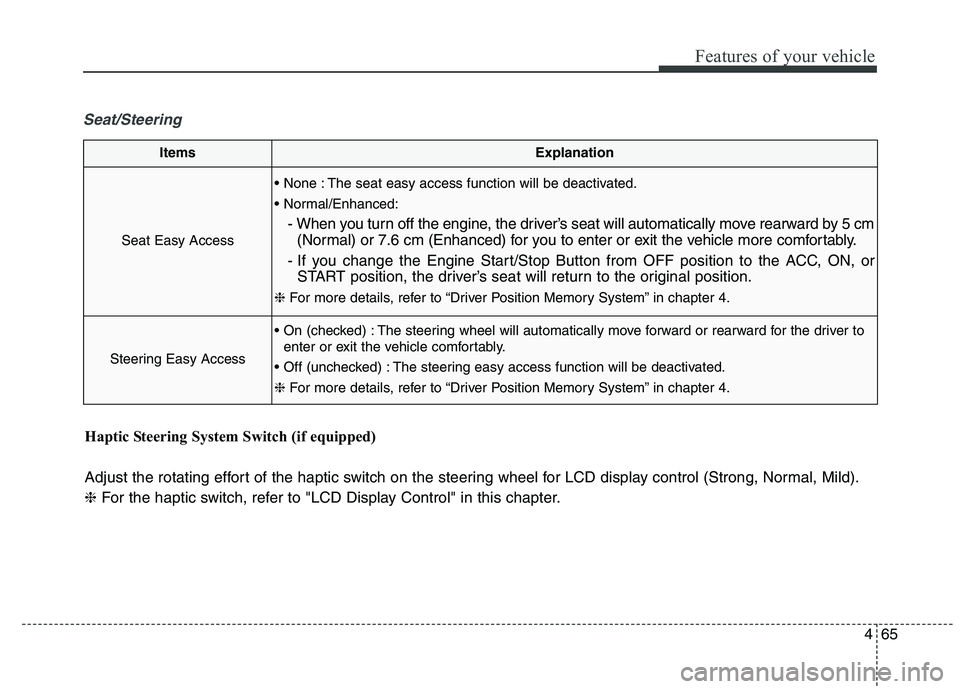

Seat/Steering
ItemsExplanation
Seat Easy Access
The seat easy access function will be deactivated.
- When you turn off the engine, the driver’s seat will automatically move rearward by 5 cm(Normal) or 7.6 cm (Enhanced) for you to enter or exit the vehicle more comfortably.
- If you change the Engine Start/Stop Button from OFF position to the ACC, ON, or START position, the driver’s seat will return to the original position.
❈ For more details, refer to “Driver Position Memory System” in chapter 4.
Steering Easy Access
The steering wheel will automatically move forward or rearward for the driver to
enter or exit the vehicle comfortably.
The steering easy access function will be deactivated. ❈ For more details, refer to “Driver Position Memory System” in chapter 4.
Haptic Steering System Switch (if equipped)
Adjust the rotating effort of the haptic switch on the steering wheel for LCD display control (Strong, Normal, Mild). ❈ For the haptic switch, refer to "LCD Display Control" in this chapter.

Features of your vehicle
66
4

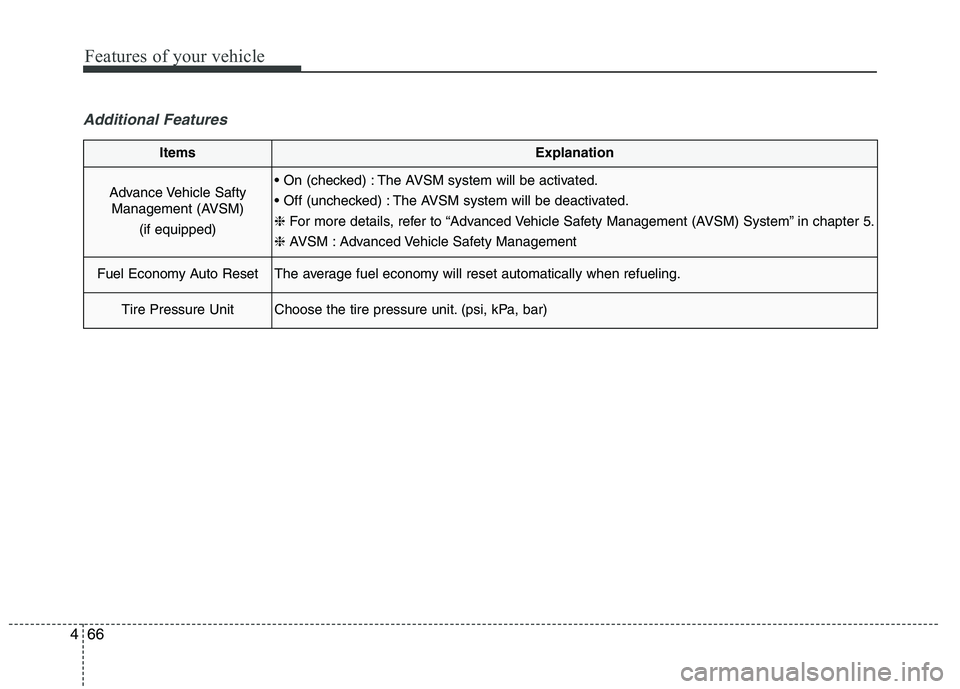

Additional Features
ItemsExplanation
Advance Vehicle Safty
Management (AVSM)
(if equipped) The AVSM system will be activated.
The AVSM system will be deactivated.❈ For more details, refer to “Advanced Vehicle Safety Management (AVSM) System” in chapter 5.
❈ AVSM : Advanced Vehicle Safety Management
Fuel Economy Auto ResetThe average fuel economy will reset automatically when refueling.
Tire Pressure UnitChoose the tire pressure unit. (psi, kPa, bar)

467
Features of your vehicle
Service Interval
On this mode, you can activate the
service interval function with mileage
(km or mi.) and period (months).
Off : The service interval functionwill be deactivated.
On : You can set the service inter- val (mileage and months). Warning Messages
Shift to "P" position
This warning message illuminates if
you try to turn off the engine without
the shift lever in P (Park) position.
At this time, the Engine Start/Stop Button turns to the ACC position (If
you press the Engine Start/Stop
Button once more, it will turn to theON position).
Low Key Battery
This warning message illuminatesif the battery of the smart key is discharged when the Engine
Start/Stop Button changes to theOFF position.
OKH043443L
OKH043416L
■Type A
■Type A
■Type B
■Type B
OKH043418L
■ Type A■Type B

Features of your vehicle
68
4

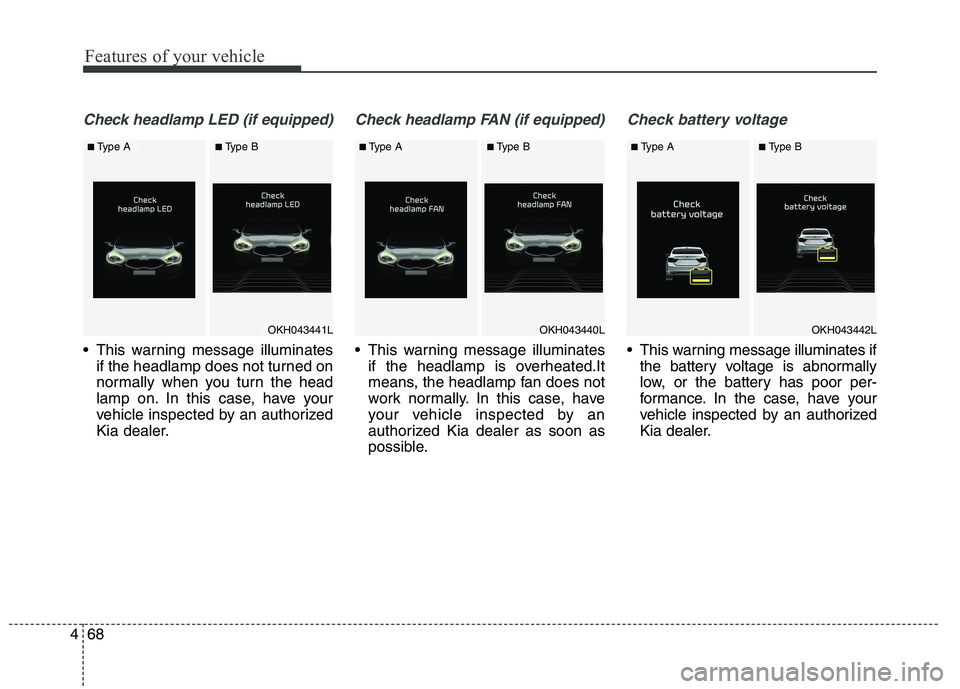

Check headlamp LED (if equipped)
This warning message illuminates
if the headlamp does not turned on
normally when you turn the head
lamp on. In this case, have your
vehicle inspected by an authorized
Kia dealer.
Check headlamp FAN (if equipped)
This warning message illuminatesif the headlamp is overheated.It
means, the headlamp fan does not
work normally. In this case, have
your vehicle inspected by an
authorized Kia dealer as soon as
possible.
Check battery voltage
This warning message illuminates ifthe battery voltage is abnormally
low, or the battery has poor per-
formance. In the case, have your
vehicle inspected by an authorized
Kia dealer.
OKH043441L
■Type A■Type B
OKH043440L
■ Type A■Type B
OKH043442L
■Type A■Type B

469
Features of your vehicle

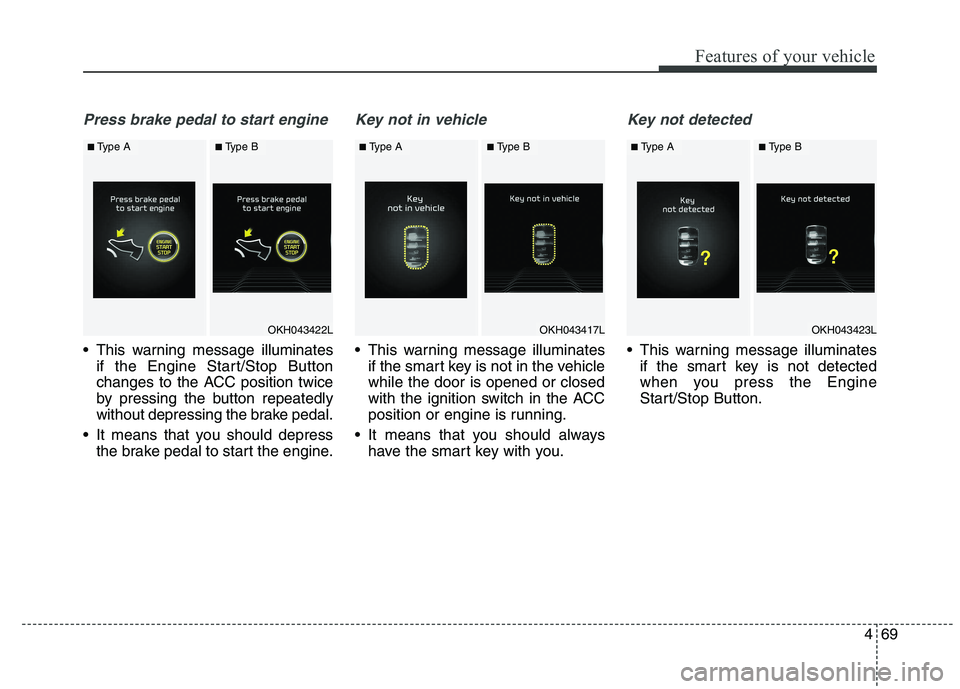

Press brake pedal to start engine
This warning message illuminatesif the Engine Start/Stop Button
changes to the ACC position twice
by pressing the button repeatedly
without depressing the brake pedal.
It means that you should depress the brake pedal to start the engine.
Key not in vehicle
This warning message illuminatesif the smart key is not in the vehicle while the door is opened or closed
with the ignition switch in the ACC
position or engine is running.
It means that you should always have the smart key with you.
Key not detected
This warning message illuminatesif the smart key is not detected
when you press the Engine
Start/Stop Button.
OKH043422L
■Type A■Type B
OKH043417L
■ Type A■Type B
OKH043423L
■Type A■Type B
