start stop button KIA QUORIS 2016 Owner's Guide

465
Features of your vehicle
Service required
If you do not have your vehicle serv- iced according to the already inputted
service interval, "Service required"
message is displayed for several sec-
onds each time you set the Engine
Start/Stop Button to the ON position.
To reset the service interval to the
mileage and days you inputted before:
- Press the OK button for more than1 second. Service interval OFF
If the service interval is not set,
"Service interval OFF" message is
displayed on the LCD display.
✽✽
NOTICE
If any of the following conditions
occurs, the mileage and days may be
incorrect.
- The battery cable is disconnected.
- The fuse switch is turned off.
- The battery is discharged.
OKH043413LOKH043405L
■ Type A■Type B■Type A■Type B

Features of your vehicle
72
4

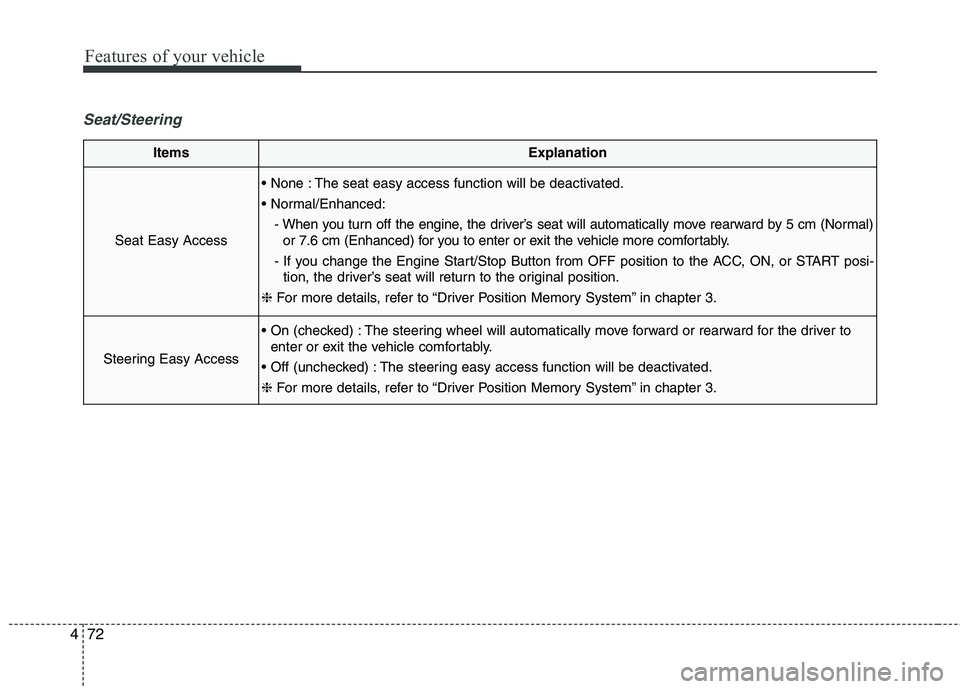

Seat/Steering
ItemsExplanation
Seat Easy Access
The seat easy access function will be deactivated.

- When you turn off the engine, the driver’s seat will automatically move rearward by 5 cm (Normal)or 7.6 cm (Enhanced) for you to enter or exit the vehicle more comfortably.
- If you change the Engine Start/Stop Button from OFF position to the ACC, ON, or START posi- tion, the driver’s seat will return to the original position.
❈ For more details, refer to “Driver Position Memory System” in chapter 3.
Steering Easy Access
The steering wheel will automatically move forward or rearward for the driver to
enter or exit the vehicle comfortably.
The steering easy access function will be deactivated. ❈ For more details, refer to “Driver Position Memory System” in chapter 3.

Features of your vehicle
74
4

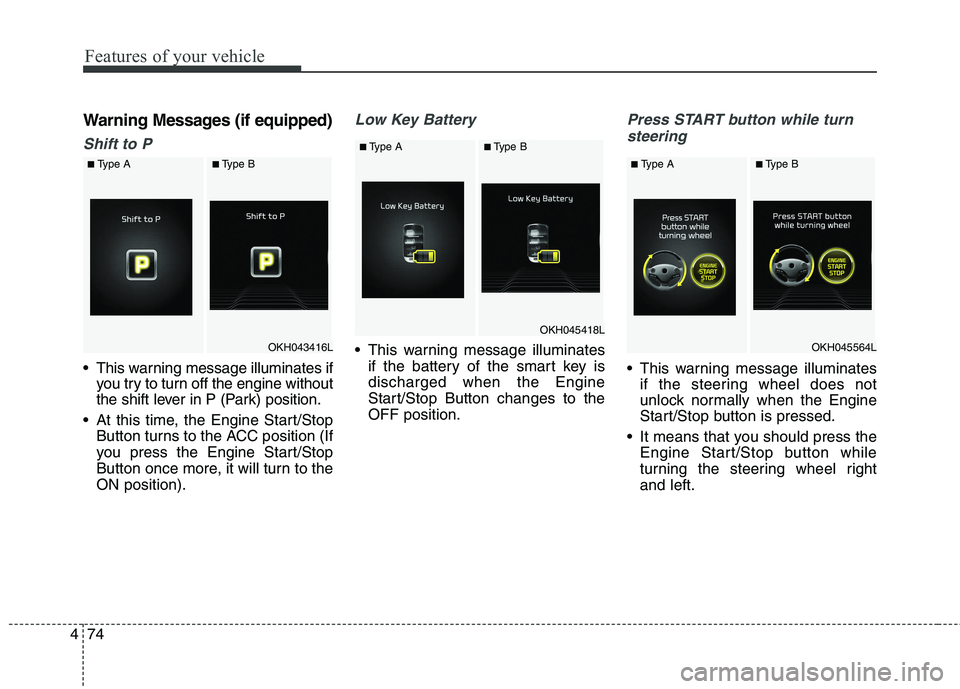

Warning Messages (if equipped)
Shift to P
This warning message illuminates if
you try to turn off the engine without
the shift lever in P (Park) position.
At this time, the Engine Start/Stop Button turns to the ACC position (If
you press the Engine Start/Stop
Button once more, it will turn to theON position).
Low Key Battery
This warning message illuminatesif the battery of the smart key is discharged when the Engine
Start/Stop Button changes to theOFF position.
Press START button while turn
steering
This warning message illuminates if the steering wheel does not
unlock normally when the Engine
Start/Stop button is pressed.
It means that you should press the Engine Start/Stop button while
turning the steering wheel rightand left.
OKH043416L
■Type A■Type B
OKH045418L
■Type A■Type B
OKH045564L
■Type A■Type B

475
Features of your vehicle
Steering wheel unlocked
This warning message illuminatesif the steering wheel does not lock
when the Engine Start/Stop buttonchanges to the OFF position.
Check Steering wheel lock system
This warning message illuminatesif the steering wheel does not lock
normally when the Engine
Start/Stop button changes to theOFF position.
Press brake pedal to start engine
This warning message illuminatesif the Engine Start/Stop button
changes to the ACC position twice
by pressing the button repeatedly
without depressing the brake pedal.
It means that you should depress the brake pedal to start the engine.
OKH045565L
■Type A■Type B
OKH045566L
■Type A■Type B
OKH045422L
■Type A■Type B

Features of your vehicle
76
4

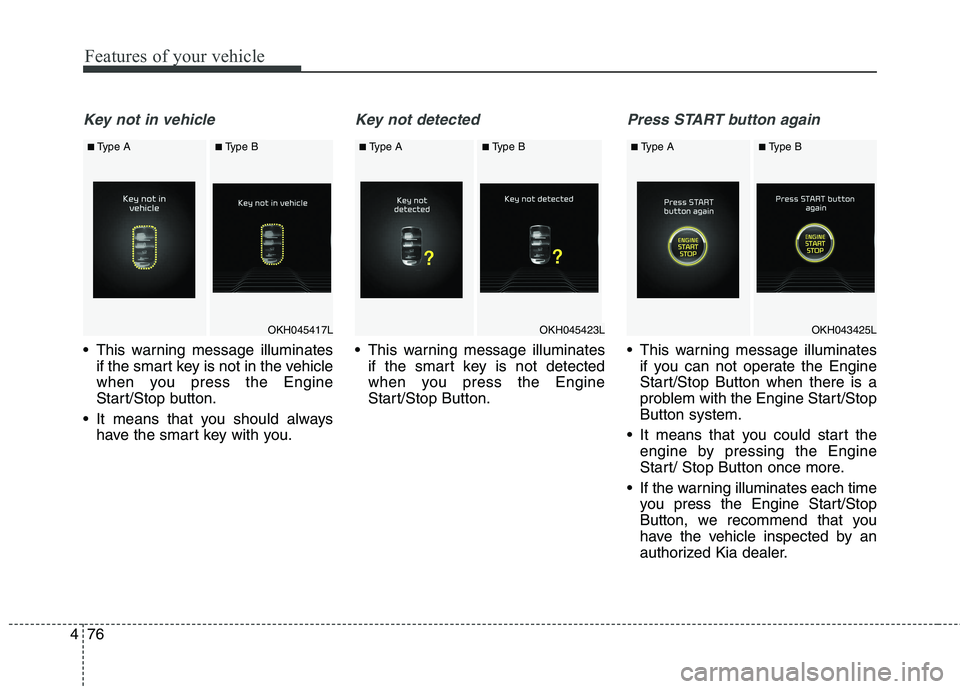

Key not in vehicle
This warning message illuminates
if the smart key is not in the vehicle
when you press the Engine
Start/Stop button.
It means that you should always have the smart key with you.
Key not detected
This warning message illuminatesif the smart key is not detected
when you press the Engine
Start/Stop Button.
Press START button again
This warning message illuminatesif you can not operate the Engine
Start/Stop Button when there is a
problem with the Engine Start/StopButton system.
It means that you could start the engine by pressing the Engine
Start/ Stop Button once more.
If the warning illuminates each time you press the Engine Start/Stop
Button, we recommend that you
have the vehicle inspected by an
authorized Kia dealer.
OKH045423L
■Type A■Type B
OKH045417L
■Type A■Type B
OKH043425L
■ Type A■Type B

477
Features of your vehicle
Press START button with key
This warning message illuminatesif you press the Engine Start/Stop
Button while the warning message
“Key not detected” is illuminating.
At this time, the immobilizer indica- tor light blinks.
Check headlamp LED (if equipped)
This warning message illuminatesif the headlamp does not turned on
normally when you turn the head
lamp on. In this case, have your
vehicle inspected by an authorized
Kia dealer.
Check headlamp FAN (if equipped)
This warning message illuminates ifthe headlamp is overheated.It
means, the headlamp fan does not
work normally. In this case, have
your vehicle inspected by an author-
ized Kia dealer as soon as possible.
OKH045424L
■Type A■Type B
OKH045513L
■Type A■Type B
OKH045514L
■Type A■Type B

Features of your vehicle
78
4
Check battery voltage
This warning message illuminates if
the battery voltage is abnormally
low, or the battery has poor per-
formance. In the case, have your
vehicle inspected by an authorized
Kia dealer.
Check BRAKE SWITCH fuse
This warning message illuminatesif the brake switch fuse is discon- nected.
It means that you should replace the fuse with a new one. If that is
not possible, you can start the
engine by pressing the Engine
Start/Stop Button for 10 seconds in
the ACC position.
Shift to P or N to start engine
This warning message illuminatesif you try to start the engine with
the shift lever not in the P (Park) or
N (Neutral) position.
✽✽ NOTICE
You can start the engine with the
shift lever in the N (Neutral) position.
But, for your safety, we recommend
that you start the engine with the
shift lever in the P (Park) position.
OKH045442L
■ Type A■Type B
OKH045426L
■Type A■Type B
OKH043427L
■Type A■Type B

479
Features of your vehicle

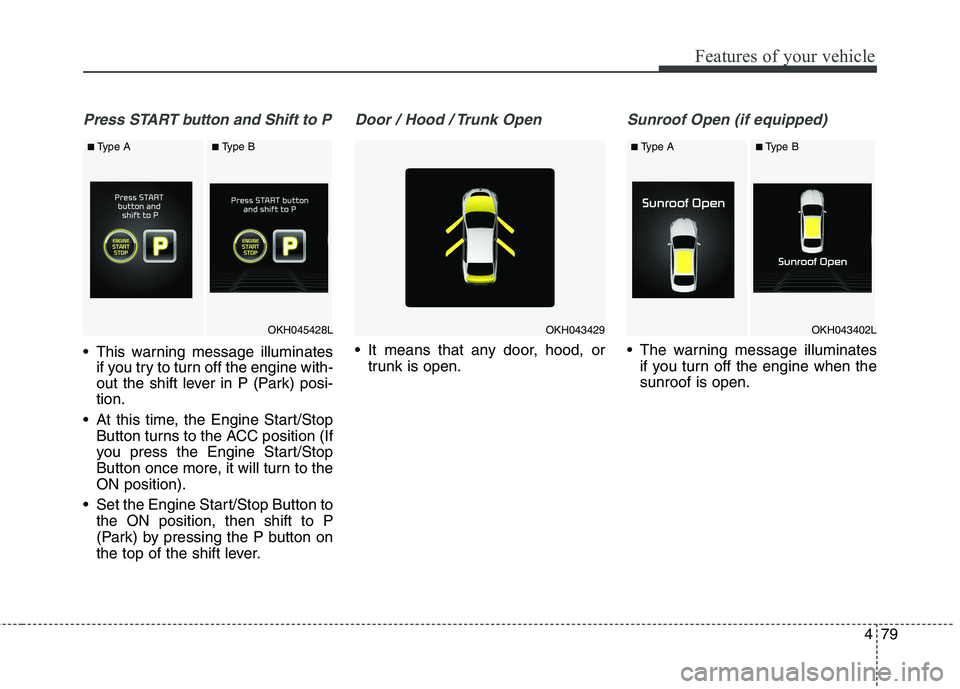

Press START button and Shift to P
This warning message illuminatesif you try to turn off the engine with-
out the shift lever in P (Park) posi-tion.
At this time, the Engine Start/Stop Button turns to the ACC position (If
you press the Engine Start/Stop
Button once more, it will turn to theON position).
Set the Engine Start/Stop Button to the ON position, then shift to P
(Park) by pressing the P button on
the top of the shift lever.
Door / Hood / Trunk Open
It means that any door, hood, ortrunk is open.
Sunroof Open (if equipped)
The warning message illuminatesif you turn off the engine when the sunroof is open.
OKH045428L
■Type A■Type B
OKH043429OKH043402L
■ Type A■Type B

481
Features of your vehicle
Turn on FUSE SWITCH
This warning message illuminatesif the fuse switch on the fuse box is
OFF.
It means that you should turn the fuse switch on.
For more details, refer to “Fuses” inchapter 7.
Low Tire Pressure (if equipped)
This warning message illuminates if the tire pressure is low with the
Engine Start/Stop button in ONposition.
For more details, refer to "Tire
Pressure Monitoring System (TPMS)"in chapter 6.
Align steering wheel
This warning message illuminates if you start the engine when the
steering wheel is turned to more
than 90 degrees to the left or right.
It means that you should turn the steering wheel and make the angle
of the steering wheel be less than
30 degrees.
OKH043433L
■Type A■Type B
OKH043415L
■Type A■Type B
OKH045435L
■Type A■Type B

Features of your vehicle
86
4
✽✽

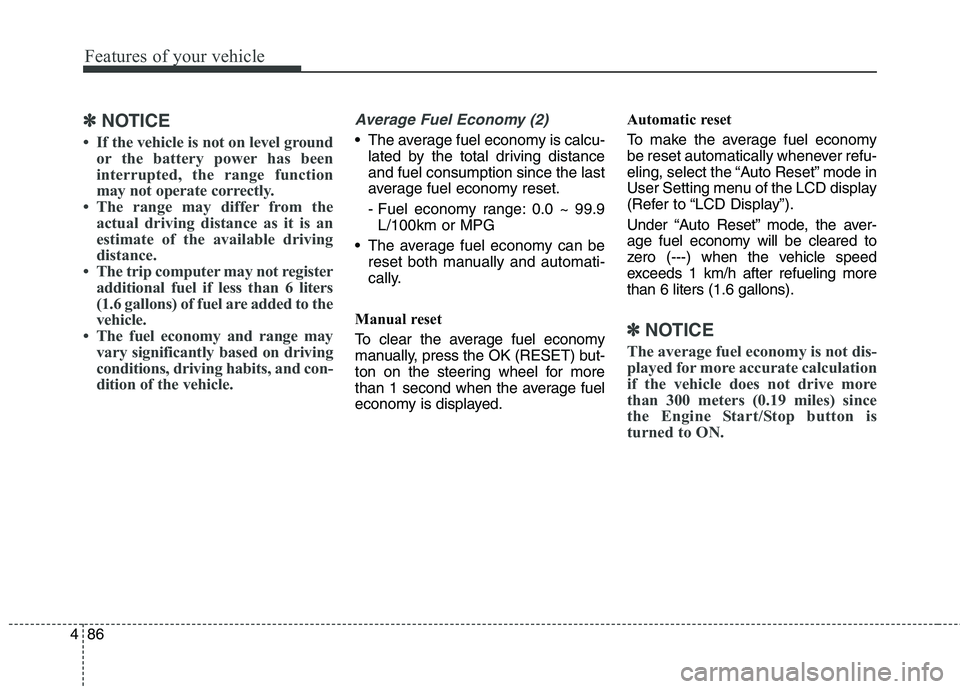

NOTICE
 If the vehicle is not on level ground or the battery power has been
interrupted, the range function
may not operate correctly.
 The range may differ from the actual driving distance as it is an
estimate of the available driving
distance.
 The trip computer may not register additional fuel if less than 6 liters
(1.6 gallons) of fuel are added to the
vehicle.
 The fuel economy and range may vary significantly based on driving
conditions, driving habits, and con-
dition of the vehicle.Average Fuel Economy (2)
The average fuel economy is calcu-lated by the total driving distance and fuel consumption since the last
average fuel economy reset.
- Fuel economy range: 0.0 ~ 99.9L/100km or MPG
The average fuel economy can be reset both manually and automati-
cally.
Manual reset
To clear the average fuel economy
manually, press the OK (RESET) but-
ton on the steering wheel for more
than 1 second when the average fuel
economy is displayed. Automatic reset
To make the average fuel economy
be reset automatically whenever refu-
eling, select the “Auto Reset” mode in
User Setting menu of the LCD display
(Refer to “LCD Display”).
Under “Auto Reset” mode, the aver-
age fuel economy will be cleared to
zero (---) when the vehicle speed
exceeds 1 km/h after refueling morethan 6 liters (1.6 gallons).
✽✽
NOTICE
The average fuel economy is not dis-
played for more accurate calculation
if the vehicle does not drive more
than 300 meters (0.19 miles) since
the Engine Start/Stop button is
turned to ON.
