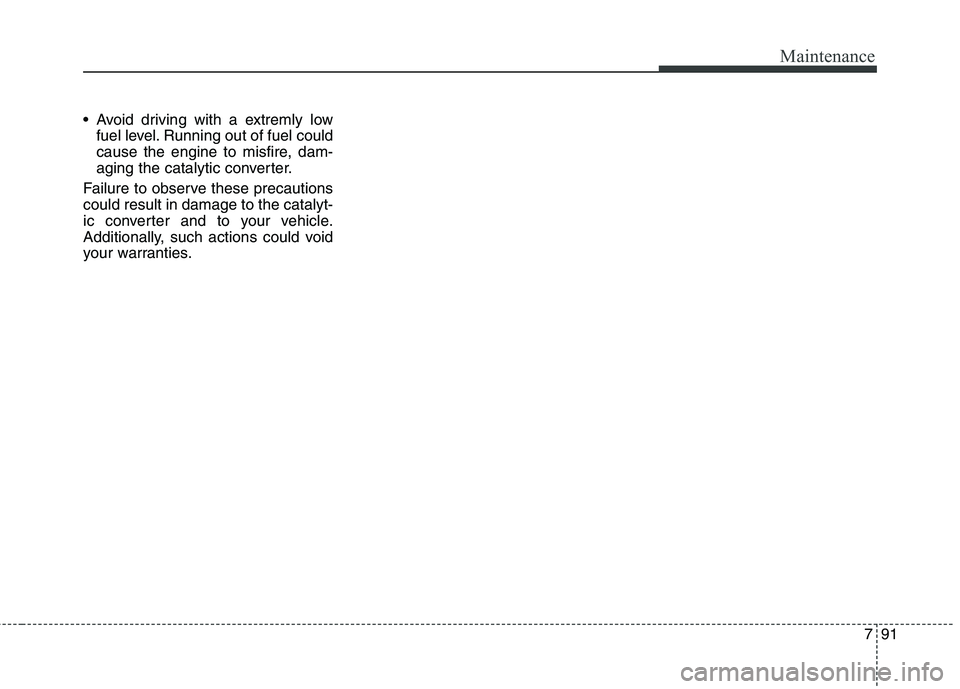

Avoid driving with a extremly lowfuel level. Running out of fuel could
cause the engine to misfire, dam-
aging the catalytic converter.
Failure to observe these precautionscould result in damage to the catalyt-
ic converter and to your vehicle.
Additionally, such actions could void
your warranties.

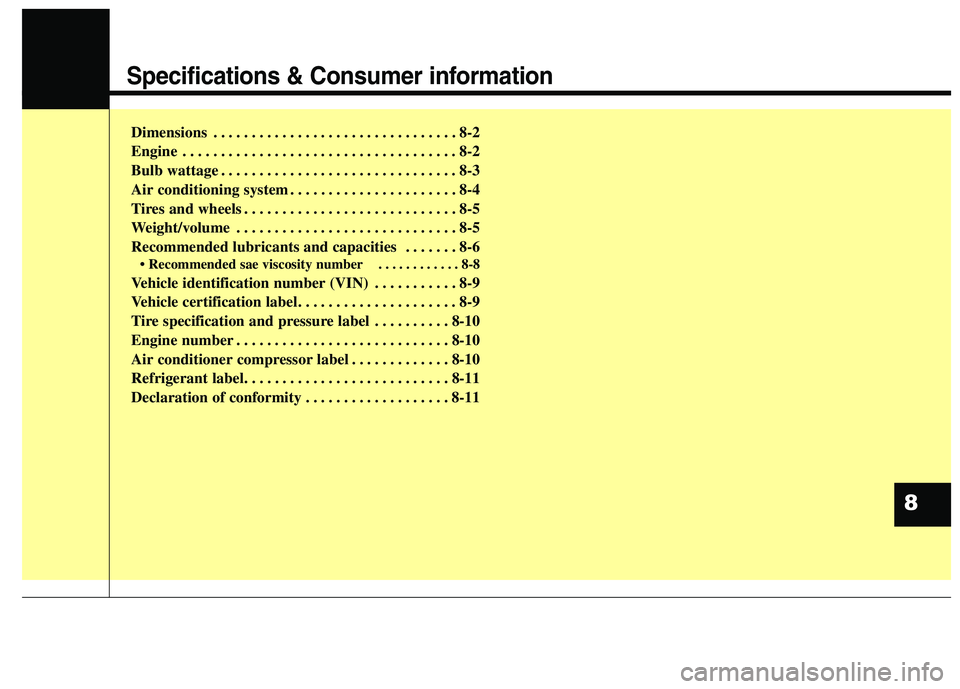

Specifications & Consumer information
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-2
Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-2
Bulb wattage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-3
Air conditioning system . . . . . . . . . . . . . . . . . . . . . . 8-4
Tires and wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-5
Weight/volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-5
Recommended lubricants and capacities . . . . . . . 8-6• Recommended sae viscosity number . . . . . . . . . . . . 8-8
Vehicle identification number (VIN) . . . . . . . . . . . 8-9
Vehicle certification label. . . . . . . . . . . . . . . . . . . . . 8-9
Tire specification and pressure label . . . . . . . . . . 8-10
Engine number . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-10
Air conditioner compressor label . . . . . . . . . . . . . 8-10
Refrigerant label. . . . . . . . . . . . . . . . . . . . . . . . . . . 8-11
Declaration of conformity . . . . . . . . . . . . . . . . . . . 8-11
8

Specifications & Consumer information
2
8
DIMENSIONS
Item mm (in)
Overall length 5,095 (200.59)
Overall width 1,900 (74.80)
Overall height 1,490 (58.66)/1,485 (58.46) * 1
Front tread 245/50 R18 1,616 (63.62)
245/45 R19 1,620 (63.78)
Rear tread 245/50 R18 1,634 (64.33)
245/45 R19 1,627 (64.06)
Wheelbase 3,045 (119.88)
Item Gasoline Lambda II 3.8 Gasoline Tau 5.0
Displacement cc (cu. in) 3,778
(230.54) 5,038
(307.3)
Bore x Stroke mm(in.)96x87
(3.78x3.42 ) 96x87
(3.78x3.42 )
Firing order 1-2-3-4-5-6 1-2-7-8-4-5-6-3
No. of cylinders 6, V - type 8, V - type
ENGINE
*
1
with air suspension

83
Specifications & Consumer information

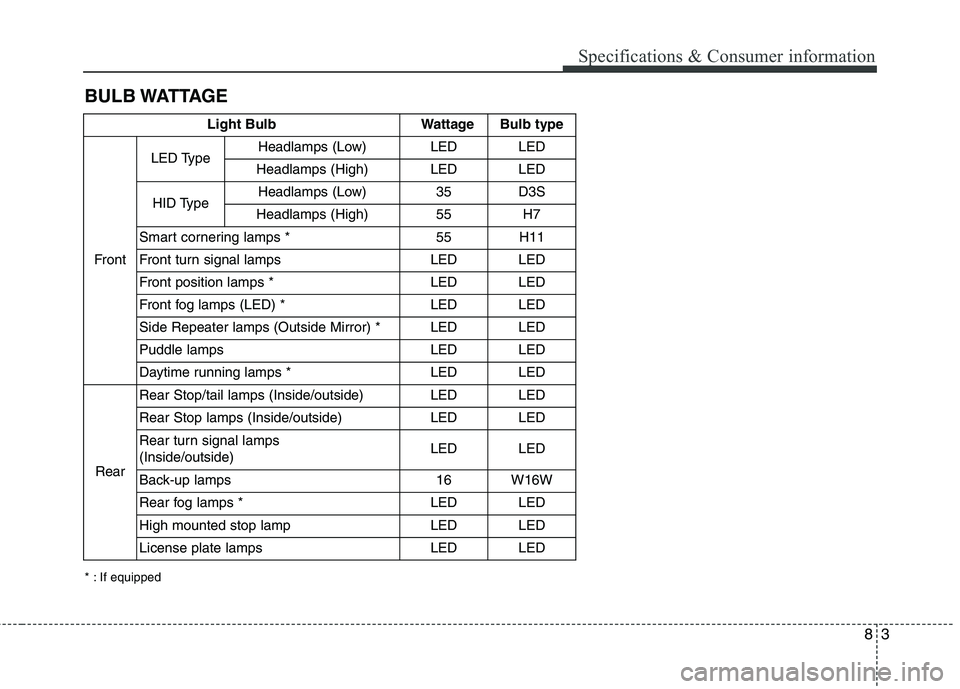

BULB WATTAGE
* : If equippedLight Bulb Wattage Bulb type
Front LED Type
Headlamps (Low) LED LED
Headlamps (High) LED LED
HID Type Headlamps (Low) 35 D3S
Headlamps (High) 55 H7
Smart cornering lamps * 55 H11
Front turn signal lamps LED LED
Front position lamps * LED LED
Front fog lamps (LED) * LED LED
Side Repeater lamps (Outside Mirror) * LED LED
Puddle lamps LED LED
Daytime running lamps * LED LED
Rear Rear Stop/tail lamps (Inside/outside) LED LED
Rear Stop lamps (Inside/outside) LED LED
Rear turn signal lamps (Inside/outside)
LED LED
Back-up lamps 16 W16W
Rear fog lamps * LED LED
High mounted stop lamp LED LED
License plate lamps LED LED

Specifications & Consumer information
4
8

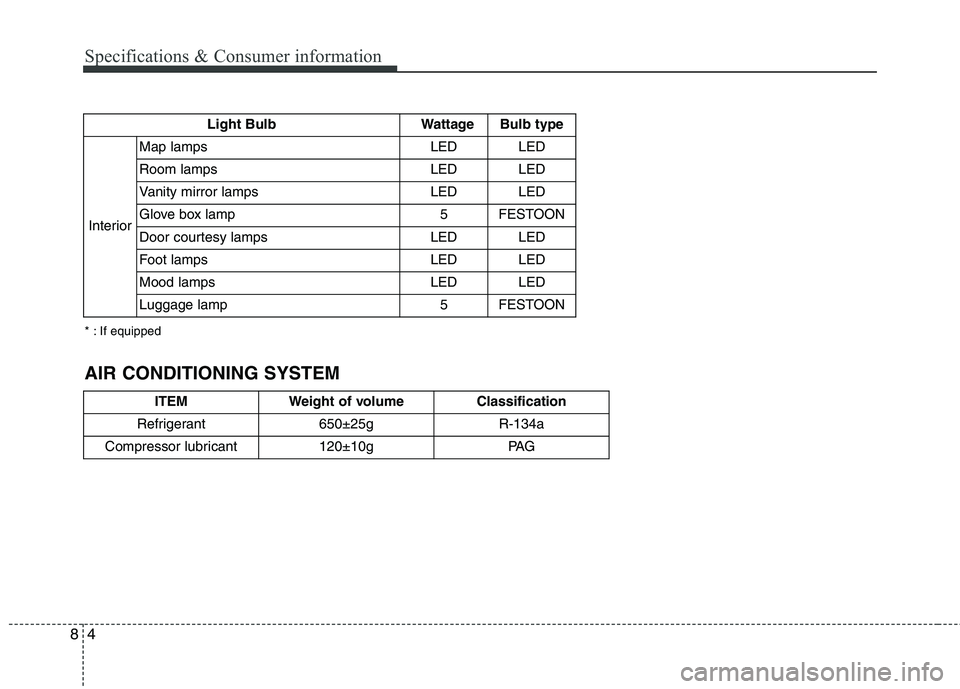

Light Bulb Wattage Bulb type
Interior Map lamps LED LED
Room lamps LED LED
Vanity mirror lamps LED LED
Glove box lamp 5 FESTOON
Door courtesy lamps LED LED
Foot lamps LED LED
Mood lamps LED LED
Luggage lamp 5 FESTOON
* : If equipped
ITEMWeight of volumeClassification
Refrigerant650±25gR-134a
Compressor lubricant120±10gPA G
AIR CONDITIONING SYSTEM

85
Specifications & Consumer information

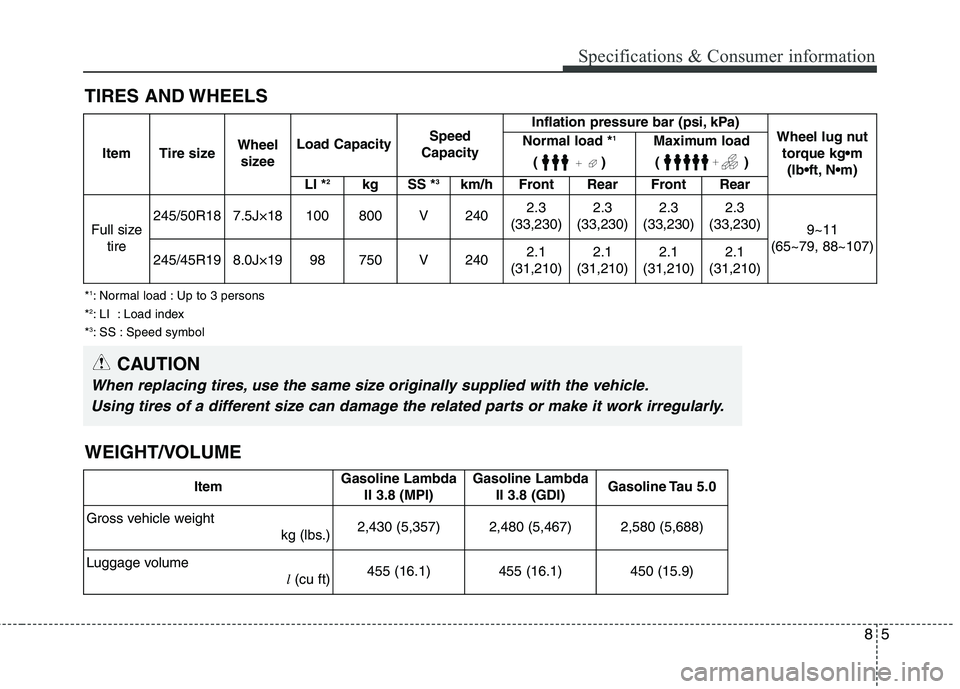

TIRES AND WHEELS *1
: Normal load : Up to 3 persons
* 2
: LI : Load index
* 3
: SS : Speed symbol Item Tire size
Wheel
sizee Load Capacity
Speed
Capacity Inflation pressure bar (psi, kPa)
Wheel lug nut
torque kg•m
Normal load *
1
()
Maximum load ()
LI * 2
kg SS * 3
km/h Front Rear Front Rear
Full size tire 245/50R18 7.5J×18 100 800 V 240
2.3
(33,230) 2.3
(33,230) 2.3
(33,230) 2.3
(33,230) 9~11
(65~79, 88~107)
245/45R19 8.0J×19 98 750 V 240 2.1
(31,210) 2.1
(31,210) 2.1
(31,210) 2.1
(31,210)
CAUTION
When replacing tires, use the same size originally supplied with the vehicle.
Using tires of a different size can damage the related parts or make it work irregularly.
WEIGHT/VOLUME
Item Gasoline Lambda
II 3.8 (MPI) Gasoline Lambda
II 3.8 (GDI) Gasoline Tau 5.0
Gross vehicle weight kg (lbs.)2,430 (5,357) 2,480 (5,467) 2,580 (5,688)
Luggage volume l(cu ft) 455 (16.1) 455 (16.1) 450 (15.9)

Specifications & Consumer information
6
8
RECOMMENDED LUBRICANTS AND CAPACITIES
To help achieve proper engine and powertrain performance and durability, use only lubricants of the proper quality.
The correct lubricants also help promote engine efficiency that results in improved fuel economy.
These lubricants and fluids are recommended for use in your vehicle.

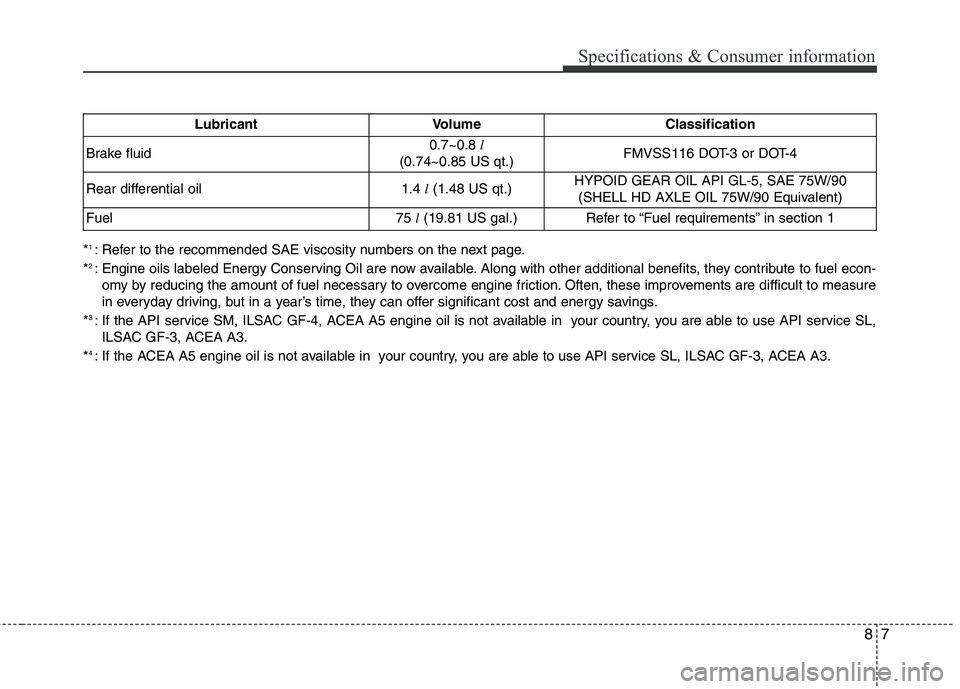

Lubricant Volume Classification
Engine oil * 1
*2
(drain and refill) Recommends 3.8LMPI *
3
5.7 l(6.02 US qt.) API Service SM or above,
ILSAC GF-4 or aboveACEA A5 (or above)
GDI * 4
5.7 l(6.02 US qt.)
ACEA A5 (or above)
5.0L * 4
7.2 l(7.61 US qt.)
ACEA A5 (or above)
Engine oil consumption Normal driving
condition MAX. 1L / 1,500 km -
Severe driving condition MAX. 1L / 1,000 km -
Automatic
transaxle fluid 3.8L
MPI
9.6
l(10.14 US qt.)
GS ATF SP-IV-RR,
Kia genuine ATF SP-IV-RR
GDI
9.6
l(10.14 US qt.)
5.0L 9.6
l(10.14 US qt.)
Power steering fluid With EHPS 0.9
l(0.95 US qt.)
Pentosin CHF 202
Coolant 3.8LMPI
8.6
l(9.1 US qt.)
Mixture of antifreeze and distilled water
(Ethylene glycol base coolant for aluminum radiator)
GDI
8.6
l(9.1 US qt.)
5.0L 10.8
l(11.4 US qt.)

87
Specifications & Consumer information
*1
: Refer to the recommended SAE viscosity numbers on the next page.
* 2
: Engine oils labeled Energy Conserving Oil are now available. Along with other additional benefits, they contribute to fuel econ -
omy by reducing the amount of fuel necessary to overcome engine friction. Often, these improvements are difficult to measure
in everyday driving, but in a year’s time, they can offer significant cost and energy savings.
* 3
: If the API service SM, ILSAC GF-4, ACEA A5 engine oil is not available in your country, you are able to use API service SL,
ILSAC GF-3, ACEA A3.
* 4
: If the ACEA A5 engine oil is not available in your country, you are able to use API service SL, ILSAC GF-3, ACEA A3. Lubricant Volume Classification
Brake fluid 0.7~0.8
l
(0.74~0.85 US qt.) FMVSS116 DOT-3 or DOT-4
Rear differential oil 1.4
l(1.48 US qt.) HYPOID GEAR OIL API GL-5, SAE 75W/90
(SHELL HD AXLE OIL 75W/90 Equivalent)
Fuel 75
l(19.81 US gal.)
Refer to “Fuel requirements” in section 1

Specifications & Consumer information
8
8
Recommended SAE viscosity
number Engine oil viscosity (thickness) has
an effect on fuel economy and cold
weather operating (engine start and
engine oil flowability). Lower viscosi-
ty engine oils can provide better fuel
economy and cold weather perform-
ance, however, higher viscosity
engine oils are required for satisfac-
tory lubrication in hot weather.Using oils of any viscosity other thanthose recommended could result in
engine damage. When choosing an oil, consider the
range of temperature your vehicle will
be operated in before the next oil
change. Proceed to select the recom-
mended oil viscosity from the chart.
CAUTION
Always be sure to clean the area
around any filler plug, drain
plug, or dipstick before check-
ing or draining any lubricant.
This is especially important in
dusty or sandy areas and when
the vehicle is used on unpaved
roads. Cleaning the plug and
dipstick areas will prevent dirt
and grit from entering the
engine and other mechanisms
that could be damaged.
* 1
: For better fuel economy, it is recommended to use the engine oil of a viscosity grade SAE
5W-20 (API SM / ILSAC GF-4). However, if the engine oil is not available in your country,
select the proper engine oil using the engine oil viscosity chart.
* 2
: In Middle East, do not use the engine oil of viscosity grade SAE 5W-20.
* 3
: For better fuel economy, it is recommended to use the engine oil of a viscosity grade SAE
5W-30 (ACEA A5). However, if the engine oil is not available in your country, select the prop-
er engine oil using the engine oil viscosity chart.
Temperature Range for SAE Viscosity Numbers
Temperature
Gasoline
Engine Oil * 1
(MPI) °C
(°F)-30 -20 -10 0 10 20 30 40 50 -10 0 20 40 60 80 100 120
20W-50
10W-30
15W-40
5W-20 * 2
, 5W-30
Gasoline
Engine Oil * 3
(GDI)20W-50
10W-30
15W-40
5W-30, 5W-40

89
Specifications & Consumer information

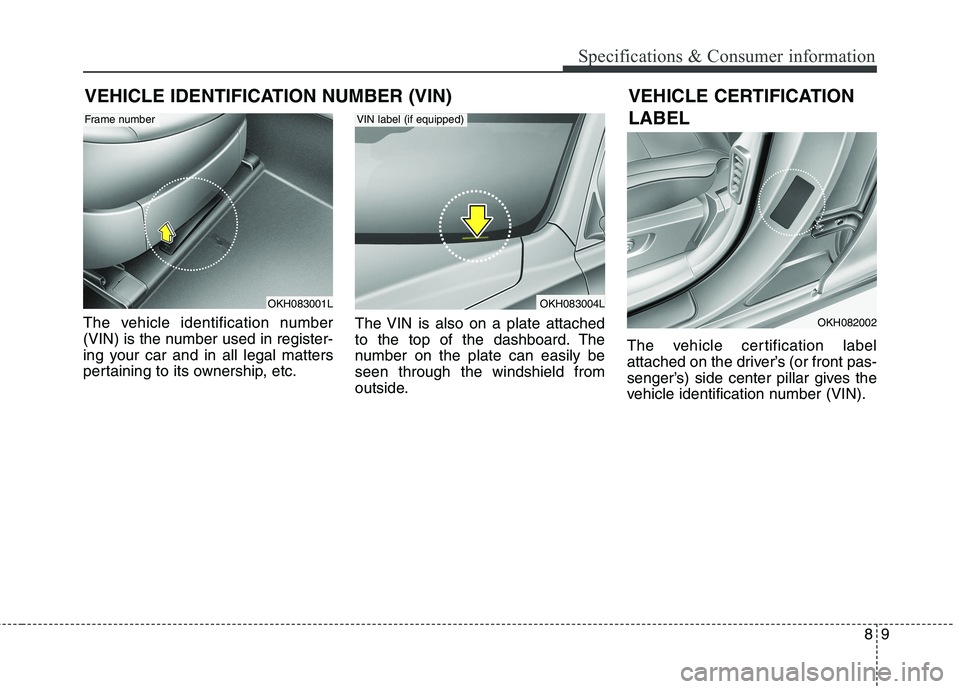

VEHICLE IDENTIFICATION NUMBER (VIN)
The vehicle identification number
(VIN) is the number used in register-
ing your car and in all legal matters
pertaining to its ownership, etc. The VIN is also on a plate attached
to the top of the dashboard. The
number on the plate can easily beseen through the windshield from
outside.
The vehicle certification label
attached on the driver’s (or front pas-
senger’s) side center pillar gives the
vehicle identification number (VIN).
OKH083001LOKH083004L
VIN label (if equipped)Frame number
OKH082002
VEHICLE CERTIFICATION LABEL
