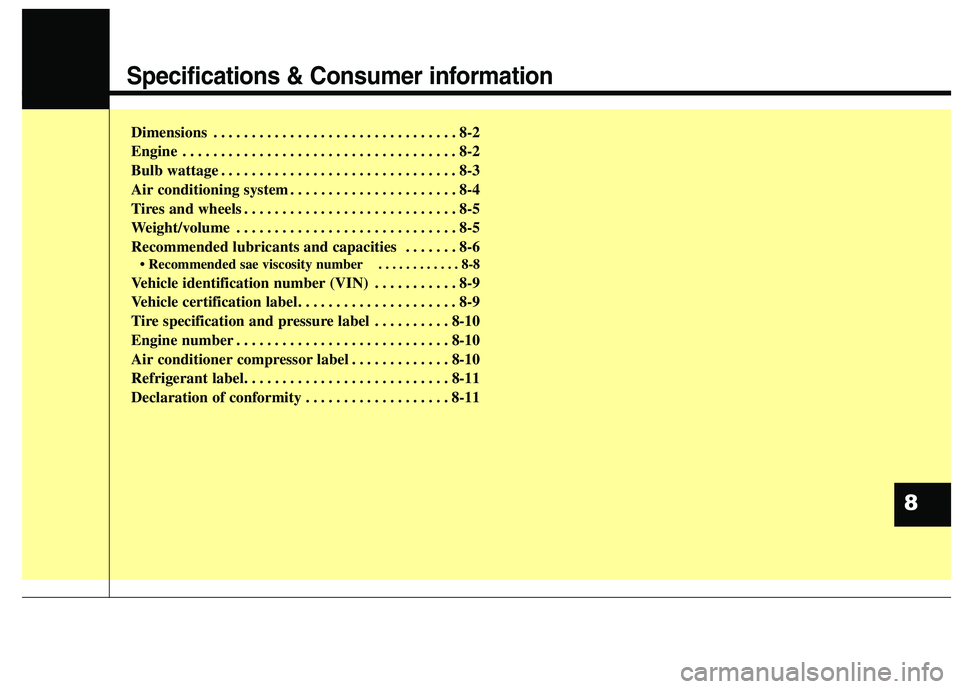

Specifications & Consumer information
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-2
Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-2
Bulb wattage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-3
Air conditioning system . . . . . . . . . . . . . . . . . . . . . . 8-4
Tires and wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-5
Weight/volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-5
Recommended lubricants and capacities . . . . . . . 8-6• Recommended sae viscosity number . . . . . . . . . . . . 8-8
Vehicle identification number (VIN) . . . . . . . . . . . 8-9
Vehicle certification label. . . . . . . . . . . . . . . . . . . . . 8-9
Tire specification and pressure label . . . . . . . . . . 8-10
Engine number . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-10
Air conditioner compressor label . . . . . . . . . . . . . 8-10
Refrigerant label. . . . . . . . . . . . . . . . . . . . . . . . . . . 8-11
Declaration of conformity . . . . . . . . . . . . . . . . . . . 8-11
8
Specifications & Consumer information
2
8
DIMENSIONS
Item mm (in)
Overall length 5,095 (200.59)
Overall width 1,900 (74.80)
Overall height 1,490 (58.66)/1,485 (58.46) * 1
Front tread 245/50 R18 1,616 (63.62)
245/45 R19 1,620 (63.78)
Rear tread 245/50 R18 1,634 (64.33)
245/45 R19 1,627 (64.06)
Wheelbase 3,045 (119.88)
Item Gasoline Lambda II 3.8 Gasoline Tau 5.0
Displacement cc (cu. in) 3,778
(230.54) 5,038
(307.3)
Bore x Stroke mm(in.)96x87
(3.78x3.42 ) 96x87
(3.78x3.42 )
Firing order 1-2-3-4-5-6 1-2-7-8-4-5-6-3
No. of cylinders 6, V - type 8, V - type
ENGINE
*
1
with air suspension
