KIA Rio 2005 2.G Owner's Manual

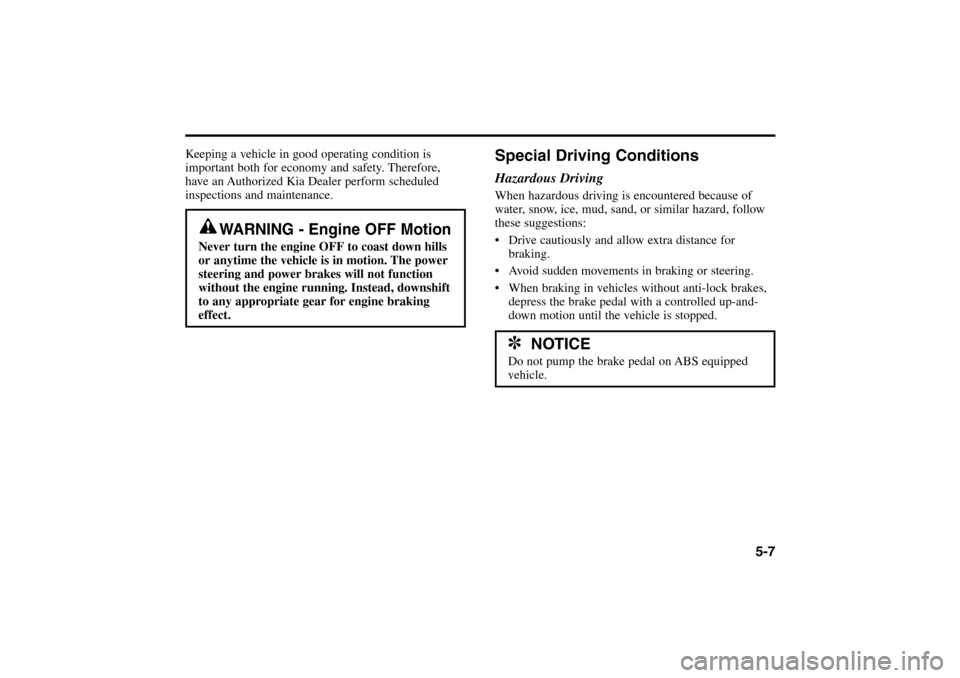

Keeping a vehicle in good operating condition is
important both for economy and safety. Therefore,
have an Authorized Kia Dealer perform scheduled
inspections and maintenance.
Special Driving ConditionsHazardous DrivingWhen hazardous driving is encountered because of
water, snow, ice, mud, sand, or similar hazard, follow
these suggestions:
 Drive cautiously and allow extra distance for
braking.
 Avoid sudden movements in braking or steering.
 When braking in vehicles without anti-lock brakes,
depress the brake pedal with a controlled up-and-
down motion until the vehicle is stopped.
5-7
WARNING - Engine OFF Motion
Never turn the engine OFF to coast down hills
or anytime the vehicle is in motion. The power
steering and power brakes will not function
without the engine running. Instead, downshift
to any appropriate gear for engine braking
effect.
✽
NOTICE
Do not pump the brake pedal on ABS equipped
vehicle.
RIO ENG CNA 5.qxd 7/29/05 5:07 PM Page 7

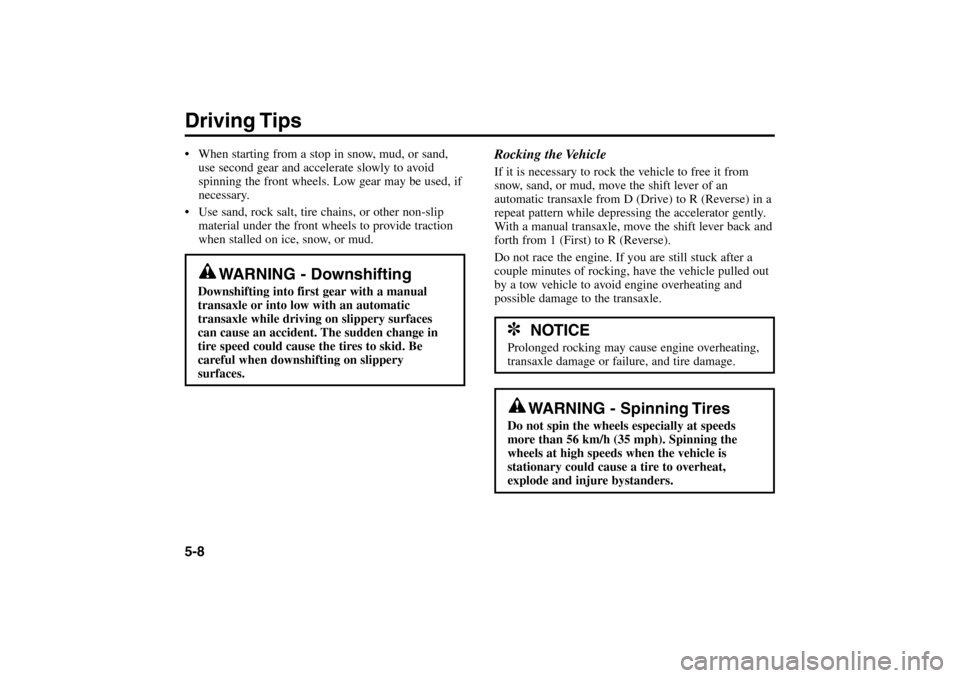

Driving Tips5-8Rocking the Vehicle
If it is necessary to rock the vehicle to free it from
snow, sand, or mud, move the shift lever of an
automatic transaxle from D (Drive) to R (Reverse) in a
repeat pattern while depressing the accelerator gently.
With a manual transaxle, move the shift lever back and
forth from 1 (First) to R (Reverse).
Do not race the engine. If you are still stuck after a
couple minutes of rocking, have the vehicle pulled out
by a tow vehicle to avoid engine overheating and
possible damage to the transaxle.
✽
NOTICE
Prolonged rocking may cause engine overheating,
transaxle damage or failure, and tire damage.
WARNING - Spinning Tires
Do not spin the wheels especially at speeds
more than 56 km/h (35 mph). Spinning the
wheels at high speeds when the vehicle is
stationary could cause a tire to overheat,
explode and injure bystanders.
 When starting from a stop in snow, mud, or sand,
use second gear and accelerate slowly to avoid
spinning the front wheels. Low gear may be used, if
necessary.
 Use sand, rock salt, tire chains, or other non-slip
material under the front wheels to provide traction
when stalled on ice, snow, or mud.
WARNING - Downshifting
Downshifting into first gear with a manual
transaxle or into low with an automatic
transaxle while driving on slippery surfaces
can cause an accident. The sudden change in
tire speed could cause the tires to skid. Be
careful when downshifting on slippery
surfaces.
RIO ENG CNA 5.qxd 7/29/05 5:07 PM Page 8

5-9 Driving at Night
Because night driving presents many more hazards
than driving in the daylight, here are some important
tips to remember:
 Slow down and keep more distance between you
and other vehicles as it may be more difficult to see
at night, especially in rural areas where there may
not be any street lights.
 Adjust your mirrors to reduce the glare from other
driver’s headlights.
 Keep your headlights clean and properly aimed.
Dirty or misaimed headlights will make it much
more difficult to see at night.
 Avoid staring directly at the headlights of oncoming
vehicles. You could be temporarily blinded and it
will take several seconds for your eyes to readjust to
the darkness.
Driving in the RainRain and wet roads can make driving dangerous,
especially if you’re not prepared for the slick
pavement. Here are a few things to consider when
driving in the rain:
 Be sure your windshield wipers are in good
condition.
 A heavy rainfall will make it harder to see and will
increase the distance needed to stop your vehicle, so
slow down.
 If your tires aren’t in good condition, making a
quick stop on wet pavement can cause a skid and
possibly lead to an accident. Be sure your tires and
windshield wipers are in good shape.
 Turn on your headlights to make it easier for others
to see you.
 Driving too fast through large puddles can affect
your brakes. If you must go through puddles, try to
drive through them slowly.
 If you believe you may have gotten your brakes wet,
apply them lightly while driving until normal
braking operation returns.
RIO ENG CNA 5.qxd 7/29/05 5:07 PM Page 9

Driving Tips5-10

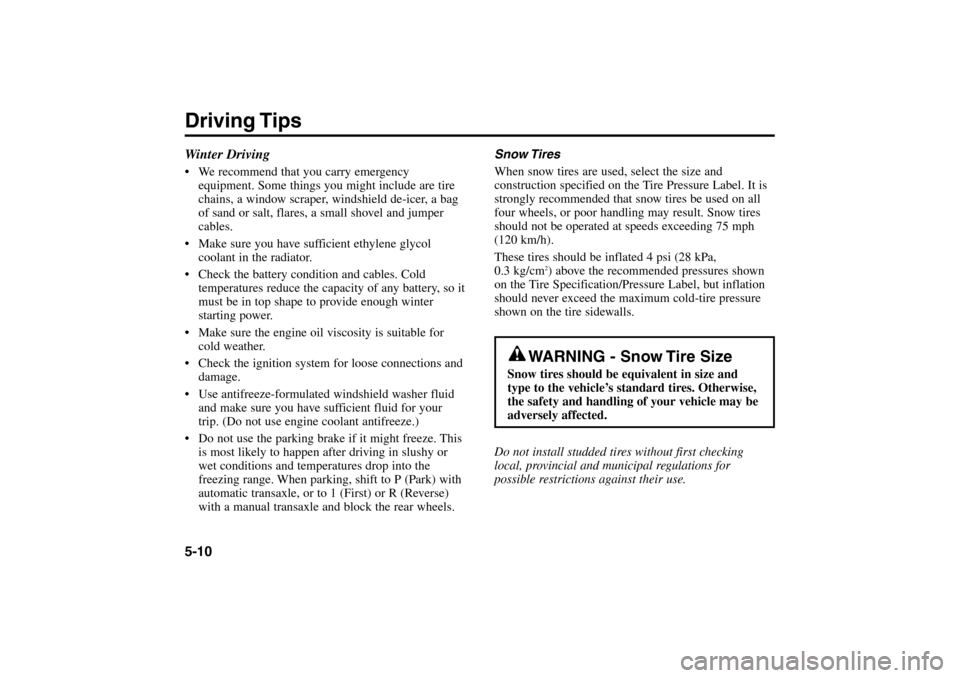

Snow Tires
When snow tires are used, select the size and
construction specified on the Tire Pressure Label. It is
strongly recommended that snow tires be used on all
four wheels, or poor handling may result. Snow tires
should not be operated at speeds exceeding 75 mph
(120 km/h).
These tires should be inflated 4 psi (28 kPa,
0.3 kg/cm
2) above the recommended pressures shown
on the Tire Specification/Pressure Label, but inflation
should never exceed the maximum cold-tire pressure
shown on the tire sidewalls.
Do not install studded tires without first checking
local, provincial and municipal regulations for
possible restrictions against their use.
WARNING - Snow Tire Size
Snow tires should be equivalent in size and
type to the vehicle’s standard tires. Otherwise,
the safety and handling of your vehicle may be
adversely affected.
Winter Driving We recommend that you carry emergency
equipment. Some things you might include are tire
chains, a window scraper, windshield de-icer, a bag
of sand or salt, flares, a small shovel and jumper
cables.
 Make sure you have sufficient ethylene glycol
coolant in the radiator.
 Check the battery condition and cables. Cold
temperatures reduce the capacity of any battery, so it
must be in top shape to provide enough winter
starting power.
 Make sure the engine oil viscosity is suitable for
cold weather.
 Check the ignition system for loose connections and
damage.
 Use antifreeze-formulated windshield washer fluid
and make sure you have sufficient fluid for your
trip. (Do not use engine coolant antifreeze.)
 Do not use the parking brake if it might freeze. This
is most likely to happen after driving in slushy or
wet conditions and temperatures drop into the
freezing range. When parking, shift to P (Park) with
automatic transaxle, or to 1 (First) or R (Reverse)
with a manual transaxle and block the rear wheels.
RIO ENG CNA 5.qxd 7/29/05 5:07 PM Page 10

5-11

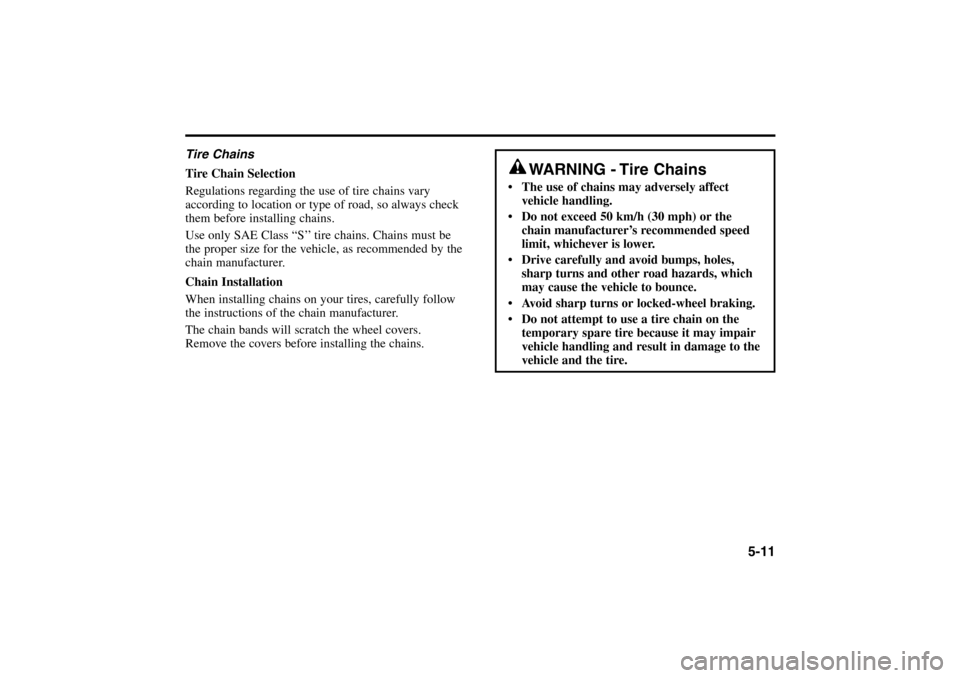

Tire Chains
Tire Chain Selection
Regulations regarding the use of tire chains vary
according to location or type of road, so always check
them before installing chains.
Use only SAE Class “S’’ tire chains. Chains must be
the proper size for the vehicle, as recommended by the
chain manufacturer.
Chain Installation
When installing chains on your tires, carefully follow
the instructions of the chain manufacturer.
The chain bands will scratch the wheel covers.
Remove the covers before installing the chains.
WARNING - Tire Chains
 The use of chains may adversely affect
vehicle handling.
 Do not exceed 50 km/h (30 mph) or the
chain manufacturer’s recommended speed
limit, whichever is lower.
 Drive carefully and avoid bumps, holes,
sharp turns and other road hazards, which
may cause the vehicle to bounce.
 Avoid sharp turns or locked-wheel braking.
 Do not attempt to use a tire chain on the
temporary spare tire because it may impair
vehicle handling and result in damage to the
vehicle and the tire.
RIO ENG CNA 5.qxd 7/29/05 5:07 PM Page 11

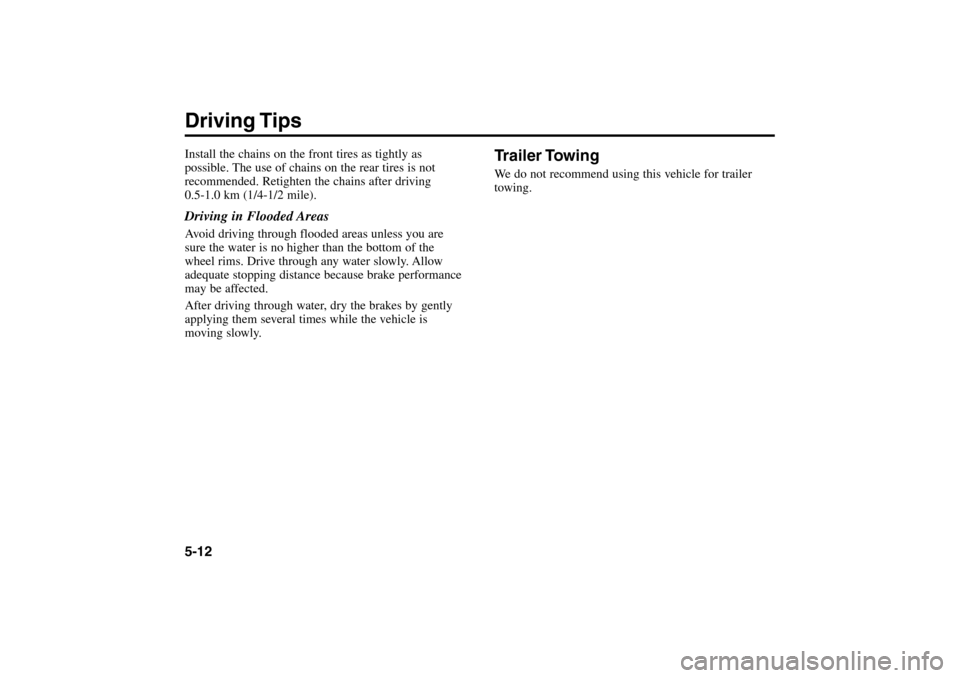

Trailer TowingWe do not recommend using this vehicle for trailer
towing.
Driving Tips5-12Install the chains on the front tires as tightly as
possible. The use of chains on the rear tires is not
recommended. Retighten the chains after driving
0.5-1.0 km (1/4-1/2 mile).Driving in Flooded AreasAvoid driving through flooded areas unless you are
sure the water is no higher than the bottom of the
wheel rims. Drive through any water slowly. Allow
adequate stopping distance because brake performance
may be affected.
After driving through water, dry the brakes by gently
applying them several times while the vehicle is
moving slowly.
RIO ENG CNA 5.qxd 7/29/05 5:07 PM Page 12

5-13

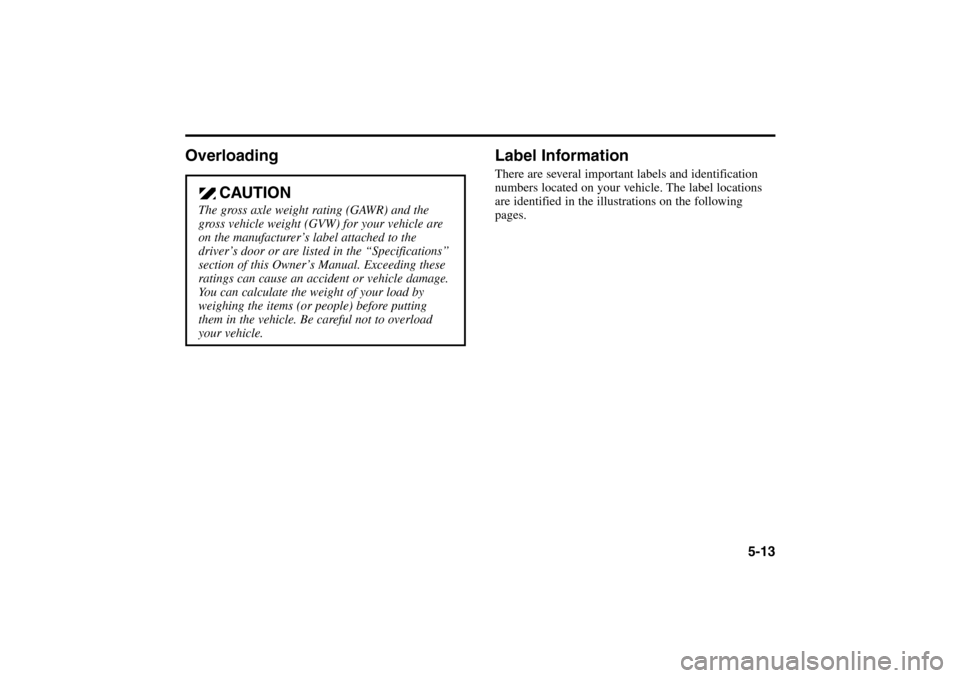

Overloading Label Information
There are several important labels and identification
numbers located on your vehicle. The label locations
are identified in the illustrations on the following
pages.
CAUTION
The gross axle weight rating (GAWR) and the
gross vehicle weight (GVW) for your vehicle are
on the manufacturer’s label attached to the
driver’s door or are listed in the “Specifications’’
section of this Owner’s Manual. Exceeding these
ratings can cause an accident or vehicle damage.
You can calculate the weight of your load by
weighing the items (or people) before putting
them in the vehicle. Be careful not to overload
your vehicle.
RIO ENG CNA 5.qxd 7/29/05 5:07 PM Page 13

Driving Tips5-14Vehicle Certification Label
Vehicle Emission Control Information and Vacuum
Hose Routing Diagram
AS2B05005A
AS2B05003A
Underside of hood
Label
RIO ENG CNA 5.qxd 7/29/05 5:07 PM Page 14

5-15
Tire Specification/Pressure Label
AS2B05005
Chassis Number(Frame number)
Frame Number is located under the front passenger
seat. Please detach the plastic cover to see the frame
number.
FRAME NO.
Pull
1B3104004E
Frame number cover
RIO ENG CNA 5.qxd 7/29/05 5:07 PM Page 15

6-1

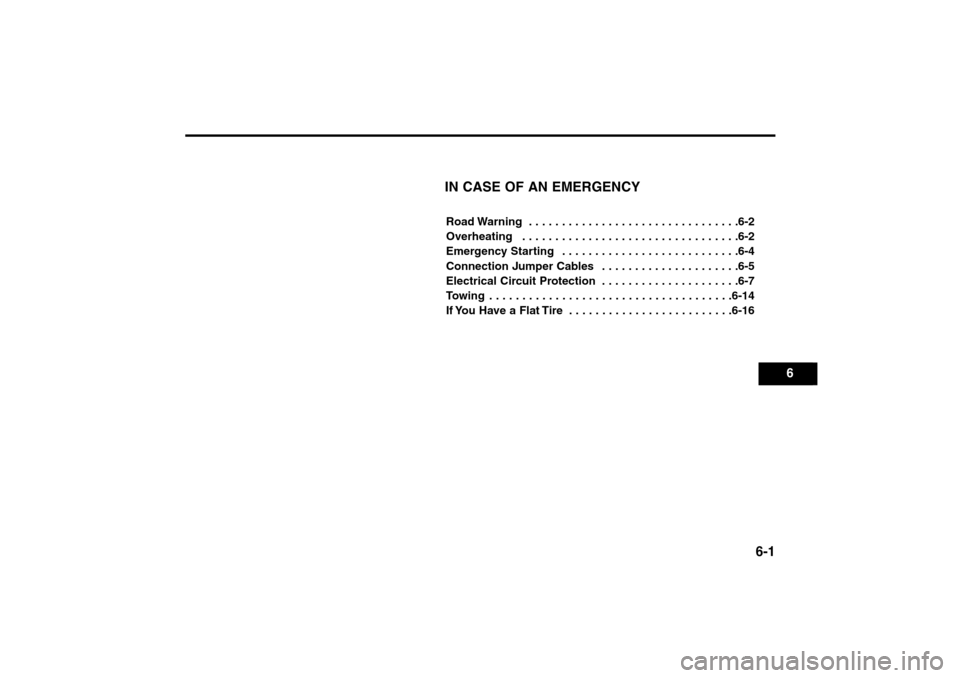

IN CASE OF AN EMERGENCYRoad Warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-2
Overheating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-2
Emergency Starting . . . . . . . . . . . . . . . . . . . . . . . . . . .6-4
Connection Jumper Cables . . . . . . . . . . . . . . . . . . . . .6-5
Electrical Circuit Protection . . . . . . . . . . . . . . . . . . . . .6-7
Towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-14
If You Have a Flat Tire . . . . . . . . . . . . . . . . . . . . . . . . .6-16
6
RIO ENG CNA 6.qxd 7/29/05 5:15 PM Page 1
