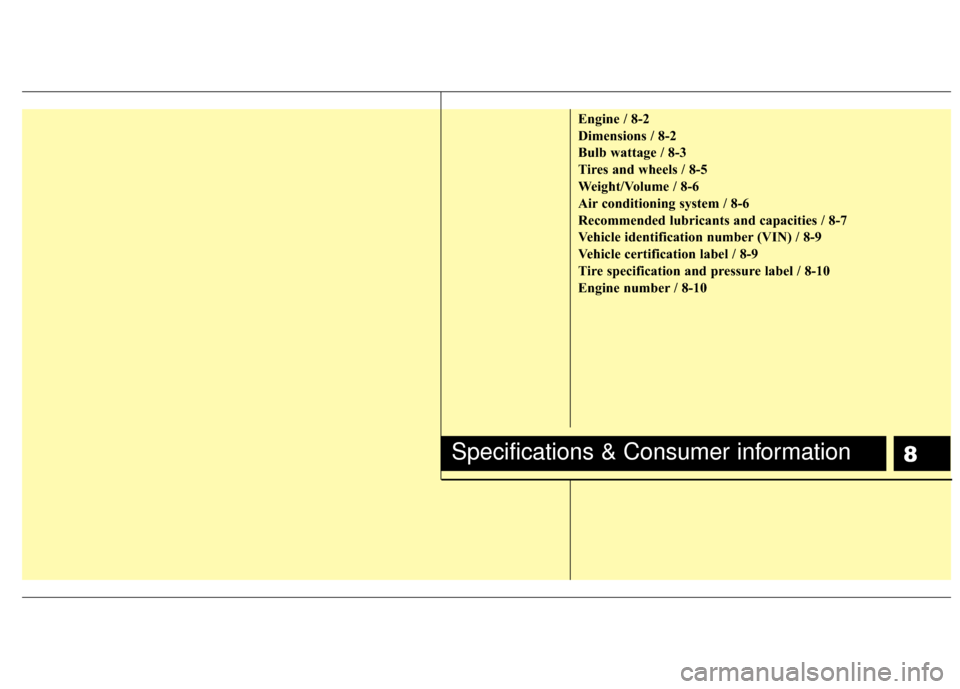

KIA Rio 2016 3.G Owner's Manual

Engine / 8-2
Dimensions / 8-2
Bulb wattage / 8-3
Tires and wheels / 8-5
Weight/Volume / 8-6
Air conditioning system / 8-6
Recommended lubricants and capacities / 8-7
Vehicle identification number (VIN) / 8-9
Vehicle certification label / 8-9
Tire specification and pressure label / 8-10
Engine number / 8-10
Specifications & Consumer information8

Specifications, Consumer information, Reporting safety defects
28

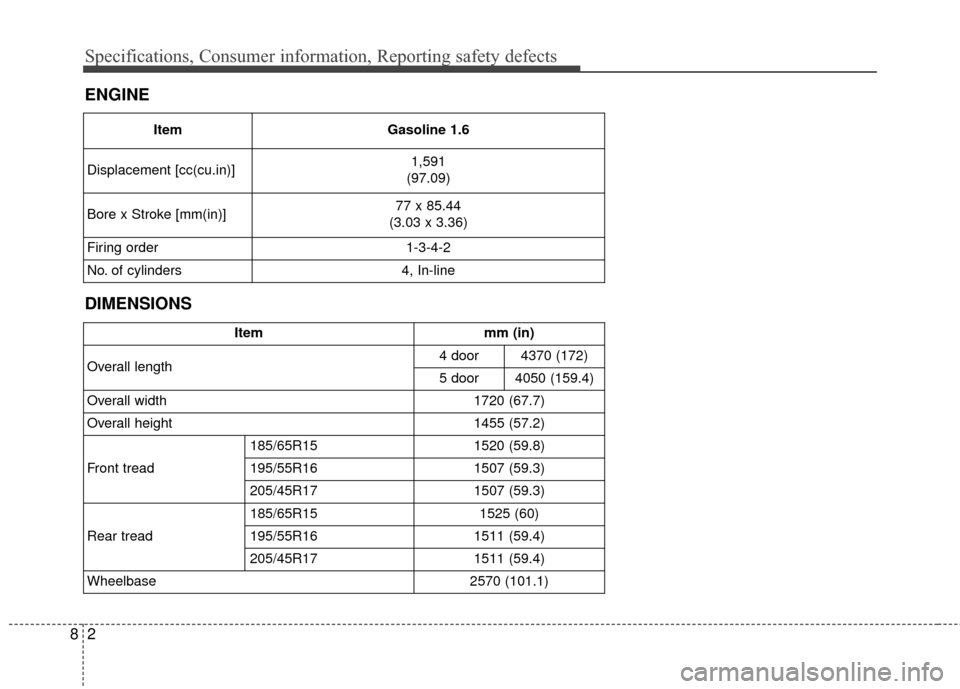

ENGINE
DIMENSIONS
ItemGasoline 1.6
Displacement [cc(cu.in)] 1,591
(97.09)
Bore x Stroke [mm(in)] 77 x 85.44
(3.03 x 3.36)
Firing order 1-3-4-2
No. of cylinders 4, In-line
Itemmm (in)
Overall length 4 door 4370 (172)
5 door 4050 (159.4)
Overall width
1720 (67.7)
Overall height1455 (57.2)
Front tread
185/65R151520 (59.8)
195/55R161507 (59.3)
205/45R171507 (59.3)
Rear tread
185/65R15 1525 (60)
195/55R161511 (59.4)
205/45R171511 (59.4)
Wheelbase 2570 (101.1)

83
Specifications, Consumer information, Reporting safety defects

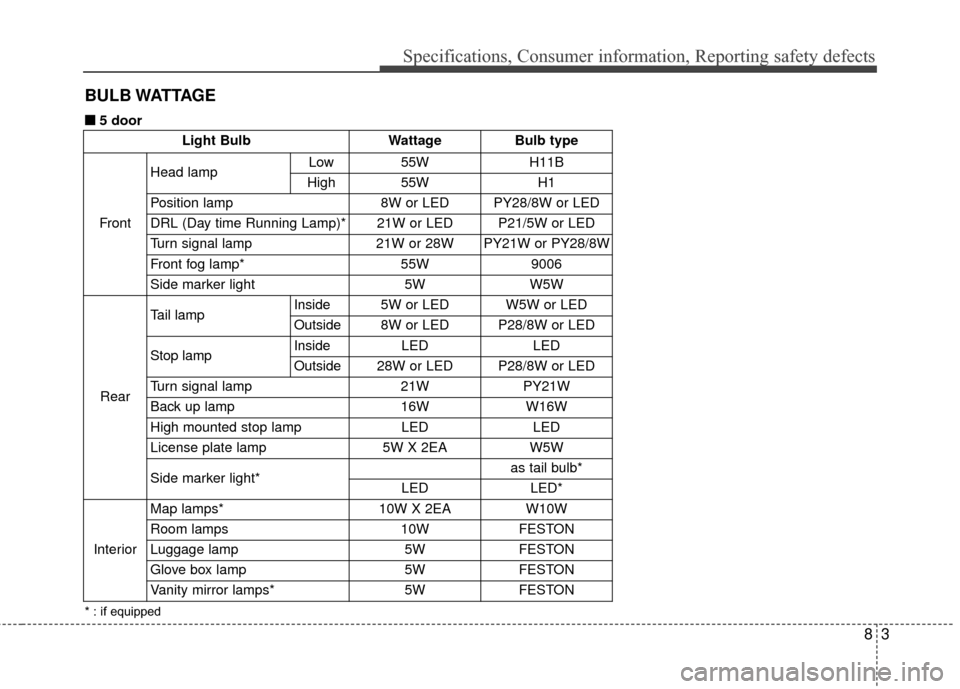

BULB WATTAGE
Light BulbWattageBulb type
Front
Head lamp Low55WH11B
High55WH1
Position lamp8W or LEDPY28/8W or LED
DRL (Day time Running Lamp)*21W or LEDP21/5W or LED
Turn signal lamp21W or 28WPY21W or PY28/8W
Front fog lamp*55W9006
Side marker light5WW5W
Rear
Tail lampInside5W or LEDW5W or LED
Outside8W or LEDP28/8W or LED
Stop lampInsideLEDLED
Outside28W or LEDP28/8W or LED
Turn signal lamp21WPY21W
Back up lamp16WW16W
High mounted stop lampLEDLED
License plate lamp5W X 2EAW5W
Side marker light*as tail bulb*
LEDLED*
Interior
Map lamps*10W X 2EAW10W
Room lamps10WFESTON
Luggage lamp5WFESTON
Glove box lamp5WFESTON
Vanity mirror lamps*5WFESTON
* : if equipped
■
■5 door

Specifications, Consumer information, Reporting safety defects
48

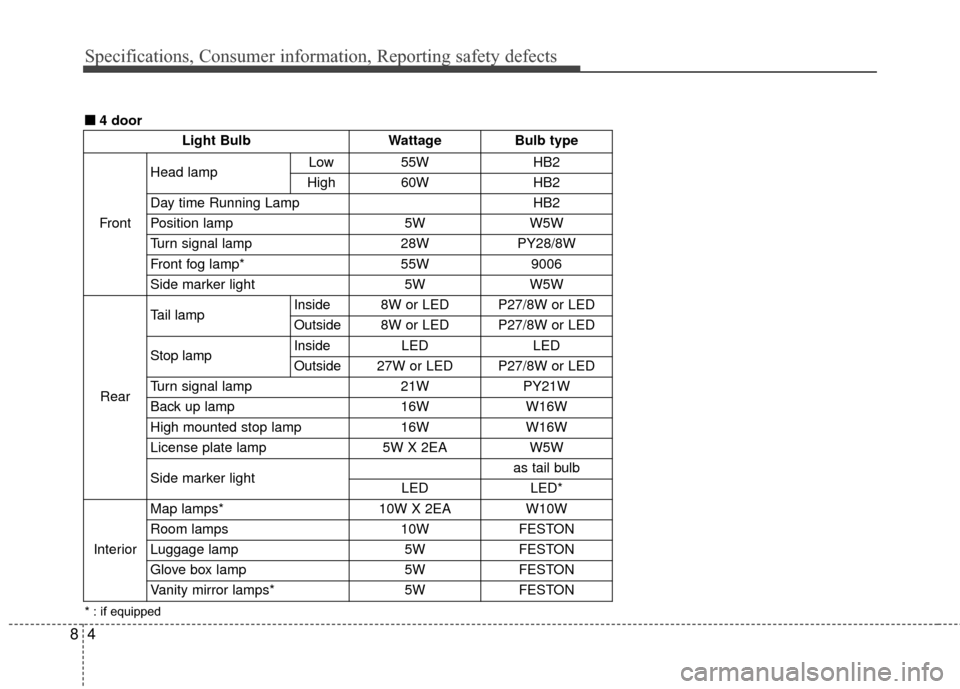

Light BulbWattageBulb type
Front
Head lamp Low55WHB2
High60WHB2
Day time Running LampHB2
Position lamp5WW5W
Turn signal lamp28WPY28/8W
Front fog lamp*55W9006
Side marker light5WW5W
Rear
Tail lampInside8W or LEDP27/8W or LED
Outside8W or LEDP27/8W or LED
Stop lampInsideLEDLED
Outside27W or LEDP27/8W or LED
Turn signal lamp21WPY21W
Back up lamp16WW16W
High mounted stop lamp16WW16W
License plate lamp5W X 2EAW5W
Side marker lightas tail bulb
LEDLED*
Interior
Map lamps*10W X 2EAW10W
Room lamps10WFESTON
Luggage lamp5WFESTON
Glove box lamp5WFESTON
Vanity mirror lamps*5WFESTON
* : if equipped
■
■4 door

85
Specifications, Consumer information, Reporting safety defects

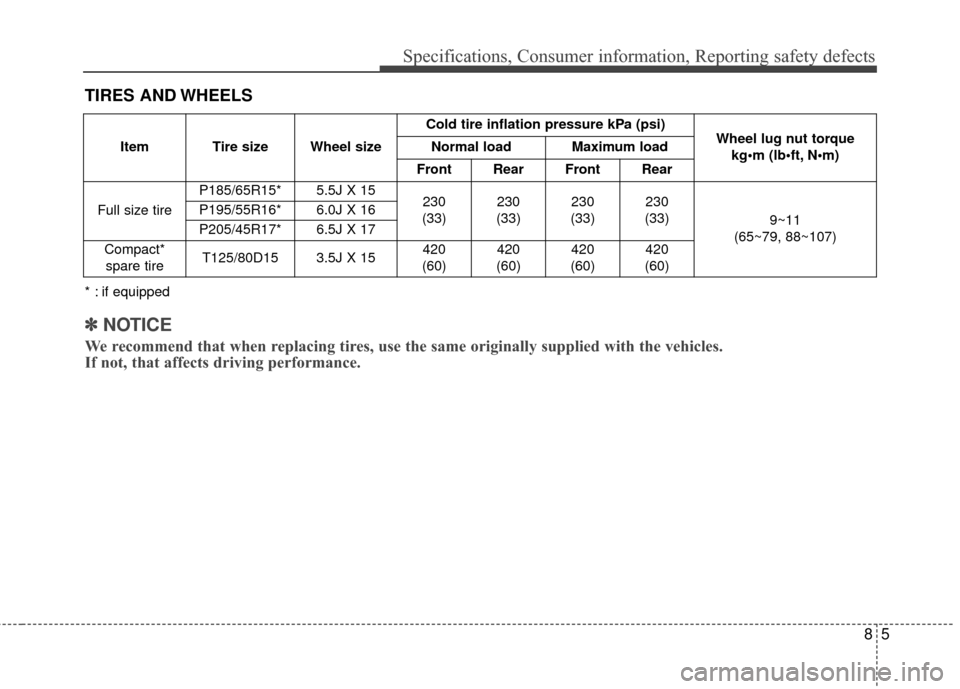

TIRES AND WHEELS
Item Tire size Wheel sizeCold tire inflation pressure kPa (psi)
Wheel lug nut torque
kg•m (lb N
Normal load Maximum load
Front Rear Front Rear
Full size tire
P185/65R15* 5.5J X 15 230
(33) 230
(33) 230
(33) 230
(33) 9~11
(65~79, 88~107)
P195/55R16* 6.0J X 16
P205/45R17* 6.5J X 17
Compact* spare tire
T125/80D15 3.5J X 15 420
(60) 420
(60) 420
(60) 420
(60)
* : if equipped
✽
✽ NOTICE
We recommend that when replacing tires, use the same originally supplied with the vehicles.
If not, that affects driving performance.

Specifications, Consumer information, Reporting safety defects
68

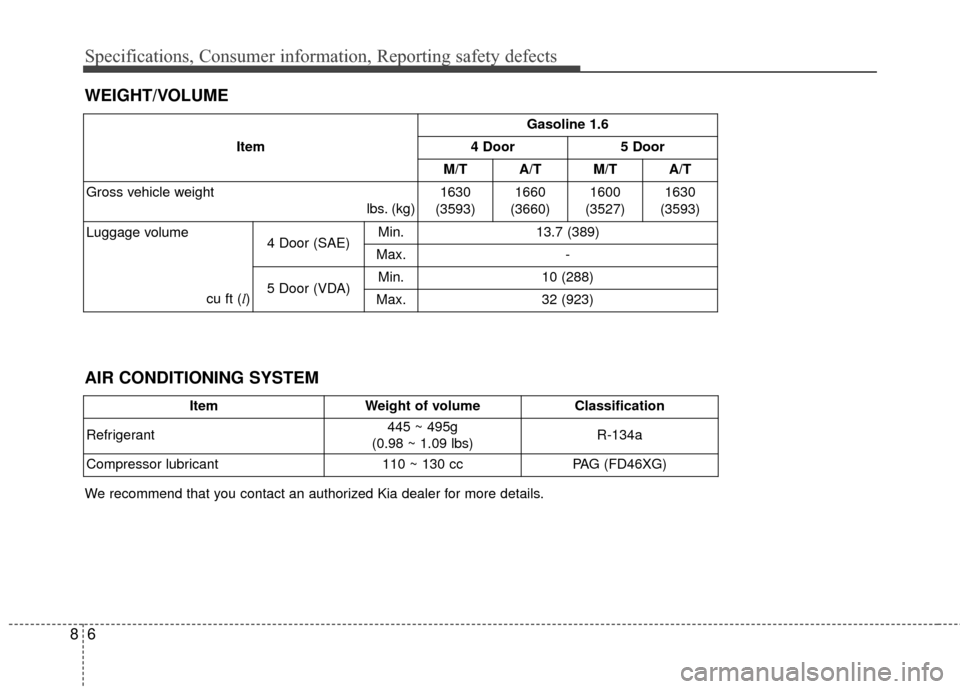

WEIGHT/VOLUME
ItemGasoline 1.6
4 Door 5 Door
M/T A/T M/T A/T
Gross vehicle weight lbs. (kg)1630
(3593) 1660
(3660) 1600
(3527) 1630
(3593)
Luggage volume
cu ft (l)4 Door (SAE)
Min.13.7 (389)
Max.-
5 Door (VDA)
Min.10 (288)
Max.32 (923)
ItemWeight of volume Classification
Refrigerant
445 ~ 495g
(0.98 ~ 1.09 lbs) R-134a
Compressor lubricant
110 ~ 130 cc PAG (FD46XG)
AIR CONDITIONING SYSTEM
We recommend that you contact an authorized Kia dealer for more details.

87
Specifications, Consumer information, Reporting safety defects

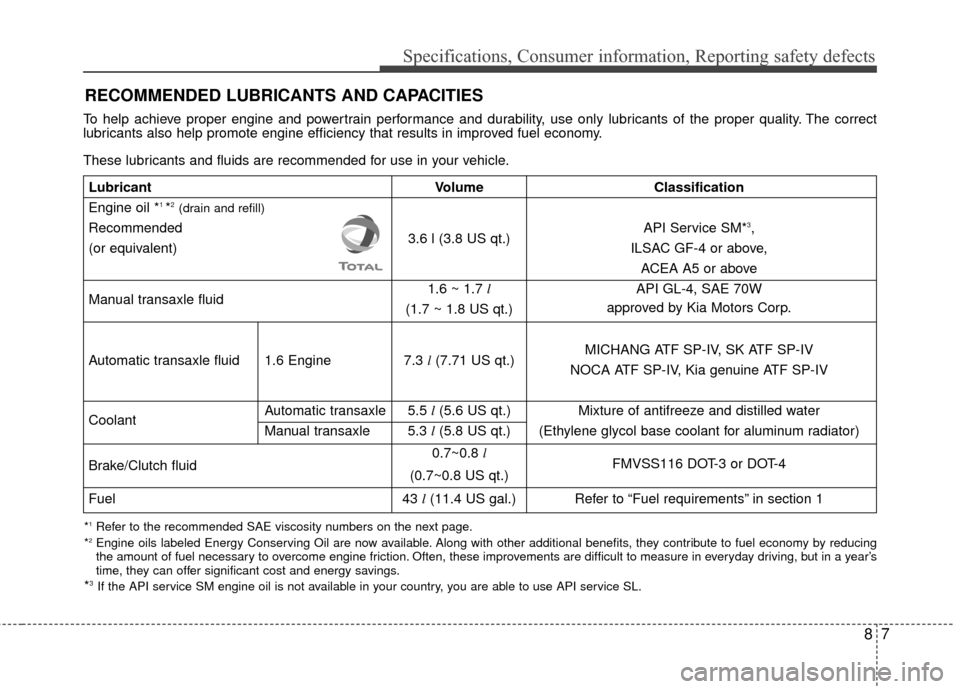

RECOMMENDED LUBRICANTS AND CAPACITIES
To help achieve proper engine and powertrain performance and durability, use only lubricants of the proper quality. The correct
lubricants also help promote engine efficiency that results in improved fuel economy.
These lubricants and fluids are recommended for use in your vehicle.
*1Refer to the recommended SAE viscosity numbers on the next page.
*2Engine oils labeled Energy Conserving Oil are now available. Along with other additional benefits, they contribute to fuel econo my by reducing
the amount of fuel necessary to overcome engine friction. Often, these improvements are difficult to measure in everyday driving, but in a year’s
time, they can offer significant cost and energy savings.
*3If the API service SM engine oil is not available in your country, you are able to use API service SL.
Lubricant Volume Classification
Engine oil *
1 *2 (drain and refill)
Recommended 3.6 l (3.8 US qt.)API Service SM*3,
(or equivalent) ILSAC GF-4 or above,
ACEA A5 or above
Manual transaxle fluid 1.6 ~ 1.7 l
API GL-4, SAE 70W
(1.7 ~ 1.8 US qt.) approved by Kia Motors Corp.
Automatic transaxle fluid 1.6 Engine 7.3 l (7.71 US qt.)MICHANG ATF SP-IV, SK ATF SP-IV
NOCA ATF SP-IV, Kia genuine ATF SP-IV
Automatic transaxle 5.5 l (5.6 US qt.) Mixture of antifreeze and distilled water
Coolant
Manual transaxle 5.3 l(5.8 US qt.) (Ethylene glycol base coolant for aluminum radiator)
Brake/Clutch fluid 0.7~0.8
l
FMVSS116 DOT-3 or DOT-4
(0.7~0.8 US qt.)
Fuel 43 l(11.4 US gal.) Refer to “Fuel requirements” in section 1

Specifications, Consumer information, Reporting safety defects
88

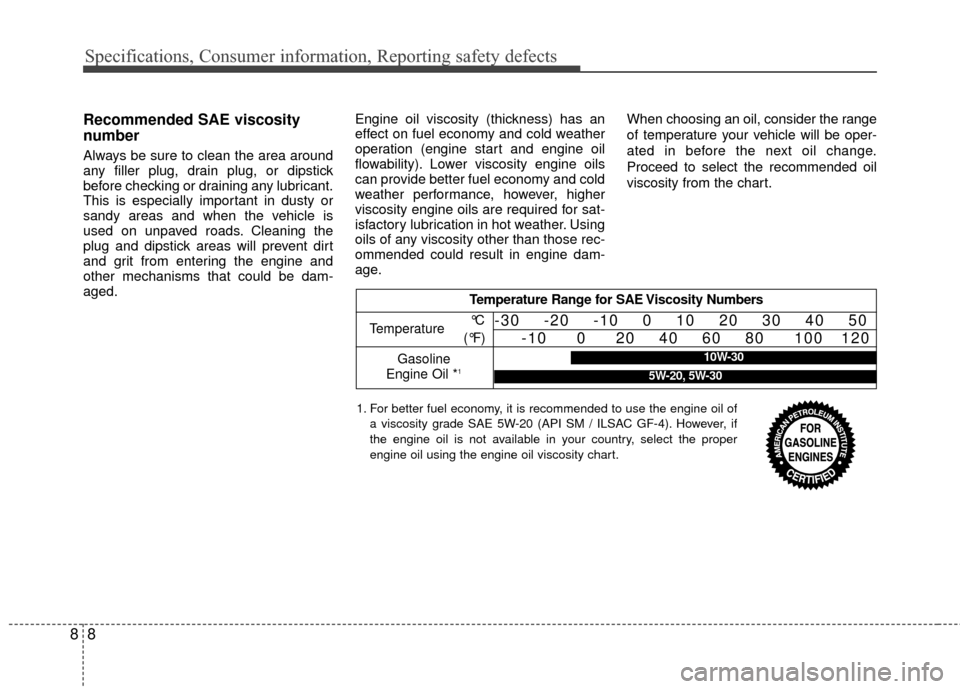

Recommended SAE viscosity
number
Always be sure to clean the area around
any filler plug, drain plug, or dipstick
before checking or draining any lubricant.
This is especially important in dusty or
sandy areas and when the vehicle is
used on unpaved roads. Cleaning the
plug and dipstick areas will prevent dirt
and grit from entering the engine and
other mechanisms that could be dam-
aged.Engine oil viscosity (thickness) has an
effect on fuel economy and cold weather
operation (engine start and engine oil
flowability). Lower viscosity engine oils
can provide better fuel economy and cold
weather performance, however, higher
viscosity engine oils are required for sat-
isfactory lubrication in hot weather. Using
oils of any viscosity other than those rec-
ommended could result in engine dam-
age.
When choosing an oil, consider the range
of temperature your vehicle will be oper-
ated in before the next oil change.
Proceed to select the recommended oil
viscosity from the chart.
Temperature Range for SAE Viscosity Numbers
Temperature
Gasoline
Engine Oil *
1
°C
(°F)-30 -20 -10 0 10 20 30 40 50 -10 0 20 40 60 80 100 120
1. For better fuel economy, it is recommended to use the engine oil of
a viscosity grade SAE 5W-20 (API SM / ILSAC GF-4). However, if
the engine oil is not available in your country, select the proper
engine oil using the engine oil viscosity chart.
10W-30
5W-20, 5W-30

89
Specifications, Consumer information, Reporting safety defects

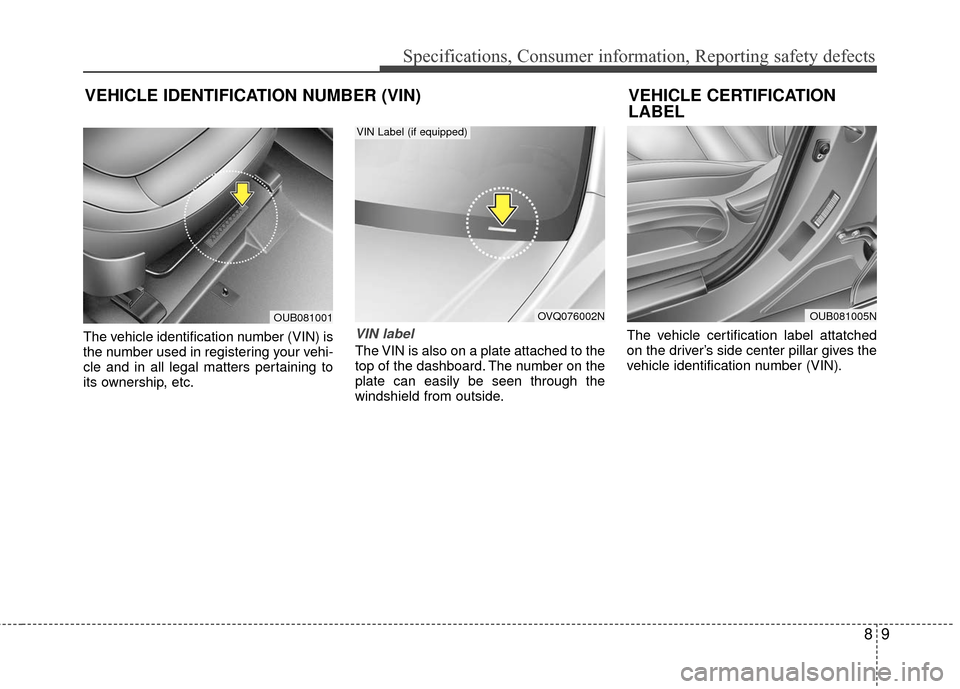

The vehicle identification number (VIN) is
the number used in registering your vehi-
cle and in all legal matters pertaining to
its ownership, etc.VIN label
The VIN is also on a plate attached to the
top of the dashboard. The number on the
plate can easily be seen through the
windshield from outside.The vehicle certification label attatched
on the driver’s side center pillar gives the
vehicle identification number (VIN).
VEHICLE CERTIFICATION
LABEL
OVQ076002N
VIN Label (if equipped)
VEHICLE IDENTIFICATION NUMBER (VIN)
OUB081001OUB081005N

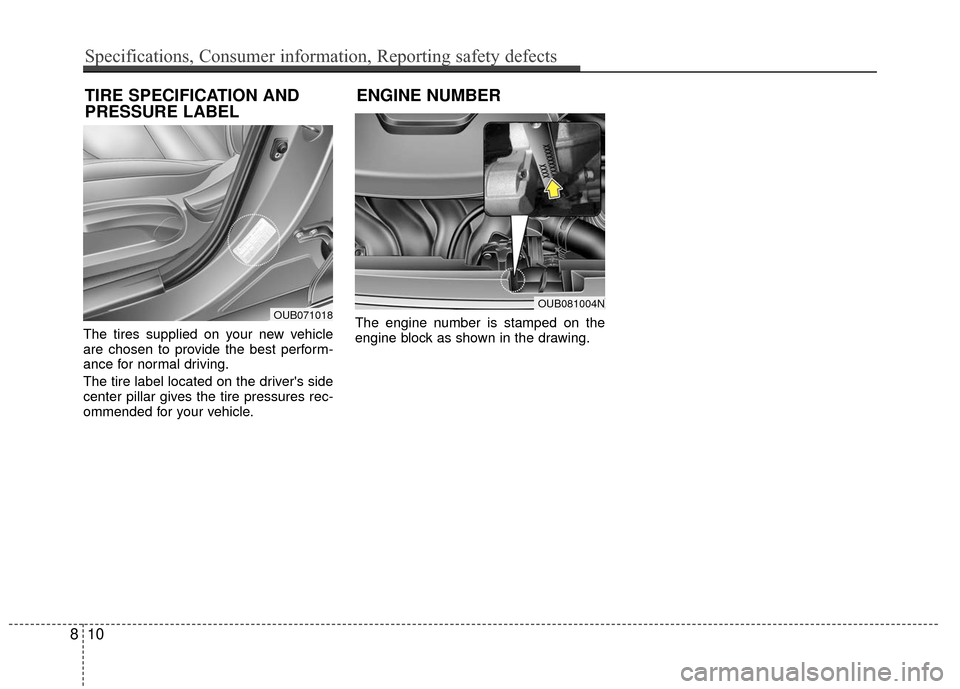

The tires supplied on your new vehicle
are chosen to provide the best perform-
ance for normal driving.
The tire label located on the driver's side
center pillar gives the tire pressures rec-
ommended for your vehicle.The engine number is stamped on the
engine block as shown in the drawing.
OUB081004N
ENGINE NUMBERTIRE SPECIFICATION AND
PRESSURE LABEL
OUB071018
810
