KIA RIO 2020 Owners Manual

97
Specifications & Consumer information

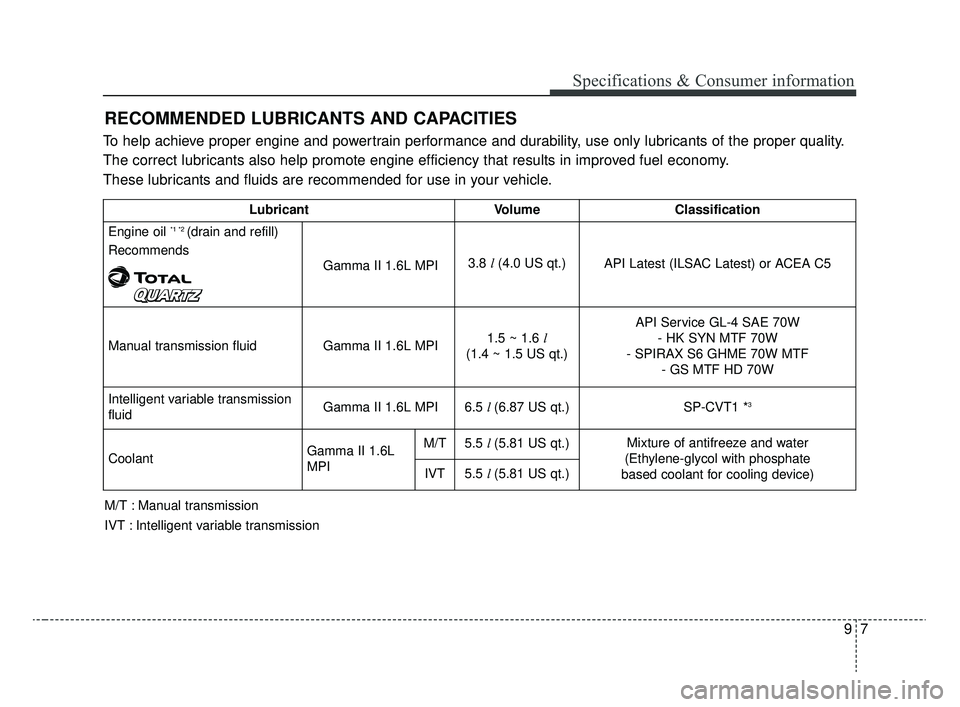

RECOMMENDED LUBRICANTS AND CAPACITIES
To help achieve proper engine and powertrain performance and durability, use only lubricants of the proper quality.
The correct lubricants also help promote engine efficiency that results in improved fuel economy.
These lubricants and fluids are recommended for use in your vehicle.
LubricantVolumeClassification
Engine oil *1 *2 (drain and refill)
Recommends
Gamma II 1.6L MPI3.8 l(4.0 US qt.)API Latest (ILSAC Latest) or ACEA C5
Manual transmission fluidGamma II 1.6L MPI1.5 ~ 1.6 l
(1.4 ~ 1.5 US qt.)
API Service GL-4 SAE 70W - HK SYN MTF 70W
- SPIRAX S6 GHME 70W MTF - GS MTF HD 70W
Intelligent variable transmission
fluidGamma II 1.6L MPI6.5 l (6.87 US qt.)SP-CVT1 *3
Coolant Gamma II 1.6L
MPIM/T5.5 l (5.81 US qt.)Mixture of antifreeze and water
(Ethylene-glycol with phosphate
based coolant for cooling device)
IVT5.5 l (5.81 US qt.)
M/T : Manual transmission
IVT : Intelligent variable transmission
SC CAN (ENG) 9.qxp 12/12/2019 5:07 PM Page 7

Specifications & Consumer information
89
*1 Refer to the recommended SAE viscosity numbers on the next page.
*
2Engine oils labeled Energy Conserving Oil are now available. Along with other additional benefits, they contribute to fuel econ-
omy by reducing the amount of fuel necessary to overcome engine friction. Often, these improvements are difficult to measure
in everyday driving, but in a year’s time, they can offer significant cost and energy savings.
*
3Use only specified genuine Intelligent Variable Transmission(IVT) fluid. The use of non-specified fluid (even marked as compat-
ible with genuine) could result in shift quality deterioration and vibrations, eventually, the transmission failure.(Refer to
“Explanation of Scheduled Maintenance Items” in chapter 8.)

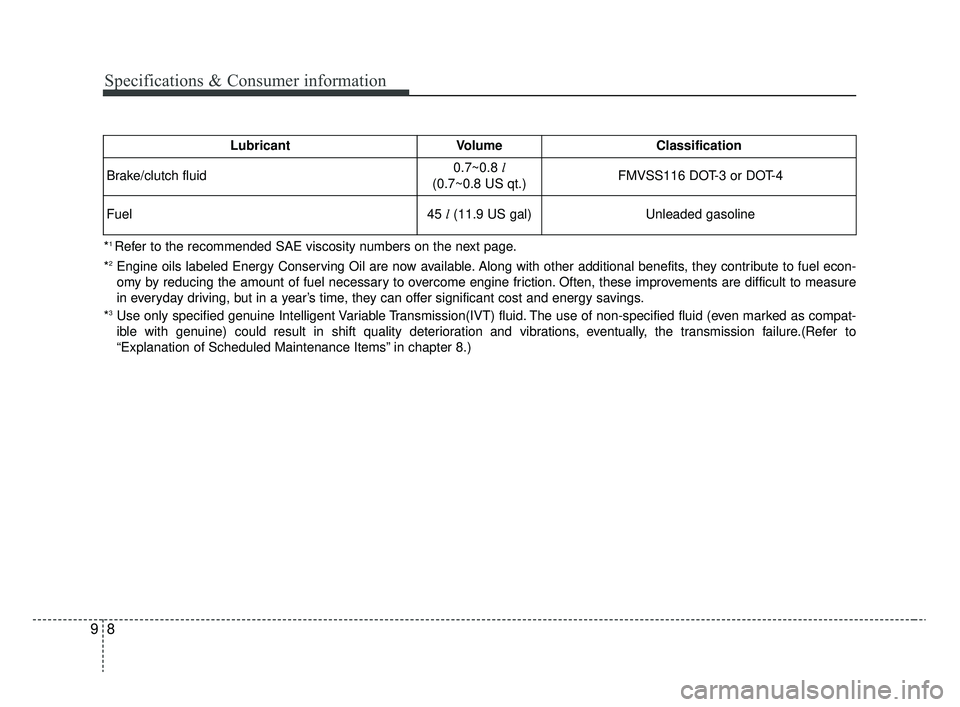

LubricantVolumeClassification
Brake/clutch fluid0.7~0.8 l
(0.7~0.8 US qt.)FMVSS116 DOT-3 or DOT-4
Fuel45 l(11.9 US gal)Unleaded gasoline
SC CAN (ENG) 9.qxp 12/12/2019 5:07 PM Page 8

99
Specifications & Consumer information

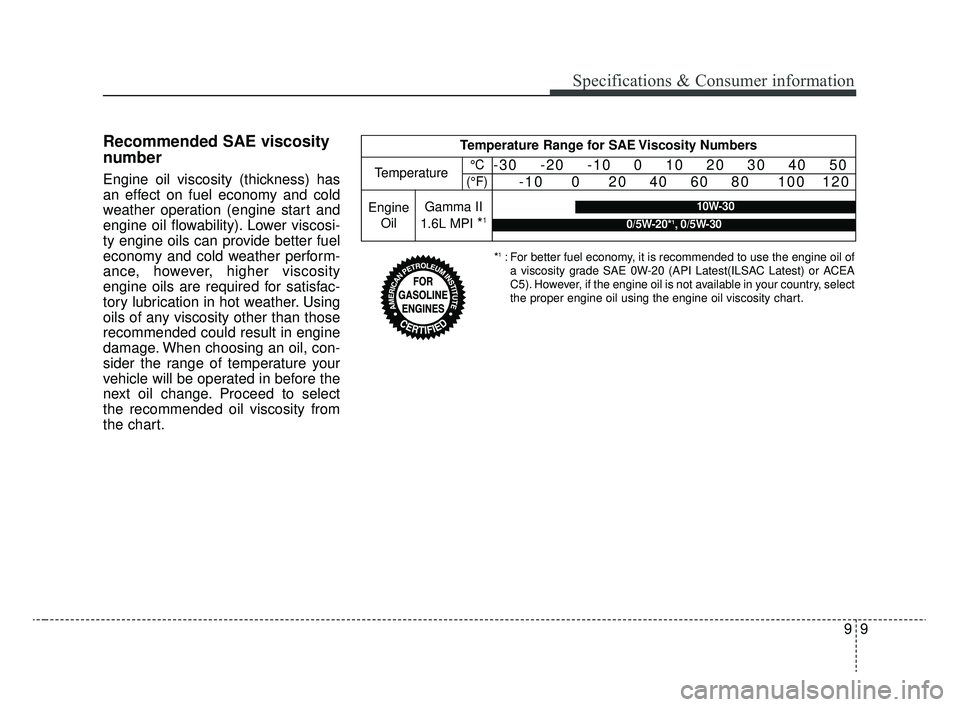

Recommended SAE viscosity
number
Engine oil viscosity (thickness) has
an effect on fuel economy and cold
weather operation (engine start and
engine oil flowability). Lower viscosi-
ty engine oils can provide better fuel
economy and cold weather perform-
ance, however, higher viscosity
engine oils are required for satisfac-
tory lubrication in hot weather. Using
oils of any viscosity other than those
recommended could result in engine
damage. When choosing an oil, con-
sider the range of temperature your
vehicle will be operated in before the
next oil change. Proceed to select
the recommended oil viscosity from
the chart.
*1: For better fuel economy, it is recommended to use the engine oil ofa viscosity grade SAE 0W-20 (API Latest(ILSAC Latest) or ACEA
C5). However, if the engine oil is not available in your country, select
the proper engine oil using the engine oil viscosity chart.
Temperature Range for SAE Viscosity Numbers
Temperature°C
(°F)-30 -20 -10 0 10 20 30 40 50 -10 0 20 40 60 80 100 120
Gamma II
1.6L MPI
*110W-30
0/5W-20*1, 0/5W-30
Engine Oil
SC CAN (ENG) 9.qxp 12/12/2019 5:07 PM Page 9

Specifications & Consumer information
10
9

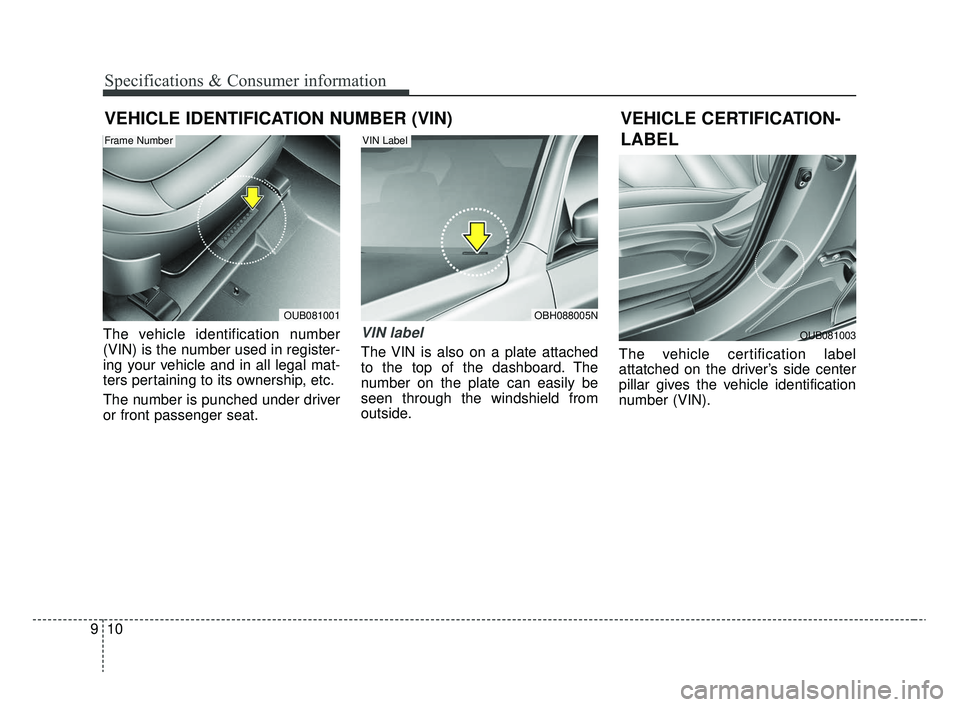

VEHICLE IDENTIFICATION NUMBER (VIN)
The vehicle identification number
(VIN) is the number used in register-
ing your vehicle and in all legal mat-
ters pertaining to its ownership, etc.
The number is punched under driver
or front passenger seat.VIN label
The VIN is also on a plate attached
to the top of the dashboard. The
number on the plate can easily be
seen through the windshield from
outside. The vehicle certification label
attatched on the driver’s side center
pillar gives the vehicle identification
number (VIN).
OBH088005N
VIN Label
OUB081001
OUB081003
VEHICLE CERTIFICATION-
LABEL
Frame Number
SC CAN (ENG) 9.qxp 12/12/2019 5:07 PM Page 10

911
Specifications & Consumer information

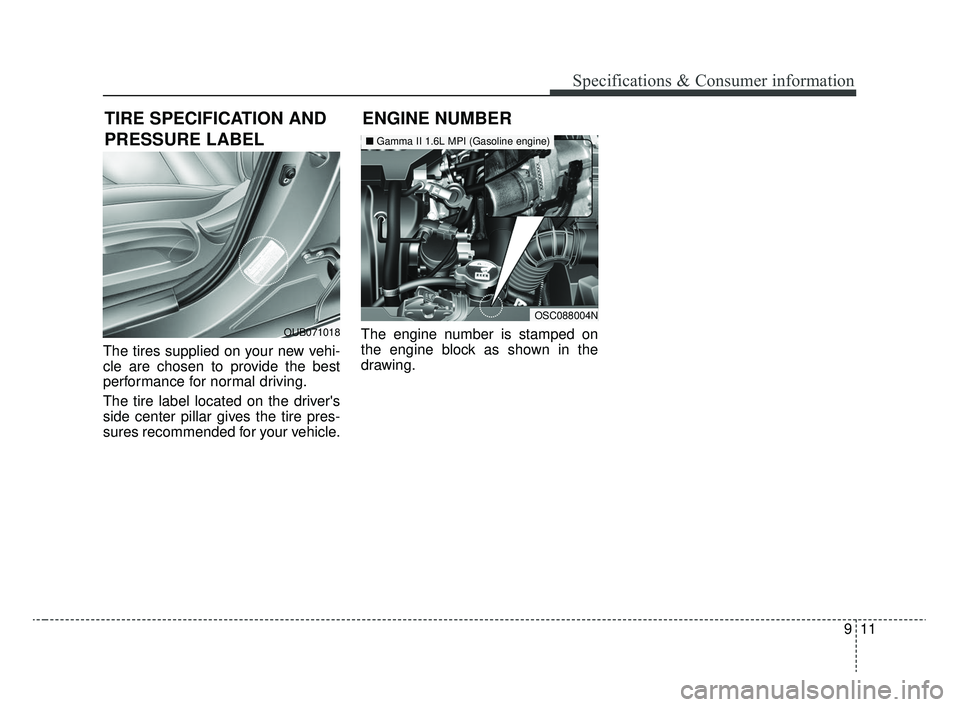

The tires supplied on your new vehi-
cle are chosen to provide the best
performance for normal driving.
The tire label located on the driver's
side center pillar gives the tire pres-
sures recommended for your vehicle.The engine number is stamped on
the engine block as shown in the
drawing.
TIRE SPECIFICATION AND
PRESSURE LABEL
OUB071018
ENGINE NUMBER
OSC088004N
■
Gamma II 1.6L MPI (Gasoline engine)
SC CAN (ENG) 9.qxp 12/12/2019 5:07 PM Page 11

Specifications & Consumer information
12
9

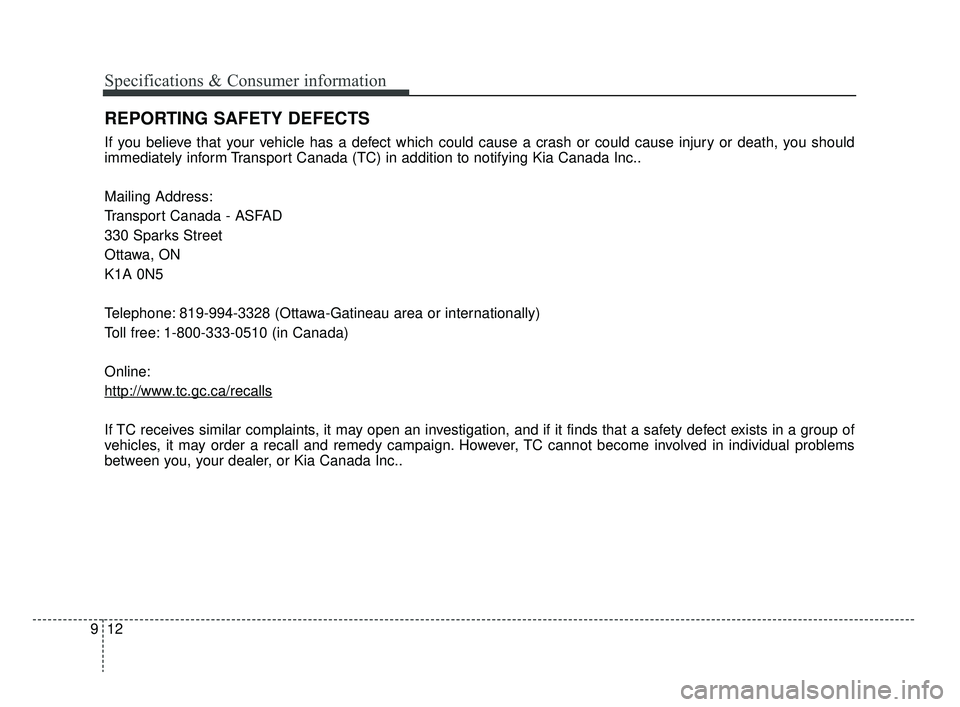

REPORTING SAFETY DEFECTS
If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you should
immediately inform Transport Canada (TC) in addition to notifying Kia Canada Inc..
Mailing Address:
Transport Canada - ASFAD
330 Sparks Street
Ottawa, ON
K1A 0N5
Telephone: 819-994-3328 (Ottawa-Gatineau area or internationally)
Toll free: 1-800-333-0510 (in Canada)
Online:
http://www
.tc.gc.ca/recalls
If TC receives similar complaints, it may open an investigation, and if it finds that a safety defect exists in a group of
vehicles, it may order a recall and remedy campaign. However, TC cannot become involved in individual problems
between you, your dealer, or Kia Canada Inc..
SC CAN (ENG) 9.qxp 12/12/2019 5:07 PM Page 12

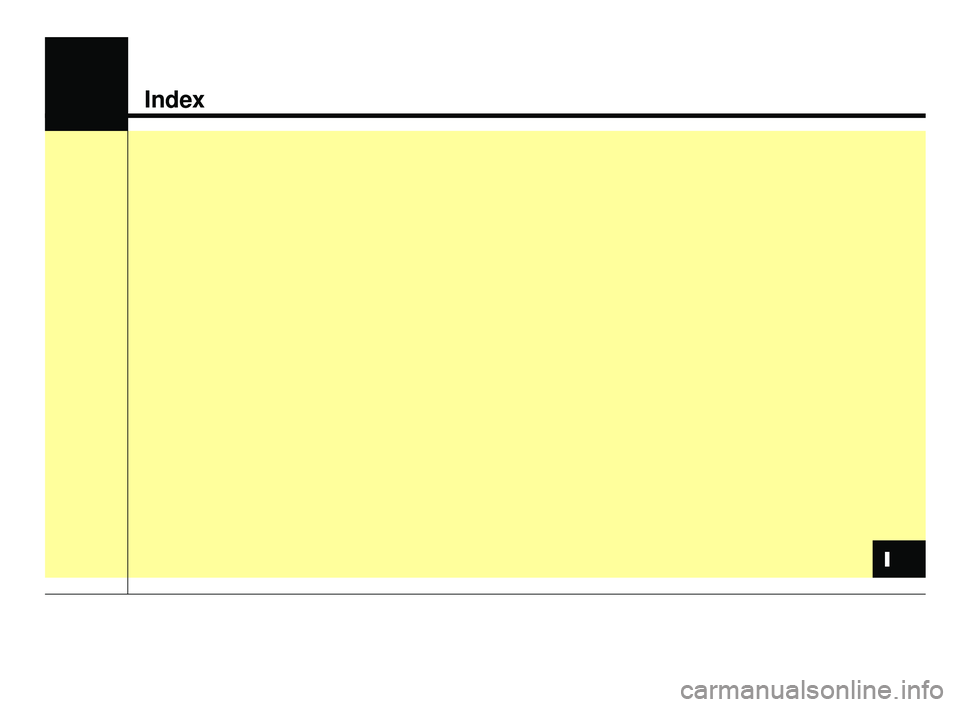

Index
II
SC CAN (ENG) Index.qxp 12/12/2019 5:06 PM Page 1

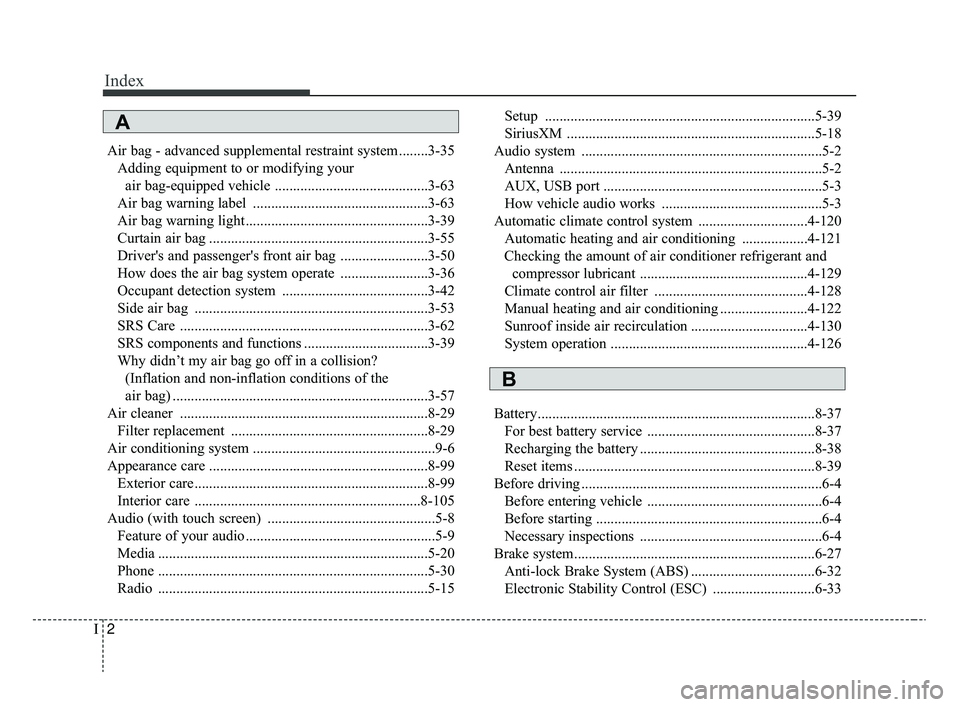

Index
2I
Air bag - advanced supplemental restraint system ........3-35Adding equipment to or modifying your air bag-equipped vehicle ..........................................3-63
Air bag warning label ................................................3-63
Air bag warning light ..................................................3-39
Curtain air bag ............................................................3-55
Driver's and passenger's front air bag ........................3-50
How does the air bag system operate ........................3-36
Occupant detection system ........................................3-42
Side air bag ................................................................3-53
SRS Care ....................................................................3-62\
SRS components and functions ..................................3-39
Why didn’t my air bag go off in a collision? (Inflation and non-inflation conditions of the
air bag) ......................................................................3-\
57
Air cleaner ....................................................................8-29\
Filter replacement ......................................................8-29
Air conditioning system ..................................................9-6
Appearance care ............................................................8-99 Exterior care ................................................................8-99
Interior care ..............................................................8-105
Audio (with touch screen) ..............................................5-8 Feature of your audio ....................................................5-9
Media ........................................................................\
..5-20
Phone ........................................................................\
..5-30
Radio ........................................................................\
..5-15 Setup ........................................................................\
..5-39
SiriusXM ....................................................................5-18\
Audio system ..................................................................5-2 Antenna ........................................................................\
5-2
AUX, USB port ............................................................5-3
How vehicle audio works ............................................5-3
Automatic climate control system ..............................4-120 Automatic heating and air conditioning ..................4-121
Checking the amount of air conditioner refrigerant and compressor lubricant ..............................................4-129
Climate control air filter ..........................................4-128
Manual heating and air conditioning ........................4-122
Sunroof inside air recirculation ................................4-130
System operation ......................................................4-126
Battery........................................................................\
....8-37 For best battery service ..............................................8-37
Recharging the battery ................................................8-38
Reset items ..................................................................8-39
Before driving ..................................................................6-4 Before entering vehicle ................................................6-4
Before starting ..............................................................6-4
Necessary inspections ..................................................6-4
Brake system..................................................................6-27 Anti-lock Brake System (ABS) ..................................6-32
Electronic Stability Control (ESC) ............................6-33
A
B
SC CAN (ENG) Index.qxp 12/12/2019 5:06 PM Page 2

I3

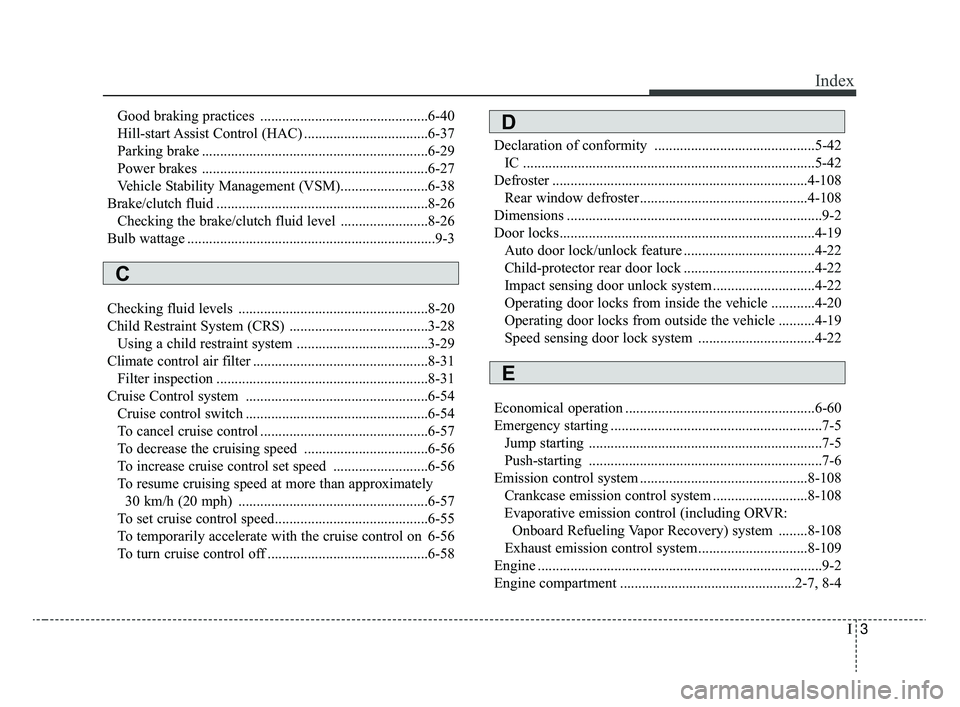

Index
Good braking practices ..............................................6-40
Hill-start Assist Control (HAC) ..................................6-37
Parking brake ..............................................................6-29
Power brakes ..............................................................6-27
Vehicle Stability Management (VSM)........................6-38
Brake/clutch fluid ..........................................................8-26 Checking the brake/clutch fluid level ........................8-26
Bulb wattage ....................................................................9-3
Checking fluid levels ....................................................8-20
Child Restraint System (CRS) ......................................3-28 Using a child restraint system ....................................3-29
Climate control air filter ................................................8-31 Filter inspection ..........................................................8-31
Cruise Control system ..................................................6-54 Cruise control switch ..................................................6-54
To cancel cruise control ..............................................6-57
To decrease the cruising speed ..................................6-56
To increase cruise control set speed ..........................6-56
To resume cruising speed at more than approximately 30 km/h (20 mph) ....................................................6-57
To set cruise control speed..........................................6-55
To temporarily accelerate with the cruise control on 6-56
To turn cruise control off ............................................6-58 Declaration of conformity ............................................5-42
IC ........................................................................\
........5-42
Defroster ......................................................................4-\
108 Rear window defroster ..............................................4-108
Dimensions ......................................................................9-\
2
Door locks......................................................................4-\
19 Auto door lock/unlock feature ....................................4-22
Child-protector rear door lock ....................................4-22
Impact sensing door unlock system ............................4-22
Operating door locks from inside the vehicle ............4-20
Operating door locks from outside the vehicle ..........4-19
Speed sensing door lock system ................................4-22
Economical operation ....................................................6-60
Emergency starting ..........................................................7-5 Jump starting ................................................................7-5
Push-starting ................................................................7-6
Emission control system ..............................................8-108 Crankcase emission control system ..........................8-108
Evaporative emission control (including ORVR: Onboard Refueling Vapor Recovery) system ........8-108
Exhaust emission control system ..............................8-109
Engine ........................................................................\
......9-2
Engine compartment ................................................2-7, 8-4
C
D
E
SC CAN (ENG) Index.qxp 12/12/2019 5:06 PM Page 3

Index
4I
Engine coolant ..............................................................8-23Changing the coolant ..................................................8-25
Checking the coolant level..........................................8-23\
Engine number ..............................................................9-11
Engine oil ......................................................................8-\
21 Changing the engine oil and filter ..............................8-22
Checking the engine oil level ....................................8-21
Engine start/stop button ..................................................6-8 Engine start/stop button position ..................................6-8
Illuminated engine start/stop button ............................6-8
Explanation of scheduled maintenance items ..............8-16
Exterior overview ............................................................2-2
Forward Collision-Avoidance Assist (FCA) system (Radar type) ................................................................6-42Brake operation ..........................................................6-46
FCA system front radar sensor ..................................6-46
FCA system warning message and system control ....6-44
Limitation of the system ............................................6-49
System malfunction ....................................................6-48
Fuel filler door ..............................................................4-42 Closing the fuel filler door..........................................4-\
42
Opening the fuel filler door ........................................4-42 Fuel requirements ............................................................1-3
Do not use methanol ....................................................1-5
Fuel Additives ..............................................................1-5
Gasoline containing alcohol and methanol ..................1-3
Fuses ........................................................................\
......8-55 Engine compartment fuse replacement ......................8-59
Fuse/relay panel description ......................................8-61
Inner panel fuse replacement ......................................8-57
Memory fuse ..............................................................8-58
Hood ........................................................................\
......4-39 Closing the hood ........................................................4-40
Hood open warning ....................................................4-40
Opening the hood ........................................................4-39
How to use this manual ..................................................1-2
If the engine overheats ....................................................7-7
If the engine will not start ..............................................7-4 If engine turns over normally but does not start ..........7-4
If the engine doesn't turn over or turns over slowly ....7-4
If you have a flat tire (with spare tire) ..........................7-27 Changing tires ............................................................7-29
Jack and tools ..............................................................7-27
F
H
I
SC CAN (ENG) Index.qxp 12/12/2019 5:06 PM Page 4
