KIA RIO 2020 Features and Functions Guide

GETTING TO KNOW YOUR RIO
Welcome to the Kia Family!
Your new Kia has been designed, engineered and manufactured to provide you with years of comfortable and dependable driving.
Kia is committed to quality, innovation, safety and – above all – your satisfaction.
Using This Guide
The information contained in this guide is a brief overview that will help you become familiar with the operation and features of your new Kia vehicle. The flipbook format facilitates information access, while the detailed illustrations help to ensure the instructions are easy to follow.
This Features & Functions Guide, and the specific operational and safety information it provides, is not a substitute for your Owner’s Manual. In the interest of your safety and that of the vehicle’s occupants, and to help you avoid risks that may result in death or serious injury, Kia reminds you to carefully read your Owner’s Manual in order to fully familiarize yourself with the important information and safety warnings it contains.
While Kia endeavors to ensure that the information contained in this guide is accurate at the time of printing, Kia may change vehicle specifications without notice in advance or after the fact, and assumes no liability in connection with such changes.
www.kia.com
Consumer - Roadside Assistance† 13 1-800-333-4KIA (4542)
See Back Pages for Vehicle Maintenance Schedule Always check the Owner’s Manual for complete operating information and safety warnings.†LEG AL DISCL AIMERS ON BACK INSIDE COVER

VIDEOS & QR CODES . . . . . . . . . . . . . . . . . . . . .02
INSTRUMENT CLUSTER
Instrument Cluster Overview . . . . . . . . . . . . . . . . . . . . .03Indicators & Warning Lights . . . . . . . . . . . . . . . . . . . . . .04Tire Pressure Monitoring System (TPMS) . . . . . . . . . . . .05Fuel Economy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .05Trip Modes / Trip Computer . . . . . . . . . . . . . . . . . . . . . . .06LCD Instrument Cluster Modes . . . . . . . . . . . . . . . . . . . .06Instant Fuel Consumption Mode . . . . . . . . . . . . . . . . . . .06User Settings* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .07Service Interval Mode* . . . . . . . . . . . . . . . . . . . . . . . . . .07
DRIVER’S PANEL
Instrument Cluster Control . . . . . . . . . . . . . . . . . . . . . . .08Electronic Stability Control (ESC) . . . . . . . . . . . . . . . . . .08Hill-Start Assist Control (HAC) . . . . . . . . . . . . . . . . . . . . .08Forward Collision-Avoidance Assist (FCA)* . . . . . . . . . . .09Power Windows, Window Lock & Central Door Lock . . . .10Power/Heated Outside Mirrors . . . . . . . . . . . . . . . . . . . .10
STEERING WHEEL CONTROLS
Headlights & High Beams . . . . . . . . . . . . . . . . . . . . . . . .11Turn Signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11Windshield Wipers & Washers . . . . . . . . . . . . . . . . . . . . .12Rear Wiper & Washer (5-Door Only)* . . . . . . . . . . . . . . . .12Tilt Steering Wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13Bluetooth® Wireless Technology . . . . . . . . . . . . . . . . . . .14Audio Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16Cruise Control* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
AUDIO SYSTEMS
UVO eServices Activation* . . . . . . . . . . . . . . . . . . . . . . . .17Android Auto™ / Apple CarPlay® Setup . . . . . . . . . . . . . .17
Standard Audio System* . . . . . . . . . . . . . . . . . . . . . . . . .18 UVO eServices* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
CENTER PANEL
Digital Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20Aux /Multimedia USB Ports, Power Outlets & USB Charger Port* . . . . . . . . . . . . . . . . . . . . . . . . . .20Manual Climate Control . . . . . . . . . . . . . . . . . . . . . . . . . .21Automatic Gear Shift / Sportmatic® Shifting* . . . . . . . . .22
S E AT I N G
6-Way Adjustable Driver’s Seat . . . . . . . . . . . . . . . . . . . .23Front Seat Headrest Adjustment . . . . . . . . . . . . . . . . . . .23Folding Rear Seatback . . . . . . . . . . . . . . . . . . . . . . . . . .24
OTHER KEY FEATURES
Remote Keyless Entry (Folding Key)* . . . . . . . . . . . . . . .25Door Locks / Double-Turn Unlock All . . . . . . . . . . . . . . . .25Fuel Cap / Malfunction Indicator . . . . . . . . . . . . . . . . . . .25Hood Release Lever and Latch . . . . . . . . . . . . . . . . . . . .26Fuel Door Release Lever . . . . . . . . . . . . . . . . . . . . . . . . .26Trunk Release Lever (4-Door)* . . . . . . . . . . . . . . . . . . . .26Sunvisor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26Map/Room Lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27Rear View Monitor (RVM)* . . . . . . . . . . . . . . . . . . . . . . . .28Child-Protector Rear Door Locks . . . . . . . . . . . . . . . . . . .28Liftgate Release Button (5-Door)* . . . . . . . . . . . . . . . . . .28
SAFETY FEATURES
Occupant Detection System (ODS) / Passenger Airbag Off Indicator . . . . . . . . . . . . . . . . . .29Seat Belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
NORMAL MAINTENANCE SCHEDULE . .Back Cover
LEGAL DISCLAIMERS . . . . . . . . . . .Inside Back Cover
RIO FE ATURES & FUNCTIONS GUIDE*IF EQUIPPED
ESSENTIAL FEATURES
Air Conditioning / Climate Control . . . . . . . . . . . . . . . .21
Android Auto™ / Apple CarPlay® Setup . . . . . . . . . . . . .17
Audio System – UVO eServices Activation* . . . . . . . . .17
Audio System – Standard Audio System* . . . . . . . . . . . 18
Audio System – UVO eServices* . . . . . . . . . . . . . . . . .19
Aux /Multimedia USB Port & Power Outlets* . . . . . . . .20
Bluetooth® Wireless Technology* . . . . . . . . . . . . . . . . .14
Cruise Control* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Digital Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Folding Rear Seatback . . . . . . . . . . . . . . . . . . . . . . . . .24
Passenger Airbag Off Indicator . . . . . . . . . . . . . . . . . .29
Service Interval Mode . . . . . . . . . . . . . . . . . . . . . . . . .07
Tire Pressure Monitoring System (TPMS) . . . . . . . . . .05
Windshield/Rear Wipers & Washers* . . . . . . . . . . . . . .12
Driving while distracted can result in a loss of vehicle control that may lead to an accident, severe personal injury and death. The driver’s primary responsibility is in the safe and legal operation of a vehicle, and handheld devices, other equipment or vehicle systems which take the driver’s eyes, attention and focus away from the safe operation of a vehicle or that are not permissible by law should never be used during operation of the vehicle.

RIO FEATURES & FUNCTIONS GUIDE2*IF EQUIPPED

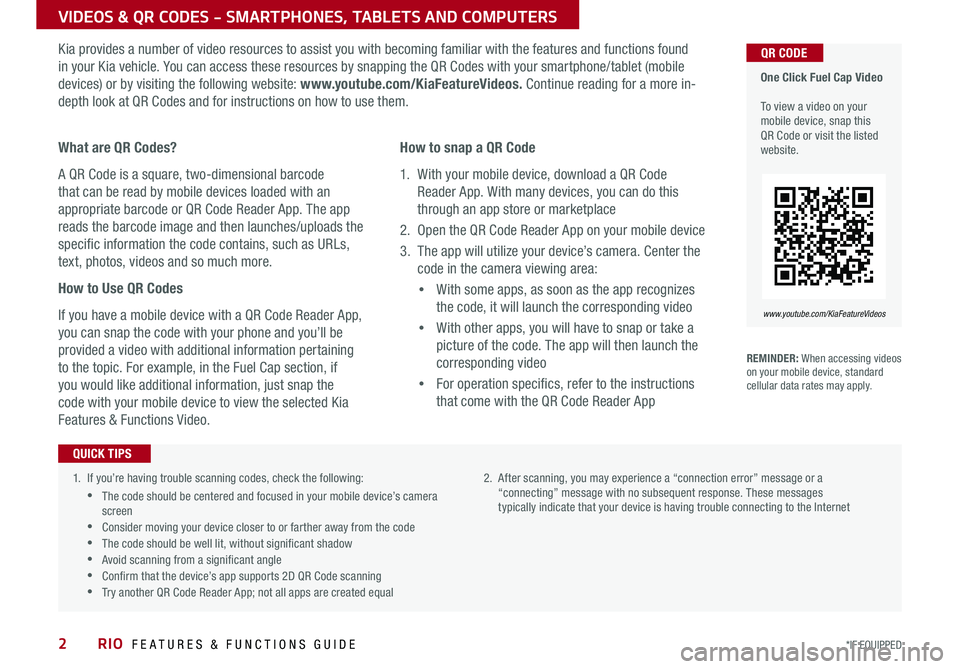

VIDEOS & QR CODES - SMARTPHONES, TABLETS AND COMPUTERS
1 . If you’re having trouble scanning codes, check the following:
•The code should be centered and focused in your mobile device’s camera screen
•Consider moving your device closer to or farther away from the code
•The code should be well lit, without significant shadow
•Avoid scanning from a significant angle
•Confirm that the device’s app supports 2D QR Code scanning
•Try another QR Code Reader App; not all apps are created equal
2 . After scanning, you may experience a “connection error” message or a “connecting” message with no subsequent response . These messages typically indicate that your device is having trouble connecting to the Internet
One Click Fuel Cap Video To view a video on your mobile device, snap this QR Code or visit the listed website .
www.youtube.com/KiaFeatureVideos
QR CODEKia provides a number of video resources to assist you with becoming familiar with the features and functions found
in your Kia vehicle . You can access these resources by snapping the QR Codes with your smartphone/tablet (mobile
devices) or by visiting the following website: www.youtube.com/KiaFeatureVideos. Continue reading for a more in-
depth look at QR Codes and for instructions on how to use them .
What are QR Codes?
A QR Code is a square, two-dimensional barcode
that can be read by mobile devices loaded with an
appropriate barcode or QR Code Reader App . The app
reads the barcode image and then launches/uploads the
specific information the code contains, such as URLs,
text, photos, videos and so much more .
How to Use QR Codes
If you have a mobile device with a QR Code Reader App,
you can snap the code with your phone and you’ll be
provided a video with additional information pertaining
to the topic . For example, in the Fuel Cap section, if
you would like additional information, just snap the
code with your mobile device to view the selected Kia
Features & Functions Video .
How to snap a QR Code
1 . With your mobile device, download a QR Code
Reader App . With many devices, you can do this
through an app store or marketplace
2 . Open the QR Code Reader App on your mobile device
3 . The app will utilize your device’s camera . Center the
code in the camera viewing area:
•
With some apps, as soon as the app recognizes
the code, it will launch the corresponding video
•
With other apps, you will have to snap or take a
picture of the code . The app will then launch the
corresponding video
•
For operation specifics, refer to the instructions
that come with the QR Code Reader App
QUICK TIPS
REMINDER: When accessing videos on your mobile device, standard cellular data rates may apply .

3ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS . *IF EQUIPPED
INSTRUMENT CLUSTER
(Type A cluster)*
A
CG
FE
D
Your vehicle’s instrument cluster & indicator light locations may differ from those in the illustrations. For more information on the instrument cluster, the LCD warning messages and the function of all indicator and warning lights, please refer to the Owner’s Manual.
This illustration is for demonstration purposes only. Some indicators and warning lights may not appear in illustration. On the vehicle, they may appear in the LCD.
Instrument Cluster Overview
A Tachometer
B Turn Signal Indicators
C Speedometer
D Warning and Indicator Lights
E Gear Shift Position Indicator
F Odometer
G Trip Computer
H Fuel Gauge
I Engine Coolant Temperature Gauge
BB
HI

RIO FEATURES & FUNCTIONS GUIDE4*IF EQUIPPED
INSTRUMENT CLUSTER
Parking Brake & Brake Fluid Warning Indicator
Door Ajar Warning Indicator
Electronic Brake Force Distribution (EBD) System Warning Indicator ( Two separate indicators on Instrument Cluster lit at same time)
Washer Fluid Warning Indicator*
Master Warning Indicator*
Icy Road Warning Indicator
Trunk (liftgate) Open Warning Light*
Immobilizer Indicator*
Engine Oil Pressure Warning Indicator
Airbag Warning Indicator
Malfunction Indicator Lamp (MIL)
Seat Belt Warning Indicator
Electric Power Steering (EPS) System Warning Indicator*
Charging System Warning Indicator
Light On Indicator
High Beam Indicator Light
LED Headlamp Warning Light*
Cruise Control Indicator*
Cruise SET Indicator*
Electronic Stability Control (ESC) Indicator*
Electronic Stability Control (ESC) OFF Indicator*
Low Fuel Level Warning Indicator
Low Tire Pressure Indicator
Engine Coolant Temperature Warning Indicator
Anti-lock Braking System (ABS) Warning Indicator*
(Type B cluster)*
Your vehicle’s instrument cluster & indicator light locations may differ from those in the illustrations. For more information on the instrument cluster, the LCD warning messages and the function of all indicator and warning lights, please refer to the Owner’s Manual.
This illustration is for demonstration purposes only. Some indicators and warning lights may not appear in illustration. On the vehicle, they may appear in the LCD.
Indicators & Warning Lights

5
INSTRUMENT CLUSTER
ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS . *IF EQUIPPED †LEGAL DISCL AIMERS ON BACK INSIDE COVER
The TPMS indicator functions as both Low Tire Pressure Light and TPMS
Malfunction Indicator . The indicator will illuminate if it detects one or more
tires is significantly underinflated, the vehicle has a spare tire installed without TPMS
or the outside temperature becomes significantly lower .
Inflate tire(s) to specifications using an accurate digital tire pressure gauge to turn the
Low Tire Pressure Light off . See front driver’s door jamb for PSI specification . The
Low Tire Pressure Position Indicator* A is displayed on the LCD screen in the
instrument cluster when the tire(s) is underinflated .
When there is a problem with the TPMS, the TPMS
Malfunction Indicator will blink for approximately one
minute and then illuminate – see dealer for service .
REMINDERS:
• Check the recommended tire pressure label located on the left side of the driver’s door jamb, visible when the door is opened
• Consult your dealer for service if the Low Tire Pressure Light remains illuminated after inflating your tire(s)
• Personal electronic devices (such as laptops, wireless chargers, remote start systems, etc .) may interfere with the TPMS system, which may cause the Malfunction Warning Indicator (Check Engine Light) to illuminate
To view the videos on your mobile device, snap these QR Code or visit the listed website .
Refer to page 2 for more information .
Tire Pressure Monitoring System Video
Fuel Economy Video
www.youtube.com/KiaFeatureVideos
www.youtube.com/KiaFeatureVideos
QR CODE
For illustrative purposes only. Your actual display, buttons and/or features may vary.
25
33 33
33
psi
Low Tire PressureA
Tire Pressure Monitoring System (TPMS)†21
Fuel Economy
There are several factors that contribute to your vehicle’s fuel economy, such as maintenance of your
vehicle, driving style, environmental conditions, vehicle weight and vehicle aerodynamics . Below are some
tips on how to help improve fuel economy:
•Keep your vehicle in good condition with regular maintenance
•Don’t let the engine idle longer than necessary
•Drive at a moderate speed, accelerating smoothly and at a moderate rate
•Keep tires inflated to the recommended pressure
•Travel lightly, without carrying unnecessary weight in your vehicles
•Avoid placing large or heavy items on roof racks
•Avoid hilly, winding or poorly maintained roads
• Even with TPMS, tire pressure should be checked manually at least once a month . Only adjust tire pressure on “cold tires” that have been sitting for 20 minutes, and tires that are not hot in temperature from direct sunlight or heat
• For proper maintenance, safety and optimal fuel economy, maintain recommended tire inflation pressures and stay within the load limits and weight distribution recommended for your vehicle
• In winter or cold weather, the TPMS light may illuminate if the tire pressure was adjusted to the recommended tire inflation pressure during warm weather
QUICK TIPS
Type B

RIO FEATURES & FUNCTIONS GUIDE6*IF EQUIPPED
INSTRUMENT CLUSTER
LCD Instrument Cluster Modes
Press the Mode button A to change the LCD
Instrument Cluster modes:
Trip Computer
User Settings
Master Warning
TRIP• Average Fuel Economy• Instant Fuel Economy
ACCUMULATE INFO• Tr ipme t er• Average Fuel Economy• Timer
DRIVE INFO• Tr ipme t er• Average Fuel Economy• Timer
DIGITAL SPEEDOMETER
( Type B shown; located on the right side of the Steering Wheel)
Your vehicle’s steering wheel buttons may differ from those in the illustrations.
For illustrative purposes only. Your actual display, buttons and/or features may vary.
Trip Modes / Trip Computer
The Trip Computer is a driver information system that displays information
related to driving . It appears on the display when the ignition switch is in the
ON position .
To cycle through the different LCD Instrument Cluster modes, press the
MODE button A .
When in Trip Computer mode , press the Move switch B up/down to cycle
through the screens .
When displaying TRIP A or TRIP B screens, press and hold the OK button C
to reset the Tripmeter to zero . REMINDERS:
•
Appearance of Trip Computer / Tripmeter display may differ, as equipped
•
All stored driving information (except Odometer and Range / Distance to Empty) is reset if the battery is disconnected
Instant Fuel Consumption Mode*
Press the Mode button A to cycle to Trip Computer
mode . Then scroll to TRIP mode, and scroll
to Instant Fuel Economy . The screen displays the
calculated fuel consumption during the past few
seconds .
REMINDERS:
•
Not to be used in calculating or as a reference for AVER AGE fuel economy
•
If the vehicle speed exceeds 1 mph (1 .6 km/h) after being refueled with more than 1 .6 gallons (6 liters), the average fuel economy will be cleared to zero (----)
•
For more information, refer to the Owner’s Manual
A
B
C
( Type B cluster)
Driving while distracted is dangerous and should be avoided. Drivers should remain attentive to driving and always exercise caution when using the steering-wheel-mounted controls while driving.

7ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS . *IF EQUIPPED
INSTRUMENT CLUSTER
When service is required, the following screens will
be displayed:
•Rotate Tire
•Change Engine Oil
To enter Service Interval Mode, press the Mode button A and scroll to User Settings . Then scroll to Service
Interval using the Move button B .
To reset or deactivate the Maintenance system reminder,
press the Reset button B for more than one second .
Then toggle to the preference and select by pressing the
Reset button B .
Service Interval Setting ( Type B Steering Wheel)
When in User Settings mode, press the Mode
button A to scroll to Service Interval and select by
pressing the OK button C .
When in the Service Interval mode, scroll to the menu
item and press the OK button C to enter:
•Engine Oil
•Tire
Scroll to your selection and press the OK button C
to set .
To view the videos on your mobile device, snap these QR Codes or visit the listed website .
Refer to page 2 for more information .
LCD Display Video
LCD Display: Maintenance Video
QR CODES
www.youtube.com/KiaFeatureVideos
( Type B cluster) ( Type B shown; located on the right side of the Steering Wheel)
For more information on the User Settings mode, please refer to your Owner’s Manual.
For illustrative purposes only. Your actual display, buttons and/or features may vary.
Driving Assist*:
•Forward Collision-
Avoidance Assist (FCA)*
•Forward Collision
Warning (FCW )*
Door*:
•Automatically Lock
•Automatically Unlock
•Two Press Unlock*
•Horn Feed Back*
Lights:
•One Touch Turn Signal
•Head Lamp Delay
Language:
•Choose the language
Convenience:
•Wiper/Light Display*
•Auto rear wiper (reverse)*
•Gear Position Pop-up*
•Icy road warning*
Service Interval:
•Enable Service Interval
•Adjust Interval
•Reset
Other Features:
•Fuel Economy Auto Reset
•Fuel Economy Unit
•Temperature Unit
•Tire Pressure Unit*
Reset:
•Reset menus in User
Settings
User Settings*
(Type B cluster)
To enter the User Settings mode in the
LCD Instrument Cluster modes, press
the Mode button A when the vehicle
is at a standstill, gear shift in Park,
and with the ignition ON, select User
Settings .
You can navigate the selections on the
display by toggling the Move button
B . Select the item by pressing the
OK (Set /Reset) button C .
User Settings Menu
Service Interval Mode*
(Type A cluster)
A
B
CMPG030
60
INSTFuel
Economy
MPG0 30
60
INSTFuel
Economy
MPG0 30
60
INSTFuel
Economy
BackTire Rotation
OFF9000 km
10000 kmBack OFF7500 mi
15000 mi Engine Oil
Set Tire Service Set Oil Service
Notify Later
Maintenance Reset OFF Notify Later
Maintenance Reset OFF
Rotate Tire
Change Engine Oil
Set Alarm
Set Alarm
RESETRESET
Change Engine Oil
Set Alarm
RESET
Set Oil ServiceNotify Later
Maintenance Reset OFF
Back
OFF7500 mi
15000 mi Engine Oil
MPG0
30
60
INSTFuel
Economy
MPG0 30
60
INSTFuel
Economy
MPG0 30
60
INSTFuel
Economy
BackTire Rotation
OFF9000 km
10000 kmBack OFF7500 mi
15000 mi Engine Oil
Set Tire Service Set Oil Service
Notify Later
Maintenance Reset OFF Notify Later
Maintenance Reset OFF
Rotate Tire
Change Engine Oil
Set Alarm
Set Alarm
RESETRESET
Change Engine Oil
Set Alarm
RESET
Set Oil ServiceNotify Later
Maintenance Reset OFF
Back
OFF7500 mi
15000 mi Engine Oil
MPG0
30
60
INSTFuel
Economy
MPG0 30
60
INSTFuel
Economy
MPG0 30
60
INSTFuel
Economy
BackTire Rotation
OFF9000 km
10000 kmBack OFF7500 mi
15000 mi Engine Oil
Set Tire Service Set Oil Service
Notify Later
Maintenance Reset OFF Notify Later
Maintenance Reset OFF
Rotate Tire
Change Engine Oil
Set Alarm
Set Alarm
RESETRESET
Change Engine Oil
Set Alarm
RESET
Set Oil ServiceNotify Later
Maintenance Reset OFF
BackOFF
7500 mi
15000 mi
Engine Oil

RIO FEATURES & FUNCTIONS GUIDE8
DRIVER’S PANEL
*IF EQUIPPED †LEGAL DISCL AIMERS ON BACK INSIDE COVER
Instrument Cluster Control
Press switch A up or down to adjust display brightness of the
instrument panel illumination .
REMINDER: The Instrument Cluster Control does not adjust brightness on the audio control unit screen . Use setup to adjust brightness on the audio control unit screen .
Electronic Stability Control (ESC)†7
The ESC system is designed to help stabilize the vehicle during certain
cornering maneuvers . It is a good idea to keep the ESC turned ON for
daily driving whenever possible .
Press the ESC OFF button B to disable Traction Control in ESC (ESC
OFF indicator will illuminate) .
To turn both the Traction Control and Stability Control off, press and
hold the ESC OFF button B (ESC OFF indicator will illuminate, and an
alert sounds) .
REMINDERS:
•
ESC is active by default at vehicle startup . When ignition is cycled, ESC will turn ON again
•
The ESC Indicator Light in the instrument cluster will be lit momentarily whenever the ESC is active
For more information on Electronic Stability Control (ESC) and its specific features and operation, please refer to your Owner’s Manual.For illustrative purposes only. Your actual display, buttons and/or features may vary.
Hill-Start Assist Control (HAC)†7
HAC can help to prevent the vehicle from rolling backwards when
accelerating from a stop while on a steep incline .
The HAC automatically activates whether the ESC is OFF or ON but
does NOT activate when the ESC has malfunctioned .
REMINDERS:
•
The HAC does not operate when the gear shift is in the P (Park) or the N (Neutral) position
•HAC does not replace the need to apply brakes while the vehicle is stopped on an incline
•In the event of HAC system malfunction, see an authorized Kia dealer for service
• When HAC is active (e .g ., during initial acceleration from a stop on an incline), you may notice that the brakes will momentarily remain engaged after you depress the accelerator – this is normal HAC operation
• HAC provides a 2-second delay before the vehicle may start rolling backwards
QUICK TIPS(Buttons located on left side of Driver’s Panel)
AB
