19†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS .
STEERING WHEEL CONTROLS
STEERING WHEEL CONTROLS

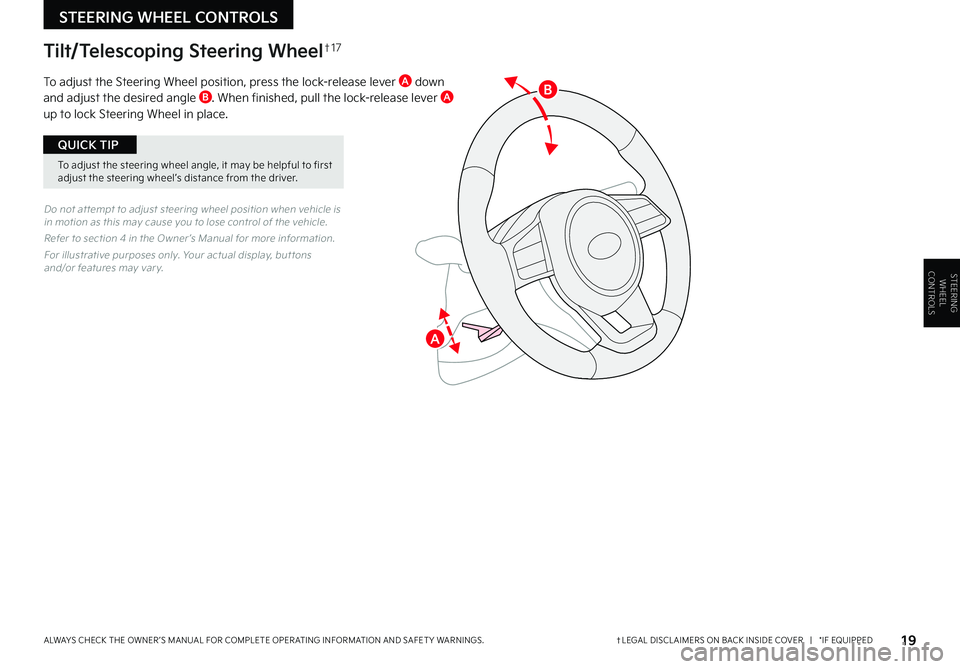

Tilt/Telescoping Steering Wheel†1 7
To adjust the Steering Wheel position, press the lock-release lever A down and adjust the desired angle B . When finished, pull the lock-release lever A up to lock Steering Wheel in place .
Do not at tempt to adjust steering wheel position when vehicle is in motion as this may cause you to lose control of the vehicle .
Refer to section 4 in the Owner ’s Manual for more information .
For illustrative purposes only . Your actual display, but tons and/or features may var y .
A
B
To adjust the steering wheel angle, it may be helpful to first adjust the steering wheel’s distance from the driver .
QUICK TIP
Page 22 of 46
20†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDRIO FEATURES & FUNCTIONS GUIDE
AUDIO SYSTEMS

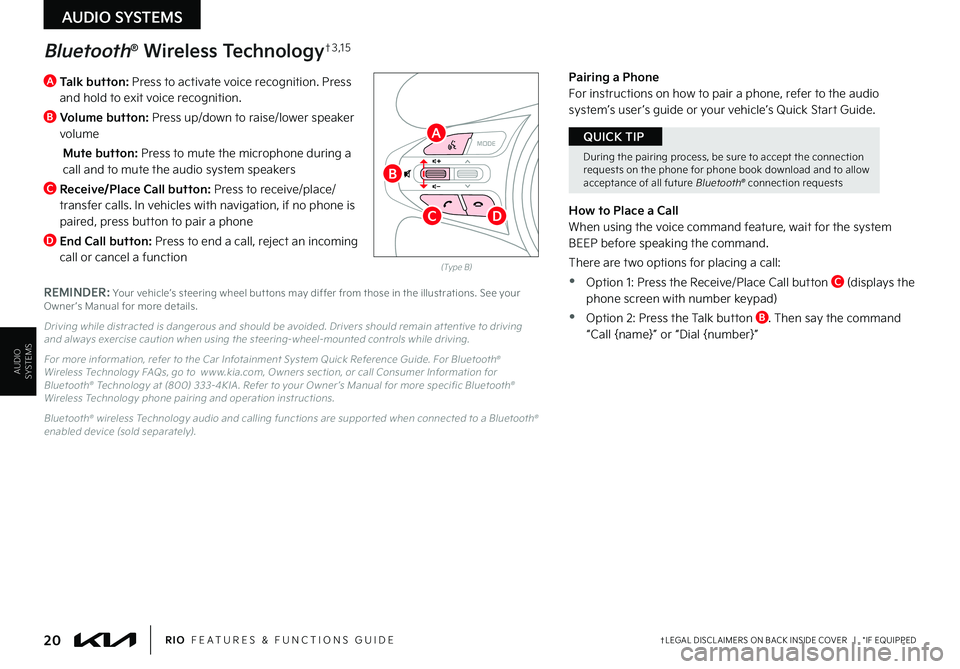

AUDIOSYSTEMS
A T a l k b u t t o n : Press to activate voice recognition . Press and hold to exit voice recognition .
B Volume button: Press up/down to raise/lower speaker volume
Mute button: Press to mute the microphone during a call and to mute the audio system speakers
C
Receive/Place Call button: Press to receive/place/transfer calls . In vehicles with navigation, if no phone is paired, press button to pair a phone
D End Call button: Press to end a call, reject an incoming call or cancel a function
OKRES+
SET
-
5 Z Q F #
Bluetooth® Wireless Technology†3 , 1 5
REMINDER: Your vehicle’s steering wheel but tons may differ from those in the illustrations . See your Owner ’s Manual for more details .
Driving while distracted is dangerous and should be avoided . Drivers should remain at tentive to driving and always exercise caution when using the steering-wheel-mounted controls while driving .
For more information, refer to the Car Infotainment System Quick Reference Guide . For Bluetooth® Wireless Technology FAQs, go to w w w .kia .com, Owners section, or call Consumer Information for Bluetooth® Technology at (800) 333-4KIA . Refer to your Owner ’s Manual for more specific Bluetooth® Wireless Technology phone pairing and operation instructions .
Bluetooth® wireless Technology audio and calling functions are suppor ted when connected to a Bluetooth® enabled device (sold separately) .
Pairing a Phone For instructions on how to pair a phone, refer to the audio system’s user ’s guide or your vehicle’s Quick Start Guide .
How to Place a Call When using the voice command feature, wait for the system BEEP before speaking the command .
There are two options for placing a call:
•Option 1: Press the Receive/Place Call button C (displays the phone screen with number keypad)
•Option 2: Press the Talk button B . Then say the command “Call {name}” or “Dial {number}”
During the pairing process, be sure to accept the connection requests on the phone for phone book download and to allow acceptance of all future Bluetooth® connection requests
QUICK TIPA
B
CD
Page 23 of 46
21†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS .
AUDIO SYSTEMS
AUDIOSYSTEMS
Voice Recognition and Phone Contact Tips
The system may have difficulty understanding some accents or uncommon names . Improve the per formance by making a few simple changes to your phone contacts, listed below . To help optimize the Bluetooth® Wireless Technology Voice Recognition system, see other tips and reminders under Quick Tips .
•
Use full names (first and last names) vs . short or single-syllable names (“John Smith” vs . “Dad,” “Smith Residence” vs . “Home”)
•
Avoid using special characters, emojis or hyphenated names (@, &, #, /, -, *, +, etc .)
•
Avoid using acronyms (“In Case of Emergency” vs . “ICE”) or words with all capital letters
•
Spell words completely, no abbreviations (“Doctor Smith” vs . “Dr . Smith”)
Bluetooth® Wireless Technology†3 , 1 5 (continued)
A
Audio Mode button: Press to cycle through FM/AM/SiriusXM® *†14/Media modes Audio System ON/OFF: Press to turn power on; Press and hold to turn power off
B Seek/Preset button FM/AM/SiriusXM®†1 4 Modes: Press to advance through Preset Stations . Press and hold to Auto Seek Media Modes: Press to move Track Forward/Back . Press & hold to Fast Forward/Rewind (except for Bluetooth® Audio)
C Volume button: Press up/down to raise/lower volume Mute button: Press to mute all audio
Driving while distracted is dangerous and should be avoided . Drivers should remain at tentive to driving and always exercise caution when using the steering-wheel-mounted controls while driving .
Your vehicle’s steering wheel but tons may differ from those in the illustrations . See your Owner ’s Manual for more details .
For fur ther audio system operation, refer to pages 22-26 .
OKRES+
SET
-
" V E J P $ P O U S P M \
T õ
$ #
"
3 F G F S U P U I F J O T J E F G S P O U D P W F S G P S N P S F J O G P S N B U J P O P O 2 3 D P E F T X X X Z P V U V C F D P N , J B ' F B U V S F 7 J E F P T
Voice RecognitionTips Video
QR CODE
•Bluetooth® Music Streaming – If the Bluetooth® music is inaudible or too low, you may need to turn up the volume on the connected phone
•When placing a call, speak in a natural, moderate tone, with clear pronunciation . The system may have trouble recognizing commands if you speak too softly or too loudly
•Always wait for the beep before speaking any commands
•Close windows and turn off A /C – Open windows, weather (wind/rain), or an A /C fan operating at higher speeds can inter fere with Voice Recognition
•Press the talk but ton and say “Help” to get a list of available commands
QUICK TIPS
Page 24 of 46
22†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDRIO FEATURES & FUNCTIONS GUIDE
AUDIO SYSTEMS
AUDIOSYSTEMS
Android AutoTM†3 / Apple CarPlay®†3 Setup
Driving while distracted can result in a loss of vehicle control that may lead to an accident, severe bodily injur y, and death . The driver ’s primar y responsibilit y is in the safe and legal operation of a vehicle, and any handheld devices, other equipment, or vehicle systems which take the driver ’s eyes, at tention and focus away from the safe operation of a vehicle or which are not permissible by law should never be used during operation of the vehicle .
Android Auto™ compatible smartphone setup – Download the Android Auto™ app from the Google Play™ Store†3 . Open the Android Auto™ app and proceed with the onscreen instructions to complete setup on the mobile device .
Wireless Connection setup for Android Auto™ & Apple CarPlay® (Standard Audio System & Standard Audio System-Value with UVO link):
1 . Press the SETUP key on the audio head unit
2 . Press DEVICE CONNECTION SETTINGS
3 . Press PHONE PROJECTION, then ADD NEW
Cable Connection setup for Android Auto™ (Standard Audio System, Standard Audio System-Value with UVO link & UVO link with Navigation):
1 . Press the SETUP key on the audio head unit
2 . Press DEVICE CONNECTION, select Android Auto™ and then select ENABLE ANDROID AUTO . Review all terms, conditions and requests on the head unit and phone, and, if you agree, accept them in order to use Android Auto™
3 . Connect the Android™ device with the vehicle’s USB port using the manufacturer ’s cable provided with your phone
4 . From the vehicle’s home screen, select the Android Auto™ button, where you’ll see all the Android Auto™ supported apps
Cable Connection setup for Apple CarPlay® (UVO link with Navigation only):
1 . Connect the Apple CarPlay® compatible iPhone®†3 with the vehicle’s USB port using the manufacturer ’s cable provided with your iPhone®†3
2 . Press the SETUP key on the audio head unit
3 . Press DEVICE CONNECTION on the screen and select Apple CarPlay®
4 . Select ENABLE APPLE CARPL AY . Review all terms, conditions and requests on the head unit and phone, and, if you agree, accept them in order to use Apple CarPlay®
5 . From the audio head unit home screen, select the Apple CarPlay® button, where you’ll see all the Apple CarPlay® supported apps
REMINDERS:
• Android Auto™ compatibilit y requirements for connection: -
UVO link with Navigation (USB cable connection only): OS Android™ 5 .0 or higher, phone manufacturer ’s USB cable and data plan with applicable feature(s)
-Standard Audio System-Value (USB cable & wireless connection):
-
USB cable connection - OS Android™ 5 .0 or higher, phone manufacturer ’s USB cable and data plan with applicable feature(s)
-
Wireless connection - OS Android™ 9 .0 or higher with data plan for applicable feature(s)
• Apple CarPlay® compatibilit y requirements for connection:
-
UVO link with Navigation (USB cable connection only): iOS soft ware 8 .0 or higher, phone manufacturer ’s USB cable and data plan for applicable feature(s)
-
Standard Audio System-Value (Wireless connection only): iOS soft ware 10 .0 and higher with data plan for applicable feature(s)
• It is recommended to always update your phone to the latest operating system release
• Wireless Android Auto™ system only works for cer tain Android models . Use the manufacturer ’s USB cable when wireless feature is not available
• Wireless connection can be disconnected due to other wifi net work inter ference . If it happens, tr y to reconnect wirelessly to Android Auto or Apple CarPlayRefer to the Car Infotainment System Quick Reference Guide for more information .
•If Android Auto™ / Apple CarPlay® randomly disconnects:
– Ensure the USB cable is cer tified by the phone manufacturer for both power and data
– Clean the phone’s por t, which the USB cable connects to, as instructed by the phone’s manufacturer
– The phone should not be disturbed while driving as this can cause a disconnection at the phone’s USB por t
– Visit the phone manufacturer ’s website for Android Auto/Apple CarPlay app concerns
QUICK TIPS
Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
Wireless Apple CarPlay& Android Auto Video
QR CODE
Page 25 of 46
23†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS .
AUDIO SYSTEMS
AUDIOSYSTEMS
UVO link Activation*†1 (Systems equipped with UVO link only):
Follow these steps to activate your UVO link system:
1 . Enter the activation screen on your vehicle’s head unit:
a . Press SETUP key
b . Press UVO icon
c . Press Activate UVO
2 .
Read and agree to Terms of Service and Privacy Policy and press SUBMIT
3 .
Enter smartphone number or email address to receive a verification code, then press SUBMIT
4 .
Follow these steps to receive your verification code using your phone text message or email:
a . Check your phone text message or email for verification code
b . Open the link in your text message or email . A page will open requesting that you create your account
N o t e : If you already have a Kia Owners Portal account using the email or phone number as your login ID, you will need to provide your password prior to receiving the verification code
c . Enter your first name, last name, email, phone number, and account password, and click CREATE ACCOUNT . A page will open displaying your verification code
d . Enter the code in the head unit and press ACTIVATE
e . Go back to the page with your verification code and press “I have entered
my verification code .” A link will be provided to download the Kia Access with UVO link app from your app store . After installing the app, log in and enjoy
REMINDER: This vehicle is not equipped with over-the-air system updates .
Driving while distracted can result in a loss of vehicle control that may lead to an accident, severe bodily injur y, and death . The driver ’s primar y responsibilit y is in the safe and legal operation of a vehicle, and any handheld devices, other equipment, or vehicle systems which take the driver ’s eyes, at tention and focus away from the safe operation of a vehicle or which are not permissible by law should never be used during operation of the vehicle .
For fur ther UVO link operations, refer to the Car Infotainment System Quick Reference Guide .
UVO link may currently be unavailable for model year 2022 vehicles sold or purchased in Massachuset ts .
UVO Assistance*†1
Virtual Assistant A – Press to connect to the UVO Center to hear information about the UVO features
UVO B – Press to activate phone projection with Android Auto™ or Apple CarPlay® (smartphone must be connected via wireless or USB cable – see previous page for availability and setup)
Roadside Assist C – Press to connect to the UVO Center where you can request vehicle towing services
(But tons on rear view mirror*)
UVO
For more information, refer to the Car Infotainment System Quick Reference Guide .
For fur ther audio system operation, refer to pages 21-26 .
Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
Kia Access with UVO link app Video
UVO Assistance Video
QR CODE
ABC
Page 26 of 46
24†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDRIO FEATURES & FUNCTIONS GUIDE
AUDIO SYSTEMS
AUDIOSYSTEMS
Radio Presets – You can listen to FM and AM radio and save frequently used stations . Press and hold the desired slot . This saves the current station in the selected slot .
SiriusXM® Smart Favorites – For the first ten favorite SiriusXM® channels, you may play live or repeat from the beginning of a song or a program segment . In Radio mode, choose SiriusXM®, then select any of the first ten favorites . During song or program play, tap the Skip Backward icon to start from the beginning of the song or program . Tap the Play Live icon to return to the live broadcast .
Custom Key H: A programmable key to provide quick access to one of several available system features . Press and hold the Custom Key . Select one of the available features you would like the Custom Key to open .
Sound Settings – To adjust the Standard Audio Systems sound settings:
1 .
Press the SETUP key on the audio control unit or the onscreen MENU button when in MEDIA mode
2 . Select the onscreen SOUND button
3 .
Select the menu item (Position, Volume, Priority, Advanced, Default)
4 .
Using the touchscreen, press arrows to adjust the settings
Standard Audio System* FM/AM/SiriusXM®† 1 4/Media (USB, Bluetooth®†3 A u d i o , M y M u s i c) *
Press briefly to do the following:•
FM/AM/SiriusXM® mode: Play the previous/next frequency• MEDIA mode: Change the track, file or title
Press and hold to do the following:• FM/AM mode: Move quickly through all of the frequencies . When released, the system seeks the next available frequency• MEDIA mode: Rewinds or fast for wards the track or file (except for Bluetooth® Audio)
Press to Power On/Off . Rotate to adjust volume
Driving while distracted is dangerous and should be avoided . Drivers should remain at tentive to driving and always exercise caution when using the audio system controls while driving . To help minimize driver distraction, some audio system functionalities have been modified while the vehicle is in Drive, Reverse or moved out of Park .
Press to enter SETUP mode
Press to enter the saved menu item or press and hold to program the custom key
Rotate to change Radio Station/Media tracks/songs/files . Press to select
Press to select FM/AM/SiriusXM® modes
Press to select MEDIA modes
Your vehicle’s audio system may differ from that in the illustration . For fur ther audio system operation, refer to pages 21-26 or see the Car Infotainment System Quick Reference Guide .
SETUP
N AV
MAP
MEDIA SEEK
RADIO
TRACK
POWERPUSHVOL ENTER
TUNE
FILE
SETUP
MEDIA SEEK
RADIO TRACK
POWERPUSH
VOL FILETUNE
ENTER
Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
Standard Audio System Videos
QR CODE
•Volume level bet ween different audio modes:
– When switching bet ween audio modes (AM, FM, Bluetooth® Audio, etc .), the audio system saves the previous volume level you were listening to . For example, if you were listening to FM radio at volume level 20 then switched to Bluetooth® Audio and adjusted the volume level to 30, the volume level will be at 20 when you switch back to FM radio
– When using Bluetooth® Audio, the overall volume is dependent on your device’s volume . If the volume is turned down low on your device it will remain low even if the system volume is turned up
•This system suppor ts Android Auto™ (USB & wireless connection) and Apple CarPlay® (wireless connection only)
•When connected to Android Auto™ or Apple CarPlay® on your smar tphone, the smar tphone’s navigation†1 1 system may also be available
•A warning screen may appear periodically to remind users that the audio system should be operated when the engine is running to prevent bat ter y discharge
•Prolonged use of the audio control unit in ACC mode may drain the vehicle’s bat ter y
QUICK TIPS
Page 27 of 46
Kia Access with UVO link†1 App Download
Go to an app marketplace to download the Kia Access with UVO link App . Once you download the app, make sure you register your vehicle and start an account (refer to UVO link Activation page) . Get to know your new Kia and the available convenient features on the app .
The Kia Access with UVO link App Features Guide is a step-by-step guide helping you utilize the app to its full potential by detailing how to set up and use each feature and adjust various settings . Below are some of the topics included:
•Remote Commands
•Set Climate
•Schedule Remote Start/Climate
•Schedule Charge
•Schedule Service
•Dealer Settings
•Manage Vehicles and Profiles
Kia Access with UVO link†1 App Features Guide
Kia App Screen for illustrative purposes only . Actual App screen and functionalit y may var y . For fur ther UVO link operations, refer to the Car Infotainment System Quick Reference Guide . For fur ther audio system operation, refer to pages 21-26 .
Do not use remote climate control or remote star t if vehicle is in an enclosed area (e .g ., closed garage) or a par tially enclosed area without ventilation . Close all doors leading from adjacent living areas to the vehicle area before executing a remote climate control or remote star t command .
2020 SOULMILEAGE722 mi.
355 miEst. RangeDOOR LOCKSREMOTE STARTFind My Car
25†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS .
•The smar tphone and vehicle need to be connected to a cellular net work with a good wireless signal strength in order to use UVO . If these conditions are not met, remote commands may not execute or may take a long time
•To use Remote Star t or Remote Star t with Climate Control feature, all doors, hood and trunk/liftgate must be closed and locked
•Activate Remote Star t or Remote Star t with Climate Control feature at least 10 minutes before get ting into the vehicle, which will allow vehicle interior to reach a desired temperature . If the driver does not enter the vehicle within the 10 minutes, the Remote Star t will turn off the engine
•The quickest way to obtain accurate vehicle status through the app is by pressing the refresh but ton on the app or refreshing the web page when using the customer web por tal
•In order to preser ve the vehicle bat ter y, UVO will not turn on seven days after the last ignition was on . You will need to restar t the vehicle with a key fob in order to use UVO again
QUICK TIPS
Kia Access with UVO link App Features Guide. Click this dynamic QR code to access the guide . Some phone’s operating systems may need to be updated to scan dynamic QR codes .
Download the Kia Access with UVO link App by clicking this dynamic QR code . Some phone’s operating systems may need to be updated to scan dynamic QR codes .
QR CODES
AUDIO SYSTEMS
AUDIOSYSTEMS
Page 28 of 46
26†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDRIO FEATURES & FUNCTIONS GUIDE
AUDIO SYSTEMS
AUDIOSYSTEMS
Standard Audio System - Value with UVO link*†1
— FM/AM/SiriusXM®†1 4/Media (USB, Bluetooth®†3 Audio)*
Sound Settings – To adjust the sound settings:
1 .
Press the SETUP key on the audio head unit or the onscreen MENU button, when in MEDIA mode . Select the onscreen SOUND button, or SOUND SETTINGS
2 .
Select the menu item (Position, Volume, Tone, Priority, Advanced, Default, FM Radio Noise Cancel*)
3 .
Use the onscreen buttons to adjust settings . Press the return button to save settings
Presets – Press the STAR button next to or below the Radio Station display . This saves the current station as a preset .
SiriusXM® Smart Favorites – For the first ten favorite SiriusXM® channels, you may play live or repeat from the beginning of a song or a program segment . In Radio mode, choose SiriusXM®, then select any of the first ten favorites . During song or program play, tap the Skip Backward icon to start from the beginning of the song or program . Tap the Play Live icon to return to the live broadcast .
Custom Key H " Q S P H S B N N B C M F L F Z U P Q S P W J E F R V J D L B D D F T T U P P O F P G T F W F S B M B W B J M B C M F T Z T U F N G F B U V S F T To Program the Custom Key: Press and hold the Custom key . Select one of the available features you would like the Custom key to open .
For more information, refer to the Car Infotainment System Quick Reference Guide . For fur ther audio system operation, refer to pages 21-25 .
REMINDERS:
• Driving while distracted is dangerous and should be avoided . Drivers should remain at tentive to driving and always exercise caution when using the audio system controls while driving . To help minimize driver distraction, some audio system functionalities have been modified while the vehicle is in Drive, Reverse or moved out of Park
• Prolonged use of the audio head unit in ACC mode may drain the vehicle’s bat ter y
Press briefly to do the following:•
FM/AM/SiriusXM® mode: Play the previous/next frequency• MEDIA mode: Change the track, file or title
Press and hold to do the following:• FM/AM mode: Move quickly through all of the frequencies . When released, the system seeks the next available frequency• MEDIA mode: Rewinds or fast for wards the track or file (except for Bluetooth® Audio)
Press to Power On/Off . Rotate to adjust volumePress to enter SETUP mode
Press to enter CUSTOM mode
Rotate to change Radio Station/Media tracks/songs/files . Press to select
Press to select FM/AM/SiriusXM® modes
Press to select MEDIA modes
SETUP
N AV
MAP
MEDIA SEEK
RADIO
TRACK
POWERPUSHVOL ENTER
TUNE
FILE
SETUP
MEDIA SEEK
RADIO TRACK
POWERPUSH
VOL FILETUNE
ENTER
Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
Standard Audio System - Value with UVO link Video
QR CODE
•Volume level bet ween different audio modes:– When switching bet ween audio modes (AM, FM, Bluetooth® Audio, etc .), the audio system saves the previous volume level you were listening to . For example, if you were listening to FM radio at volume level 20 then switched to Bluetooth® Audio and adjusted the volume level to 30, the volume level will be at 20 when you switch back to FM radio– When using Bluetooth® Audio, the overall volume is dependent on your device’s volume . If the volume is turned down low on your device it will remain low even if the system volume is turned up •This system suppor ts Android Auto™ (USB & wireless connection) and Apple CarPlay® (wireless connection only) •Navigation may be available when connected to Android Auto™ or Apple CarPlay® suppor ted smartphones •When using the voice command feature, wait for the system to BEEP before speaking the command •At any time, you can interrupt Command Feedback by pressing the TALK but ton •A warning screen may appear periodically to remind users that the UVO link should be operated when the engine is running to prevent bat ter y discharge
QUICK TIPS
Your vehicle’s audio system may differ from that in the illustration .
Page 29 of 46
27*IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS .
CENTER PANEL
CENTER PANEL
USB Charger Port*:
The USB Charger Port is located at the rear of the Center Console .
Digital Clock
Clock Setup:
Press the SETUP C button, then press the onscreen Clock icon to enter date/time settings .
Use the Multimedia USB port A to connect USB audio devices and smartphones .
Use the power outlets B for mobile phones and other devices designed to operate on a 12V (180W max) power outlet .
REMINDERS:
• Using the power outlets and AUX/Multimedia USB por ts for prolonged periods of time with the ignition ON (engine OFF) could cause the bat ter y to discharge
• The ignition in ACC mode could cause the bat ter y to discharge
• The USB data por t (Multimedia USB por t) is located next to the Power Outlets . The USB Charger por ts do not suppor t data transfer
• Kia recommends that you only use USB cables made by your device’s manufacturer . Third-par t y USB cables may cause damage to your device
For more information, refer to the Car Infotainment System Quick Reference Guide .
For illustrative purposes only . Your actual display, but tons and/or features may var y .
12V180W
12V180W
USB
USB
(Located at rear of Center Console)
For more information on the Aux/Multimedia USB Por ts, Power Outlets and the USB Charger Por t, refer to section 4 in the Owner ’s Manual .
SETUP
N AV
MAP
MEDIA SEEK
RADIO
TRACK
POWERPUSHVOL ENTER
TUNE
FILE
SETUPMEDIA SEEK
RADIO TRACK
POWERPUSH
VOLFILE
TUNE
ENTER
AB
C
The power outlets are inactive when ignition is in the OFF position
.
QUICK TIP
Multimedia USB Port, Power Outlets* & USB Charger Port*
Page 30 of 46
28*IF EQUIPPEDRIO FEATURES & FUNCTIONS GUIDE
Automatic Climate Control*
Auto Defogging System:
Auto Defogging is designed to reduce the fogging up of the inside of the windshield by automatically sensing the moisture of the inside of the windshield . The system will automatically change to defrost mode when needed .
Auto Defogging is set ON by default . To cancel Auto Defogging, press the Front Defrost button FRONT for three seconds, when the ignition is on (ADS OFF icon will illuminate) . To turn Auto Defogging on again, press the Front Defrost button FRONT for three seconds .
Defrost Outside Windshield:
1 . Set Temperature to Hot
2 .
Press the Front Defrost button
Defog Inside Windshield:
1 . Set Fan Speed to highest position
2 . Set Temperature to highest position
3 . Press the Front Defrost button
Air Flow Modes:
To select Air Flow Modes, press the Mode selection buttons:
Climate Control Auto Function:
1 . Press AUTO to select Full Auto Operation – The Auto setting automatically controls the air flow modes, fan speeds, air intake and air conditioning according to the temperature setting selected
2 . Set desired Temperature
REMINDERS:
• Cold or warm ambient air may flow in through vents if Recirculated Air but ton is not pressed ON (LED lit)
• Pressing any but ton during AUTO operation will deactivate the AUTO function and switch to manual mode
• Continuous use of the climate control system in the recirculated air position may allow humidit y to increase inside the vehicle which may fog the glass and obscure visibilit y
• When in AUTO mode, Air Flow Mode and Fan Speed do not display on the Climate Control Display
Face-Level
Bi-Level
Floor-Level
Floor/Defrost-Level
Your Automatic Climate Control system may differ from those in the illustrations . Refer to section 4 in the Owner ’s Manual for more information .
FRONTREAR
A/C
A/C
AUTO
OFF
AUTO+
-8 88°C
A Auto climate control button
B Temperature control knob
C Front windshield defroster
D System OFF button
E Mode selection control
F Recirculated air button
G Air conditioning ON/OFF button
H Fan speed control knob
I Rear windshield defroster
A
B
G
CI
H
FDE
Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
Automatic ClimateControl Video
Auto Defogging System Video
QR CODE
•Defrost Mode activates A /C and opens Fresh Air Vent to help dehumidify the air and improve Defroster per formance •During Auto Operation, the A /C indicator will NOT illuminate . The fan speed, air intake, air flow and air conditioning may automatically be engaged at any time to reach desired temperature and reduce humidit y •Keep inside glass as clean as possible to reduce window fogging
QUICK TIPS
CENTER PANEL
CENTER PANEL
