KIA RIO 2022 Features and Functions Guide

When engaged, Lane Keeping Assist and Lane Depar ture Warning are not substitutes for safe driving and may not always aler t the driver if the vehicle is driven outside of its lane . Always drive safely and use caution .
For illustrative purposes only . Your actual display, but tons and/or features may var y .
Actual User Set tings steps may var y by model . Refer to section 5 in the Owner ’s Manual for more information .
(Located on right side of steering wheel)
LKA User Settings:
•To enable LK A , go to the User Settings menu in the Instrument Cluster, press the Mode button B on the Steering Wheel when the vehicle is at a standstill, gear shift is in Park and with the ignition on or the Engine Start/Stop button* in the ON position, and select User Settings
•
To activate LK A , with the ignition on or the Engine Start/Stop button* in the ON position, press the Lane Safety/LK A button* A on the Steering Wheel . The instrument cluster indicator will initially illuminate white indicating the system is on
•To switch between LK A modes (Lane Keep Assist, Lane Departure Warning, Off), go to User Settings in the Instrument Cluster . Press the Move (OK) button C up/down and select desired setting and press the OK button C
REMINDERS:
• LK A will not issue a warning if the turn signals or hazard lights are activated
• When the ignition is cycled, LK A will return to the previously set state
• Some Kia models access set tings through the Vehicle Set tings in the audio head unit . Press the Setup hard key on the audio head unit, then vehicle on the screen to enter Vehicle Set tings
Lane Keeping Assist (LKA)*†4 (continued)
9†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS .
ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS)
ADAS
(Type B shown; located on the right side of the Steering Wheel)
OKRES+
SET
-
CANCEL
OKR ES+
SET
-
CANCEL
Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
Lane Keeping Assist (LK A) Video
QR CODE
A
B
C
The LK A Warning Volume can be adjusted in the User Set tings in the Instrument Cluster .
QUICK TIP

10†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDRIO FEATURES & FUNCTIONS GUIDE
ADAS
ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS)
COLLISION WARNING
EMERGENCY BRAKING
FCA is designed to detect and monitor a vehicle ahead or detect a pedestrian in the roadway through front view camera recognition and front radar signals to warn the driver that a collision is imminent, and if necessary, temporarily apply emergency braking . Initially, FCA provides Forward Collision Warning (FCW) when it detects a potential collision with a vehicle, pedestrian, or cyclist, emitting an audible warning and visual alert on the instrument cluster A .
If the system detects that the collision risk has increased, Forward Collision-Avoidance Assist (FCA) automatically applies the brakes to reduce your speed, potentially helping to reduce the effects of a possible collision .
FCA User Settings:
•FCA is ON by default in most Kia models . FCA can be turned ON/ OFF by going to the User Settings in the Instrument Cluster
•To go to User Settings , press the Mode button B on the Steering Wheel when the vehicle is at a standstill, gear shift is in Park and with the ignition on or the Engine Start/Stop button* in the ON position
•Press the OK button C up/down and select User Settings then Driver Assistance
– In some models, go to Driving Assist, then Forward Collision-Avoidance Assist or Forward Collision Warning and press the OK button C
– In other models, go to Forward Safety and select Active Assist, Warning Only or Off
•Active Assist: Vehicle will provide a warning (audible & visual) and may apply the brakes if needed
•Warning Only: Vehicle will provide a warning only (audible & visual)
•Off: System is off, no warnings or braking provided
•To adjust the FCA initial warning activation time, go to User Settings , Driver Assistance, Warning Timing then select Normal or Late, depending on your Kia model:
– Early/Normal: Increases the amount of distance between vehicles before the initial warning occurs
– L a t e : Reduces the amount of distance between vehicles before the initial warning occurs
FCA/FCW will become active when the:
•Ignition is on or the Engine Start/Stop button* is ON
•Vehicle is traveling faster than 5 mph
•Electronic Stability Control (ESC) is ON
Forward Collision-Avoidance Assist (FCA)†4
When engaged, For ward Collision-Avoidance Assist (FCA) is not a substitute for safe driving and may not detect all objects in front of the vehicle . Always drive safely and use caution .
Actual User Set tings steps may var y by model . Refer to section 5 in the Owner ’s Manual for more information . For illustrative purposes only . Your actual display, but tons and/or features may var y .
REMINDERS:
• FCA will be activated by default when the ignition is cycled ON, even when previous set ting was OFF
• If FCA is operating and the ESC (Electronic Stabilit y Control) is turned off, FCA system is automatically turned off
• When the FCA system is off, the FCA warning indicator is on in the Instrument Cluster
(Type B shown; located on the right side of the Steering Wheel)
OKRES+
SET-
CANCEL
Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
Forward Collision-Avoidance Assist (FCA)Video
QR CODE
A
B
C

FCA Warning Volume can be adjusted in the User Set tings in the Instrument Cluster or the Vehicle Set tings* on the audio head unit . Go to Driver Assistance, then Warning Volume
QUICK TIP

11†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS .
ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS)
ADAS
When engaged, Driver At tention Warning is not a substitute for safe driving and may not detect all instances of inat tentive driving practices . Failure to pay at tention to travel conditions and vehicle operation could result in loss of vehicle control . Always drive safely and use caution .
See section 5 in the Owner ’s Manual for more information .
Driver Attention Warning is designed to alert the driver if it detects inattentive driving practices and, in certain situations, can give a warning signal to take a break from driving .
If DAW is activated, the DAW information A will appear on the Instrument Cluster LCD when you select the Driving Assist menu in User Settings . A message, “Consider taking a break,” B appears on the LCD and a warning sounds to suggest the driver to take a break when the driver ’s attention level becomes low .
DAW User Settings:
To turn DAW on/off, with the ignition on, press the Mode button C on the Steering Wheel and go to User Settings in the Instrument Cluster . Then go to Driver Assistance and select Driver Attention Warning . There are two modes:
– Inattentive Driving Warning: DAW will inform the driver of the driver ’s attention level and will recommend taking a break when it falls below a certain level
– Leading Vehicle Departure Alert*: DAW will inform the driver when the front vehicle departs from a stop

Some models access settings through the Vehicle Settings in the audio head unit . Press the Setup hard key on the audio head unit, then press VEHICLE on the screen to enter Vehicle Settings .
REMINDERS:
• The setup of DAW will be maintained, as selected, when the ignition is cycled
• When activated, DAW does not display “Consider taking a break ” message when the total trip driving time is less than 10 minutes
• DAW will enter a standby mode if the camera does not detect the lanes and/or the driving speed remains under 40 mph
Driver Attention Warning (DAW)*†5
Consider taking a break
Attention Level
High
(Type B shown; located on the right side of the Steering Wheel)
OKRES+
SET
-
CANCEL
Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
Driver Attention Warning (DAW) Video
QR CODE
AB
C

12†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDRIO FEATURES & FUNCTIONS GUIDE
ADAS
ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS)
Lane Following Assist (LFA)*†4
REMINDERS:
• If the ignition is cycled, LFA returns to its previous state, on or off, if activated in the User Set tings menu . If using the Steering Wheel LFA but ton, then LFA defaults to off
• LFA is not a substitute for safe and proper driving . Always drive safely and use caution
• LFA may not always aler t the driver when the vehicle is approaching another vehicle
Lane Following Assist (LFA) is designed to help ensure that the vehicle stays centered in its lane A by monitoring the detected lane markings ahead and adjusting the steering . The instrument cluster indicator will initially illuminate white when turned ON . It will remain white when the system does not detect the lane markers . When the system detects the lane markers and can assist the steering, the LFA icon will illuminate green B .
When LFA is enabled in the User or Vehicle Settings*, press the LFA button C on the Steering Wheel to turn LFA on or off .
LFA will operate only when these conditions are met:
•LK A recognizes both sides of the lane markers the vehicle is traveling in
•
The vehicle is traveling slower than 95 mph
LFA User Settings:
•To go to User Settings in the Instrument Cluster, press the Mode button D on the Steering Wheel when the vehicle is at a standstill, gear shift is in Park and with the ignition on or the Engine Start/Stop button* in the ON position, and select User Settings
•
To enable LFA , when in User Settings, press the Move (OK) button E up/down and Select Driver Assistance then Driving Assist, Select Lane Following Assist . Press the OK button E
•
Some models access settings through the Vehicle Settings in the audio head unit . Press the SETUP hard key on the audio head unit, then VEHICLE on the screen to enter Vehicle Settings
•
Some vehicles have a Lane Driving Assist / Lane Safety button* on the Driver ’s Panel or the Steering Wheel . Press to activate Lane Following Assist after enabled in the User Settings / Vehicle Settings*
Images are for illustrative purposes only and may not reflect actual feature or operation .
When engaged, LFA is supplemental . Do not solely rely on this system and always pay at tention to the road and its conditions .
Actual User Set tings steps may var y by model . See section 5 in the Owner ’s Manual for more detailed information, limitations and conditions .
(Type B shown; located on the right side of the Steering Wheel)
OK
R ES+
SET
-
CANCEL
Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
Lane Following Assist(LFA) Video
QR CODE
A
B
C
D
E
The LFA Warning Volume can be adjusted in the User Set tings in the Instrument Cluster or the Vehicle Set tings* on the audio head unit
QUICK TIP

13†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS .
ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS)
ADAS
Refer to section 5 in the Owner ’s Manual for more information .
Your vehicle’s steering wheel but tons may differ from those in the illustrations .
When engaged, Cruise Control is a supplemental system and is not a substitute for safe driving . The driver remains responsible for maintaining a proper and safe speed for the vehicle .
A
Cruise Control button: Press to turn the Cruise Control ON/OFF
B
Resume (RES) Cruising Speed button: Press up to resume or increase cruising speed Set Cruising Speed button: Press down to set or decrease cruising speed
C Cruise Control Cancel button: To cancel Cruise Control, do one of the following:
•Press the brake pedal
•Press the CANCEL button
(Type B)
RES+
SET
-
CANCEL
Cruise Control*†4
A
B
C
•Cruise Control is designed to function above approximately 20 mph
•The cruise control system will not activate until the brake pedal has been depressed at least once after ignition ON or engine star ting
QUICK TIPS
(Image displays on the audio control unit screens)
Rear View Monitor (RVM)*†4
The Rear View Monitor is a supplemental system that displays the view behind the vehicle through the audio control unit screen while the vehicle is in Reverse .
The Rear View Monitor System activates when the:
•Ignition is ON
•
Gear Shift Lever is in the R (Reverse) position
REMINDER: Always drive carefully and use caution when backing up .
When engaged, Rear View Monitor is not a substitute for proper and safe backing-up procedures . Always drive safely and use caution when backing up . The Rear View Monitor may not display ever y object behind the vehicle .
(5-door model shown; camera located on liftgate handle (5-door) or trunk (4-door); Liftgate Release but ton located underneath handle (5-door))
For illustrative purposes only . Your actual display, but tons and/or features may var y .

ADAS
ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS)
Check rear seats
: Alarm OffOK

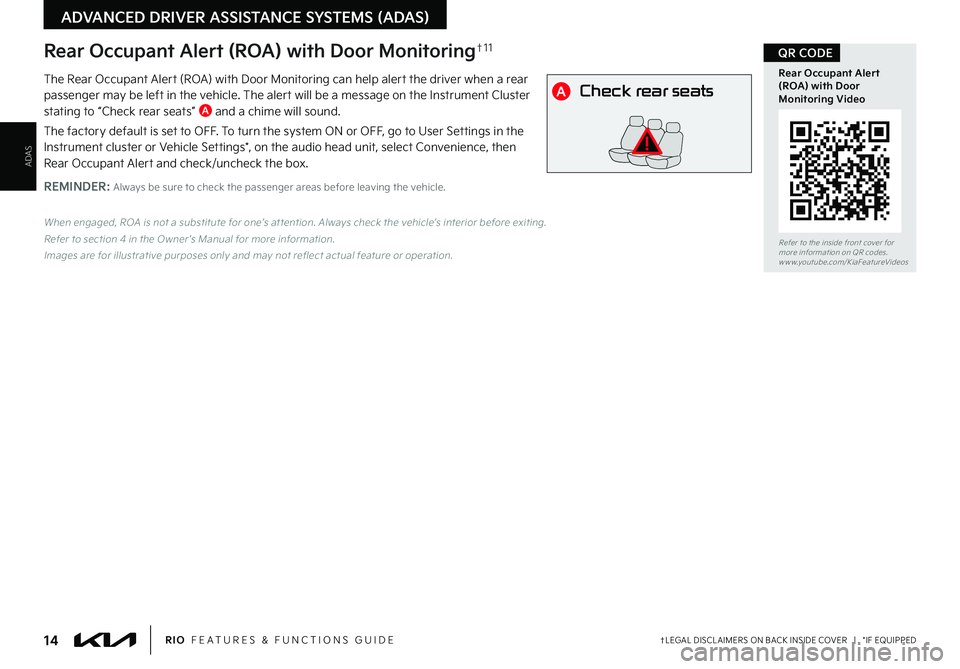

Rear Occupant Alert (ROA) with Door Monitoring†1 1
The Rear Occupant Alert (ROA) with Door Monitoring can help alert the driver when a rear passenger may be left in the vehicle
. The alert will be a message on the Instrument Cluster stating to “Check rear seats” A and a chime will sound .
The factory default is set to OFF . To turn the system ON or OFF, go to User Settings in the Instrument cluster or Vehicle Settings*, on the audio head unit, select Convenience, then Rear Occupant Alert and check/uncheck the box .
REMINDER: Always be sure to check the passenger areas before leaving the vehicle .
When engaged, ROA is not a substitute for one’s at tention . Always check the vehicle’s interior before exiting .
Refer to section 4 in the Owner ’s Manual for more information .
Images are for illustrative purposes only and may not reflect actual feature or operation .Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
Rear Occupant Alert (ROA) with Door Monitoring Video
QR CODE
A
14†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDRIO FEATURES & FUNCTIONS GUIDE

Instrument Cluster Control
Press switch A up or down to adjust display brightness of the instrument panel illumination .
REMINDER: The Instrument Cluster Control does not adjust brightness on the audio control unit screen . Use setup to adjust brightness on the audio control unit screen .
The ESC system is designed to help stabilize the vehicle during certain cornering maneuvers . It is a good idea to keep the ESC turned ON for daily driving whenever possible .
Press the ESC OFF button B to disable Traction Control in ESC (ESC OFF indicator will illuminate) .
To turn both the Traction Control and Stability Control off, press and hold the ESC OFF button B (ESC OFF indicator will illuminate, and an alert sounds) .
REMINDERS:
• ESC is active by default at vehicle star tup . When ignition is cycled, ESC will turn ON again
• The ESC Indicator Light in the instrument cluster will be lit momentarily whenever the ESC is active
For more information on Electronic Stabilit y Control (ESC) and its specific features and operation, please refer to section 4 in your Owner ’s Manual .
For illustrative purposes only . Your actual display, but tons and/or features may var y Refer to section 4 in the Owner ’s Manual for more information .
Refer to section 5 in the Owner ’s Manual for more information .
Hill-Start Assist Control (HAC)†6
HAC helps to prevent the vehicle from rolling backwards when accelerating from a stop while on a steep incline .
The HAC automatically activates whether the ESC is OFF or ON but does NOT activate when the ESC has malfunctioned .
(But tons located on left side of Driver ’s Panel)
AB
Electronic Stability Control (ESC)†6
REMINDERS:
• The HAC does not operate when the gear shift is in the P (Park) or the N (Neutral) position
• HAC does not replace the need to apply brakes while the vehicle is stopped on an incline
• In the event of HAC system malfunctions, see an authorized Kia dealer for ser vice
•When HAC is active (e .g ., during initial acceleration from a stop on an incline), you may notice that the brakes will momentarily remain engaged after you depress the accelerator – this is normal HAC operation
•HAC provides a 2-second delay before the vehicle may star t rolling backwards
QUICK TIPS
15†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS .
DRIVER'S PANEL
DRIVER’SPANEL

16†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDRIO FEATURES & FUNCTIONS GUIDE
DRIVER'S PANEL
DRIVER’SPANEL
Power Windows, Window Lock
& Central Door Lock
A Pull/Press to operate Driver ’s Window Auto Up/Down*
B Press to Unlock/Lock All Doors
C Press the Power Window Lock button* to disable the Rear Passenger Window switches
Refer to section 4 in the Owner ’s Manual for more information .
Automatic Door
Lock/Unlock*
Auto Door Lock/Unlock will engage when the gear shift is moved into or out of the P (Park) position . Refer to the User Settings in the LCD Instrument Cluster modes on how to turn Auto Door Lock/Unlock ON/OFF .
Refer to section 4 in the Owner ’s Manual for more information .
Power/Heated
Outside Mirrors
To adjust outside mirror positions, press the switch D left or right to select mirror, then press the arrows E to adjust .
Mirror heaters are activated when Rear Defroster is turned on .
Refer to section 4 in the Owner ’s Manual for more information .
LR
M I R R O R
'PS
JMMVTUSBUJWF
QVSQPTFT
POMZ
:PVS
BDUVBM
EJTQMBZ

CVU UPOT
BOEPS
GFBUVSFT
NBZ
WBS Z

Engine Start/Stop Button*†7
To start the engine:
1 . Depress the brake pedal
2 .
Press the Engine Start/Stop button while
gear shift is in P (Park) or N (Neutral)
To turn the engine OFF: Press the Engine Start/Stop button .
To use the Engine Start/Stop button, you must have the Smart Key fob inside the vehicle .
Refer to section 5 in the Owner ’s Manual for more information .
To use electrical accessories:
•ACC position
– When in the OFF position and without depressing the brake pedal, press the Engine Star t/Stop but ton once (amber light)
•ON position
– When already in the ACC position (amber light) and without depressing the brake pedal, press the Engine Star t/Stop but ton (red light)
– When in the OFF position and without depressing the brake pedal, press the Engine Star t/Stop but ton t wice (red light)
•Keeping the vehicle in the ACC or ON position for extended periods of time without turning the engine on may discharge the vehicle’s bat ter y .
QUICK TIPS
Press but ton again to stop Auto Up/Down function .
QUICK TIP
Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
Engine Start/Stop Button Video
QR CODE
A
B
C
D
E
REMINDERS:
• In an emergency situation while the vehicle is in motion, you are able to turn the engine off and to the ACC position by pressing the Engine Star t/Stop but ton for more than 2 seconds or 3 times successively within 3 seconds
• If Smar t Key fob bat ter y is dead, you can still star t the engine by pressing the Engine Star t/Stop but ton with the Lock-but ton end of the Smar t Key . The Smar t Key must contact the Engine Star t/Stop but ton directly, at a right angle

17*IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS .
STEERING WHEEL CONTROLS
STEERING WHEEL CONTROLS
Headlight position
Parking light position
AUTOAuto Light*/HBA position
OFFOFF position
One-Touch Lane Change Signal
(Type A shown)
(Type A shown)
Headlights & High Beams
To operate:
•Rotate lever to change the Headlight function
•Push lever to turn High Beams ON
•Pull lever to flash Headlights/High Beams
Turn Signals
To operate:
•Turn Signals – Move lever Up/Down for Right/Left Turn Signal
•One-Touch Lane Change Signal is activated by briefly pressing the Turn Signal Lever Up/Down slightly for less than 1 second and then releasing . The lane change signal will blink 3 times .
– To turn the One-Touch Lane Change Signal off/on, go to User Settings Mode in the LCD Instrument Cluster modes .
– To change how many times the Lane Change Signal blinks (3/5/7), go to User Settings Mode in the LCD Instrument Cluster modes .
AUTO Light Position — When the light switch is in the AUTO Light position, the tail lights and headlights will turn ON/OFF automatically depending on the amount of light outside the vehicle .
High Beam Assist (HBA)* – High Beam Assist is designed to automatically adjust the headlight range by switching between high and low beams based on light detected from other vehicles and road conditions .
To enable HBA , toggle the light switch to the AUTO Light position and turn on the high beams by pushing the lever away from you . The High Beam Assist indicator will illuminate .
Refer to section 4 in the Owner ’s Manual for more information .
For illustrative purposes only . Your actual display, but tons and/or features may var y .
REMINDERS:
• High Beam Assist does not operate below cer tain speeds, or in some lighting and driving conditions . Please be aware of your surroundings and exercise proper road etiquet te when operating a vehicle using the high beams
• HBA will operate when vehicle speed exceeds 25 mph
• If the lever is pushed away from you while HBA is operational, HBA will turn off and the high beams will be on continuously . If the lever is pulled toward you while HBA is operational, HBA will turn off
• If the light switch is switched to the headlight position, HBA will turn off and low beams will be on continuously
• When the HBA indicator illuminates on the instrument cluster, the HBA is not working properly . See an authorized Kia dealer for ser vice
Refer to section 4 in the Owner ’s Manual for more information .

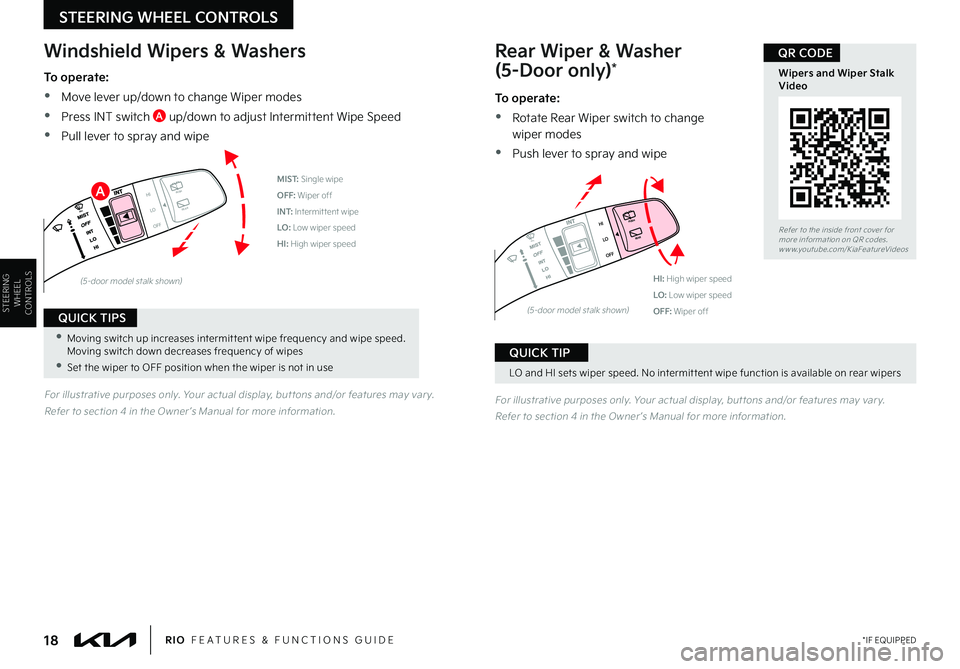

18*IF EQUIPPEDRIO FEATURES & FUNCTIONS GUIDE
STEERING WHEEL CONTROLS
STEERING WHEEL CONTROLS
MIST: Single wipeOFF: Wiper offINT: Intermittent wipeLO: Low wiper speedHI: High wiper speed
HI: High wiper speedLO: Low wiper speedOFF: Wiper off
PUSHREAR
PULL
PUSH
PULL
Q UIC K T IP
PUSH
REAR
PULL
PUSH
PULL
Q UIC K T IP
Windshield Wipers & Washers
To operate:
•Move lever up/down to change Wiper modes
•Press INT switch A up/down to adjust Intermittent Wipe Speed
•Pull lever to spray and wipe
Rear Wiper & Washer
(5-Door only)*
To operate:
•Rotate Rear Wiper switch to change wiper modes
•Push lever to spray and wipe
(5-door model stalk shown)
(5-door model stalk shown)
For illustrative purposes only . Your actual display, but tons and/or features may var y .
Refer to section 4 in the Owner ’s Manual for more information .For illustrative purposes only . Your actual display, but tons and/or features may var y .
Refer to section 4 in the Owner ’s Manual for more information .
Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
Wipers and Wiper Stalk Video
QR CODE
A
•Moving switch up increases intermit tent wipe frequency and wipe speed . Moving switch down decreases frequency of wipes
•Set the wiper to OFF position when the wiper is not in use
QUICK TIPS
LO and HI sets wiper speed . No intermit tent wipe function is available on rear wipers
QUICK TIP
