KIA RIO 2022 Owners Manual

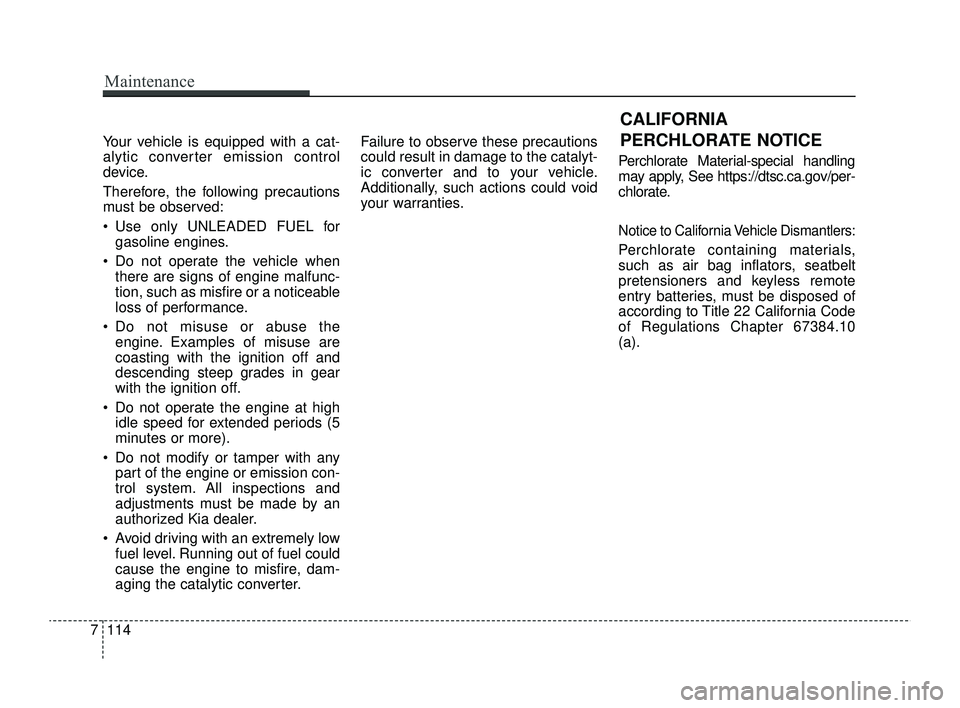

Your vehicle is equipped with a cat-
alytic converter emission control
device.
Therefore, the following precautions
must be observed:
 Use only UNLEADED FUEL forgasoline engines.
 Do not operate the vehicle when there are signs of engine malfunc-
tion, such as misfire or a noticeable
loss of performance.
 Do not misuse or abuse the engine. Examples of misuse are
coasting with the ignition off and
descending steep grades in gear
with the ignition off.
 Do not operate the engine at high idle speed for extended periods (5
minutes or more).
 Do not modify or tamper with any part of the engine or emission con-
trol system. All inspections and
adjustments must be made by an
authorized Kia dealer.
 Avoid driving with an extremely low fuel level. Running out of fuel could
cause the engine to misfire, dam-
aging the catalytic converter. Failure to observe these precautions
could result in damage to the catalyt-
ic converter and to your vehicle.
Additionally, such actions could void
your warranties.
Perchlorate Material-special handling
may apply, See https://dtsc.ca.gov/per-
chlorate.
Notice to California Vehicle Dismantlers:
Perchlorate containing materials,
such as air bag inflators, seatbelt
pretensioners and keyless remote
entry batteries, must be disposed of
according to Title 22 California Code
of Regulations Chapter 67384.10
(a).
CALIFORNIA
PERCHLORATE NOTICE
7 114
Maintenance
SC PE USA 7.qxp 9/9/2021 6:31 PM Page 114

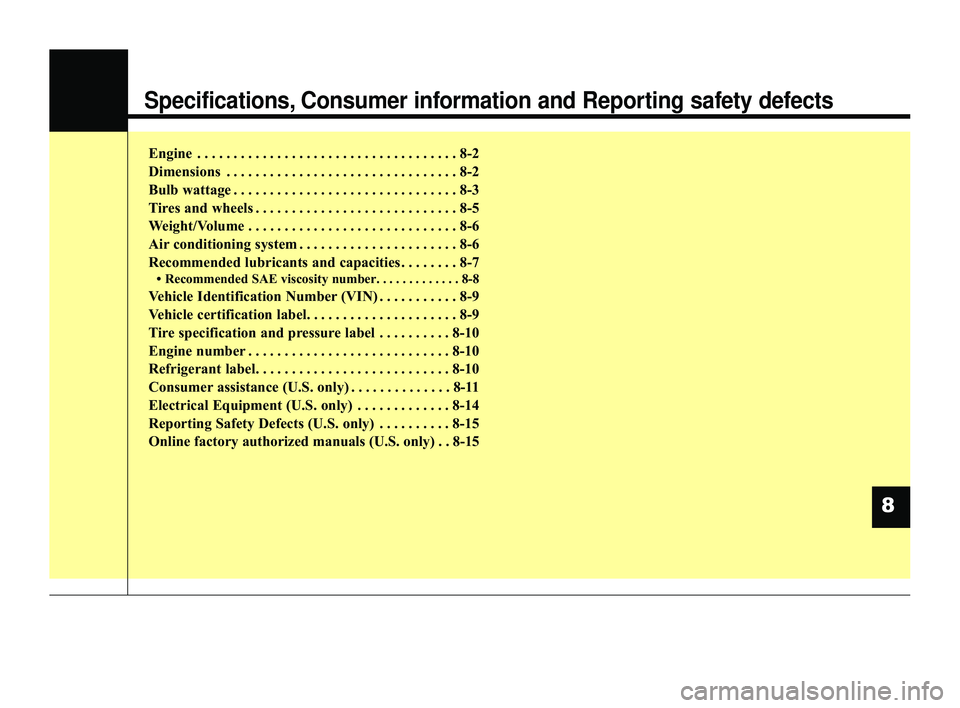

Specifications, Consumer information and Reporting safety defects
Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
8-2
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-2
Bulb wattage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-3
Tires and wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-5
Weight/Volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-6
Air conditioning system . . . . . . . . . . . . . . . . . . . . . . 8-6
Recommended lubricants and capacities . . . . . . . . 8-7
• Recommended SAE viscosity number. . . . . . . . . . . . . 8-8
Vehicle Identification Number (VIN) . . . . . . . . . . . 8-9
Vehicle certification label. . . . . . . . . . . . . . . . . . . . . 8-9
Tire specification and pressure label . . . . . . . . . . 8-10
Engine number . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-10
Refrigerant label. . . . . . . . . . . . . . . . . . . . . . . . . . . 8-10
Consumer assistance (U.S. only) . . . . . . . . . . . . . . 8-11
Electrical Equipment (U.S. only) . . . . . . . . . . . . . 8-14
Reporting Safety Defects (U.S. only) . . . . . . . . . . 8-15
Online factory authorized manuals (U.S. only) . . 8-15
8
SC PE USA 8.qxp 8/23/2021 5:29 PM Page 1

Specifications, Consumer information, Reporting safety defects
28

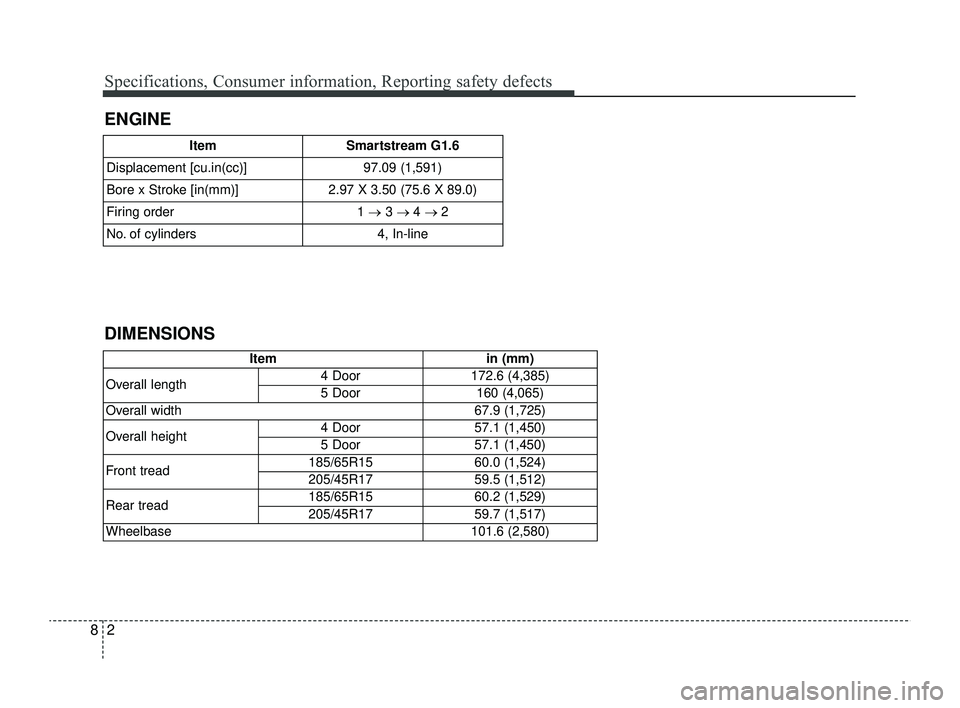

ENGINE
ItemSmartstream G1.6
Displacement [cu.in(cc)] 97.09 (1,591)
Bore x Stroke [in(mm)] 2.97 X 3.50 (75.6 X 89.0)
Firing order 1
→ 3 → 4 → 2
No. of cylinders 4, In-line
DIMENSIONS
Itemin (mm)
Overall length
4 Door 172.6 (4,385)
5 Door160 (4,065)
Overall width 67.9 (1,725)
Overall height
4 Door 57.1 (1,450)
5 Door57.1 (1,450)
Front tread
185/65R15 60.0 (1,524)
205/45R1759.5 (1,512)
Rear tread185/65R1560.2 (1,529)
205/45R1759.7 (1,517)
Wheelbase101.6 (2,580)
SC PE USA 8.qxp 8/23/2021 5:29 PM Page 2

83
Specifications, Consumer information, Reporting safety defects

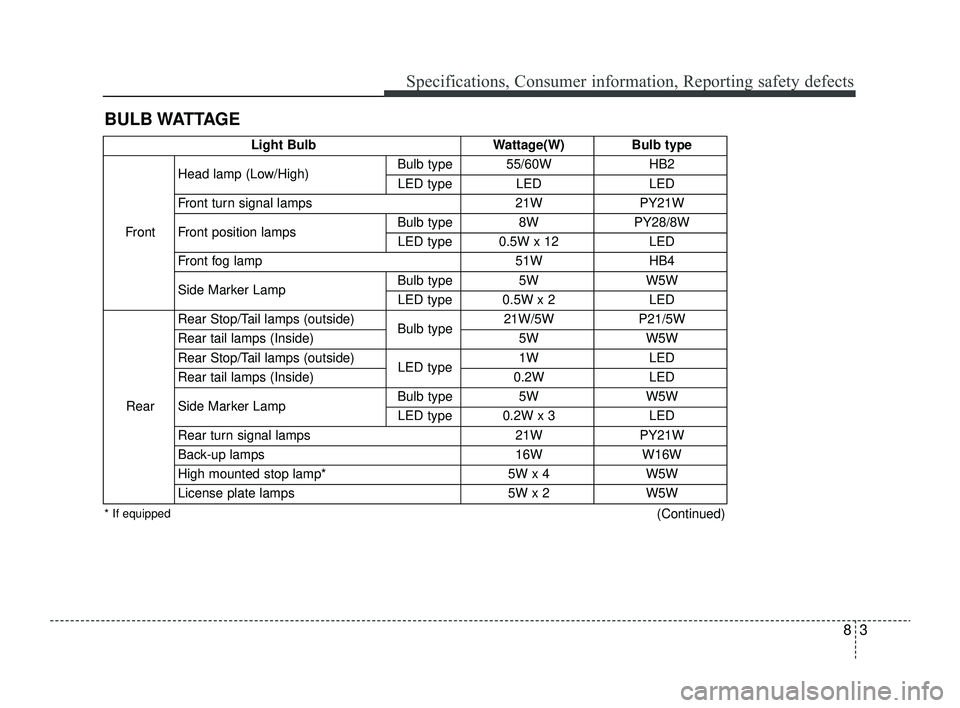

BULB WATTAGE
Light BulbWattage(W)Bulb type
Front Head lamp (Low/High)
Bulb type 55/60W
HB2
LED type LED LED
Front turn signal lamps 21WPY21W
Front position lamps Bulb type
8WPY28/8W
LED type 0.5W x 12 LED
Front fog lamp 51WHB4
Side Marker Lamp Bulb type
5W W5W
LED type 0.5W x 2 LED
Rear Rear Stop/Tail lamps (outside)
Bulb type21W/5W
P21/5W
Rear tail lamps (Inside) 5WW5W
Rear Stop/Tail lamps (outside) LED type1W LED
Rear tail lamps (Inside) 0.2WLED
Side Marker Lamp Bulb type
5W W5W
LED type 0.2W x 3 LED
Rear turn signal lamps 21WPY21W
Back-up lamps 16WW16W
High mounted stop lamp* 5W x 4W5W
License plate lamps 5W x 2W5W
* If equipped(Continued)
SC PE USA 8.qxp 8/23/2021 5:30 PM Page 3

Specifications, Consumer information, Reporting safety defects
48

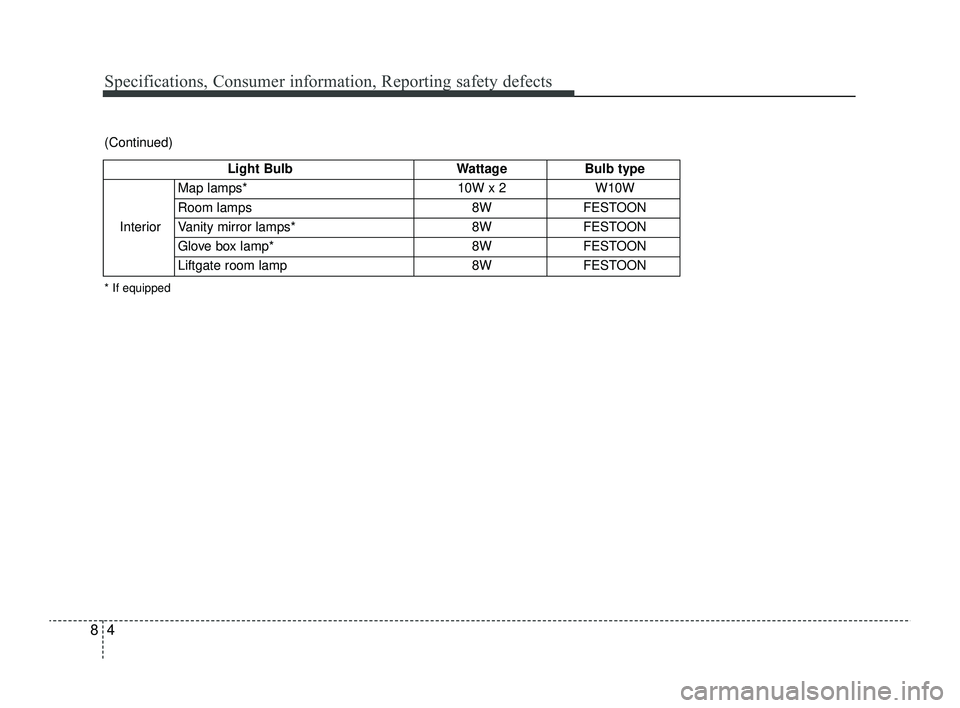

Light BulbWattageBulb type
Interior Map lamps*
10W x 2W10W
Room lamps 8WFESTOON
Vanity mirror lamps* 8WFESTOON
Glove box lamp* 8WFESTOON
Liftgate room lamp 8WFESTOON
(Continued)
* If equipped
SC PE USA 8.qxp 8/23/2021 5:30 PM Page 4

85
Specifications, Consumer information, Reporting safety defects

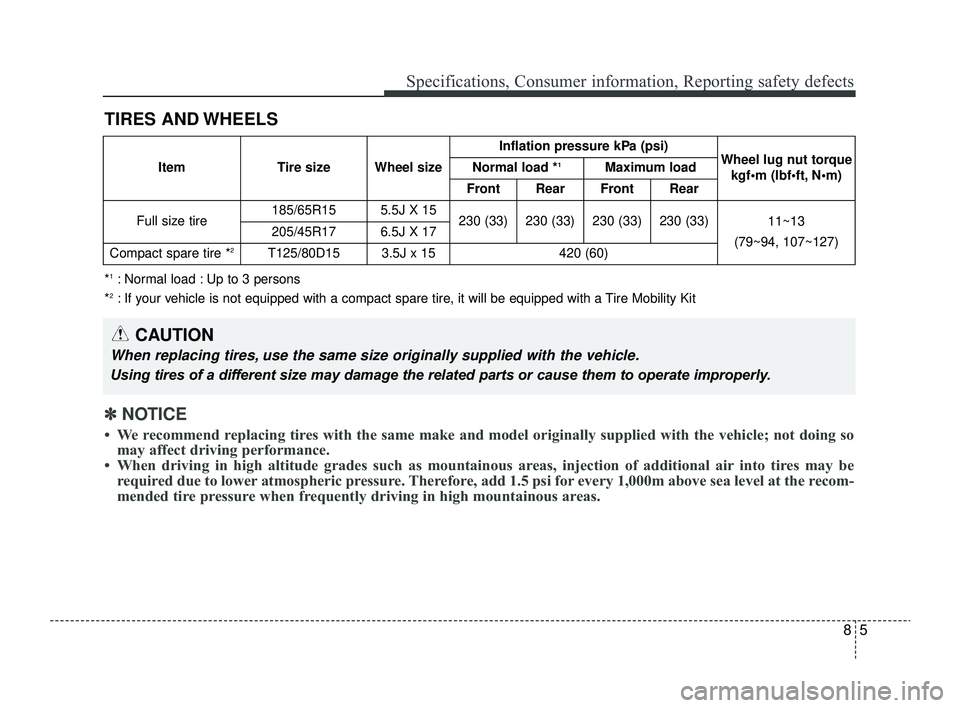

TIRES AND WHEELS
CAUTION
When replacing tires, use the same size originally supplied with the vehicle.
Using tires of a different size may damage the related parts or cause them to operate improp\
erly.
*1: Normal load : Up to 3 persons
*
2: If your vehicle is not equipped with a compact spare tire, it will be equipped with a Tire Mobility Kit Item Tire size Wheel size
Inflation pressure kPa (psi)
Wheel lug nut torque
kgf•m (lbfft, Nm)
Normal load *
1Maximum load
Front Rear Front Rear
Full size tire 185/65R15 5.5J X 15
230 (33) 230 (33) 230 (33) 230 (33) 11~13
(79~94, 107~127)
205/45R17 6.5J X 17
Compact spare tire *
2T125/80D15 3.5J x 15 420 (60)
✽ ✽
NOTICE
• We recommend replacing tires with the same make and model originally supplied with the vehicle; no\
t doing so
may affect driving performance.
• When driving in high altitude grades such as mountainous areas, injection of additional air into tires may be required due to lower atmospheric pressure. Therefore, add 1.5 psi for every 1,000m above sea level at the recom-
mended tire pressure when frequently driving in high mountainous areas.
SC PE USA 8.qxp 8/23/2021 5:30 PM Page 5

Specifications, Consumer information, Reporting safety defects
68

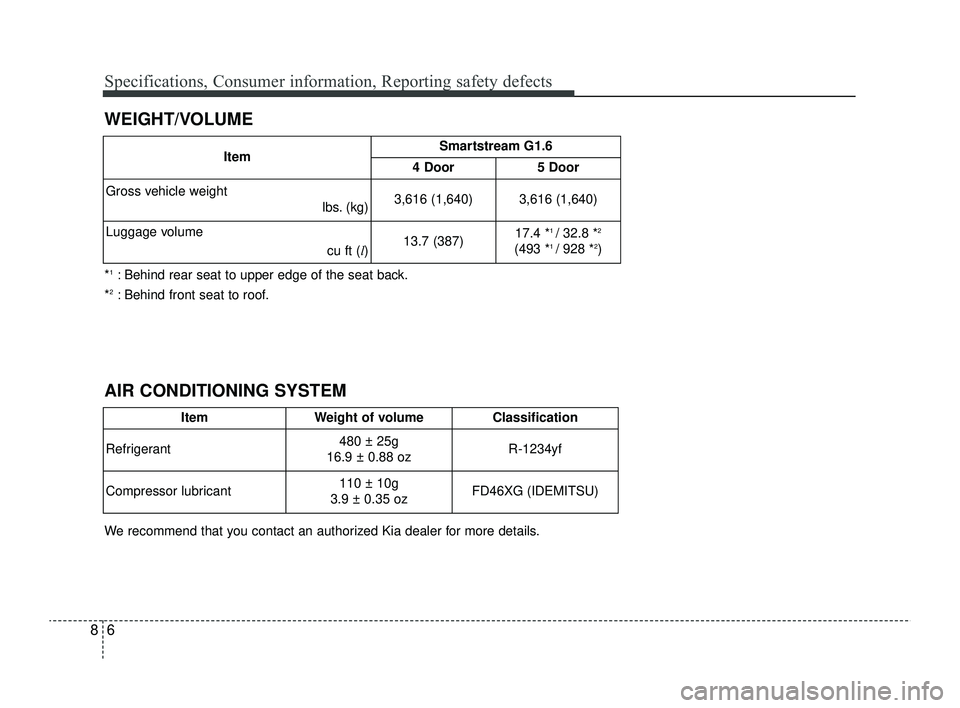

WEIGHT/VOLUME
ItemWeight of volumeClassification
Refrigerant
480 ± 25g
16.9 ± 0.88 oz R-1234yf
Compressor lubricant
110 ± 10g
3.9 ± 0.35 oz FD46XG (IDEMITSU)
We recommend that you contact an authorized Kia dealer for more details. *
1: Behind rear seat to upper edge of the seat back.
*
2: Behind front seat to roof.
AIR CONDITIONING SYSTEM
Item Smartstream G1.6
4 Door5 Door
Gross vehicle weight lbs. (kg)3,616 (1,640)
3,616 (1,640)
Luggage volume cu ft (l)
13.7 (387)17.4 *1 / 32.8 *2
(493 *1 / 928 *2)
SC PE USA 8.qxp 8/23/2021 5:30 PM Page 6

87
Specifications, Consumer information, Reporting safety defects

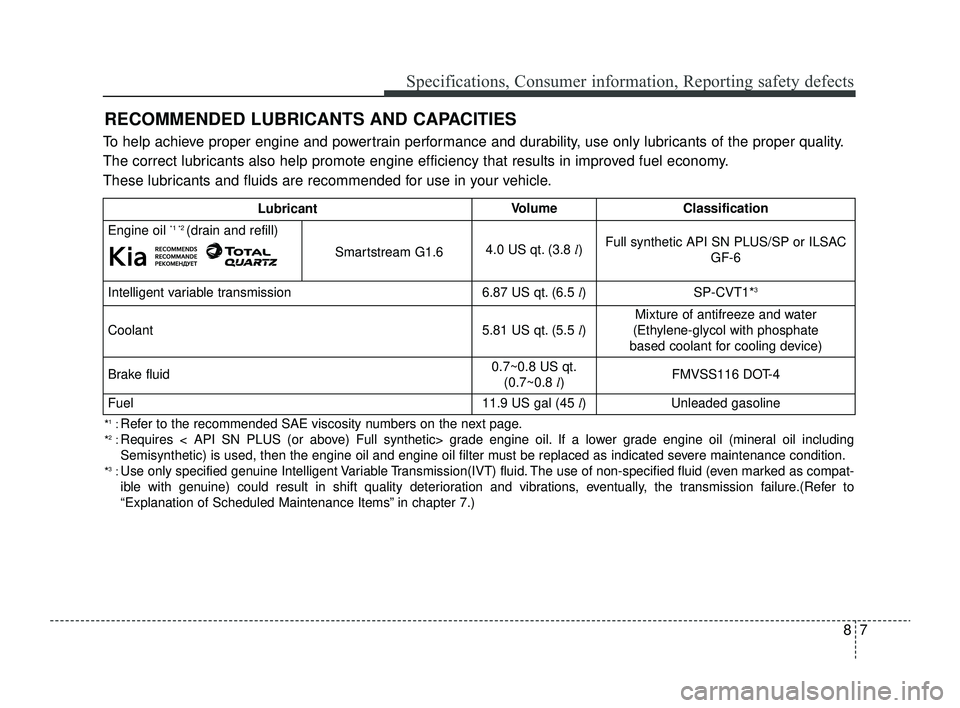

RECOMMENDED LUBRICANTS AND CAPACITIES
LubricantVolumeClassification
Engine oil *1 *2 (drain and refill)
Smartstream G1.64.0 US qt. (3.8 l)Full synthetic API SN PLUS/SP or ILSAC
GF-6
Intelligent variable transmission6.87 US qt. (6.5 l)SP-CVT1*3
Coolant 5.81 US qt. (5.5 l)
Mixture of antifreeze and water
(Ethylene-glycol with phosphate
based coolant for cooling device)
Brake fluid0.7~0.8 US qt. (0.7~0.8 l)FMVSS116 DOT-4
Fuel11.9 US gal (45 l)Unleaded gasoline
To help achieve proper engine and powertrain performance and durability, use only lubricants of the proper quality.
The correct lubricants also help promote engine efficiency that results in improved fuel economy.
These lubricants and fluids are recommended for use in your vehicle.
*1:Refer to the recommended SAE viscosity numbers on the next page.
*2:Requires < API SN PLUS (or above) Full synthetic> grade engine oil. If a lower grade engine oil (mineral oil including
Semisynthetic) is used, then the engine oil and engine oil filter must be replaced as indicated severe maintenance condition.
*3:Use only specified genuine Intelligent Variable Transmission(IVT) fluid. The use of non-specified fluid (even marked as compat-
ible with genuine) could result in shift quality deterioration and vibrations, eventually, the transmission failure.(Refer to
“Explanation of Scheduled Maintenance Items” in chapter 7.)
SC PE USA 8.qxp 8/23/2021 5:30 PM Page 7

Specifications, Consumer information, Reporting safety defects
88
Recommended SAE viscosity
number
Engine oil viscosity (thickness) has
an effect on fuel economy and cold
weather operation (engine start and
engine oil flowability). Lower viscosi-
ty engine oils can provide better fuel
economy and cold weather perform-
ance, however, higher viscosity
engine oils are required for satisfac-
tory lubrication in hot weather. Using
oils of any viscosity other than those
recommended could result in engine
damage. When choosing an oil, con-
sider the range of temperature your
vehicle will be operated in before the
next oil change. Proceed to select
the recommended oil viscosity from
the chart.
Temperature Range for SAE Viscosity Numbers
Temperature°C
(°F)-30 -20 -10 0 10 20 30 40 50 -10 0 20 40 60 80 100 120
Smartstream
G1.60W-20EngineOil
An engine oil displaying this API Certification Mark conforms
to the international Lubricant Specification Advisory
Committee (ILSAC). It is recommended to only use engine oils
that uphold this API Certification Mark.
SC PE USA 8.qxp 8/23/2021 5:30 PM Page 8

89
Specifications, Consumer information, Reporting safety defects

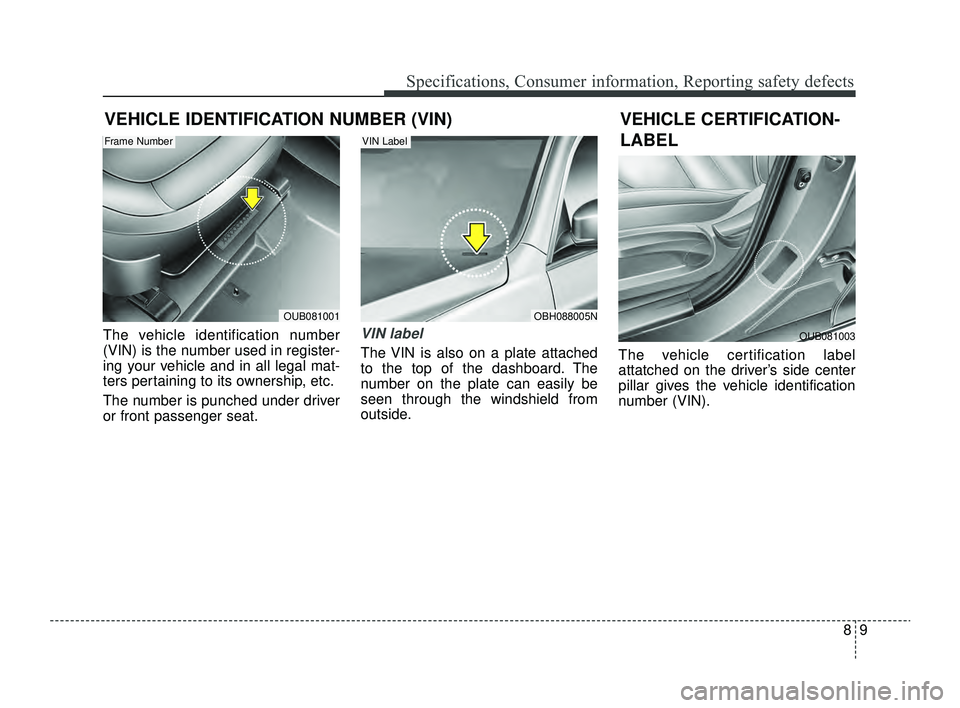

VEHICLE IDENTIFICATION NUMBER (VIN)
The vehicle identification number
(VIN) is the number used in register-
ing your vehicle and in all legal mat-
ters pertaining to its ownership, etc.
The number is punched under driver
or front passenger seat.VIN label
The VIN is also on a plate attached
to the top of the dashboard. The
number on the plate can easily be
seen through the windshield from
outside.The vehicle certification label
attatched on the driver’s side center
pillar gives the vehicle identification
number (VIN).
OBH088005N
VIN Label
OUB081001
OUB081003
VEHICLE CERTIFICATION-
LABEL
Frame Number
