KIA RIO 2022 Owners Manual

Maintenance
84
7

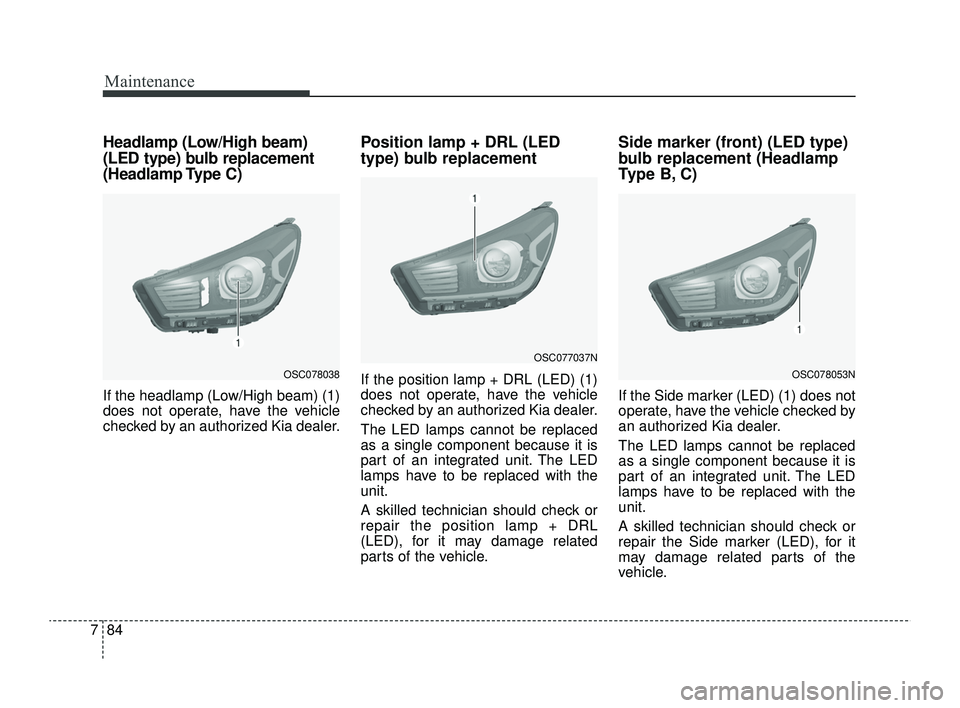

Headlamp (Low/High beam)
(LED type) bulb replacement
(Headlamp Type C)
If the headlamp (Low/High beam) (1)
does not operate, have the vehicle
checked by an authorized Kia dealer.
Position lamp + DRL (LED
type) bulb replacement
If the position lamp + DRL (LED) (1)
does not operate, have the vehicle
checked by an authorized Kia dealer.
The LED lamps cannot be replaced
as a single component because it is
part of an integrated unit. The LED
lamps have to be replaced with the
unit.
A skilled technician should check or
repair the position lamp + DRL
(LED), for it may damage related
parts of the vehicle.
Side marker (front) (LED type)
bulb replacement (Headlamp
Ty p e B , C )
If the Side marker (LED) (1) does not
operate, have the vehicle checked by
an authorized Kia dealer.
The LED lamps cannot be replaced
as a single component because it is
part of an integrated unit. The LED
lamps have to be replaced with the
unit.
A skilled technician should check or
repair the Side marker (LED), for it
may damage related parts of the
vehicle.
OSC078038OSC078053N
OSC077037N
SC PE USA 7.qxp 9/9/2021 6:29 PM Page 84

785
Maintenance

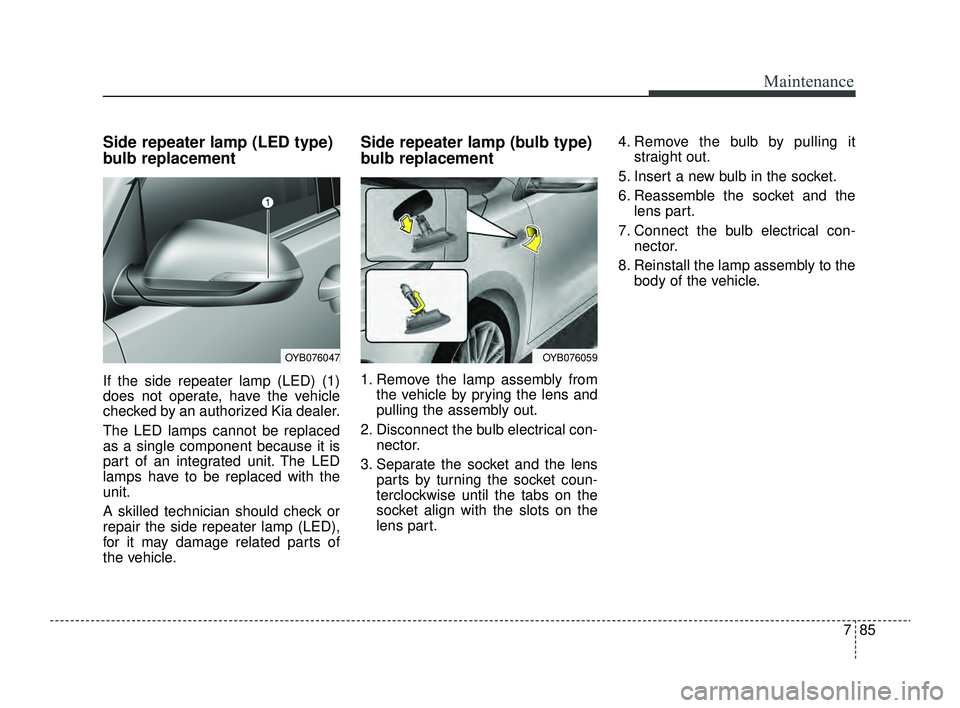

Side repeater lamp (LED type)
bulb replacement
If the side repeater lamp (LED) (1)
does not operate, have the vehicle
checked by an authorized Kia dealer.
The LED lamps cannot be replaced
as a single component because it is
part of an integrated unit. The LED
lamps have to be replaced with the
unit.
A skilled technician should check or
repair the side repeater lamp (LED),
for it may damage related parts of
the vehicle.
Side repeater lamp (bulb type)
bulb replacement
1. Remove the lamp assembly fromthe vehicle by prying the lens and
pulling the assembly out.
2. Disconnect the bulb electrical con- nector.
3. Separate the socket and the lens parts by turning the socket coun-
terclockwise until the tabs on the
socket align with the slots on the
lens part. 4. Remove the bulb by pulling it
straight out.
5. Insert a new bulb in the socket.
6. Reassemble the socket and the lens part.
7. Connect the bulb electrical con- nector.
8. Reinstall the lamp assembly to the body of the vehicle.
OYB076047OYB076059
SC PE USA 7.qxp 9/9/2021 6:29 PM Page 85

Maintenance
86
7

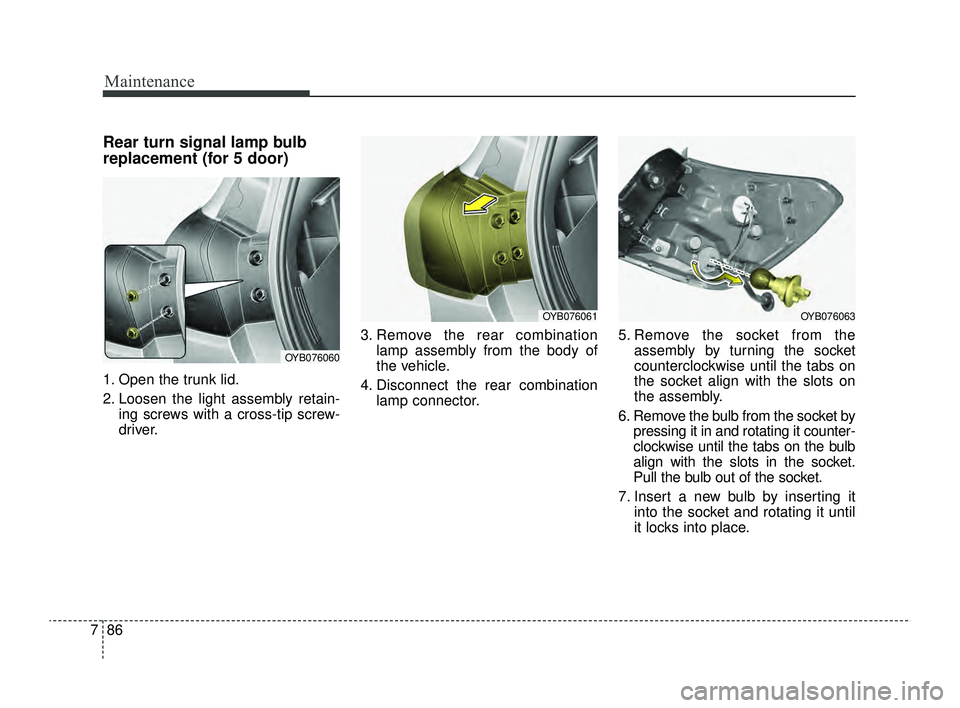

Rear turn signal lamp bulb
replacement (for 5 door)
1. Open the trunk lid.
2. Loosen the light assembly retain-
ing screws with a cross-tip screw-
driver. 3. Remove the rear combination
lamp assembly from the body of
the vehicle.
4. Disconnect the rear combination lamp connector. 5. Remove the socket from the
assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on
the assembly.
6. Remove the bulb from the socket by pressing it in and rotating it counter-
clockwise until the tabs on the bulb
align with the slots in the socket.
Pull the bulb out of the socket.
7. Insert a new bulb by inserting it into the socket and rotating it until
it locks into place.
OYB076060
OYB076061OYB076063
SC PE USA 7.qxp 9/9/2021 6:29 PM Page 86

787
Maintenance
8. Install the socket in the assemblyby aligning the tabs on the socket
with the slots in the assembly.
Push the socket into the assembly
and turn the socket clockwise.
9. Install the rear combination lamp assembly to the body of the vehi-
cle.Back-up lamp bulb replace-
ment (for 5 door)
1. Open the liftgate.
2. Remove the service cover. 3. Remove the socket from the
assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on
the assembly.
4. Remove the bulb from bulb-socket by pulling it out.
5. Insert a new bulb by inserting it into the bulb-socket.
6. Install the socket in the assembly by aligning the tabs on the socket
with the slots in the assembly.
Push the socket into the assembly
and turn the socket clockwise.
7. Install the service cover by putting it into the service hole.
OYB076065
OYB076066
SC PE USA 7.qxp 9/9/2021 6:30 PM Page 87

Maintenance
88
7
Stop and tail lamp bulb
replacement (for 5 door)
1. Open the trunk lid.
2. Loosen the light assembly retain-
ing screws with a cross-tip screw-
driver. 3. Remove the rear combination
lamp assembly from the body of
the vehicle.
4. Disconnect the rear combination lamp connector. 5. Remove the socket from the
assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on
the assembly.
6. Remove the bulb from the socket by pressing it in and rotating it counter-
clockwise until the tabs on the bulb
align with the slots in the socket.
Pull the bulb out of the socket.
7. Insert a new bulb by inserting it into the socket and rotating it until
it locks into place.
OYB076060
OYB076061OYB076062
SC PE USA 7.qxp 9/9/2021 6:30 PM Page 88

789
Maintenance
8. Install the socket in the assemblyby aligning the tabs on the socket
with the slots in the assembly.
Push the socket into the assembly
and turn the socket clockwise.
9. Install the rear combination lamp assembly to the body of the vehi-

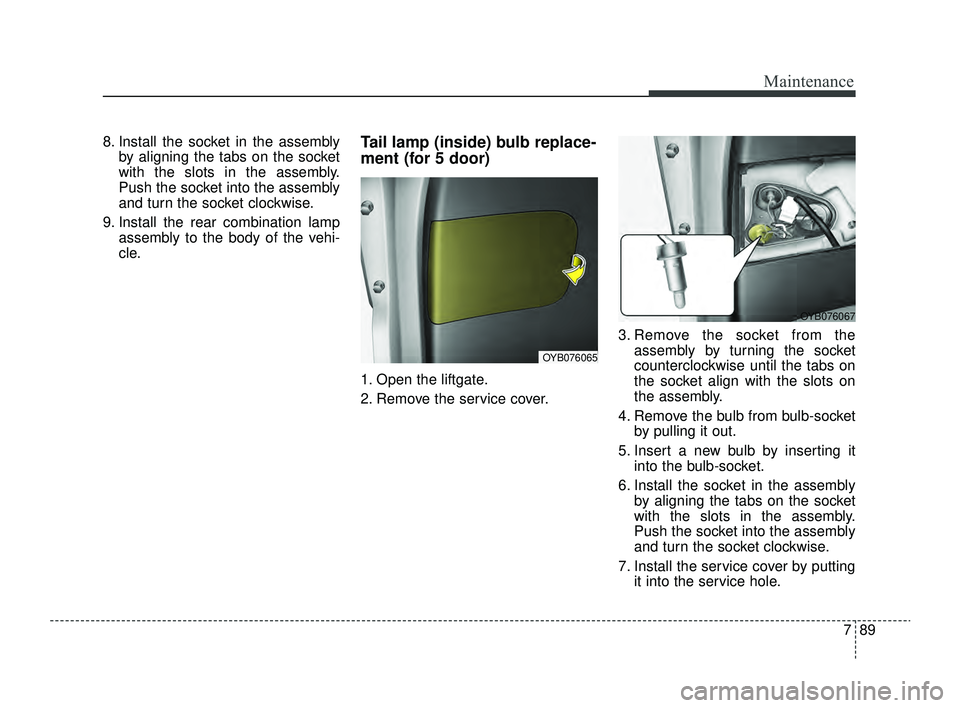

cle.Tail lamp (inside) bulb replace-
ment (for 5 door)
1. Open the liftgate.
2. Remove the service cover. 3. Remove the socket from the
assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on
the assembly.
4. Remove the bulb from bulb-socket by pulling it out.
5. Insert a new bulb by inserting it into the bulb-socket.
6. Install the socket in the assembly by aligning the tabs on the socket
with the slots in the assembly.
Push the socket into the assembly
and turn the socket clockwise.
7. Install the service cover by putting it into the service hole.
OYB076065
OYB076067
SC PE USA 7.qxp 9/9/2021 6:30 PM Page 89

Maintenance
90
7

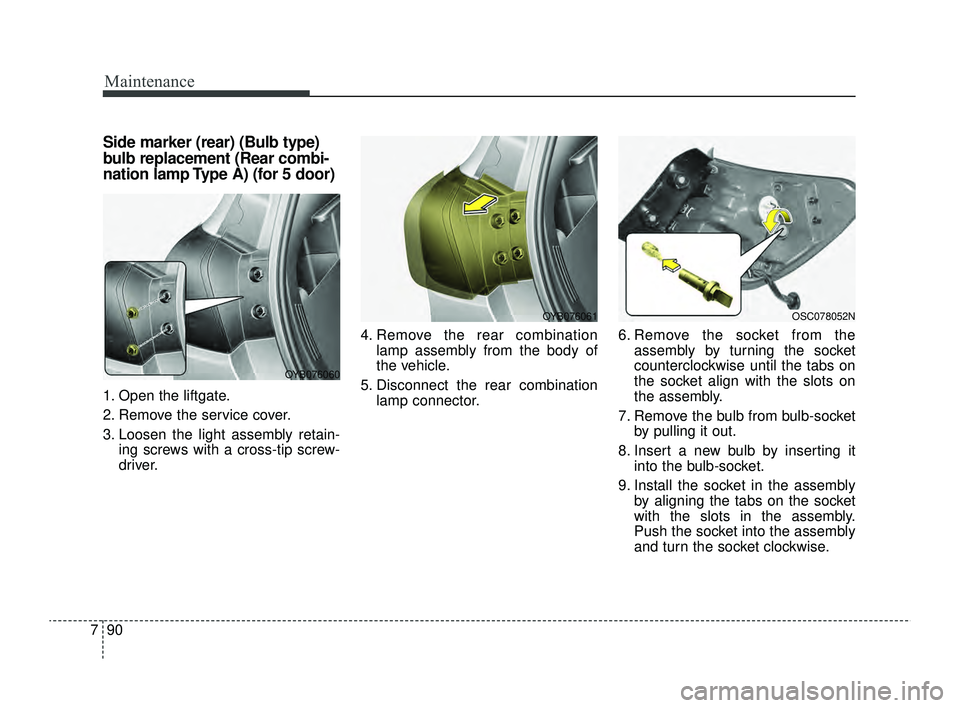

Side marker (rear) (Bulb type)
bulb replacement (Rear combi-
nation lamp Type A) (for 5 door)
1. Open the liftgate.
2. Remove the service cover.
3. Loosen the light assembly retain-
ing screws with a cross-tip screw-
driver. 4. Remove the rear combination
lamp assembly from the body of
the vehicle.
5. Disconnect the rear combination lamp connector. 6. Remove the socket from the
assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on
the assembly.
7. Remove the bulb from bulb-socket by pulling it out.
8. Insert a new bulb by inserting it into the bulb-socket.
9. Install the socket in the assembly by aligning the tabs on the socket
with the slots in the assembly.
Push the socket into the assembly
and turn the socket clockwise.
OYB076060
OYB076061OSC078052N
SC PE USA 7.qxp 9/9/2021 6:30 PM Page 90

791
Maintenance
10. Connect the rear combinationlamp connector.
11. Install the rear combination lamp assembly to the body of the vehi-
cle.

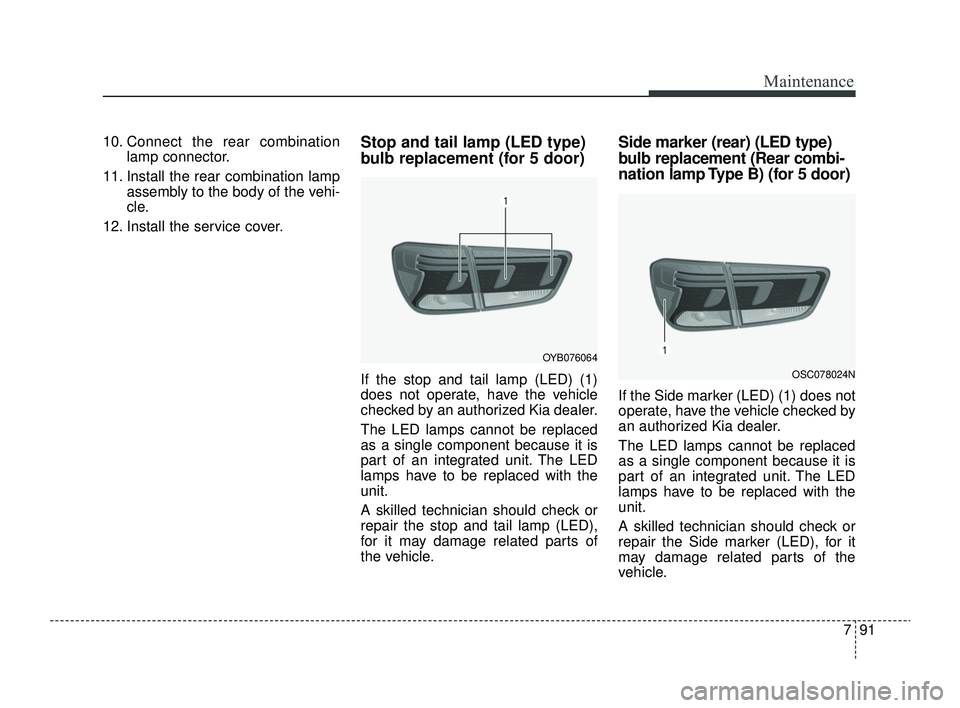

12. Install the service cover.Stop and tail lamp (LED type)
bulb replacement (for 5 door)
If the stop and tail lamp (LED) (1)
does not operate, have the vehicle
checked by an authorized Kia dealer.
The LED lamps cannot be replaced
as a single component because it is
part of an integrated unit. The LED
lamps have to be replaced with the
unit.
A skilled technician should check or
repair the stop and tail lamp (LED),
for it may damage related parts of
the vehicle.
Side marker (rear) (LED type)
bulb replacement (Rear combi-
nation lamp Type B) (for 5 door)
If the Side marker (LED) (1) does not
operate, have the vehicle checked by
an authorized Kia dealer.
The LED lamps cannot be replaced
as a single component because it is
part of an integrated unit. The LED
lamps have to be replaced with the
unit.
A skilled technician should check or
repair the Side marker (LED), for it
may damage related parts of the
vehicle.
OYB076064
OSC078024N
SC PE USA 7.qxp 9/9/2021 6:30 PM Page 91

Maintenance
92
7

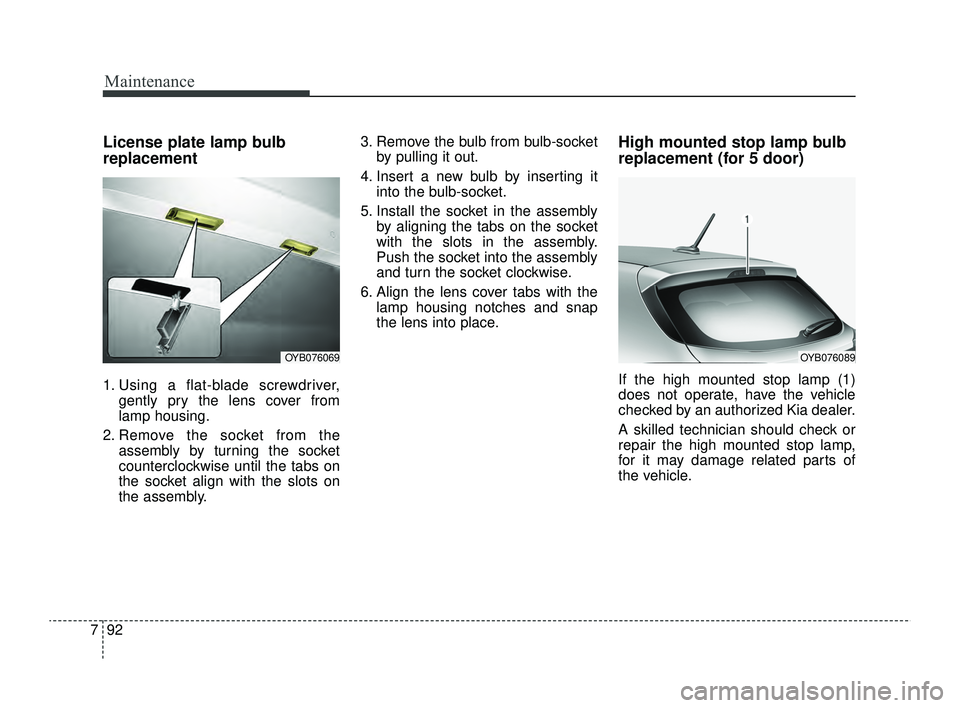

License plate lamp bulb
replacement
1. Using a flat-blade screwdriver,
gently pry the lens cover from
lamp housing.
2. Remove the socket from the assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on
the assembly. 3. Remove the bulb from bulb-socket
by pulling it out.
4. Insert a new bulb by inserting it into the bulb-socket.
5. Install the socket in the assembly by aligning the tabs on the socket
with the slots in the assembly.
Push the socket into the assembly
and turn the socket clockwise.
6. Align the lens cover tabs with the lamp housing notches and snap
the lens into place.
High mounted stop lamp bulb
replacement (for 5 door)
If the high mounted stop lamp (1)
does not operate, have the vehicle
checked by an authorized Kia dealer.
A skilled technician should check or
repair the high mounted stop lamp,
for it may damage related parts of
the vehicle.
OYB076069OYB076089
SC PE USA 7.qxp 9/9/2021 6:30 PM Page 92

793
Maintenance

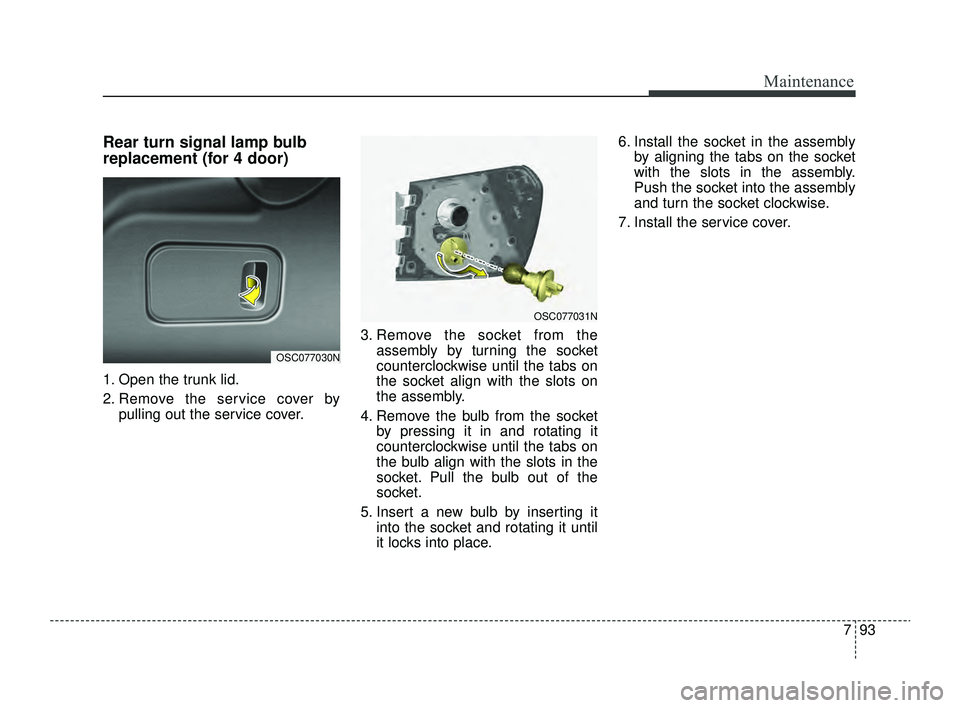

Rear turn signal lamp bulb
replacement (for 4 door)
1. Open the trunk lid.
2. Remove the service cover bypulling out the service cover. 3. Remove the socket from the
assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on
the assembly.
4. Remove the bulb from the socket by pressing it in and rotating it
counterclockwise until the tabs on
the bulb align with the slots in the
socket. Pull the bulb out of the
socket.
5. Insert a new bulb by inserting it into the socket and rotating it until
it locks into place. 6. Install the socket in the assembly
by aligning the tabs on the socket
with the slots in the assembly.
Push the socket into the assembly
and turn the socket clockwise.
7. Install the service cover.
OSC077030N
OSC077031N
