325
Safety features of your vehicle
Pull the removal strap and lift the
rear portion of the seat cushion.
Then the rear catches will be
released.
Remove the seat while lifting up the
rear portion of seat cushion and then
reinstalling the tumble seat.

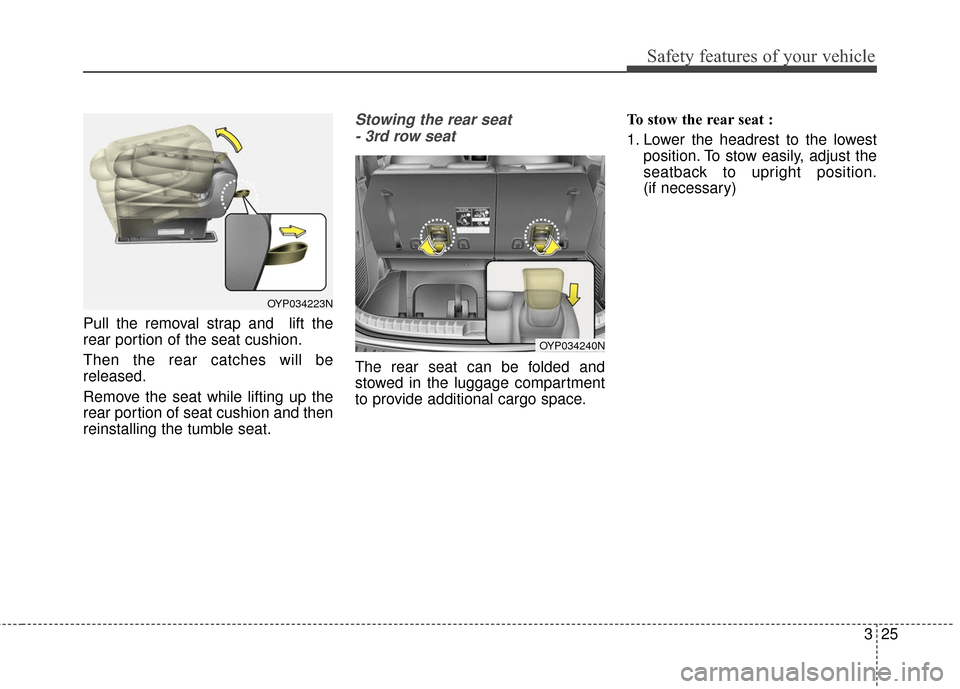

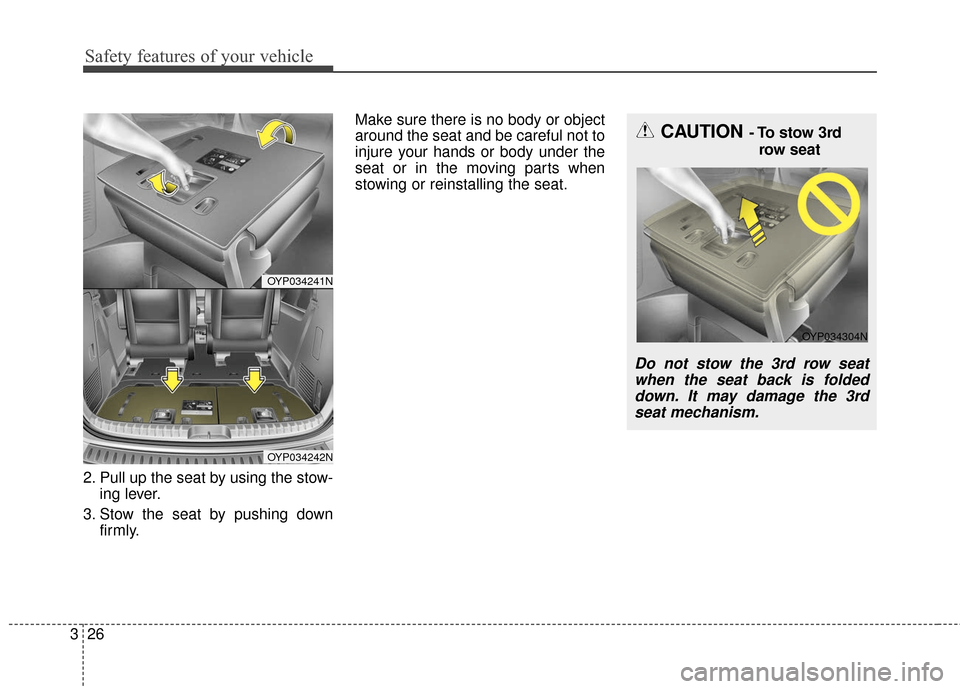

Stowing the rear seat - 3rd row seat
The rear seat can be folded and
stowed in the luggage compartment
to provide additional cargo space. To stow the rear seat :
1. Lower the headrest to the lowest
position. To stow easily, adjust the
seatback to upright position.
(if necessary)
OYP034223N
OYP034240N
Page 42 of 644
Safety features of your vehicle
26
3
2. Pull up the seat by using the stow-
ing lever.
3. Stow the seat by pushing down firmly. Make sure there is no body or object
around the seat and be careful not to
injure your hands or body under the
seat or in the moving parts when
stowing or reinstalling the seat.
OYP034241N
OYP034242N
CAUTION- To stow 3rd
row seat
Do not stow the 3rd row seatwhen the seat back is foldeddown. It may damage the 3rdseat mechanism.
OYP034304N
Page 43 of 644
327
Safety features of your vehicle

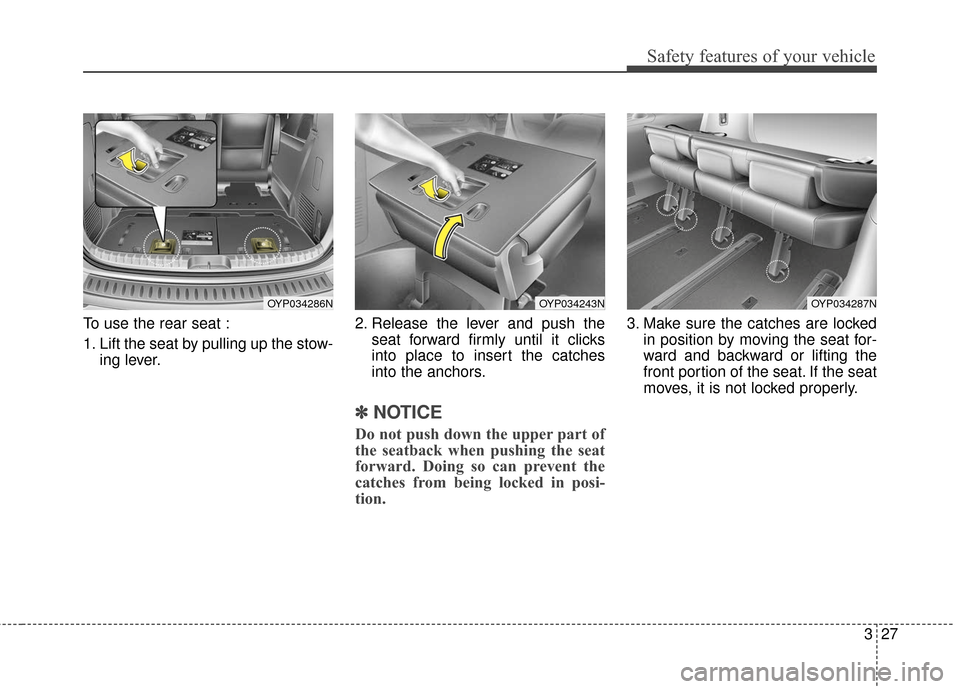

To use the rear seat :
1. Lift the seat by pulling up the stow-ing lever. 2. Release the lever and push the
seat forward firmly until it clicks
into place to insert the catches
into the anchors.
✽ ✽NOTICE
Do not push down the upper part of
the seatback when pushing the seat
forward. Doing so can prevent the
catches from being locked in posi-
tion.
3. Make sure the catches are locked
in position by moving the seat for-
ward and backward or lifting the
front portion of the seat. If the seat
moves, it is not locked properly.
OYP034243NOYP034286NOYP034287N
Page 44 of 644
Safety features of your vehicle
28
3

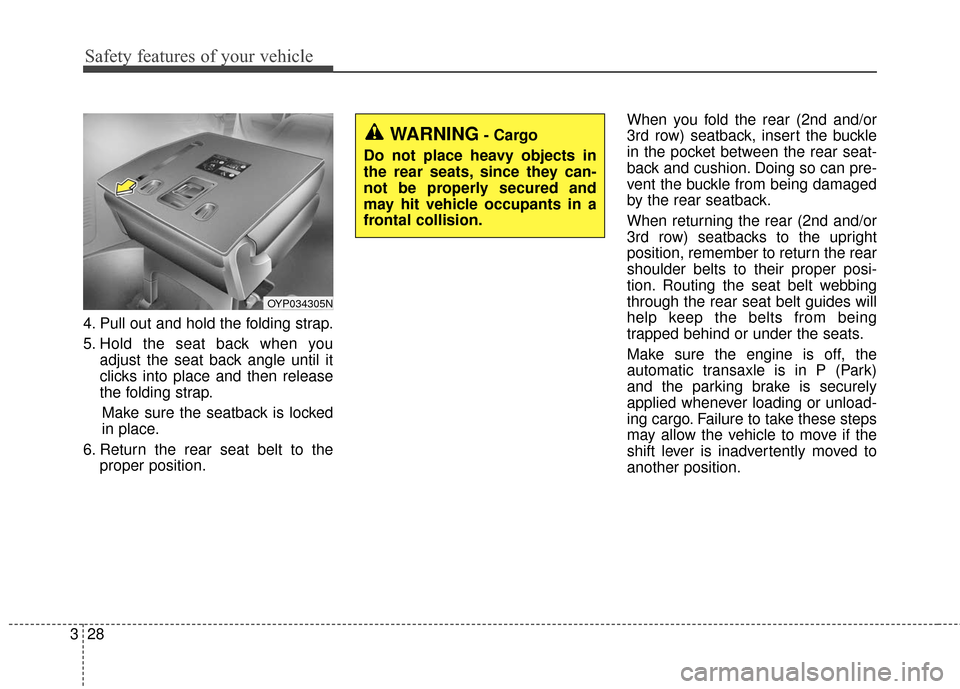

4. Pull out and hold the folding strap.
5. Hold the seat back when you
adjust the seat back angle until it
clicks into place and then release
the folding strap.
Make sure the seatback is locked
in place.
6. Return the rear seat belt to the proper position. When you fold the rear (2nd and/or
3rd row) seatback, insert the buckle
in the pocket between the rear seat-
back and cushion. Doing so can pre-
vent the buckle from being damaged
by the rear seatback.
When returning the rear (2nd and/or
3rd row) seatbacks to the upright
position, remember to return the rear
shoulder belts to their proper posi-
tion. Routing the seat belt webbing
through the rear seat belt guides will
help keep the belts from being
trapped behind or under the seats.
Make sure the engine is off, the
automatic transaxle is in P (Park)
and the parking brake is securely
applied whenever loading or unload-
ing cargo. Failure to take these steps
may allow the vehicle to move if the
shift lever is inadvertently moved to
another position.
WARNING- Cargo
Do not place heavy objects in
the rear seats, since they can-
not be properly secured and
may hit vehicle occupants in a
frontal collision.
OYP034305N
Page 45 of 644
329
Safety features of your vehicle

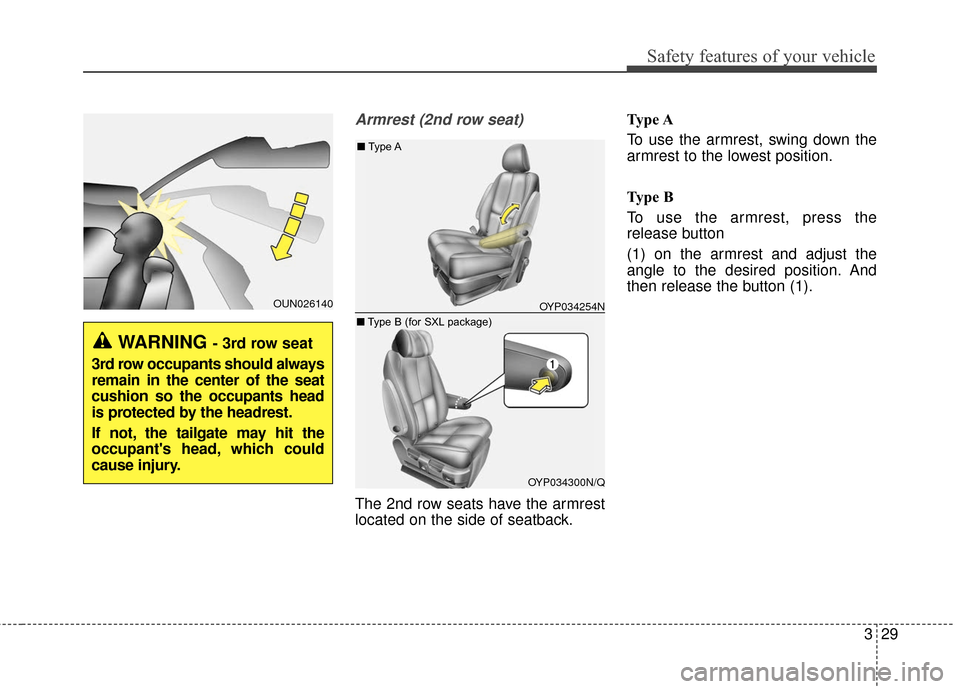

Armrest (2nd row seat)
The 2nd row seats have the armrest
located on the side of seatback.Type A
To use the armrest, swing down the
armrest to the lowest position.
Type B
To use the armrest, press the
release button
(1) on the armrest and adjust the
angle to the desired position. And
then release the button (1).
OUN026140
WARNING - 3rd row seat
3rd row occupants should always
remain in the center of the seat
cushion so the occupants head
is protected by the headrest.
If not, the tailgate may hit the
occupant's head, which could
cause injury.
OYP034254N
OYP034300N/Q
■ Type A
■ Type B (for SXL package)
Page 46 of 644
Safety features of your vehicle
30
3

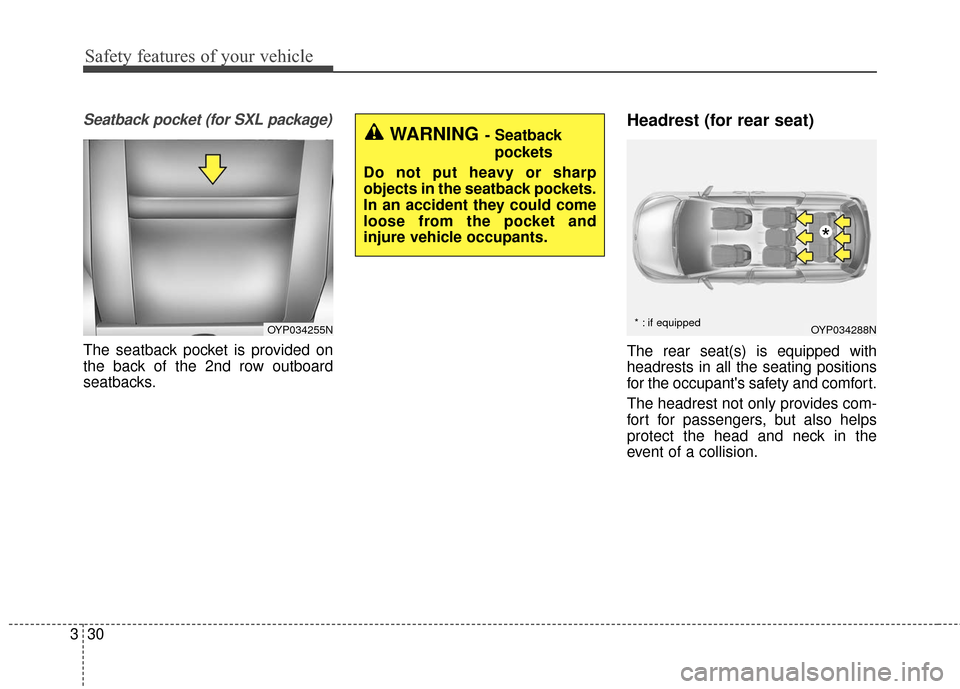

Seatback pocket (for SXL package)
The seatback pocket is provided on
the back of the 2nd row outboard
seatbacks.
Headrest (for rear seat)
The rear seat(s) is equipped with
headrests in all the seating positions
for the occupant's safety and comfort.
The headrest not only provides com-
fort for passengers, but also helps
protect the head and neck in the
event of a collision.
OYP034288N
* : if equipped
*
OYP034255N
WARNING- Seatback
pockets
Do not put heavy or sharp
objects in the seatback pockets.
In an accident they could come
loose from the pocket and
injure vehicle occupants.
Page 47 of 644
331
Safety features of your vehicle

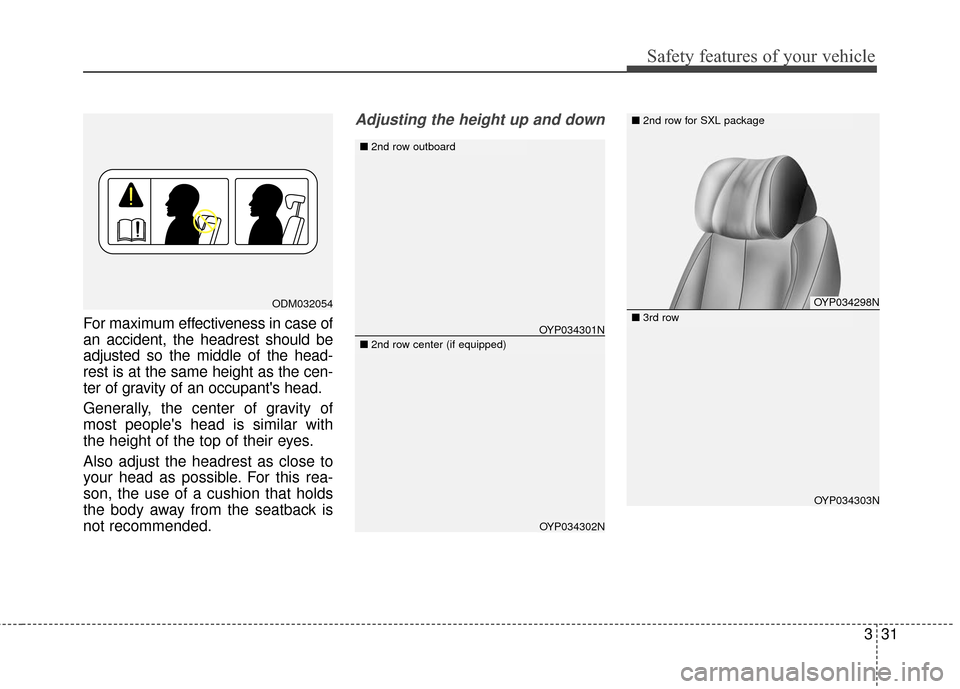

For maximum effectiveness in case of
an accident, the headrest should be
adjusted so the middle of the head-
rest is at the same height as the cen-
ter of gravity of an occupant's head.
Generally, the center of gravity of
most people's head is similar with
the height of the top of their eyes.
Also adjust the headrest as close to
your head as possible. For this rea-
son, the use of a cushion that holds
the body away from the seatback is
not recommended.
Adjusting the height up and down
ODM032054
OYP034301N
OYP034302N
■2nd row outboard
OYP034298N
OYP034303N
■2nd row for SXL package
■3rd row
■2nd row center (if equipped)
Page 48 of 644
Safety features of your vehicle
32
3

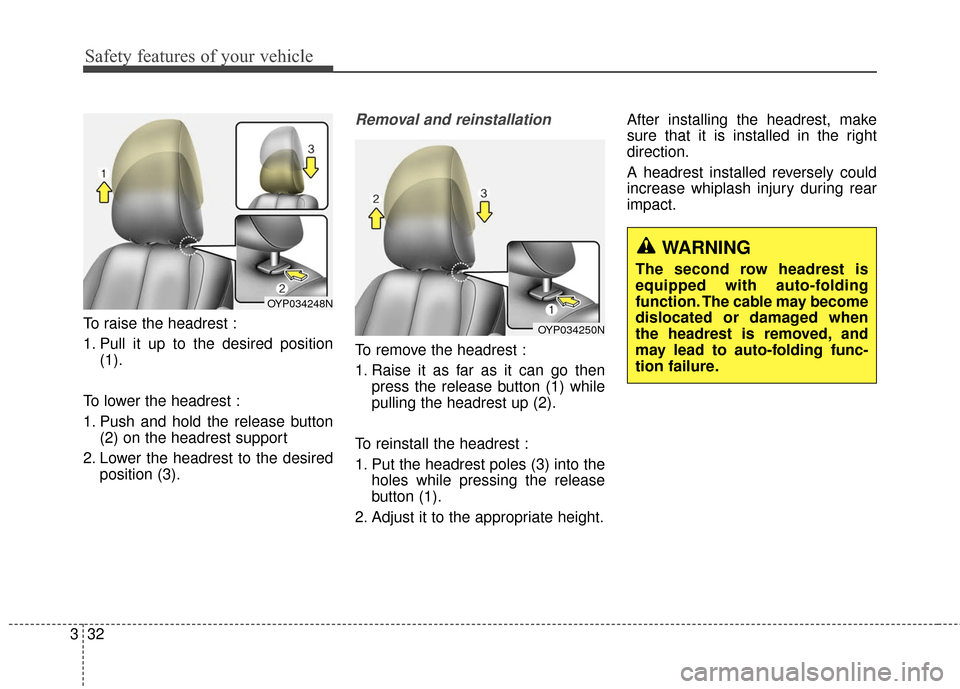

To raise the headrest :
1. Pull it up to the desired position
(1).
To lower the headrest :
1. Push and hold the release button (2) on the headrest support
2. Lower the headrest to the desired position (3).
Removal and reinstallation
To remove the headrest :
1. Raise it as far as it can go thenpress the release button (1) while
pulling the headrest up (2).
To reinstall the headrest :
1. Put the headrest poles (3) into the holes while pressing the release
button (1).
2. Adjust it to the appropriate height. After installing the headrest, make
sure that it is installed in the right
direction.
A headrest installed reversely could
increase whiplash injury during rear
impact.
OYP034248N
OYP034250N
WARNING
The second row headrest is
equipped with auto-folding
function. The cable may become
dislocated or damaged when
the headrest is removed, and
may lead to auto-folding func-
tion failure.
Page 49 of 644
333
Safety features of your vehicle

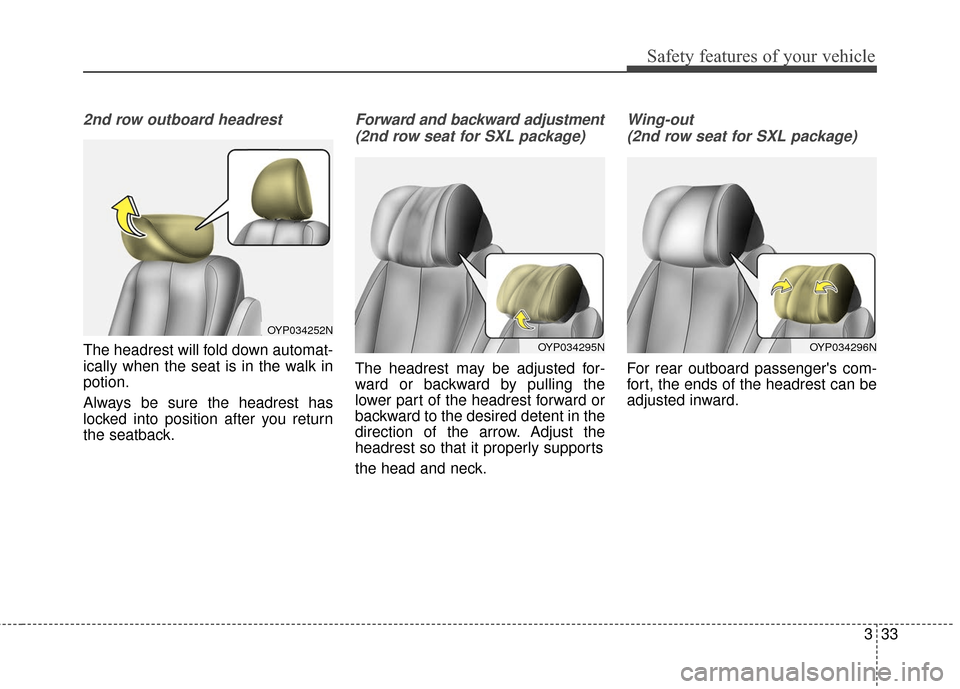

2nd row outboard headrest
The headrest will fold down automat-
ically when the seat is in the walk in
potion.
Always be sure the headrest has
locked into position after you return
the seatback.
Forward and backward adjustment(2nd row seat for SXL package)
The headrest may be adjusted for-
ward or backward by pulling the
lower part of the headrest forward or
backward to the desired detent in the
direction of the arrow. Adjust the
headrest so that it properly supports
the head and neck.
Wing-out(2nd row seat for SXL package)
For rear outboard passenger's com-
fort, the ends of the headrest can be
adjusted inward.
OYP034252N
OYP034296NOYP034295N
Page 50 of 644
Safety features of your vehicle
34
3

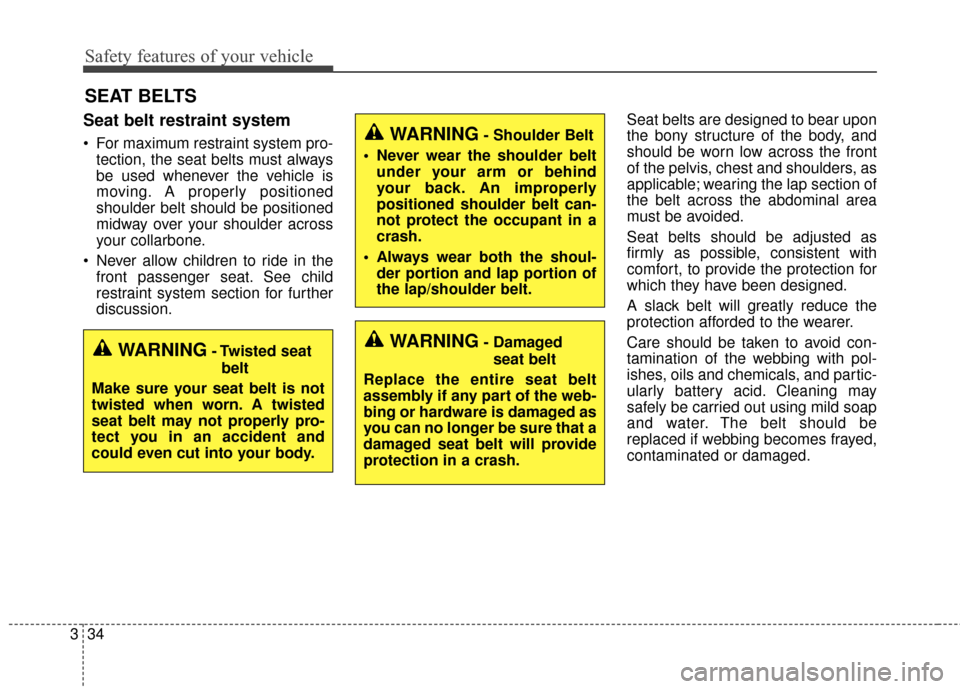

SEAT BELTS
Seat belt restraint system
For maximum restraint system pro-
tection, the seat belts must always
be used whenever the vehicle is
moving. A properly positioned
shoulder belt should be positioned
midway over your shoulder across
your collarbone.
Never allow children to ride in the front passenger seat. See child
restraint system section for further
discussion. Seat belts are designed to bear upon
the bony structure of the body, and
should be worn low across the front
of the pelvis, chest and shoulders, as
applicable; wearing the lap section of
the belt across the abdominal area
must be avoided.
Seat belts should be adjusted as
firmly as possible, consistent with
comfort, to provide the protection for
which they have been designed.
A slack belt will greatly reduce the
protection afforded to the wearer.
Care should be taken to avoid con-
tamination of the webbing with pol-
ishes, oils and chemicals, and partic-
ularly battery acid. Cleaning may
safely be carried out using mild soap
and water. The belt should be
replaced if webbing becomes frayed,
contaminated or damaged.
WARNING- Damaged
seat belt
Replace the entire seat belt
assembly if any part of the web-
bing or hardware is damaged as
you can no longer be sure that a
damaged seat belt will provide
protection in a crash.WARNING- Twisted seat belt
Make sure your seat belt is not
twisted when worn. A twisted
seat belt may not properly pro-
tect you in an accident and
could even cut into your body.
WARNING- Shoulder Belt
Never wear the shoulder belt under your arm or behind
your back. An improperly
positioned shoulder belt can-
not protect the occupant in a
crash.
Always wear both the shoul- der portion and lap portion of
the lap/shoulder belt.
