315
Safety features of your vehicle

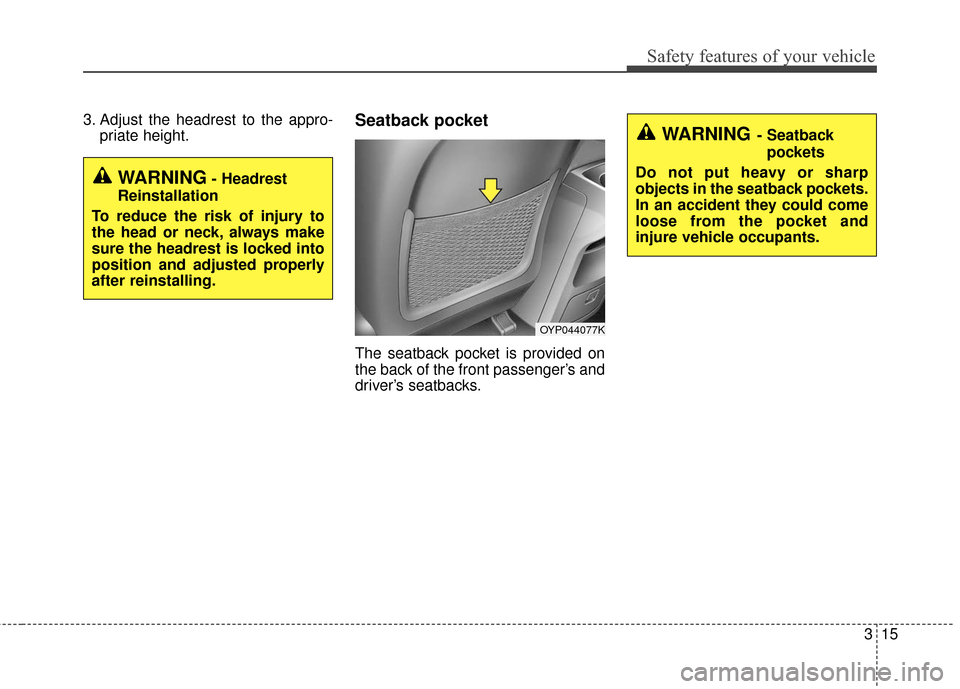

3. Adjust the headrest to the appro-priate height.Seatback pocket
The seatback pocket is provided on
the back of the front passenger’s and
driver’s seatbacks.
OYP044077K
WARNING- Seatback
pockets
Do not put heavy or sharp
objects in the seatback pockets.
In an accident they could come
loose from the pocket and
injure vehicle occupants.
WARNING- Headrest
Reinstallation
To reduce the risk of injury to
the head or neck, always make
sure the headrest is locked into
position and adjusted properly
after reinstalling.
Page 32 of 644
Safety features of your vehicle
16
3

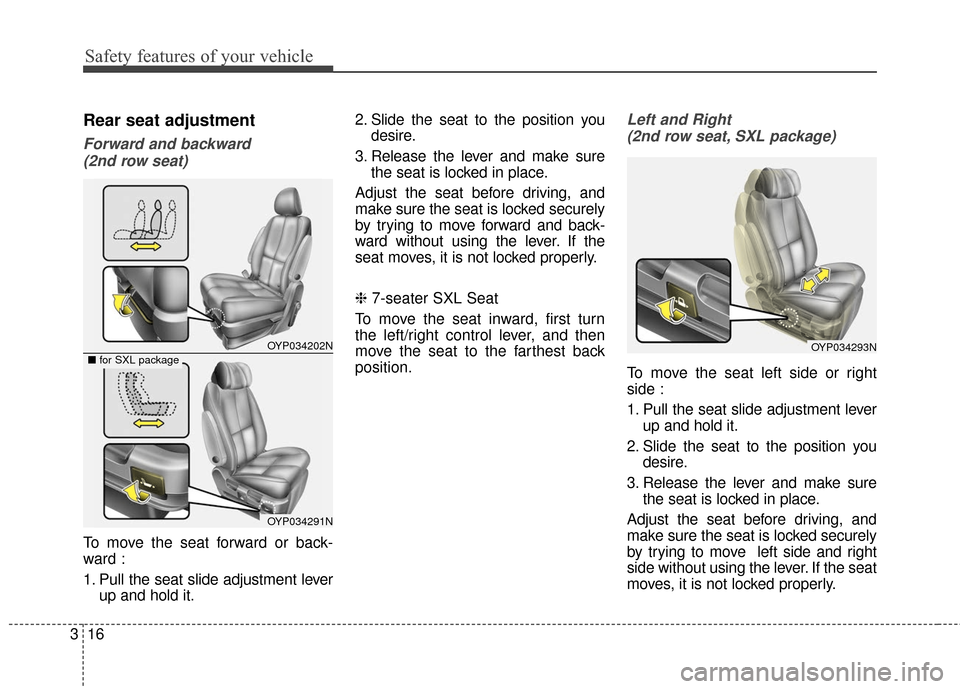

Rear seat adjustment
Forward and backward
(2nd row seat)
To move the seat forward or back-
ward :
1. Pull the seat slide adjustment lever up and hold it. 2. Slide the seat to the position you
desire.
3. Release the lever and make sure the seat is locked in place.
Adjust the seat before driving, and
make sure the seat is locked securely
by trying to move forward and back-
ward without using the lever. If the
seat moves, it is not locked properly.
❈ 7-seater SXL Seat
To move the seat inward, first turn
the left/right control lever, and then
move the seat to the farthest back
position.
Left and Right (2nd row seat, SXL package)
To move the seat left side or right
side :
1. Pull the seat slide adjustment lever up and hold it.
2. Slide the seat to the position you desire.
3. Release the lever and make sure the seat is locked in place.
Adjust the seat before driving, and
make sure the seat is locked securely
by trying to move left side and right
side without using the lever. If the seat
moves, it is not locked properly.
OYP034293NOYP034202N
OYP034291N
■ for SXL package
Page 33 of 644
317
Safety features of your vehicle
Seatback angleTo recline the seatback :
1. Pull up the seatback recline lever(for 2nd row outboard seat) or
strap (for 2nd row center or 3rd
row seat).
2. Hold the lever or strap and adjust the seatback of the seat to the
position you desire.
3. Release the lever or strap and make sure the seatback is locked
in place. (The lever MUST return
to its original position for the seat-
back to lock.)
OYP034204N
■2nd row seat
OYP034292N
■2nd row seat for SXL package
OYP034205N
■
3rd row seat OYP034206N
■2nd row center seat (if equipped)
Page 34 of 644
Safety features of your vehicle
18
3

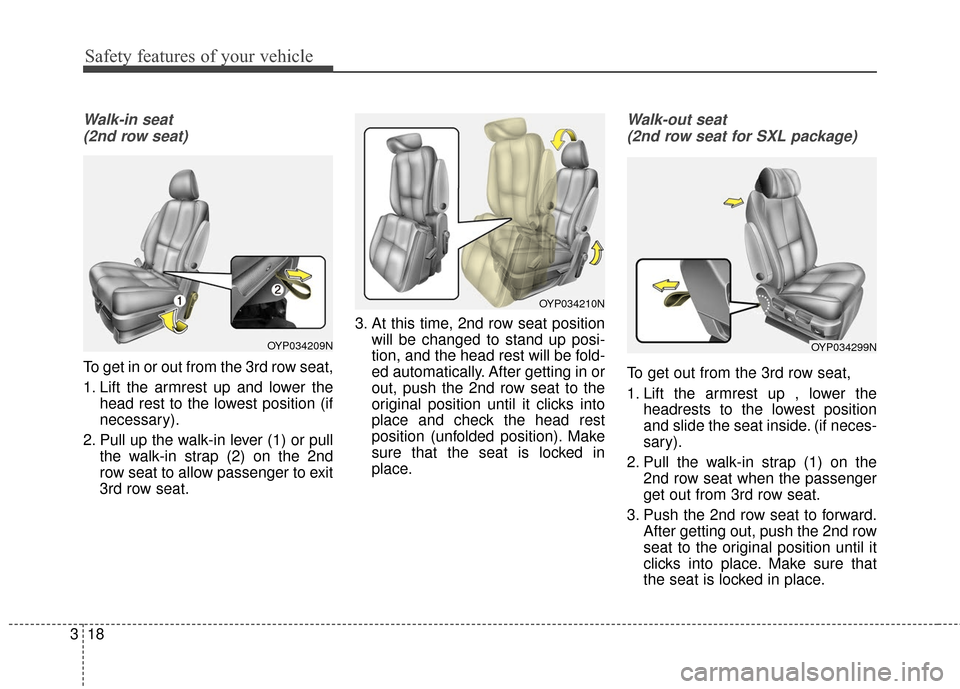

Walk-in seat
(2nd row seat)
To get in or out from the 3rd row seat,
1. Lift the armrest up and lower the head rest to the lowest position (if
necessary).
2. Pull up the walk-in lever (1) or pull the walk-in strap (2) on the 2nd
row seat to allow passenger to exit
3rd row seat. 3. At this time, 2nd row seat position
will be changed to stand up posi-
tion, and the head rest will be fold-
ed automatically. After getting in or
out, push the 2nd row seat to the
original position until it clicks into
place and check the head rest
position (unfolded position). Make
sure that the seat is locked in
place.
Walk-out seat
(2nd row seat for SXL package)
To get out from the 3rd row seat,
1. Lift the armrest up , lower the headrests to the lowest position
and slide the seat inside. (if neces-
sary).
2. Pull the walk-in strap (1) on the 2nd row seat when the passenger
get out from 3rd row seat.
3. Push the 2nd row seat to forward. After getting out, push the 2nd row
seat to the original position until it
clicks into place. Make sure that
the seat is locked in place.
OYP034209N
OYP034210N
OYP034299N
Page 35 of 644
319
Safety features of your vehicle

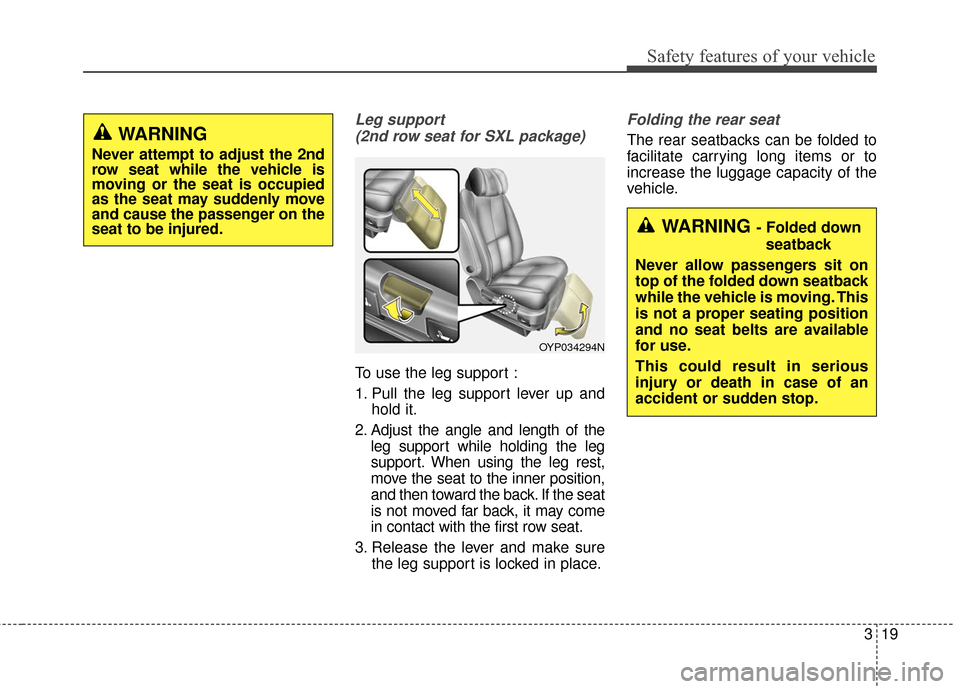

Leg support (2nd row seat for SXL package)
To use the leg support :
1. Pull the leg support lever up and hold it.
2. Adjust the angle and length of the leg support while holding the leg
support. When using the leg rest,
move the seat to the inner position,
and then toward the back. If the seat
is not moved far back, it may come
in contact with the first row seat.
3. Release the lever and make sure the leg support is locked in place.
Folding the rear seat
The rear seatbacks can be folded to
facilitate carrying long items or to
increase the luggage capacity of the
vehicle.
OYP034294N
WARNING
Never attempt to adjust the 2nd
row seat while the vehicle is
moving or the seat is occupied
as the seat may suddenly move
and cause the passenger on the
seat to be injured.
WARNING - Folded down
seatback
Never allow passengers sit on
top of the folded down seatback
while the vehicle is moving. This
is not a proper seating position
and no seat belts are available
for use.
This could result in serious
injury or death in case of an
accident or sudden stop.
Page 36 of 644
Safety features of your vehicle
20
3
To fold down the rear seatback
1. Insert the rear seat belt buckle in
the pocket between the rear seat-
back and cushion, and insert the
rear seat belt webbing in the guide
to prevent the seat belt from being
damaged.
2. Set the front seatback to the upright position and if necessary,
slide the front seat forward.
3. Lower the rear headrests to the lowest position.
WARNING - Objects
Objects carried on the folded
down seatback should not extend
higher than the top of the front
seatbacks. This could allow cargo
to slide forward and cause injury
or damage during sudden stops.
OYP034214NOYP034267N
OYP034212N
■ 2nd row center seat (for 8 passenger vehicle)
Page 37 of 644
321
Safety features of your vehicle

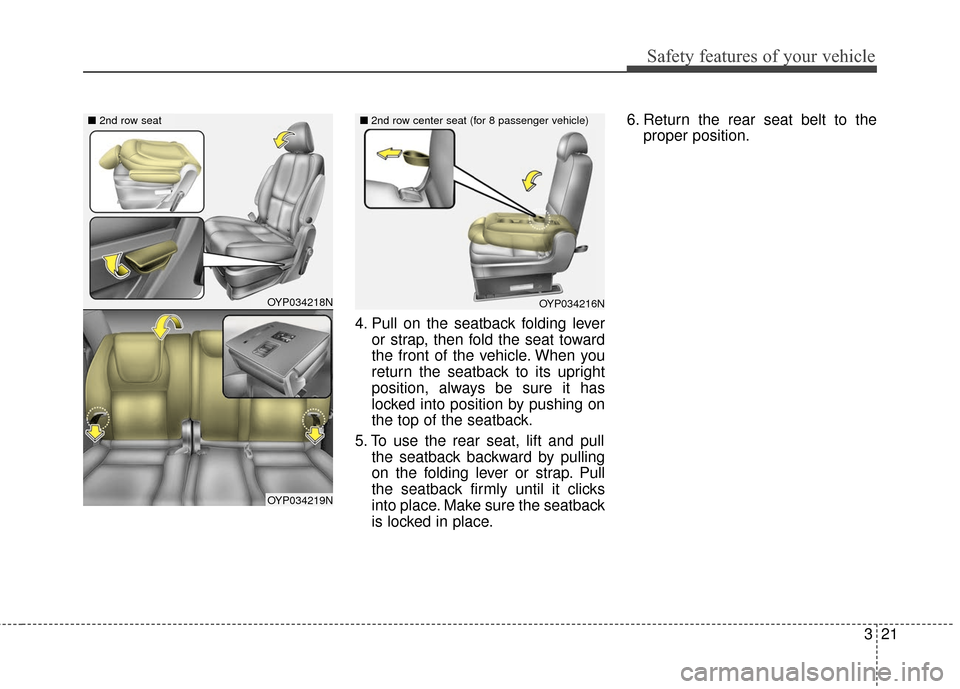

4. Pull on the seatback folding leveror strap, then fold the seat toward
the front of the vehicle. When you
return the seatback to its upright
position, always be sure it has
locked into position by pushing on
the top of the seatback.
5. To use the rear seat, lift and pull the seatback backward by pulling
on the folding lever or strap. Pull
the seatback firmly until it clicks
into place. Make sure the seatback
is locked in place. 6. Return the rear seat belt to the
proper position.
OYP034216NOYP034218N
OYP034219N
■2nd row seat ■2nd row center seat (for 8 passenger vehicle)
Page 38 of 644
Safety features of your vehicle
22
3
Removing the tumble seat
(for 8 passenger vehicle)
1. Insert the seat belt in the belt assembly cover.
2. Insert the seat belt buckle in the seat cushion pocket. 3. Lower the headrest to the lowest
position.
4. Slide the seat to the farthest rear- ward.
5. Fold the seat back by pull up the recline strap. 6. Pull the removal strap and lift the
rear portion of the seat cushion.
OYP034223N
OYP034220N
OYP034267N
OYP034221N
Page 39 of 644
323
Safety features of your vehicle

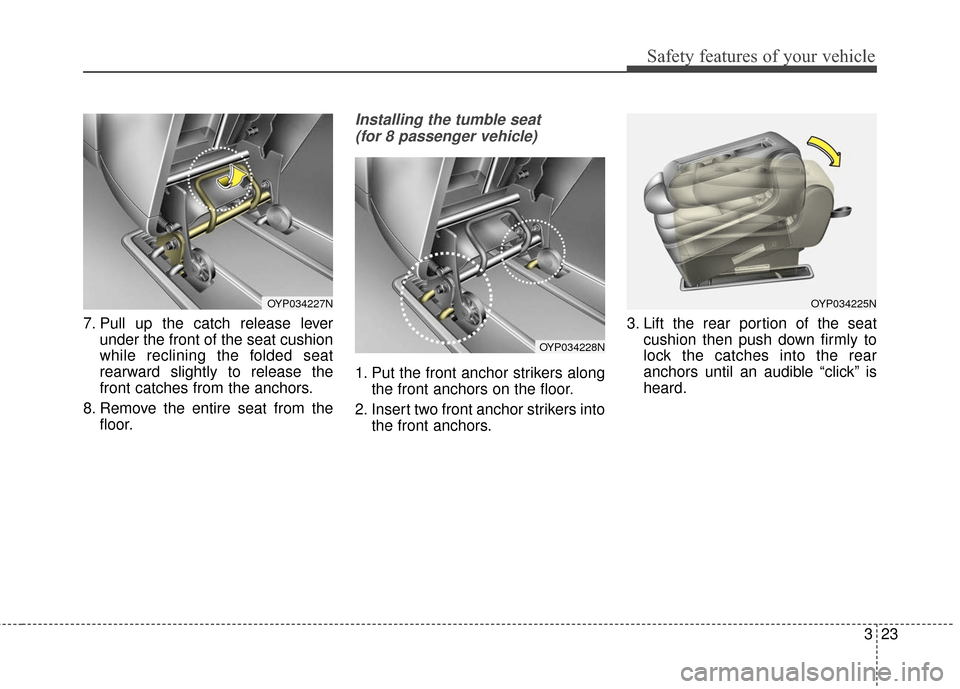

7. Pull up the catch release leverunder the front of the seat cushion
while reclining the folded seat
rearward slightly to release the
front catches from the anchors.
8. Remove the entire seat from the floor.
Installing the tumble seat
(for 8 passenger vehicle)
1. Put the front anchor strikers along the front anchors on the floor.
2. Insert two front anchor strikers into the front anchors. 3. Lift the rear portion of the seat
cushion then push down firmly to
lock the catches into the rear
anchors until an audible “click” is
heard.
OYP034225NOYP034227N
OYP034228N
Page 40 of 644
Safety features of your vehicle
24
3
4. Make sure the green mark on the
rear seat cushion frame is visible
and the catches are locked in posi-
tion by moving the seat forward
and backward or lifting the front
portion of the seat. If the green
mark is invisible and the seat
moves, it is not locked properly.
5. Pull up the seatback recline strap.
6. Lift and push the seatback back- ward firmly until it clicks into place.
Make sure the seatback is locked
in place.
7. Return the seat belt to the proper position. If the rear catches of the seat are
locked into the rear anchors (2) while
the front catches are not locked into
the front anchors (1), do the follow-
ings to release the rear catches from
the rear anchors.
OYP034232N
WARNING - Installing or
removing the tumble seat
Do not install or remove the
tumble (2nd row center) seat, if
there are occupants in the 3rd
row seats, as this may injure
occupants.
OYP034233N
OYP034235N
