KIA SEDONA 2016 Navigation System Quick Reference Guide
Manufacturer: KIA, Model Year: 2016, Model line: SEDONA, Model: KIA SEDONA 2016Pages: 92, PDF Size: 2.68 MB
Page 71 of 92
68
Select the desired destination
among the searched items.
Emergency
Search emergency facilities.
Press the
NAVI head unit key. ▶
Select the
Destination tab. ▶
Select the
Emergency
Check the current location informa-
tion and select the desired item in
the sub menu (ex. Police Station)
Select the desired destination
among the searched items.
Address Book
Search the destination with the
address book.
Press the
NAVI head unit key. ▶
Select the
Destination tab. ▶
Select
the
AddressBook
Select the desired group.
Save in the Favorite Places, then
route can be set easily by using
3 buttons such as
Go Home and
Office on the button of the menu.
Navigation
, @ : 1 @ ( < 6 4 @ / > " 7 / @ 2 3 ( J O E E < 6 4 @ / > " 7 / @ 2 3 ( J O E E ß
1
Page 72 of 92
69
Phone Number
Press the NAVI head unit key.▶
Select the
Phone Number to search
POI by phone.
Search destination by phone number.
Name Description
Select the desired destination
from the searched items.
Edit the destination.
Register a new destination.
Delete the desired item.
Type phone number to search. To
search for a list of numbers, press
Done when results are narrowed
and the button
Done is activated.
Select the desired destination
among the searched items.
Press the Set as Destination button to
start guidance.
, @ : 1 @ ( < 6 4 @ / > " 7 / @ 2 3 ( J O E E < 6 4 @ / > " 7 / @ 2 3 ( J O E E ß
1
Page 73 of 92
70
Freeway Exit / Entrance
Press the NAVI head unit key.▶
Select the
Freeway Exit/Entrance to
search by freeway exit/entrance.
Type freeway name and exit/
entrance.
Press the Set as Destination button to
start guidance.
Intersection
Press the NAVI head unit key. ▶
Select the
Intersection to search by
intersection.
Type 1st Street name, the State, 2nd
Street name.
Press the Set as Destination button to
start guidance.
Navigation
, @ : 1 @ ( < 6 4 @ / > " 7 / @ 2 3 ( J O E E < 6 4 @ / > " 7 / @ 2 3 ( J O E E ß
1
Page 74 of 92
71
Coordinates
Press the NAVI head unit key.▶
Select the
Coordinates to search by
coordinates.
There are two ways to search by
coordinates (D.M.S or Decimal
degrees). After typing coordinates,
press the
Done button to search.
Press the Set as Destination button to
start guidance.
Favorite Places
Set the route using your favorite
places.
Press the
NAVI head unit key. ▶
Select the
Destination tab. ▶
Select
from our favorite places
On the button where locations are
not registered, the
icon is dis-
played. When a location is regis-
tered, the
button disappears and
the buttons 1 to 3 are displayed as
the registered place names.
, @ : 1 @ ( < 6 4 @ / > " 7 / @ 2 3 ( J O E E < 6 4 @ / > " 7 / @ 2 3 ( J O E E ß
1

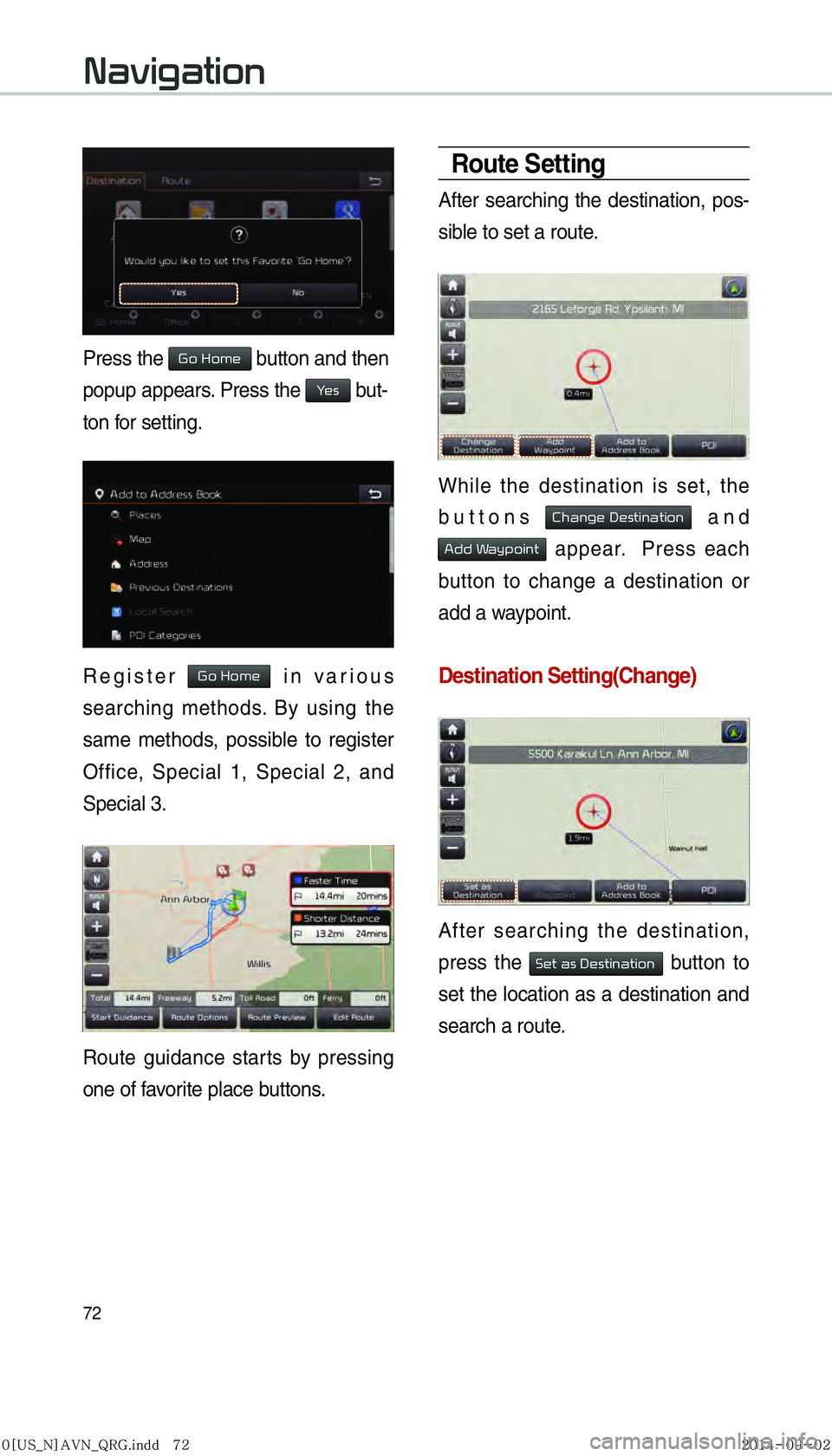

Page 75 of 92
72
Press the Go Home button and then
popup appears. Press the
Yes but-
ton for setting.
Register Go Home in various
searching methods. By using the
same methods, possible to register
Office, Special 1, Special 2, and
Special 3.
Route guidance starts by pressing
one of favorite place buttons.
Route Setting
After searching the destination, pos-
sible to set a route.
While the destination is set, the
buttons
Change Destination and
Add Waypoint appear. Press each
button to change a destination or
add a waypoint.
Destination Setting(Change)
After searching the destination,
press the
Set as Destination button to
set the location as a destination and
search a route.
Navigation
, @ : 1 @ ( < 6 4 @ / > " 7 / @ 2 3 ( J O E E < 6 4 @ / > " 7 / @ 2 3 ( J O E E ß
1
Page 76 of 92
73
All Routes
When the alternative routes option
is enabled in navigation setting, two
routing options are displayed based
on faster time and shorter distance.
• Faster Time : Select time optimized
route, being the fastest roads.
• Shorter Distance : Select short
distance, irrespective of how fast or
slow progress will be
Name Description
Faster Time
Display total dis-
tance, travel time,
and toll fees. Select
the desired route.
Start GuidanceStart the guidance
with the route.
Route OptionsChange the route
option.
Route PreviewPreview turn-by-
turn list.
Edit RouteEdit the route.
Total Display total dis-
tance of the route.
Freeway Display length of
freeway on the
route.
Toll Road Display length of toll
road on the route.
FerryDisplay length of
Ferry route on the
route.
The route will be calculated using
the option “Faster Time” by default.
Alternative routes can be suggested
if necessary,
SETUP key
▶ Navigation
Icon ▶
Route ▶
Alternative : ON
, @ : 1 @ ( < 6 4 @ / > " 7 / @ 2 3 ( J O E E < 6 4 @ / > " 7 / @ 2 3 ( J O E E ß
1
Page 77 of 92
74
Route Guidance
Possible to get the detailed informa-
tion on route guidance.
Route Guidance Screen
Remaining Time : Display the time
remaining until destination.
Arrival Time : Display the estimated
time of arrival.
Name Description
Display the dis-
tance and direction
to the first turn
point.
Display the dis-
tance and direction
to the second turn
point.
Display the lane
information at the
current location.
Display the recom-
mended direction
in white, travelable
direction in white,
and the non-trav-
elable direction in
grey.
Displays the dis-
tance to the des-
tination and the
estimated time of
arrival. Press the
button to check the
detailed informa-
tion.
Cancel the route.
Possible to change
to preliminary guid-
ance, TBT guid-
ance, and zoom-on
guidance screens.
Destination InfoDisplays the desti-
nation information.
Navigation
, @ : 1 @ ( < 6 4 @ / > " 7 / @ 2 3 ( J O E E < 6 4 @ / > " 7 / @ 2 3 ( J O E E ß
1
Page 78 of 92
75
Route
Canceling Route
Cancel the route.
Press the
NAVI head unit key . ▶
Press the
Route tab. ▶
Select
Cancel Route .
Click Cancel Route the icon.
Press the Yes button to cancel the
route.
Display Route Information
Press the NAVI head unit key. ▶
Press the
Route tab. ▶
Select
Route Info. .
Press the Route Info. icon.
Check the information on the map.
Select the desired item to see the
map information.
Avoiding a road
Click the Avoid Street button to avoid
the street or road.
Check the desired item and press
the
Done button to finish.
, @ : 1 @ ( < 6 4 @ / > " 7 / @ 2 3 ( J O E E < 6 4 @ / > " 7 / @ 2 3 ( J O E E ß
1
Page 79 of 92
76
Route Overview
Check the information on route
including the distance, expected
time, toll fees, etc.
Press the
NAVI head unit key. ▶
Press the
Route tab. ▶
Select
Route Overview .
Press the Route Overview icon.
Name Description
Route OptionsChange the search
option.
Route PreviewPreview turn-by-
turn list.
Edit RouteProvide informa-
tion on surround-
ing facilities.
Route Preview
Check the detailed turn-by-turn list.
Press the
NAVI head unit key ▶
Press the
Route tab. ▶
Select
Route Preview .
Press the Route Preview icon.
Name Description
Departure
Place Move to the depar-
ture location.
Previous
Move to the previ-
ous maneuver.
Forward Move to the next
maneuver.
DestinationMove to the destina-
tion location.
Section
Displaying
Bar Touch bar to move
to the specific posi-
tion.
Close the route pre-
view.
Navigation
, @ : 1 @ ( < 6 4 @ / > " 7 / @ 2 3 ( J O E E
< 6 4 @ / > " 7 / @ 2 3 ( J O E E ß
1
Page 80 of 92
77
Editing Route
Edit the current route.
Press the
NAVI head unit key. ▶
Press the
Route tab. ▶
Select
Edit Route .
Press the Edit Route icon.
Name Description
Display the selected
point on the map
screen.
Move the selected
item up.
Move the selected
item down.
Delete the selected
item.
DonePress the button to
finish editing.
Add WaypointPress the button to
add an waypoint.
Add the waypoint through various
searching methods.
Route Options
Press the NAVI head unit key. ▶
Press the
Route tab. ▶
Select
Route Options .
Press the Route Options icon.
Choose between faster time or
shorter distance.
, @ : 1 @ ( < 6 4 @ / > " 7 / @ 2 3 ( J O E E < 6 4 @ / > " 7 / @ 2 3 ( J O E E ß
1
