KIA SEDONA 2019 Features and Functions Guide

39ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS *IF EQUIPPED †LEGAL DISCL AIMERS ON BACK INSIDE COVER
FRONT
REARFRONTREARFRONTREARFRONTREAR
REAR
REAR
Map/Room Lamps
Automatic turn off function*
The interior lights automatically turn off approximately 30 seconds after
the Engine Start /Stop button is OFF
Map/Room Lamp Operation
Press the lens A to turn the Map Lamp ON/OFF This light produces a
spot beam for convenient use as a map lamp or as a personal lamp for
the driver or the front passenger
When the button B is pressed the following occurs:
•When any door or the liftgate is opened, the Map and Room Lamps turn ON
•When doors are unlocked from the Smart Key or key removed from
ignition, the Map and Room Lamps turn ON for approximately 30
seconds or until a door is opened
•When doors are closed, the lamps will gradually turn OFF after
approximately 30 seconds
•When all doors are locked or the ignition is turned ON, the Map Lamp
will turn OFF immediately
When the button C is pressed, the lamps stay ON continuously
Room Lamp – Press the lens D to turn the Room Lamp ON/OFF
REMINDER: When Room Lamp lens is pressed ON it will remain ON, even when the Map Lamp switch is in the OFF position
FRONT
REARFRONTREARFRONTREARFRONTREAR
REAR
REAR

•When doors are unlocked by the Smart Key*, the lamp turns ON for approximately 30 seconds •If your vehicle is equipped with the theft alarm system, the interior lights automatically turn off approximately 3 seconds after the system is in armed stage •Using interior lights for an extended period of time may cause battery discharge
QUICK TIPS
A
CB
DD
A
Sunvisor†24
Use the Sunvisor to shield direct light through the front or side windows
Slide the Sunvisor out and adjust as needed
REMINDERS:
•Sunvisor may not shield all direct light
•The Sunvisor may impair visibility if not adjusted properly
•
Be aware of seating position when adjusting or swinging Sunvisor around to or from the front or side windows
•Do not operate the vehicle if the sunvisor is impairing your visibility
(Lamp controls located in the overhead consoles) Type A shown
OTHER KEY FEATURES

SEDONA FEATURES & FUNCTIONS GUIDE40*IF EQUIPPED
FRONTREARFRONTREARFRONTREARFRONTREAR
REAR
REAR
FRONTREARFRONTREARFRONTREARFRONTREAR
REAR
REAR
A
B
C
(Rear Sunroof control in the rear overhead console)
(Front overhead console for Front and Rear Sunroof controls)
Sunroof Operation*
The Sunroof and Sunshade operation is controlled through multi-
directional switches/levers A, B or C The ignition needs to be ON to
operate the Sunroof/Sunshade
To slide the Front/Rear Sunshade and Sunroof:
•Auto Open: Slide the levers A, B or C backward to the farthest
position and release
•Auto Close (Sunroof only): Slide the levers A, B or C forward to
the farthest position and release
REMINDER: The Front Sunroof will automatically open all the way The Rear Sunroof will only partially open To open all the way, slide the Rear Sunroof lever again
Tilt the Front Sunroof:
•Raise: Push lever A upward
•Lower: Push lever A forward
•Auto Close Sunroof and Sunshade: Slide the Front Sunroof lever A
forward to the farthest position
REMINDERS:
•
When the Power Window Lock is depressed, the Rear Sunroof controls cannot operate the Rear Sunroof
•
Sunshade needs to remain OPEN while Sunroof is open and vehicle is moving
•
Do not adjust the Sunroof or Sunshade while driving This could result in loss of control of the vehicle
To stop the Sunroof/Sunshade at any position, push or pull the Sunroof control lever in any direction
QUICK TIP
Sunroof Operation Video
To view a video on your mobile device, snap this QR Code or visit the listed website
Refer to page 2 for more information
QR CODE
www.youtube.com/KiaFeatureVideos
OTHER KEY FEATURES

41ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS *IF EQUIPPED †LEGAL DISCL AIMERS ON BACK INSIDE COVER
G
(Button located on inside edge of liftgate)
FRONT
REARFRONTREARFRONTREARFRONT
REAR
REAR
REAR
DE
(Buttons located on overhead console)
Opening from Outside the Vehicle:
To open Power Liftgate* automatically, press the
Liftgate Release button F on exterior of the Liftgate
Automatically close by pressing Power Liftgate
Close button* G
Power Liftgate Height Adjustment:
For your convenience, the liftgate opening height
is adjustable To program the opening height,
perform the following:
1 Open liftgate and manually position liftgate to
your preferred opening height
2 Depress and hold the close button on the liftgate
for 3 seconds or more
3 The system will beep 3 times when the programming is complete

Power Liftgate / Smart Power Liftgate*†21
Opening from Inside the Vehicle:
Press the Power Liftgate Open/Close button* D to automatically open/
close the Liftgate Depress the POWER DOOR OFF button* E to disable
REMINDER: If POWER DOOR OFF button is pressed, the Power Liftgate button on the Smart Key will be disabled
FRONT
REAR
FRONT
REARFRONTREARFRONTREAR
REAR
REAR
A
B
D
A
(Buttons located in overhead controls)
(Buttons located on center pillars)
Power Sliding Doors*
Press the left /right Power Sliding Door button A on the
overhead controls, on the Center Pillars B or on the key fob
C to automatically open/close the sliding doors
REMINDER: If the POWER DOOR OFF button is depressed, the Smart Power Liftgate* will not operate
Power Door OFF Button - When button D is ON (not depressed),
the power sliding door and power liftgate can be controlled with
the buttons on the center pillar trim B or liftgate Also, the doors
will open/close automatically when pulling the handles from the
inside or outside
For more information on the Power Sliding Doors operation, please refer to the Owner's Manual.
CC
(Type B shown)
F
OTHER KEY FEATURES

SEDONA FEATURES & FUNCTIONS GUIDE*IF EQUIPPED 42

Power Liftgate / Smart Power Liftgate* (continued)
HOLDHOLD
HOLDH
I
To view a video on your mobile device, snap this QR Code or visit the listed website
Refer to page 2 for more information
Smart Power Liftgate Video
Power Liftgate Opening Height Adjustment Video
QR CODE
www.youtube.com/KiaFeatureVideos
• During the Smart Power Liftgate alert, the Smart Power Liftgate can be deactivated with the Smart Key by pressing any button on the key fob
• The open height can be adjusted For information on how to set open height, see page 41 or your Owner’s Manual
QUICK TIP
REMINDERS:
•All doors are closed and locked after about 15 seconds
•If the POWER DOOR OFF button is depressed, the Smart Power Liftgate will not operate
•
The Smart Power Liftgate feature will not operate when the doors are recently closed and locked, and the Smart Key is still detected after 15 seconds near the vehicle or within 60 inches of the door handles, a door is not locked or closed or the Smart Key is in the vehicle
•
Press any button on the Smart Key fob during the Detect and Alert stage to deactivate the Smart Power Liftgate function
•Ensure obstacles and people are out of the way of the Liftgate
Smart Key:
To open the Power Liftgate*, press and hold the Smart key Liftgate button
H until the Liftgate begins opening Press again to close
REMINDER: Pulling the Liftgate upward by the handle or pressing the button a second time will interrupt the automatic opening of the Power Liftgate
Smart Power Liftgate*
When the Smart Key fob is on your person and you are near the back of
the vehicle, within close proximity, the hazard lights will blink and a chime
will sound for about 3 seconds as an alert that the Smart Liftgate* is about
to open
Then the alert system will blink and chime two additional times before
opening the Smart Power Liftgate* I
The Smart Power Liftgate* feature is OFF by default To enable the Smart
Power Liftgate*, go to User Settings in the LCD Instrument Cluster modes
For more information on the Smart Power Liftgate operation, please refer to the Owner's Manual.
OTHER KEY FEATURES

43ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS *IF EQUIPPED †LEGAL DISCL AIMERS ON BACK INSIDE COVER
(Navigation screen display shown)
P
R
N
DSHIFTL OCK
RELEASE
Parking Distance Warning–Forward*
and Reverse*†6
The Parking Distance Warning–Forward* and Reverse* is a supplemental
system that is designed to assist the driver by chiming if any object is
detected within the sensing area to the front, rear and side of the vehicle
when moving forward or backing up
To activate, press button D (LED
illuminated) The system is also activated
when the ignition is ON and the gear shift
is moved into R (Reverse) To deactivate the
system, press the Parking Distance Warning
–Forward* and Reverse* button D (LED not
illuminated)
REMINDERS:
•
If the vehicle is moving at speeds over 3 mph, the system may not activate correctly
•
When more than two objects are sensed at the same time, the closest one will be recognized first
The Parking Distance Warning– Forward* and Reverse* is not a substitute for proper and safe backing-up procedures. Always drive safely and use caution when backing up. The Parking Distance Warning– Forward* and Reverse* may not detect every object in front of or behind the vehicle.
P
R
N D
ECO
+ _
(Button located below Gear shift)
D
Rear View Monitor†6
The Rear View Monitor system is a supplemental system that displays the
view behind the vehicle through the audio control head unit screens while
the vehicle is in Reverse
The Rear View Monitor activates when the:
•Ignition or the Engine Start /Stop button* is in the ON position
(Green Light)
•Gear Shift Lever is in the R (Reverse) position
REMINDERS:
•The Rear View Monitor is ON by default when ignition is cycled
•
The screen image above is for illustration purposes only The actual image or graphics may differ in your vehicle
•Always drive carefully and use caution when backing up

The Rear View Monitor is not a substitute for proper and safe backing-up procedures. The Rear View Monitor with Parking Guidance* may not display every object behind the vehicle. Always drive safely and use caution when backing up.
OTHER KEY FEATURES

SEDONA FEATURES & FUNCTIONS GUIDE44*IF EQUIPPED
OTHER KEY FEATURES
One-Click Fuel Cap Video To view a video on your mobile device, snap this QR Code or visit the listed website
Refer to page 2 for more information
QR CODE
www.youtube.com/KiaFeatureVideos
(Lever located near floor below Driver's Panel) (Secondary latch located inside lip of Hood)
A
B
(Located on the front edge of the rear passenger doors)
Closing the Hood:
Lower the Hood by pressing the front center of the Hood Then, press
down to securely lock in place
REMINDERS:
• While lowering and closing, keep hands away from under the Hood
• Open the Hood only after turning the engine off, on a flat surface, with the gear shift in P (Park) position and setting the parking brake
Hood Release Lever and Latch
Opening the Hood:
1 Pull the Hood Release Lever A to unlatch the Hood
2 In the front of the vehicle, lift the Hood slightly, push the secondary
Latch B to the left inside of the Hood’s center and lift the Hood
3 Pull out the support rod from the Hood and set into place to hold
the Hood open
REMINDER: Open the Hood only after turning the engine off, on a flat surface, with the gear shift in P (Park) position and setting the parking brake
Fuel Cap / Malfunction
Indicator (Check Engine Light)
Tighten for ONE CLICK to prevent
Malfunction Indicator from illuminating
REMINDERS:
• The Fuel Filler Door Release button is located on the driver’s button panel, left of the Steering Wheel
• It is normal operation when tightening to hear one click and then when Fuel Cap is released, it clicks back
Child-Protector Rear
Door Lock
Located on the front edge of the rear
passenger doors, move the Child-
protector rear door lock to the lock
position to disable the inner door
handles from opening the rear
passenger doors

45ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS *IF EQUIPPED †LEGAL DISCL AIMERS ON BACK INSIDE COVER
OTHER KEY FEATURES
Driver Attention Warning (DAW)*†6
The DAW System displays the possible condition of the driver’s fatigue level and inattentive driving practices
The DAW System is set to OFF by default To turn the DAW System ON, turn the ignition on and then select User
Settings in the LCD Display on the Instrument Cluster Then go to Driving Assist and select Driver Attention Warning
Set the DAW System to Normal or Early
Driver Attention Warning (DAW) System modes:
OFF: The Driver Attention Warning system is deactivated A
Normal: The Driver Attention Warning system alerts the driver of his/her fatigue level or inattentive driving practices
Early: The Driver Attention Warning system alerts the driver of his/her fatigue level or inattentive driving practices
faster than Normal mode
If the DAW System is activated, the DAW information will appear on the LCD Display B when you select the ASSIST
mode
A message, “Consider taking a break,” appears on the LCD display and a warning sounds to suggest the driver to take
a break when the driver’s attention level is below 1 C
REMINDERS:
•The setup of the DAW System will be maintained, as selected, when the ignition is cycled
•
When activated, the DAW System does not display “Consider taking a break” message when the total trip driving time is less than 10 minutes
•
The DAW System will enter a standby mode if the camera does not detect the lanes and/or the driving speed remains under 40 mph
Attention Alert
System Off
Level Time ——:——Attention Level
LOW HIGH
Level Time 05:27 Attention Level
LOW
HIGH
Level Time 05:27
Consider taking a break
22.4
°C4025km
Attention Alert System Off
Level Time ——:——Attention Level
LOW HIGH
Level Time 05:27
Attention Level
LOWHIGH
Level Time 05:27
Consider taking a break
22.4
°C4025km
Attention Alert System Off
Level Time ——:—— Attention Level
LOW
HIGH
Level Time 05:27
Attention Level
LOWHIGH
Level Time 05:27
Consider taking a break
22.4 °C4025km
BCA

SEDONA FEATURES & FUNCTIONS GUIDE46*IF EQUIPPED †LEGAL DISCL AIMERS ON BACK INSIDE COVER
ABCDEFG
HomeLink® with Auto-Dimming
Rearview Mirror*†12
A HomeLink® button
B HomeLink® button
C Indicator light
D HomeLink® button
E Glare detection sensor
F Automatic dimming ON
G Automatic dimming OFF
The HomeLink® with Auto-Dimming Rearview Mirror* is
designed to reduce glare from a vehicle’s headlights located
in the rear and also to connect up to three electronic
transmitters into one location
•
To turn automatic dimming ON, press button F
•
To turn automatic dimming OFF, press button G
REMINDER: Mirror indicator light C will illuminate when automatic dimming is ON
•
•You can reprogram a single HomeLink® button by repeating Step 2 •Erasing programmed buttons will delete all trained transmitters
QUICK TIPS
How to Sync Transmitter with HomeLink®*
If programming for the first time, begin with Step 1
(repeating this step will delete all information)
To program non-rolling and rolling code garage door
openers and other devices:
1 Press and hold the left A and center D buttons
simultaneously until the indicator light C begins to
flash (to reprogram buttons, skip this step)
2 Press and hold the desired button A, B or D
and hold the button on the transmitter while it is
approximately 1 to 3 inches away from the mirror The
HomeLink® Indicator light C will flash rapidly once the
frequency signal has been successfully programmed
To finish programming rolling code garage door openers,
complete these steps:
3 Locate the “learn” or “smart” button on the garage
door’s motor head unit Press and release the button
and complete Step 4 within 30 seconds
4 Firmly press and release the programmed HomeLink®
button up to three times
Operating HomeLink®:
Press one of the programmed HomeLink® buttons
Erasing programmed buttons:
Press and hold the left A and center D buttons simultaneously for approximately
20 seconds, and then release both buttons within 30 seconds
If your garage door opener was manufactured in 2011 or later, and you’re unable to program your vehicle’s HomeLink® system, you may need to purchase a HomeLink® Repeater Kit. For more information, go to www.HomeLink.com or call (800) 355-3515.
HomeLink Video To view a video on your mobile device, snap this QR Code or visit the listed website
Refer to page 2 for more information
QR CODE
www.youtube.com/KiaFeatureVideos
OTHER KEY FEATURES

47ALWAYS CHECK THE OWNER’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS *IF EQUIPPED †LEGAL DISCL AIMERS ON BACK INSIDE COVER
PRESS
A
B
D
C
(Type B shown)
SAFETY FEATURES
The seat belt warning chime operates for driver’s seat only
QUICK TIP
Seat Belt Retractor Locks†1 8
Retractor locks allow lap/shoulder seat belts to remain unlocked during
normal vehicle operation for freedom of movement and increased comfort
During a STRONG STOP, SUDDEN TURN OR CERTAIN COLLISIONS, seat
belt retractors will automatically lock the belts to reduce the risk of injury
Occupant Detection System (ODS)†15 / Passenger
Airbag Off Indicator†2
ODS is designed to detect the presence and position of the front passenger
and adjusts or turns off airbag deployment accordingly
Depending on the situation and type of accident, the system may:
•Deploy airbag (Adult)
•Not deploy the airbag (Unoccupied)
If the system determines that the airbag
should not be deployed, the “PASSENGER
AIRBAG OFF” light will illuminate
Seat Belts†1 8
To properly fasten your seat belts:
1
Insert the belt tongue plate A into the buckle B until it clicks
2
Position the lap portion of the belt across your lap as LOW ON THE
HIPS as possible C Adjust the belt to a SNUG FIT by pulling up on the
shoulder portion D
REMINDERS:
•
For maximum protection, always wear your seat belt
•
Do not allow an adult passenger to ride in the front seat when the Passenger Airbag Indicator is illuminated OFF because the airbag will not deploy in the event of a crash The driver must instruct the passenger to reposition her/himself in the seat

SEDONA FEATURES & FUNCTIONS GUIDE48

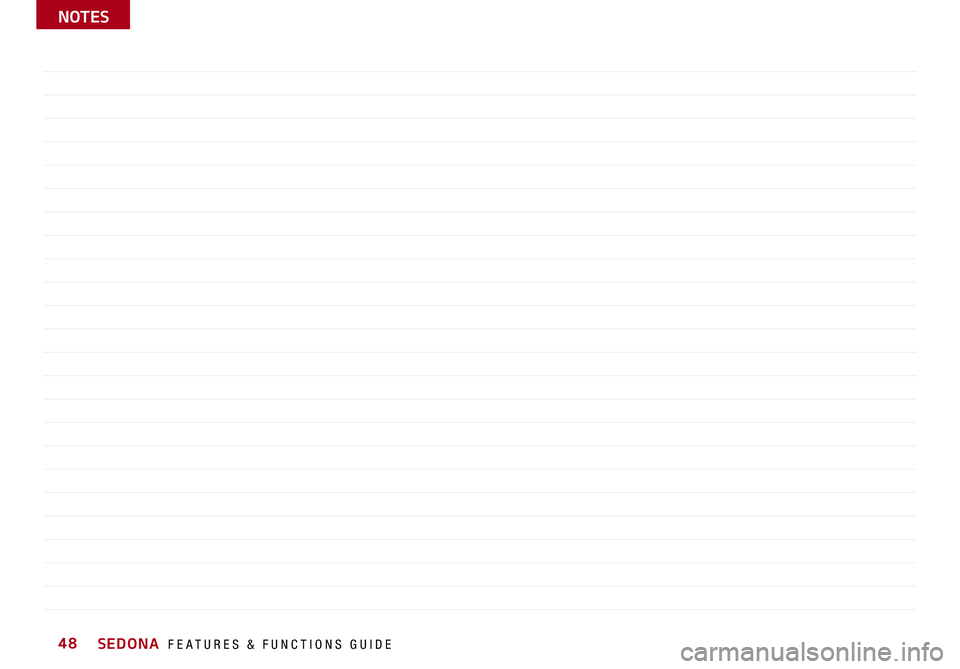

NOTES
