POWER STEERINGPower steering uses energy from the
engine to assist you in steering the
vehicle. If the engine is off or if the
power steering system becomes
inoperative, the vehicle may still be
steered, but it will require increased
steering effort.
Should you notice any change in the
effort required to steer during normal
vehicle operation, have the power
steering system checked by an
authorized Kia dealer.
DRIVING YOUR VEHICLE
4-37
✽ ✽
NOTICEIf the vehicle is parked for extended
periods outside in cold weather
(below-10°C (14°F)), the power
steering may require increased
effort when the engine is first start-
ed. This is caused by increased fluid
viscosity due to the cold weather
and does not indicate a malfunc-
tion.
When this happens, increase the
engine RPM to 1500rpm then
release or let the engine idle for two
or three minutes to warm up the
fluid.
✽ ✽
NOTICE Never hold the steering wheel
against a stop (extreme right or
left turn) for more than five sec-
onds with the engine running.
Holding the steering wheel for
more than five seconds in either
position may cause damage to the
power steering pump.
 If the power steering drive belt
breaks or if the power steering
pump malfunctions, the steering
effort will greatly increase.
BL-ENG (CAN)-4.qxd 7/28/05 5:55 PM Page 37

DRIVING YOUR VEHICLE
4-41
ABS
CHECK
4WD
LOW
H
C
F
E
BRAKE
0 1 234567
8
0
0 10 203040506070
80
90
100
110
120
130
20406080100120
140
160
180
200
220
1000rpm
CRUISE
km/hMPH
IMMO
1. Tachometer
2. Turn signal indicators
3. Speedometer
4. Engine temperature gauge
5. Warning and indicator lights
6. Tripmeter / Odometer
7. Trip meter reset button
8. Fuel gauge
1
2
3
2
4
5
6
7
8
5
5BLD401

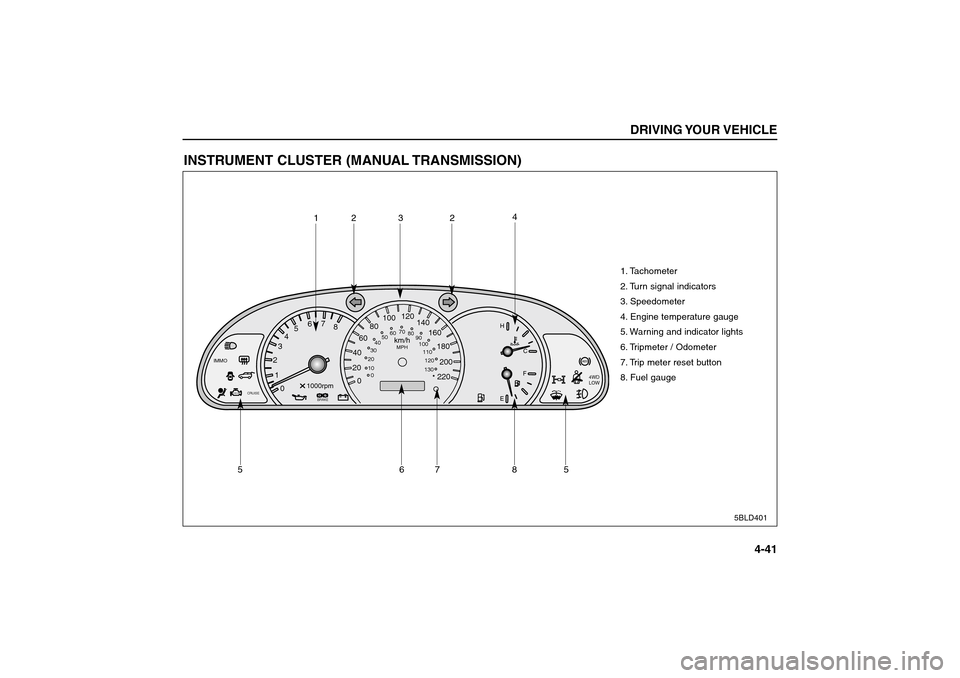

INSTRUMENT CLUSTER (MANUAL TRANSMISSION)
BL-ENG (CAN)-4.qxd 7/28/05 5:55 PM Page 41

DRIVING YOUR VEHICLE4-42
ABS
CHECK
O/D
OFF4WD
LOW
PN R
D
2
L
H
C
F
E
BRAKE
0 1 234567
8
0
0 10 203040506070
80
90
100
110
120
130
20406080100120
140
160
180
200
220
1000rpm
CRUISE
km/hMPH
IMMO
1. Tachometer
2. Turn signal indicators
3. Speedometer
4. Engine temperature gauge
5. Warning and indicator lights
6. Tripmeter / Odometer
7. Trip meter reset button
8. Shift position indicator
9. Fuel gauge
1
2
3
2
4
5BLD402/5BLD403

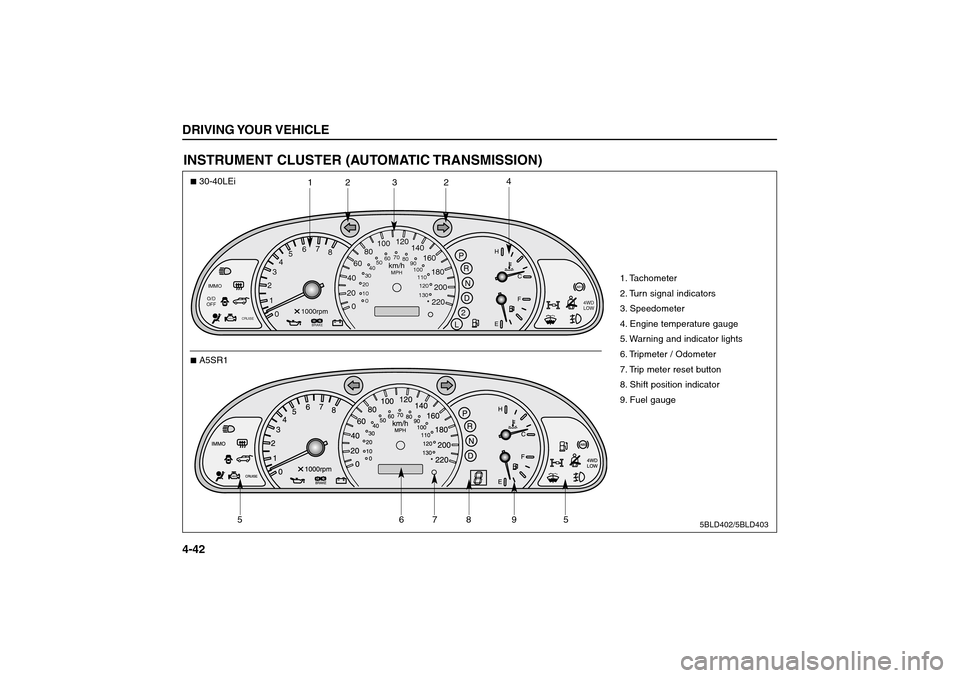

INSTRUMENT CLUSTER (AUTOMATIC TRANSMISSION)
5
6
7
9
8
5
30-40LEiA5SR1
BL-ENG (CAN)-4.qxd 7/28/05 5:55 PM Page 42

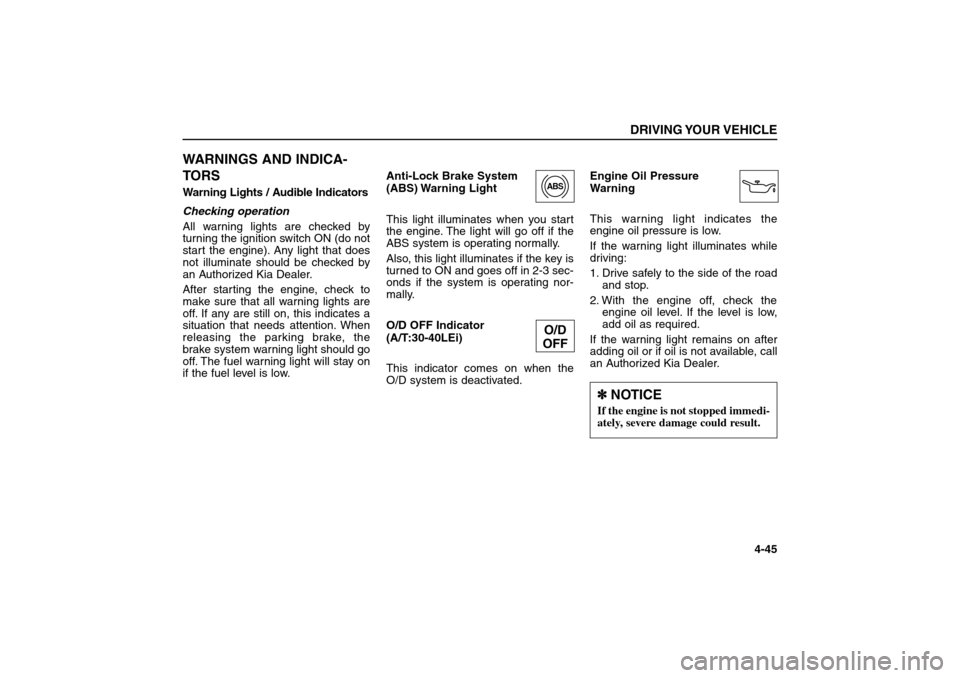

WARNINGS AND INDICA-
TORSWarning Lights / Audible Indicators
Checking operation
All warning lights are checked by
turning the ignition switch ON (do not
start the engine). Any light that does
not illuminate should be checked by
an Authorized Kia Dealer.
After starting the engine, check to
make sure that all warning lights are
off. If any are still on, this indicates a
situation that needs attention. When
releasing the parking brake, the
brake system warning light should go
off. The fuel warning light will stay on
if the fuel level is low.Anti-Lock Brake System
(ABS) Warning Light
This light illuminates when you start
the engine. The light will go off if the
ABS system is operating normally.
Also, this light illuminates if the key is
turned to ON and goes off in 2-3 sec-
onds if the system is operating nor-
mally.
O/D OFF Indicator
(A/T:30-40LEi)
This indicator comes on when the
O/D system is deactivated.Engine Oil Pressure
Warning
This warning light indicates the
engine oil pressure is low.
If the warning light illuminates while
driving:
1. Drive safely to the side of the road
and stop.
2. With the engine off, check the
engine oil level. If the level is low,
add oil as required.
If the warning light remains on after
adding oil or if oil is not available, call
an Authorized Kia Dealer.
DRIVING YOUR VEHICLE
4-45
ABSO/D
OFF
✽ ✽
NOTICEIf the engine is not stopped immedi-
ately, severe damage could result.
BL-ENG (CAN)-4.qxd 7/28/05 5:55 PM Page 45

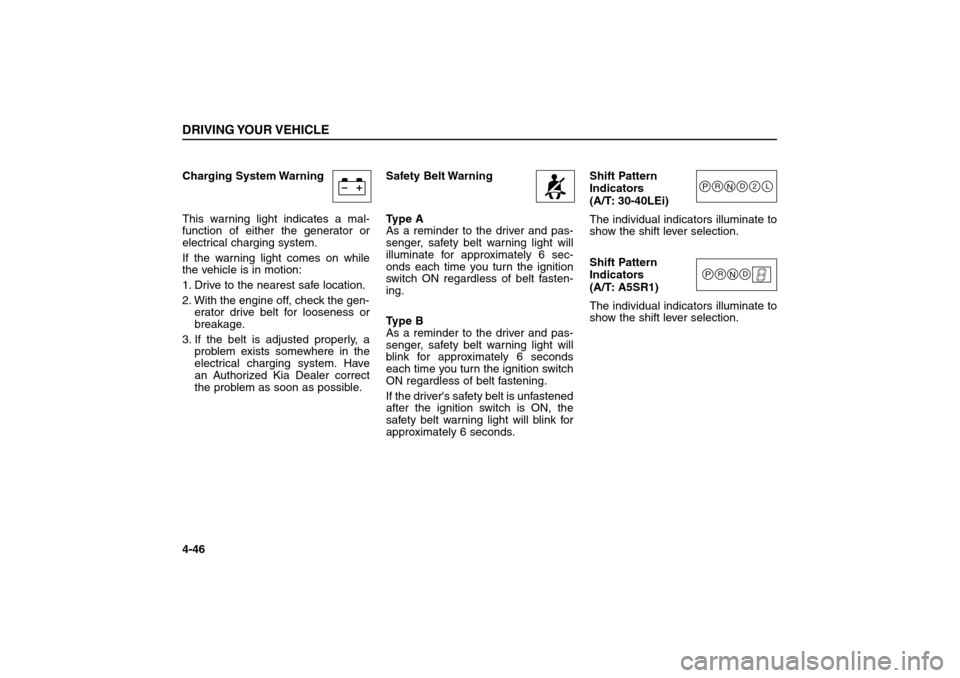

Charging System Warning
This warning light indicates a mal-
function of either the generator or
electrical charging system.
If the warning light comes on while
the vehicle is in motion:
1. Drive to the nearest safe location.
2. With the engine off, check the gen-
erator drive belt for looseness or
breakage.
3. If the belt is adjusted properly, a
problem exists somewhere in the
electrical charging system. Have
an Authorized Kia Dealer correct
the problem as soon as possible.Safety Belt Warning
Type A
As a reminder to the driver and pas-
senger, safety belt warning light will
illuminate for approximately 6 sec-
onds each time you turn the ignition
switch ON regardless of belt fasten-
ing.
Type B
As a reminder to the driver and pas-
senger, safety belt warning light will
blink for approximately 6 seconds
each time you turn the ignition switch
ON regardless of belt fastening.
If the driver's safety belt is unfastened
after the ignition switch is ON, the
safety belt warning light will blink for
approximately 6 seconds.Shift Pattern
Indicators
(A/T: 30-40LEi)
The individual indicators illuminate to
show the shift lever selection.
Shift Pattern
Indicators
(A/T: A5SR1)
The individual indicators illuminate to
show the shift lever selection.DRIVING YOUR VEHICLE4-46
P
R
N
D2
L
P
R
N
D
BL-ENG (CAN)-4.qxd 7/28/05 5:55 PM Page 46

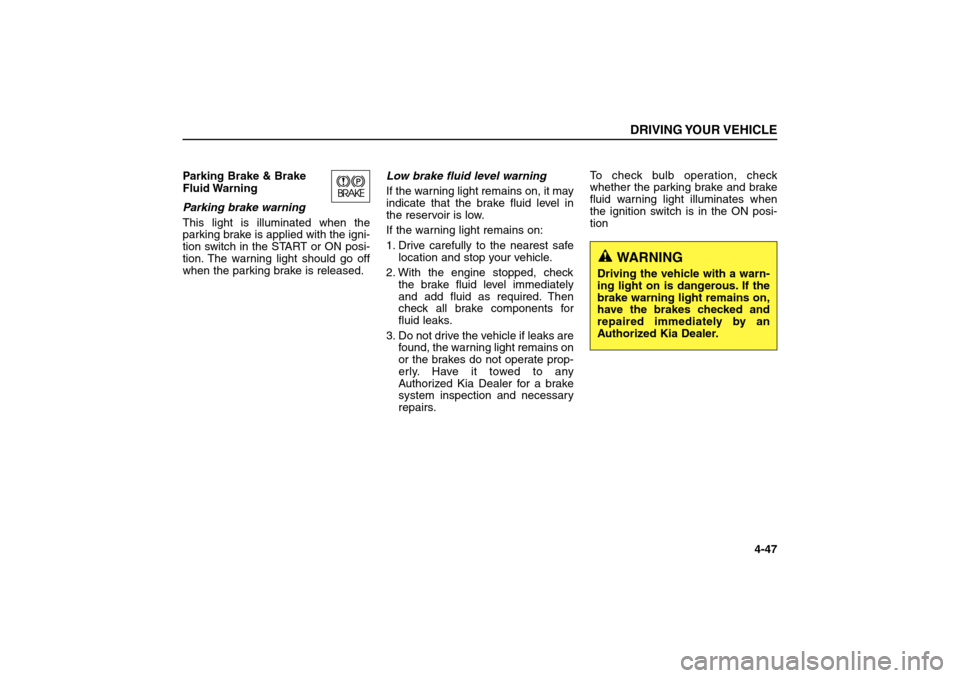

Parking Brake & Brake
Fluid Warning
Parking brake warning
This light is illuminated when the
parking brake is applied with the igni-
tion switch in the START or ON posi-
tion. The warning light should go off
when the parking brake is released.Low brake fluid level warning
If the warning light remains on, it may
indicate that the brake fluid level in
the reservoir is low.
If the warning light remains on:
1. Drive carefully to the nearest safe
location and stop your vehicle.
2. With the engine stopped, check
the brake fluid level immediately
and add fluid as required. Then
check all brake components for
fluid leaks.
3. Do not drive the vehicle if leaks are
found, the warning light remains on
or the brakes do not operate prop-
erly. Have it towed to any
Authorized Kia Dealer for a brake
system inspection and necessary
repairs.To check bulb operation, check
whether the parking brake and brake
fluid warning light illuminates when
the ignition switch is in the ON posi-
tion
DRIVING YOUR VEHICLE
4-47
WARNING
Driving the vehicle with a warn-
ing light on is dangerous. If the
brake warning light remains on,
have the brakes checked and
repaired immediately by an
Authorized Kia Dealer.
BL-ENG (CAN)-4.qxd 7/28/05 5:55 PM Page 47

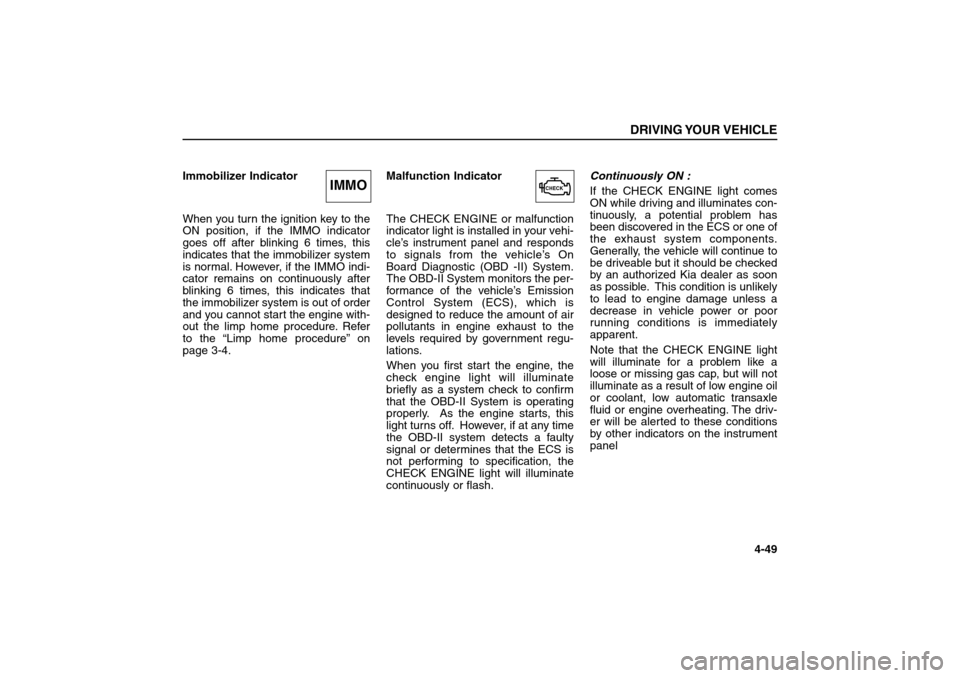

Immobilizer Indicator
When you turn the ignition key to the
ON position, if the IMMO indicator
goes off after blinking 6 times, this
indicates that the immobilizer system
is normal. However, if the IMMO indi-
cator remains on continuously after
blinking 6 times, this indicates that
the immobilizer system is out of order
and you cannot start the engine with-
out the limp home procedure. Refer
to the “Limp home procedure”on
page 3-4.Malfunction Indicator
The CHECK ENGINE or malfunction
indicator light is installed in your vehi-
cle’s instrument panel and responds
to signals from the vehicle’s On
Board Diagnostic (OBD -II) System.
The OBD-II System monitors the per-
formance of the vehicle’s Emission
Control System (ECS), which is
designed to reduce the amount of air
pollutants in engine exhaust to the
levels required by government regu-
lations.
When you first start the engine, the
check engine light will illuminate
briefly as a system check to confirm
that the OBD-II System is operating
properly. As the engine starts, this
light turns off. However, if at any time
the OBD-II system detects a faulty
signal or determines that the ECS is
not performing to specification, the
CHECK ENGINE light will illuminate
continuously or flash.Continuously ON :
If the CHECK ENGINE light comes
ON while driving and illuminates con-
tinuously, a potential problem has
been discovered in the ECS or one of
the exhaust system components.
Generally, the vehicle will continue to
be driveable but it should be checked
by an authorized Kia dealer as soon
as possible. This condition is unlikely
to lead to engine damage unless a
decrease in vehicle power or poor
running conditions is immediately
apparent.
Note that the CHECK ENGINE light
will illuminate for a problem like a
loose or missing gas cap, but will not
illuminate as a result of low engine oil
or coolant, low automatic transaxle
fluid or engine overheating. The driv-
er will be alerted to these conditions
by other indicators on the instrument
panel
DRIVING YOUR VEHICLE
4-49
CHECK
IMMO
BL-ENG (CAN)-4.qxd 7/28/05 5:55 PM Page 49

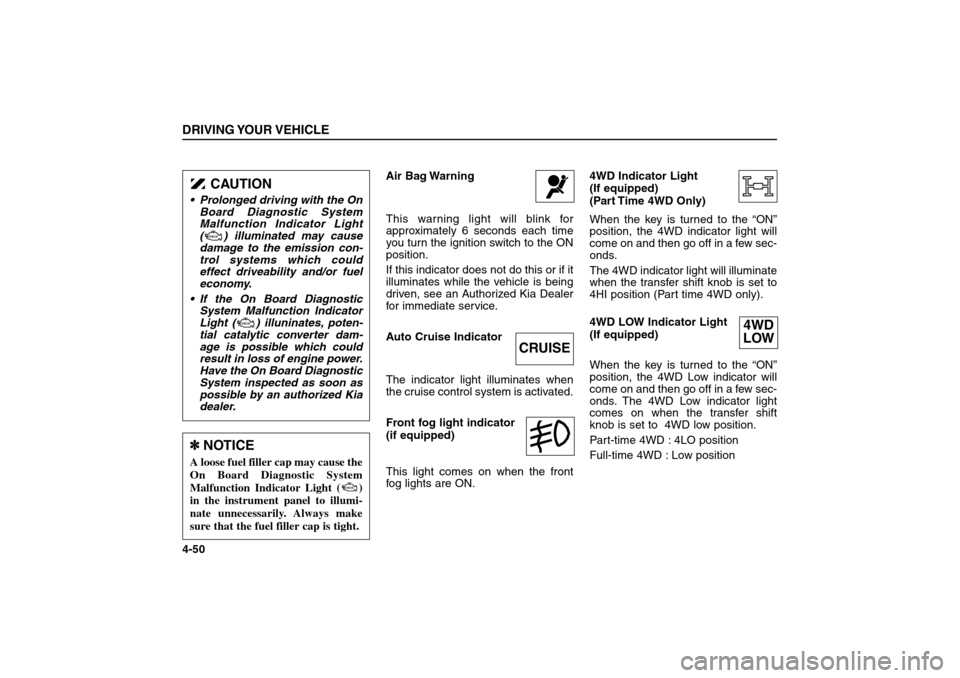

Air Bag Warning
This warning light will blink for
approximately 6 seconds each time
you turn the ignition switch to the ON
position.
If this indicator does not do this or if it
illuminates while the vehicle is being
driven, see an Authorized Kia Dealer
for immediate service.
Auto Cruise Indicator
The indicator light illuminates when
the cruise control system is activated.
Front fog light indicator
(if equipped)
This light comes on when the front
fog lights are ON.4WD Indicator Light
(If equipped)
(Part Time 4WD Only)
When the key is turned to the “ON”
position, the 4WD indicator light will
come on and then go off in a few sec-
onds.
The 4WD indicator light will illuminate
when the transfer shift knob is set to
4HI position (Part time 4WD only).
4WD LOW Indicator Light
(If equipped)
When the key is turned to the “ON”
position, the 4WD Low indicator will
come on and then go off in a few sec-
onds. The 4WD Low indicator light
comes on when the transfer shift
knob is set to 4WD low position.
Part-time 4WD : 4LO position
Full-time 4WD : Low position
DRIVING YOUR VEHICLE4-50
CRUISE
4WD
LOW
CAUTION
 Prolonged driving with the On
Board Diagnostic System
Malfunction Indicator Light
( ) illuminated may cause
damage to the emission con-
trol systems which could
effect driveability and/or fuel
economy.
 If the On Board Diagnostic
System Malfunction Indicator
Light ( ) illuninates, poten-
tial catalytic converter dam-
age is possible which could
result in loss of engine power.
Have the On Board Diagnostic
System inspected as soon as
possible by an authorized Kia
dealer.
CHECK
CHECK
✽ ✽
NOTICEA loose fuel filler cap may cause the
On Board Diagnostic System
Malfunction Indicator Light ( )
in the instrument panel to illumi-
nate unnecessarily. Always make
sure that the fuel filler cap is tight.
CHECK
BL-ENG (CAN)-4.qxd 7/28/05 5:55 PM Page 50

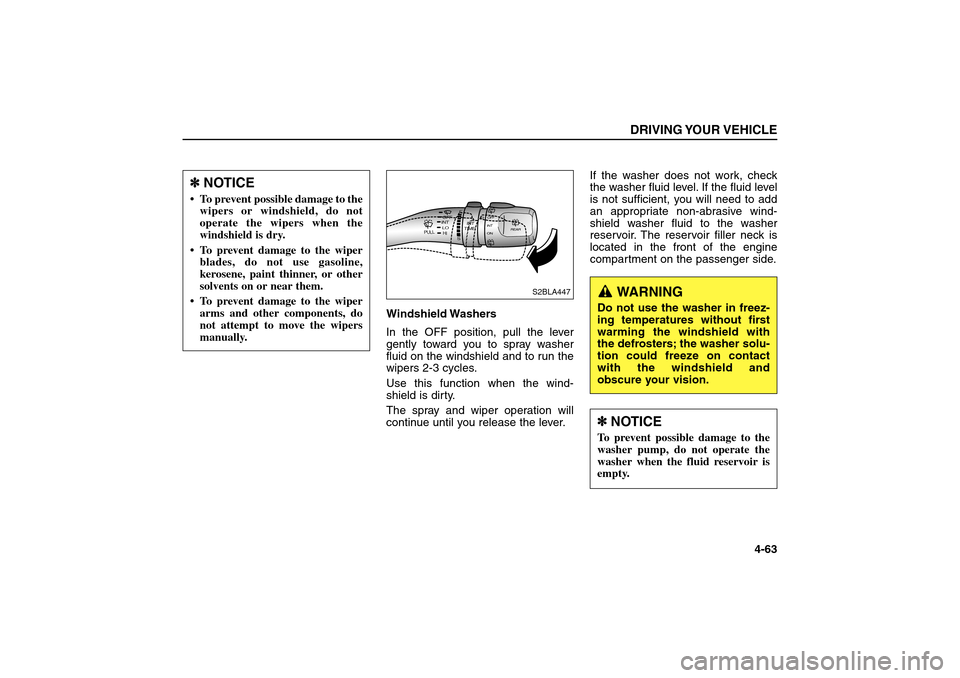

Windshield Washers
In the OFF position, pull the lever
gently toward you to spray washer
fluid on the windshield and to run the
wipers 2-3 cycles.
Use this function when the wind-
shield is dirty.
The spray and wiper operation will
continue until you release the lever.If the washer does not work, check
the washer fluid level. If the fluid level
is not sufficient, you will need to add
an appropriate non-abrasive wind-
shield washer fluid to the washer
reservoir. The reservoir filler neck is
located in the front of the engine
compartment on the passenger side.
DRIVING YOUR VEHICLE
4-63
HILO
O
N
INT
INT
OFF
OFF
FS
REAR
INT
TIME
PULL
S2BLA447
✽ ✽
NOTICE To prevent possible damage to the
wipers or windshield, do not
operate the wipers when the
windshield is dry.
 To prevent damage to the wiper
blades, do not use gasoline,
kerosene, paint thinner, or other
solvents on or near them.
 To prevent damage to the wiper
arms and other components, do
not attempt to move the wipers
manually.
WARNING
Do not use the washer in freez-
ing temperatures without first
warming the windshield with
the defrosters; the washer solu-
tion could freeze on contact
with the windshield and
obscure your vision.✽ ✽
NOTICETo prevent possible damage to the
washer pump, do not operate the
washer when the fluid reservoir is
empty.
BL-ENG (CAN)-4.qxd 7/28/05 5:55 PM Page 63

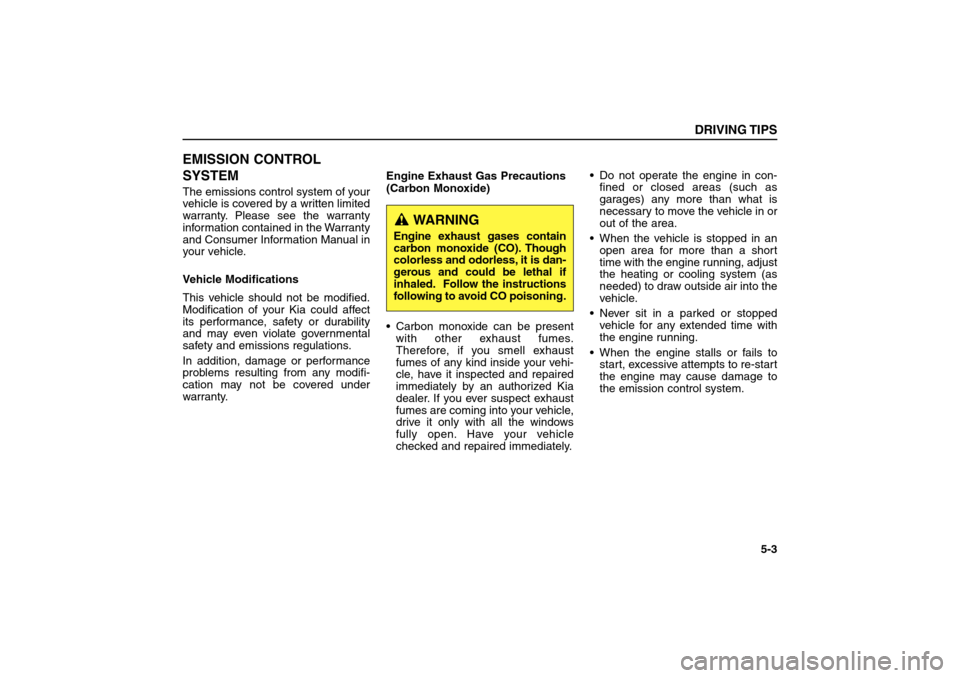

EMISSION CONTROL
SYSTEMThe emissions control system of your
vehicle is covered by a written limited
warranty. Please see the warranty
information contained in the Warranty
and Consumer Information Manual in
your vehicle.
Vehicle Modifications
This vehicle should not be modified.
Modification of your Kia could affect
its performance, safety or durability
and may even violate governmental
safety and emissions regulations.
In addition, damage or performance
problems resulting from any modifi-
cation may not be covered under
warranty.Engine Exhaust Gas Precautions
(Carbon Monoxide)
 Carbon monoxide can be present
with other exhaust fumes.
Therefore, if you smell exhaust
fumes of any kind inside your vehi-
cle, have it inspected and repaired
immediately by an authorized Kia
dealer. If you ever suspect exhaust
fumes are coming into your vehicle,
drive it only with all the windows
fully open. Have your vehicle
checked and repaired immediately. Do not operate the engine in con-
fined or closed areas (such as
garages) any more than what is
necessary to move the vehicle in or
out of the area.
 When the vehicle is stopped in an
open area for more than a short
time with the engine running, adjust
the heating or cooling system (as
needed) to draw outside air into the
vehicle.
 Never sit in a parked or stopped
vehicle for any extended time with
the engine running.
 When the engine stalls or fails to
start, excessive attempts to re-start
the engine may cause damage to
the emission control system.
DRIVING TIPS
5-3
WARNING
Engine exhaust gases contain
carbon monoxide (CO). Though
colorless and odorless, it is dan-
gerous and could be lethal if
inhaled. Follow the instructions
following to avoid CO poisoning.
BL-ENG (CAN)-5.qxd 7/28/05 5:56 PM Page 3
