KIA Sorento 2012 2.G Owner's Manual

431
Features of your vehicle

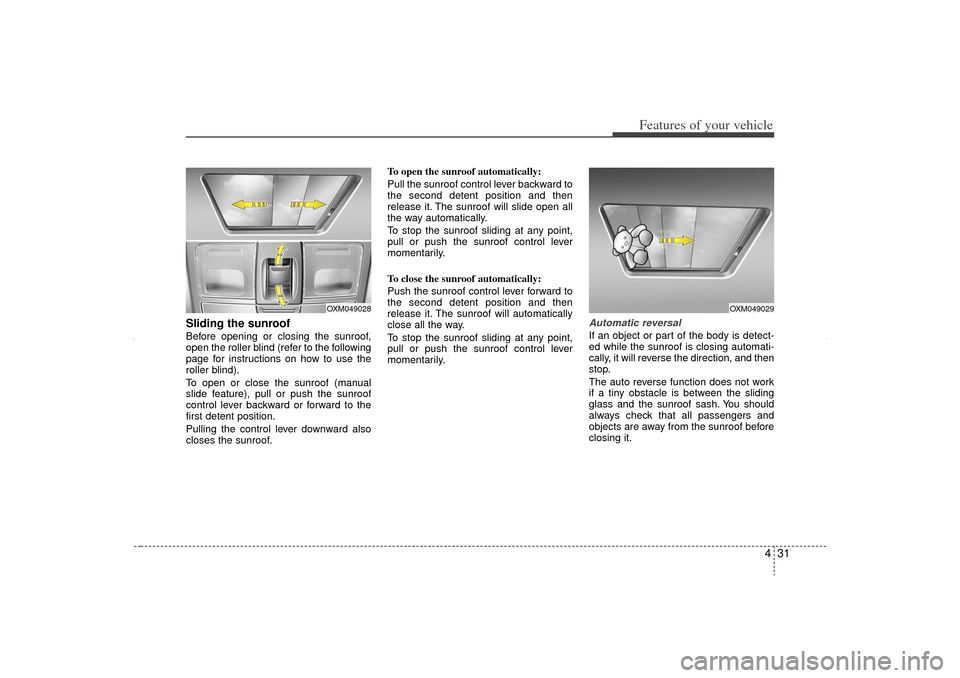

Sliding the sunroof Before opening or closing the sunroof,
open the roller blind (refer to the following
page for instructions on how to use the
roller blind).
To open or close the sunroof (manual
slide feature), pull or push the sunroof
control lever backward or forward to the
first detent position.
Pulling the control lever downward also
closes the sunroof.To open the sunroof automatically:
Pull the sunroof control lever backward to
the second detent position and then
release it. The sunroof will slide open all
the way automatically.
To stop the sunroof sliding at any point,
pull or push the sunroof control lever
momentarily.
To close the sunroof automatically:
Push the sunroof control lever forward to
the second detent position and then
release it. The sunroof will automatically
close all the way.
To stop the sunroof sliding at any point,
pull or push the sunroof control lever
momentarily.
Automatic reversalIf an object or part of the body is detect-
ed while the sunroof is closing automati-
cally, it will reverse the direction, and then
stop.
The auto reverse function does not work
if a tiny obstacle is between the sliding
glass and the sunroof sash. You should
always check that all passengers and
objects are away from the sunroof before
closing it.
OXM049028
OXM049029
XM CAN (ENG) 4(~105).QXP 4/19/2011 10:37 AM Page 31

Features of your vehicle32

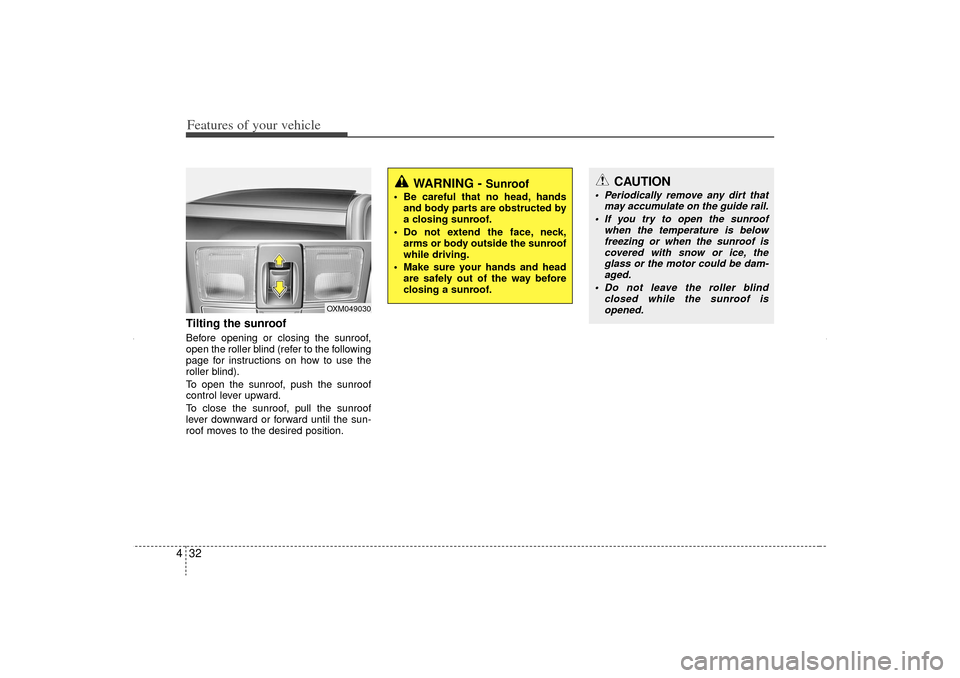

4Tilting the sunroof Before opening or closing the sunroof,
open the roller blind (refer to the following
page for instructions on how to use the
roller blind).
To open the sunroof, push the sunroof
control lever upward.
To close the sunroof, pull the sunroof
lever downward or forward until the sun-
roof moves to the desired position.
WARNING -
Sunroof
 Be careful that no head, hands
and body parts are obstructed by
a closing sunroof.
 Do not extend the face, neck, arms or body outside the sunroof
while driving.
 Make sure your hands and head are safely out of the way before
closing a sunroof.
CAUTION
 Periodically remove any dirt that may accumulate on the guide rail.
 If you try to open the sunroof when the temperature is belowfreezing or when the sunroof iscovered with snow or ice, theglass or the motor could be dam-aged.
 Do not leave the roller blind closed while the sunroof isopened.
OXM049030
XM CAN (ENG) 4(~105).QXP 4/19/2011 10:37 AM Page 32

433
Features of your vehicle

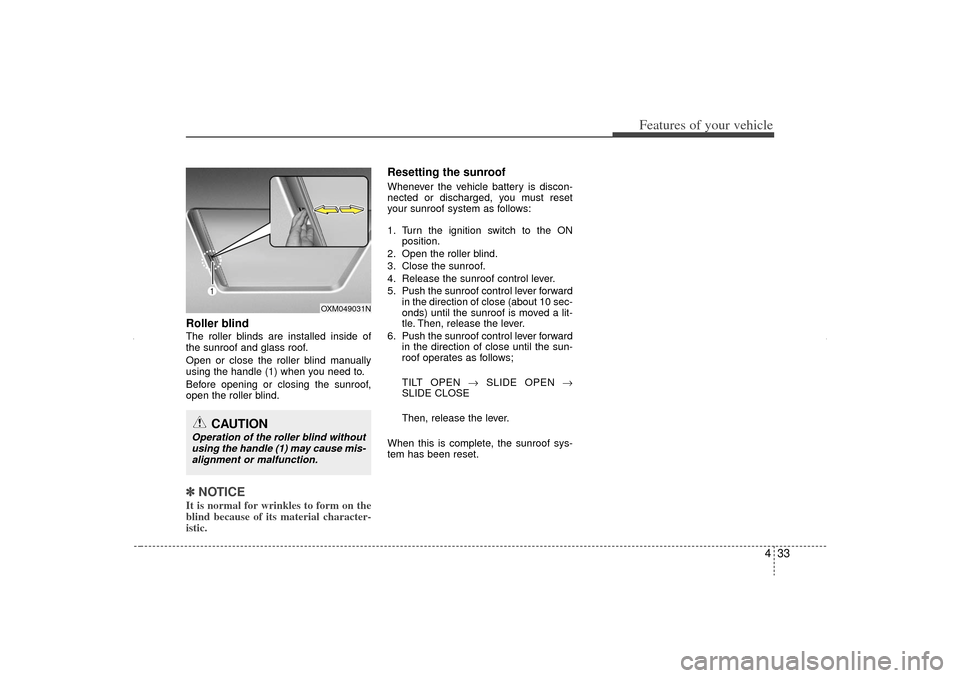

Roller blind The roller blinds are installed inside of
the sunroof and glass roof.
Open or close the roller blind manually
using the handle (1) when you need to.
Before opening or closing the sunroof,
open the roller blind.✽ ✽NOTICEIt is normal for wrinkles to form on the
blind because of its material character-
istic.
Resetting the sunroofWhenever the vehicle battery is discon-
nected or discharged, you must reset
your sunroof system as follows:
1. Turn the ignition switch to the ON
position.
2. Open the roller blind.
3. Close the sunroof.
4. Release the sunroof control lever.
5. Push the sunroof control lever forward in the direction of close (about 10 sec-
onds) until the sunroof is moved a lit-
tle. Then, release the lever.
6. Push the sunroof control lever forward in the direction of close until the sun-
roof operates as follows;
TILT OPEN → SLIDE OPEN →
SLIDE CLOSE
Then, release the lever.
When this is complete, the sunroof sys-
tem has been reset.
OXM049031N
CAUTION
Operation of the roller blind without using the handle (1) may cause mis-alignment or malfunction.
XM CAN (ENG) 4(~105).QXP 4/19/2011 10:37 AM Page 33

Features of your vehicle34

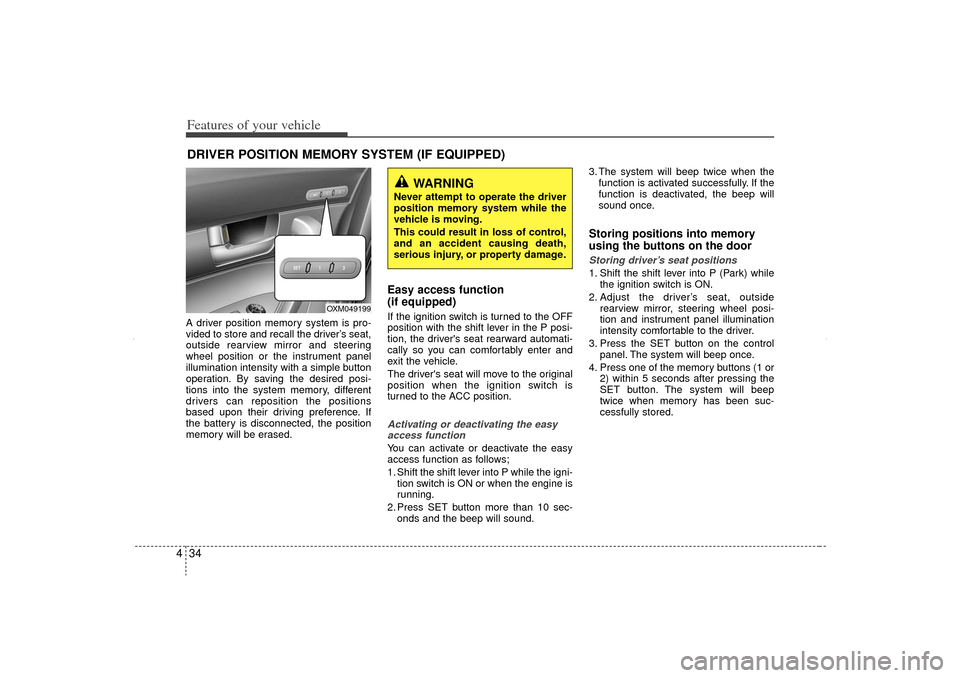

4A driver position memory system is pro-
vided to store and recall the driver’s seat,
outside rearview mirror and steering
wheel position or the instrument panel
illumination intensity with a simple button
operation. By saving the desired posi-
tions into the system memory, different
drivers can reposition the positions
based upon their driving preference. If
the battery is disconnected, the position
memory will be erased.
Easy access function
(if equipped)If the ignition switch is turned to the OFF
position with the shift lever in the P posi-
tion, the driver's seat rearward automati-
cally so you can comfortably enter and
exit the vehicle.
The driver's seat will move to the original
position when the ignition switch is
turned to the ACC position.Activating or deactivating the easy
access functionYou can activate or deactivate the easy
access function as follows;
1. Shift the shift lever into P while the igni- tion switch is ON or when the engine is
running.
2. Press SET button more than 10 sec- onds and the beep will sound. 3. The system will beep twice when the
function is activated successfully. If the
function is deactivated, the beep will
sound once.
Storing positions into memory
using the buttons on the doorStoring driver’s seat positions1. Shift the shift lever into P (Park) while the ignition switch is ON.
2. Adjust the driver’s seat, outside rearview mirror, steering wheel posi-
tion and instrument panel illumination
intensity comfortable to the driver.
3. Press the SET button on the control panel. The system will beep once.
4. Press one of the memory buttons (1 or 2) within 5 seconds after pressing the
SET button. The system will beep
twice when memory has been suc-
cessfully stored.
DRIVER POSITION MEMORY SYSTEM (IF EQUIPPED)
OXM049199
WARNING
Never attempt to operate the driver
position memory system while the
vehicle is moving.
This could result in loss of control,
and an accident causing death,
serious injury, or property damage.
XM CAN (ENG) 4(~105).QXP 4/19/2011 10:37 AM Page 34

435
Features of your vehicle

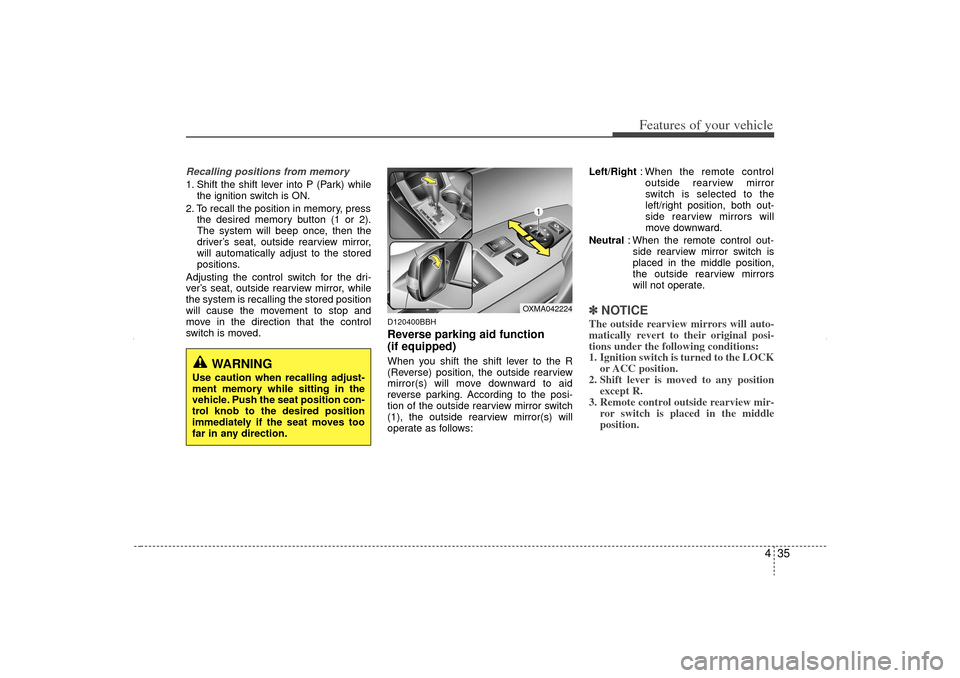

Recalling positions from memory1. Shift the shift lever into P (Park) whilethe ignition switch is ON.
2. To recall the position in memory, press the desired memory button (1 or 2).
The system will beep once, then the
driver’s seat, outside rearview mirror,
will automatically adjust to the stored
positions.
Adjusting the control switch for the dri-
ver’s seat, outside rearview mirror, while
the system is recalling the stored position
will cause the movement to stop and
move in the direction that the control
switch is moved.
D120400BBHReverse parking aid function
(if equipped)When you shift the shift lever to the R
(Reverse) position, the outside rearview
mirror(s) will move downward to aid
reverse parking. According to the posi-
tion of the outside rearview mirror switch
(1), the outside rearview mirror(s) will
operate as follows: Left/Right
: When the remote control
outside rearview mirror
switch is selected to the
left/right position, both out-
side rearview mirrors will
move downward.
Neutral : When the remote control out-
side rearview mirror switch is
placed in the middle position,
the outside rearview mirrors
will not operate.
✽ ✽ NOTICEThe outside rearview mirrors will auto-
matically revert to their original posi-
tions under the following conditions:
1. Ignition switch is turned to the LOCK
or ACC position.
2. Shift lever is moved to any position except R.
3. Remote control outside rearview mir- ror switch is placed in the middle
position.
WARNING
Use caution when recalling adjust-
ment memory while sitting in the
vehicle. Push the seat position con-
trol knob to the desired position
immediately if the seat moves too
far in any direction.
OXMA042224
XM CAN (ENG) 4(~105).QXP 4/19/2011 10:37 AM Page 35

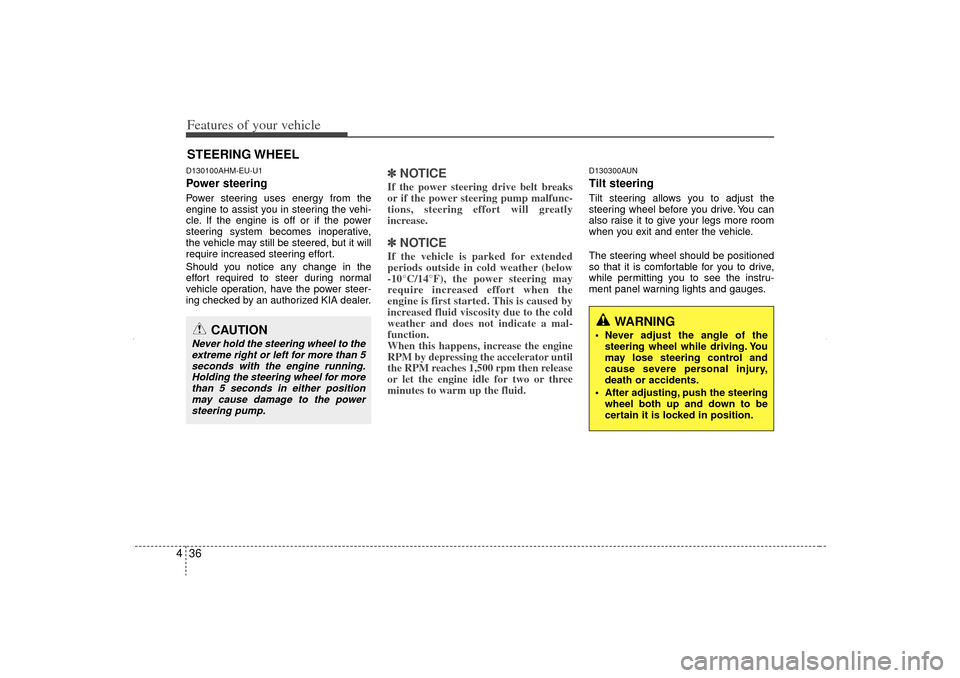

Features of your vehicle36
4D130100AHM-EU-U1Power steeringPower steering uses energy from the
engine to assist you in steering the vehi-
cle. If the engine is off or if the power
steering system becomes inoperative,
the vehicle may still be steered, but it will
require increased steering effort.
Should you notice any change in the
effort required to steer during normal
vehicle operation, have the power steer-
ing checked by an authorized KIA dealer.
✽ ✽
NOTICEIf the power steering drive belt breaks
or if the power steering pump malfunc-
tions, steering effort will greatly
increase.✽ ✽NOTICEIf the vehicle is parked for extended
periods outside in cold weather (below
-10°C/14°F), the power steering may
require increased effort when the
engine is first started. This is caused by
increased fluid viscosity due to the cold
weather and does not indicate a mal-
function.
When this happens, increase the engine
RPM by depressing the accelerator until
the RPM reaches 1,500 rpm then release
or let the engine idle for two or three
minutes to warm up the fluid.
D130300AUNTilt steering Tilt steering allows you to adjust the
steering wheel before you drive. You can
also raise it to give your legs more room
when you exit and enter the vehicle.
The steering wheel should be positioned
so that it is comfortable for you to drive,
while permitting you to see the instru-
ment panel warning lights and gauges.
STEERING WHEEL
CAUTION
Never hold the steering wheel to the
extreme right or left for more than 5 seconds with the engine running.Holding the steering wheel for morethan 5 seconds in either position may cause damage to the powersteering pump.
WARNING
 Never adjust the angle of the steering wheel while driving. You
may lose steering control and
cause severe personal injury,
death or accidents.
 After adjusting, push the steering wheel both up and down to be
certain it is locked in position.
XM CAN (ENG) 4(~105).QXP 4/19/2011 10:37 AM Page 36

437
Features of your vehicle

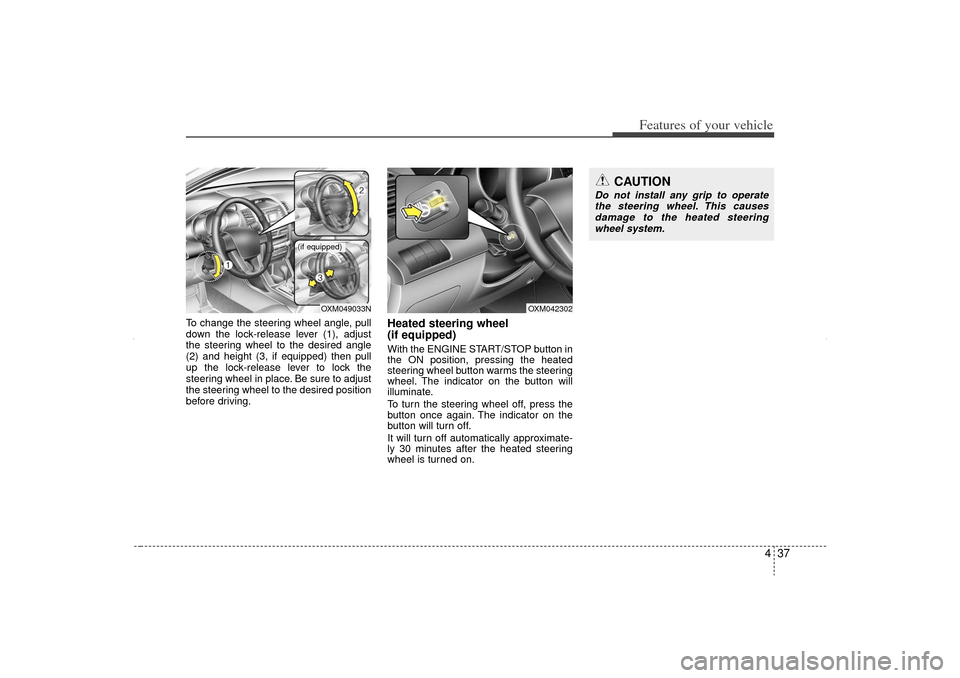

To change the steering wheel angle, pull
down the lock-release lever (1), adjust
the steering wheel to the desired angle
(2) and height (3, if equipped) then pull
up the lock-release lever to lock the
steering wheel in place. Be sure to adjust
the steering wheel to the desired position
before driving.
Heated steering wheel
(if equipped)With the ENGINE START/STOP button in
the ON position, pressing the heated
steering wheel button warms the steering
wheel. The indicator on the button will
illuminate.
To turn the steering wheel off, press the
button once again. The indicator on the
button will turn off.
It will turn off automatically approximate-
ly 30 minutes after the heated steering
wheel is turned on.
OXM049033N
(if equipped)
OXM042302
CAUTION
Do not install any grip to operatethe steering wheel. This causes damage to the heated steeringwheel system.
XM CAN (ENG) 4(~105).QXP 4/19/2011 10:37 AM Page 37

Features of your vehicle38
4D130500AUNHornTo sound the horn, press the horn sym-
bols on your steering wheel. Check the
horn regularly to be sure it operates
properly.✽ ✽
NOTICETo sound the horn, press the area indi-
cated by the horn symbol on your steer-
ing wheel (see illustration). The horn will
operate only when this area is pressed.
CAUTION
Do not strike the horn severely to
operate it, or hit it with your fist. Donot press on the horn with a sharp- pointed object.
OXM049034N
XM CAN (ENG) 4(~105).QXP 4/19/2011 10:37 AM Page 38

439
Features of your vehicle

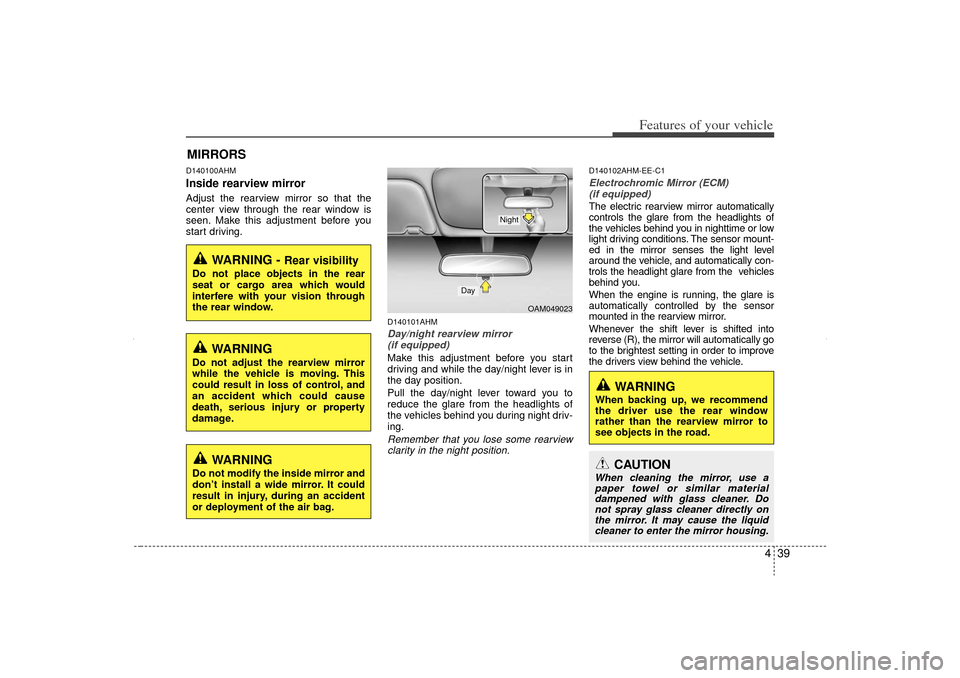

D140100AHMInside rearview mirrorAdjust the rearview mirror so that the
center view through the rear window is
seen. Make this adjustment before you
start driving.
D140101AHMDay/night rearview mirror (if equipped)Make this adjustment before you start
driving and while the day/night lever is in
the day position.
Pull the day/night lever toward you to
reduce the glare from the headlights of
the vehicles behind you during night driv-
ing.Remember that you lose some rearviewclarity in the night position.

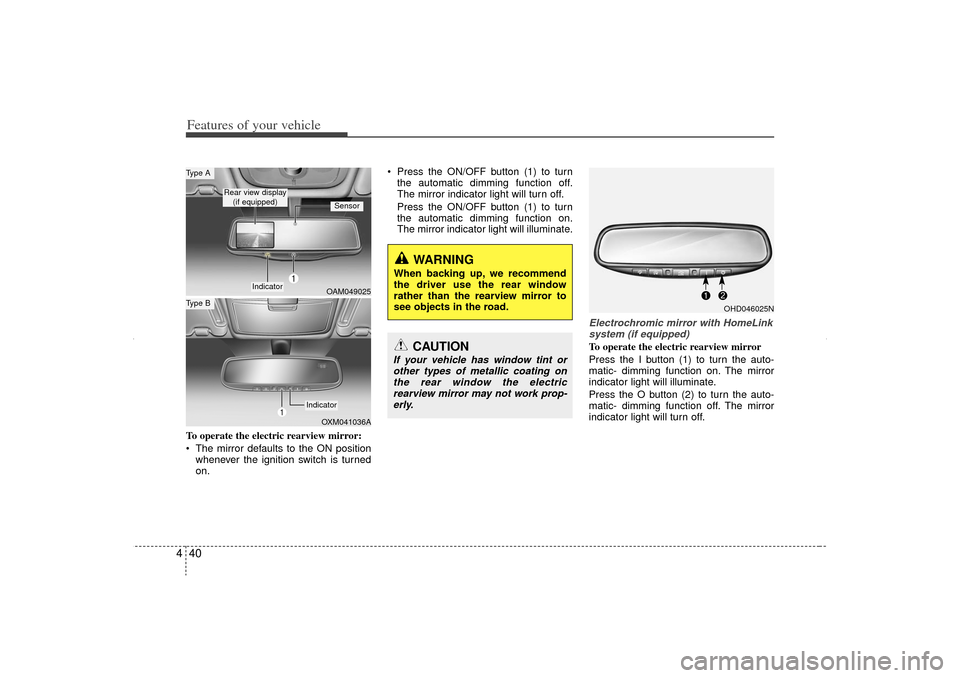

D140102AHM-EE-C1Electrochromic Mirror (ECM)(if equipped)The electric rearview mirror automatically
controls the glare from the headlights of
the vehicles behind you in nighttime or low
light driving conditions. The sensor mount-
ed in the mirror senses the light level
around the vehicle, and automatically con-
trols the headlight glare from the vehicles
behind you.
When the engine is running, the glare is
automatically controlled by the sensor
mounted in the rearview mirror.
Whenever the shift lever is shifted into
reverse (R), the mirror will automatically go
to the brightest setting in order to improve
the drivers view behind the vehicle.
MIRRORS
WARNING -
Rear visibility
Do not place objects in the rear
seat or cargo area which would
interfere with your vision through
the rear window.
WARNING
Do not adjust the rearview mirror
while the vehicle is moving. This
could result in loss of control, and
an accident which could cause
death, serious injury or property
damage.
OAM049023
Day
Night
CAUTION
When cleaning the mirror, use apaper towel or similar materialdampened with glass cleaner. Donot spray glass cleaner directly onthe mirror. It may cause the liquidcleaner to enter the mirror housing.
WARNING
When backing up, we recommend
the driver use the rear window
rather than the rearview mirror to
see objects in the road.
WARNING
Do not modify the inside mirror and
don’t install a wide mirror. It could
result in injury, during an accident
or deployment of the air bag.
XM CAN (ENG) 4(~105).QXP 4/19/2011 10:37 AM Page 39

Features of your vehicle40
4To operate the electric rearview mirror:
 The mirror defaults to the ON position
whenever the ignition switch is turned
on.  Press the ON/OFF button (1) to turn
the automatic dimming function off.
The mirror indicator light will turn off.
Press the ON/OFF button (1) to turn
the automatic dimming function on.
The mirror indicator light will illuminate.
Electrochromic mirror with HomeLinksystem (if equipped)To operate the electric rearview mirror
Press the I button (1) to turn the auto-
matic- dimming function on. The mirror
indicator light will illuminate.
Press the O button (2) to turn the auto-
matic- dimming function off. The mirror
indicator light will turn off.
CAUTION
If your vehicle has window tint orother types of metallic coating onthe rear window the electricrearview mirror may not work prop- erly.
OHD046025N
OAM049025OXM041036A
Type AType B
Rear view display
(if equipped)
Sensor
Indicator
Indicator
WARNING
When backing up, we recommend
the driver use the rear window
rather than the rearview mirror to
see objects in the road.
XM CAN (ENG) 4(~105).QXP 4/19/2011 10:37 AM Page 40
